EDWARDS Gauging Table Kit - ED9-AC0900

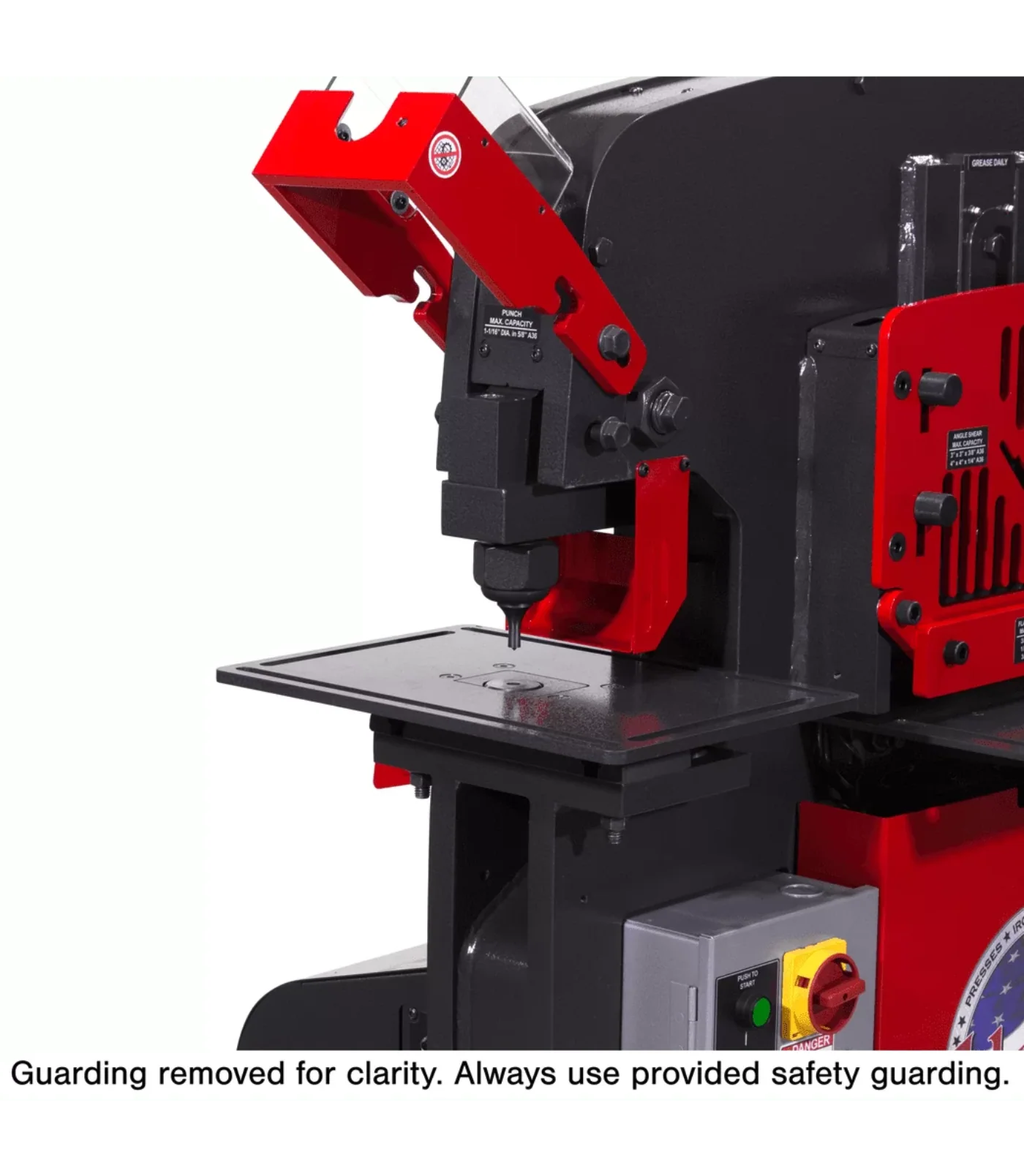

Add speed and precision to your Punch Workstation. Compatible with the Edwards 40, 50, 55, 60, 65, 75, and 100 Ton Ironworkers, this 3/8" x 12" x 16" gauging table bolts to Standard or Oversize Pedestal Die Tables and includes adjustable fences and handles to quickly and easily guide your material for repeatable actions.
Features
- 3/8" thick, 12" x 16" table that adds precision to your Punch Workstation.
- Adjustable fences and handles quickly and easily guide your material for perfect repeatable actions.
- Compatible with both Standard and Oversize Pedestal Die Tables.
- Custom gauging table sizes and additional fences also available.
- Induction hardened for increased strength.
- Tooth matched at the weld to eliminate blade ticking.
What our Experts Think
-
Precision Punch Support Upgrade — the EDWARDS Gauging Table Kit (ED9‑AC0900) adds a stable, 3/8″‑thick 12″ × 16″ work surface for more accurate material positioning during punching operations.
-
Repeatable, Consistent Results — adjustable fences and handles guide material to the same punch location every time, reducing misalignment and rework.
-
Wide Compatibility — bolts onto standard or oversize pedestal die tables and works with 40T–100T Edwards ironworkers, expanding versatility across your fleet.
-
Improves Workflow Efficiency — larger, guided surface accelerates setup and speeds repetitive punching tasks for higher throughput.
-
Durable, Shop‑Ready Construction — robust steel table withstands industrial fab environments and heavy use.
-
Optional Customization — additional fences and custom table sizes available for specialized applications.
Q&A
Q1: What is the ED9‑AC0900 Gauging Table Kit?
A: A precision gauging table accessory for Edwards ironworkers that adds a flat work surface and guides material during punching operations for more accurate and repeatable results.
Q2: What does it improve?
A: Offers a stable 3/8″ thick, 12″ × 16″ table with adjustable fences and handles that help position and guide material consistently for faster, repeatable punch work.
Q3: Which machines is it compatible with?
A: Designed to bolt to standard or oversize pedestal die tables on Edwards 40 T–100 T ironworkers (40, 50, 55, 60, 65, 75, and 100 ton).
Q4: What are the key physical specs?
A: Table surface is 3/8″ thick and 12″ × 16″, with overall approximately 17″ × 13″ × 5″, weighing around 20 lbs.
Q5: How does it help productivity?
A: By guiding materials to the same punch location every cycle, it reduces setup time and improves accuracy and throughput for repetitive punching tasks.
Q6: Is it compatible with oversized punch tooling?
A: Yes — bolts to both standard and oversize pedestal die tables, allowing flexibility in punch configurations.
Q7: Can it be customized?
A: Custom table sizes and additional fences available to suit specific material handling and alignment needs.
Q8: What environments benefit from this kit?
A: Metal fabrication shops, structural steel work, and any ironworker‑driven punching applications where repeatability and speed matter.
Q9: How does it mount?
A: Simply bolts to existing pedestal die tables on compatible ironworker models without complex installation.
Q10: What’s the main advantage?
A: Improves precision, consistency, and efficiency in punch workstation operations — minimizing misalignment and boosting throughput.
Maintenance Tips
-
Clean After Use: Wipe the table surface and adjustable fences to remove metal chips and debris, preserving precision and preventing surface wear.
-
Inspect for Damage: Check the table top, fences, handles, and hardware for cracks, bends, or loose parts that can affect repeatability.
-
Lubricate Adjustments: Apply light lubricant to moving fence parts and handles to ensure smooth positioning and prevent corrosion.
-
Secure Fasteners: Regularly tighten all bolts, screws, and clamps to keep the kit stable during punching operations.
-
Align with Die Table: Confirm the gauging table is properly aligned with your ironworker’s pedestal die table for accurate, repeatable punching.
-
Protect from Rust: Store the kit in a dry area and apply rust inhibitor on exposed steel surfaces when it’s idle to extend life.
