EDWARDS Heavy-Duty Gauging Table Kit For 100 Ton Deluxe Ironworkers - ED9-AC0904

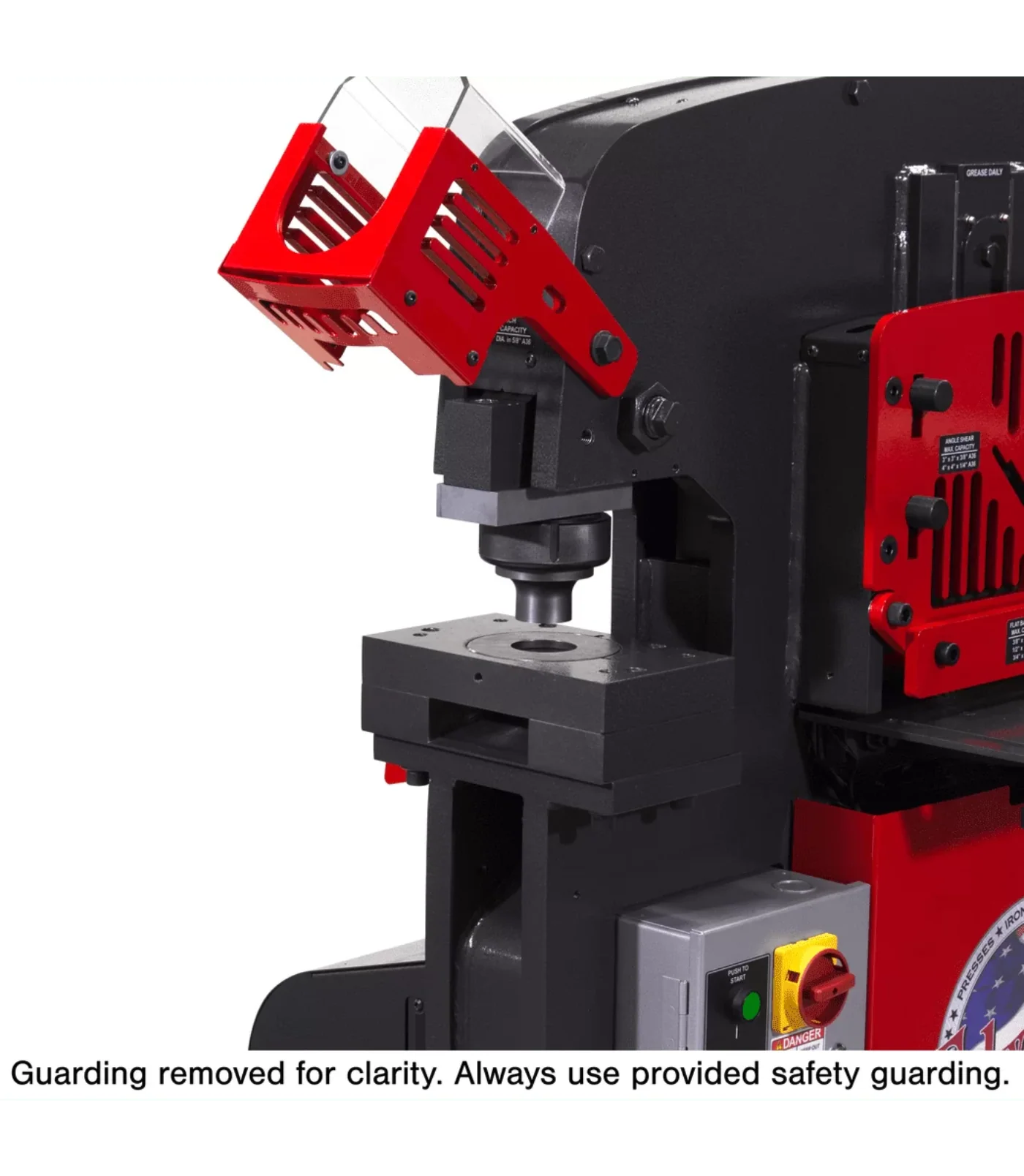

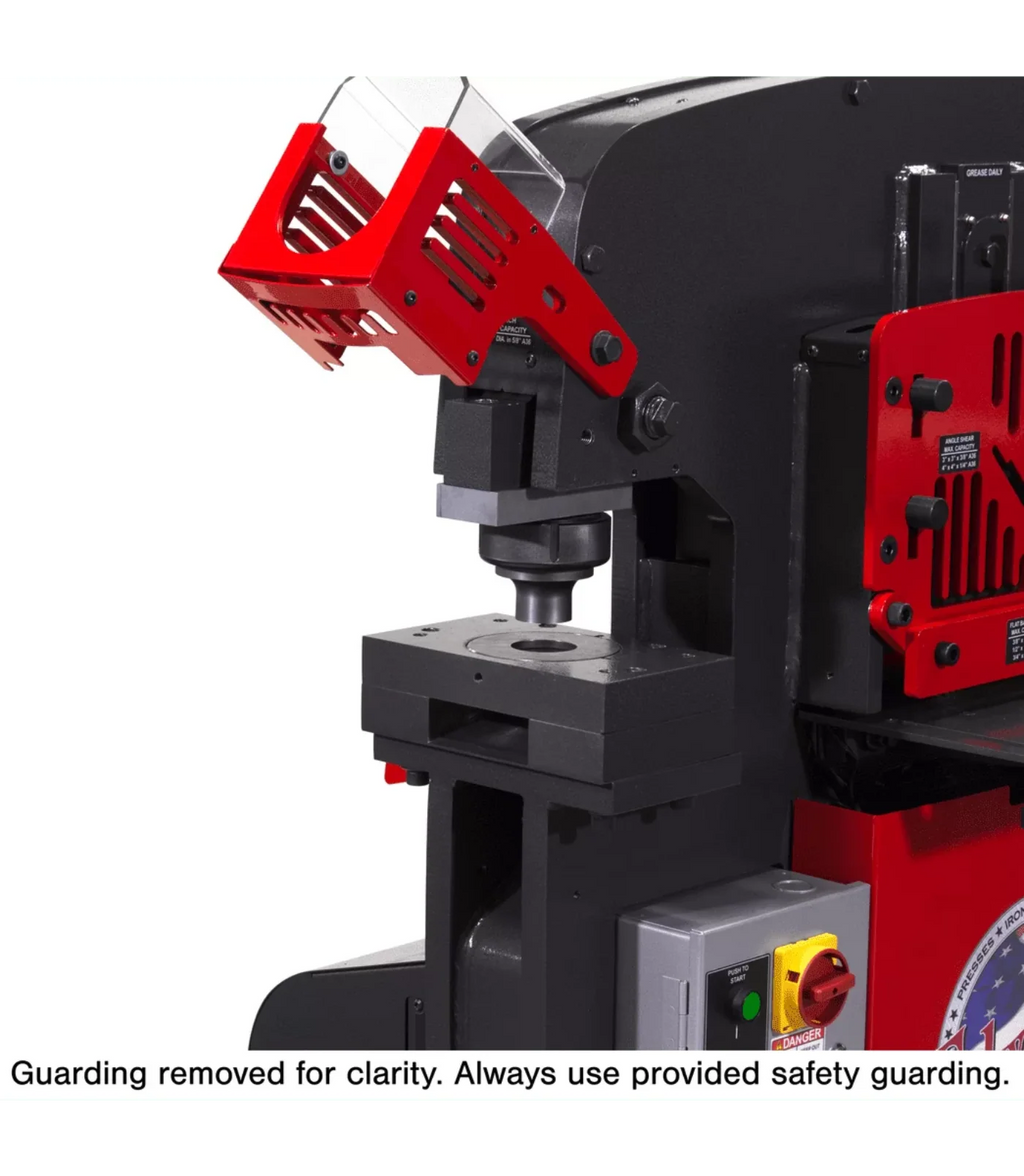

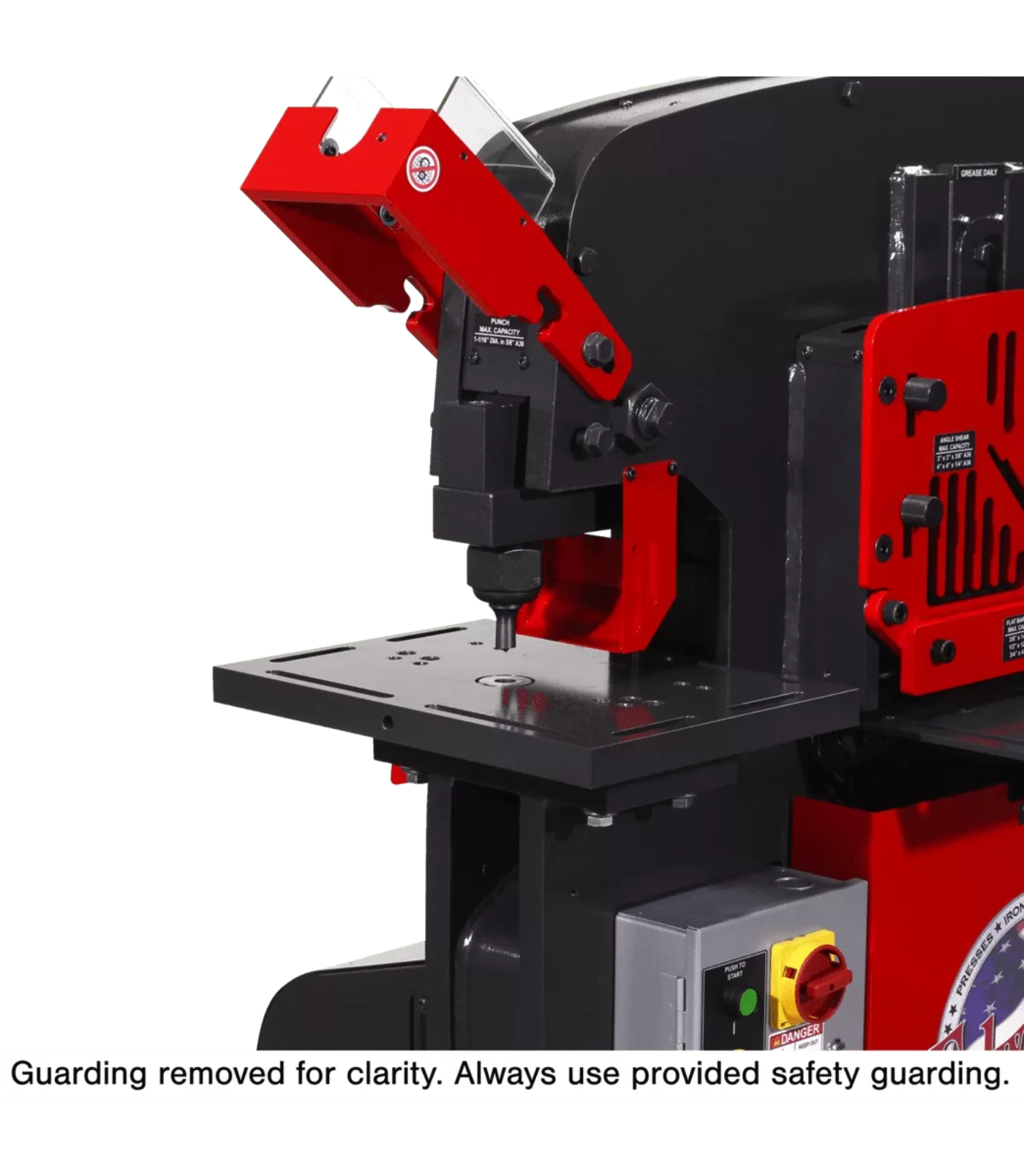

The 1" x 12" x 16" table replaces your installed Die table to add speed and precision to your Punch Workstation. Compatible with the Edwards 100 Ton Deluxe Ironworker. Includes adjustable fences and handles to quickly and easily guide your material for perfect repeatable actions.
Features
- 1" x 12" x 16" Table adds speed and precision to your punch workstation.
- Adjustable fences and handles quickly and easily guide your material for perfect repeatable actions.
- Replaces installed Die Table on 100 Ton Deluxe and 120 Ton Edwards Ironworkers.
- Induction hardened for increased strength.
- Tooth matched at the weld to eliminate blade ticking.
What our Experts Think
- Designed to boost precision and efficiency at the punch station on your ironworker — the 1″ × 12″ × 16″ gauging table increases work surface and control for accurate holemaking.
-
Replaces the installed die table on 100 Ton Deluxe (and compatible 120 Ton) ironworkers, upgrading your workstation without additional machines.
-
Adjustable fences and handles help guide material consistently, reducing misfeeds and improving repeatability.
-
Induction‑hardened construction delivers strength and durability for heavy‑use punch operations.
- Heavy gauge surface supports larger stock and reduces setup time for batch punching jobs.
- Rigid, stable work surface improves operator control and accuracy during high‑capacity punching.
Q&A
Q1: What is the ED9‑AC0904?
A: It’s a heavy‑duty gauging table kit that replaces the standard die table on 100 Ton Deluxe Edwards ironworkers to improve precision and speed of punching operations.
Q2: What does it do?
A: Provides a stable work surface with adjustable fences and handles to guide material accurately and achieve repeatable punch results.
Q3: What materials can it help with?
A: Ideal for heavier sheet metal, plate, structural steel, and other tough fabrication materials needing accurate punching.
Q4: What size is the table?
A: The gauge table measures approximately 1″ × 12″ × 16″, adding a larger alignment surface to the punching area.
Q5: Does it include guides/fences?
A: Yes — it comes with adjustable fences and handles to help position material quickly and improve workflow consistency.
Q6: What machines is it compatible with?
A: Designed for 100 Ton Deluxe Edwards Ironworkers and also fits 120 Ton models.
Q7: How does it improve punching accuracy?
A: The larger table and guide fences help minimize material misalignment and enable repeatable hole placement with less setup.
Q8: Is it durable?
A: Yes — constructed with induction‑hardened steel for strength and long‑term industrial use.
Q9: Does it help productivity?
A: Absolutely — by speeding material alignment and reducing setup time, it increases throughput in punch‑intensive workflows.
Q10: What’s the main benefit for fabrication shops?
A: Provides greater control, precision, and consistency for large punching tasks compared to standard die tables.
