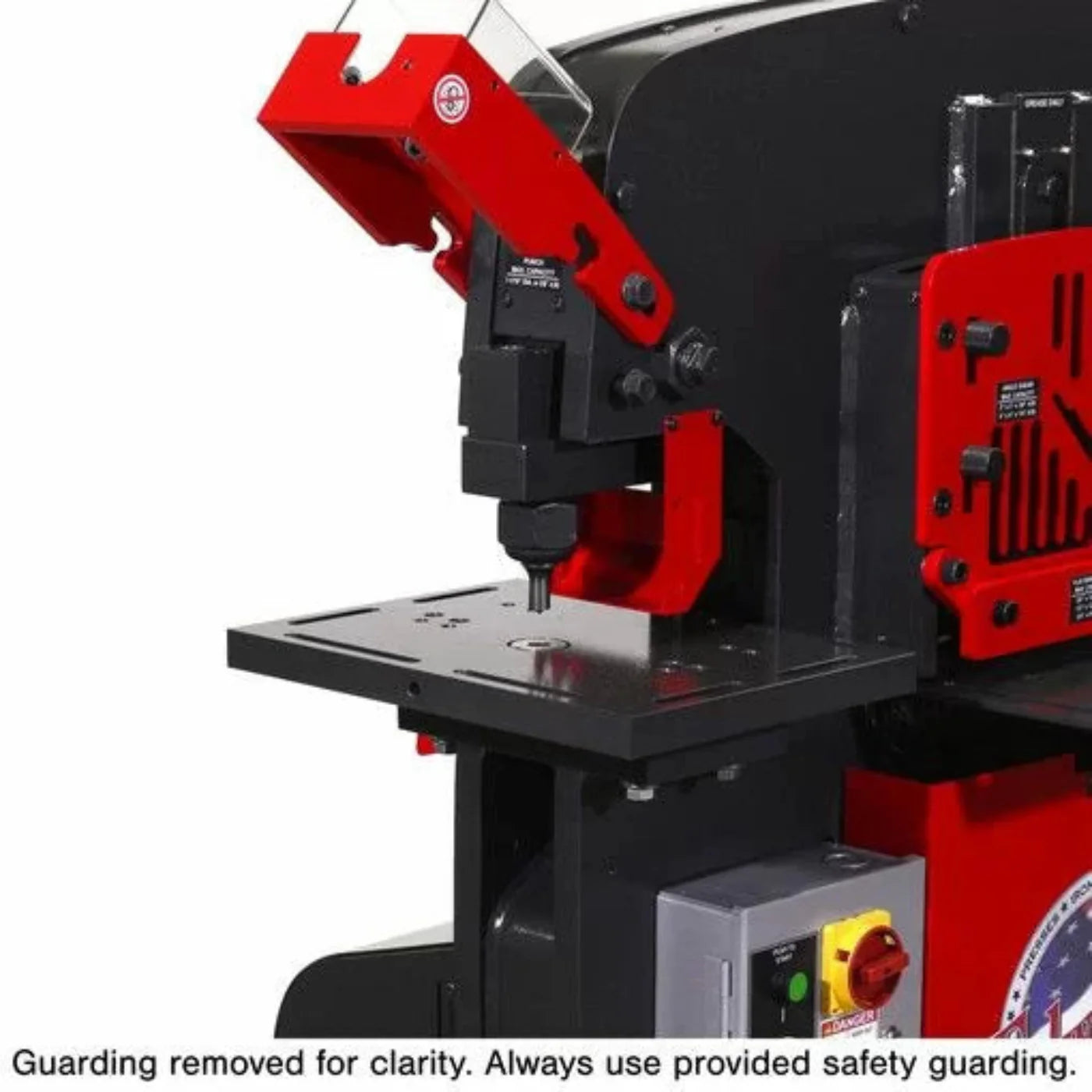

EDWARDS Heavy-Duty Gauging Table Kit For Oversize Punch Assembly - ED9-AC0905
The 1" x 12" x 16" replaces the Standard Pedestal Die table to add speed and precision to your Punch Workstation. Compatible with the Edwards 40, 50, 55, 60, 65, 75, 100 Ton and Elite Ironworkers. Includes adjustable fences and handles to quickly and easily guide your material for perfect repeatable actions.
Features
- 1" x 12" x 16" Table adds speed and precision to your punch workstation.
- Adjustable fences and handles quickly and easily guide your material for perfect repeatable actions.
- Replaces Standard Pedestal Die Table on 40, 50, 55, 60, 65 75 and 100 Ton Edwards Ironworkers.
- Induction hardened for increased strength.
- Tooth matched at the weld to eliminate blade ticking.
- Greenwood blade does a great job when cutting moist wood.
What our Experts Think
-
Built for precision in heavy-duty workflows
Designed specifically for oversize punch assemblies, this gauging table kit ensures accurate alignment and repeatable results—critical for professional-grade fabrication.
-
Improves efficiency and consistency
Reduces setup time and minimizes human error, allowing operators to maintain consistent punch positioning across multiple jobs.
-
Rugged, industrial-grade construction
Engineered to handle demanding environments, making it ideal for workshops that require durability and long-term reliability.
-
Seamless compatibility
Tailored to integrate with EDWARDS ironworkers and oversize punch setups, ensuring a secure fit and smooth operation.
-
Enhances operator control
Provides stable material support and precise gauging, improving safety and ease of use during punching operations.
-
Smart investment for high-volume shops
Perfect for fabricators who prioritize accuracy, repeatability, and productivity in heavy-duty metalworking tasks.
Q&A
Q: What is the EDWARDS Heavy-Duty Gauging Table Kit (ED9-AC0905)?
A: It’s a precision-engineered gauging table designed for oversize punch assemblies, helping improve accuracy and efficiency in metalworking punch operations.
Q: What machines is this kit compatible with?
A: It fits Edwards ironworkers ranging from 40 to 100 tons, including Elite models, making it highly versatile for fabrication shops.
Q: How does this gauging table improve performance?
A: The 1" x 12" x 16" heavy-duty table replaces the standard pedestal die table to deliver faster setup, precise alignment, and repeatable punching results.
Q: What features ensure accuracy and repeatability?
A: Adjustable fences and handles guide material consistently to the same punch location, reducing errors and improving workflow efficiency.
Q: Is the construction durable for heavy industrial use?
A: Yes, it features induction-hardened components for enhanced strength and long-term durability in demanding environments.
Q: What comes included in the kit?
A: The kit includes the heavy-duty table, mounting plate, hardware, and both short and long movable fences for flexible setup.
Q: Who should use this product?
A: Ideal for metal fabricators, machinists, and industrial workshops needing precise, repeatable hole punching for oversize applications.
Maintenance Tips
-
Keep Surface Clean: Remove metal shavings, oil, and debris after each use to maintain precision and prevent surface wear.
-
Inspect Regularly: Check for cracks, warping, or misalignment—especially after heavy-duty or oversized punching tasks.
-
Lubricate Moving Parts: Apply light machine oil to adjustable fences and handles to ensure smooth, accurate positioning.
-
Tighten Hardware: Periodically secure bolts, clamps, and mounting components to maintain stability and repeatable accuracy.
-
Protect from Corrosion: Store in a dry environment and apply anti-rust coating if exposed to moisture or coolant.
-
Calibrate Fences: Recheck alignment of adjustable guides to ensure consistent, repeatable punching results.
