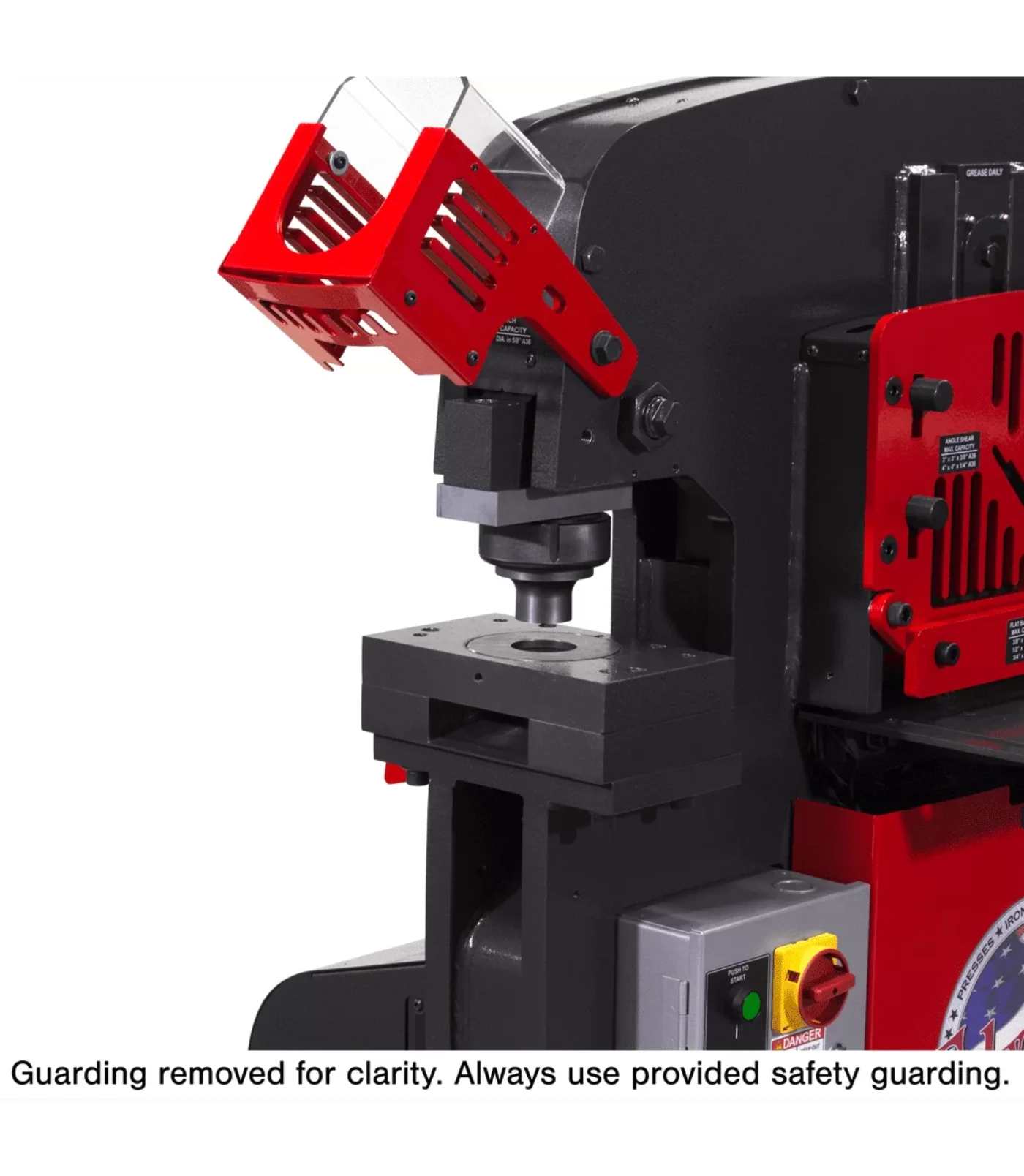

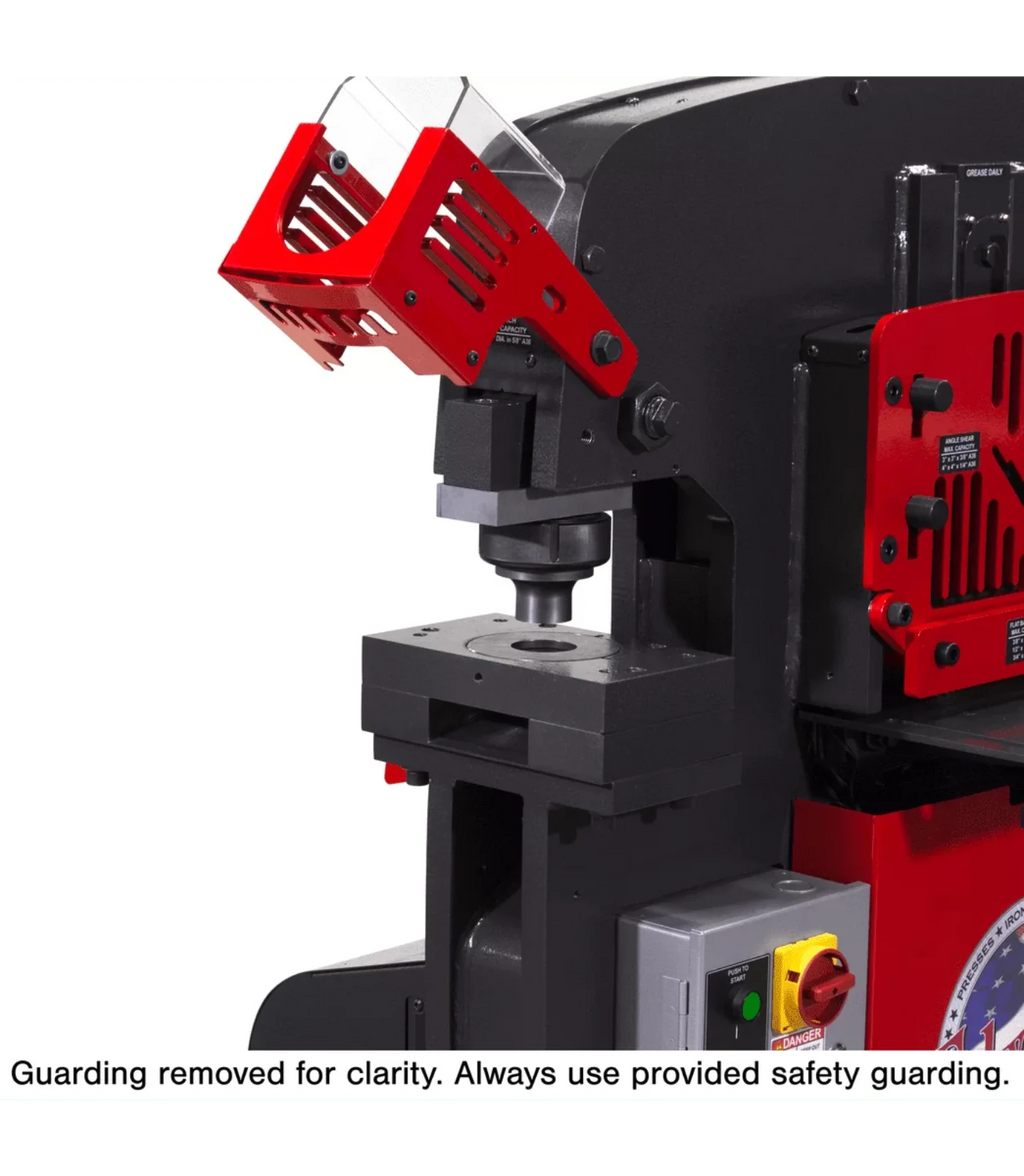

EDWARDS 241 Punch Assembly For 120 Ton Ironworkers - ED9-AC1055-4
The 241 Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 4". Punch large holes and slots in anything from sheet metal to steel plate.
Features
- Punch large holes and slots in anything from heavy sheet metal to steel beams.
- Replaces the installed Punch Assembly on the 120 Ton Ironworkers.
- Requires 241 Punch & Die sets (contact Edwards for pricing and availability).
- 241 punch assembly accommodates punch and die sets in various shapes and sizes from 1" up to 4".
What our Experts Think
- Designed for heavy punching tasks — the 241 Punch Assembly (ED9‑AC1055‑4) lets you punch large holes and slots in sheet, plate, and structural steel up to 4″ with the right punch & die sets.
-
Direct fit for 120 Ton Edwards Ironworkers — replaces the standard punch assembly for expanded capability on larger machines.
-
Broad tooling flexibility — accepts a variety of punch & die shapes/sizes to match your job needs (tooling sold separately).
-
Industrial‑grade construction — built to withstand heavy use in demanding fabrication environments.
-
Simple upgrade with big impact — quick swap‑in installation minimizes downtime and increases utility of your machine.
- Ideal for structural, fabrication, and heavy‑duty metalworking shops needing high‑capacity punching performance.
Q&A
Q1: What is the ED9‑AC1055‑4?
A: A heavy‑duty 241 punch assembly that replaces the standard punch station on 120 ton Edwards ironworkers to enable larger hole and slot punching in heavy fabrications.
Q2: What applications is it designed for?
A: It’s ideal for punching large holes and slots in sheet metal, structural plate, steel beams, and other thick materials in fabrication and industrial metalworking.
Q3: What punch/die sizes does it support?
A: Accommodates 241 punch and die sets in various shapes/sizes from 1″ up to 4″, providing flexibility for large hole and slot configurations.
Q4: Which ironworkers is it compatible with?
A: Designed specifically to replace the installed punch assembly on 120 ton Edwards ironworker models.
Q5: Does it include tooling?
A: No — punch & die sets are sold separately; you’ll need to purchase 241 punch/die tooling to match your hole size needs.
Q6: How does this assembly improve workflow?
A: By enabling larger, cleaner hole and slot punching without secondary tools, it reduces setup time and increases productivity on heavy‑duty jobs.
Q7: Is it suitable for industrial use?
A: Yes — built for heavy fabrication environments with rugged construction and stable performance during high‑capacity punching tasks.
Q8: What is the unit’s weight and size?
A: It weighs about 62 lbs with compact dimensions (~16″ × 13″ × 13″) for easy installation and removal.
Q9: Why upgrade to this punch assembly?
A: It expands punching capability beyond standard punch stations, handling larger holes and slots efficiently for structural and production applications.
Q10: What industries benefit most?
A: Metal fabrication, structural steel work, industrial manufacturing, and any shop needing heavy‑duty hole punching capability.
Maintenance Tips
-
Clean After Every Use: Remove metal chips and debris from the punch and die area to prevent buildup and maintain smooth punching operations.
-
Lubricate Tooling: Apply light machine oil to punch shanks, die surfaces, and moving parts to reduce friction and extend tooling life.
-
Inspect Wear & Damage: Regularly check punches and dies for dull edges, cracks, or deformation; replace worn components promptly to ensure clean, accurate holes up to 4″.
-
Verify Alignment: Ensure punch and die are properly aligned after installation to prevent uneven wear and stress on the assembly.
-
Tighten Fasteners: Periodically check and secure bolts and mounting hardware to avoid movement during heavy 120 ton punching.
-
Prevent Corrosion: Store in a dry area and apply rust inhibitor on exposed steel surfaces when not in use.
