EDWARDS 241 Punch Assembly For 40 Ton Ironworkers (2013 & Older) - ED9-AC1055-S1

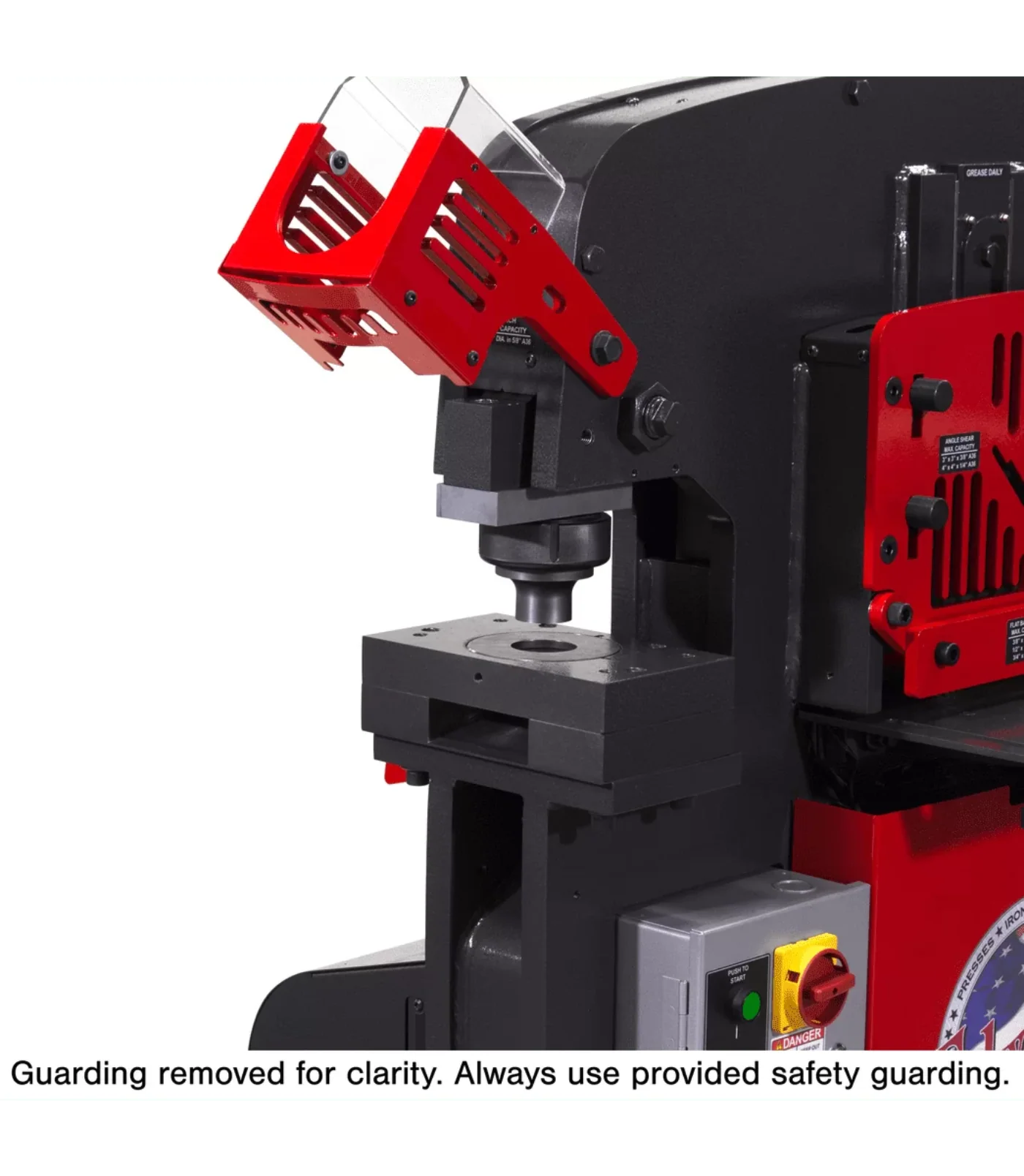

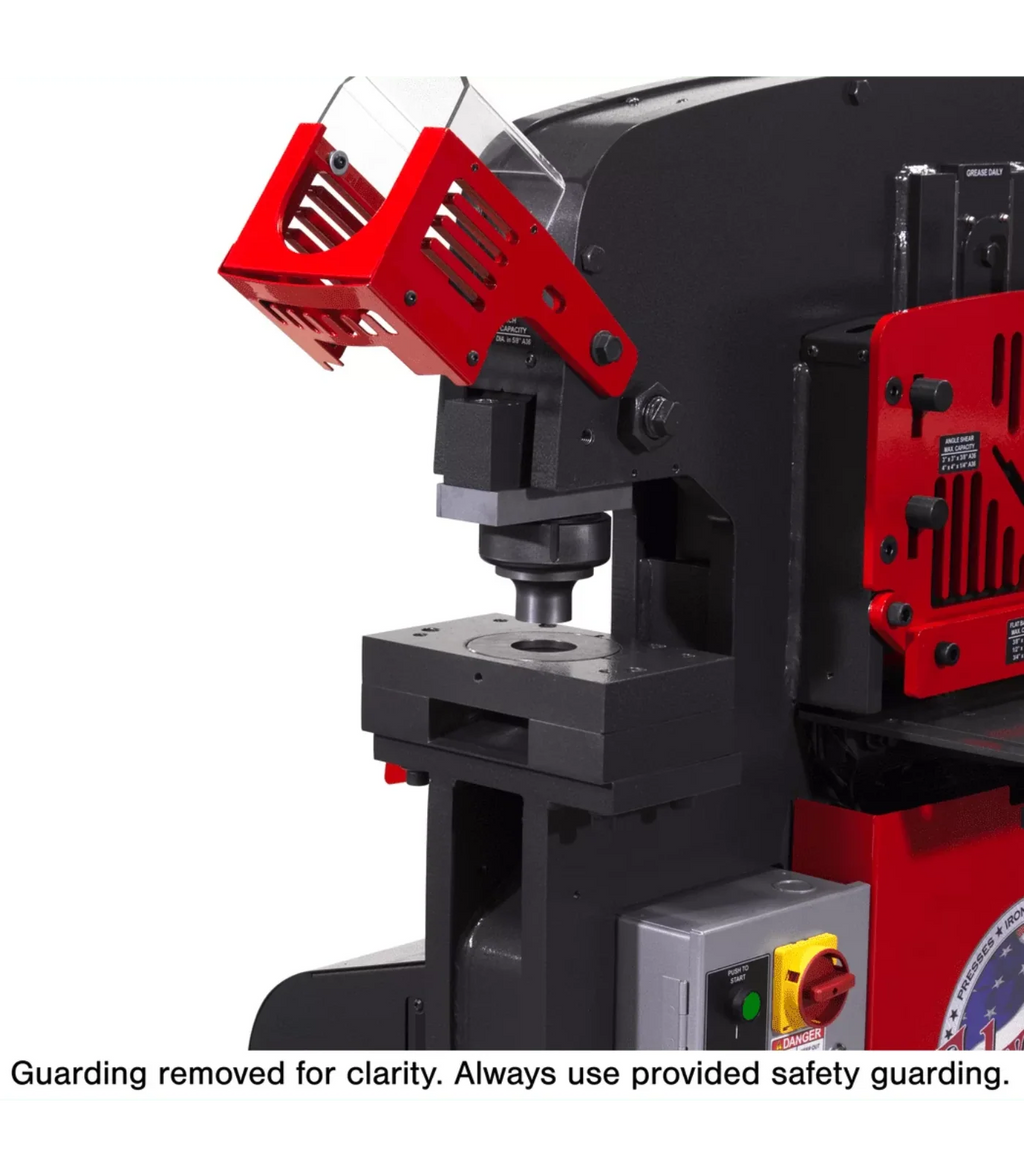

The 241 Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 4". Punch large holes and slots in anything from sheet metal to steel plate.
Features
- Punch large holes and slots in anything from heavy sheet metal to steel beams.
- Replaces the installed Punch Assembly on the 40 Ton Ironworkers (2013 & Prior).
- Requires 241 Punch & Die sets (contact Edwards for pricing and availability).
- 241 punch assembly accommodates punch and die sets in various shapes and sizes from 1" up to 4".
What our Experts Think
- Direct replacement 241 Punch Assembly designed specifically for 40 Ton Edwards Ironworkers (2013 & older) — fits pre‑2014 machines seamlessly.
- Expands your punching capability to handle large holes and slots (1″–4″) in sheet, plate, and structural steel when used with the correct punch & die sets.
-
Heavy‑duty construction delivers long‑lasting durability for demanding fabrication tasks.
-
Straightforward installation replaces the stock punch station to broaden your ironworker’s range without extra equipment.
- Requires compatible 241 punch & die sets (sold separately) so you can tailor tooling to specific materials and hole sizes.
- Ideal for shops needing high‑capacity punching on older Edwards ironworkers without upgrading the entire machine.
Q&A
Q1: What is the ED9‑AC1055‑S1?
A: It’s a heavy‑duty 241 Punch Assembly designed to replace the standard punch station on 40 ton Edwards Ironworkers manufactured in 2013 or earlier, enabling larger hole and slot punching in metalwork.
Q2: What does this punch assembly do?
A: It lets you punch large holes and slots in sheet metal, steel plate, beams, and other heavy materials using compatible 241 punch/die tooling.
Q3: What punch/die sizes does it support?
A: Accommodates 241 punch & die sets from ~1″ up to ~4″ for versatile hole sizes and shapes.
Q4: Which ironworkers is it compatible with?
A: Specifically made for Edwards 40 ton Ironworkers (2013 & prior) — it replaces the installed punch assembly on these models.
Q5: Does it include tooling?
A: No — 241 punch & die sets are sold separately and must be sourced to match your hole size needs.
Q6: How does it improve shop capability?
A: It expands your ironworker’s punching reach to larger holes and slots, eliminating secondary tooling for many fabrication tasks.
Q7: Is it rugged for industrial use?
A: Yes — built with heavy‑duty construction for tough metal fabrication environments.
Q8: What are typical dimensions/weight?
A: Approximately 62 lbs and compact (about 13″ × 16″ × 13″), making it easy to install and replace.
Q9: Who benefits most from this product?
A: Fabricators, structural steel shops, and metalworkers needing oversized hole punching on older 40 ton ironworkers.
Q10: What’s the main advantage of this assembly?
A: Provides greater punching capacity and flexibility compared to the standard punch station on older ironworker models.
Maintenance Tips
-
Clean After Every Use: Remove metal chips and debris from the punch and die area to prevent buildup and maintain clean punching performance.
-
Lubricate Moving Parts: Apply light machine oil to the punch shank and die surfaces to reduce friction and extend tooling life.
-
Inspect for Wear: Regularly check punch tips, dies, and guide surfaces for dulling, cracks, or deformation; replace worn tooling promptly for precise holes and slots.
-
Verify Alignment: After installation or tooling changes, ensure punch and die are properly aligned in the ironworker to avoid uneven wear and machine stress.
-
Tighten Fasteners: Periodically check and secure bolts and mounting hardware so the assembly stays stable during heavy punching cycles.
-
Prevent Corrosion: Store the punch assembly in a dry area; apply light rust inhibitor on exposed steel surfaces when idle to prevent oxidation.
