Designed to improve operator efficiency and production, this Ultimate Productivity Pack is specifically designed with an ironworker function in mind. Focusing on convenience and maximizing output, these Productivity Packs also increase accuracy and precision.
FLEXIBILITY
Contains Punches and Dies to produce the following size round holes: 3/16", 5/16", 7/16", 1/2", 9/16", 5/8", 11/16", 13/16", 15/16", and 1-1/16".

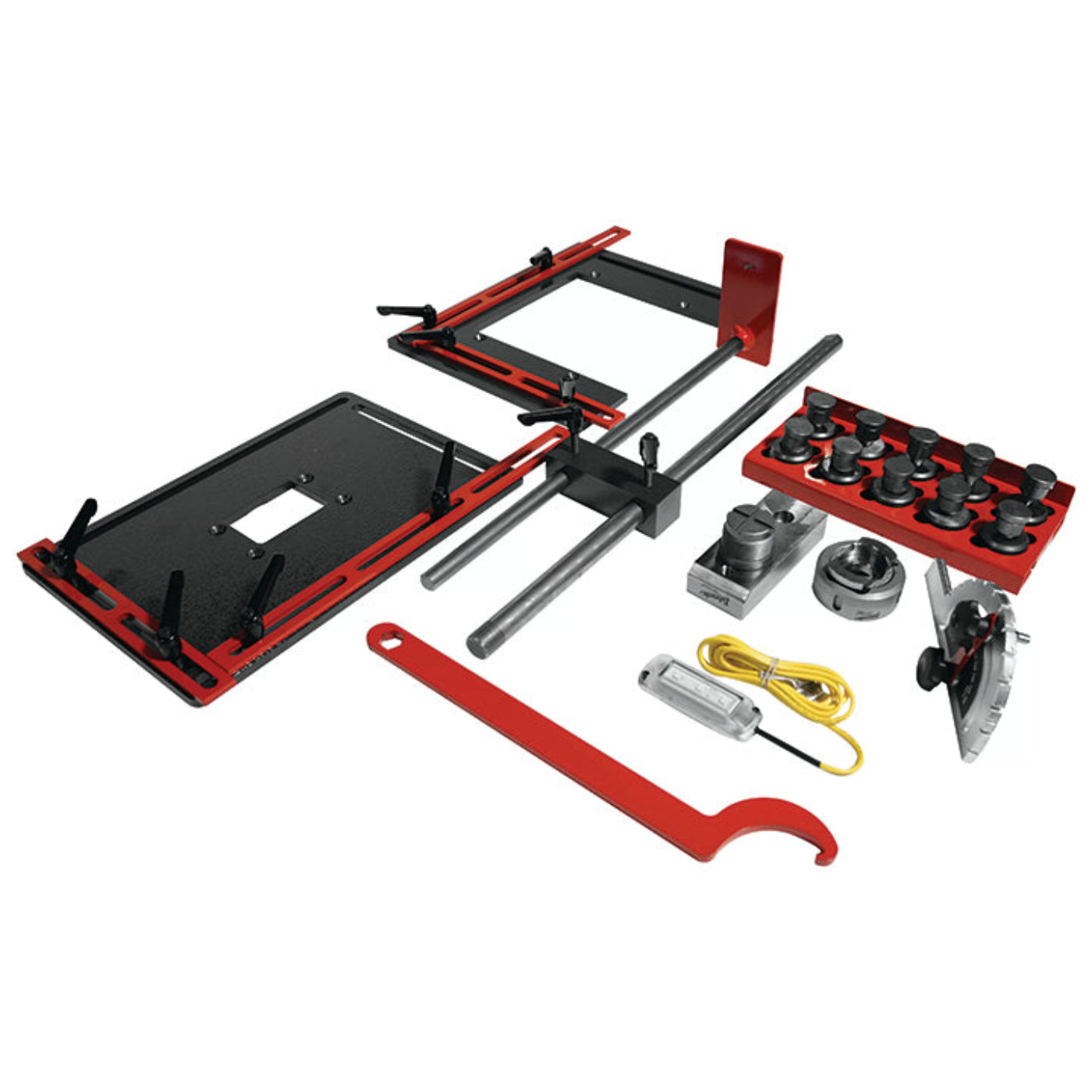

EDWARDS Ultimate Productivity Pack - ED9-AC2800
Punch and Die Storage Tray easily mounts to either side of the output shoot.
Quick Change Punch Assembly quickly allows changes between different size punch and die sets, saving time and money.
Fabricator's Protractor increases accuracy on the punch and flat bar shear workstations by guiding your workpiece, and is gauged at 15° increments through 180°, featuring a straight edge and reversible design.
Gauging Table Kit includes adjustable fences and handles, and quickly and easily guides your material for perfect repeatable actions.
SAFETY
Punch diameter must meet or exceed the thickness of your material.
Super Bright LED Light with M12 connections has a powerful magnetic base, allowing users to attach the light to any ironworker surface, and move as needed.
PERFORMANCE
Made of durable steel for long life.
Long lasting averages between 3,000 and 5,000 impacts.
Quick Change Punch Assembly accepts both standard and oversized punch and die sets.
3/8" thick, 12" x 16" Gauging Table adds precision to your punch workstation.
Features
- 10 piece round punch and die set.
- Punch and die storage tray.
- 48" back gauge.
- Fabricators protractor.
- Gauging table kit.
- Quick change punch.
What our Experts Think
-
All-in-one productivity upgrade for ironworkers
This kit bundles essential accessories into one package—eliminating the need to purchase components separately while maximizing shop efficiency from day one.
-
Massive boost in workflow speed
Includes a quick-change punch assembly and 48" back gauge, significantly reducing setup time and enabling faster repeatable operations.
-
Precision-focused for professional results
The gauging table kit and fabricator’s protractor (15°–180°) ensure accurate alignment and consistent punching/shearing across projects.
-
Versatile punching capability
Comes with a 10-piece punch & die set covering sizes from 3/16" to 1-1/16", making it suitable for a wide range of fabrication tasks.
-
Designed for high-output environments
Built with durable tool steel and engineered for 3,000–5,000 impact life cycles, supporting demanding industrial workloads.
-
Improved organization & operator convenience
Integrated storage tray and LED work light enhance visibility, accessibility, and overall shop safety.
-
Seamless compatibility with EDWARDS systems
Works with standard and oversize punch setups and integrates easily with pedestal die tables and ironworker stations.
Q&A
Q: What is the EDWARDS Ultimate Productivity Pack (ED9-AC2800)?
A: It’s an all-in-one accessory kit designed for Edwards ironworkers to boost productivity, accuracy, and efficiency in punching and shearing operations.
Q: What components are included in this productivity pack?
A: The kit includes a 10-piece punch & die set, quick-change punch assembly, gauging table kit, fabricator’s protractor, 48" back gauge, LED work light, and storage tray—covering essential fabrication needs.
Q: What hole sizes can it produce?
A: It supports round hole sizes from 3/16" up to 1-1/16", making it suitable for a wide range of metalworking applications.
Q: How does this kit improve workflow efficiency?
A: The quick-change punch system allows fast switching between sizes, while the back gauge and storage tray streamline setup and reduce downtime.
Q: How does it enhance accuracy and precision?
A: Features like the gauging table kit and fabricator’s protractor ensure consistent material alignment and repeatable, precise punching and cutting results.
Q: Is it compatible with different punch and die types?
A: Yes, the quick-change assembly accepts both standard and oversized punch and die sets, increasing versatility.
Q: Is the kit durable for industrial use?
A: Absolutely. Components are made from heavy-duty tool steel and built to withstand 3,000–5,000 impacts, ensuring long-lasting performance.
Q: Who is this product ideal for?
A: Ideal for metal fabricators, machine shops, and industrial users looking to maximize ironworker productivity with a complete, ready-to-use accessory package.
Maintenance Tips
-
Clean All Components Regularly: Remove metal chips, dust, and oil from punches, dies, gauging tables, and accessories to maintain precision and prevent wear.
-
Inspect Punches & Dies: Check for dull edges, cracks, or deformation—replace or sharpen to maintain clean, accurate holes.
-
Lubricate Moving Parts: Apply light oil to the quick-change punch assembly and adjustable components to ensure smooth operation and reduce friction.
-
Secure All Attachments: Periodically tighten bolts, gauges, and mounting hardware to maintain stability and repeatable accuracy.
-
Protect Against Corrosion: Store in a dry environment and apply anti-rust protection to tool steel components for long-term durability.
-
Maintain Gauging Accuracy: Regularly calibrate fences, back gauge, and protractor to ensure precise, repeatable cuts and punches.
-
Check LED & Accessories: Ensure work light, magnetic base, and storage tray remain clean and functional for safe, efficient operation
