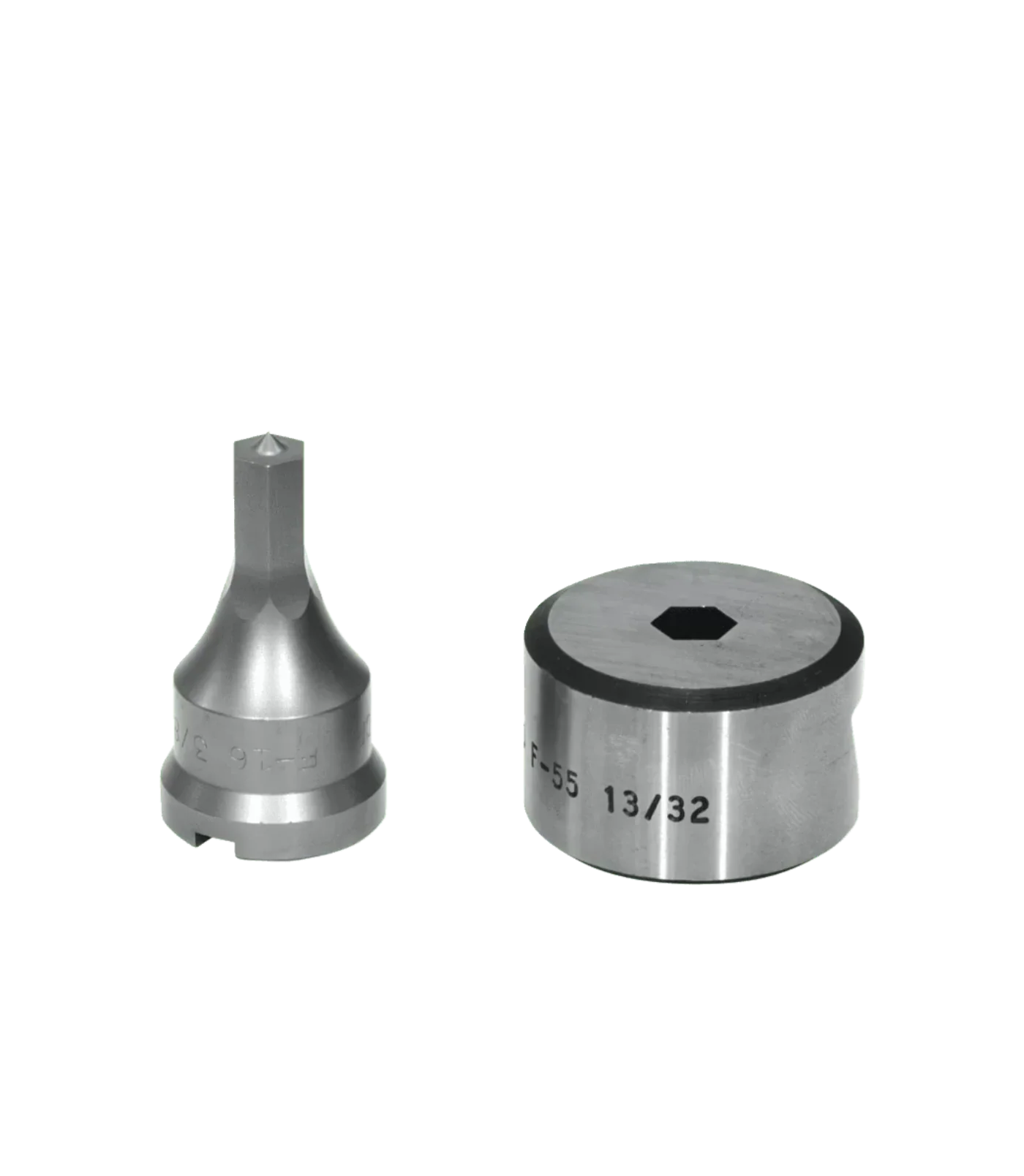

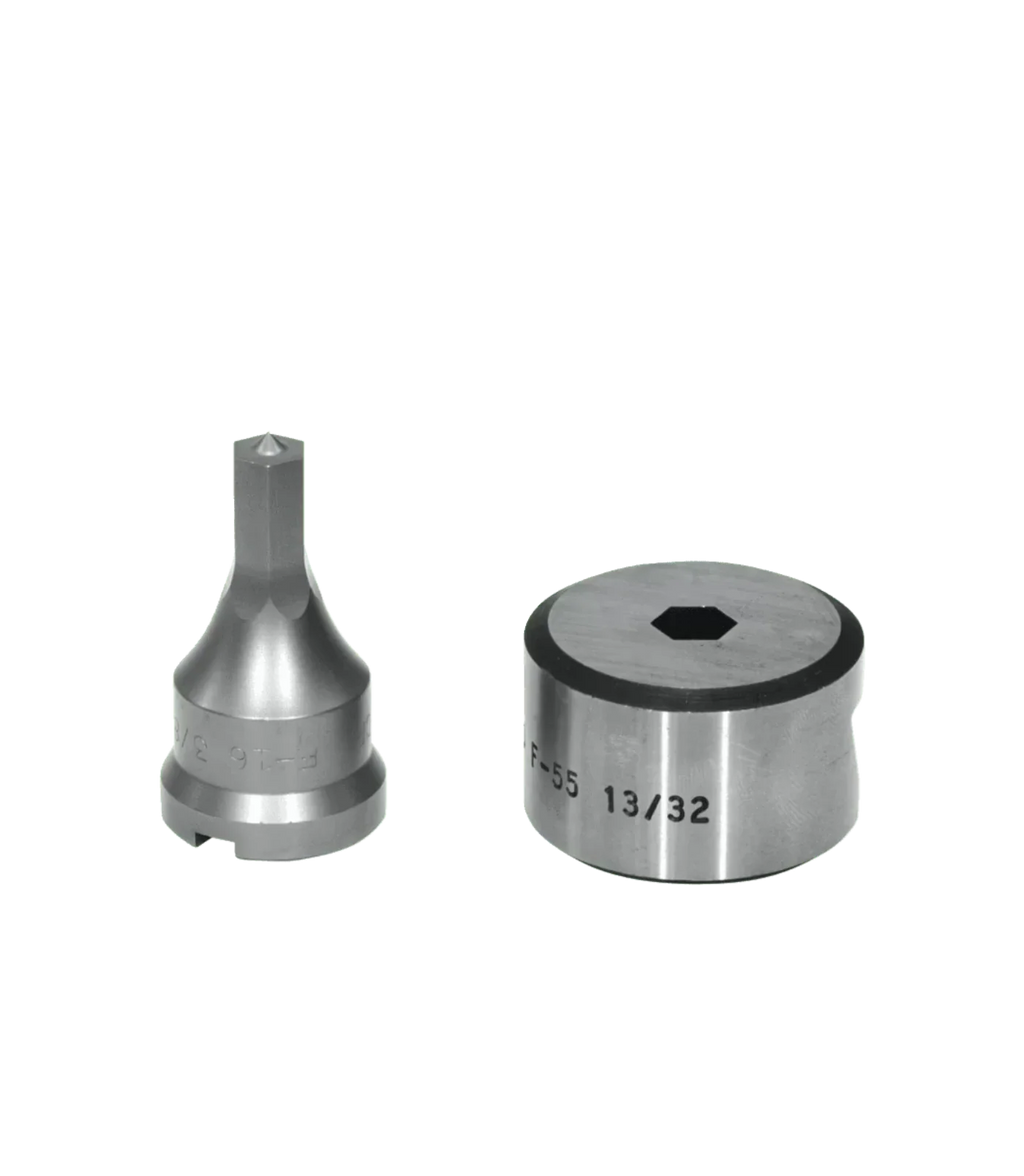

EDWARDS HEX Punch & Die Set w/ Key-Way - ED9-PDH3/8
Edwards Punch & Die Sets for our Ironworkers are sturdy and accurate. We offer Round, Square, Oblong, Hex and Metric sizes. Custom shapes and sizes are available as a special quote.
Features
- Compatible with standard Pedestal Die Table.
- Made of durable tool steel for long life.
- NOTE: Punch diameter must meet or exceed the thickness of your material.
What our Experts Think
-
Precision hex punching for specialized applications
Designed for clean, accurate 3/8" hex holes, making it ideal for bolt heads, fasteners, and custom fabrication where standard round holes won’t suffice.
-
Key-way design for secure alignment
The integrated key-way prevents rotation during operation—ensuring consistent orientation and reducing wear on both punch and die.
-
Industrial-grade durability
Manufactured from hardened tool steel, this set is built to withstand repeated heavy-duty punching cycles with long service life.
-
Optimized fit for EDWARDS ironworkers
Engineered to work seamlessly with standard punch holders and pedestal die tables, allowing quick installation and reliable performance.
-
Accurate sizing for clean results
Features a 3/8" punch with 13/32" die clearance, ensuring proper material flow and minimizing deformation during punching.
-
Reliable consumable for production environments
Ideal for fabrication shops that require repeatable hex punching with minimal downtime and consistent output quality.
Q&A
Q: What is the EDWARDS HEX Punch & Die Set w/ Key-Way (ED9-PDH3/8)?
A: It’s a precision 3/8" hex punch and die set designed for Edwards ironworkers, enabling accurate hex-shaped hole punching in metal fabrication applications.
Q: What size hole does this punch & die set create?
A: It produces a 3/8" hex hole using a matched punch and 13/32" die, ensuring proper clearance and clean cuts.
Q: What machines is it compatible with?
A: This set fits Edwards ironworkers and works with standard punch holders and pedestal die tables.
Q: What is the benefit of the key-way design?
A: The key-way ensures proper alignment between punch and die, improving accuracy, consistency, and reducing tool wear during repeated operations.
Q: Is this punch & die set durable for industrial use?
A: Yes, it is made from high-strength tool steel, delivering long-lasting performance in demanding fabrication environments.
Q: What materials can it punch?
A: Suitable for punching various metals, including steel and aluminum, as long as the material thickness does not exceed the punch diameter.
Q: How does it improve productivity?
A: It delivers clean, repeatable hex holes with minimal setup time, making it ideal for high-volume metalworking tasks.
Q: Who is this product ideal for?
A: Perfect for metal fabricators, machinists, and industrial workshops needing precise hex hole punching for fasteners or specialty applications.
Maintenance Tips
-
Clean After Each Use: Remove metal slugs, debris, and oil buildup to maintain sharp cutting edges and prevent premature wear.
-
Inspect Cutting Edges: Regularly check the punch and die for dullness, chips, or deformation—replace or sharpen as needed for clean hex holes.
-
Lubricate Before Operation: Apply light cutting oil to reduce friction, improve punch life, and ensure smoother operation.
-
Check Proper Alignment: Ensure punch and die are correctly seated in the holder to avoid uneven wear or damage.
-
Match Material Thickness: Always follow the rule that punch size meets/exceeds material thickness to prevent breakage.
-
Secure Installation: Confirm key-way and mounting components are tightly fitted to prevent shifting during punching.
-
Protect from Rust: Store in a dry area and apply a light anti-corrosion coating since tool steel is prone to oxidation.
