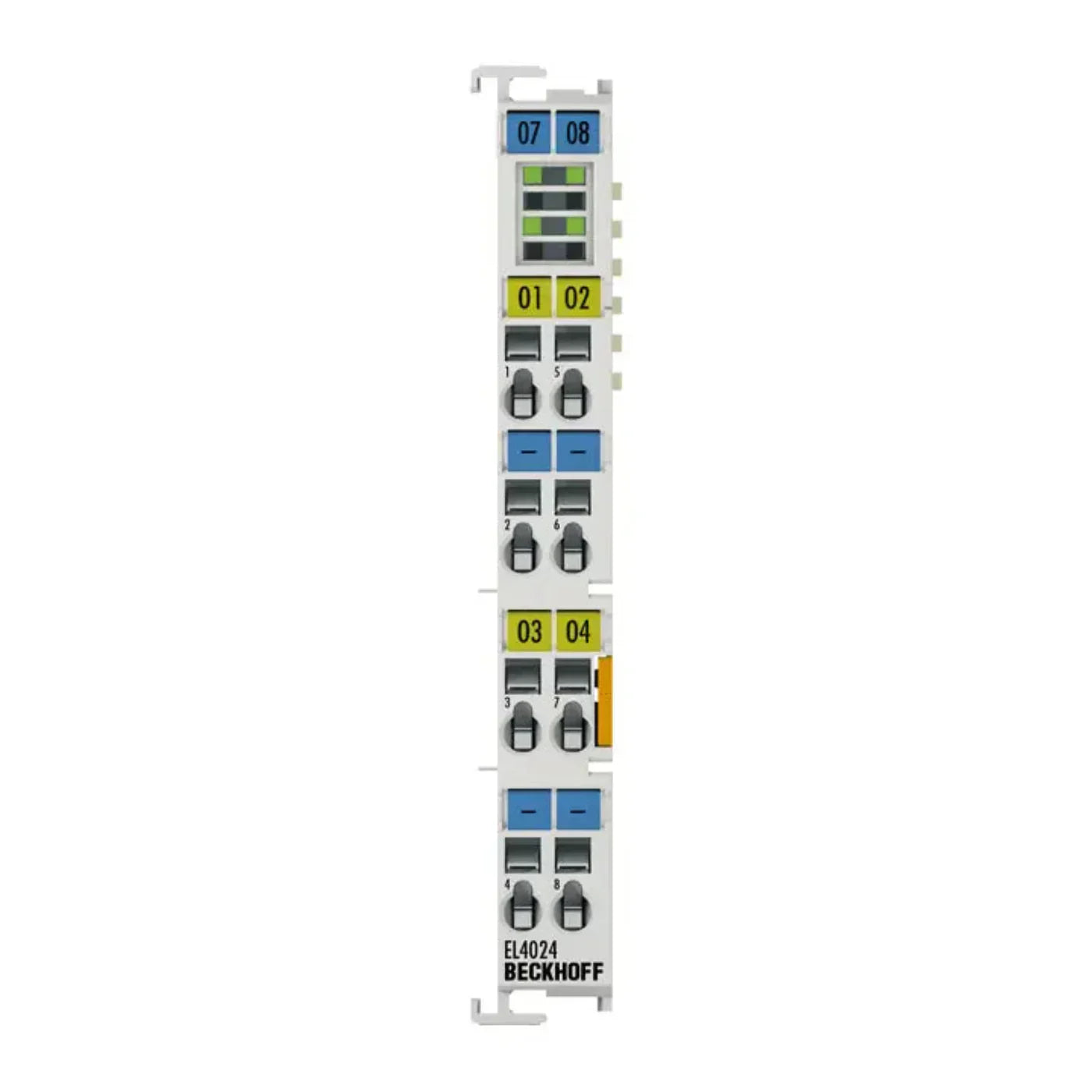

Beckhoff EtherCAT Terminal, 4-Channel Analog Output, Current, 4…20 mA, 12 Bit - EL4024
The EL4024 analog output terminal produces signals ranging from 4 to 20 mA. It operates with a 12-bit resolution and features electrical isolation for power supplied at the process level. The output channels share a common ground potential with the 24 V DC supply used by the EtherCAT Terminal. Each of the four channels of the EL4024 is powered by the 24 V supply.
Specifications
| Manufacturer |
Beckhoff
|
| Category |
PLCs/Machine Control |
| Subcategory |
PLC Programming Terminal |
| Part Number |
EL4024 |
| Number of outputs |
4 |
| Power supply |
24 V DC via power contacts |
| Signal current |
4…20 mA |
| Distributed clocks |
yes |
| Distributed clock precision |
<< 1 µs |
| Load |
< 350 Ω (short-circuit proof) |
| Resolution |
12 bit |
| Output error |
< 0.1% (relative to end value) |
| Electrical isolation |
500 V (E-bus/signal voltage) |
| Conversion time |
~ 250 µs |
| Current consumption power contacts |
typ. 50 mA |
| Current consumption E-bus |
typ. 140 mA |
| Bit width in the process image |
4 x 16 bit AO output |
| Special features |
Optional watchdog: user-specific output value with ramp; user synchronization can be activated. |
| Operating/storage temperature |
-25…+60°C/-40…+85°C |
| Relative humidity |
95%, no condensation |
| Protect. rating/installation pos. |
IP20/variable |
| Pluggable wiring |
for all ESxxxx terminals |
| Approvals/markings |
CE, UL, ATEX, IECEx |
