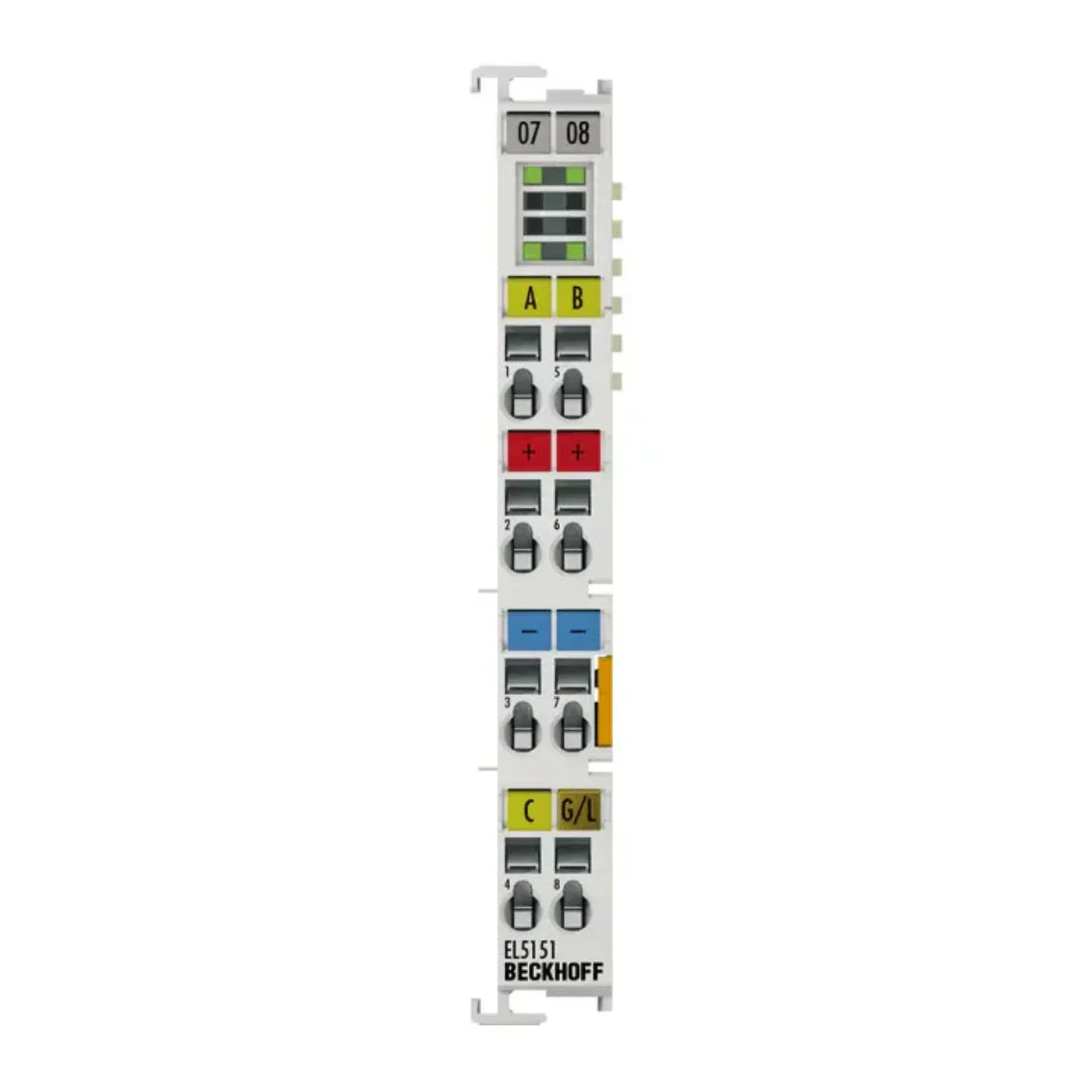

Beckhoff EtherCAT Terminal, 1-Channel Encoder Interface - EL5151
The Beckhoff EL5151 EtherCAT Terminal is a 1-channel encoder interface for incremental encoders with a 24 V DC HTL signal. It supports frequencies up to 100 kHz, providing precise position and speed measurements. This compact terminal is ideal for high-speed applications and integrates seamlessly with EtherCAT systems.
Specifications
| Manufacturer |
Beckhoff
|
| Category |
HMI / MMI / OIT |
| Subcategory |
Operator Interface |
| Part Number |
EL5151 |
| Technology |
incremental encoder interface, HTL 24 V DC |
| Number of channels |
1 |
| Encoder connection |
1 x A, B, C: 24 V DC, single-ended connection, EN 61131-2, type 1, “0”: < 5 V DC, “1”: > 15 V DC, typ. 5 mA |
| Additional inputs |
latch/gate input, 24 V DC |
| Encoder operating voltage |
24 V DC (-15%/+20%), (generated from the 24 V DC power contacts) |
| Counter |
1 x 16/32 bit switchable |
| Limit frequency |
400,000 increments/s (with 4-fold evaluation), corresponding to 100 kHz |
| Quadrature decoder |
4-fold evaluation |
| Distributed clocks |
yes |
| Nominal voltage |
24 V DC (-15%/+20%) |
| Current consumption power contacts |
typ. 100 mA + load |
| Resolution |
1/256 bit microincrements |
| Current consumption E-bus |
typ. 130 mA |
| Special features |
gate or latch function, microincrements, timestamping of edges, period duration and frequency measurement, up/down counters |
| Operating/storage temperature |
-25…+60°C/-40…+85°C |
| Relative humidity |
95%, no condensation |
| Protect. rating/installation pos. |
IP20/variable |
Information About EL5151
The Beckhoff EL5151 EtherCAT Terminal is designed for direct connection to one incremental encoder (24 V HTL) and includes an additional 24 V digital input for storing or blocking the counter status. It can also function as a 24 V up/down counter. The terminal supplies 24 V power directly to the encoder via connection points.
Key features
Save, lock, and set counter functions
Integrated frequency and period measurement
Optional 24 V up/down counter functionality
Microincrement capability
Synchronous position value reading via distributed clocks
Timestamp for the last-registered incremental edge
The EL5151 measures period or frequency with 100 ns resolution and offers optional interpolating microincrement functionality for precise axis positions in dynamic applications. It supports synchronous reading of encoder values and other input data within the EtherCAT system using high-precision distributed clocks (DC). Encoder profiles simplify and accelerate process data linking for motion control applications.
