Beckhoff | Switch port - EL6601

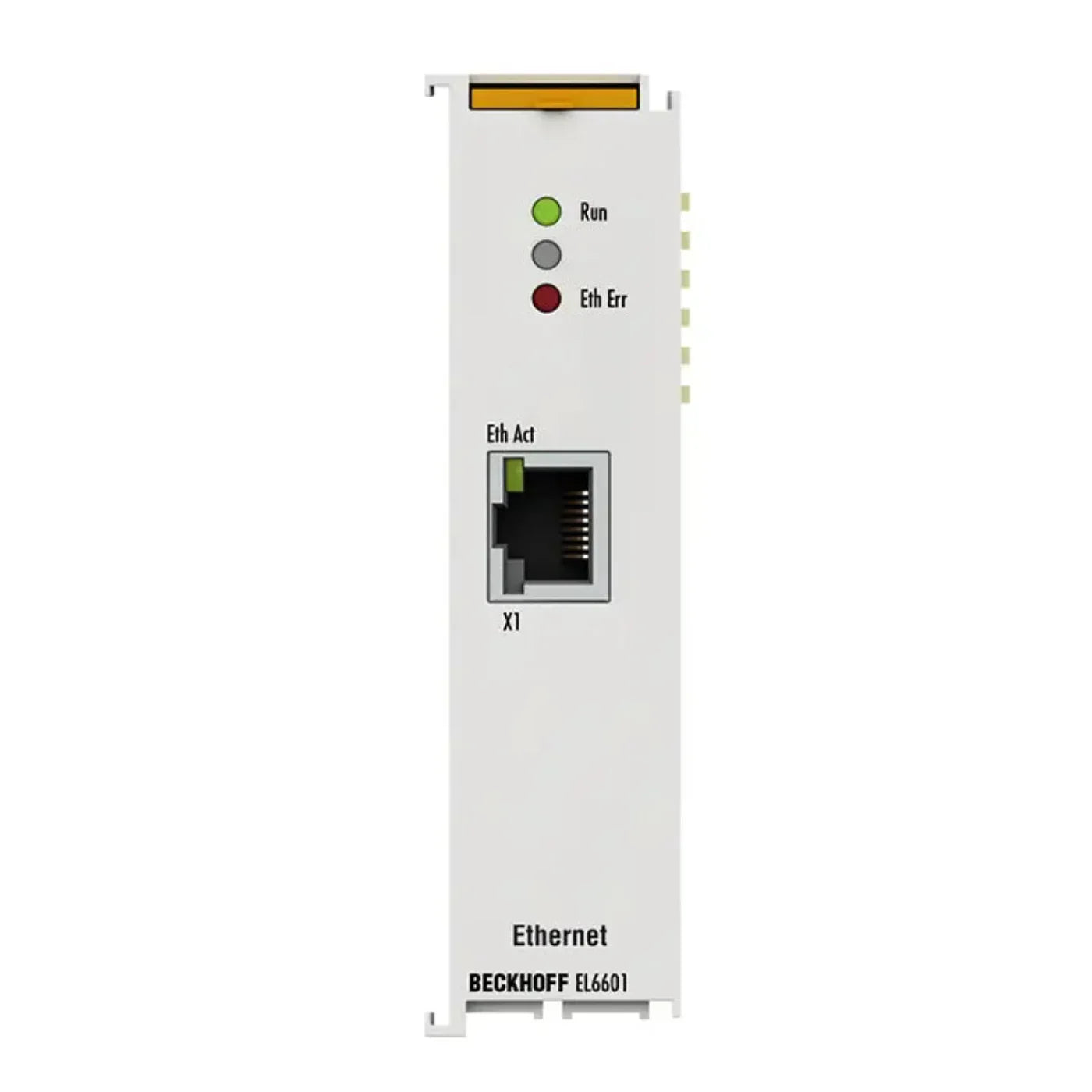

The EL6601 EtherCAT Terminal features a 1-port communication interface with an Ethernet switch port. It serves as a decentralized connection point for Ethernet devices within the EtherCAT Terminal network. This terminal seamlessly relays Ethernet communication among connected devices in a transparent and collision-free manner, facilitated by the EtherCAT system.
Specifications
| Part # |
EL6601 |
| Manufacturer |
BECKHOFF |
| Category |
PLCs/Machine Control |
| Subcategory |
PLC Programming Terminal 1-PORT |
| Ethernet interface |
10BASE-T/100BASE-TX Ethernet with 1 x RJ45 |
| Data transfer rates |
10/100 Mbit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible, automatic settings |
| Cable length |
Up to 100 m twisted pair |
| Hardware diagnostics |
Status LEDs |
| Power supply |
Via the E-bus |
| Electrical isolation |
500 V (E-bus/Ethernet) |
| Protocol |
All Ethernet (IEEE 802.3)-based protocols, store and forward switching mode |
| Configuration |
No |
| Current consumption E-bus |
Typ. 260 mA |
| Special features |
Support of RT Ethernet, publisher/subscriber, DHCP/BootP server |
| Weight |
Approx. 75 g |
| Operating/storage temperature |
-25…+60 °C/-40…+85 °C |
| Relative humidity |
95%, no condensation |
Information About EL6601
The EL6601 EtherCAT Terminal is a 1-port communication interface equipped with an Ethernet switch port designed for decentralized connection of Ethernet devices within the EtherCAT Terminal network. It facilitates transparent and collision-free Ethernet communication among connected devices.
This switch port terminal offers the flexibility of installation at any location within the EtherCAT strand without the need for configuration. Its design, integrated into the compact EtherCAT Terminal housing, enhances its suitability for industrial environments.
Key features of the EL6601 EtherCAT Terminal include support for data transmission speeds of 10/100 Mbit/s, with options for half or full duplex operation. The terminal also features automatic detection of data transmission speed, ensuring seamless connectivity.
One of its notable advantages is the support for network variables, allowing for efficient and reliable data exchange between connected devices. This capability enhances the overall performance and functionality of industrial automation systems utilizing the EtherCAT network.
The EL6601 EtherCAT Terminal is engineered to meet the demanding requirements of industrial applications, offering robust and reliable communication capabilities. Its compact design ensures efficient use of space within industrial environments while maintaining optimal performance.
