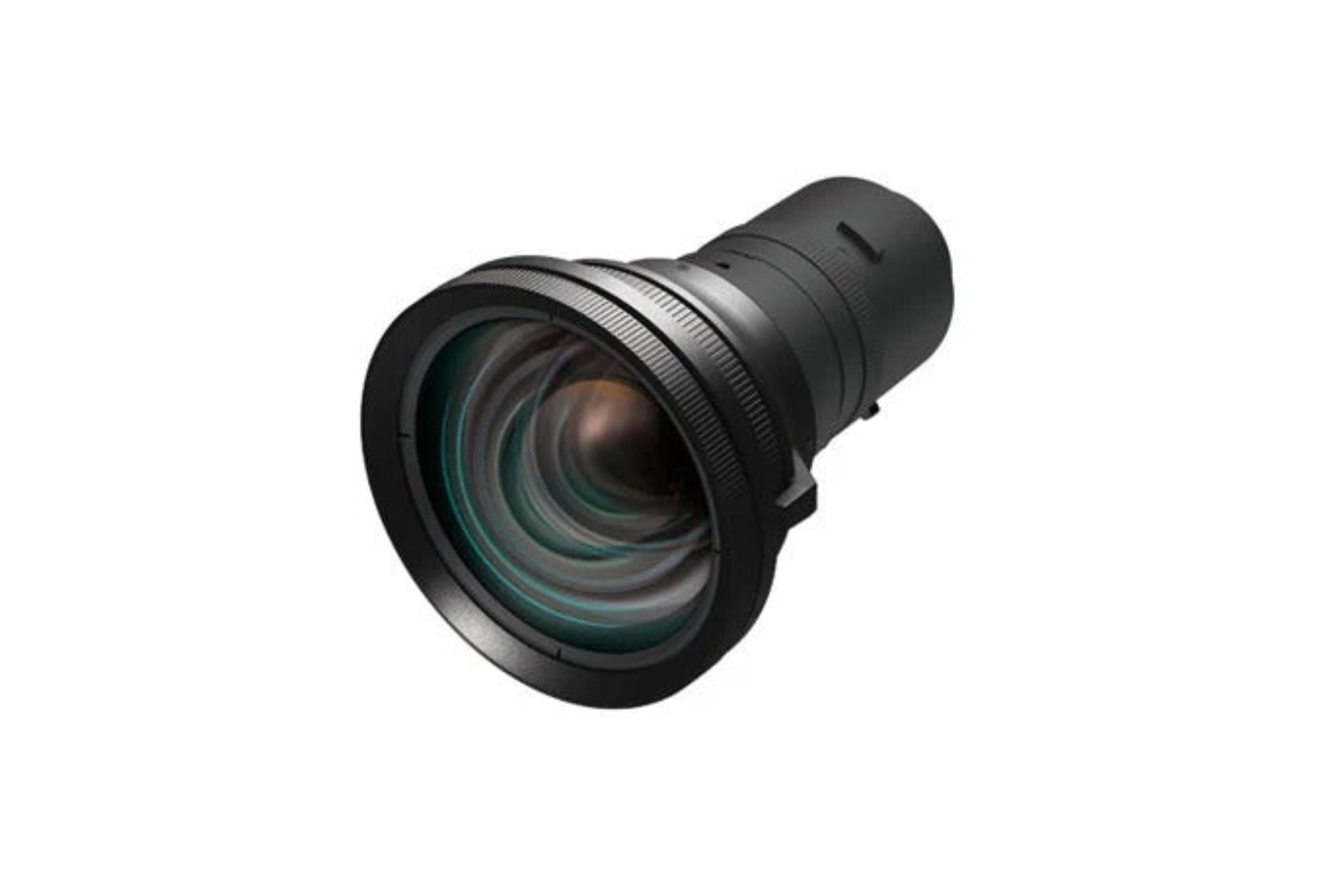

Epson V12H004U04 Short Throw Lens (ELPLU04) - V12H004U04

Epson V12H004U04 Short Throw Lens (ELPLU04) - V12H004U04

Epson's Short-Throw Lens (ELPLU04) is an interchangeable lens that works with PowerLite Pro G7XXX and Pro LXXXX series projectors (excludes Pro L25000 projector).

Features

• Zoom Lens
• Throw Ratio 0.89 - 1.08

What our Experts Think

Q&A

Q: What is the Epson V12H004U04 (ELPLU04)?
A: A motorized short‑throw zoom lens designed for Epson large‑venue / Pro projectors.

Q: Which projectors is it compatible with?
A: Compatible with Epson Pro G‑series and L‑series models, including high‑brightness 6,000–20,000 lumen projectors.

Q: What is its throw ratio?
A: Provides a throw ratio of circa 0.87:1 to 1.05:1 on mid‑lumen models, and 0.64:1 to 0.77:1 on the highest‑lumen models.

Q: What zoom range does it offer?
A: 1.0× to 1.2× motorized zoom.

Q: What are its focal length and aperture?
A: Focal length ranges from about 14.8 mm to 17.7 mm; f‑number ranges from f/2.0 to f/2.1.

Q: What screen sizes can it support?
A: Designed to support very large screen sizes — up to around 1,000″ diagonal in ideal setups.

Q: How flexible is its lens shift?
A: Offers substantial shift: vertical shift around ±60–67%, horizontal shift around ±16–30%, depending on projector brightness.

Q: How heavy is the lens?
A: Weighs approximately 3.1 kg.

Q: What are its ideal use cases?
A: Best suited for tight installation spaces, narrow stages, or situations where the projector must be placed close to the screen without sacrificing image size.

Maintenance Tips

• Clean the lens carefully with a soft, lint-free microfiber cloth and approved optical cleaner to maintain sharp, bright projection.

• Avoid harsh chemicals or abrasive materials that can damage the lens coating.

• Use a protective lens cap when not in use to keep dust and debris off the lens.

• Check focus and alignment periodically to ensure precise short-throw image quality.

• Operate in a clean, well-ventilated environment to prevent overheating and dust buildup.

• Handle with care during installation or transport to prevent scratches or misalignment.
