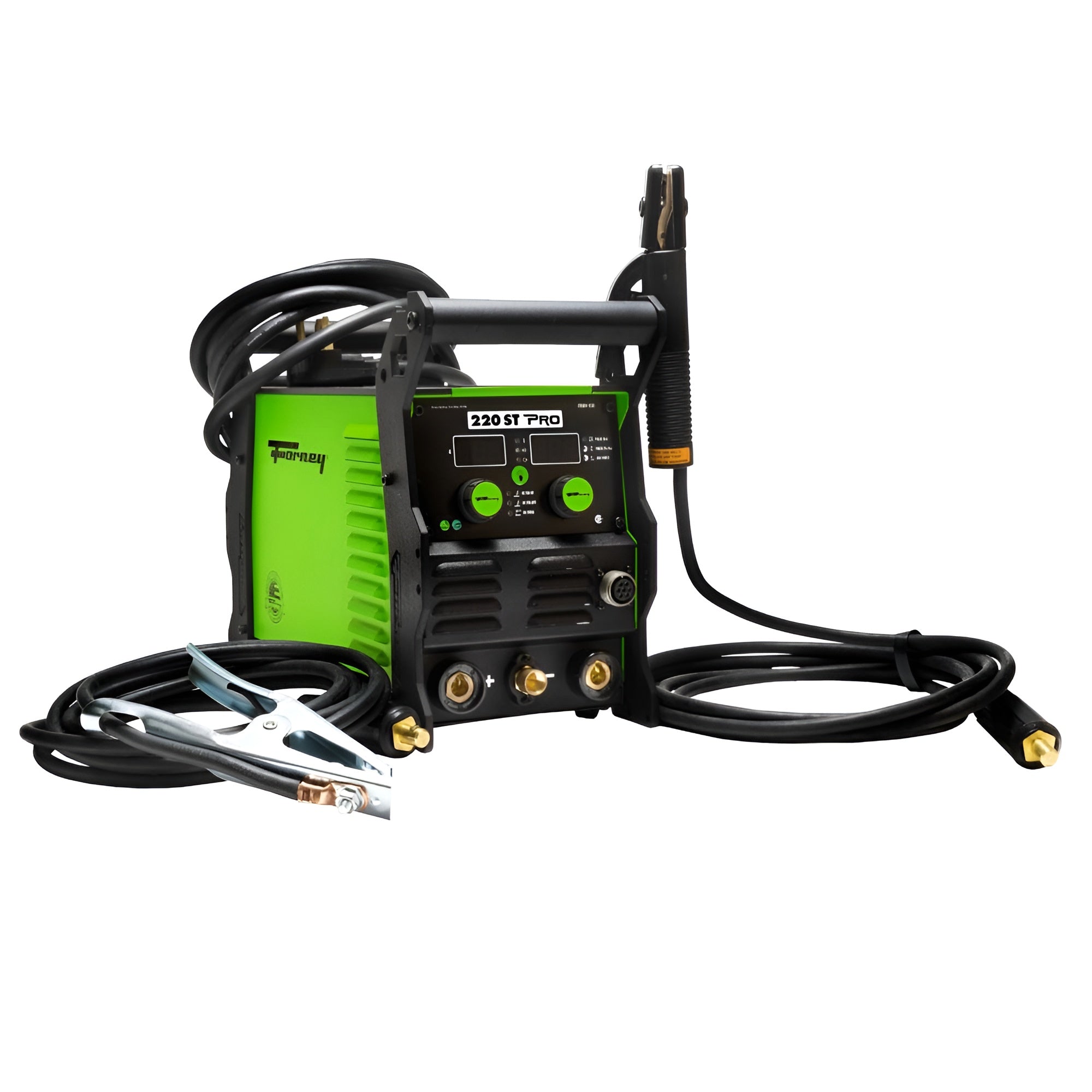

Forney 220 ST PRO Welder -430
Forney Pro Welder Dual Voltage
Forney stick welder was designed with professionals in mind. The robust machine is best suited for skilled metalworkers since it has a low starting amperage of 5 AMPS and pulse controls that let the user alter welds on thin material.
𝐏𝐑𝐄𝐌𝐈𝐔𝐌 𝐌𝐀𝐓𝐄𝐑𝐈𝐀𝐋𝐒 Forney 220 mp welder is made of high-quality materials to make it strong and durable and provide the best welding output.
𝐒𝐈𝐙𝐄 𝐀𝐍𝐃 𝐃𝐈𝐌𝐄𝐍𝐒𝐈𝐎𝐍 Forney welder comes with a welding power of 220 Amps and can weld up to 1/2", with a weight of 32 lbs. Dimension of this welder is H: 12.375", L: 18", W: 7.375".
𝐃𝐔𝐀𝐋-𝐕𝐎𝐋𝐓𝐀𝐆𝐄 𝐂𝐀𝐏𝐀𝐂𝐈𝐓𝐘 Forney easy weld stick welder is a dual voltage welder, that allows you to move the welder wherever you want. In the remote area, the welder can be used the welder very smoothly.
𝐖𝐈𝐃𝐄 𝐔𝐒𝐄 𝐀𝐑𝐄𝐀 Forney tig welder used in various kinds of industries, such as aluminum, stainless steel, cast iron, solid steel, and many more.
𝐈𝐍𝐂𝐋𝐔𝐃𝐄 𝐖𝐈𝐓𝐇 Forney stick welder includes accessories like electrode holder and ground clamp with cable and input power cable. All the cables are fifteen feet long.
Features
- Able to turn off high frequency
- Stable Arc at Five Amperes
- High-Frequency Beginnings
- Integrated Pulse Control
- Dual-Voltage Input
- weight of 32 lbs
- Weld up to 1/2"
- Digital meters
Specifications
Process
- SMAW (Stick)
- GTAW-DC-P (TIG/Pulsed TIG)
Output Power
TIG
- 120V: 40% @ 130 AMP
- 230V: 35% @ 220 AMP
Stick
- 120V: 40% @ 85 AMP
- 230V: 35% @ 200 AMP
Input Power
- 120V @ 21.4 AMP
- 230V @ 28.2 AMP
Wire/Electrode Diameters
- Stick: 1/16" (1.6mm) to 5/32" (4.0mm)
- TIG: .40" (1.02mm) to 1/8" (3.2mm)
What Our Experts Think
Versatile Welding: Supports Stick and TIG welding for a range of applications.
Powerful Performance: Delivers up to 220 amps, ideal for professional and heavy-duty jobs.
Dual Voltage Compatibility: Operates on both 120V and 240V for maximum flexibility.
Lightweight & Portable: Compact design with a sturdy handle for easy transport.
Easy-to-Use Controls: Simple setup with adjustable settings for precision welding.
Q&A
Q: What is the Forney 220 ST PRO Welder - 430?
A: A powerful, dual-voltage Stick/TIG welder designed for professional and industrial use.
Q: What welding processes does it support?
A: Stick (SMAW) and DC TIG (GTAW) welding.
Q: What is the amperage range?
A: 10–220A, providing flexibility for various material thicknesses.
Q: What power input does it require?
A: 120V or 240V dual-voltage compatibility for versatility in different work environments.
Q: What is the duty cycle?
A: 60% at 220A (240V), allowing for extended welding sessions.
Q: Can it weld aluminum?
A: Only with a TIG setup and a separate AC TIG-compatible machine. It does not have AC TIG capability.
Q: Does it include a foot pedal?
A: No, but it is compatible with a foot pedal for precise TIG control (sold separately).
Q: Is it portable?
A: Yes, lightweight and compact with a sturdy handle for easy transport.
Q: Does it come with a warranty?
A: Yes, Forney offers a manufacturer’s warranty—check specifics for coverage details.
Maintenance Tips
-
Inspect Cables & Connections: Regularly check for frayed wires, loose connections, and damaged insulation to ensure safety.
-
Clean Electrode Holder & Ground Clamp: Remove debris and oxidation for a strong and stable electrical connection.
-
Check Ground Clamp Placement: Ensure a secure, clean connection to avoid arc instability.
-
Monitor & Replace Electrodes: Use the correct electrode type and replace worn ones for optimal welding results.
-
Follow Duty Cycle Limits: Prevent overheating by operating within the recommended duty cycle.
-
Keep Ventilation Openings Clear: Remove dust from cooling vents to maintain proper airflow and prevent overheating.
-
Inspect Internal Components: Regularly check fans, circuit boards, and internal connections for wear or buildup.
-
Store in a Dry, Clean Area: Protect from moisture and dust to avoid corrosion and electrical issues.
-
Perform Routine Maintenance: Keep all components clean and inspect for any signs of wear to maintain performance.
