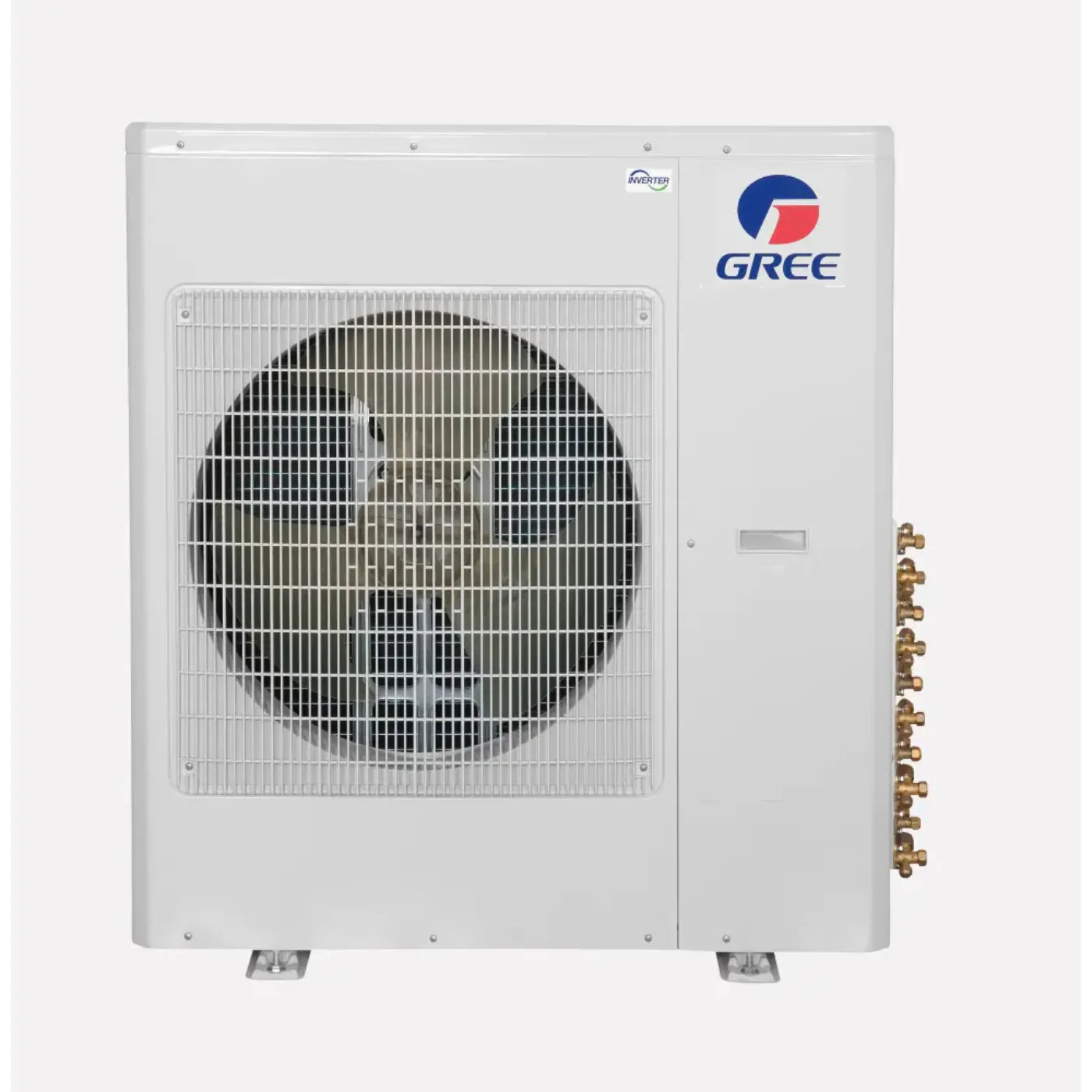

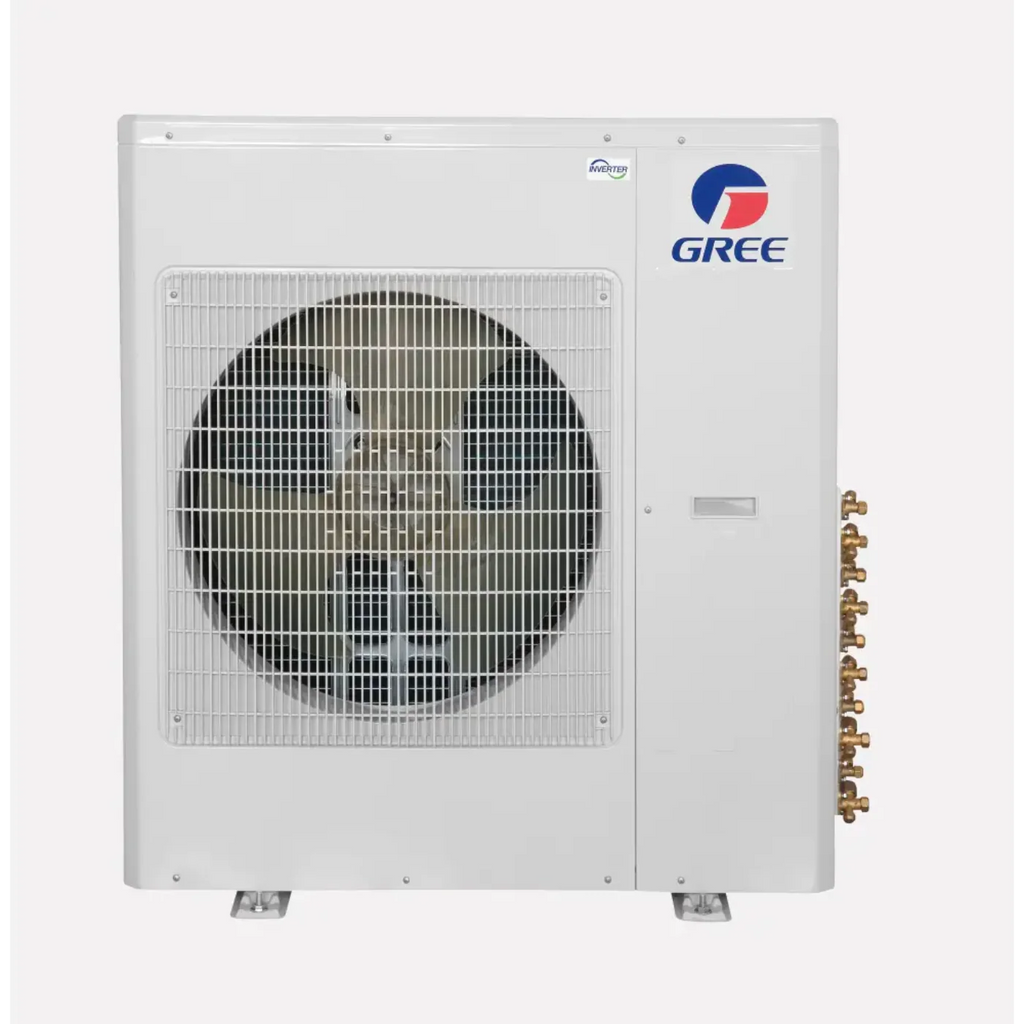

Gree 24K BTU 23 SEER Outdoor Mini-Split Multi-Zone Ultra Heat Pump Condenser - MULTIU24HP230V1DO
The Gree Multi+ Ultra Multi-Zone Inverter Heat Pump is designed to offer exceptional comfort while using less energy and running quietly. Its advanced G-10 inverter technology delivers consistent performance even in extremely cold temperatures as low as -31°F. The unit also features eco-friendly R-410A refrigerant, a fan with an anti-corrosion coating, and a brushless motor for reliable operation.
The Multi+ Ultra condenser is AHRI Certified and is backed by a 5-year limited warranty, giving you peace of mind and confidence in its durability.
Features
- Minimum 2 connected zones
- Maximum 3 connected zones
- No refrigerant branch box required
- Minimum 18,000 BTU connected capacity
- Maximum 36,000 BTU connected capacity
- Comfort Series Livo+: LIVS09HP230V1BH, LIVS12HP230V1BH, LIVS18HP230V1BH
- Comfort Series Livo Gen3: LIVV09HP230V1AH, LIVV12HP230V1AH, LIVV18HP230V1AH
- Connoisseur Series Vireo+: VIR09HP230V1BH, VIR12HP230V1BH, VIR18HP230V1BH
- Tech Series Sapphire: SAP09HP230V1AH, SAP12HP230V1AH, SAP18HP230V1AH
- Slim Duct: DUCT09HP230V1AD, DUCT12HP230V1AD, DUCT18HP230V1AD
- High Static: DUCT09HP230V1BD, DUCT12HP230V1BD, DUCT18HP230V1BD
- CAS12HP230V1AC, CAS18HP230V1AC
- FLR09HP230V1AF, FLR12HP230V1AF, FLR18HP230V1AF
- CONS09HP230V1AF, CONS12HP230V1AF, CONS18HP230V1AF
Specifications
| SKU |
MULTIU24HP230V1DO |
| Brand / Manufacturer |
Gree |
| Equipment Type |
Heat Pump |
| Weight |
185 lbs |
| Refrigerant |
R410A |
| Refrigerant Charge |
Pre-charged for 98' |
| AHRI Certificate Number |
203989086, 204630893, 204664396 |
| Cooling Capacity |
22,000 BTU |
| Heating Capacity |
26,000 BTU |
| BTU / Tonnage |
24,000 BTU / 2 Ton |
| Tonnage |
2 Ton |
| HSPF |
10.5 |
| SEER (Efficiency) |
23–24 |
| EER |
12.5 |
| Compressor Type |
Rotary |
| Liquid Line Size |
1/4" (3 lines) |
| Suction Line Size |
3/8" (3 lines) |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Phase |
Single Phase |
| Maximum Breaker Size |
40 A |
| Minimum Breaker Size |
23 A |
| Maximum System Piping |
230' |
| Maximum Line Set Length |
82' |
| Min / Max Outdoor Temp for Heating |
-31°F – 75°F |
| Min / Max Outdoor Temp for Cooling |
0°F – 118°F |
| Decibel Level (Outdoor Unit) |
60 dB(A) |
| Height |
31.1" |
| Width |
36.2" |
| Depth |
15.6" |
What our Experts Think
-
Efficient Multi‑Zone Cooling & Heating
23 SEER rating delivers excellent energy savings across multiple indoor zones.
-
Robust 24K BTU Capacity
Ideal for moderate‑sized homes or spaces with two to three indoor units.
-
Flexible Multi‑Zone Comfort
Supports simultaneous cooling/heating in different areas with individualized control.
-
Durable Outdoor Construction
Built to withstand outdoor conditions with reliable corrosion and weather resistance.
-
Quiet & Stable Operation
Designed for smooth performance with reduced noise and enhanced system stability.
-
Broad Temperature Range
Performs well in varied climates, maintaining comfort in extreme conditions.
-
Energy Savings & Performance Balance
Combines efficient cooling/heating with dependable output for year‑round comfort.
Q&A
Q: What type of unit is the Gree MULTIU24HP230V1DO?
A: It’s a 24,000 BTU outdoor mini-split multi-zone ultra heat pump condenser with 23 SEER efficiency.
Q: What are the key features?
A: Supports multiple indoor zones, high-efficiency 23 SEER rating, ultra heat pump technology, and durable outdoor design for year-round heating and cooling.
Q: Is it compatible with indoor units?
A: Yes, designed for use with Gree multi-zone indoor mini-split units for flexible climate control.
Q: Who is this unit ideal for?
A: Homeowners or commercial spaces needing energy-efficient, multi-zone heating and cooling.
Q: What makes it stand out?
A: Ultra heat pump technology ensures efficient heating in cold climates and reliable cooling in summer.
Maintenance Tips
-
Keep the outdoor condenser clean and free of debris, leaves, and dirt.
-
Inspect refrigerant lines and electrical connections regularly for wear or damage.
-
Ensure proper airflow around the unit by trimming nearby vegetation.
-
Check and clean condensate drain lines periodically to prevent clogs.
-
Avoid using harsh chemicals or abrasive tools on the exterior.
-
Schedule professional maintenance at least once a year for optimal efficiency.
-
Monitor system performance and address unusual noises or reduced cooling/heating promptly.
-
Operate the unit according to manufacturer settings for maximum efficiency and longevity.
