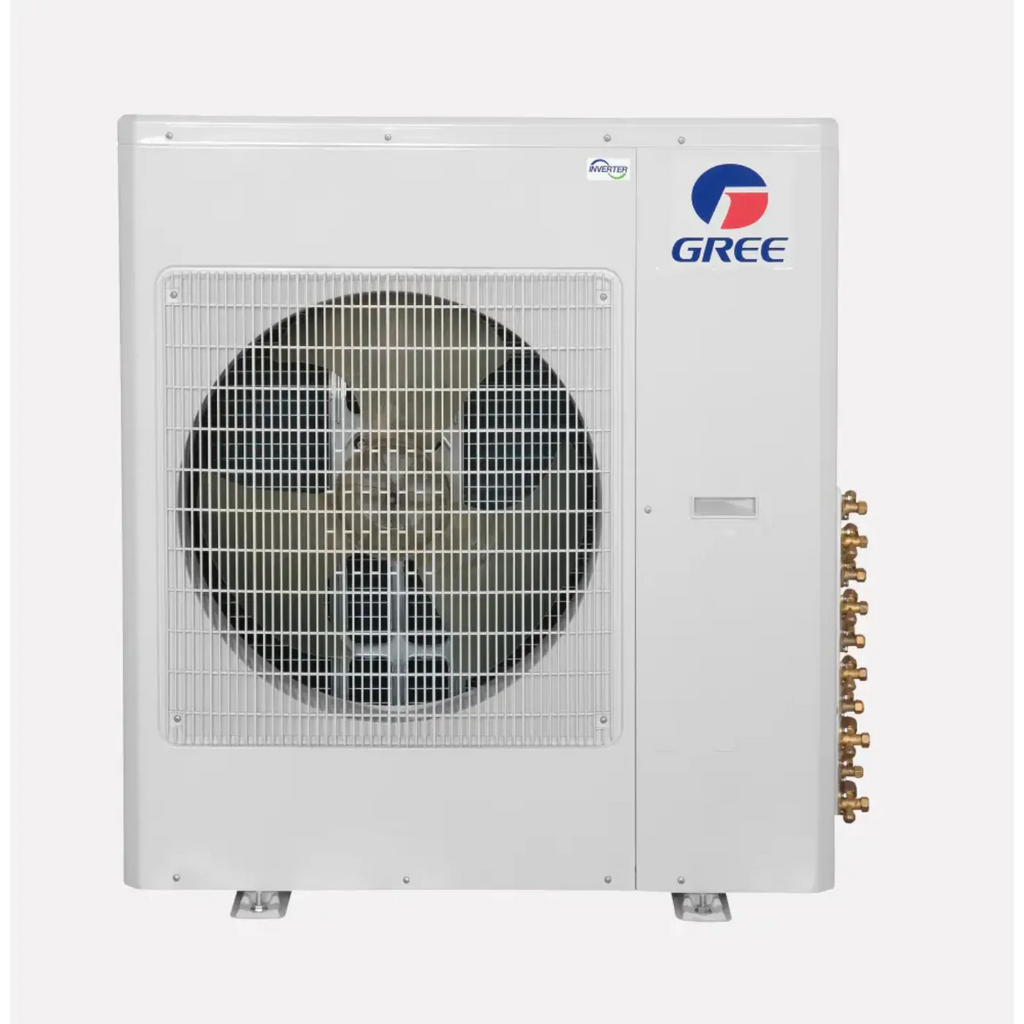

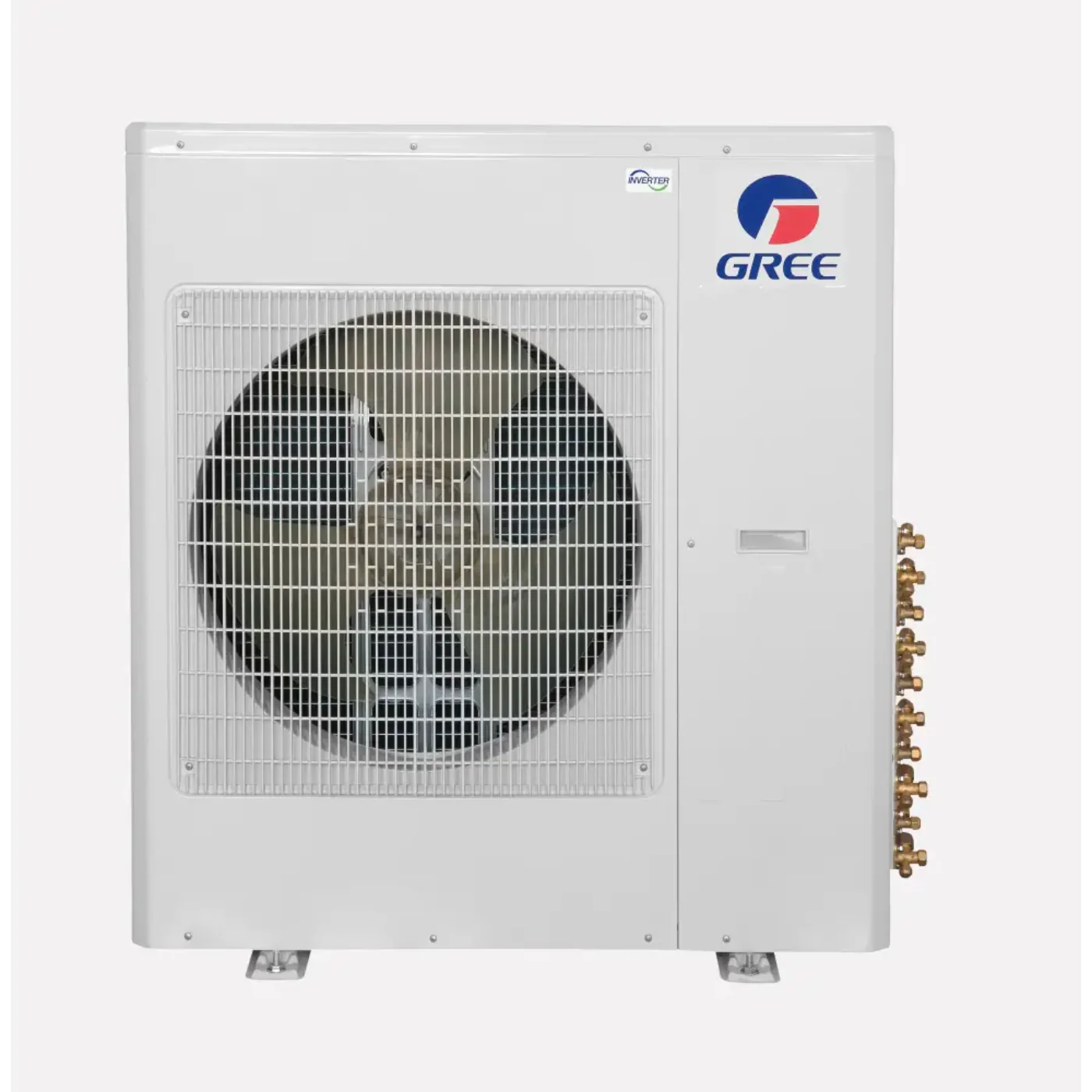

Gree 36K BTU 23 SEER Outdoor Mini-Split Multi-Zone Ultra Heat Pump Condenser - MULTIU36HP230V1DO
The Gree Multi+ Ultra Multi-Zone Inverter Heat Pump is built to deliver exceptional comfort while being energy-efficient and quiet. Thanks to its advanced G-10 inverter technology, it runs smoothly even in extremely cold temperatures as low as -31°F. The unit uses eco-friendly R-410A refrigerant and features an optimized fan with an anti-corrosion coating and a brushless motor for reliable performance.
The Multi+ Ultra condenser is AHRI Certified and has a 5-year limited warranty, ensuring long-term peace of mind and durability.
Features
- Minimum 2 connected zones
- Maximum 4 connected zones
- No refrigerant branch box required
- Minimum 18,000 BTU connected capacity
- Maximum 54,000 BTU connected capacity
- Comfort Series Livo+: LIVS09HP230V1BH, LIVS12HP230V1BH, LIVS18HP230V1BH, LIVS24HP230V1BH
- Comfort Series Livo Gen3: LIVV09HP230V1AH, LIVV12HP230V1AH, LIVV18HP230V1AH, LIVV24HP230V1AH
- Connoisseur Series Vireo+: VIR09HP230V1BH, VIR12HP230V1BH, VIR18HP230V1BH, VIR24HP230V1BH
- Tech Series Sapphire: SAP09HP230V1AH, SAP12HP230V1AH, SAP18HP230V1AH, SAP24HP230V1AH
- Slim Duct: DUCT09HP230V1AD, DUCT12HP230V1AD, DUCT18HP230V1AD, DUCT24HP230V1AD
- High Static: DUCT09HP230V1BD, DUCT12HP230V1BD, DUCT18HP230V1BD, DUCT24HP230V1BD
- CAS12HP230V1AC, CAS18HP230V1AC, CAS24HP230V1AC
- FLR09HP230V1AF, FLR12HP230V1AF, FLR18HP230V1AF, FLR24HP230V1AF
- CONS09HP230V1AF, CONS12HP230V1AF, CONS18HP230V1AF
Specifications
| SKU |
MULTIU36HP230V1DO |
| Brand / Manufacturer |
Gree |
| Equipment Type |
Heat Pump |
| Weight |
298 lbs |
| Refrigerant |
R410A |
| Refrigerant Charge |
Pre-charged for 131' |
| AHRI Certificate Number |
204288780, 204630894, 204664397 |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
36,000 BTU |
| BTU / Tonnage |
36,000 BTU / 3 Ton |
| Tonnage |
3 Ton |
| HSPF |
10 |
| SEER (Efficiency) |
23–24 |
| EER |
9 |
| Compressor Type |
Rotary |
| Liquid Line Size |
1/4" (5 lines) |
| Suction Line Size |
3/8" (5 lines) |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Phase |
Single Phase |
| Maximum Breaker Size |
40 A |
| Minimum Breaker Size |
23 A |
| Maximum System Piping |
246' |
| Maximum Line Set Length |
82' |
| Min / Max Outdoor Temp for Heating |
-31°F – 75°F |
| Min / Max Outdoor Temp for Cooling |
0°F – 115°F |
| Decibel Level (Outdoor Unit) |
62 dB(A) |
| Height |
43.5" |
| Width |
40" |
| Depth |
17.3" |
What our Experts Think
-
36K BTU Capacity – Powerful cooling and heating for larger rooms or open spaces.
-
High 23 SEER Efficiency – Reduces energy costs while delivering strong performance.
-
Multi-Zone Compatibility – Supports multiple indoor units for customized temperature control.
-
Durable Outdoor Condenser – Built to withstand weather and ensure long-term reliability.
-
Quiet Operation – Minimizes noise for a comfortable home or office environment.
-
Advanced Heat Pump Technology – Provides year-round heating and cooling with consistent performance.
Q&A
Q: What is the Gree 36K BTU Multi-Zone Mini-Split Ultra Heat Pump Condenser?
A: A high-performance outdoor condenser delivering 36,000 BTU for multi-zone ductless heating and cooling with 23 SEER efficiency.
Q: How many zones can it support?
A: Designed for multi-zone setups, it can connect with multiple indoor units for independent temperature control in different areas.
Q: Is it energy-efficient?
A: Yes, the 23 SEER rating ensures energy savings while providing powerful heating and cooling.
Q: How is it installed?
A: Outdoor installation pairs with compatible indoor air handlers for a flexible ductless system.
Q: Does it suit modern homes or offices?
A: Yes, its compact design and quiet operation make it ideal for residential and light commercial spaces.
Maintenance Tips
-
Keep Outdoor Unit Clear: Remove leaves, dirt, and debris around the condenser for optimal airflow.
-
Inspect Coils and Fins: Clean gently with a soft brush or hose to maintain efficiency.
-
Check Refrigerant Lines: Ensure lines are insulated and free from leaks or damage.
-
Clear Condensate Drain: Prevent clogs to avoid water damage or mold buildup.
-
Schedule Annual Service: Professional maintenance ensures peak performance and extends system lifespan.
