Preserve Your Garden Produce, Create The Perfect Emergency Food Supply, Make Camping Meals And Healthy Snacks. Unlike Other Methods Of Food Preservation, Freeze Drying Does Not Shrink Or Toughen The Food, And Retains Flavor, Color, And Nutrition.
Features
The freeze dryer has built in intelligence. It automatically and perfectly manages the freeze drying process
- The ideal vacuum pressure and drying temperature is maintained for each material—preserves freshness and potency
- 10.25 square feet of tray space—nearly twice the capacity of Harvest Right’s standard Large freeze dryer
- Shelf Unit Has shelves for 8 trays (each tray 9″ W x 20.5″ x 0.75″ H)
- 6 liters of ice capacity
Maintenance
Simply filter and replace oil. Takes one or two minutes.

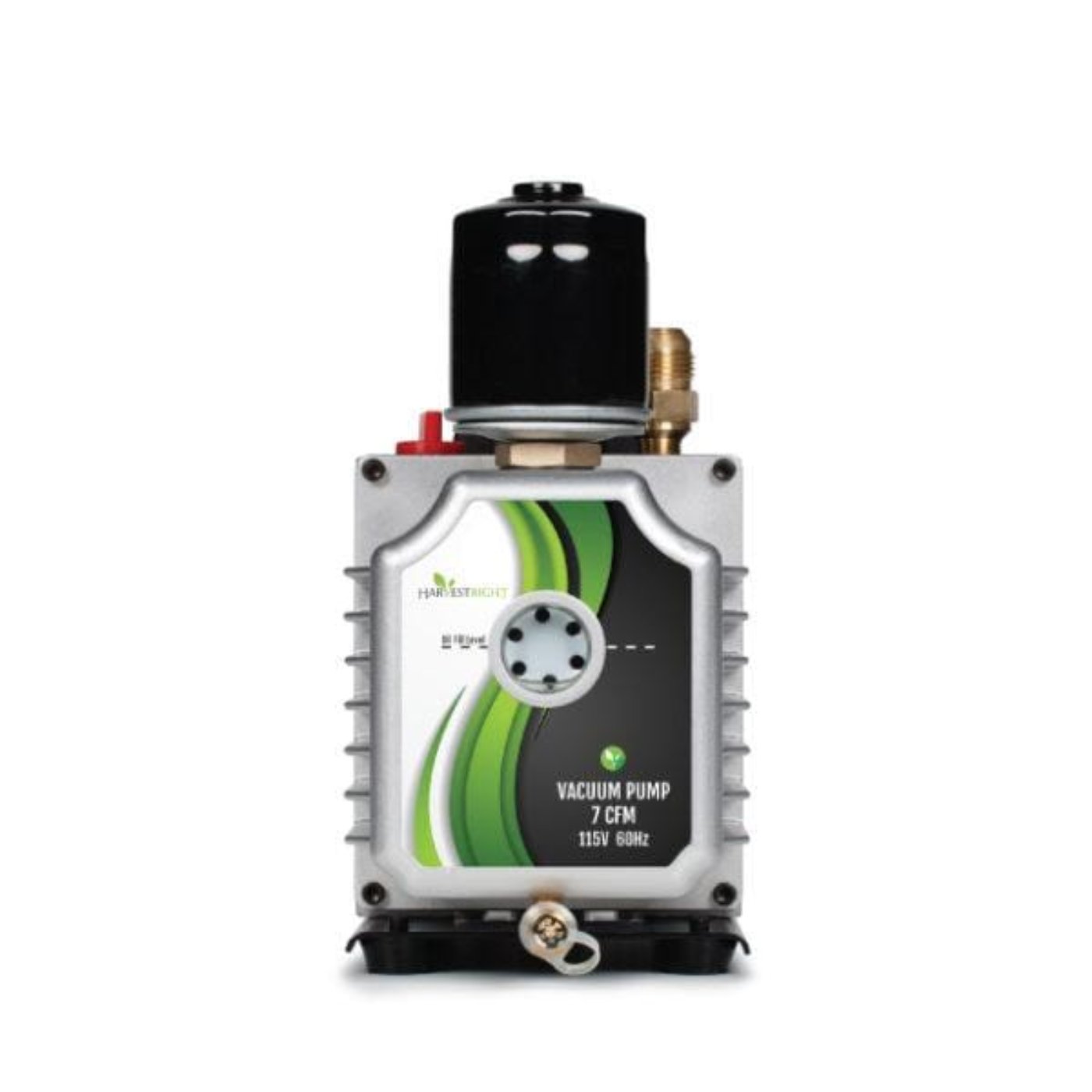

Vacuum Pump
Each vacuum pump has been factory tested to guarantee 25 microns (25,400 Microns = 1 Inch of Hg) or better, and listed CFM performance.
Specifications
CFM: 7.2
Motor: 3/4 HP, 1725 RPM
Voltage: Standard 115V 60Hz
Plug: US 110V
Intake Port: 3/4 JIC flare
Intake Port: 21 oz (680 cc)
Dimensions: 10 1/2″ H x 16″ D x 5 3/4″ W
Weight: 35 lbs
Dimensions
Overall product dimensions: 20.25″ W x 23.75″ D x 30.75″ H
Perfect for a counter top, cart or table.
161 lbs
Power
110 volt (NEMA 5-20) outlet. A dedicated 20 amp circuit is required.
Warranty
3 year limited warranty
The large freeze dryer ships in one package with a total weight of 253 lbs.
- Item will be delivered to physical addresses, no PO boxes, they just don’t fit.
- One Freeze Dryer Package: 29″W x 38″D x 48″H
What Our Experts Think
-
Medical-Grade Preservation: Designed for preserving pharmaceuticals, herbs, and biological materials, maintaining their potency and integrity over long periods.
-
Large Capacity: Ideal for commercial or research use, offering large-scale freeze-drying capacity while ensuring efficient processing of sensitive materials.
-
Advanced Technology: Features precise temperature and vacuum control, providing optimal conditions for preserving delicate substances without compromising their quality.
-
Stainless Steel Durability: Crafted with high-quality stainless steel to ensure long-lasting durability and resistance to wear, corrosion, and contamination.
-
User-Friendly Interface: Easy-to-use controls streamline the freeze-drying process, allowing for consistent, reliable results with minimal operator input.
Q&A

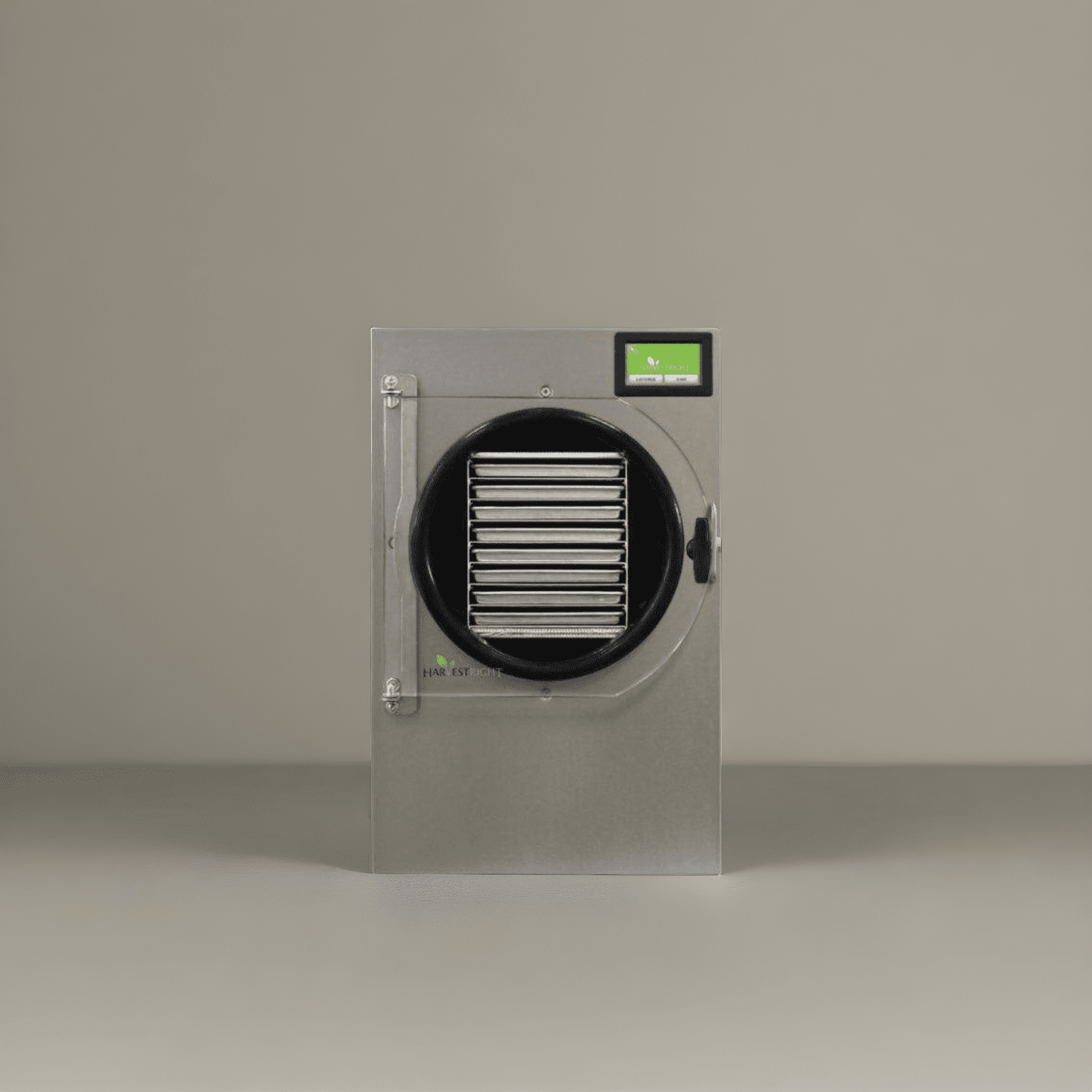

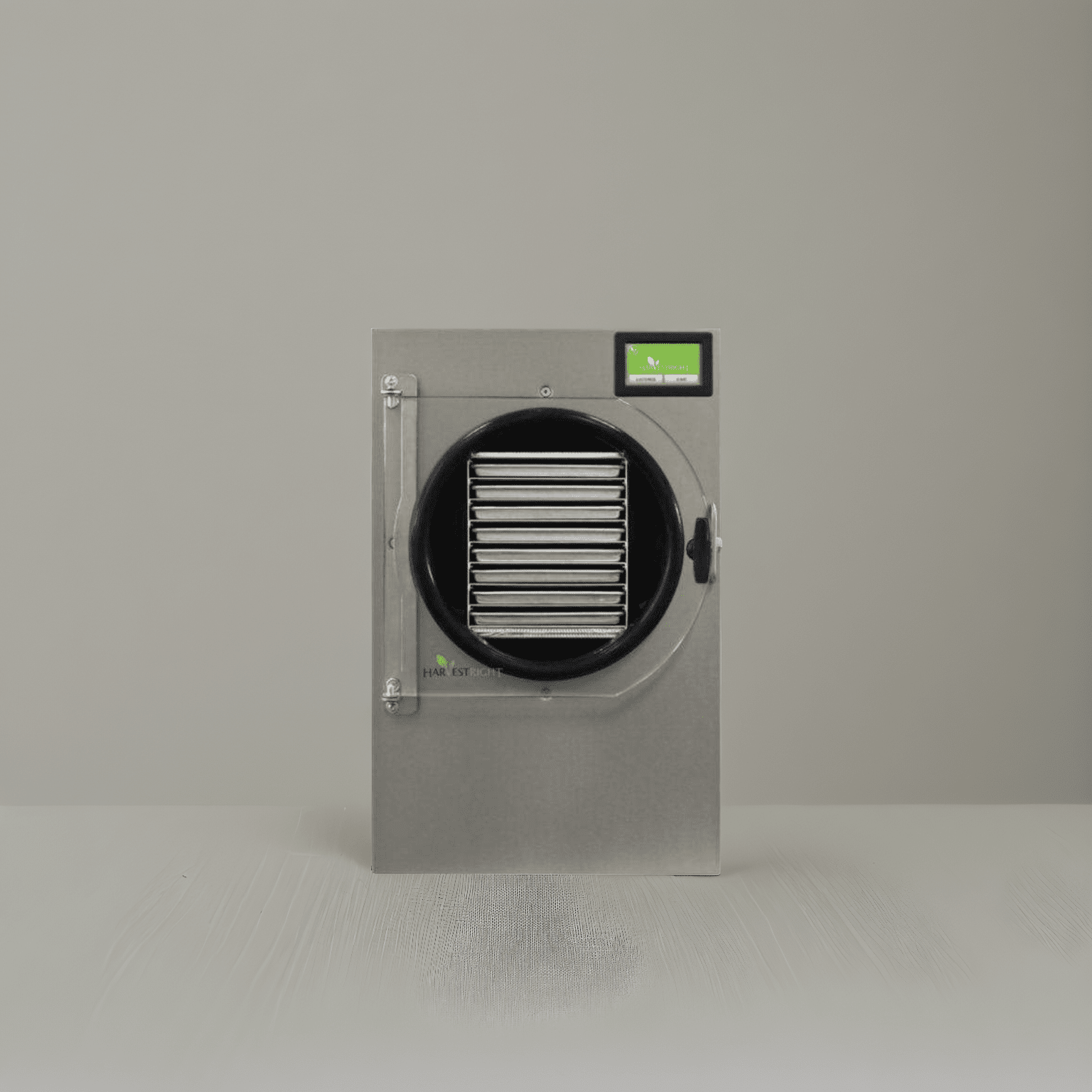

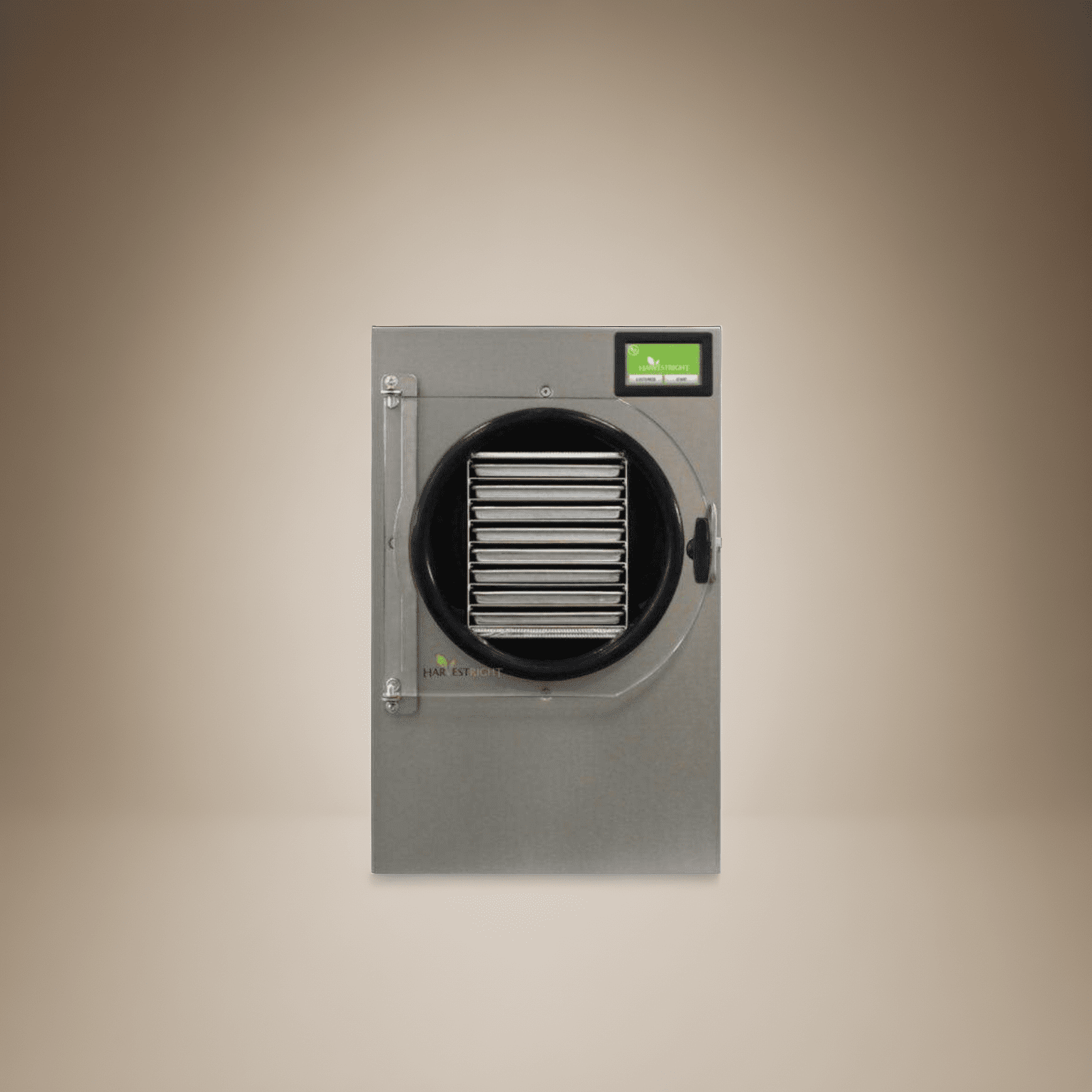

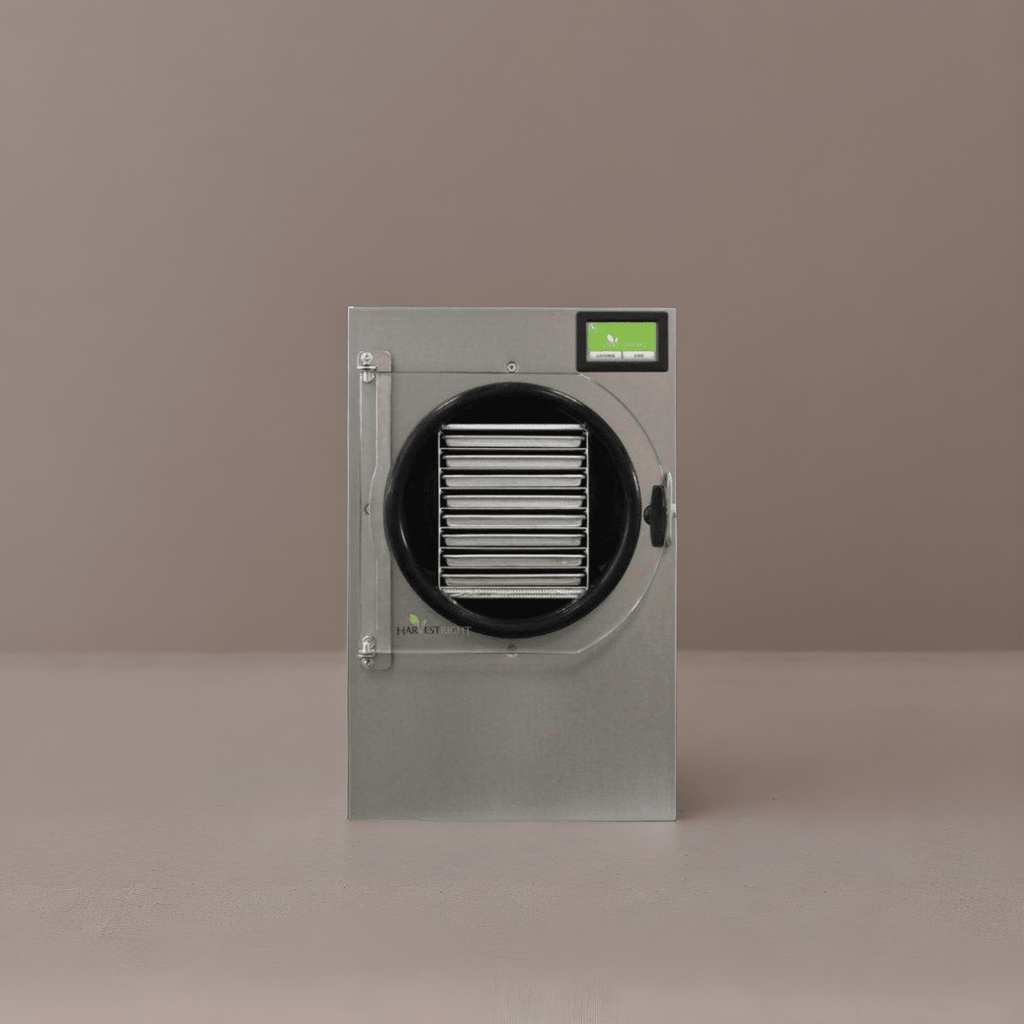

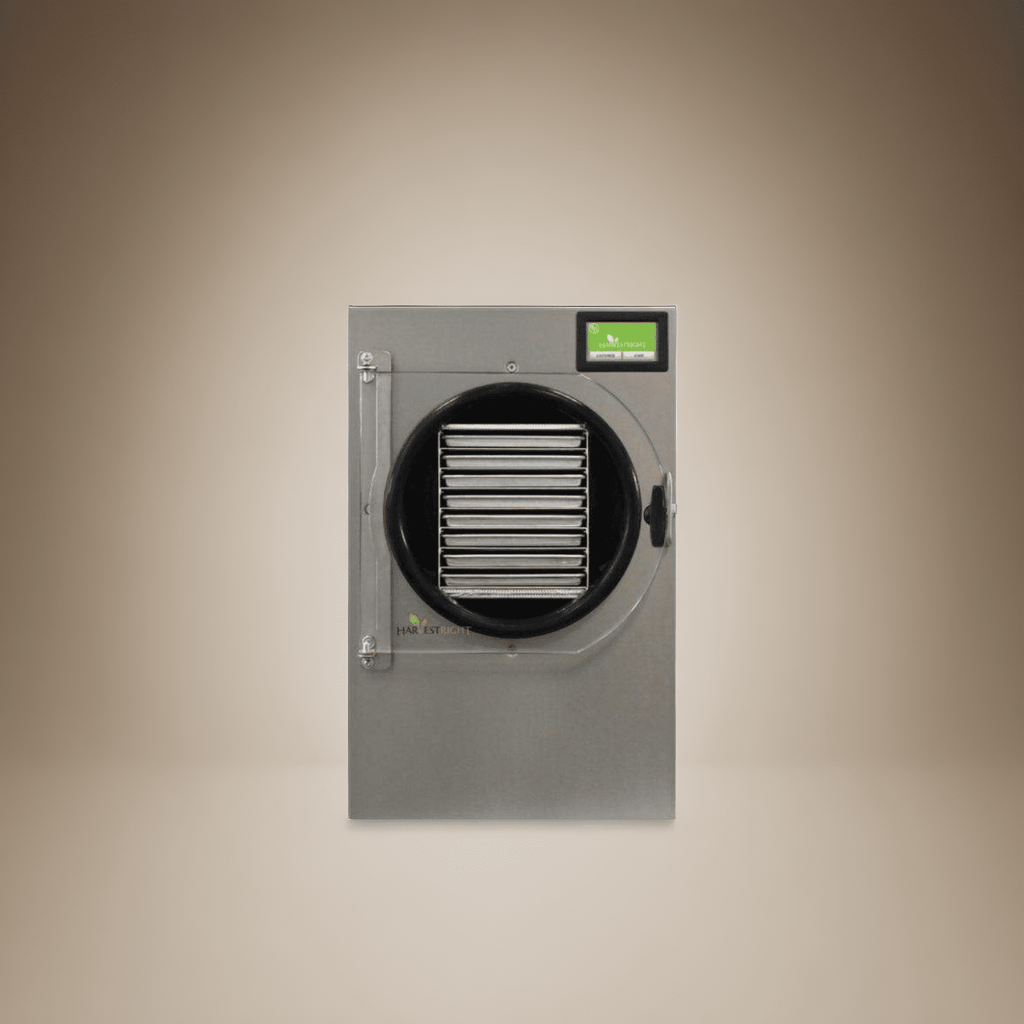

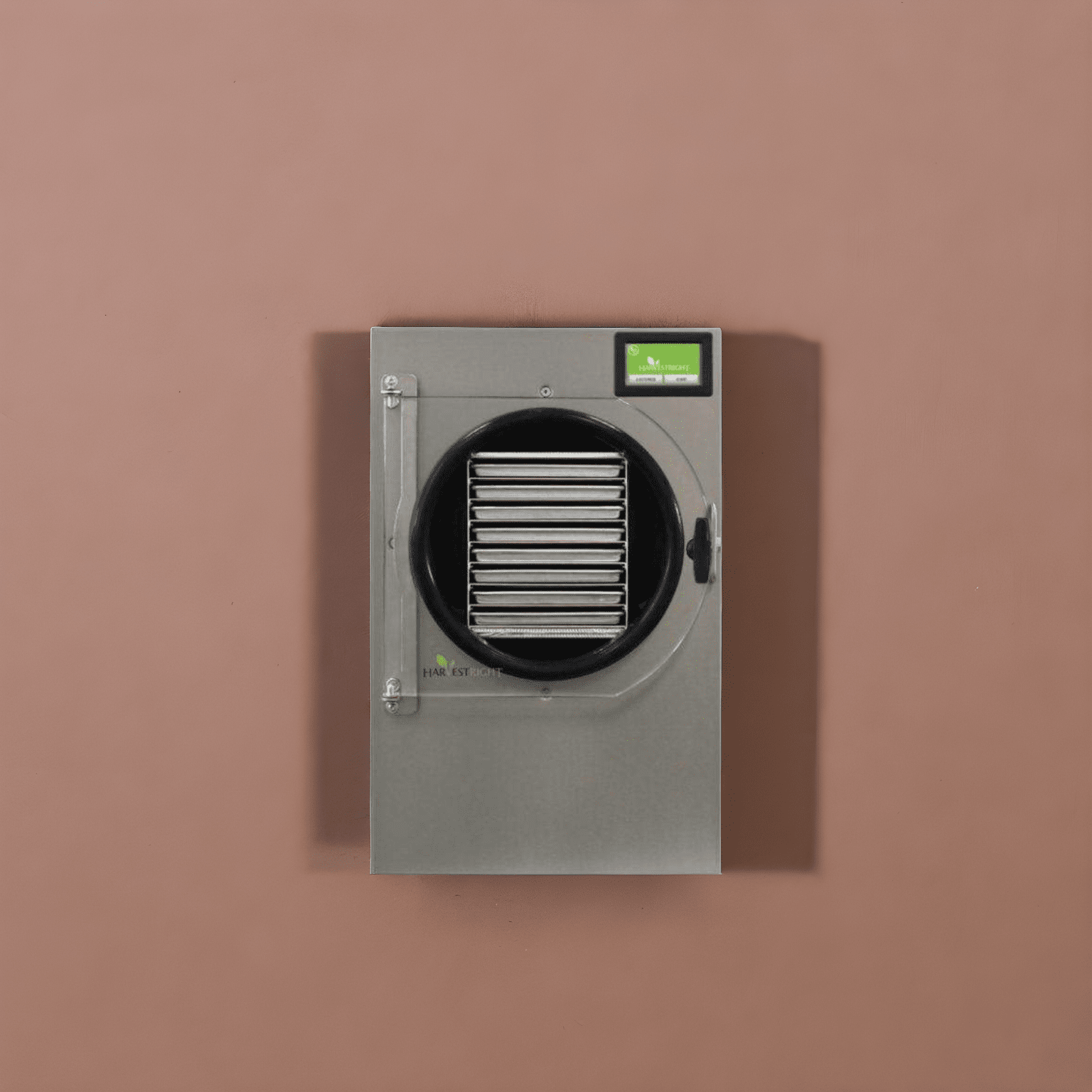

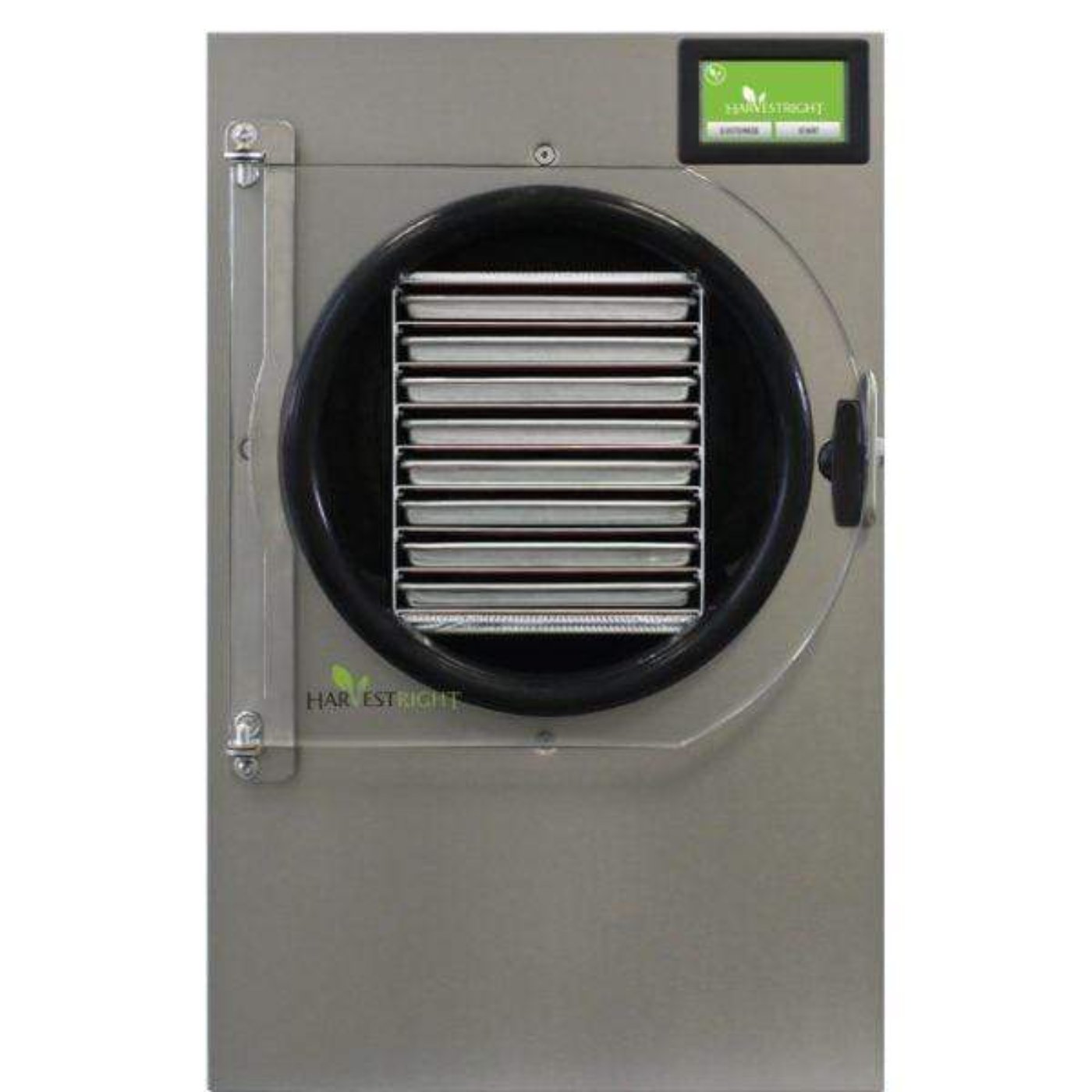

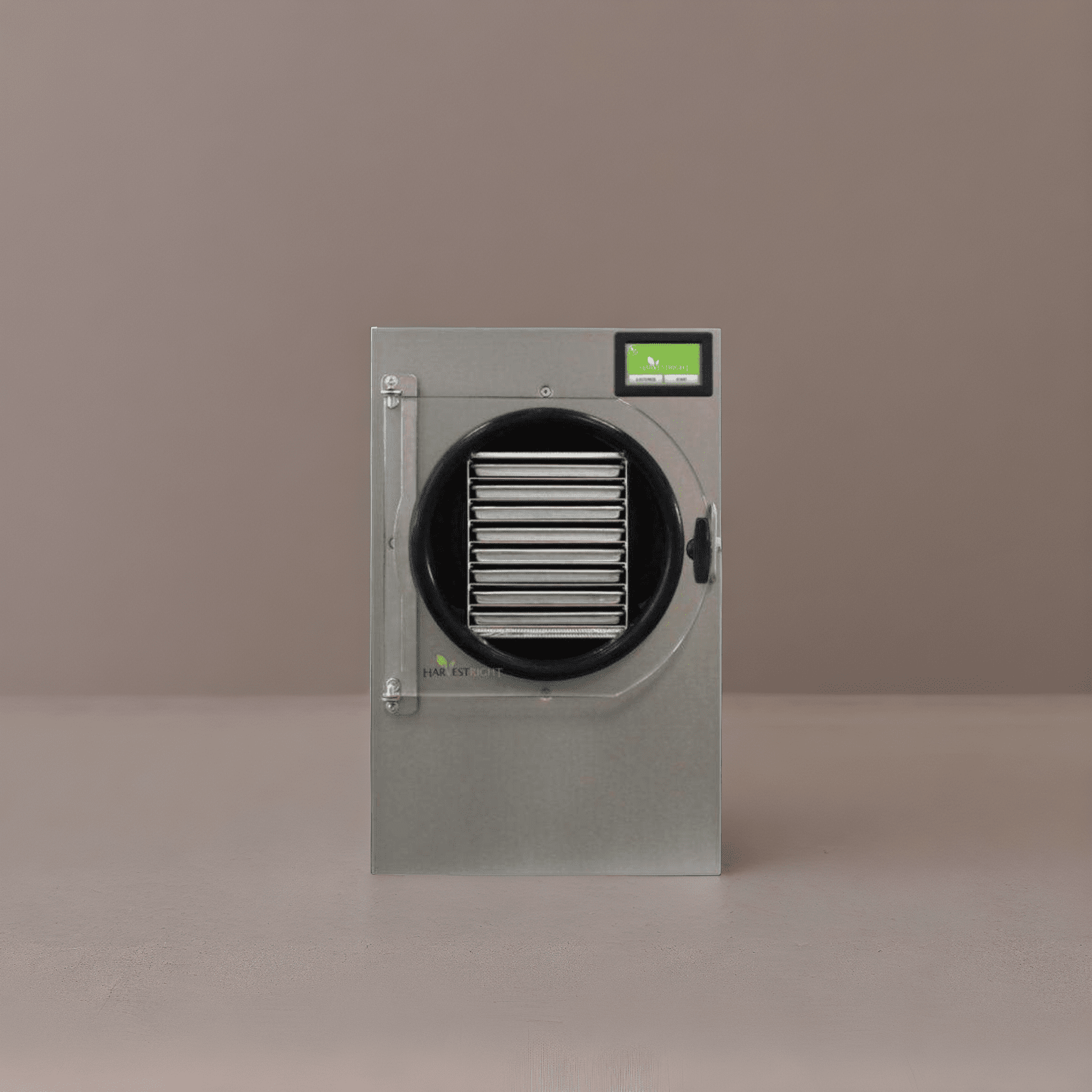

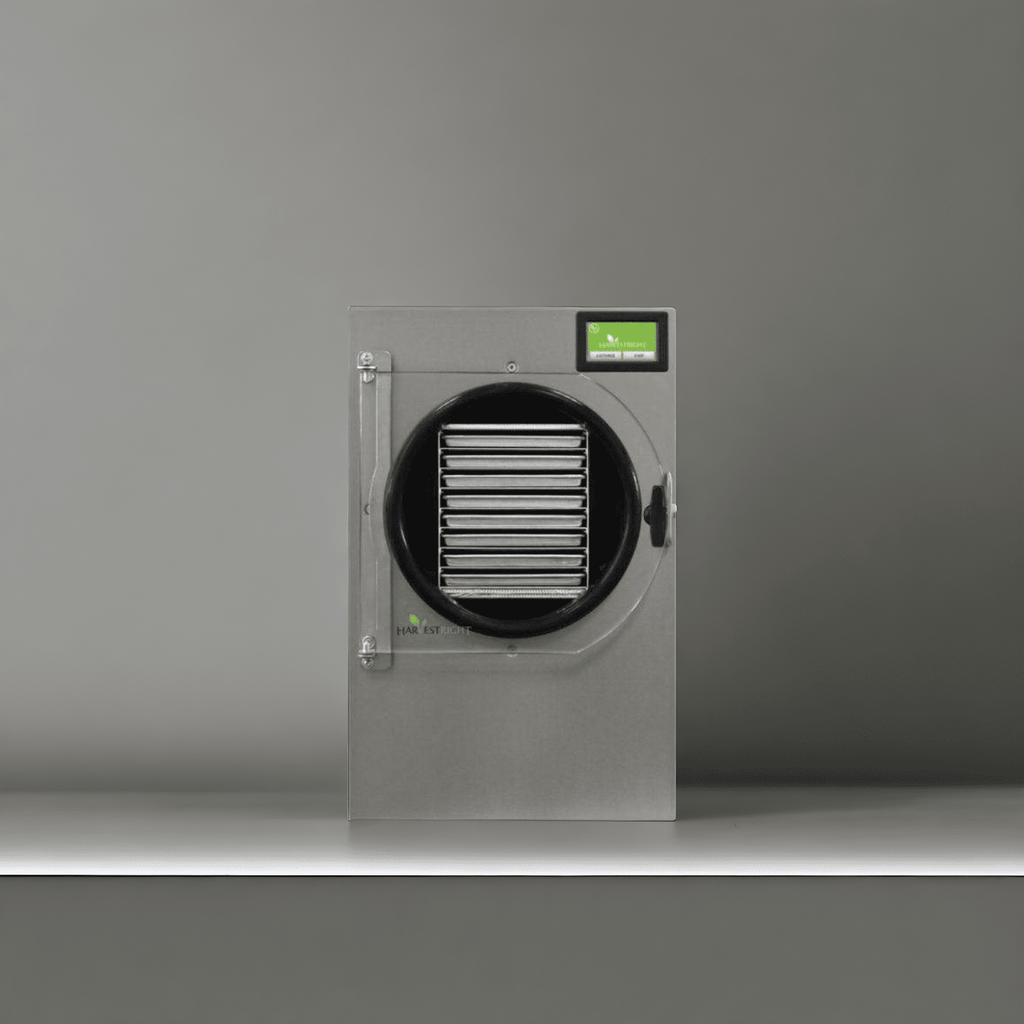

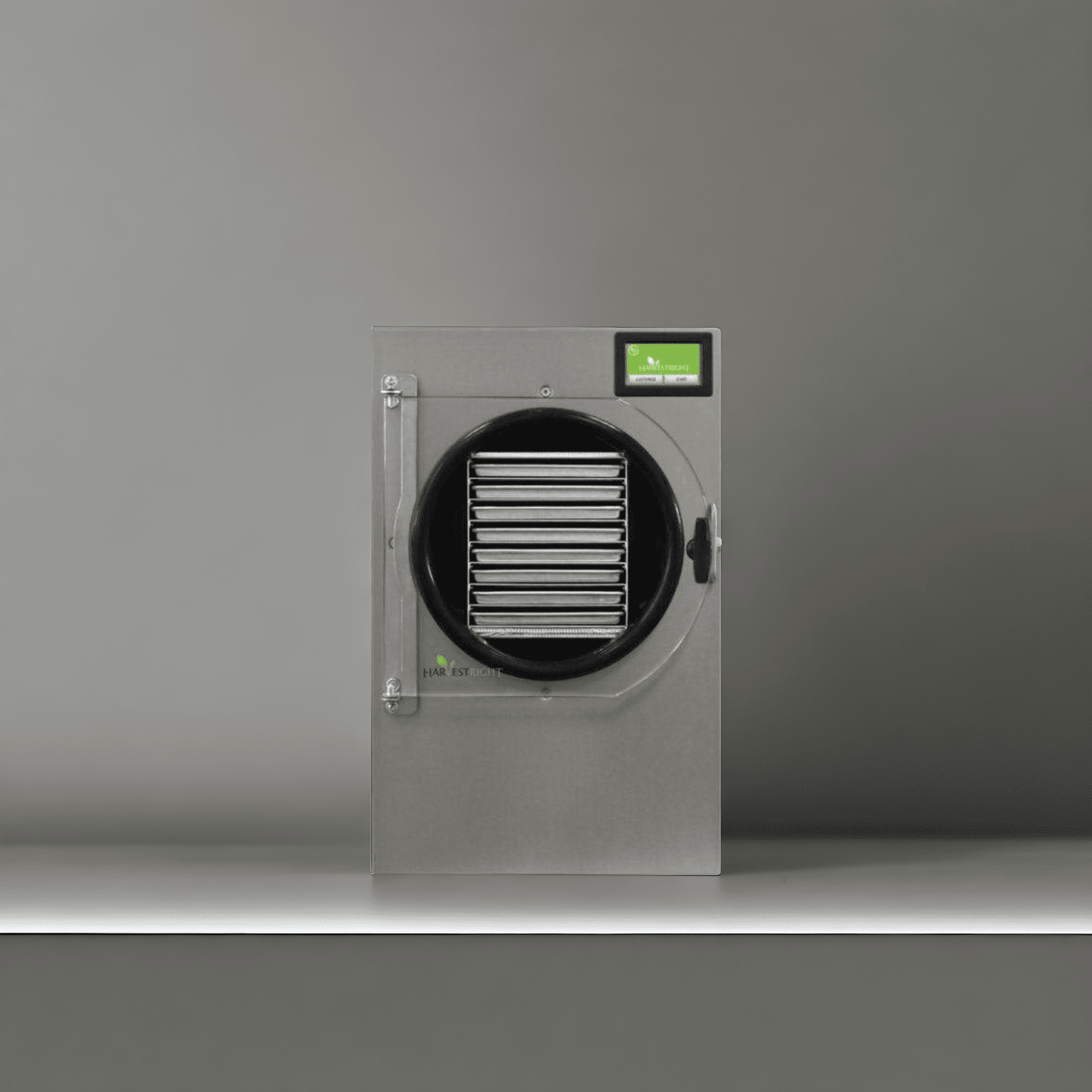

Q: What is the Harvest Right Large Pharmaceutical Freeze Dryer (Stainless Steel)?
A: The Harvest Right Large Pharmaceutical Freeze Dryer (Stainless Steel) is a high-capacity freeze-drying system designed specifically for pharmaceutical and laboratory use. It allows for precise moisture removal from sensitive materials while maintaining their integrity, making it ideal for pharmaceutical products, vaccines, and other critical substances.
Q: How much material can it process?
A: This model can process up to 12–16 lbs of material per batch, providing large-scale freeze-drying capabilities for pharmaceutical and scientific applications.
Q: What are its dimensions and weight?
A: The unit measures 30.75" H x 20.25" W x 23.75" D (with pump) and weighs approximately 138 lbs.
Q: What power does it require?
A: It operates on a standard 110-volt outlet with a power consumption of around 850 watts.
Q: What is it ideal for?
A: The pharmaceutical freeze dryer is perfect for laboratories, pharmaceutical companies, and research institutions requiring reliable and efficient freeze-drying for sensitive materials, including pharmaceuticals, biologics, and vaccines.
Q: Is the oil pump easy to maintain?
A: Yes, the included oil pump requires basic maintenance, such as periodic oil changes, to ensure optimal performance.
Q: Does it meet industry standards?
A: Yes, the Harvest Right Large Pharmaceutical Freeze Dryer meets industry standards for pharmaceutical and scientific use, ensuring safe and effective freeze-drying for critical applications.
Maintenance Tips
-
Regular Cleaning: After each cycle, clean the interior and exterior of the freeze dryer with a soft, damp cloth to remove any debris or residue. Use gentle cleaners that won’t damage the stainless steel surface.
-
Vacuum Pump Oil Maintenance: Regularly check the oil level in the vacuum pump. Replace the oil after every 4-5 cycles or sooner if it becomes cloudy or contaminated. Use high-quality, manufacturer-recommended vacuum pump oil for optimal performance.
-
Check Door Gasket: Inspect the door gasket frequently for wear, cracks, or debris. Clean it with a damp cloth and ensure it creates a tight seal to maintain vacuum pressure. Replace the gasket if it shows signs of significant wear.
-
Defrost After Each Cycle: Allow any ice buildup to melt naturally or use the defrost function. Wipe down the chamber to remove any water to prevent mold and corrosion.
-
Tray and Rack Cleaning: Clean trays and racks with warm, soapy water after each use. Dry them thoroughly before reinserting them into the freeze dryer to prevent any contamination.
-
Inspect Vacuum Performance: Regularly check for the correct vacuum pressure. If pressure is low, inspect the seals, gaskets, and hoses for leaks or damage. Address any issues immediately to ensure efficient operation.
-
Air Vent and Cooling System: Keep the cooling system and vents free of dust and debris. Use compressed air or a soft brush to clean these areas periodically for optimal airflow and cooling efficiency.
-
Electrical Maintenance: Inspect electrical connections and wiring for any signs of wear or damage. Ensure the unit is plugged into a dedicated, properly grounded outlet to avoid electrical issues.
-
Stainless Steel Finish: To maintain the stainless steel appearance, regularly wipe down the exterior with a microfiber cloth and use a stainless steel cleaner to remove smudges and fingerprints.
-
Scheduled Professional Servicing: Perform routine maintenance as outlined by the manufacturer, and schedule an annual inspection by a professional to ensure all components, including the vacuum system, are in optimal working condition.
