Heliatos Freeze Protected Solar Water Heater Kit

Heliatos Freeze Protected Solar Water Heater Kit

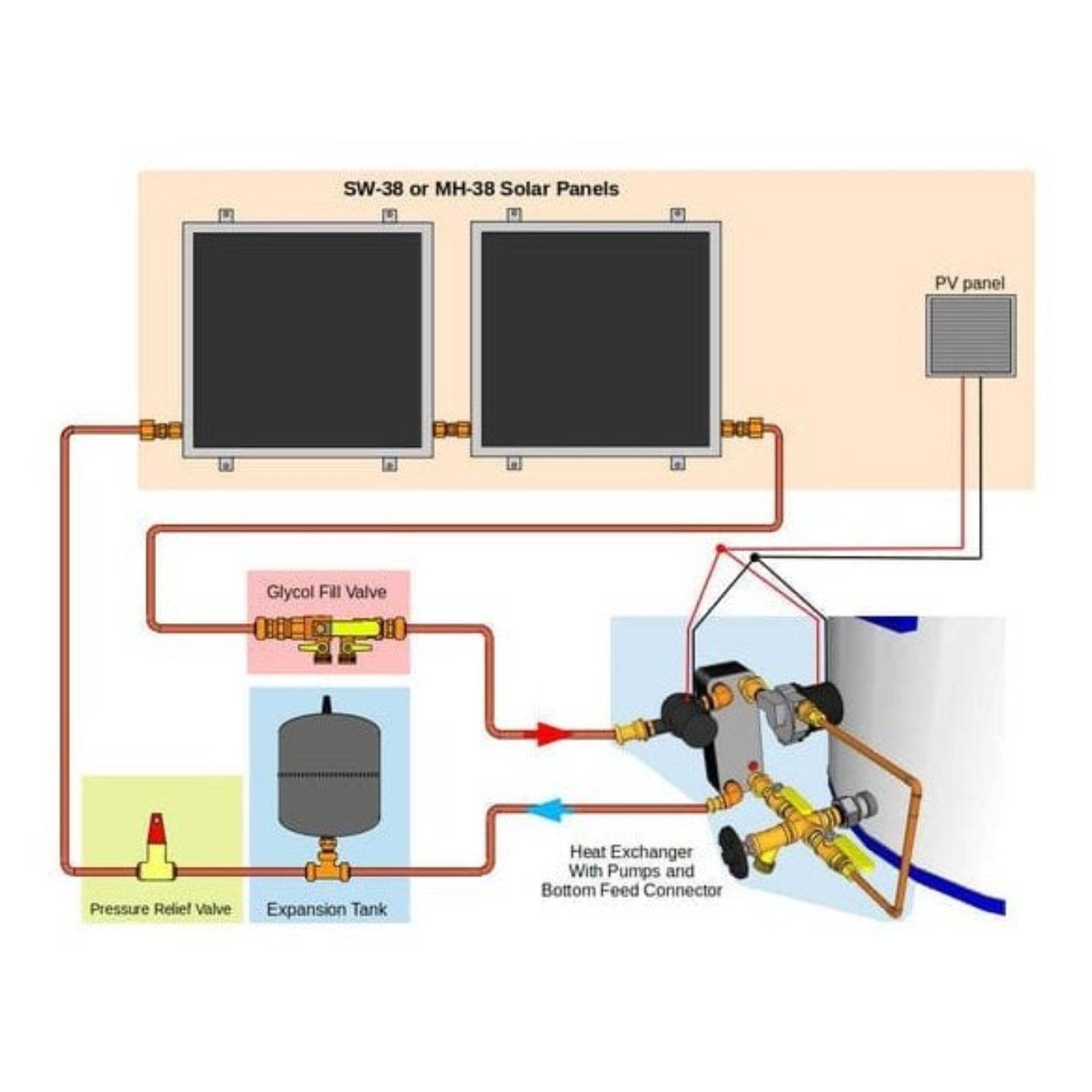

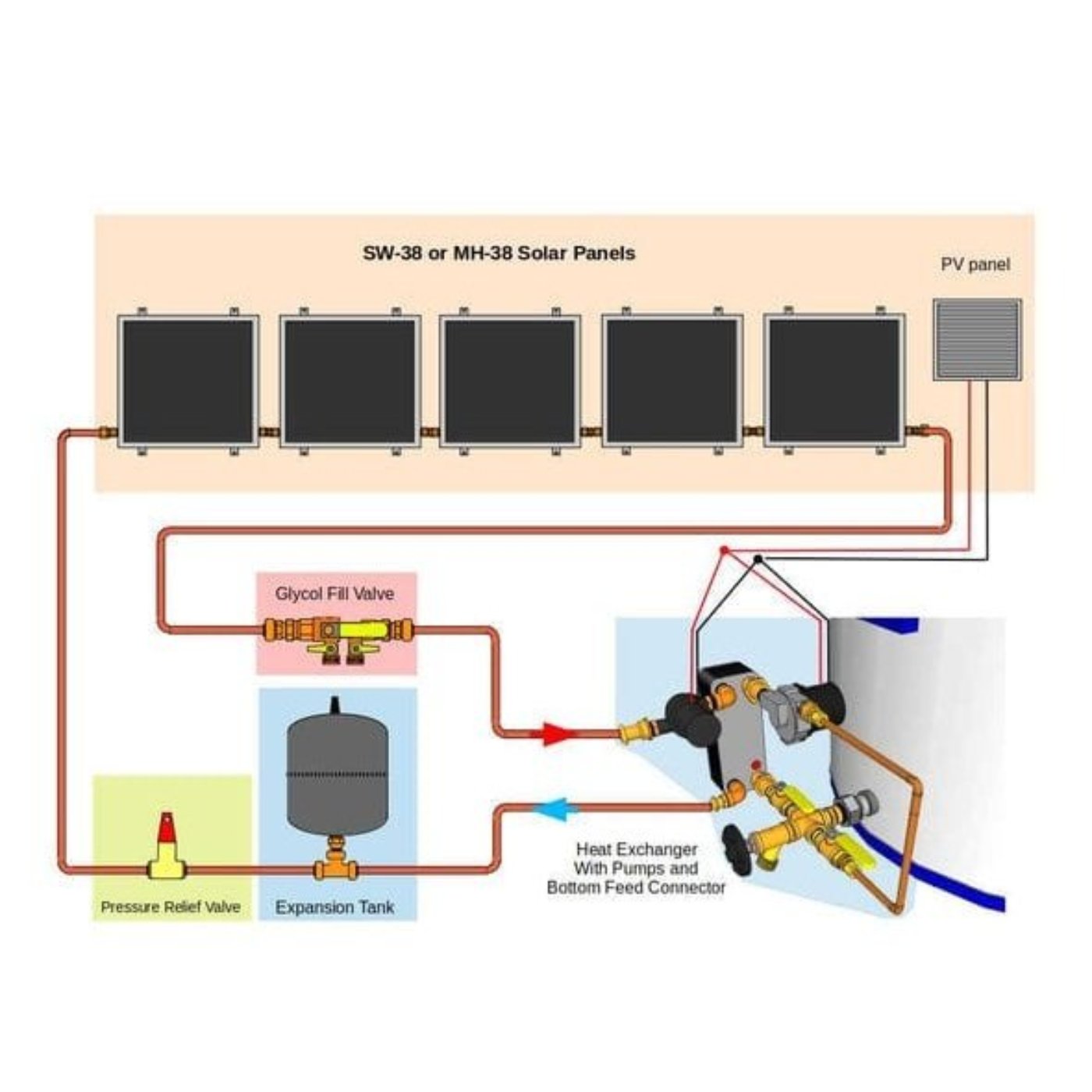

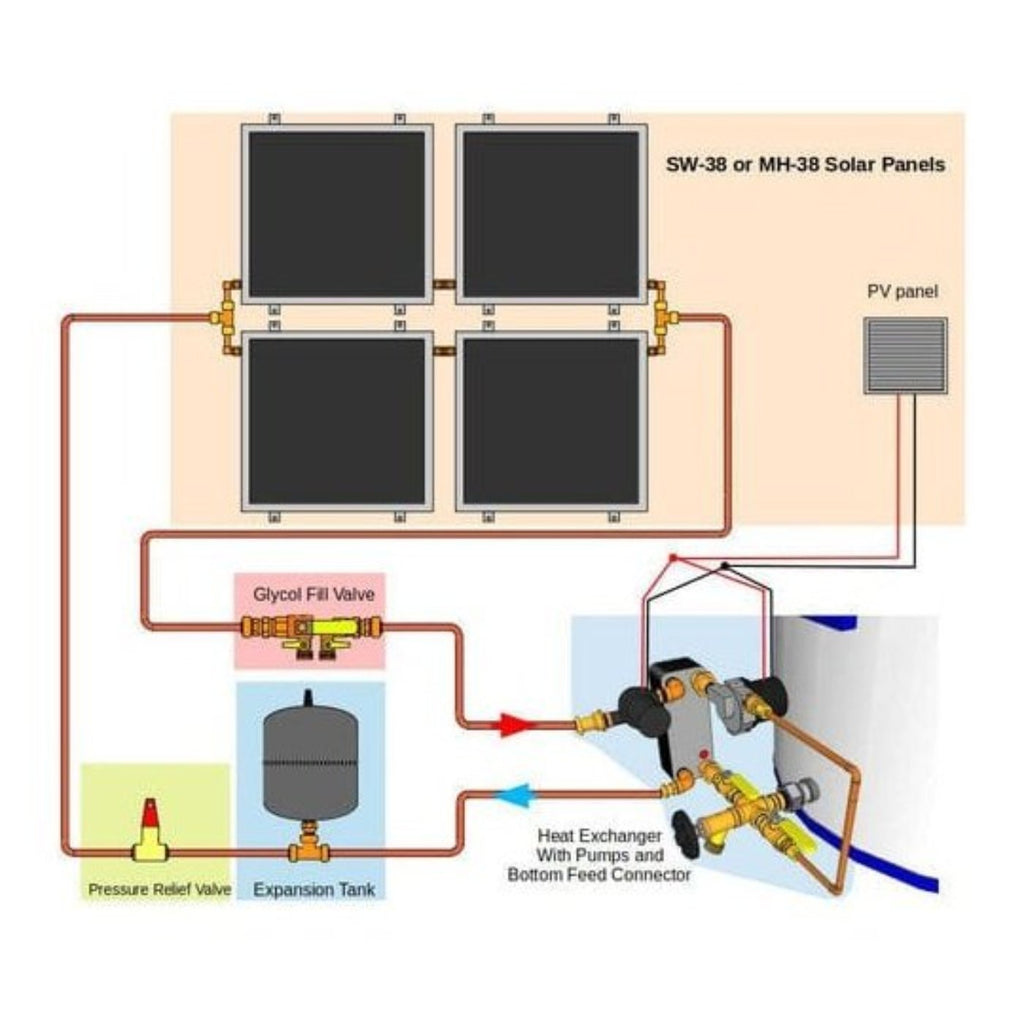

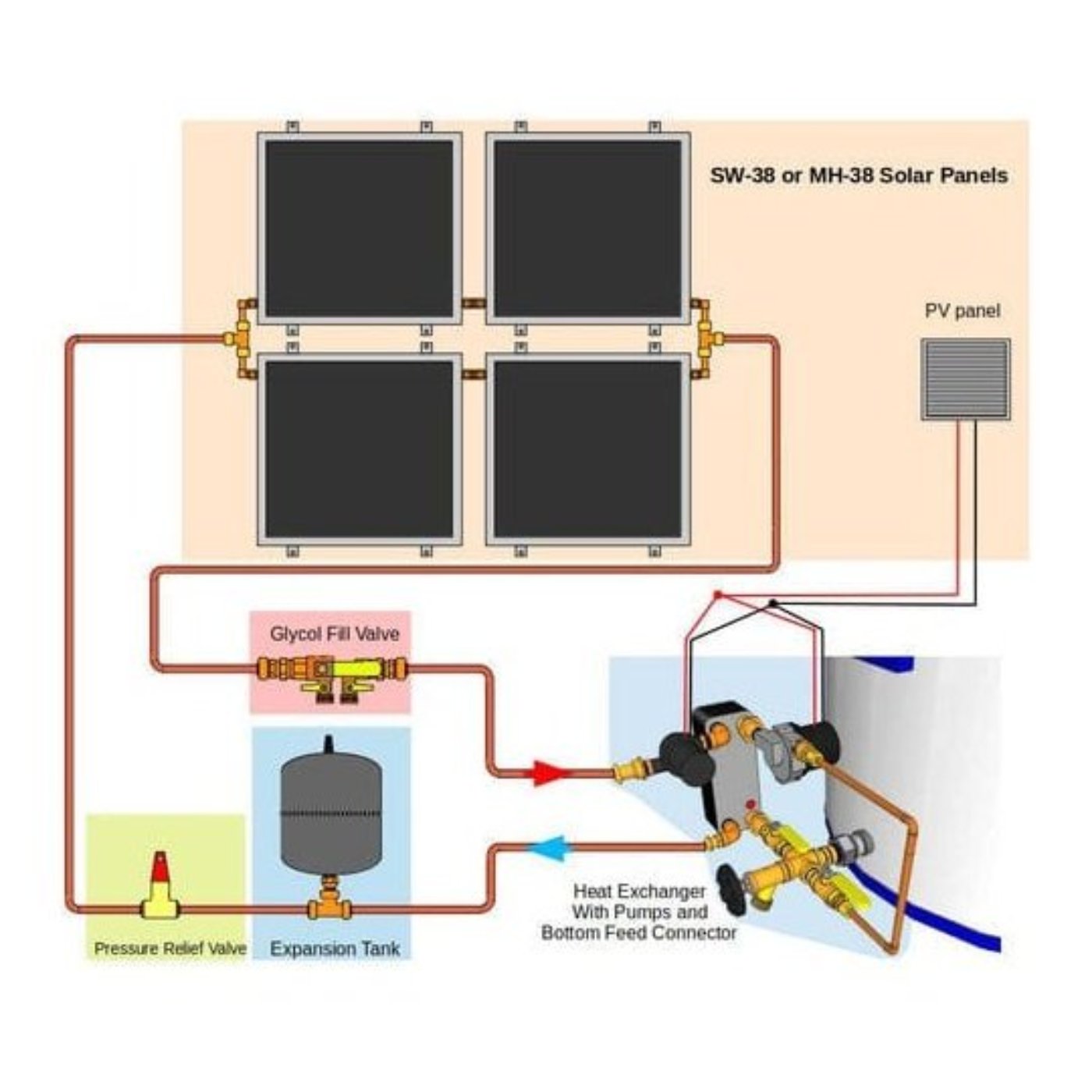

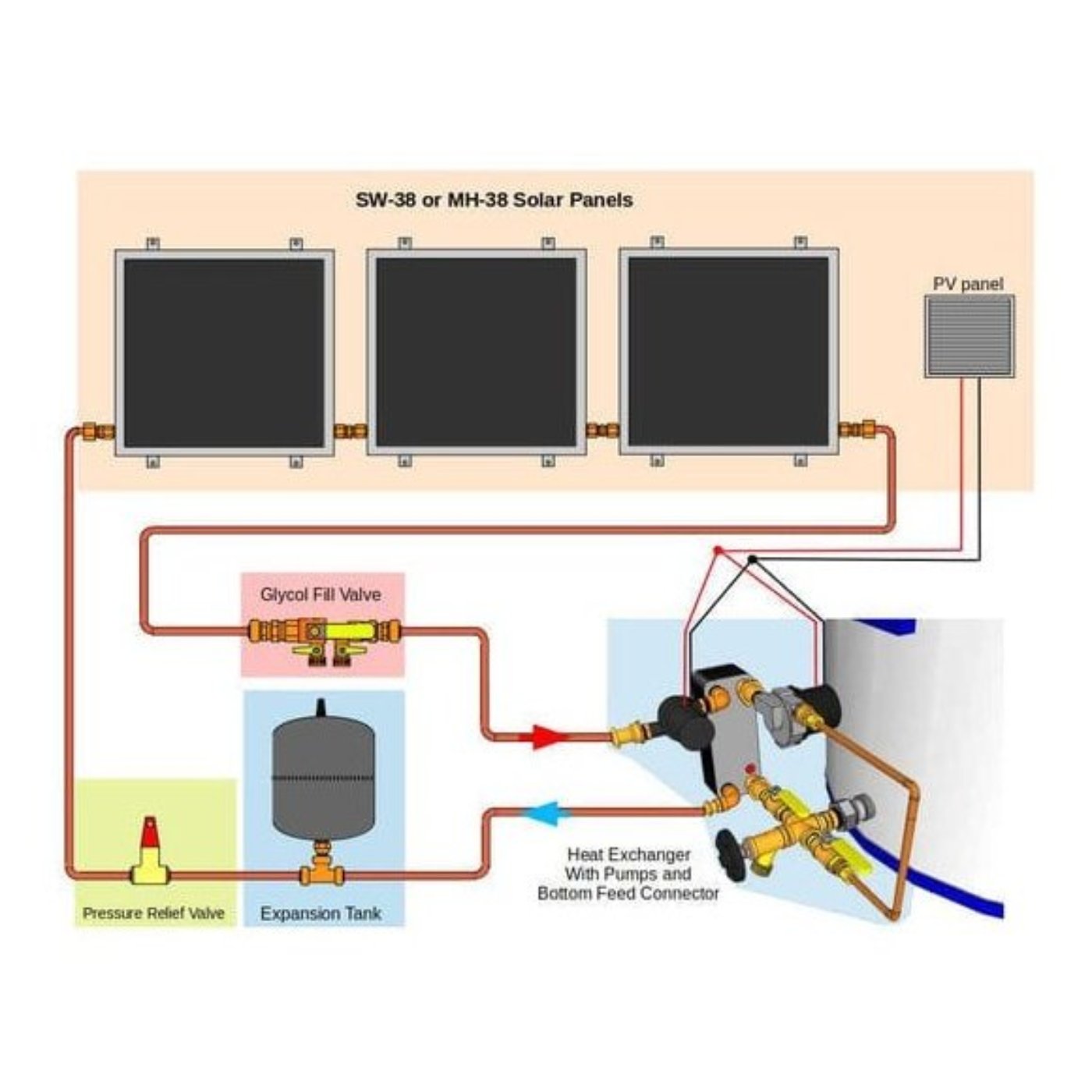

Our Freeze Protected Solar Water Heating Kit allows you to install a solar hot water system you can operate year round. This kit includes SW-38 Panels and a Stainless Steel Heat Exchanger with a special food grade heat transfer fluid (DOWFROST) to create a separate freeze protected loop. Filling your separate loop is easy with our Glycol Fill Valve. Please use our Glycol Calculator to determine the dilution ratio for winter conditions in your area as well as the total amount of glycol concentrate you need. As with all our systems they connect directly to your existing water heater and don't interfere with existing source of heat (gas or electric). This way you can enjoy hot water even during long cloudy periods.

Each panel weighs 12 lbs. and is 24' by 24' but can still provide you with ample hot water. You can begin your system with a few panels and add more if you need more.  With this kit you DO NOT have to solder at all!

Specifications

Materials

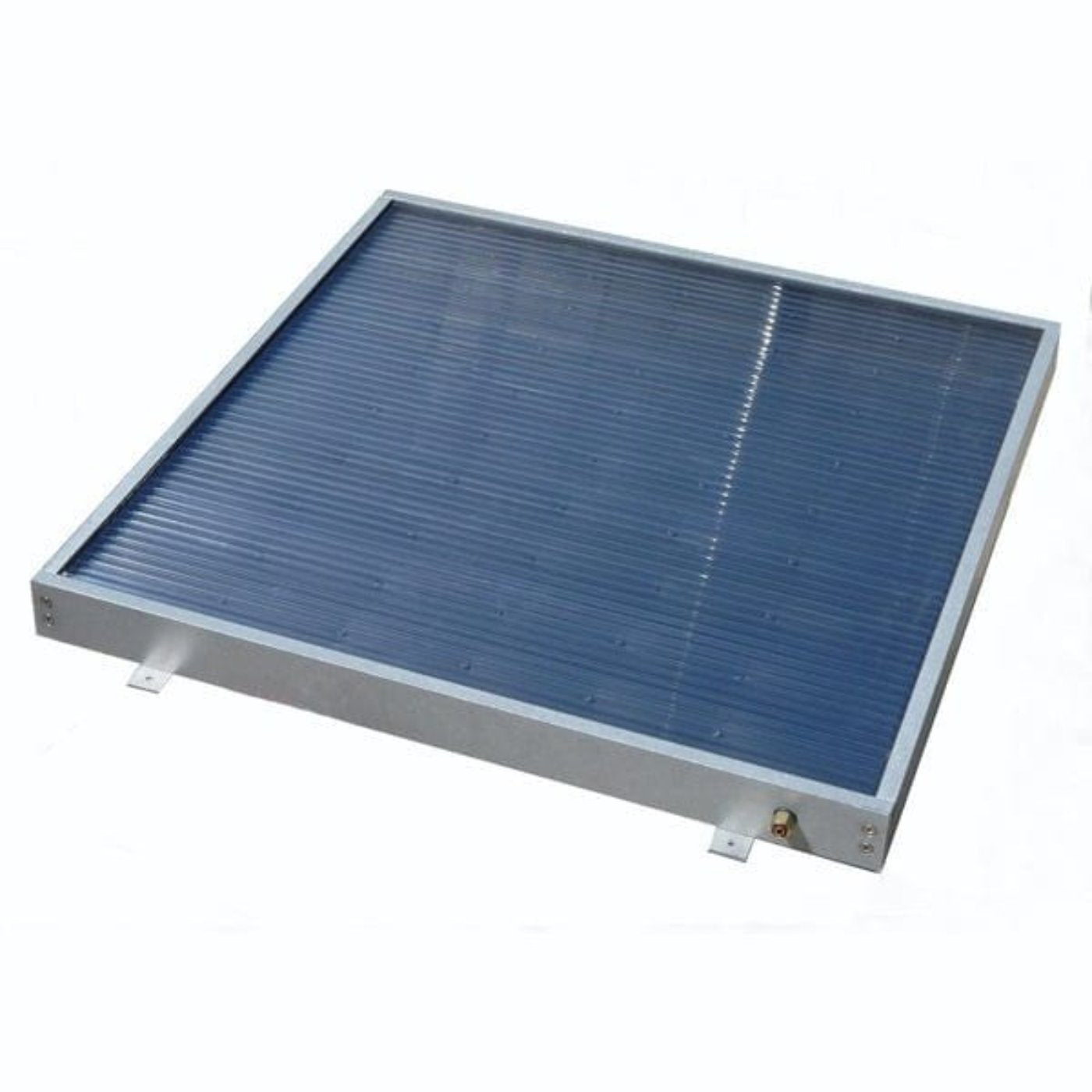

• Glazing: UV resistant twin wall polycarbonate
• Frame: Architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies
• meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in
• Drinking Water Act , Dezincification resistant
• Seals: Butyl Rubber

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 11.6 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 150 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

In the Box

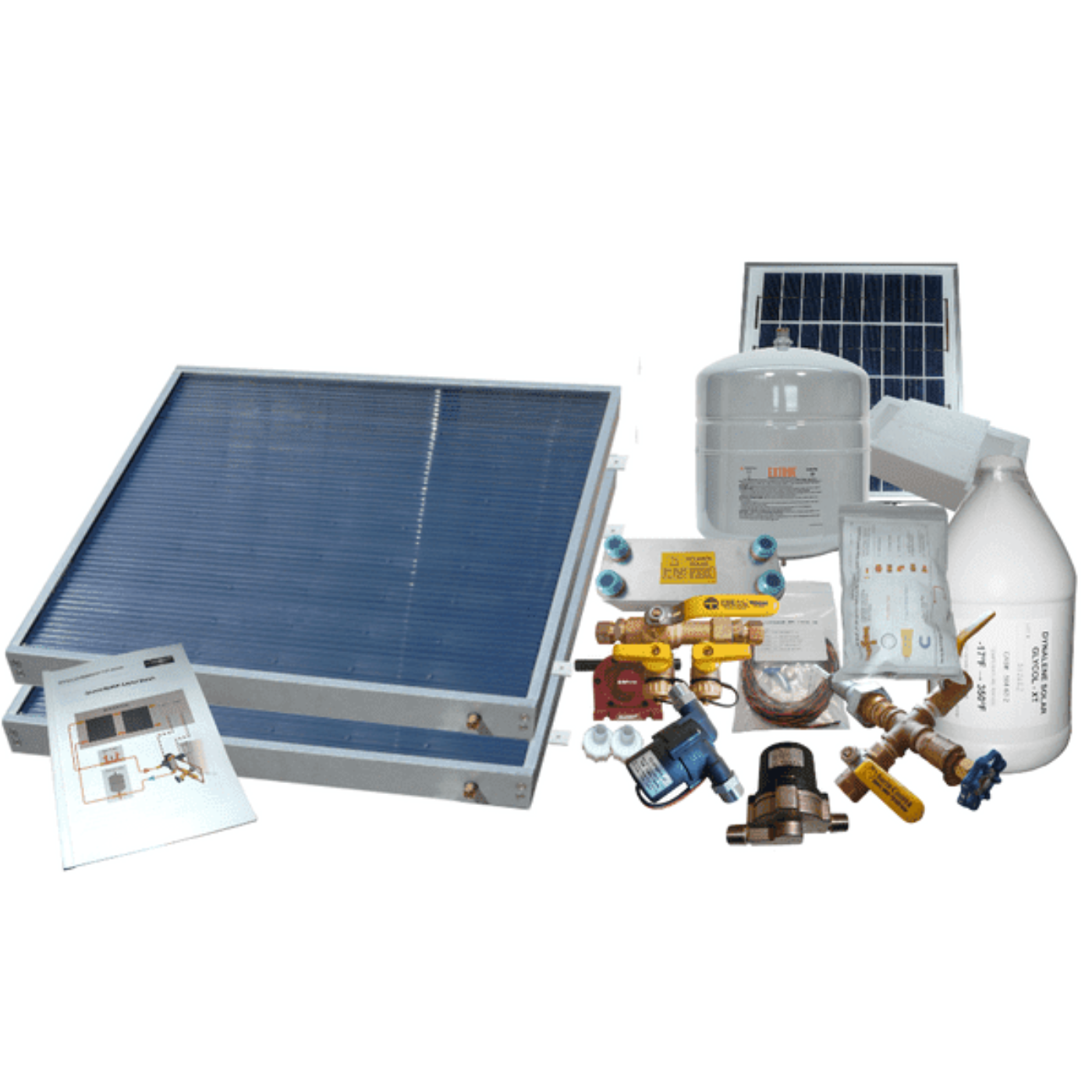

• Your selected quantity of SW-38 Panels
• 1 Grade A 25W PV panel to power the pumps - NO grid connection required - plus wire and PV mounting kit
• 1 Heliatos HS-21 Pump for the Glycol Side
• 1 TopsFlo TD5 Stainless Steel Pump for the Water Side
• 1 Heliatos Glycol Fill Valve
• 1 Heliatos Bottom Feed Connector
• 1 Compact Stainless Steel (Alloy 316) Heat Exchanger

• 1 Amtrol Expansion Tank
• 1 Complete Set of Fittings and Adapters
• DOWFROST Food Grade Propylene Glycol Heat Transfer Fluid. 2 quarts for kits 4 panels or less. 4 quarts for 5 panels or more.
• Instructions for Installation- Single Row
• Instructions for Installation- Double Row

Video

Manual

• Instructions Installation For Single Row

• Instructions Installation For Double Row

What Our Experts Think

• Freeze Protection: This system is designed with built-in freeze protection, ensuring it operates in colder temperatures without the risk of damage, making it ideal for year-round use.
• High-Efficiency Heating: The solar heater efficiently transfers energy from the sun to heat water, providing a cost-effective and eco-friendly solution for all your hot water needs.
• Durable & Weather-Resistant: Built to withstand harsh climates, the materials are specifically chosen to handle a range of weather conditions, from freezing winters to hot summers.
• Versatile & Reliable: Whether for use in homes, RVs, boats, or cabins, the freeze-protected system ensures consistent performance in various environments.
• Low Maintenance: The system is designed for minimal upkeep, allowing users to enjoy reliable hot water without the hassle of frequent repairs or maintenance.
• Eco-Friendly Solution: By using solar energy, this kit significantly reduces reliance on traditional energy sources, helping to lower your carbon footprint.

Q&A

Q: What is the Heliatos Freeze Protected Solar Water Heater Kit?
A: The Heliatos Freeze Protected Solar Water Heater Kit is an eco-friendly, energy-efficient system designed to provide hot water while preventing freezing in cold temperatures. It uses solar energy to heat water and features freeze protection to ensure reliable performance year-round.

Q: How does the freeze protection feature work?
A: The system includes a built-in freeze protection mechanism that prevents the water from freezing in colder weather, ensuring the heater continues to function even in low temperatures.

Q: Is this system suitable for all climates?
A: Yes, the Heliatos Freeze Protected Solar Water Heater Kit is designed to work in various climates, including colder environments, thanks to its freeze protection features.

Q: Can I install this kit on my property?
A: Yes, the kit is designed for easy installation and can be used in residential, RV, or boat setups, providing reliable hot water wherever solar access is available.

Q: What are the benefits of using a freeze-protected solar water heater?
A: This system provides a sustainable, energy-efficient way to heat water without relying on electricity or gas. The freeze protection ensures that the system operates year-round, even in cold climates.

Q: Is the Heliatos Freeze Protected Solar Water Heater Kit backed by a warranty?
A: Yes, the kit comes with a warranty for durability and peace of mind, ensuring long-lasting performance.

Maintenance Tips

• Regular Inspections:

  • Inspect the solar panels, plumbing, and connections for cracks, leaks, or damage. Tighten or replace any loose or broken parts to ensure system integrity.

• Clean Solar Panels:

  • Clean the panels periodically to remove dirt, dust, or debris that can hinder sunlight absorption. Use a soft cloth and mild soap with water for gentle cleaning.

• Monitor Freeze Protection Fluid:

  • Check the freeze protection fluid (antifreeze) level regularly and top it off if necessary. Replace the fluid as per the manufacturer’s guidelines to prevent freezing during cold weather.
