Heliatos RV Freeze Protected Solar Water Heater Kit with Built-In Heat Exchanger

Heliatos RV Freeze Protected Solar Water Heater Kit with Built-In Heat Exchanger

This RV water heater kit includes all the components necessary to easily integrate a top-notch freeze protected solar water heater, specifically designed for vehicles and equipped with a built-in heat exchanger. With the Heliatos SW-38 heating panels, the solar loop's antifreeze is heated to a high temperature, ensuring reliable performance even at high speeds. The panels' sturdy aluminum structure and unbreakable twinwall polycarbonate glazing make them lightweight at just 12 lbs, without sacrificing durability.

Specifications

SW-38 Solar Panel

Materials

• Glazing: UV resistant twin wall polycarbonate
• Frame: Architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies
• meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in
• Drinking Water Act , Dezincification resistant
• Seals: Butyl Rubber

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 11.6 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 150 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

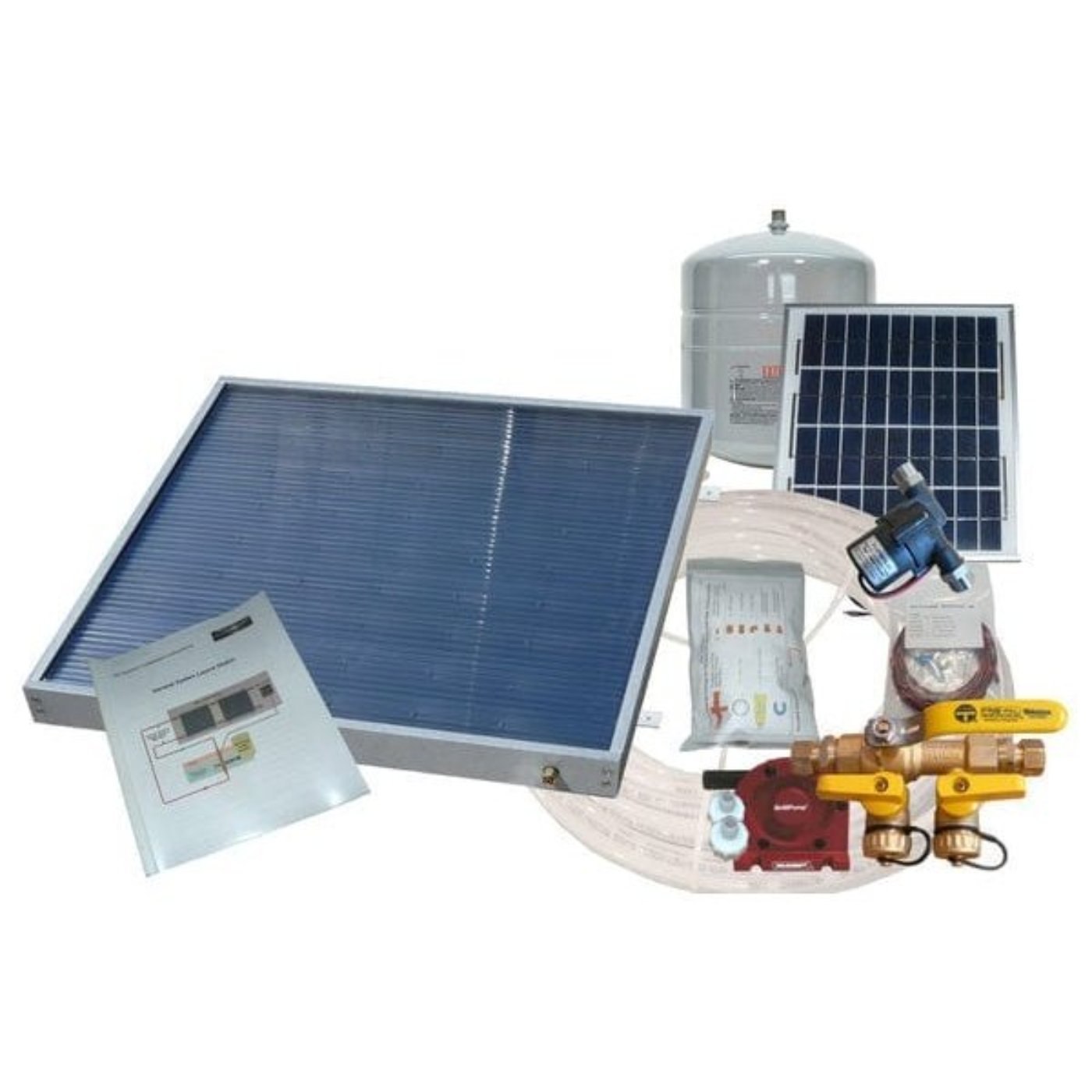

In the Box

• Your selected quantity of Heliatos SW-38 Solar Water Heating Panel

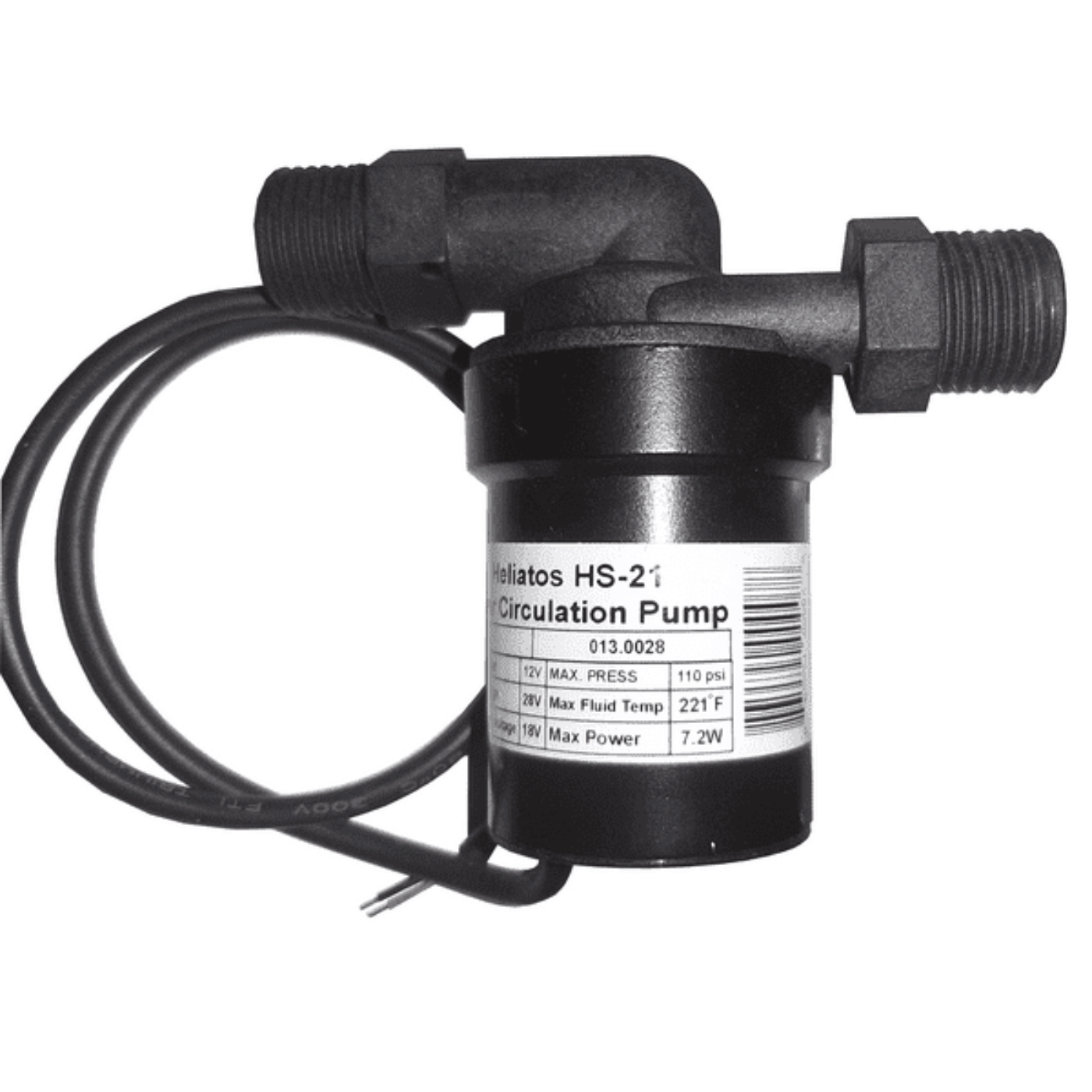

• 1 Heliatos HS-21 solar circulation pump

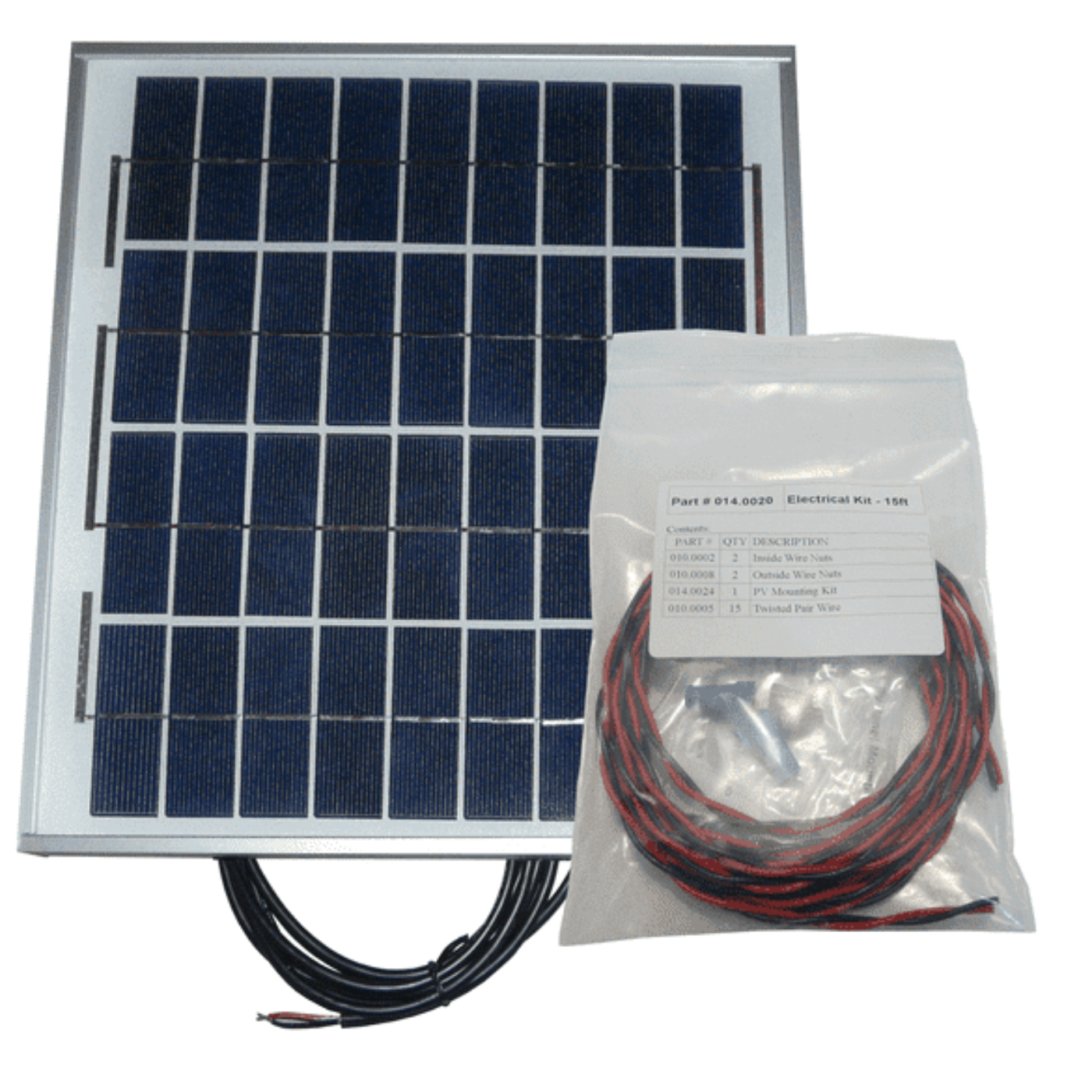

• 1 10 Watt PV Solar panel to power the pump
• Wire and PV panel mounting tabs

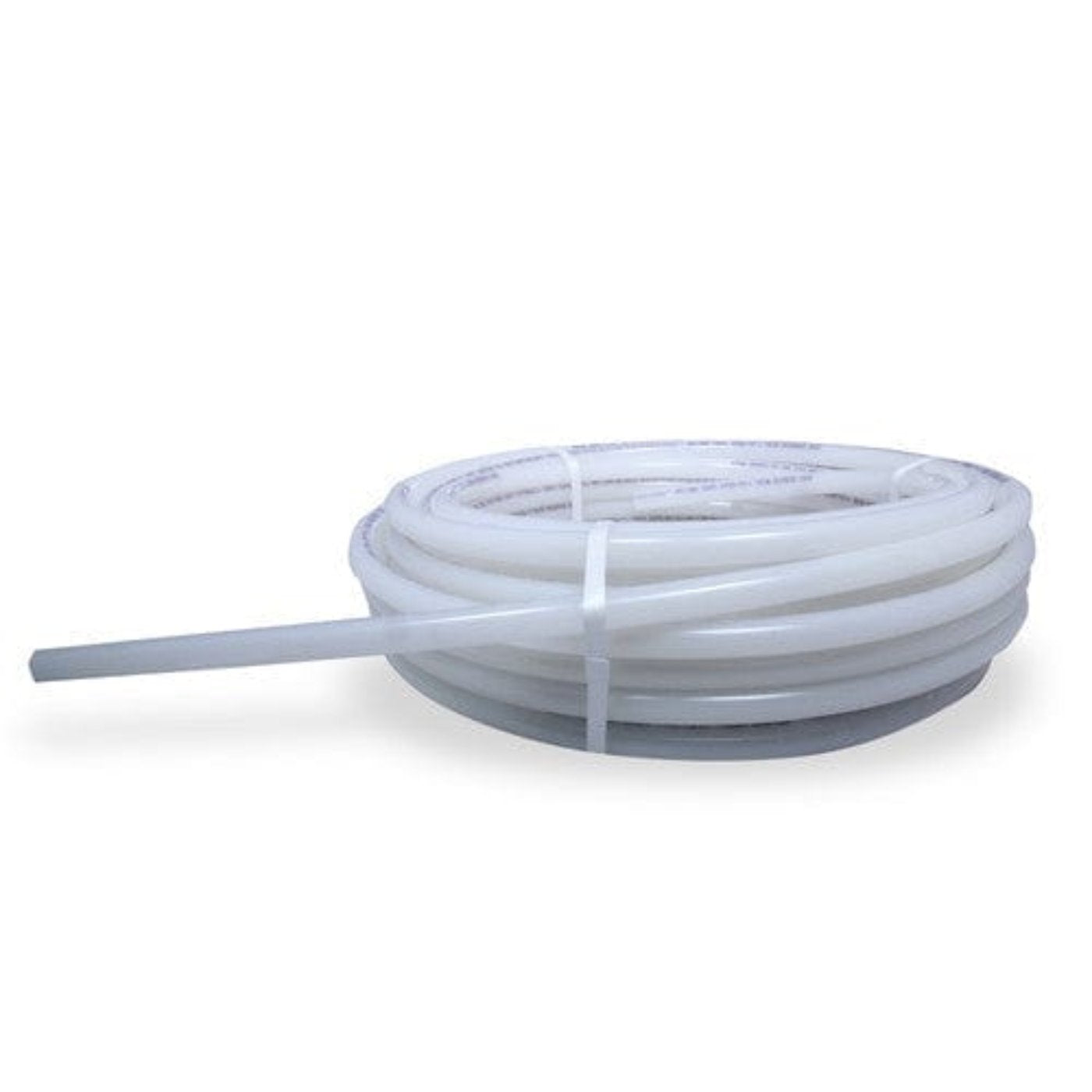

• 25 ft of 1/4' PEX tubing
• Amtrol #15 Expansion Tank

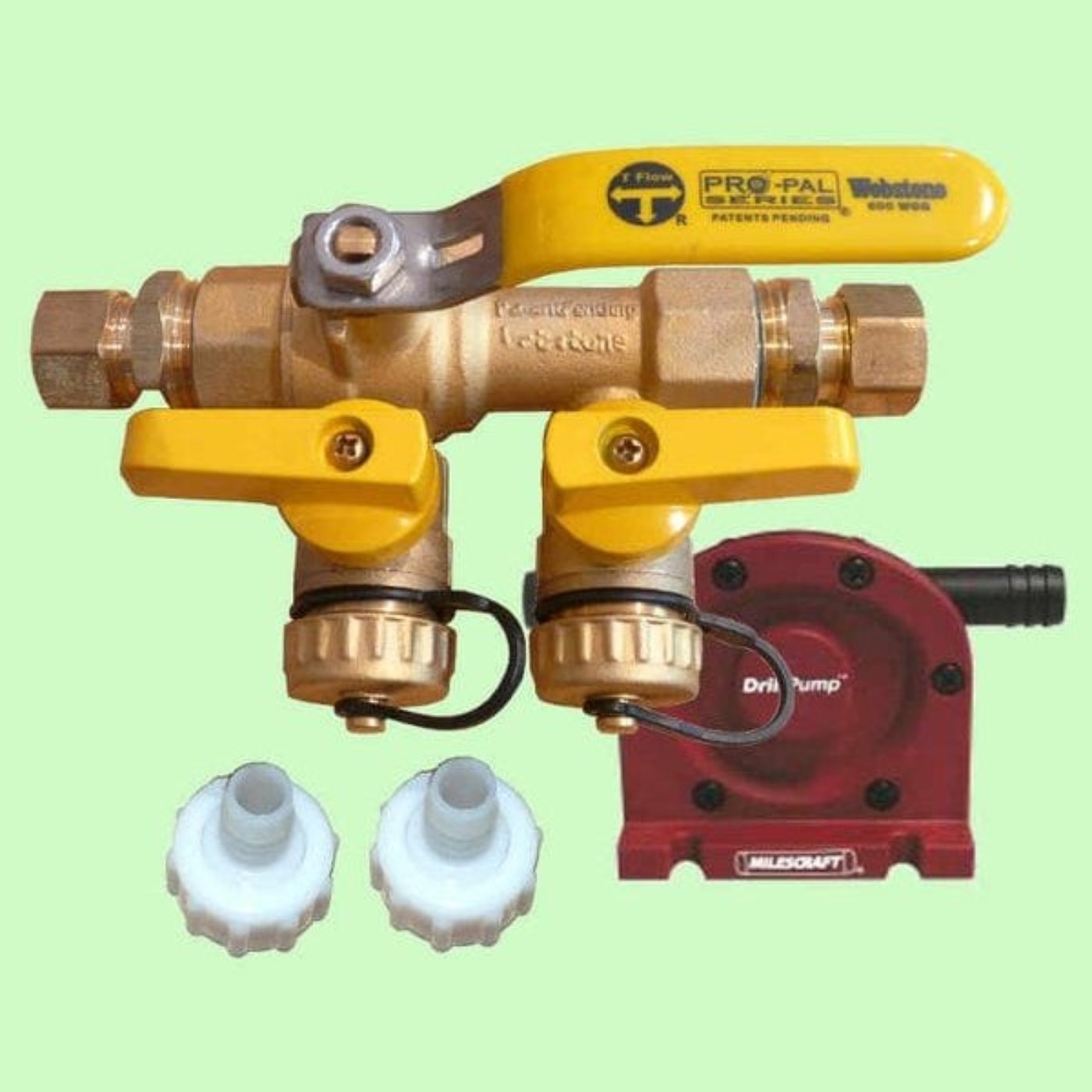

• RV Glycol Fill and Purge Valve with Drill Pump and Instructions
• 1 Complete Set of Fittings and Adapters
• Assumes RV water heater with 1/2' NPT connections (most common)
• Contact us for non-standard Water Heaters or Connections

All You Have To Supply Is

• Fasteners to attach the panels
• Insulation for the tubing
• Your existing RV water heater
• Tools needed for installation

Video

Download

• Installation Instructions

What Our Experts Think

• Efficient Performance: The Heliatos RV Freeze Protected Solar Water Heater Kit ensures your water stays warm, even in cold weather, thanks to its built-in heat exchanger and freeze protection.
• Energy-Saving: Harness the power of the sun for eco-friendly heating, reducing your reliance on propane or electricity.
• Durable & Reliable: Designed for longevity, the high-quality materials withstand the rigors of outdoor use.
• Easy Installation: The kit is user-friendly, making installation a breeze for RV owners and DIY enthusiasts.
• Compact Design: Perfectly suited for RVs, saving space without compromising on performance.
• Weather-Proof: Built-in freeze protection prevents damage in freezing temperatures, ensuring year-round usability.

Q&A

Q: What is the Heliatos RV Freeze Protected Solar Water Heater Kit?
A: The Heliatos RV Freeze Protected Solar Water Heater Kit is a high-performance, energy-efficient solar water heating system designed to protect your RV's water system from freezing temperatures. It includes a built-in heat exchanger for effective heat transfer, ensuring hot water even in cold conditions.

Q: How does the built-in heat exchanger work?
A: The heat exchanger allows the solar-heated water to circulate and transfer heat to your RV's water supply, keeping it warm without the risk of freezing.

Q: Is the kit suitable for year-round use?
A: Yes, the freeze protection feature makes this kit ideal for year-round use, even in winter conditions.

Q: Can I install the kit myself?
A: Yes, the kit is designed for easy installation and is compatible with most RVs.

Q: What are the benefits of using solar water heating for my RV?
A: Solar water heating is eco-friendly, reduces your energy bills, and provides reliable hot water without relying on propane or electricity.

Q: Is the Heliatos RV Solar Water Heater Kit backed by a warranty?
A: Yes, it comes with a warranty for peace of mind, ensuring durability and performance.

Maintenance Tips

• Regular Inspections: Check for leaks, cracks, or damage to the solar panels, pipes, and heat exchanger. Ensure the system is free from debris.

• Flush System Annually: Clean the heat exchanger and flush the system yearly to remove sediment and mineral buildup.

• Monitor Fluid Levels: Regularly check the freeze protection fluid and top it off as needed to prevent freezing in colder months.

• Keep Panels Clean: Wash solar panels regularly to remove dirt, dust, or snow for optimal performance.

• Insulate: Ensure all exposed pipes and components are properly insulated to maintain heat retention.

• Professional Checkup: Schedule an annual professional inspection to ensure system efficiency and safety.
