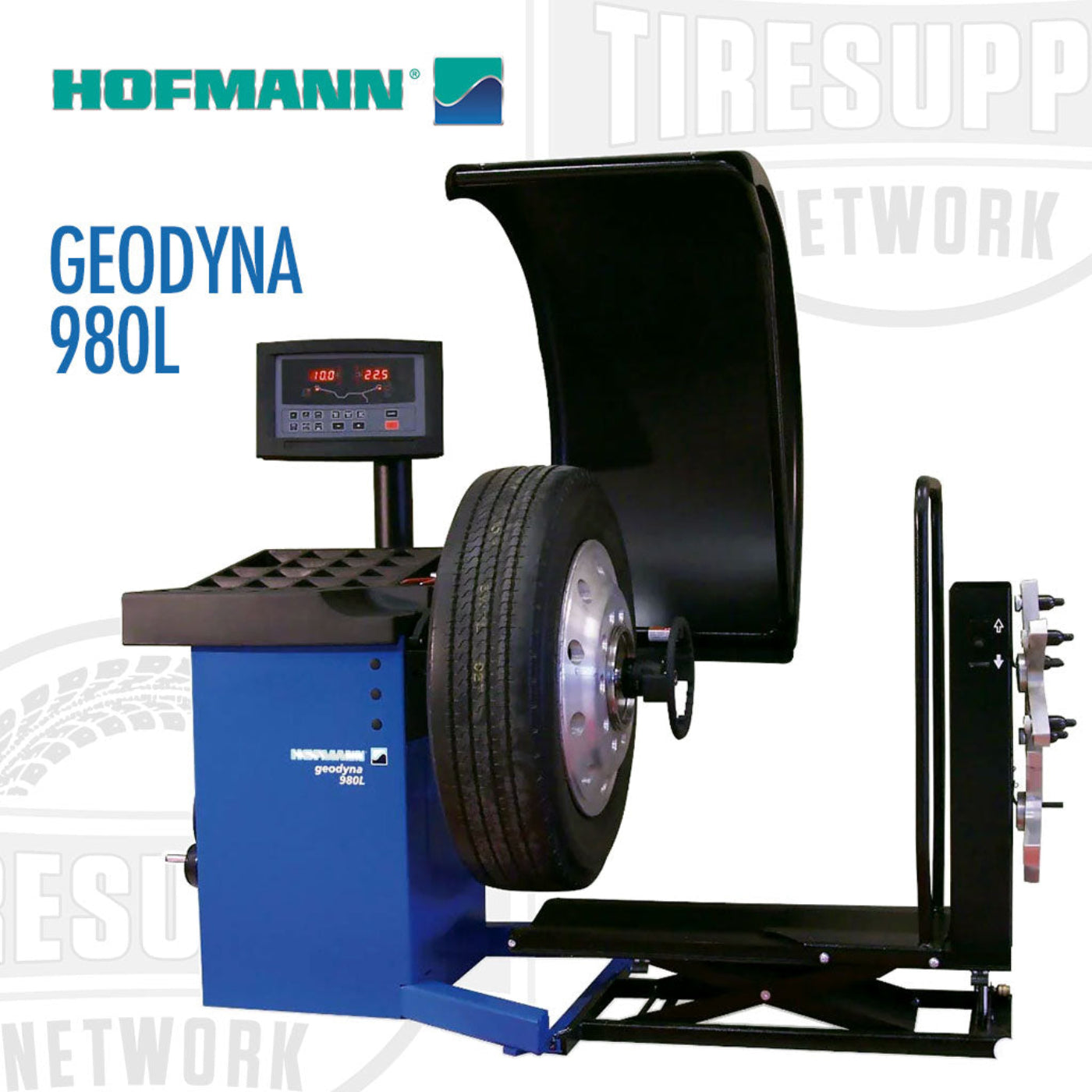

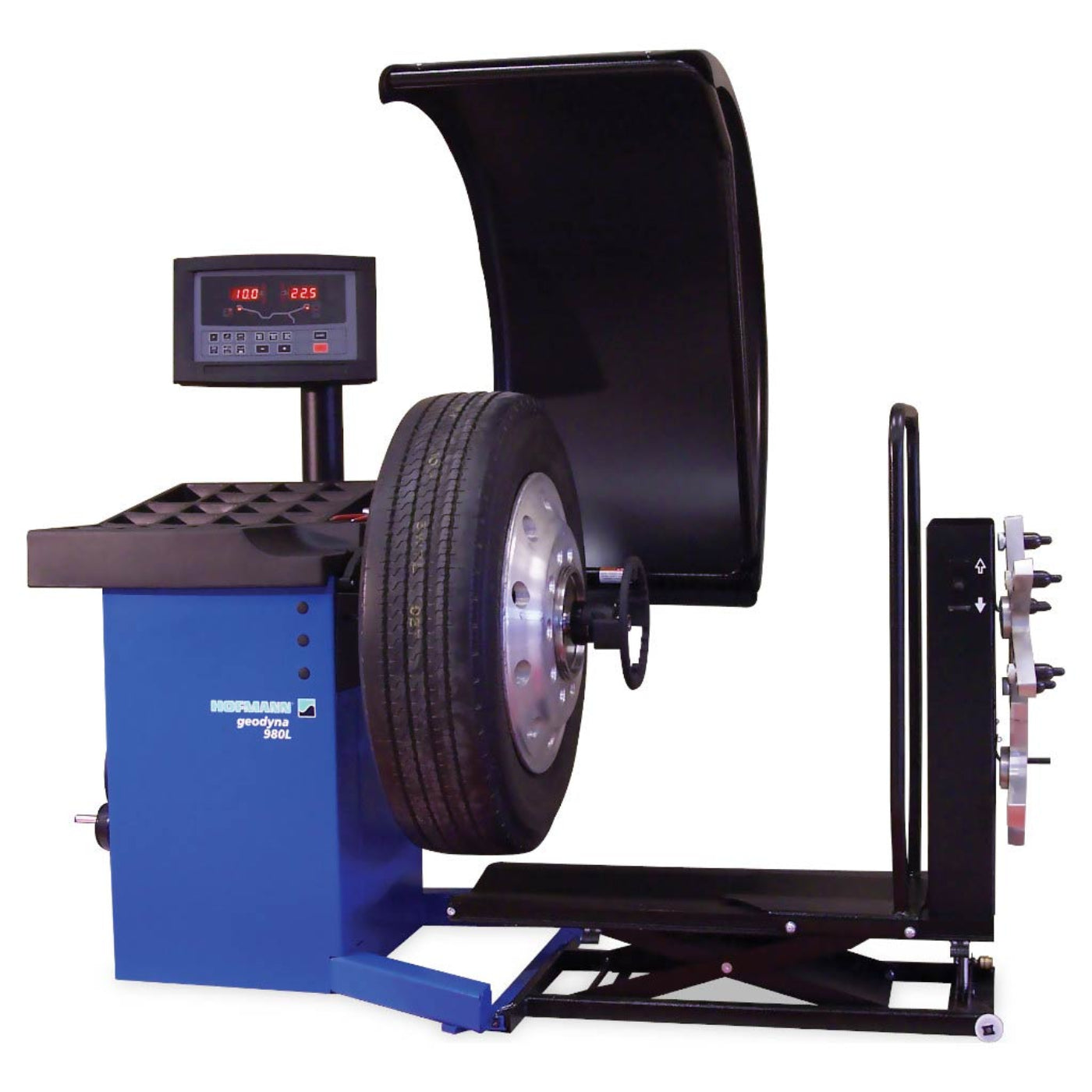

Hofmann | Geodyna 980L Heavy-Duty Truck Wheel Balancer - EEWB710BW
The Geodyna 980L heavy-duty wheel balancing system is designed to handle the balancing needs of trucks, buses, RV’s, and Light Truck/Automobile tires. The Geodyna 980L is equipped to handle from the smallest of wheels, 12" (30.5 cm) to heavy-duty 25" (63.5) and “super-singles”.The Geodyna 980L assists in reducing tire tread wear with its 2-Plane/Dynamic, off-the-vehicle balancing of truck tires. A pneumatic wheel lift is included to assist with heavy lifting and proper wheel mounting. Increased accuracy with semi-automatic entries of wheel distance and diameter, along with easy re-calibration that can help save on costly service calls. The Geodyna 980L comes standard with mounting adapters for both hub-piloted and stud-piloted truck wheels and a passenger/light truck centering cone kit for automotive use.
Features
- 2-Plane/Dynamic wheel balancing of truck tires off the vehicle can help increase the life of the tread

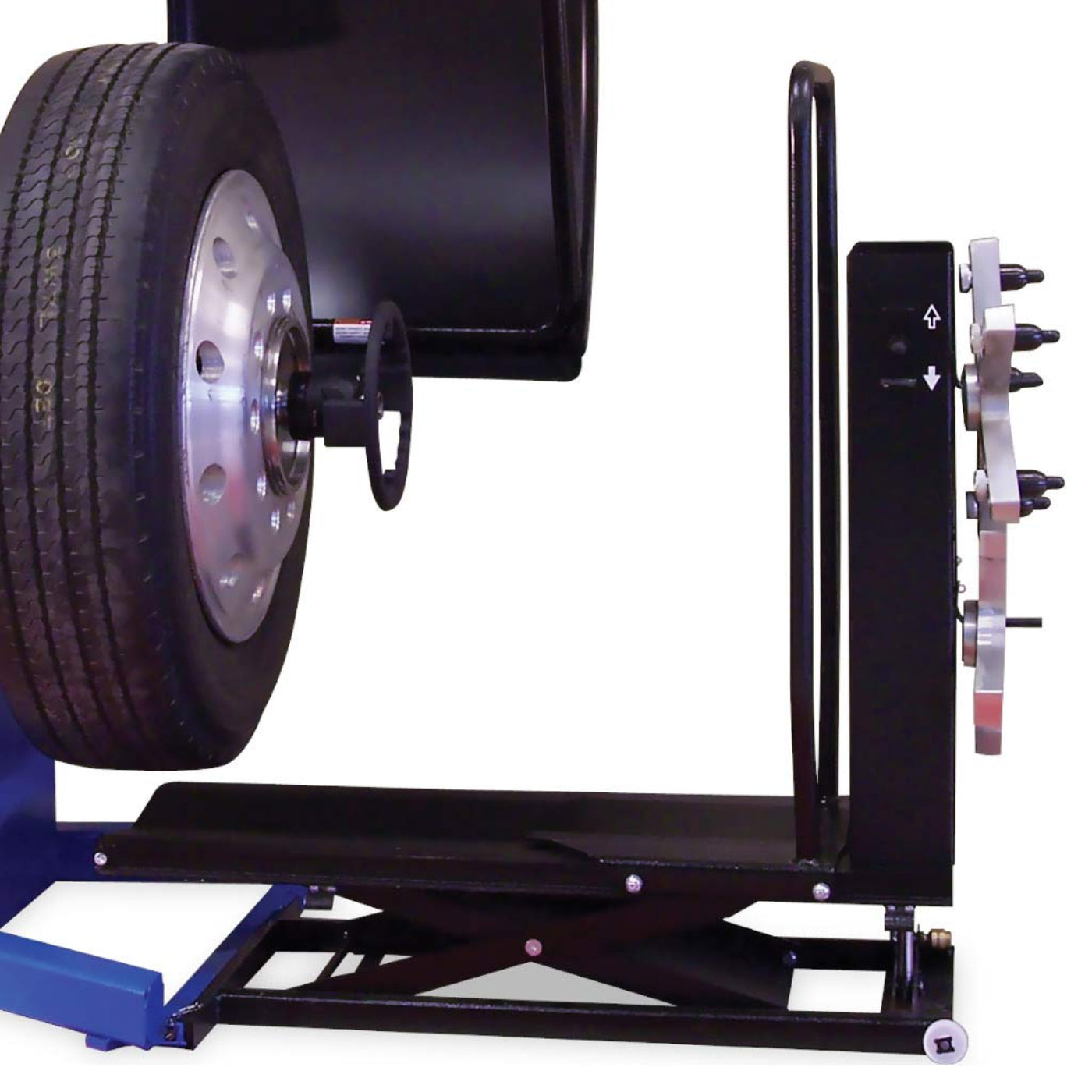

- The pneumatic wheel lift aids in proper wheel mountings and reduces related strains caused by lifting heavy tires
- The Geodyna 980L includes truck centering cones for hub piloted wheels, professional 4-star/5-star centering arms for stud piloted applications and passenger/light truck cones for automotive use
- Operator can recalibrate the balancer in two easy steps to ensure accuracy
- Semi-automatic data entry precisely enters the wheel diameter and distance utilizing the Geodata arm to help reduce operator errors
- Flexible balancing system designed to handle from the smallest of wheels, 12" to heavy duty 24.5" and “super-singles”
Accessories Included
- Automotive Car/Truck Adapter Kit
- Wheel Width Gauge
- Weight Pliers
- Light Truck Wheel Spacer
- Gold Spacer
- Calibration Tool
- Storage Pegs
- Truck Cone (4.25” x 6.625”)
- Heavy-Duty Truck Cone (8” - 9”)
- Professional Centering Arms
Specifications
| TECHNICAL DATA |
Geodyna 980L |
| Hofmann Part Number |
EEWB710BW |
| Wheel Clamping |
Quick Nut |
| Wheel Width |
2″ - 20″ (5 - 50.8 cm) |
| Maximum Wheel Assembly Width |
25″ (63.5 cm) |
| Maximum Wheel Assembly Diameter |
8″ - 30″ (20.32 - 76.2 cm) |
| Wheel Weight |
500 lbs (227 kg) |
| Balancing Modes |
10 |
| Motor |
1 hp (Acceleration hp) |
| Cycle Time |
From 7 seconds |
| Measuring Time |
Less than 20 seconds |
| Measuring Speed |
Less than 100 rpm |
| Read-Outs |
gram or ounce |
| Accuracy |
1g or 0.05 oz |
| Dimensions (W x D x H) |
55″ x 54″ x 76″ (139.6 x 137.16 x 193.04 cm) |
| Shipping Weight |
600 lbs (272 kg) |
| Power Requirements |
115 V, 1 Ph, 50/60 Hz, 8 Amp |
What Our Experts Think
-
Heavy-Duty Performance – Designed for balancing large truck wheels with precision and efficiency.
-
Advanced Digital Accuracy – Ensures precise weight placement for smooth rides and extended tire life.
-

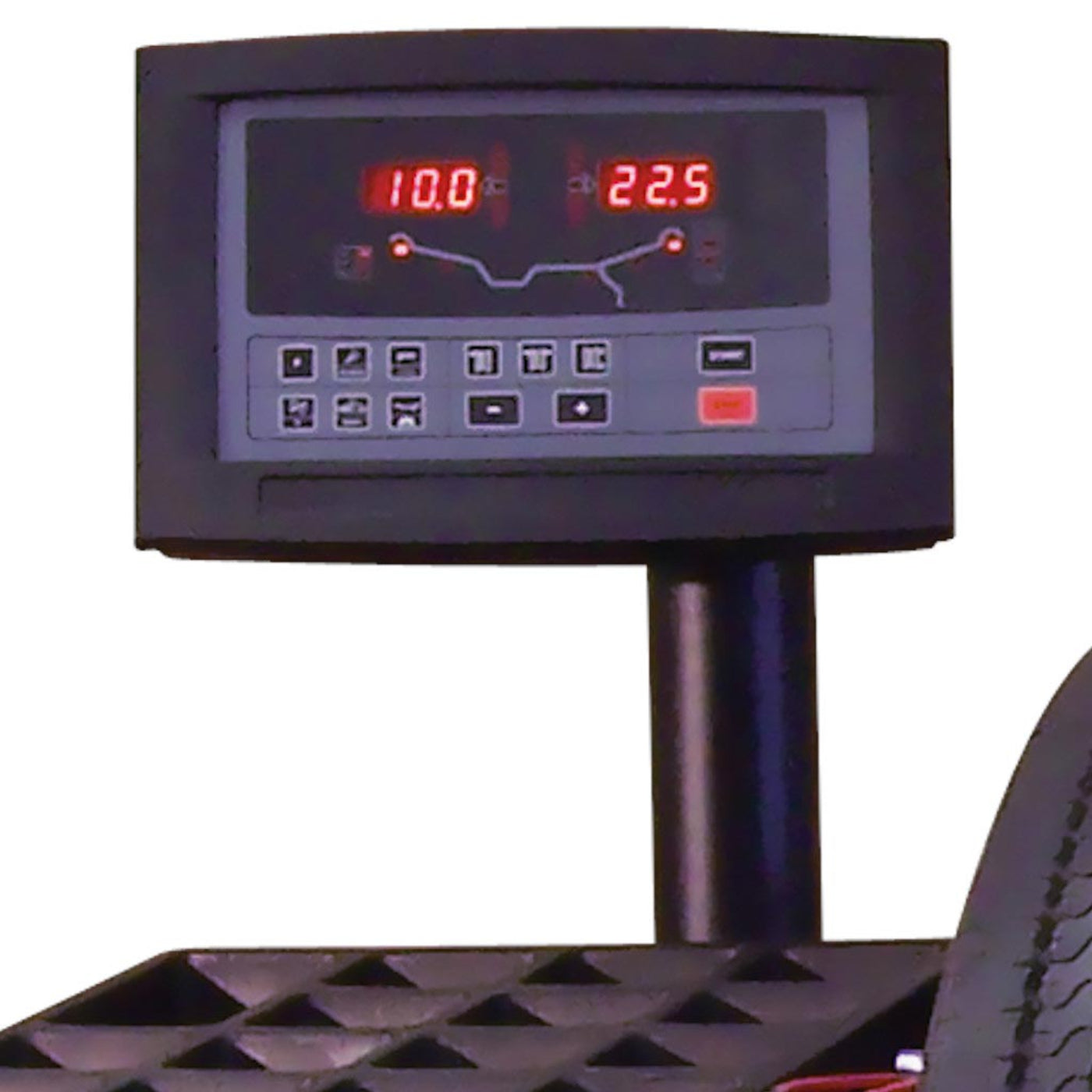

User-Friendly Interface – Intuitive controls and digital display simplify operation.
-
Versatile Compatibility – Supports a wide range of truck and commercial vehicle wheels.
-
Built for Durability – Rugged construction for long-term reliability in demanding shop environments
Q&A
Q: What is the Hofmann Geodyna 980L?
A: A heavy-duty truck wheel balancer designed for precise and efficient balancing of large commercial vehicle wheels.
Q: What types of vehicles can it accommodate?
A: It supports trucks, buses, and other heavy-duty commercial vehicles.
Q: What is the maximum wheel weight capacity?
A: It can handle wheels up to 550 lbs (250 kg).
Q: Does it support automatic data entry?
A: Yes, it features automatic input for wheel distance and diameter.
Q: Is it easy to use?
A: Yes, it includes intuitive controls and an ergonomic design for efficient operation.
Q: What industries benefit from this balancer?
A: Ideal for commercial truck service shops, fleet maintenance, and industrial vehicle repair centers.
Maintenance Tips
-
Keep Clean & Dust-Free – Regularly wipe down sensors and components to ensure accurate balancing.
-
Check Calibration – Periodically verify and recalibrate for precision.
-
Inspect Clamps & Adapters – Ensure all attachments are secure and free of wear.
-
Lubricate Moving Parts – Apply manufacturer-recommended lubrication to prevent friction and wear.
-
Monitor Power Supply – Use a stable power source to prevent electrical issues.
-
Follow Software Updates – Keep firmware up to date for optimal performance.
