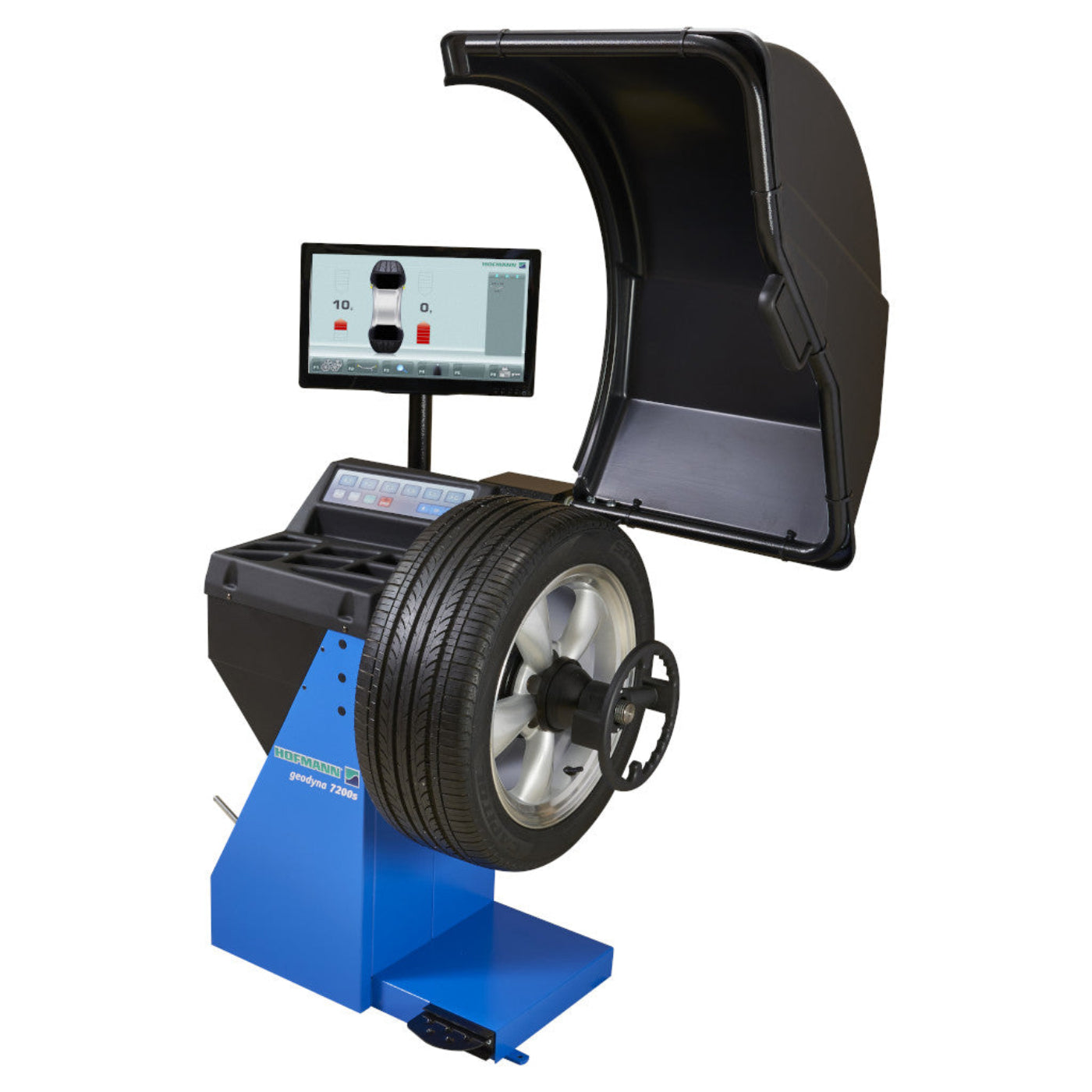

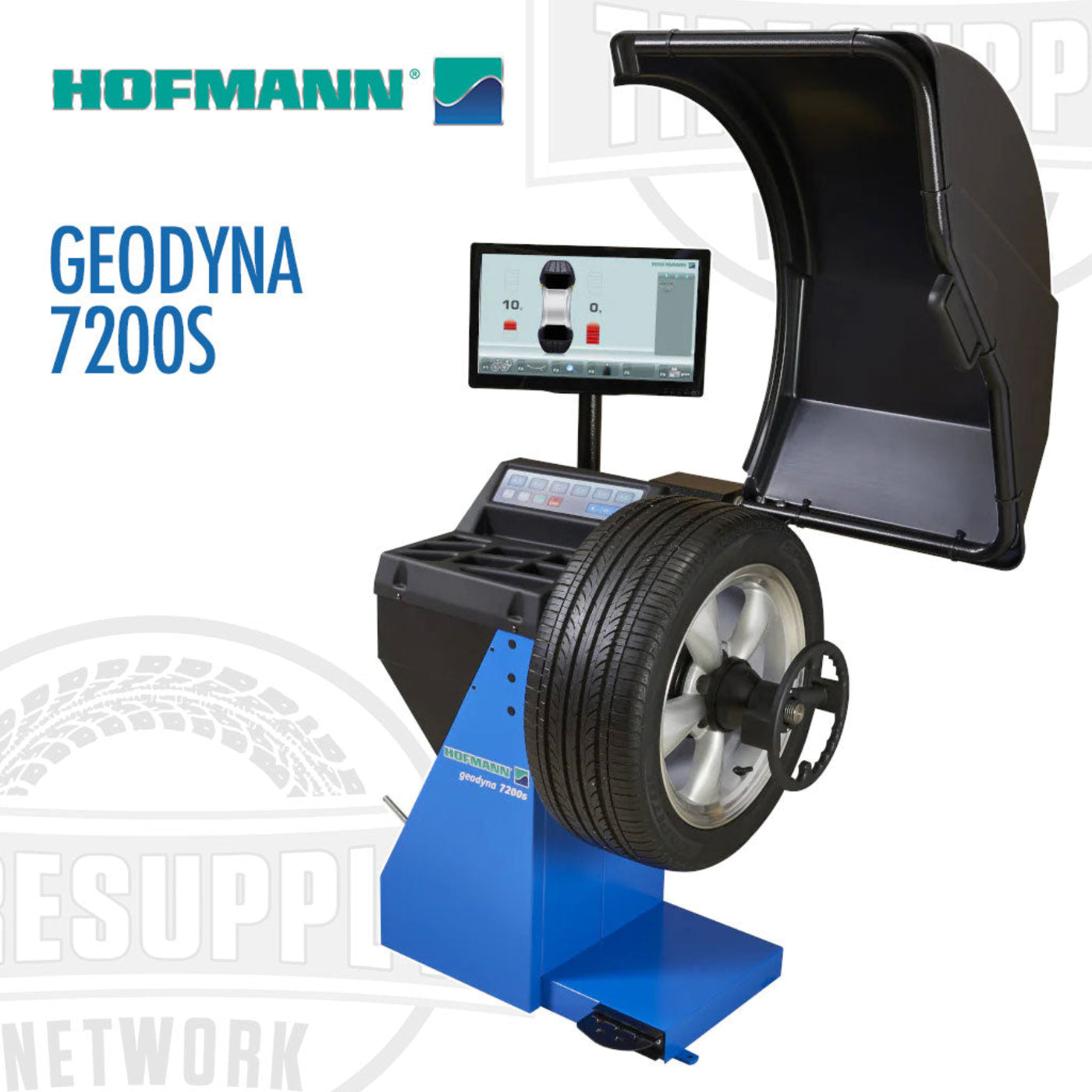

Hofmann | Geodyna 7200S Wheel Balancer with LCD Monito - EEWB746AS
The Geodyna 7200S High Performance Wheel Balancing System is ideal for all shops - small footprint complimented by the video display provides high-end features in a compact design. In under ten seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location. The fast spin cycle provides accurate measurement with minimum cycles for fast results.
Ideal For All Shops: Small footprint complimented by the video display provides high-end features in a compact design
Features

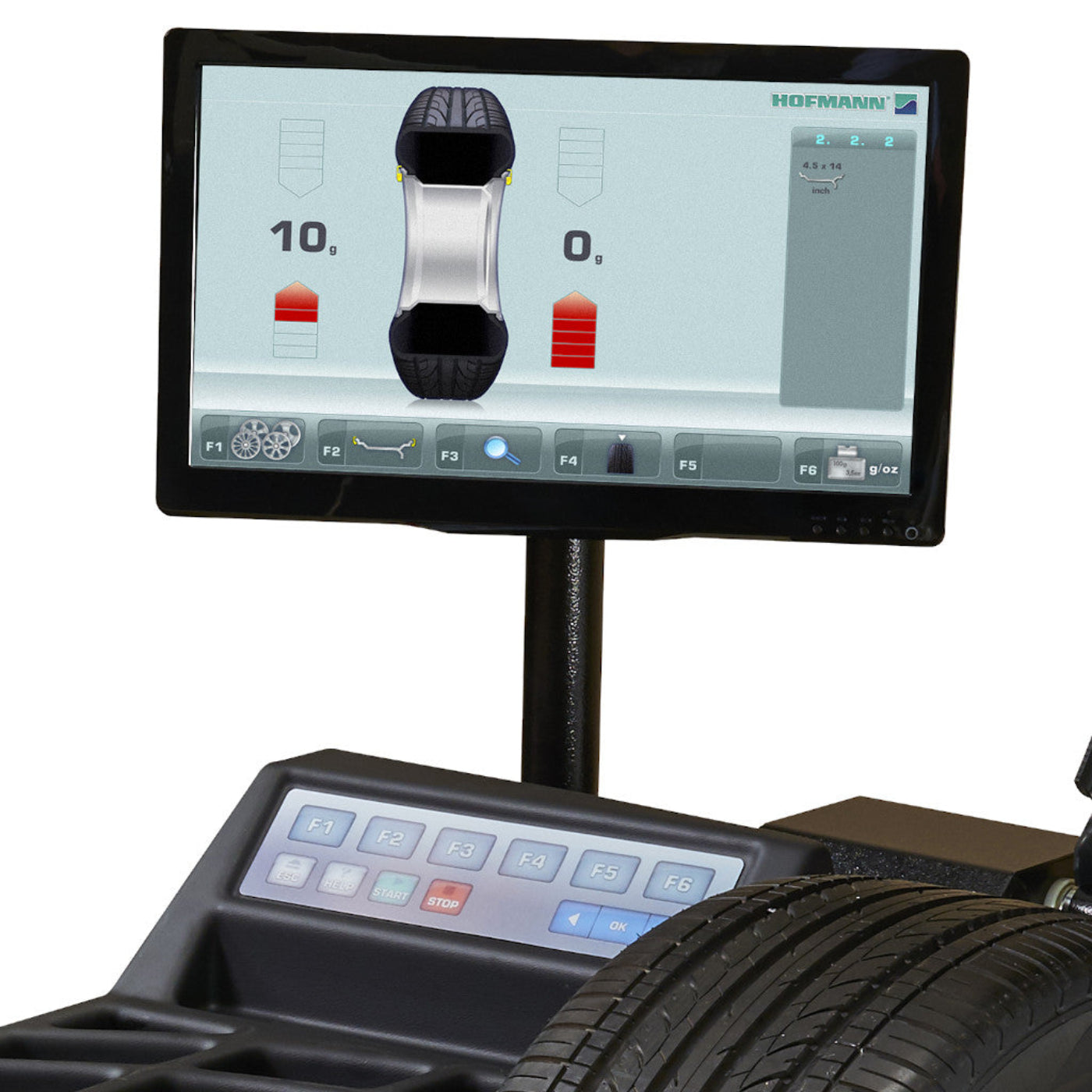

- In under ten Seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location
- The fast spin cycle provides accurate measurement with minimum cycles for fast results
- smartSonar simplifies parameter entry

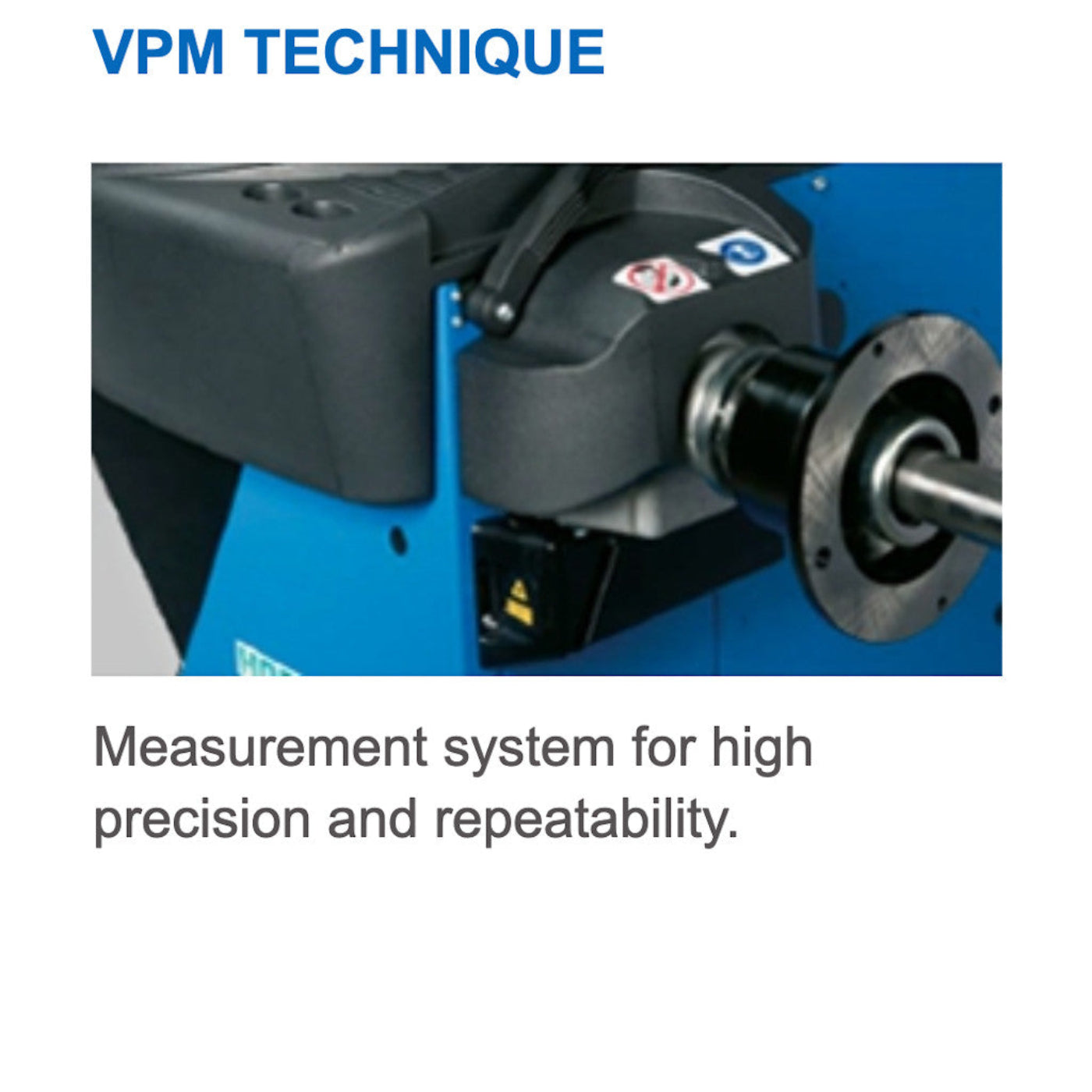

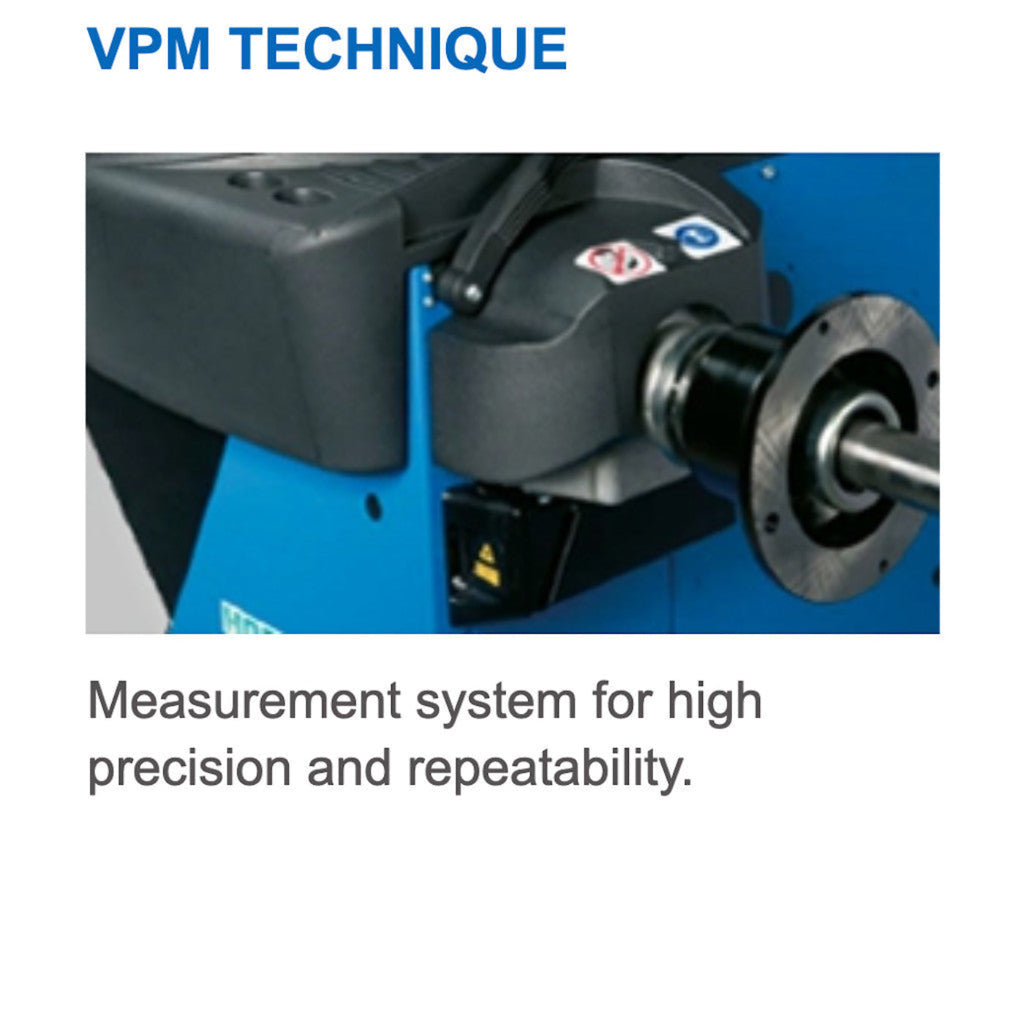

- Patented Virtual Plain Imaging (VPI) for precise measuring
- Hidden weight mode
- Automatic braking of the wheel after measurement
- Pedal operated main shaft lock
- Tire and wheel optimization program
- Compact dimensions for installation close to a wall

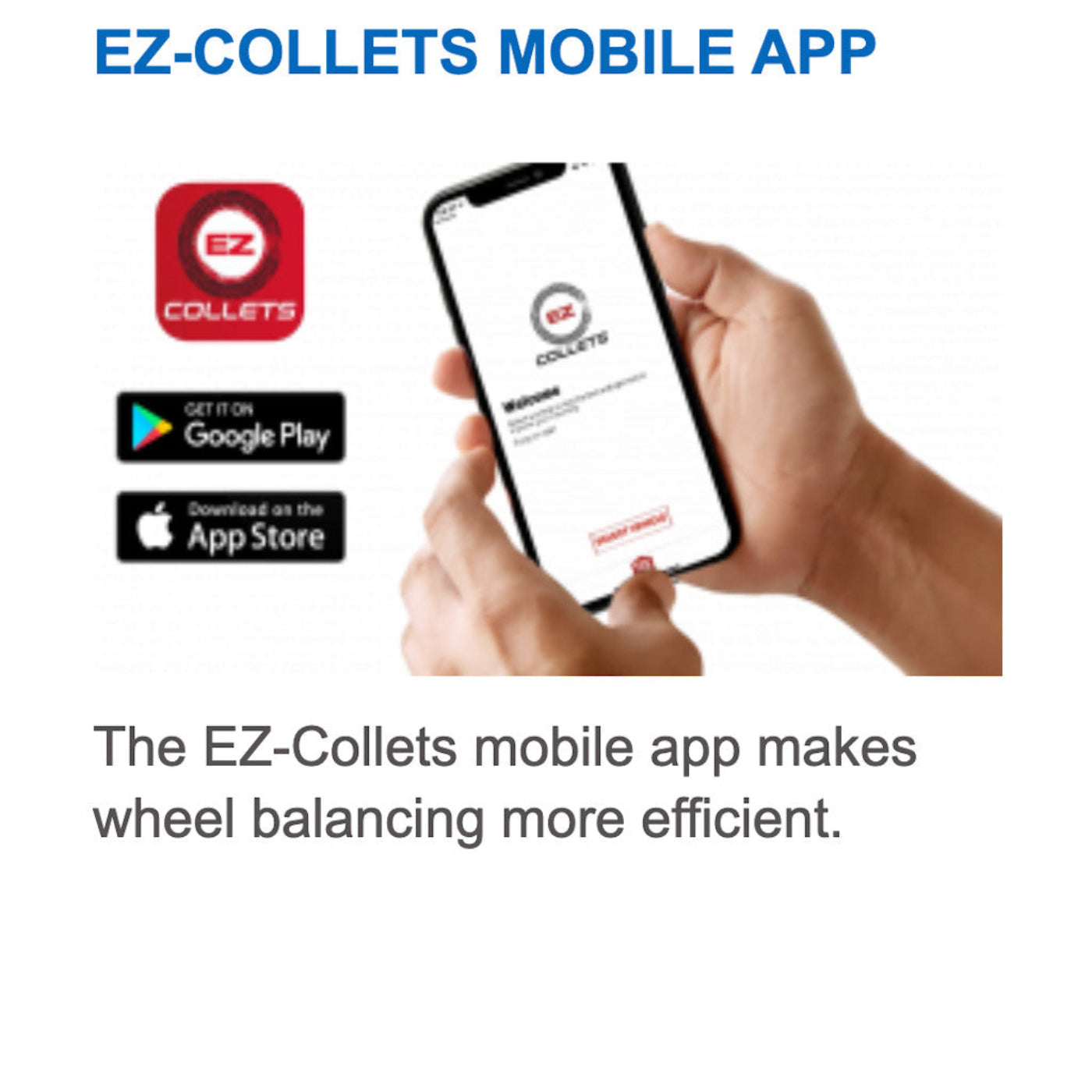

EZ-Collets Mobile App: Helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
Accessories Included
- Calibration Weight and Spacer 2”
- Four Cone Set
- Quick Nut, Plastic Protection Cup
- Rim Width Calipers
- Weight Pliers
- Set of 4 Storage Pegs
Specifications
| TECHNICAL DATA |
Geodyna 7200S |
| Hofmann Part Number |
EEWB746AS |
| Vehicles Supported |
Cars, Light Trucks, SUVs, Off-Road Vehicles |
| Display Technology |
Video Display |
| User Interface |

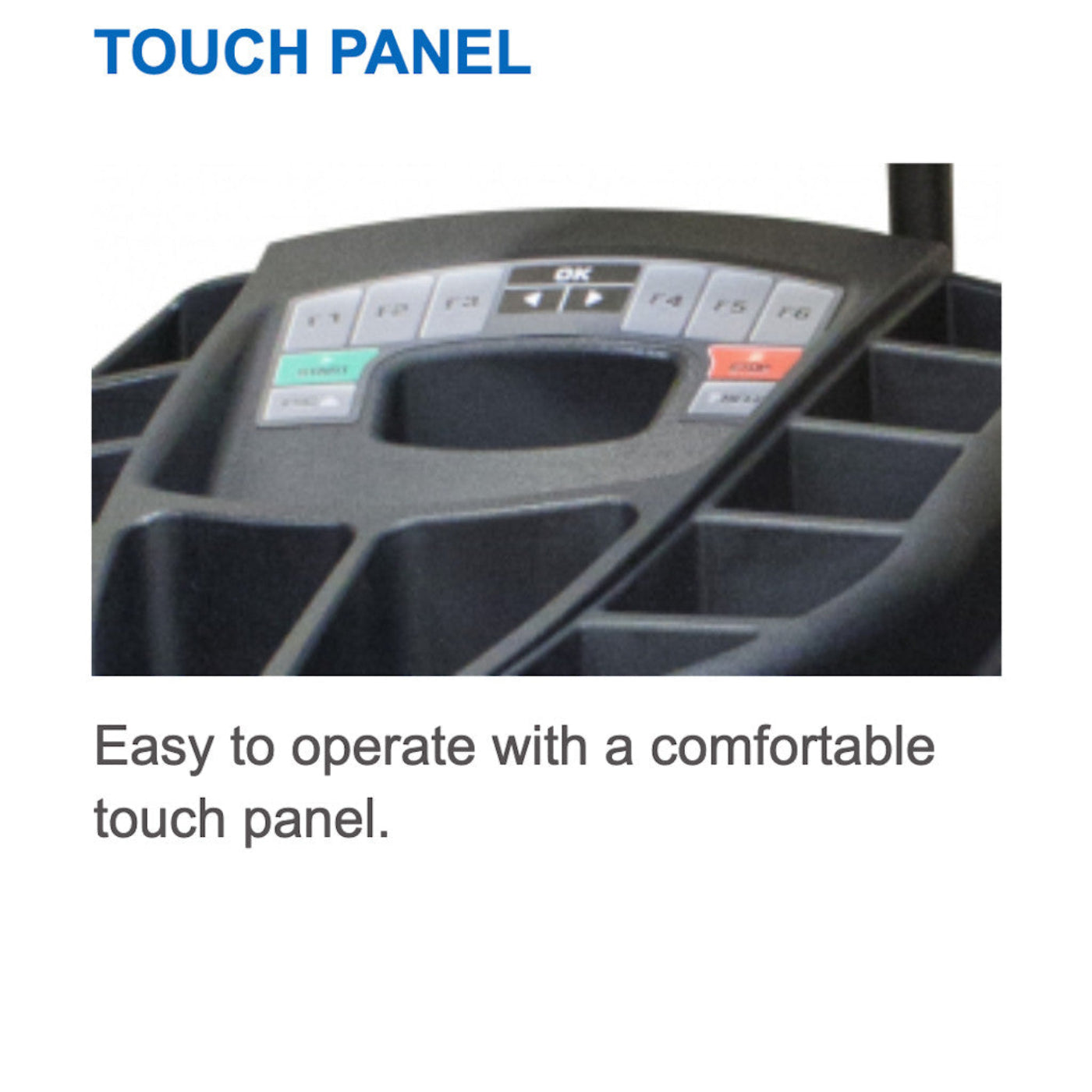

Touchscreen Integrated Weight Tray |
| Measuring Speed |
Less than 200 rpm |
| Balancing Accuracy |
0.035 oz / 1g |
| Angular Resolution |
±0.35° |
| Start/Stop Time - Check Spin |
4.5 seconds |
| Wheel Clamping |
Quick Nut |
| Rim Diameter Range |
8″ - 32″ (203 - 813 mm) |
| Offset Range |
1″ - 20″ |
| Rim Width Range |
1″ - 20″ |
| Data Entry - Diameter & Offset |

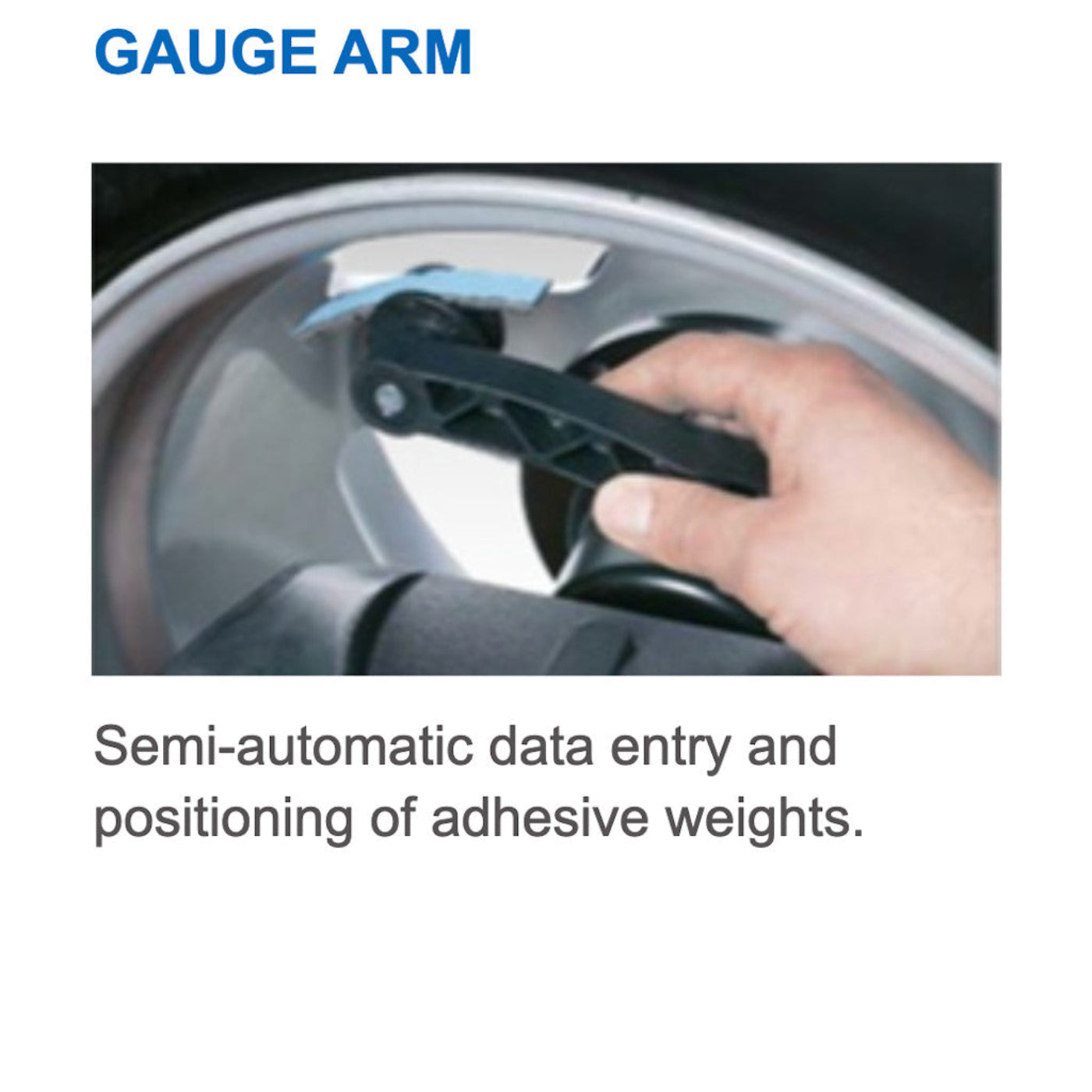

Semi-Automatic, Gauge Arm |
| Data Entry - Wheel Width |

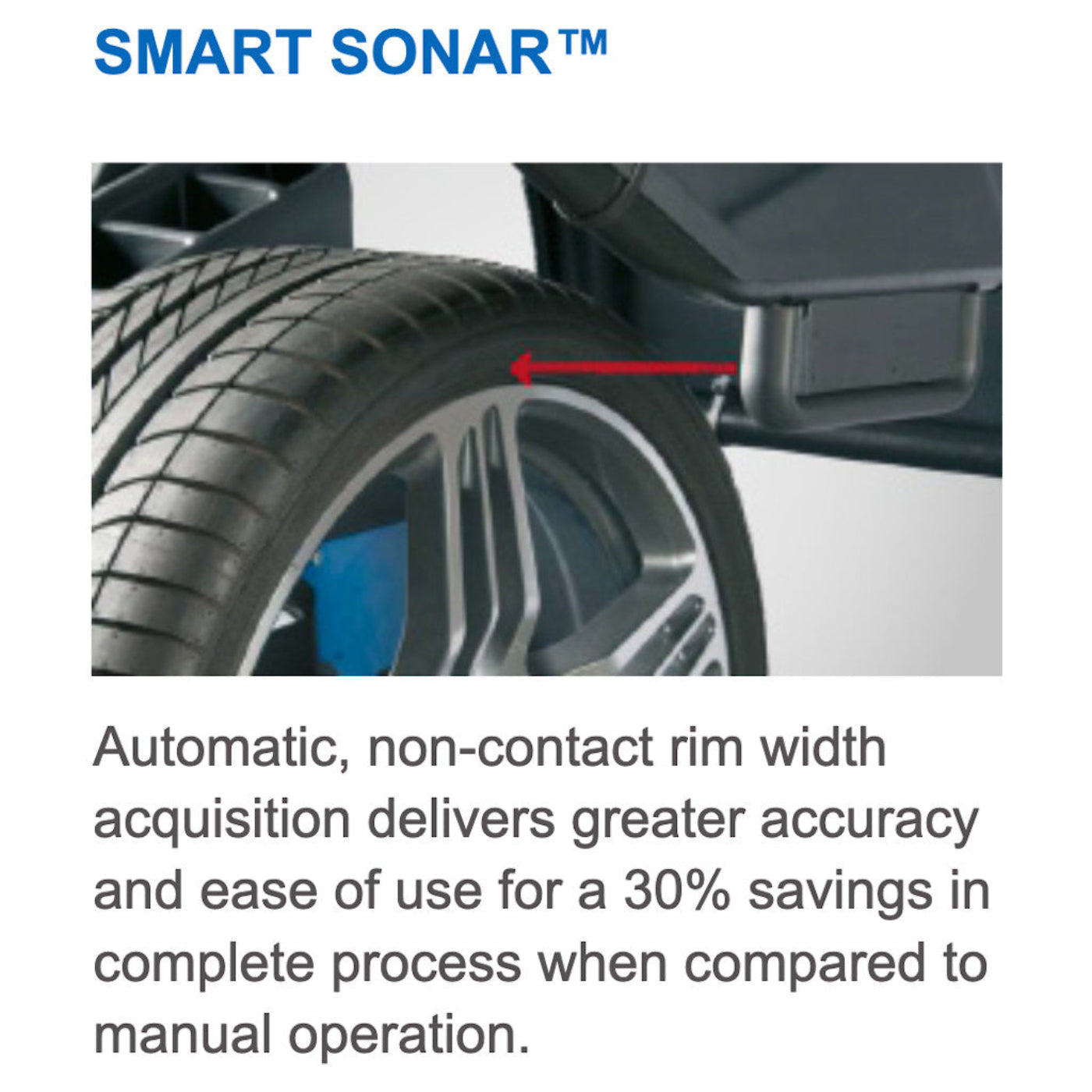

Automatic, Non-Contact smartSonar |
| Rim Diameter Range |
8″ - 25″ |
| Rim Width Range |
3″ - 15″
|
| smartSonar Rim Gauge |
13″ - 26″ |
| SAPE Working Range |
1.3″ - 10.9″ (33 - 278 mm)
|
| Maximum Wheel Diameter |
42″ (1067 mm) |
| Maximum Wheel Width |
3″ - 20″ (76.2 - 508 mm) |
| Maximum Wheel Weight |
154 lbs (70 kg) |
| Diameter of Shaft |
40 mm |

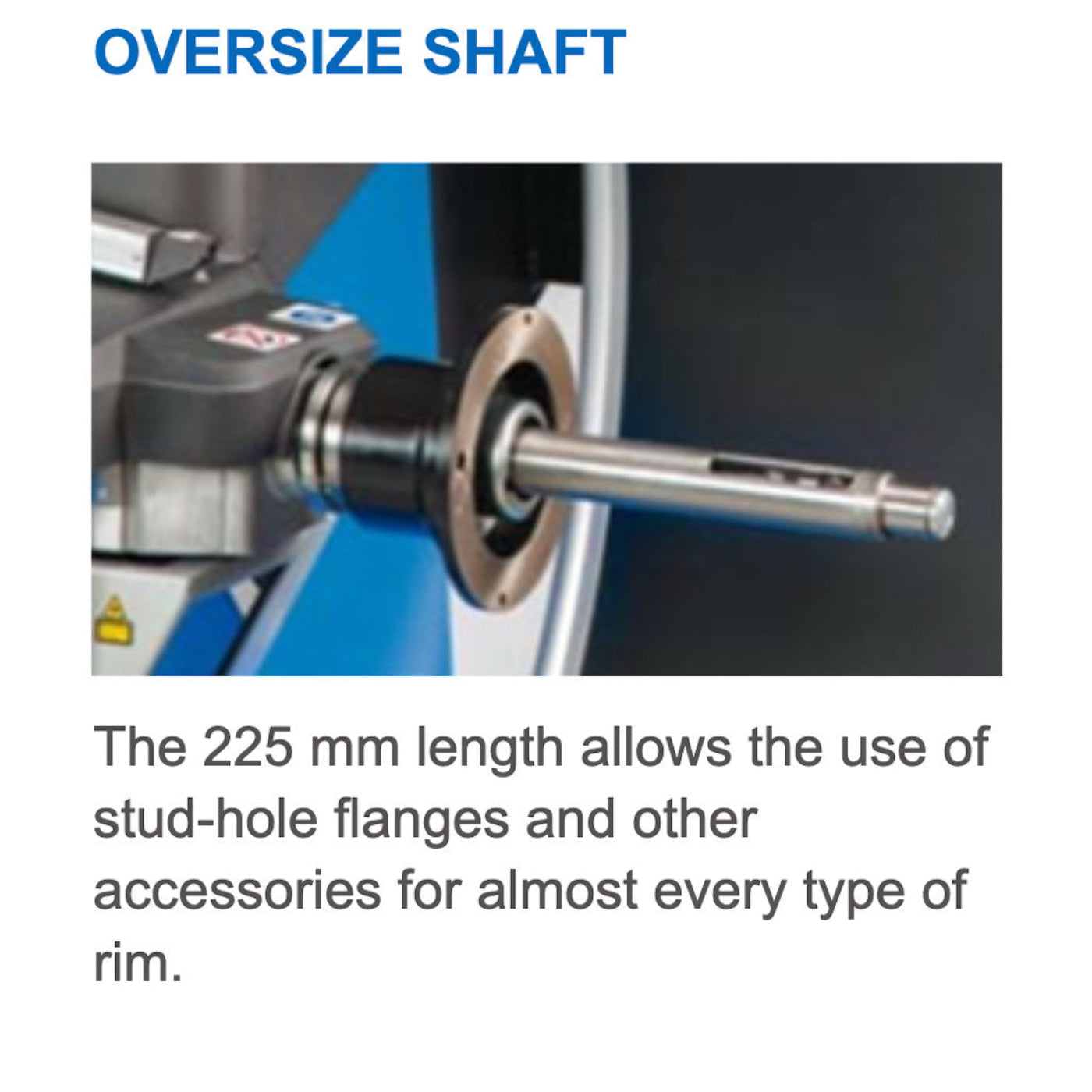

| Length of Shaft |
8.86″ (225 mm) |
| Main Shaft Lock |
Mechanical
|
| Wheel Braking After Measurements |
Automatic |
| Power Requirements |
115 V, 1 Ph, 50/60 Hz, 5 Amp |
| Dimensions (Wheel Guard Open) |
40″ L x 31″ W x 72″ H |
| Net Weight |
220 lbs (100 kg) |
| Cycle Start |
Automatic After Closing Wheel Guard |
| Balancing Program Selection |

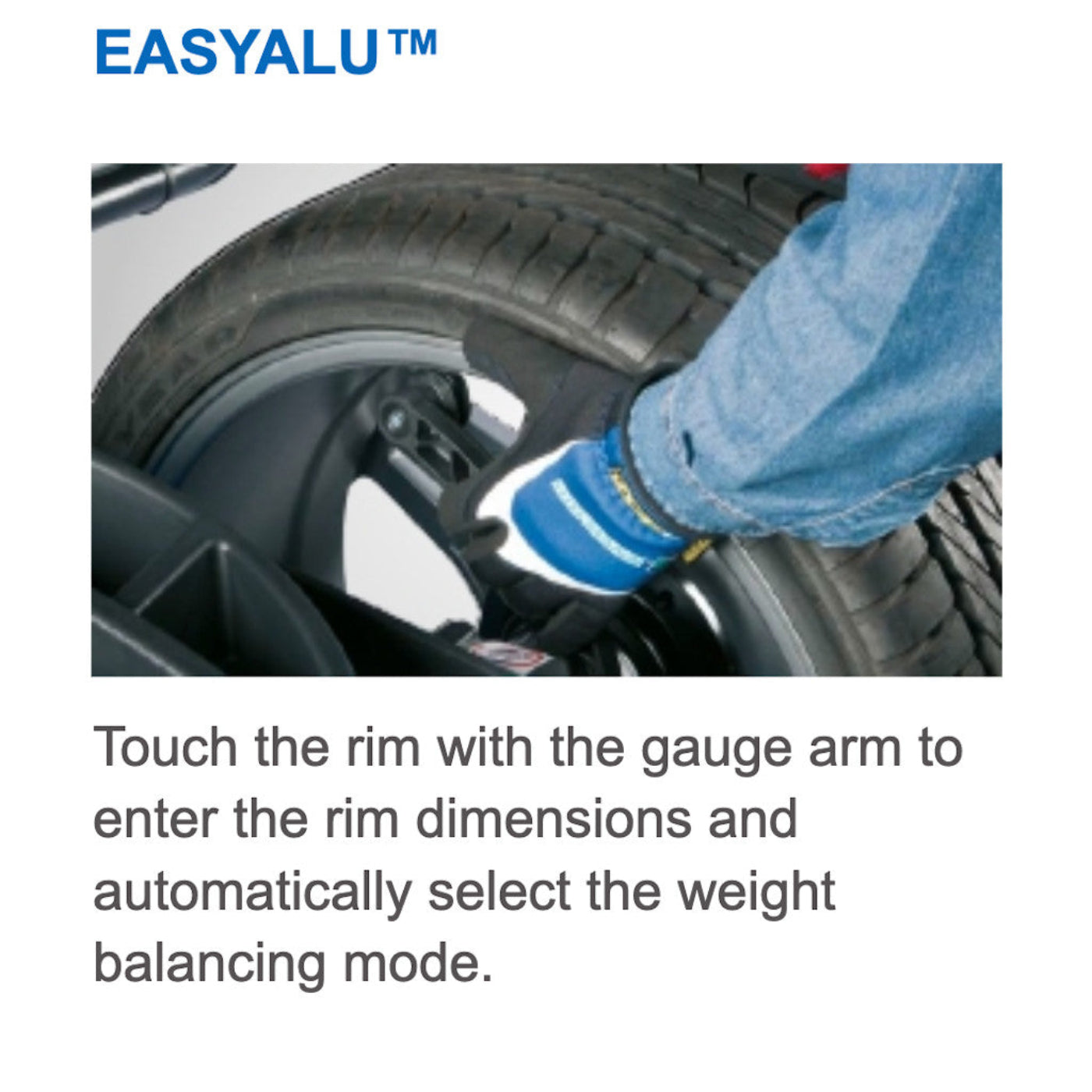

Semi-Automatic, easyALU |
| Spoke Position Detection |
Manual |
| Multiple User Capability |
No
|
| Stop In Position |
No
|
| Rim Lighting |
No
|

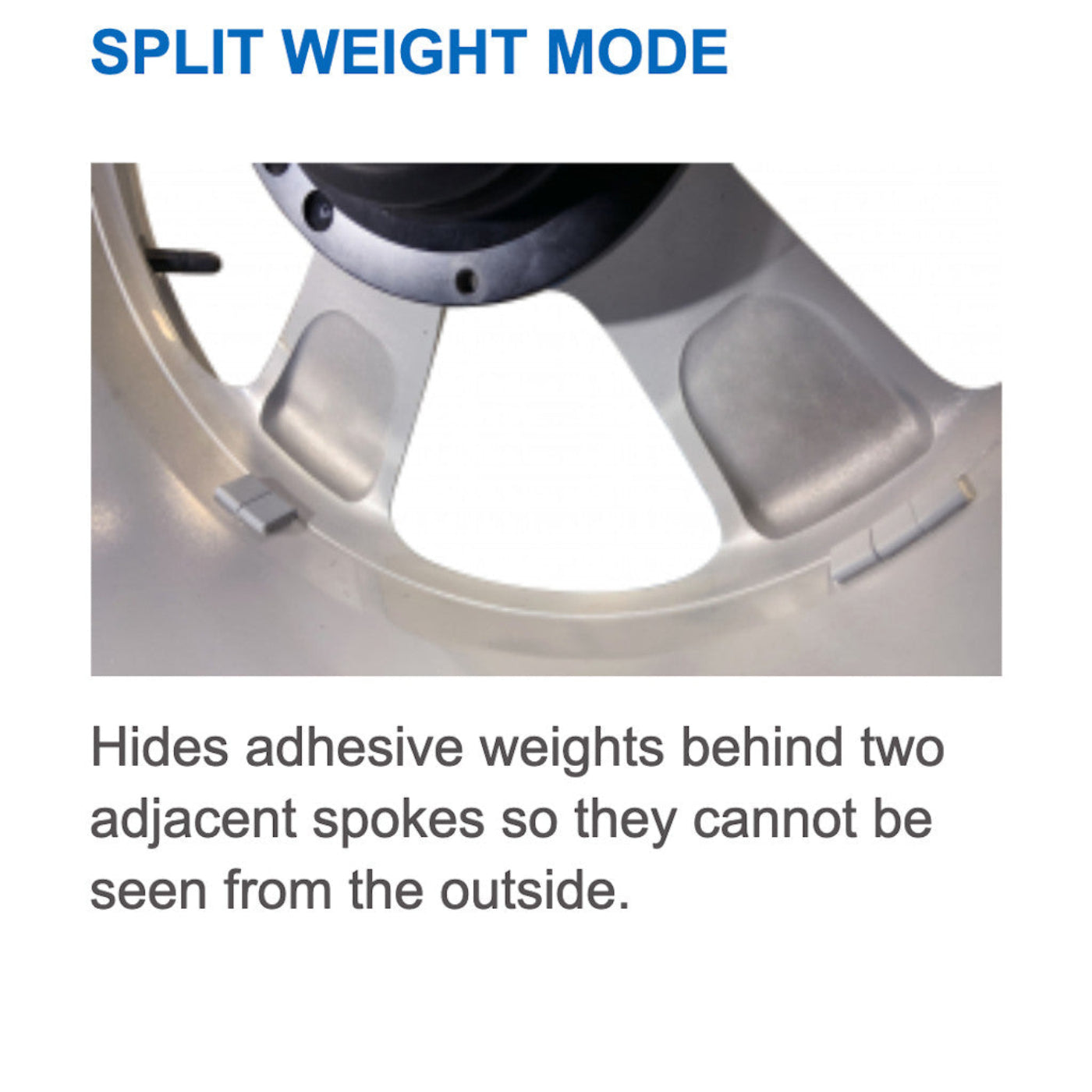

| Split Weight |
Yes
|
| Minimization |
Yes
|
| Optimization |
Yes
|
| Job Counter |
Yes
|
| Network |
No |
What Our Experts Think
-
Advanced Technology – Features an LCD monitor for precise wheel balancing and easy-to-read results.
-
High-Speed Performance – Optimized for quick and accurate balancing, making it ideal for professional tire shops.
-
User-Friendly Interface – Simple controls and intuitive design for effortless operation.
-
Durable & Reliable – Built with robust materials for long-lasting use in demanding environments.
-
Versatile – Handles a variety of wheel sizes and types, offering excellent flexibility for different vehicles.
Q&A
Q: What is the Hofmann Geodyna 7200S Wheel Balancer?
A: A high-precision wheel balancer equipped with an LCD monitor, designed for quick and accurate balancing of passenger and light truck wheels.
Q: What type of wheels does it balance?
A: It balances passenger and light truck wheels, ensuring accurate weight distribution for smooth operation.
Q: What is the benefit of the LCD monitor?
A: The LCD monitor provides clear, real-time data, making it easier to read results and perform accurate balancing.
Q: Does it have automatic data entry?
A: Yes, it features automatic data entry for wheel distance and diameter, improving efficiency and ease of use.
Q: Is it easy to use?
A: Yes, it includes an intuitive interface with one-touch start, making it user-friendly for professional use.
Maintenance Tips
-
Clean LCD Monitor & Sensors – Wipe gently with a microfiber cloth to prevent damage and ensure accurate readings.
-
Calibrate Regularly – Follow the manufacturer’s guidelines for periodic calibration to maintain precision.
-
Inspect Clamps & Attachments – Check for wear and secure all components for proper function.
-
Lubricate Moving Parts – Use the recommended lubrication to minimize friction and prevent wear.
-
Software Updates – Keep the system up to date for enhanced performance and accuracy.
-
Ensure Stable Power Supply – Use a surge protector to safeguard the unit from electrical damage.
