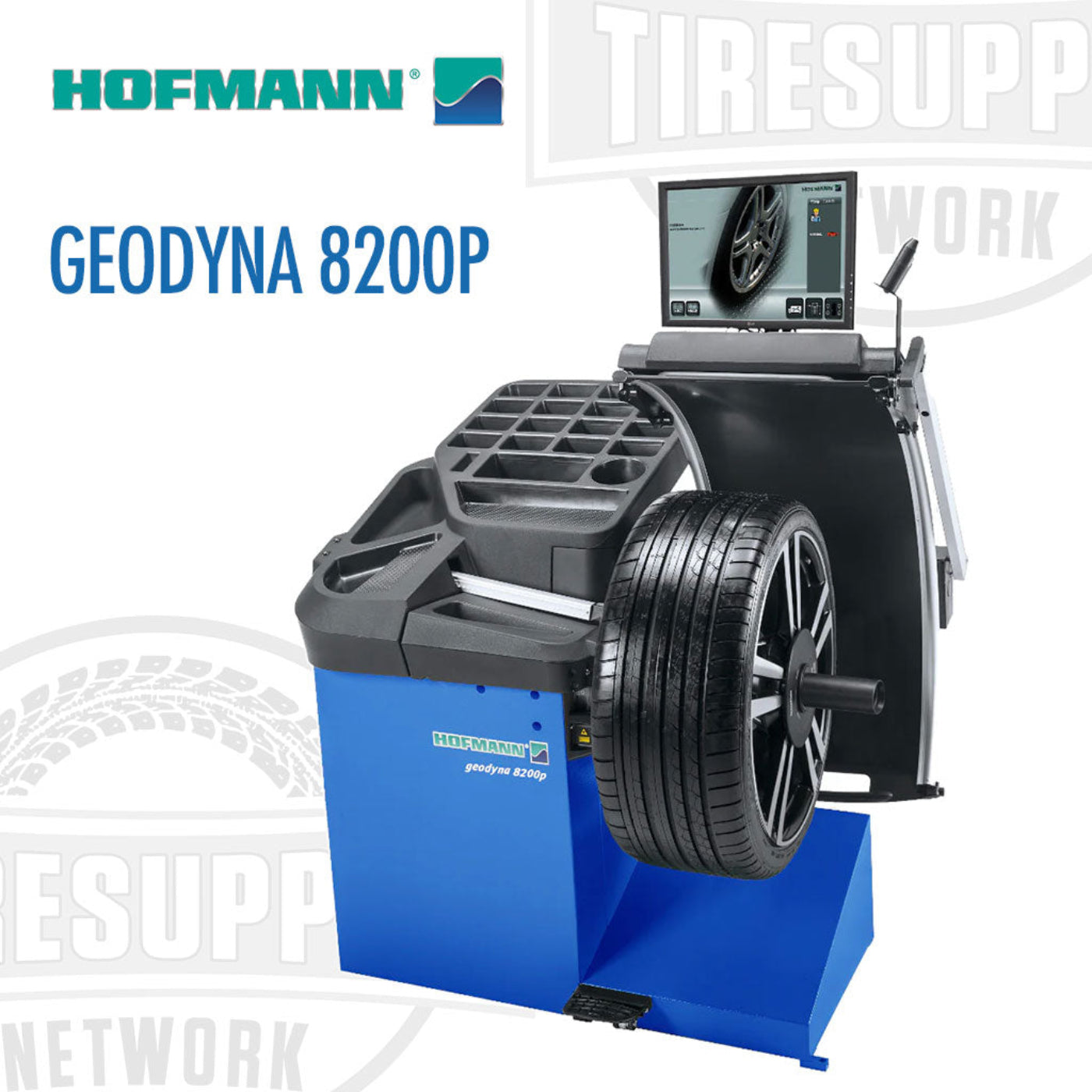

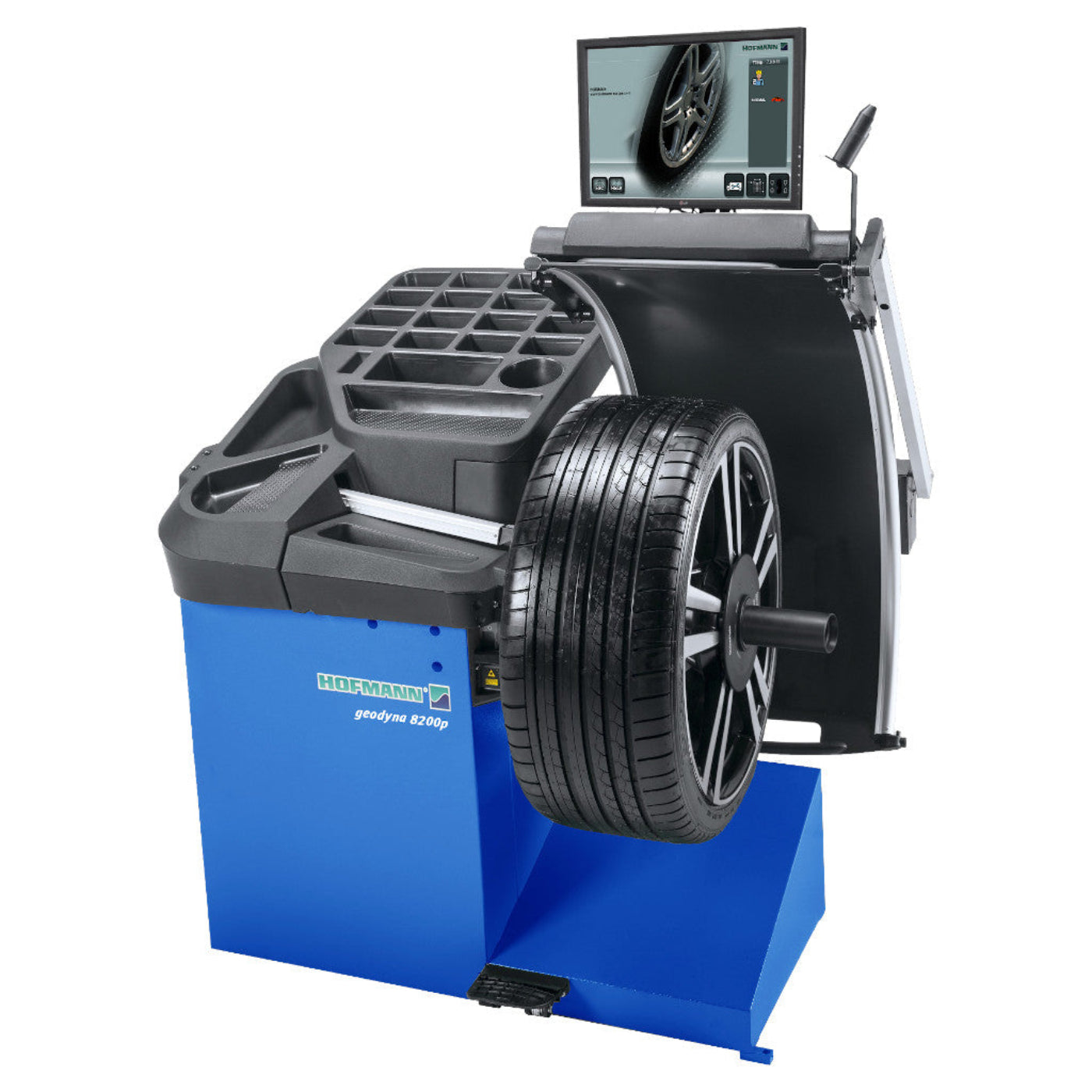

Hofmann | Geodyna 8200P Wheel Balancer with Non-Contact Data Entry & Diagnostic Functions - EEWB766BEA

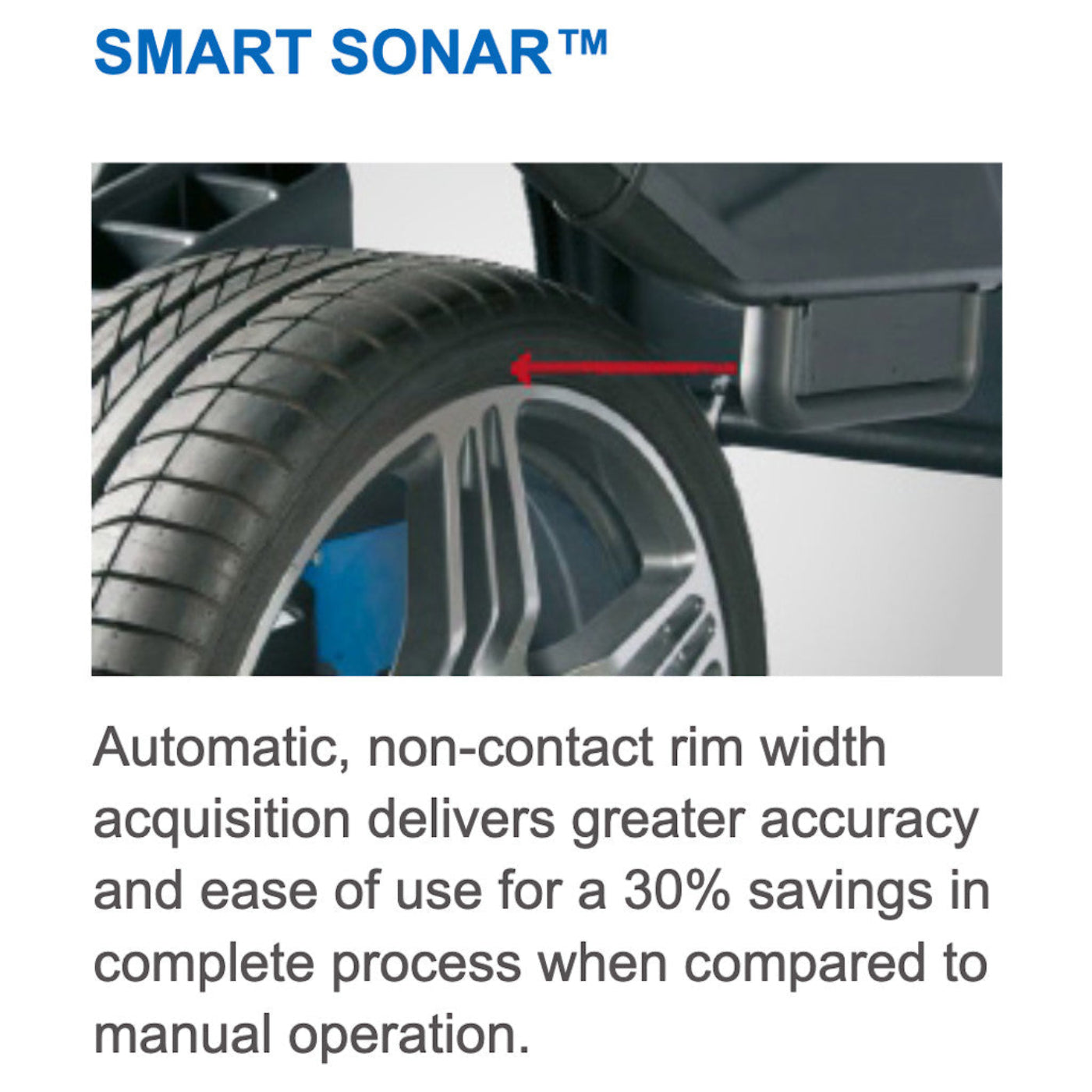

A video wheel balancer for cars and light trucks, the Geodyna 8200 series feature fully automatic data entry via scanner and Smart Sonar, the Power Clamp electromechanical clamping system, the pinpoint easyWEIGHT laser and touchscreen interface for unequaled productivity and unbeatable performance.

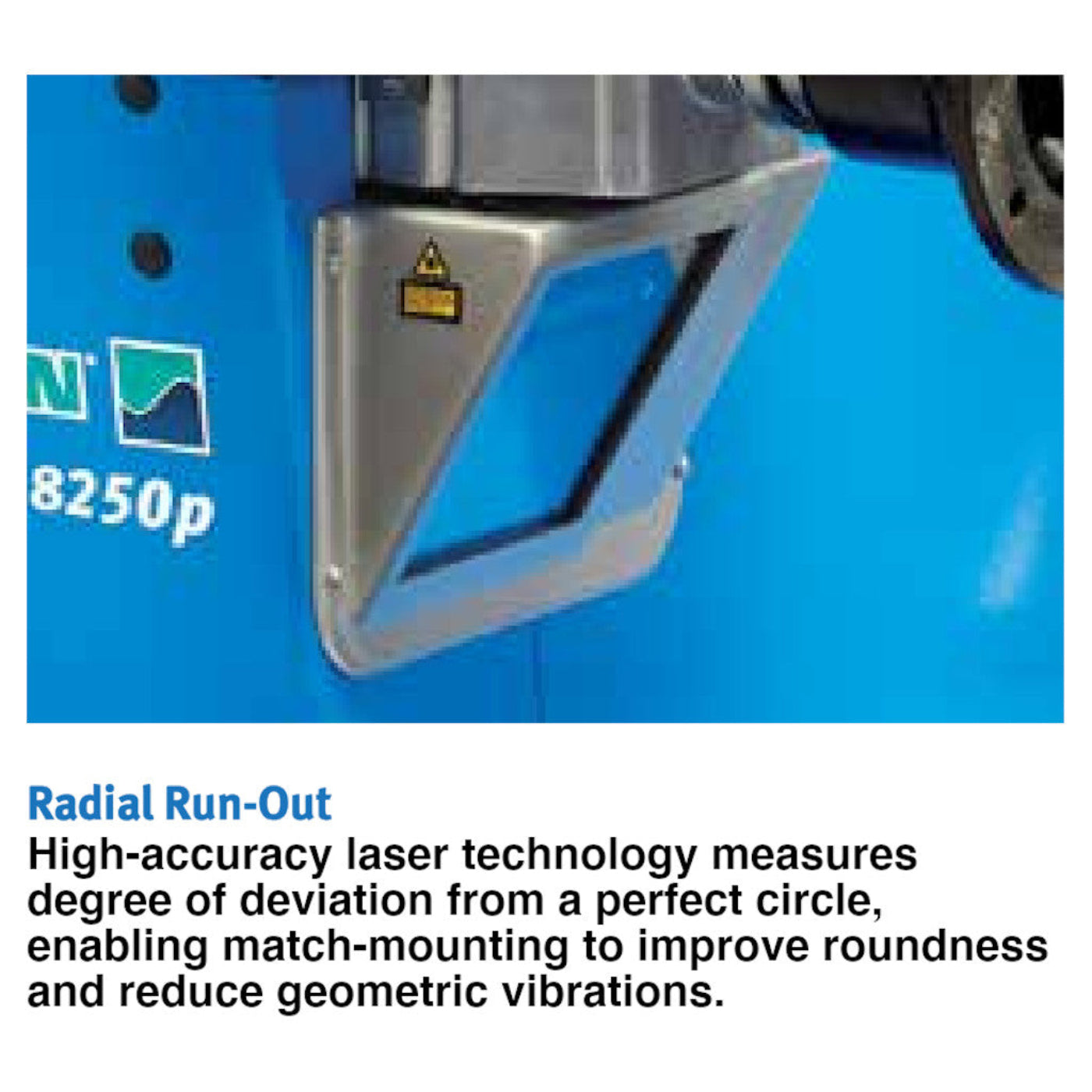

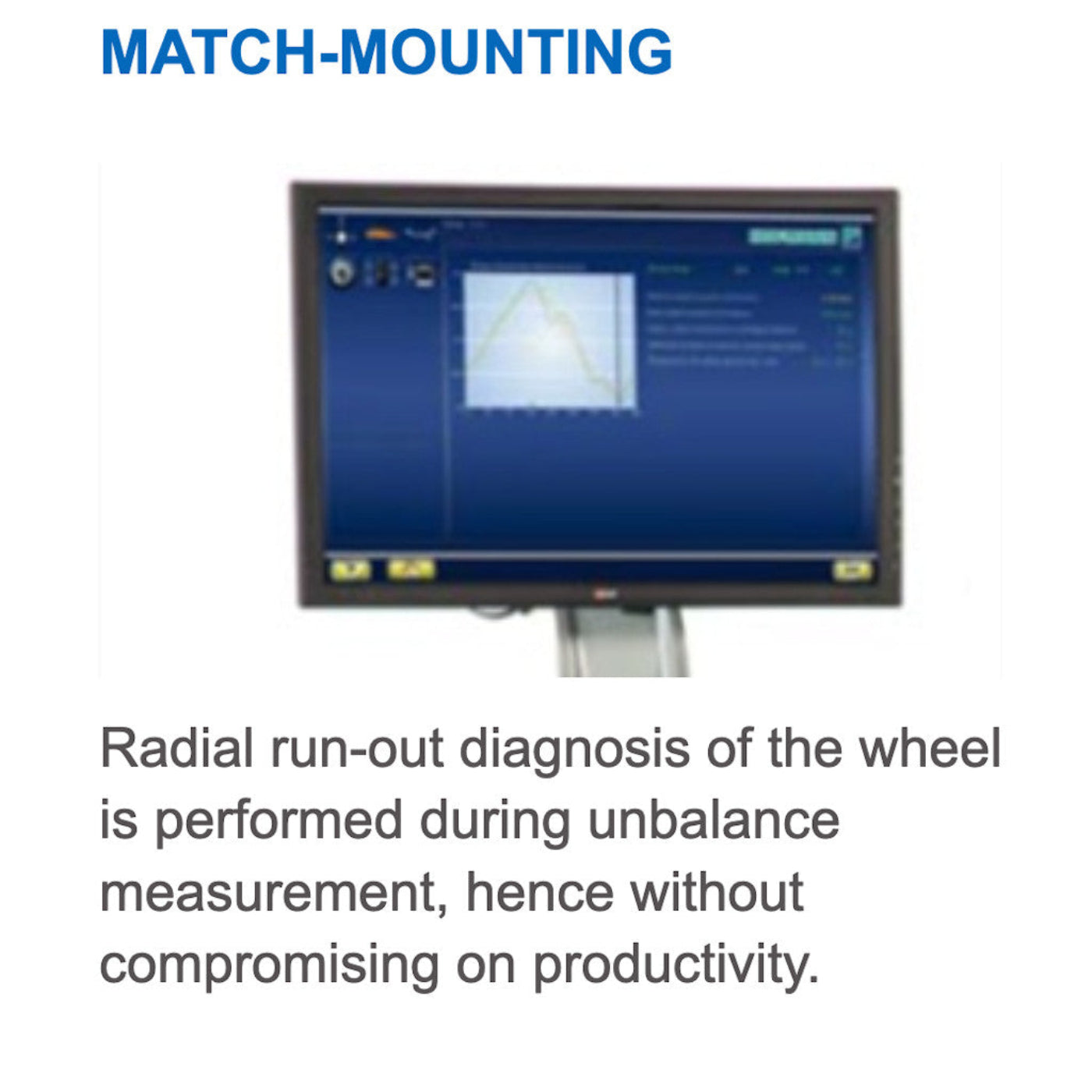

Radial Run-Out: High-accuracy laser technology measures degree of deviation from a perfect circle, enabling match-mounting to improve roundness and reduce geometric vibrations.

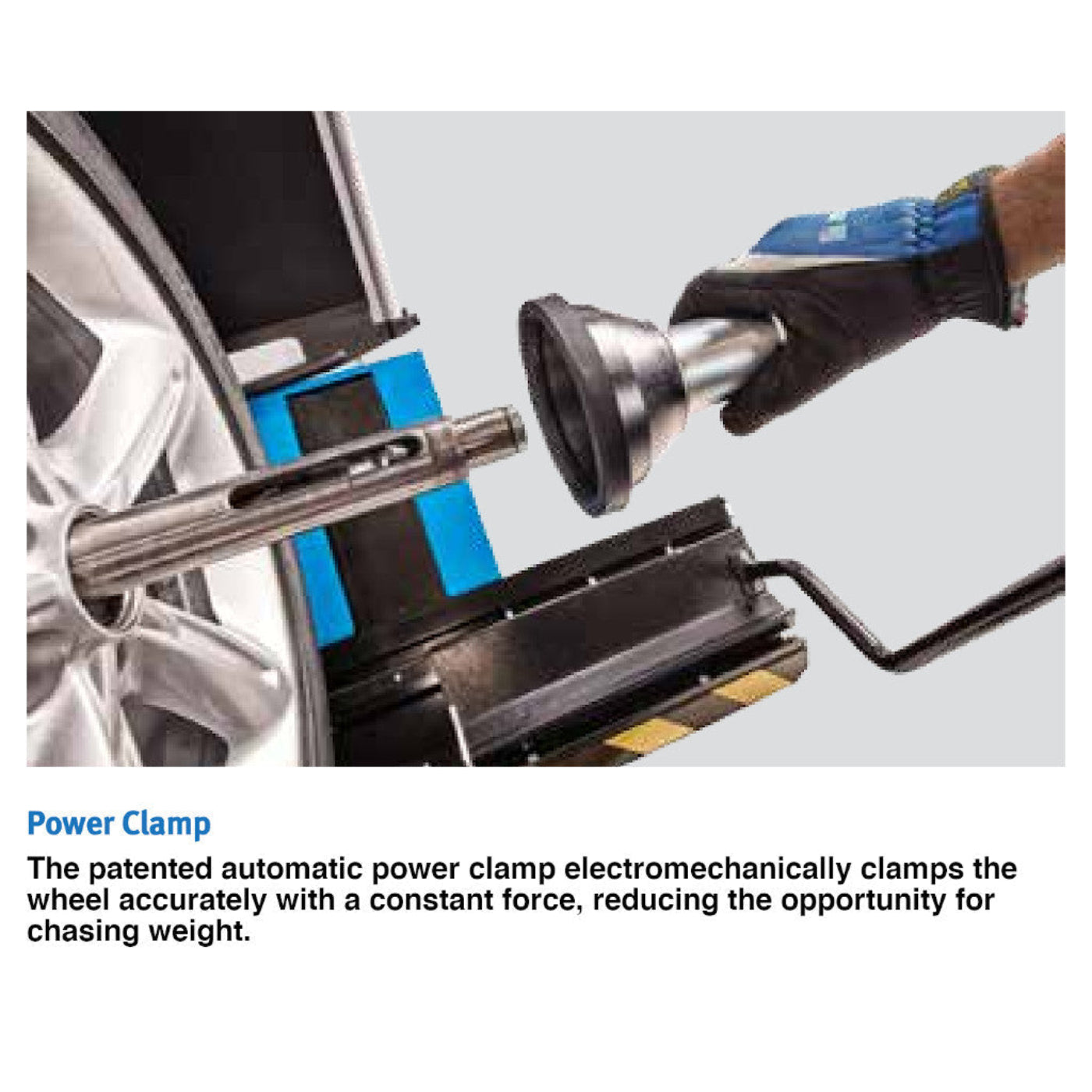

Power Clamp: The patented automatic power clamp electromechanically clamps the wheel accurately with a constant force, reducing the opportunity for chasing weight.

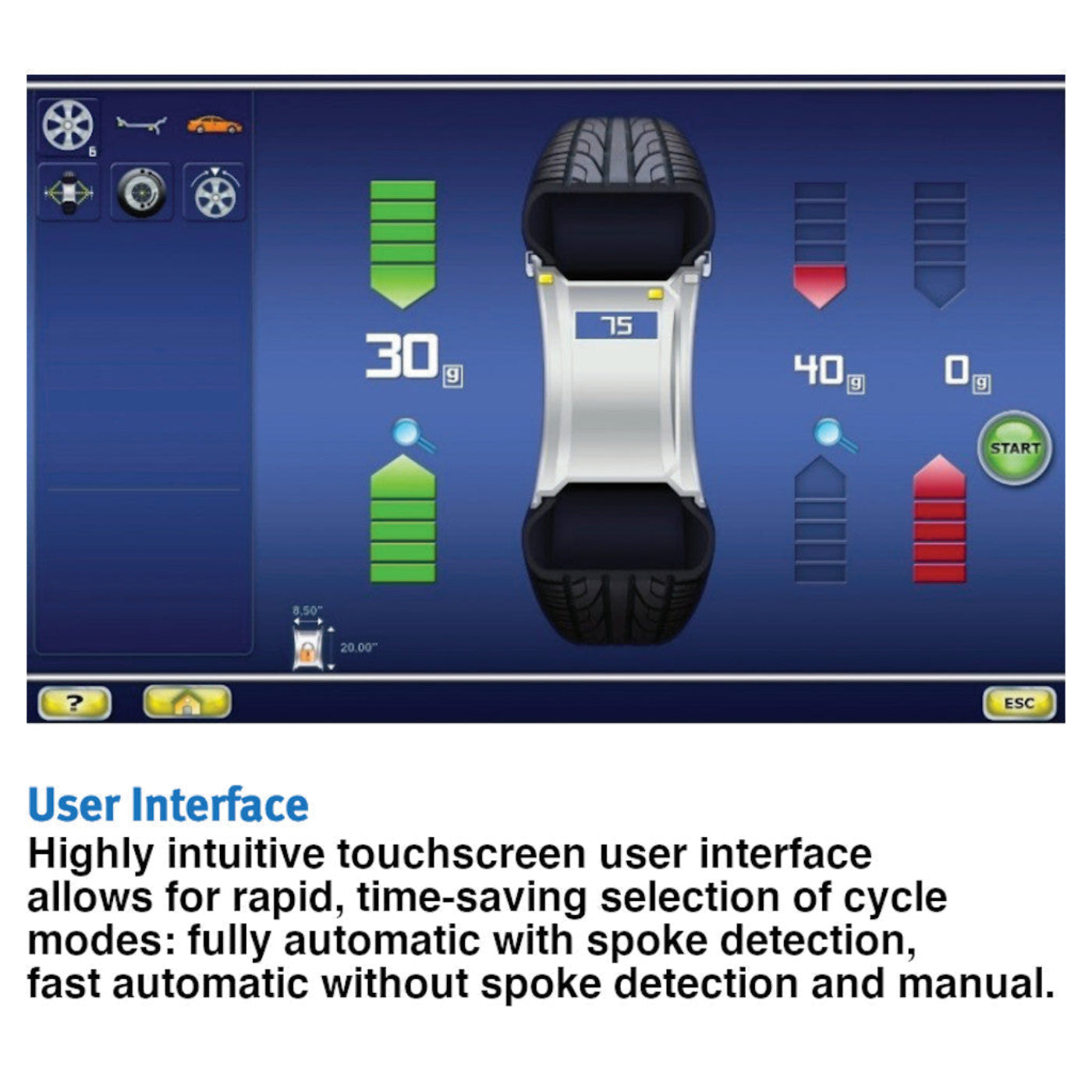

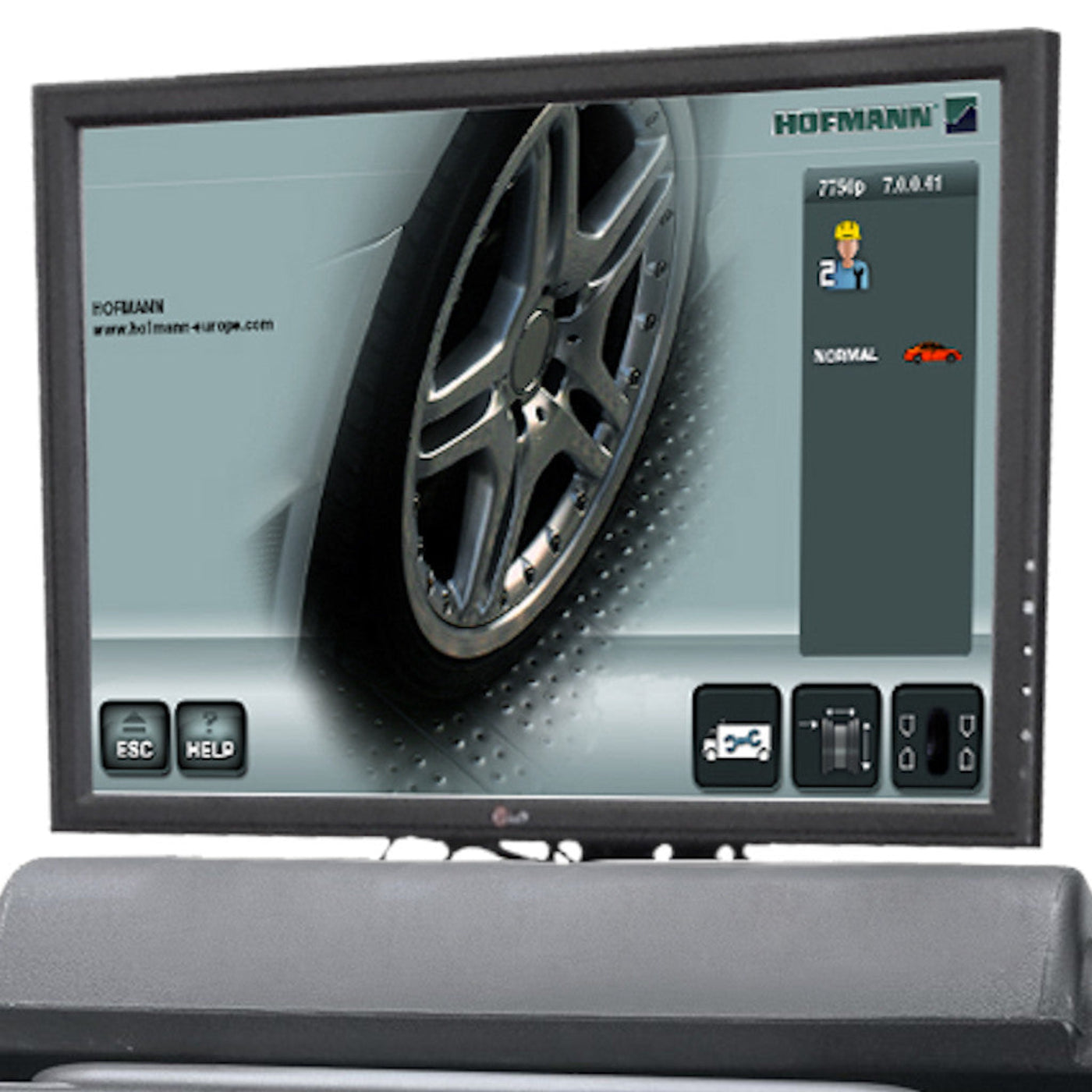

User Interface: Highly intuitive touchscreen user interface allows for rapid, time-saving selection of cycle modes: fully automatic with spoke detection, fast automatic without spoke detection and manual.

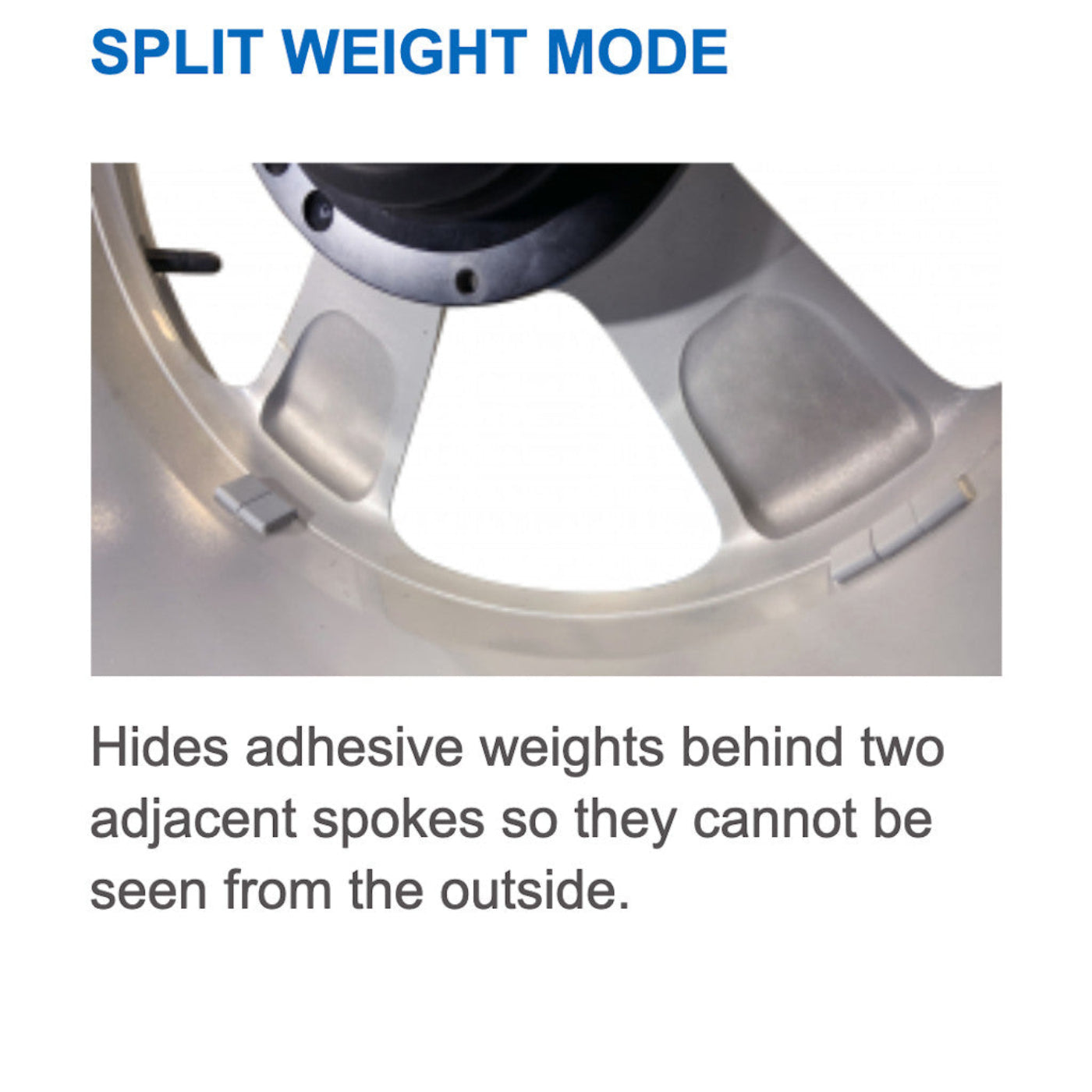

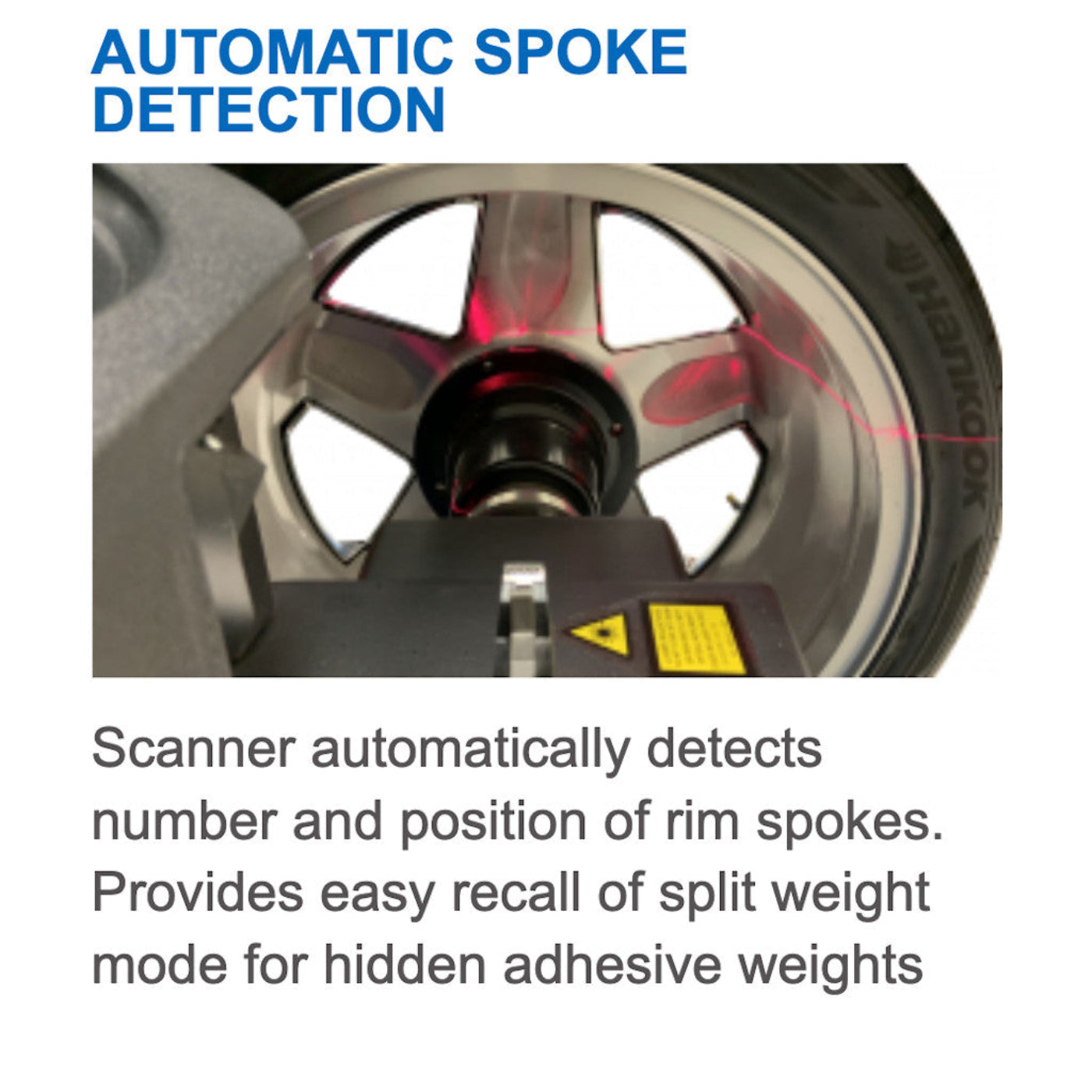

Automatic Spoke Detection: Scanner automatically detects number and position of rim spokes. Provides easy recall of split weight mode for hidden adhesive weights by simply pressing an icon on the screen.

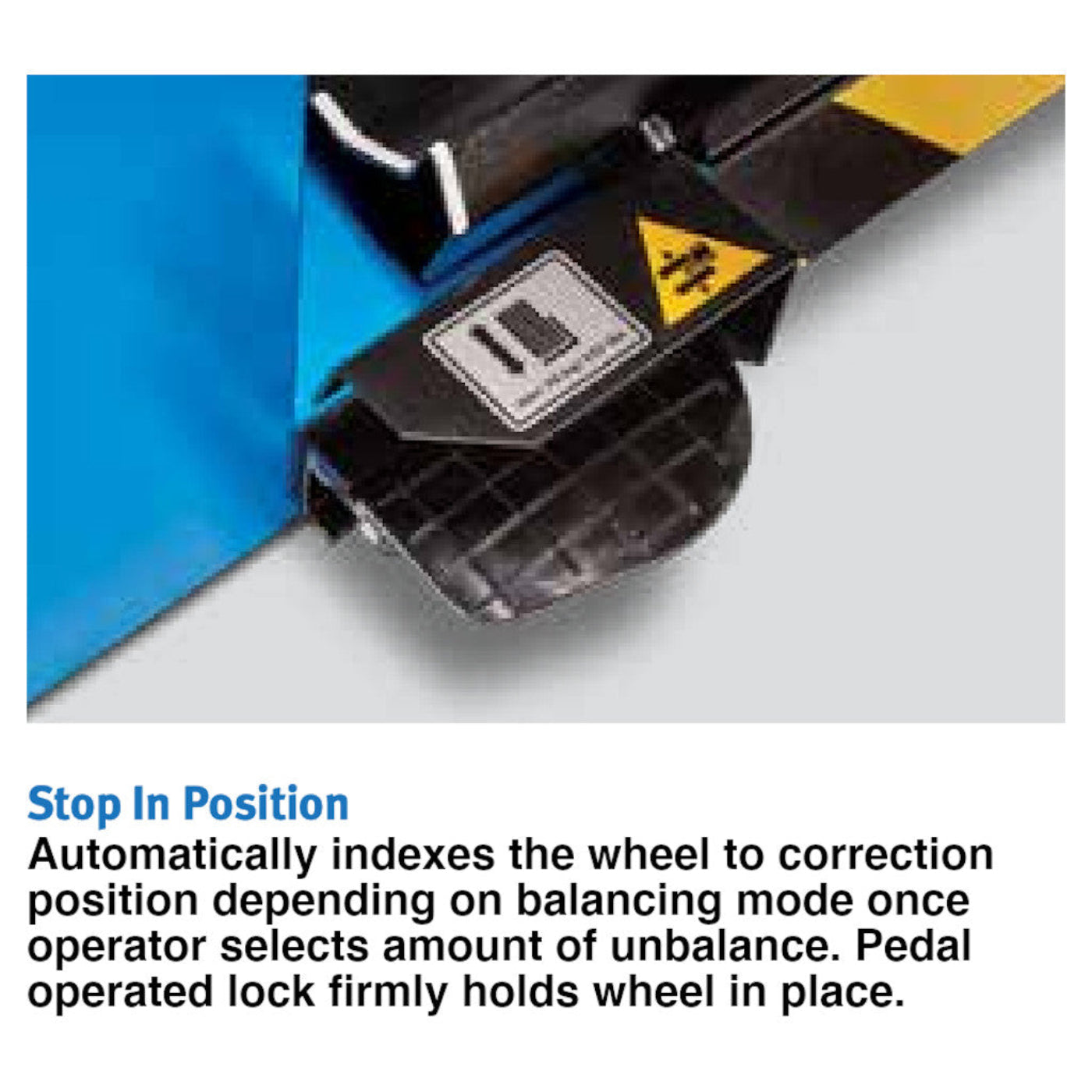

Stop In Position: Automatically indexes the wheel to correction position depending on balancing.

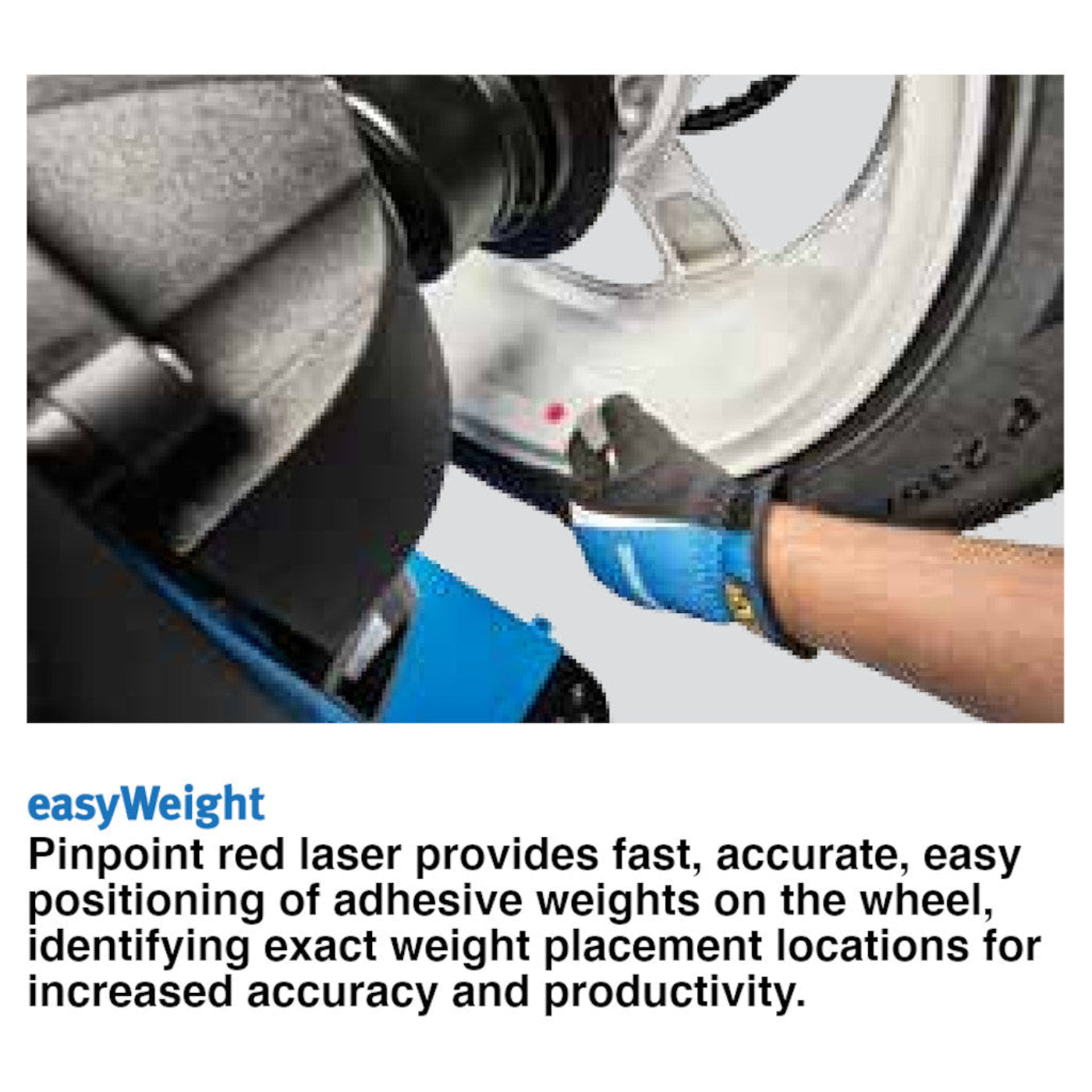

easyWEIGHT: Pinpoint red laser provides fast, accurate, easy positioning of adhesive weights on the wheel, identifying exact weight placement locations for increased accuracy and productivity.

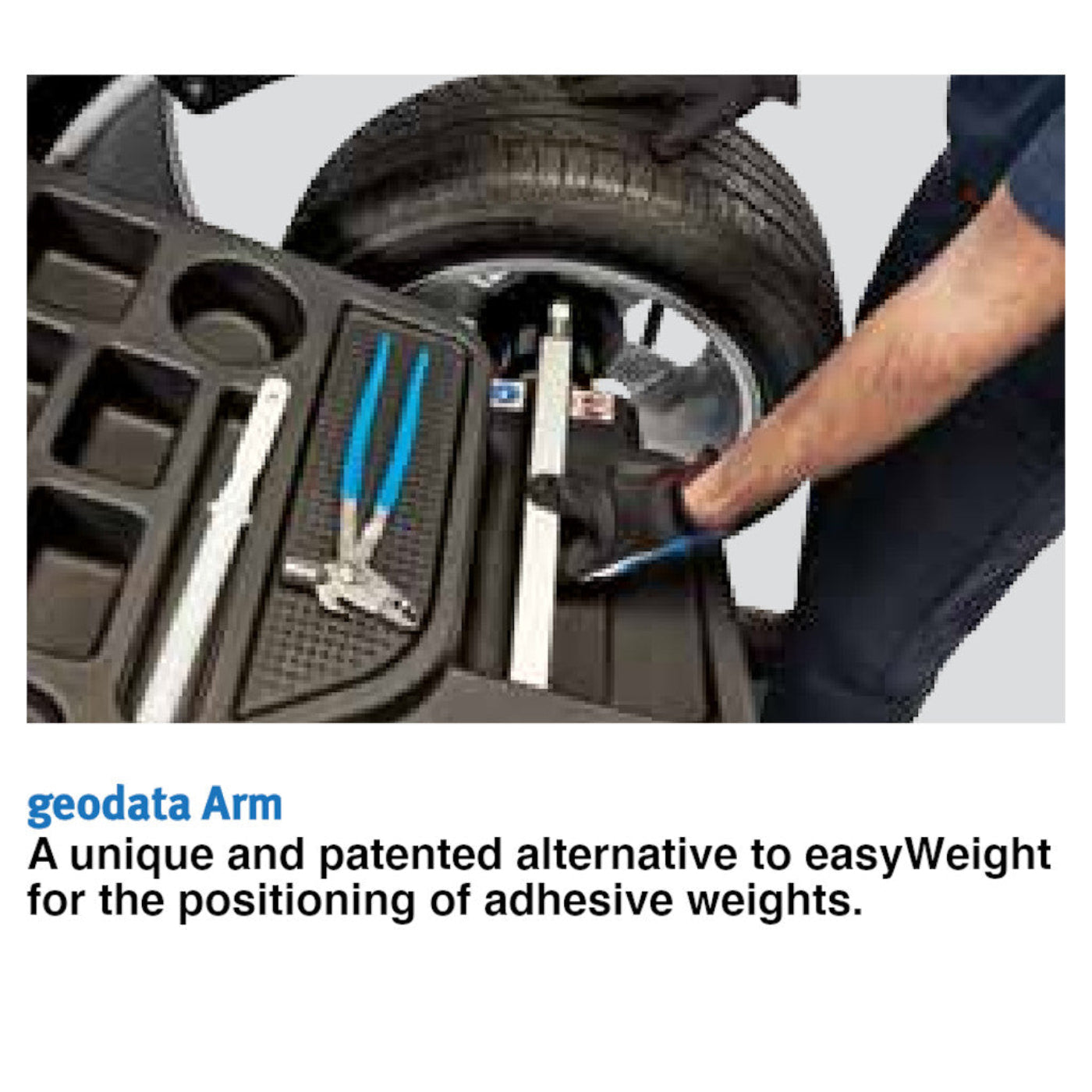

Geodata Arm: A unique and patented alternative to easyWeight for the positioning of adhesive weights.

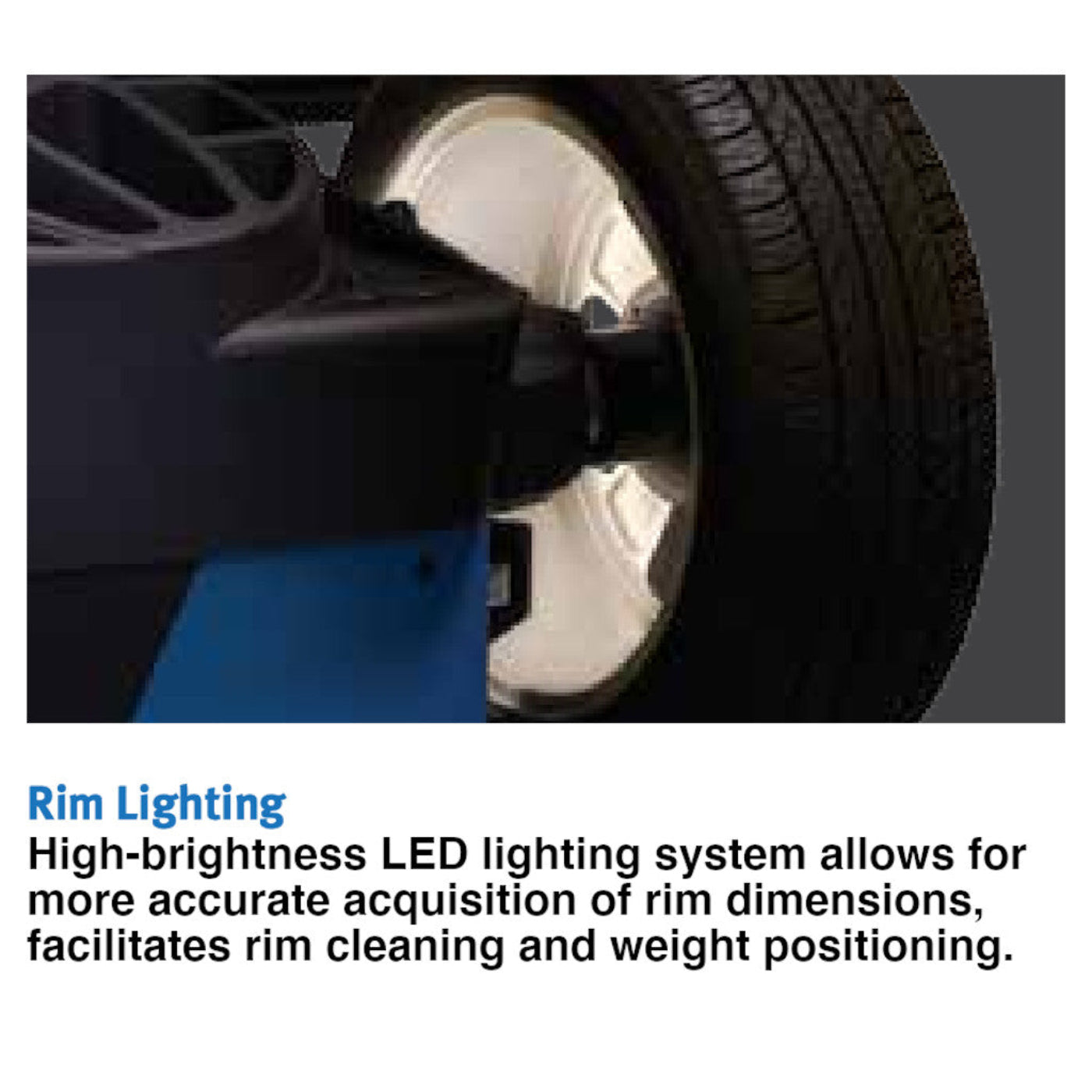

Rim Lighting: High-brightness LED lighting system allows for more accurate acquisition of rim dimensions, facilitates rim cleaning and weight positioning.

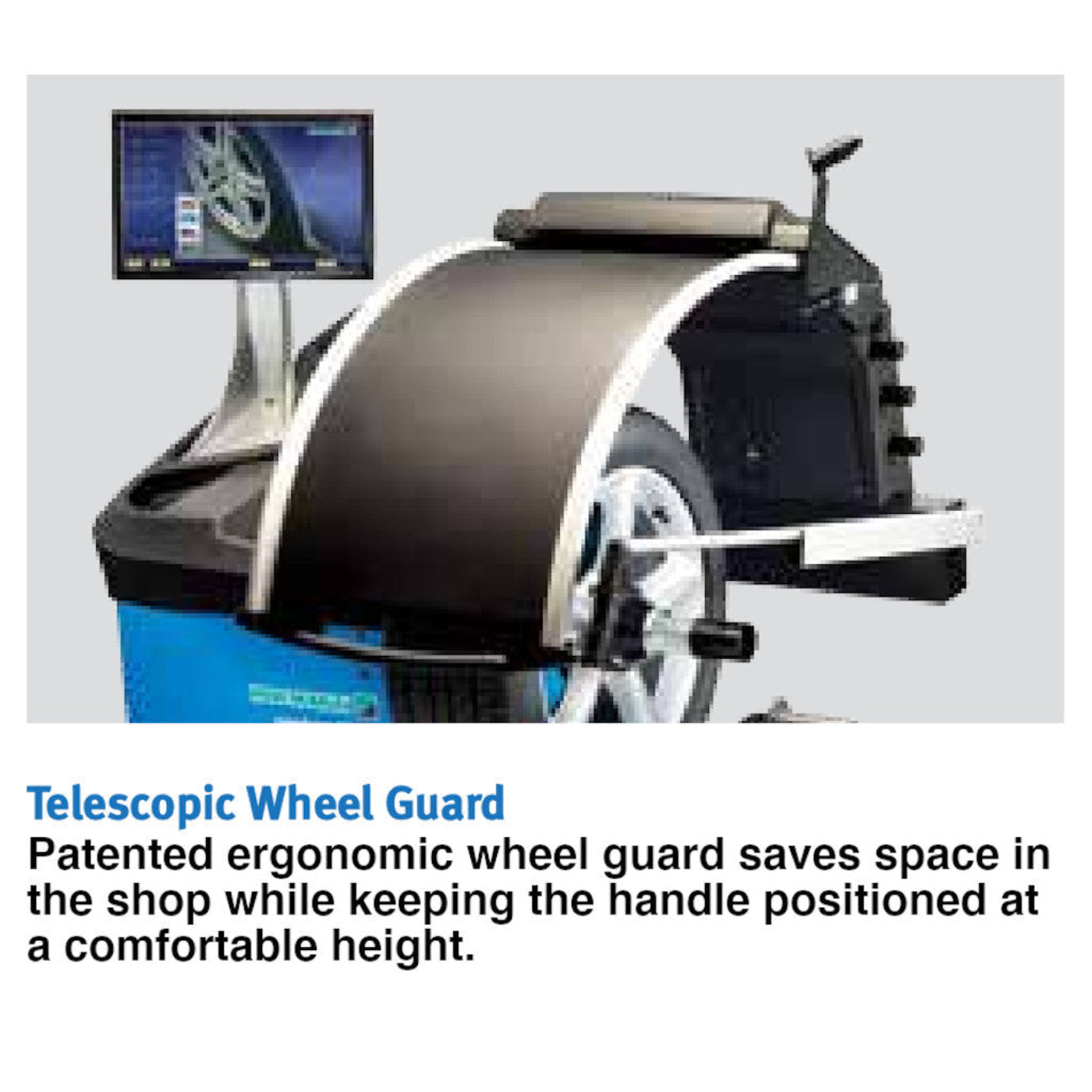

Telescopic Wheel Guard: Patented ergonomic wheel guard saves space in the shop while keeping the handle positioned at a comfortable height.
EZ-Collets Mobile App: Helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
Accessories Included
- Spacer Ring
- Universal Drum
- Universal Drum Cushion
- Large Cone (96Mm–116 Mm)
- Medium Cone (72 Mm–99 Mm)
- Small Cone (42 Mm–77 Mm)
- Rim Width Calipers
- User Calibration Weight
- Weight Pliers
- Kit of 4 Pegs to be Mounted to the Left Side
Specifications
| TECHNICAL DATA |
Geodyna 8200P |
| Hofmann Part Number |
EEWB766BE5 |
| Vehicles Supported |
Cars, Light Trucks, SUVs |
| Measuring Speed |
Less than 200 rpm |
| Balancing Accuracy |
0.035 oz / 1g |
| Angular Resolution |
0.7° |
| Start/Stop Balancing Time (Wheel 195/65R15) |
6.5 seconds |
| Check Spin |
4.5 seconds |
| With Automatic Data Entry |
7.5 seconds |
| With Automatic Data Entry & Spoke Counting |
10.5 seconds |
| Rim Diameter Range |
8″ - 32″ (203 - 813 mm) |
| Offset Range |
1″ - 20″ |
| Rim Width Range |
1″ - 20″ |
| Rim Diameter Range |
8″ - 30″ |
| Offset Range |
1″ - 20″ |
| Rim Width Range |
1″ - 20″
|
| SAPE Working Range |
0″ - 10.55″ (0 - 268 mm)
|
| Rim Diameter Range |
14″ - 26″ |
| Rim Width Range |
3″ - 15.8″ |
| Scanner Offset Range |
4.7″ - 16.3″ |
| Automatic Spoke Counting |
Yes |
| smartSonar Operation Conditions: Rim Diameter Range |
14″ - 26″ |
| Maximum Wheel Diameter |
42″ (1067 mm) |
| Maximum Wheel Width |
3″ - 20″ (76.2 - 508 mm) |
| Maximum Wheel Weight |
154 lbs (70 kg) |
| Diameter of Shaft |
40 mm |

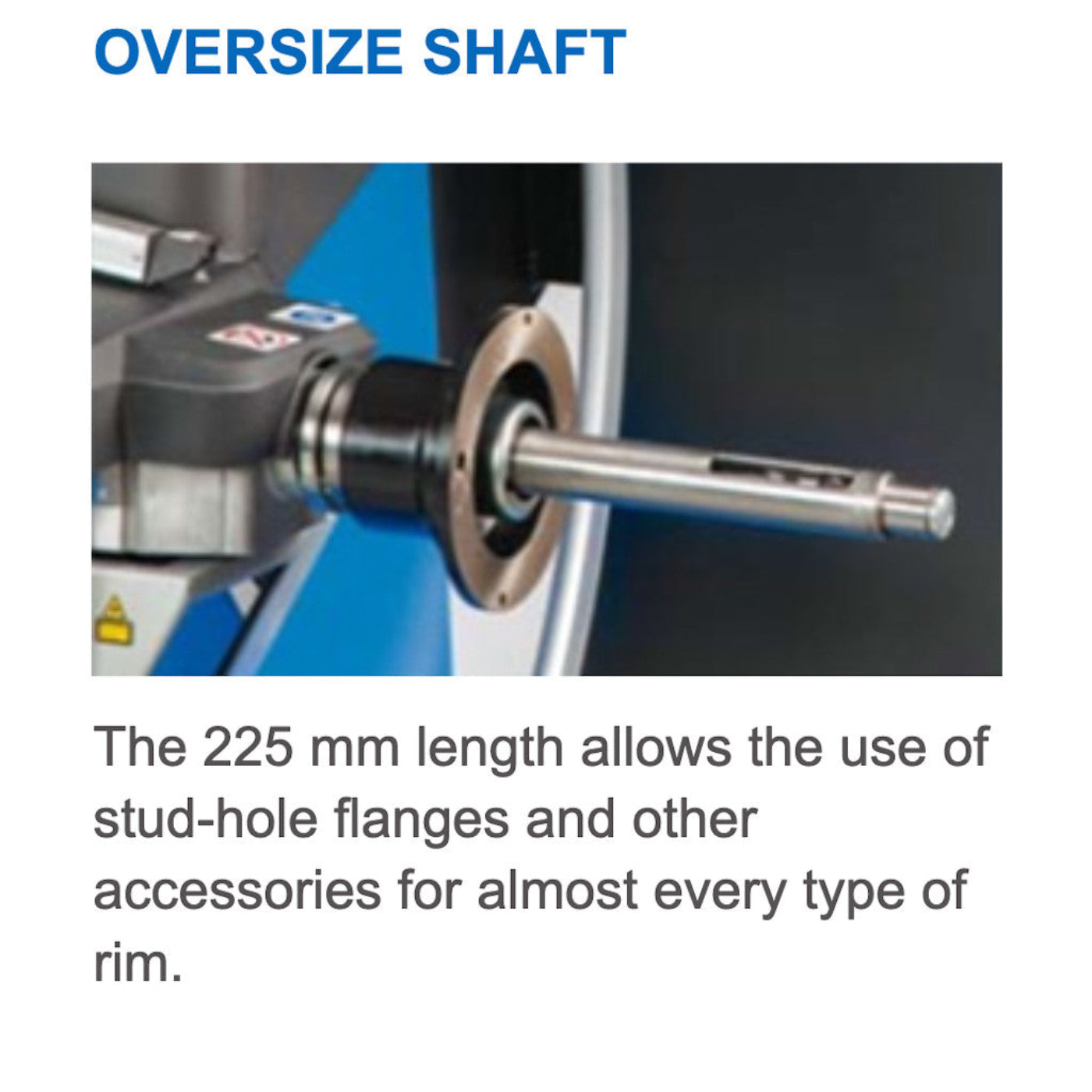

| Length of Shaft |
8.86″ (225 mm) |
| Balancer Flange Offset |
10.55″ (268 mm) |
| Wheel Braking After Measurements |
Automatic |
| Power Requirements |
230 V, 1 Ph, 50/60 Hz, 4 Amp |
| Dimensions (Wheel Guard Open) |
76.4″ L x 40.2″ W x 61.8″ H |
| Shipping Dimensions |
70.1″ L x 47.2″ W x 72.8″ H |
| Net Weight |
297 lbs (135 kg) |
| Rim Run-Out |
Yes
|
| Match Mounting |
Yes
|
| Multiple User Capability |
Yes (9 Users)
|
| Stop In Position |
Yes
|
| Auto Stop System (Weight Arm) |
Yes
|
| Rim Lighting |
Yes
|
| Split Weight |
Yes
|
| Minimization |
Yes
|
| Optimization |
Yes
|
| Job Counter |
Yes |
What Our Experts Think
-
Non-Contact Data Entry – Automatically captures wheel dimensions for faster, more precise balancing.
-
Advanced Diagnostic Functions – Detects imbalance, runout, and other wheel issues for optimal performance.
-
High-Speed Accuracy – Ensures smooth rides and extends tire lifespan with precision balancing.
-
User-Friendly Interface – Intuitive controls and digital display for seamless operation.
-
Professional-Grade Durability – Built for high-volume shops handling various wheel sizes.
Q&A
Q: What is the Hofmann Geodyna 8200P?
A: A high-tech wheel balancer featuring non-contact data entry and advanced diagnostic functions for precision balancing.
Q: How does the non-contact data entry work?
A: It uses laser and optical sensors to automatically measure wheel dimensions, eliminating manual input errors.
Q: What types of vehicles can it handle?
A: It is designed for passenger cars, SUVs, and light trucks.
Q: How does it improve shop efficiency?
A: Faster setup, reduced errors, and intuitive controls allow for quicker and more accurate wheel balancing.
Q: Is it suitable for high-volume service centers?
A: Yes, it is ideal for professional auto shops and performance-oriented workshops.
Maintenance Tips
-
Keep Sensors & Non-Contact Components Clean – Wipe regularly for accurate data entry.
-
Calibrate as Needed – Ensure precision by following manufacturer calibration guidelines.
-
Inspect Clamps & Adapters – Tighten and replace worn parts to maintain accuracy.
-
Update Software – Install firmware updates for optimal diagnostic performance.
-
Lubricate Moving Parts – Prevent wear by using recommended lubricants.
-
Use Stable Power Supply – Protect electronics with a surge protector.
