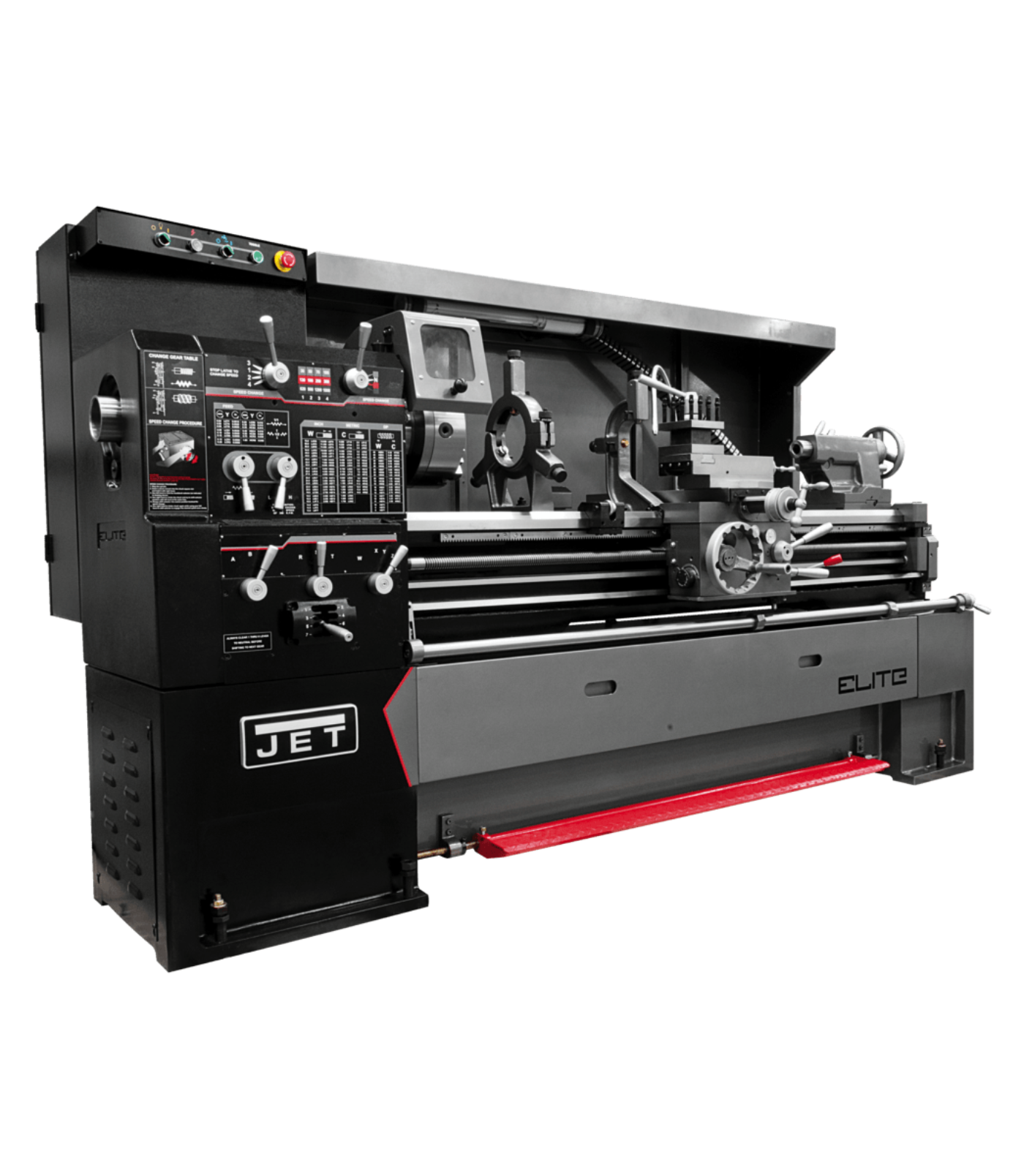

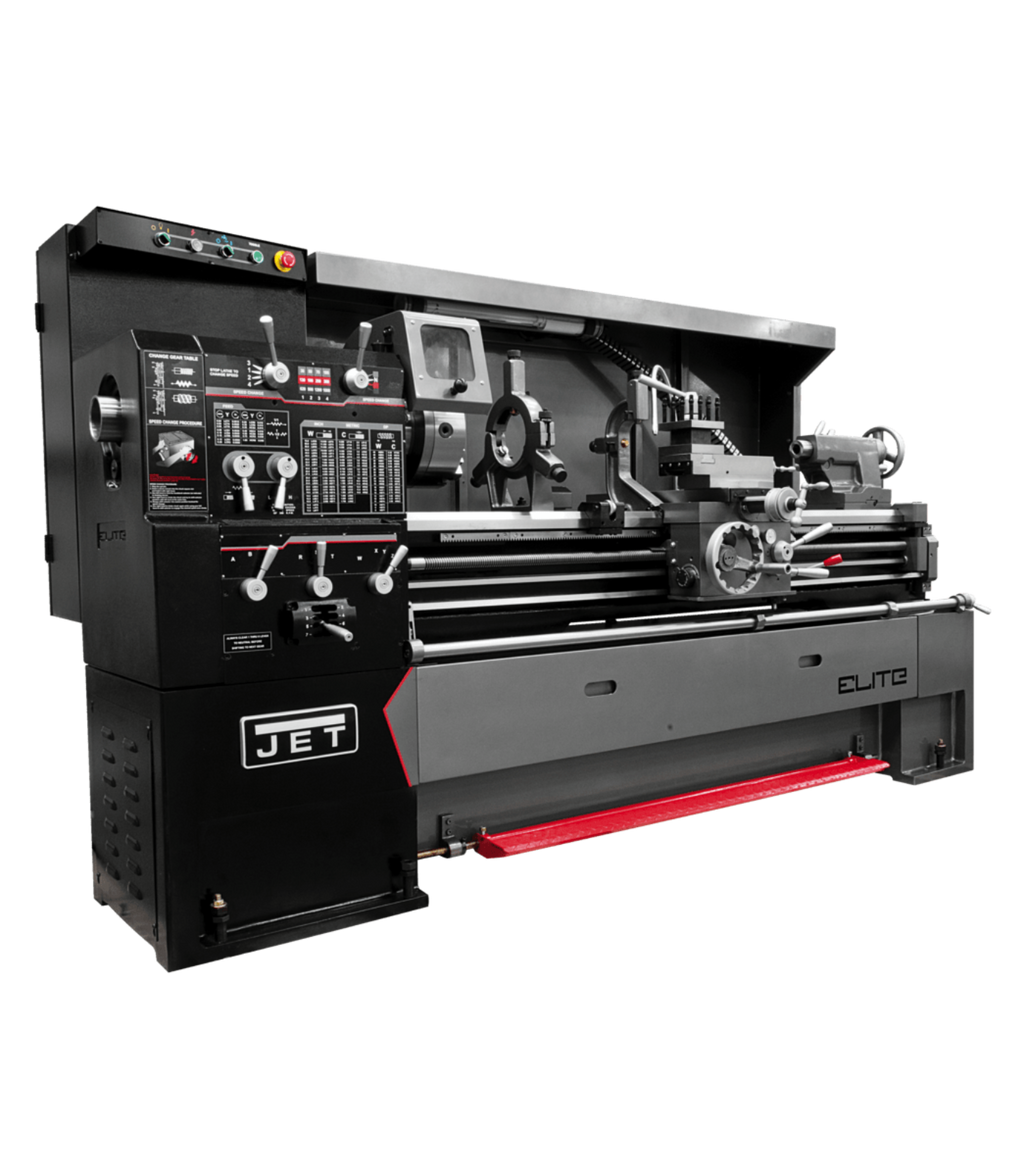

    JET Elite EGH-1740, Elite 17x40 Large Spindle Bore Geared Head Lathe - JT9-892100

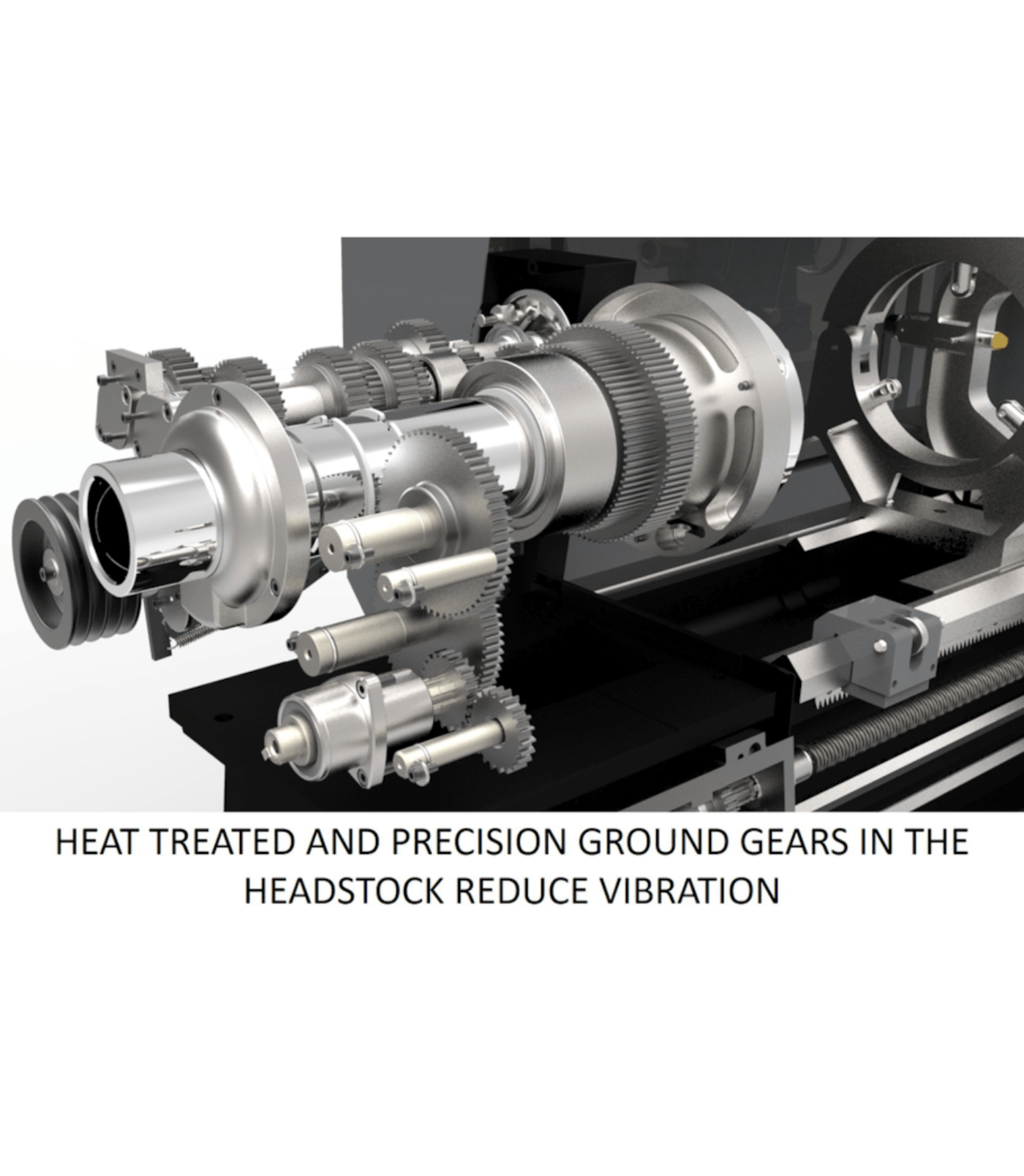

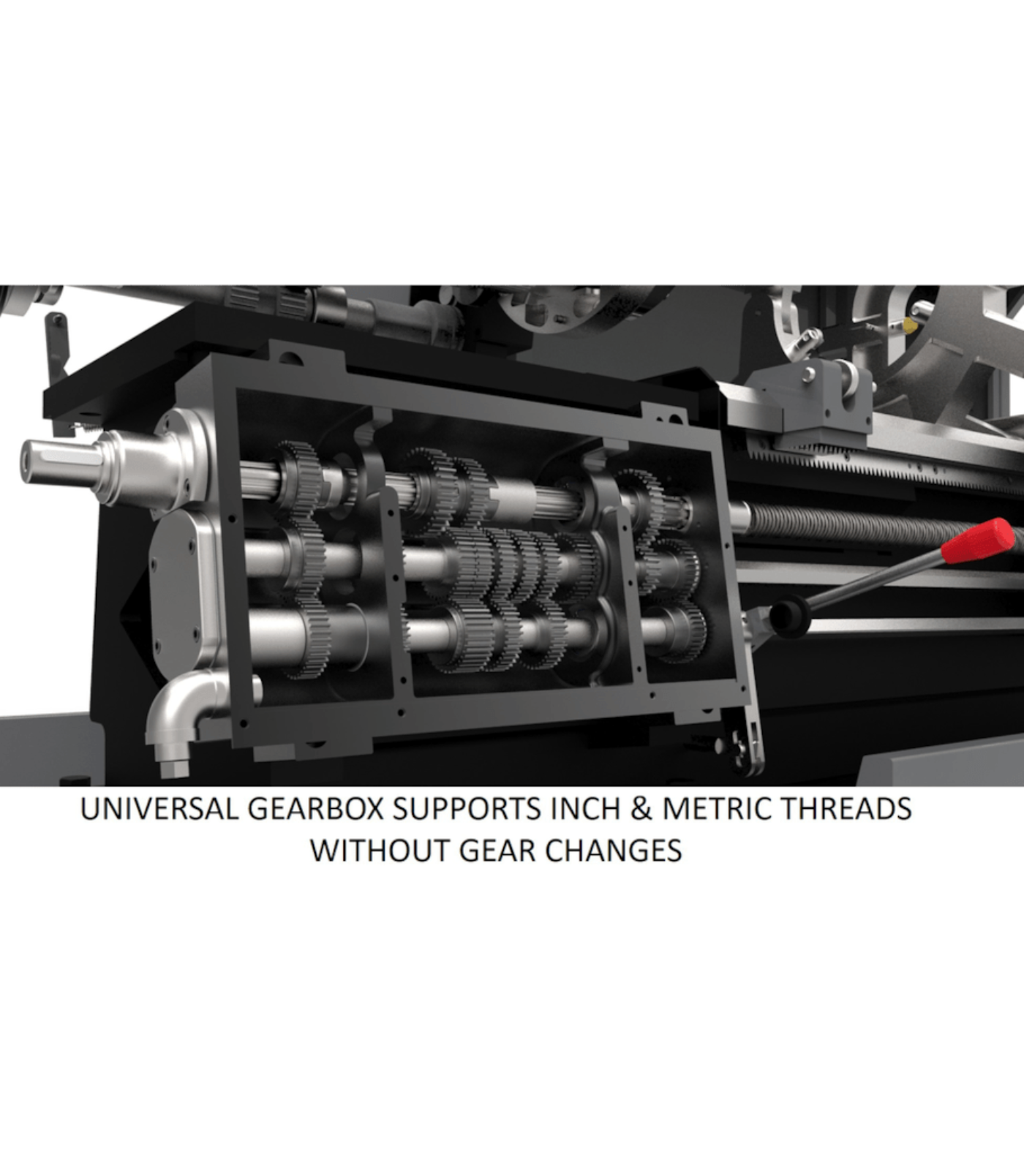

    Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

    Features
    • 4-Position Carriage Stop
    • Anti-Float design eliminates backlash in the cross slide
    • Enclosed coolant system contains excess coolant for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

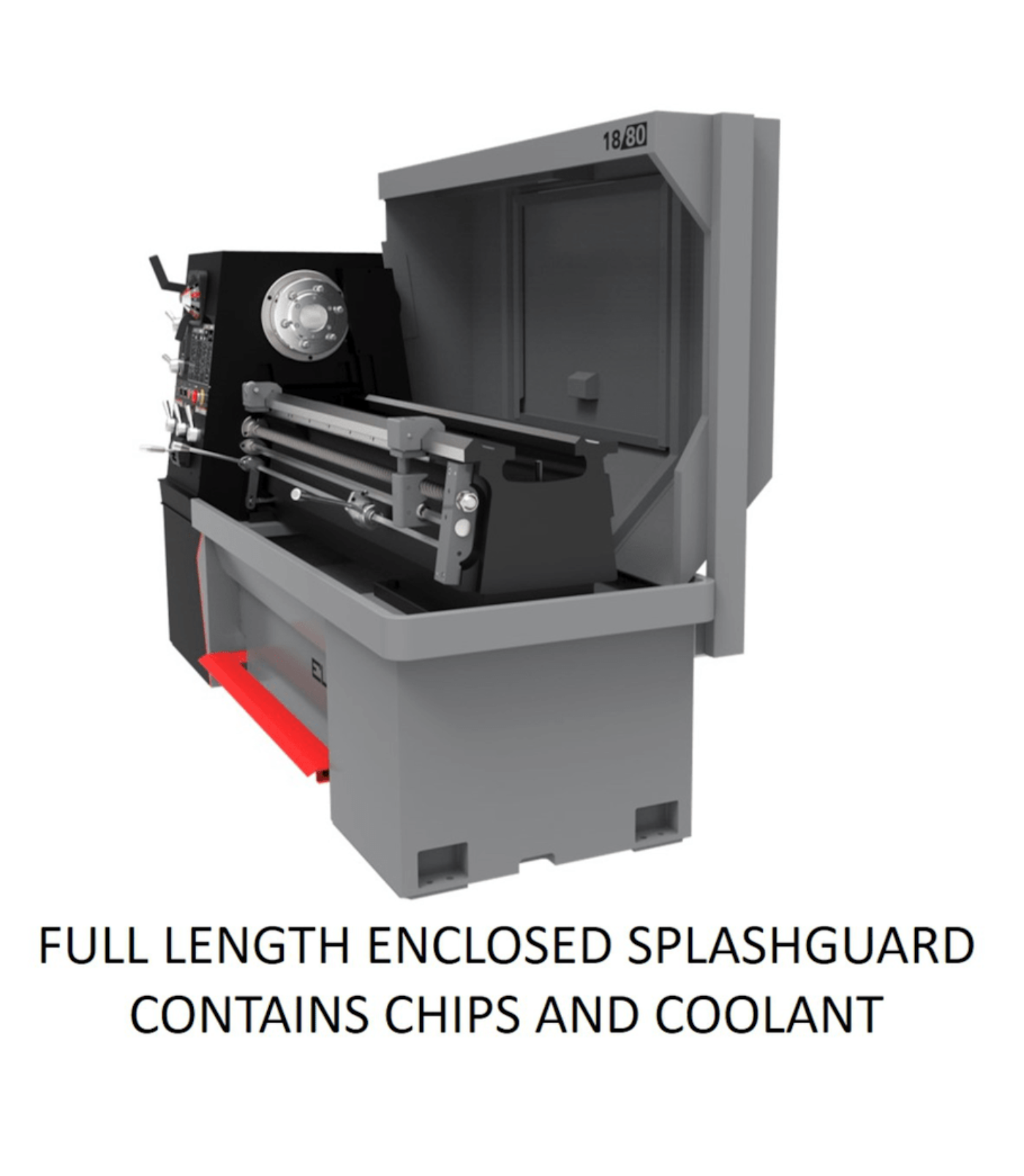

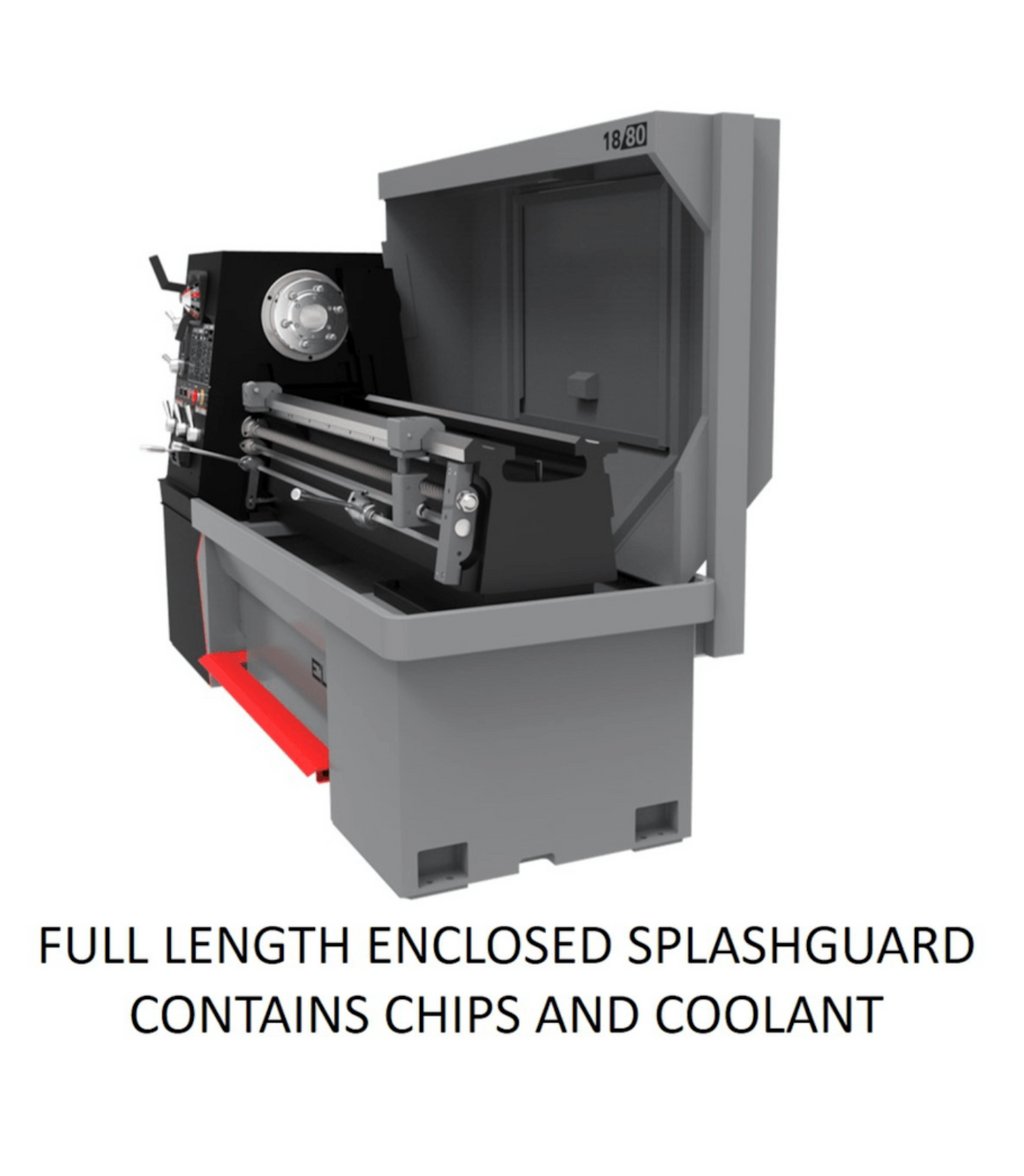

    • Full Length Splash Guard

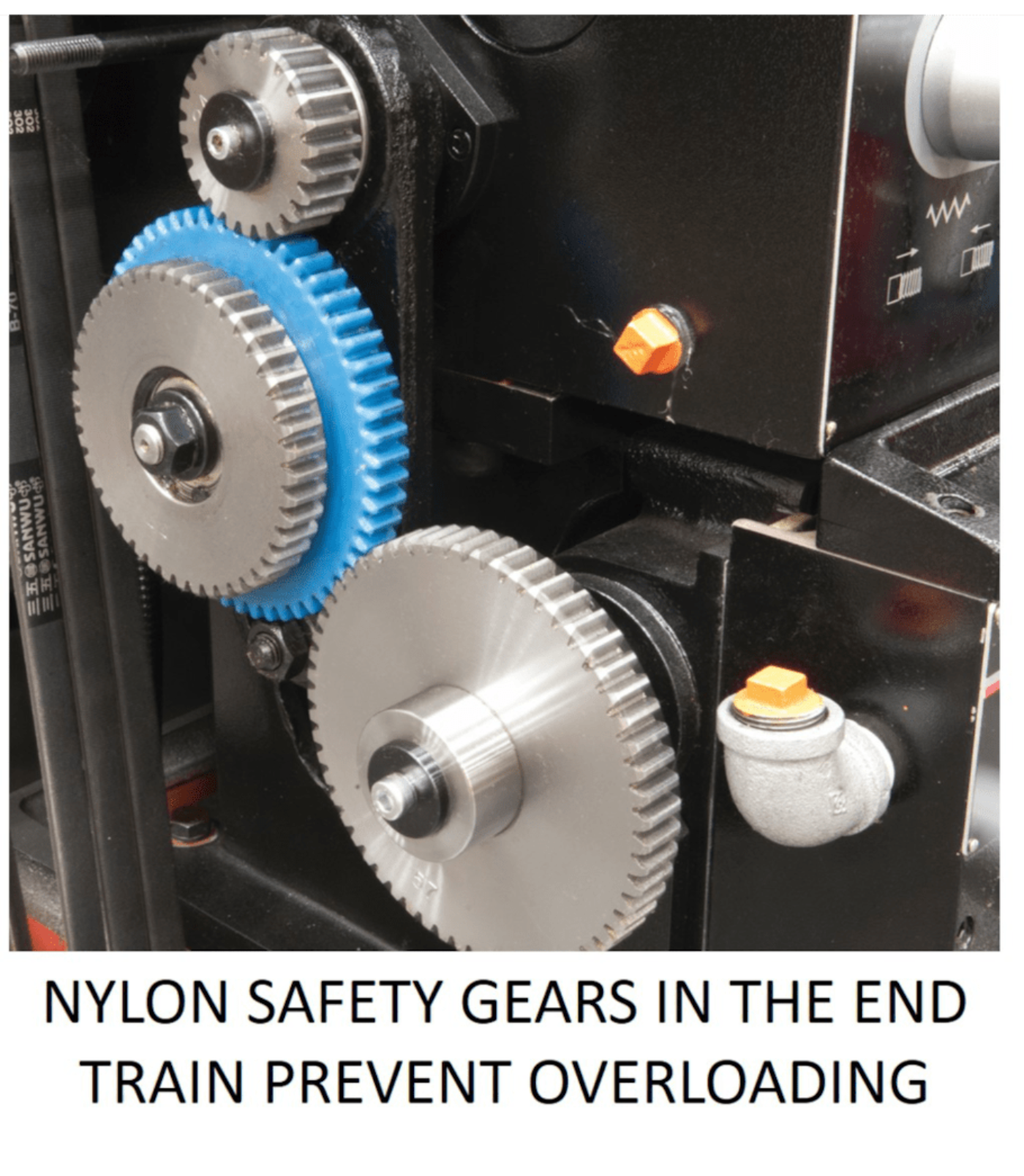

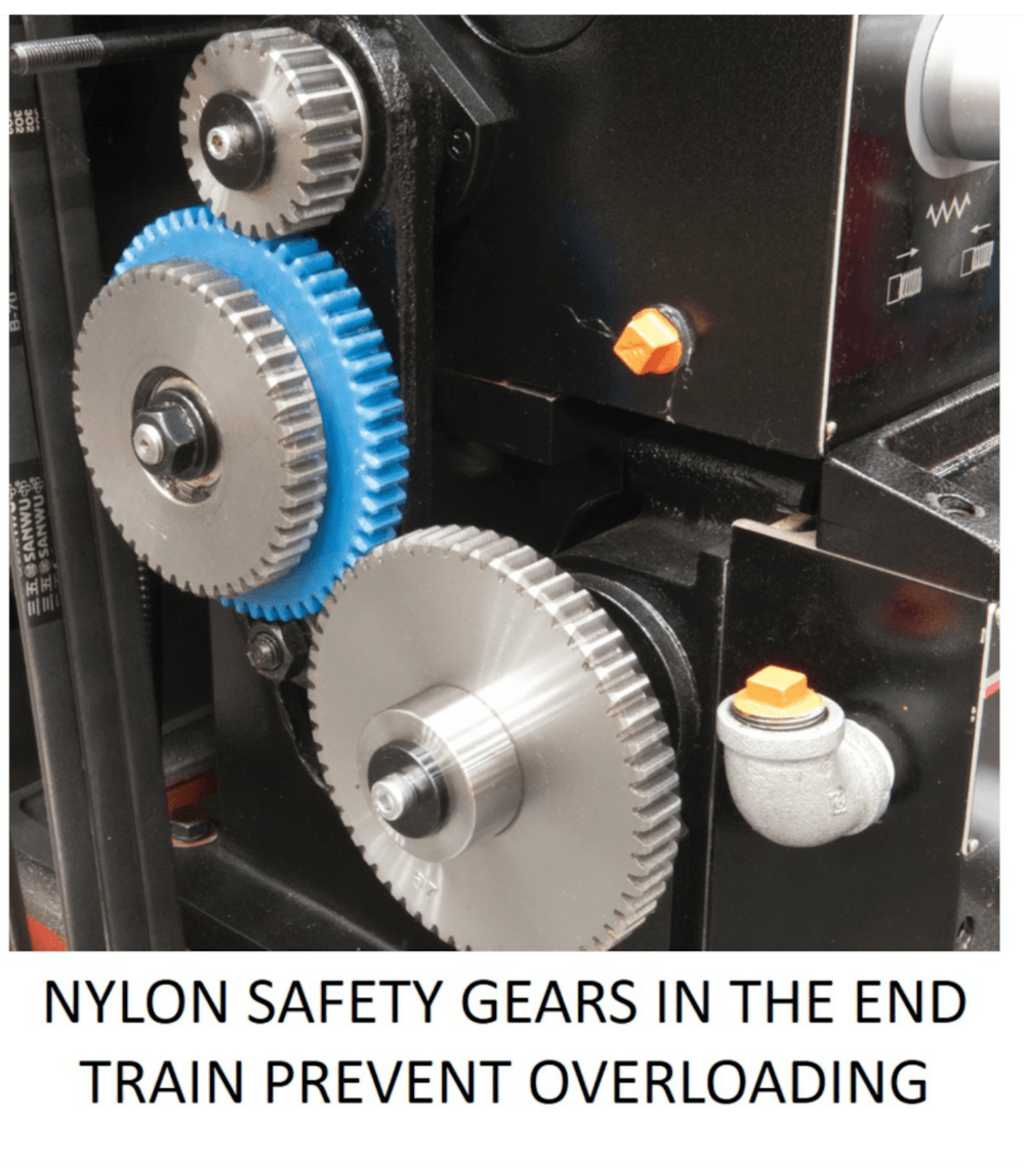

    • Nylon safety gears in the end train prevent overloading, increasing safety
    • One-Shot lubrication in the carriage reduces maintenance
    • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
    • Steady rests feature ball bearing guides for smooth material movements
    Specifications
    Size 17 x 40
    Style (Type) Engine
    Swing Over Bed (In.) 17
    Swing Over Cross Slide (In.) 11
    Swing in Gap (In.) 7-2/3

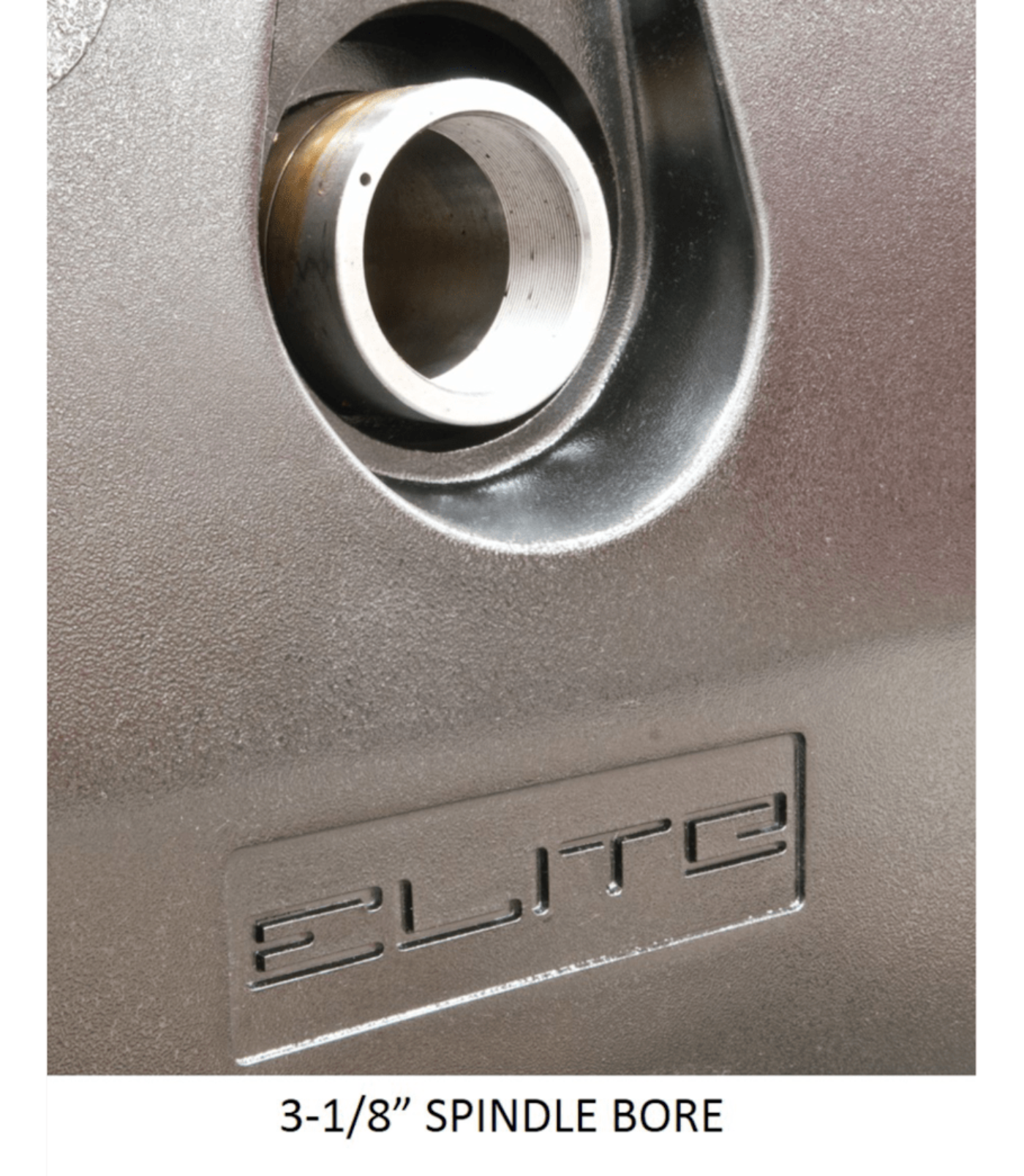

    Spindle Bore (In.) 3-1/8
    Spindle Mount D1-6
    Spindle Taper with Sleeve MT-5
    Number of Spindle Speeds 12
    Range of Spindle Speeds (RPM) 36 – 1,800
    Range of Longitudinal Feeds (IPR) 0.0015 – 0.04
    Range of Cross Feeds (IPR) 0.00075 – 0.02
    Number of Inch Threads 45
    Range of Inch Threads (TPI) 2 – 72
    Diametrial Pitch Threads Number 21
    Modular Pitch Threads Number 18
    Number of Metric Threads 39
    Range of Metric Threads 0.2 – 14
    Max Tool Size (In.) 1 x 1
    Compound Slide Travel (In.) 6-2/7
    Tailstock Spindle Travel (In.) 5
    Steady Rest Capacity (In.) 3/8 – 6-3/4
    Width of Bed (In.) 12
    Weight (Lbs.) 3,747
    Amperage Draw @ 230V 3Ph 22
    Amperage Draw @ 460V 3Ph 11

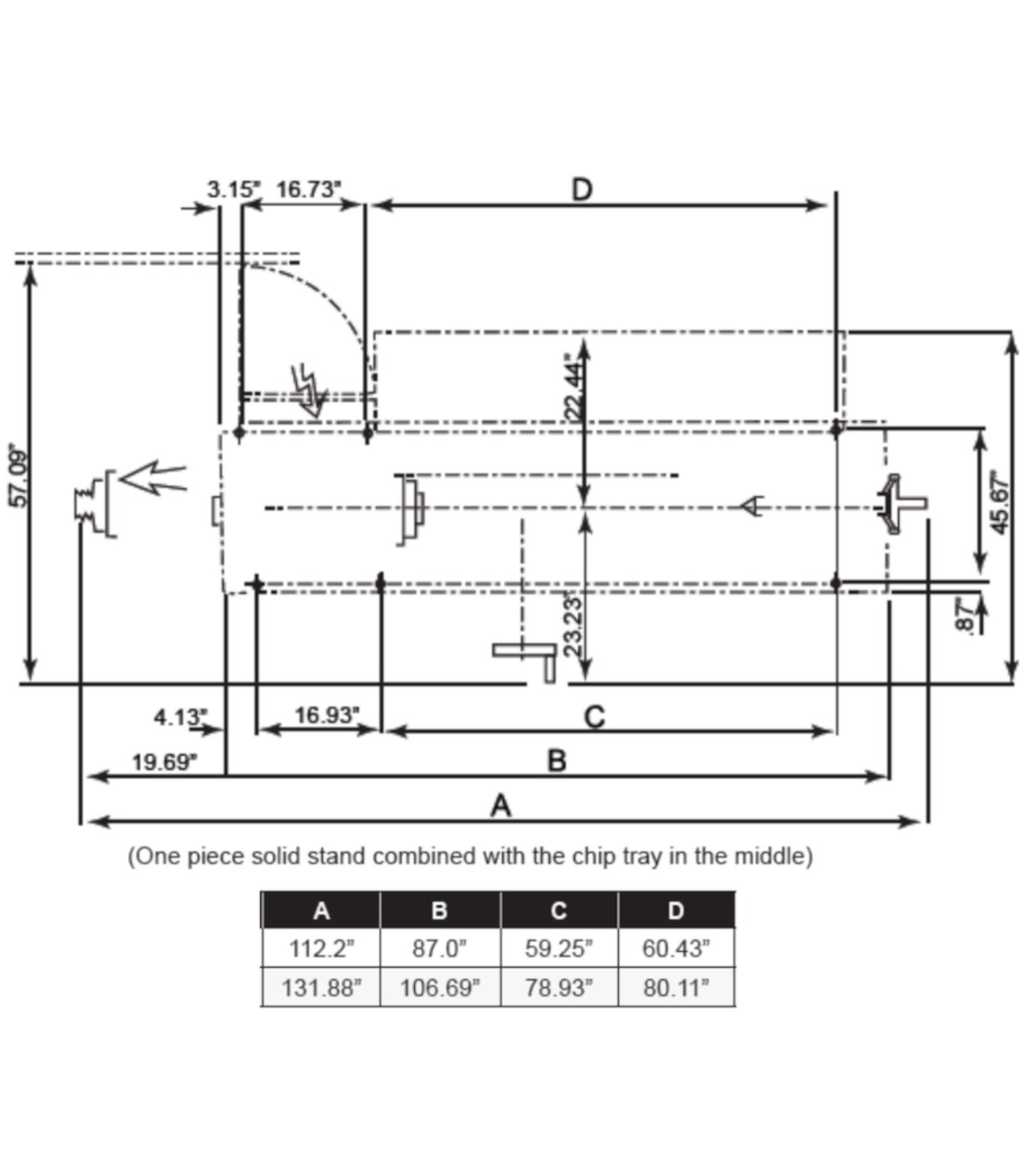

    Overall Dimensions (L x W x H) 94 x 44 x 68 in.
    Drive Geared Head
    What our Experts Think
    • Large Spindle Bore – Ideal for handling bigger workpieces with precision and stability.

    • Geared Head Design – Provides smooth power transfer and consistent cutting performance.

    • Heavy-Duty Build – Cast-iron construction ensures durability and vibration-free operation.

    • Versatile Machining – Perfect for threading, turning, and general-purpose metalworking.

    • Operator-Friendly Controls – Simplifies speed and feed adjustments for efficiency.

    • Industrial Reliability – Built for machine shops, production facilities, and technical training programs.

    Q&A

    Q: What is the JET Elite EGH-1740 Lathe?
    A: A 17" x 40" large spindle bore geared head lathe, engineered for heavy-duty performance, precision, and durability in industrial machining.

    Q: What makes this lathe stand out?
    A: It features a large spindle bore for handling bigger workpieces, combined with a geared head drive for powerful, consistent cutting.

    Q: What materials can it machine?
    A: Designed for steel, aluminum, brass, and other metals in demanding applications.

    Q: What size capacity does it have?
    A: 17" swing over bed and 40" distance between centers.

    Q: Where is it best used?
    A: Ideal for machine shops, fabrication plants, industrial manufacturing, and maintenance departments.

    Q: Why choose a geared head design?
    A: The geared head provides stable torque, reliable power transmission, and efficiency for both roughing and precision cuts.

    Q: How does it improve productivity?
    A: The heavy-duty build, large bore, and precision gearing reduce downtime and deliver consistent, accurate machining results.

    Maintenance Tips
    • Clean chips and debris from the bed, carriage, and tooling after each use

    • Follow the lubrication chart to oil gears, bearings, and moving parts regularly

    • Inspect belts, gears, and spindle components for wear or misalignment

    • Keep electrical controls and connections clean and dry

    • Check machine alignment and calibration periodically to ensure precision

    • Schedule annual professional servicing to maintain long-term reliability and accuracy
