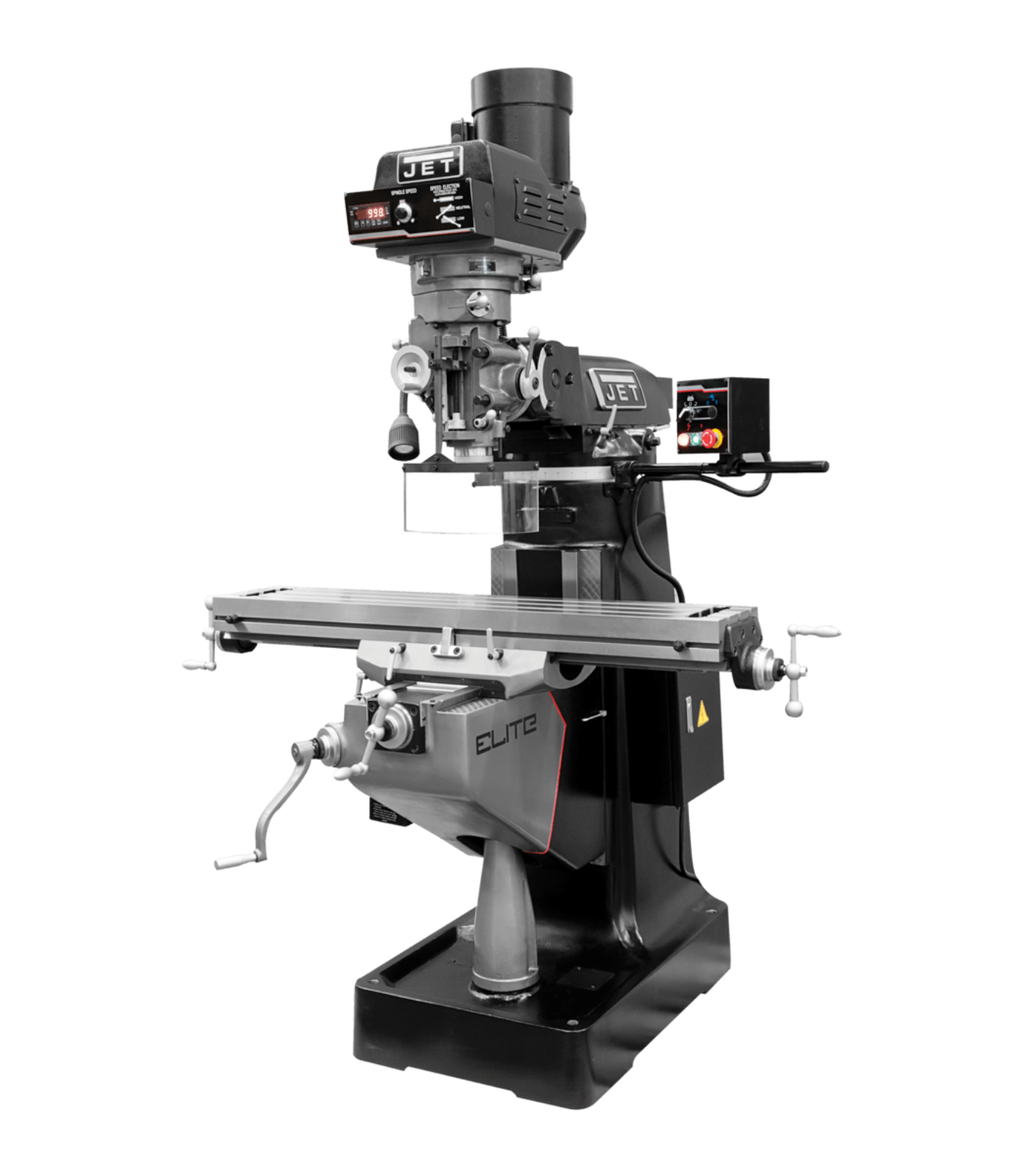

    JET Elite ETM-949 Mill with 2-Axis ACU-RITE 203 DRO - JT9-894109

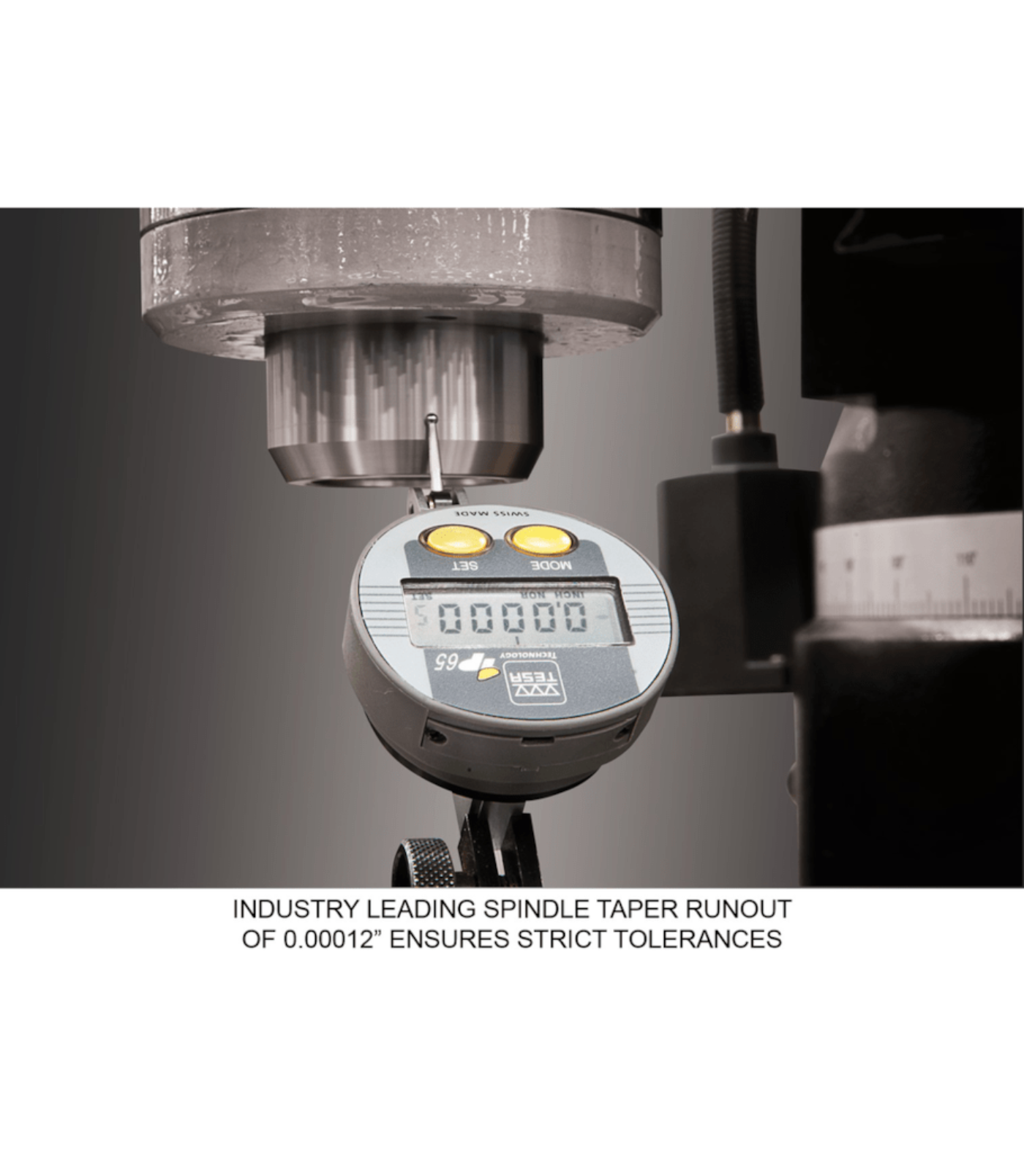

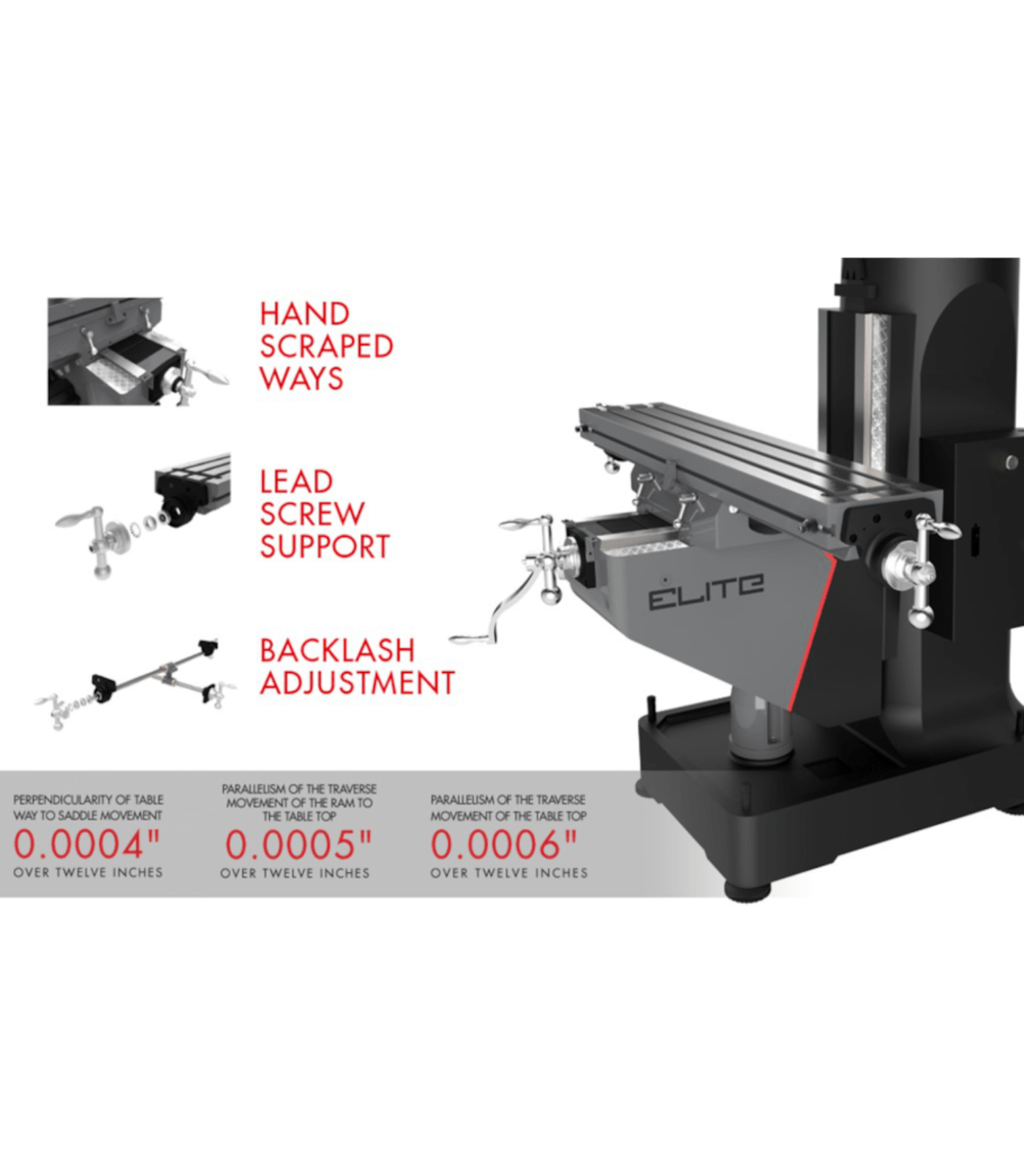

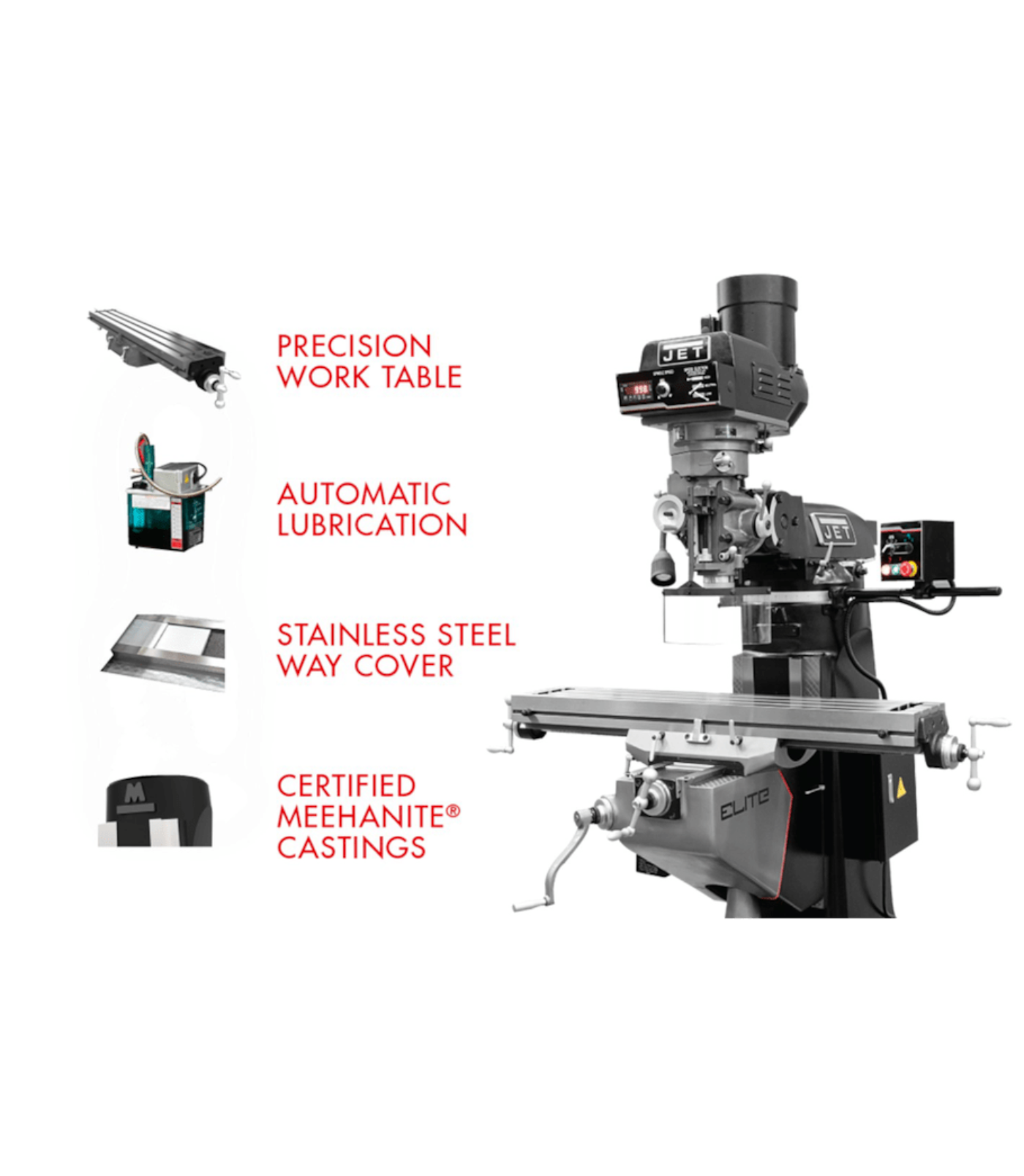

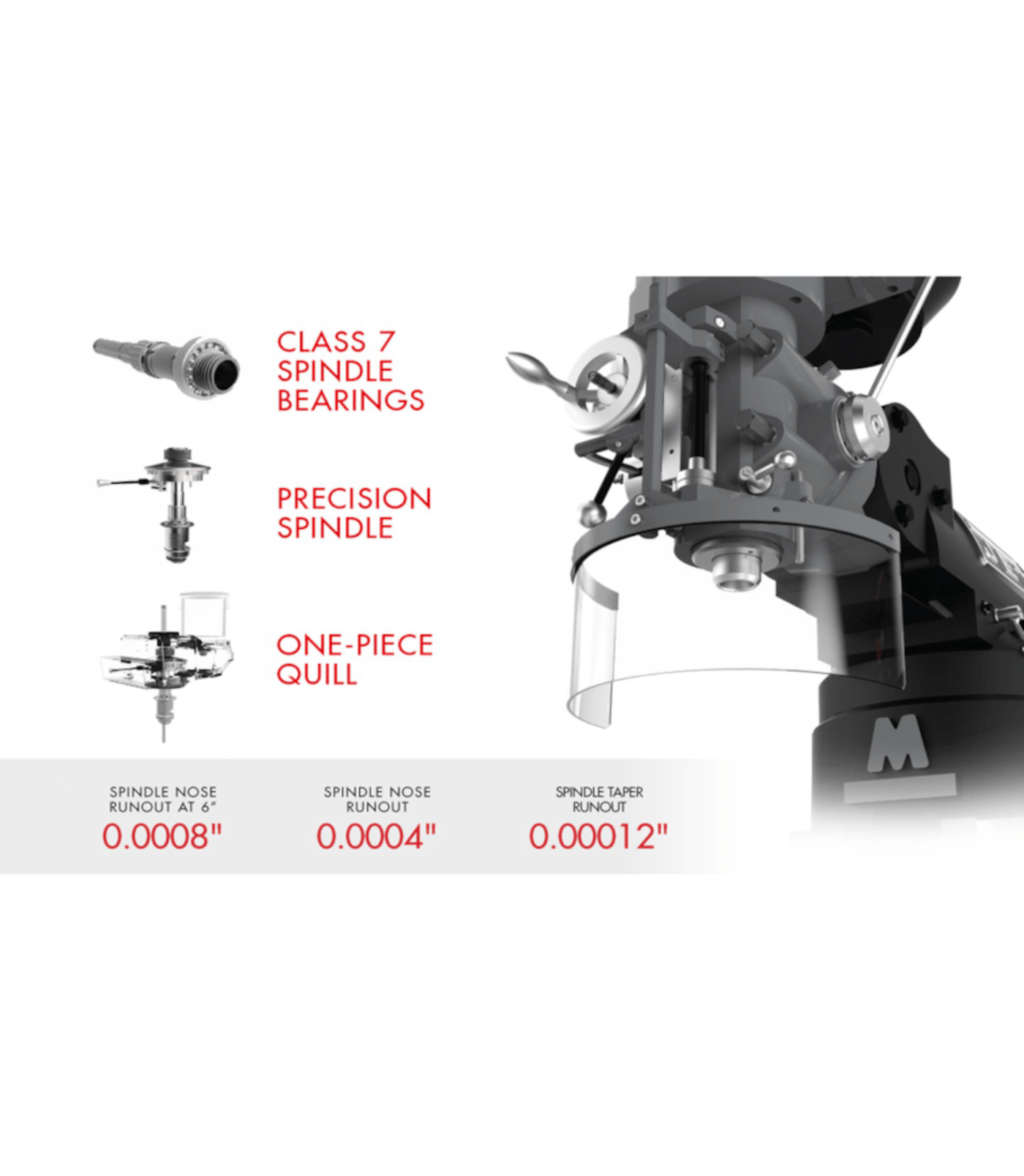

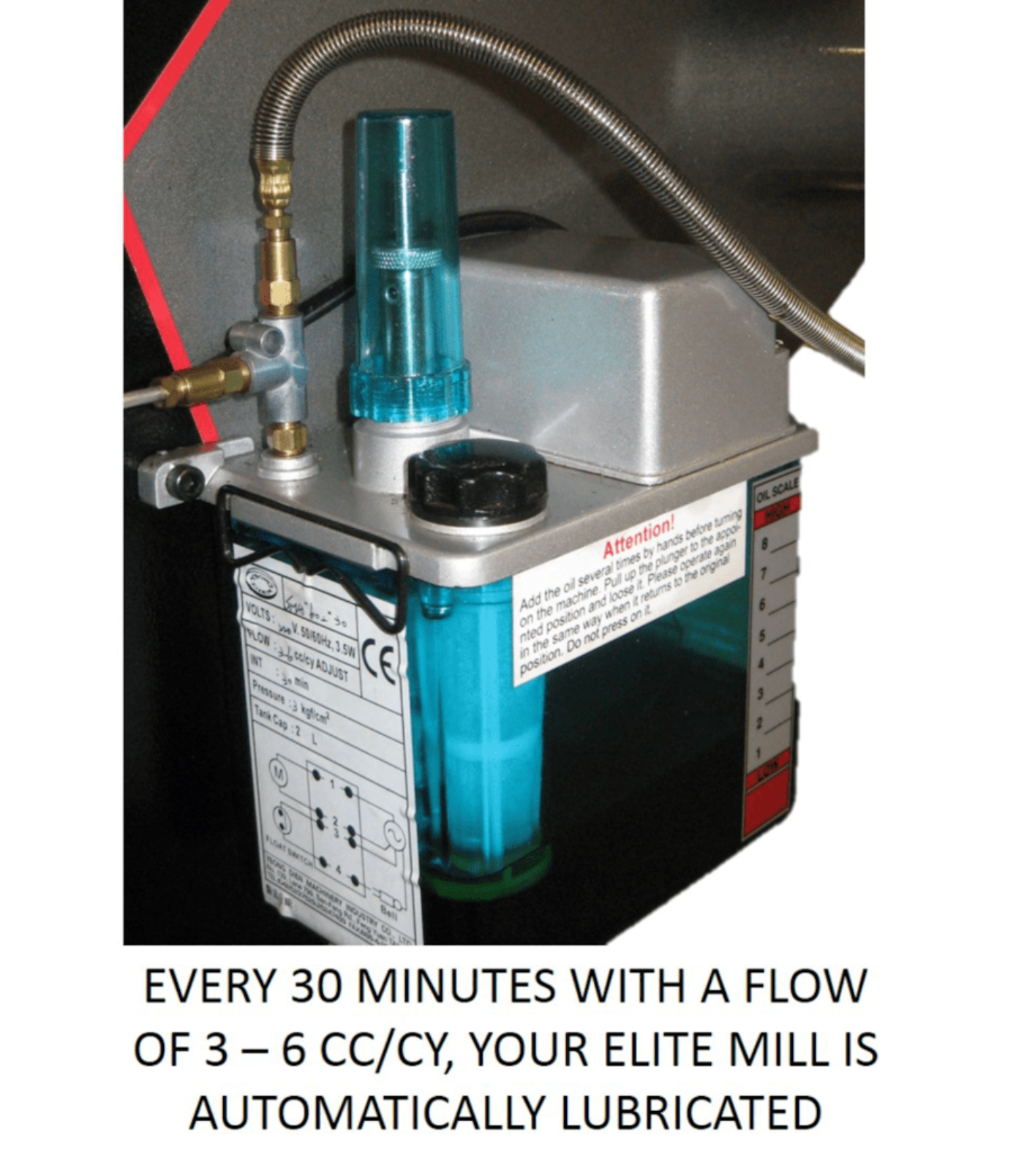

    Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.

    Features
    • Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
    • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
    • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
    • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

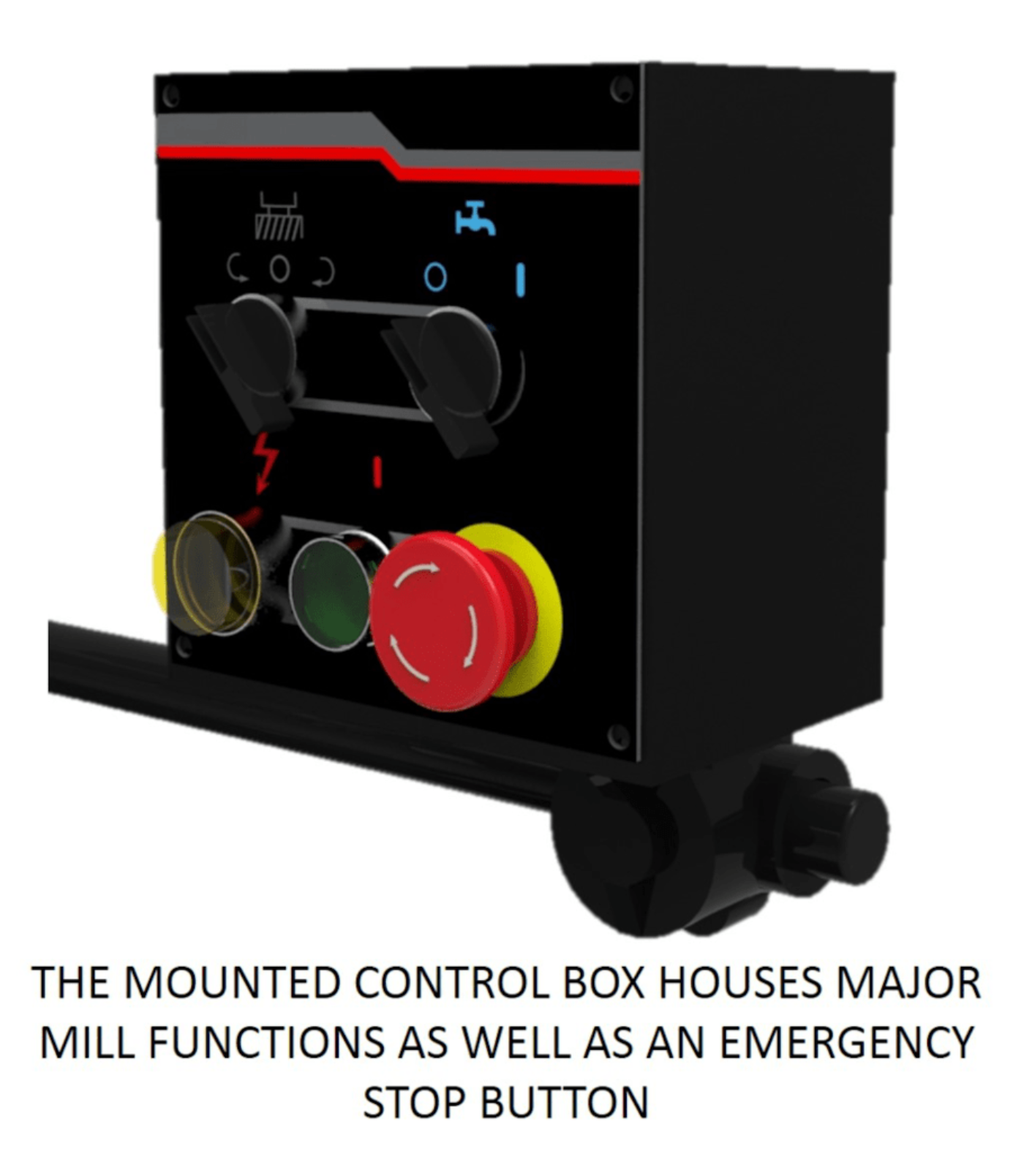

    • The mounted control box houses major mill functions as well as an emergency stop button
    • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
    • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
    Specifications
    Style (Type) Variable Speed
    Table Size (L x W) 9 x 49 in.
    Work Table Weight Capacity 550 lbs.
    Spindle Travel 5 in.
    Spindle Taper R-8
    Collet Capacity 1/8 – 7/8 in.
    Quill Diameter 3-3/8 in.
    Quill Down Feed Rates (IPR) 0.0015 – 0.003 – 0.006
    Max Distance Spindle to Table 18-3/4 in.
    Distance Spindle to Column (Max.) 21-2/5 in.

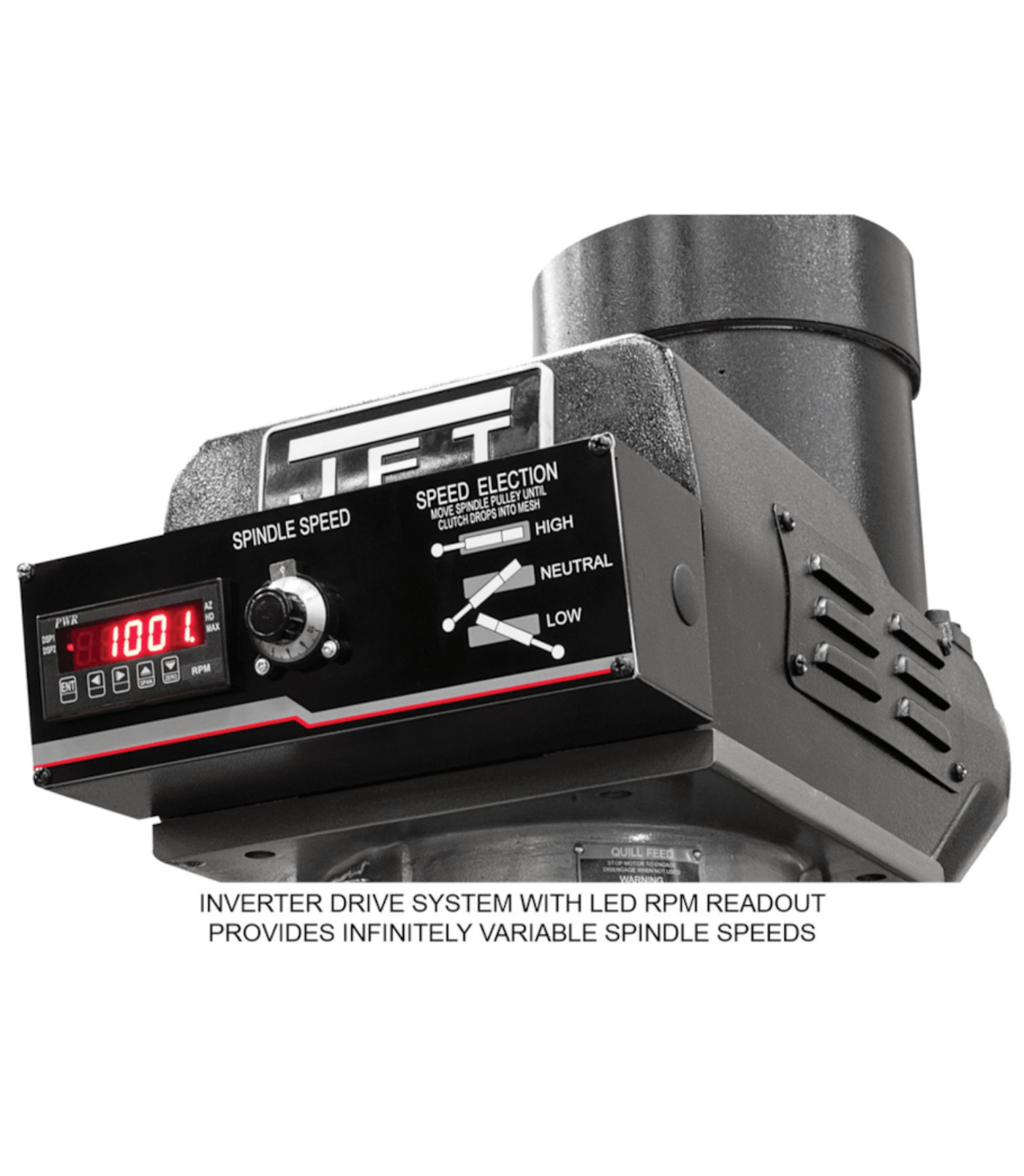

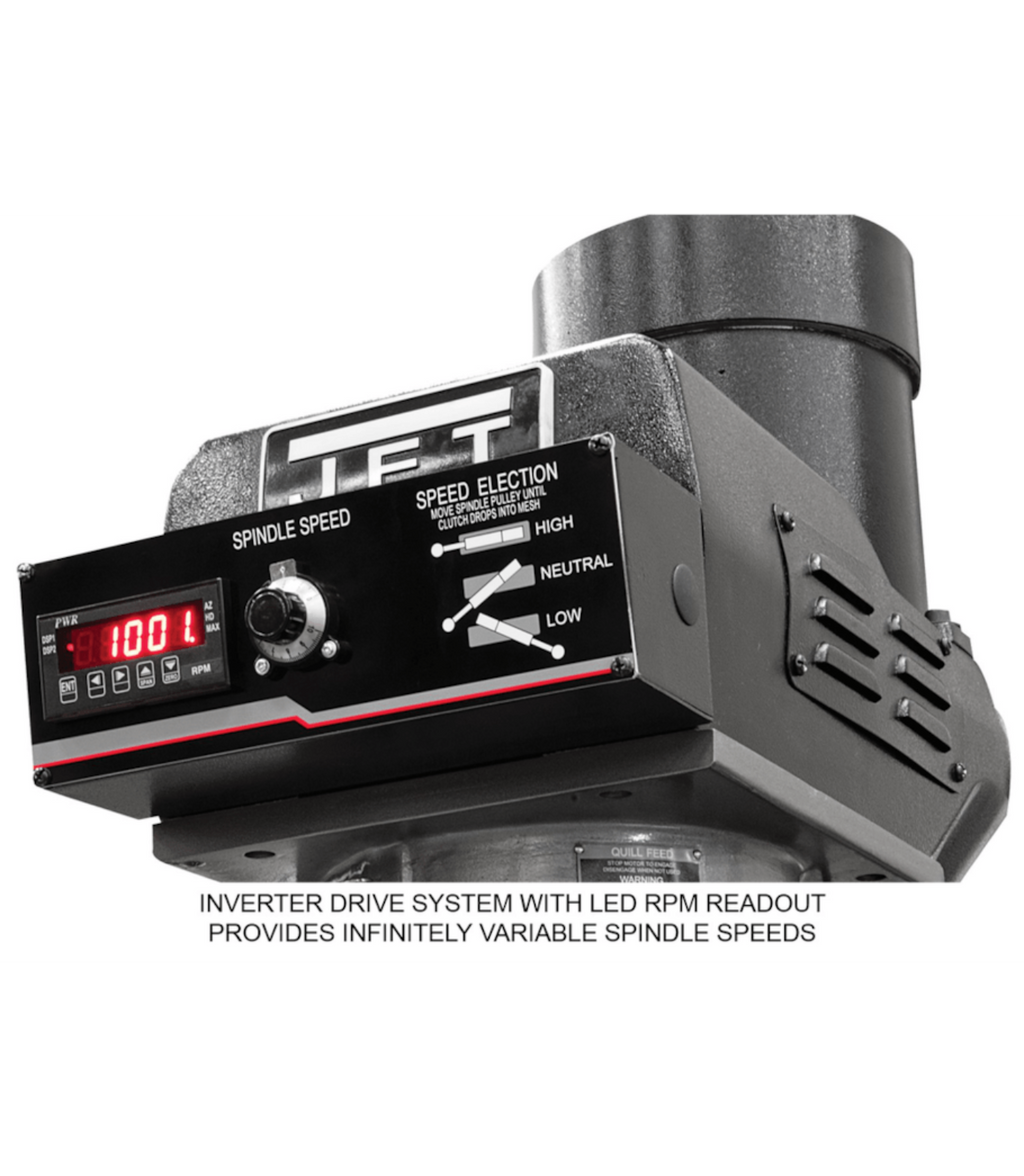

    Range of Spindle Speeds 60 – 5,000 RPM
    Table Longitudinal Travel 36 in.
    Table Cross Travel 12 in.
    T-Slot Centers 2-1/2 in.
    Travel of Knee 16 in.
    Travel of Ram 14 in.
    Motor 3 HP, 230V, 3Ph
    Amperage Draw @ 230V 3Ph 18 A
    Weight 2,300 lbs.

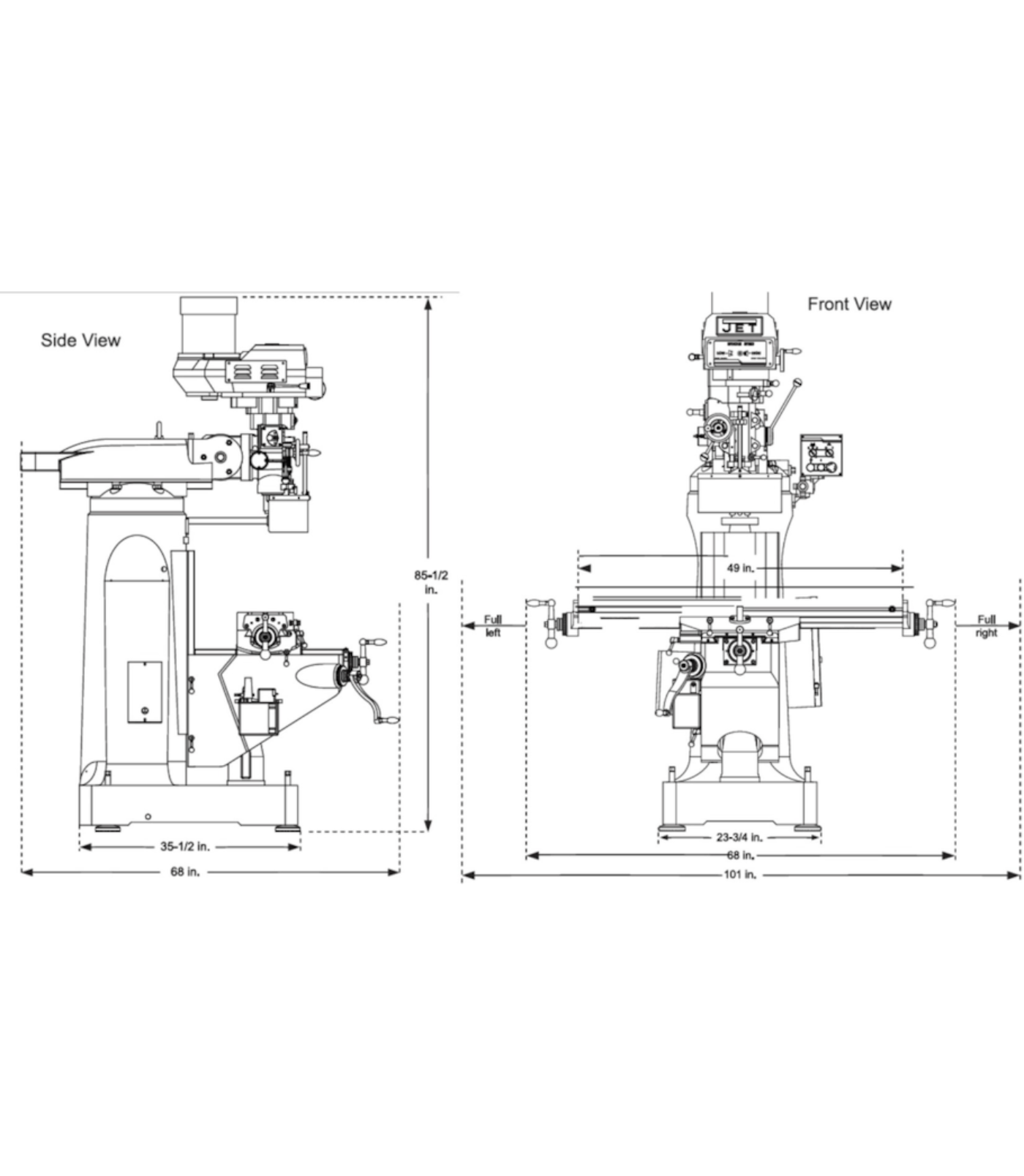

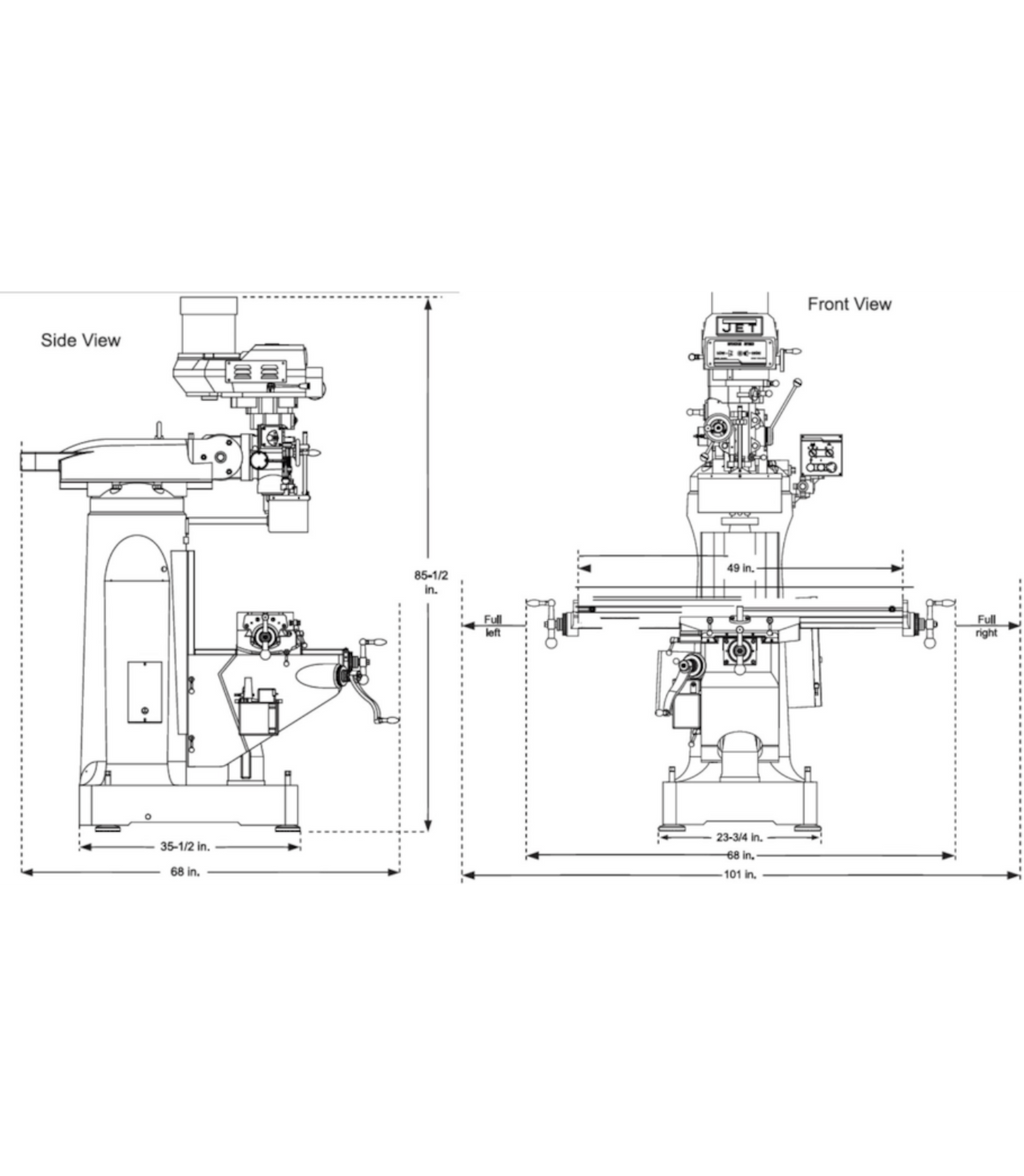

    Overall Dimensions (L x W x H) 68 x 63 x 84 in.
    What our Experts Think
    • Precision Upgrade – Equipped with a 2-Axis ACU-RITE 203 DRO for accurate, real-time measurement.

    • Time-Saving – DRO reduces manual calculations, speeding up setup and machining.

    • Solid Build – Cast iron frame and hardened ways ensure durability and consistent accuracy.

    • Operator Efficiency – Digital readout enhances workflow and minimizes error risk.

    • Professional Performance – Ideal for precision parts, toolmaking, and advanced milling tasks.

    • Best For – Shops seeking dependable accuracy with digital precision on two axes.

    Q&A

    Q: What is the JET Elite ETM-949 Mill with 2-Axis ACU-RITE 203 DRO?
    A: A precision vertical milling machine featuring a 2-axis digital readout for accurate and efficient machining.

    Q: How does the ACU-RITE 203 DRO improve performance?
    A: It provides precise digital readouts on X and Y axes, reducing errors and improving machining speed.

    Q: What ensures durability and accuracy on this mill?
    A: A heavy Meehanite cast iron frame, precision-ground table, and high-quality spindle ensure long-term reliability.

    Q: Who is this milling machine designed for?
    A: Ideal for machine shops, tool rooms, and manufacturing operations requiring precision milling with digital accuracy.

    Q: Does it include safety and operator-friendly features?
    A: Yes, it offers spindle safety guards, wide travel capacity, and easy-to-use controls for safe, efficient operation.

    Maintenance Tips
    • Lubricate slides, ways, and leadscrews daily with recommended oil.

    • Inspect belts, gears, and DRO components for accuracy and wear.

    • Replace spindle and gearbox oil per service schedule.

    • Adjust gibs to hold machining precision.

    • Clean chips and wipe surfaces after every use.
