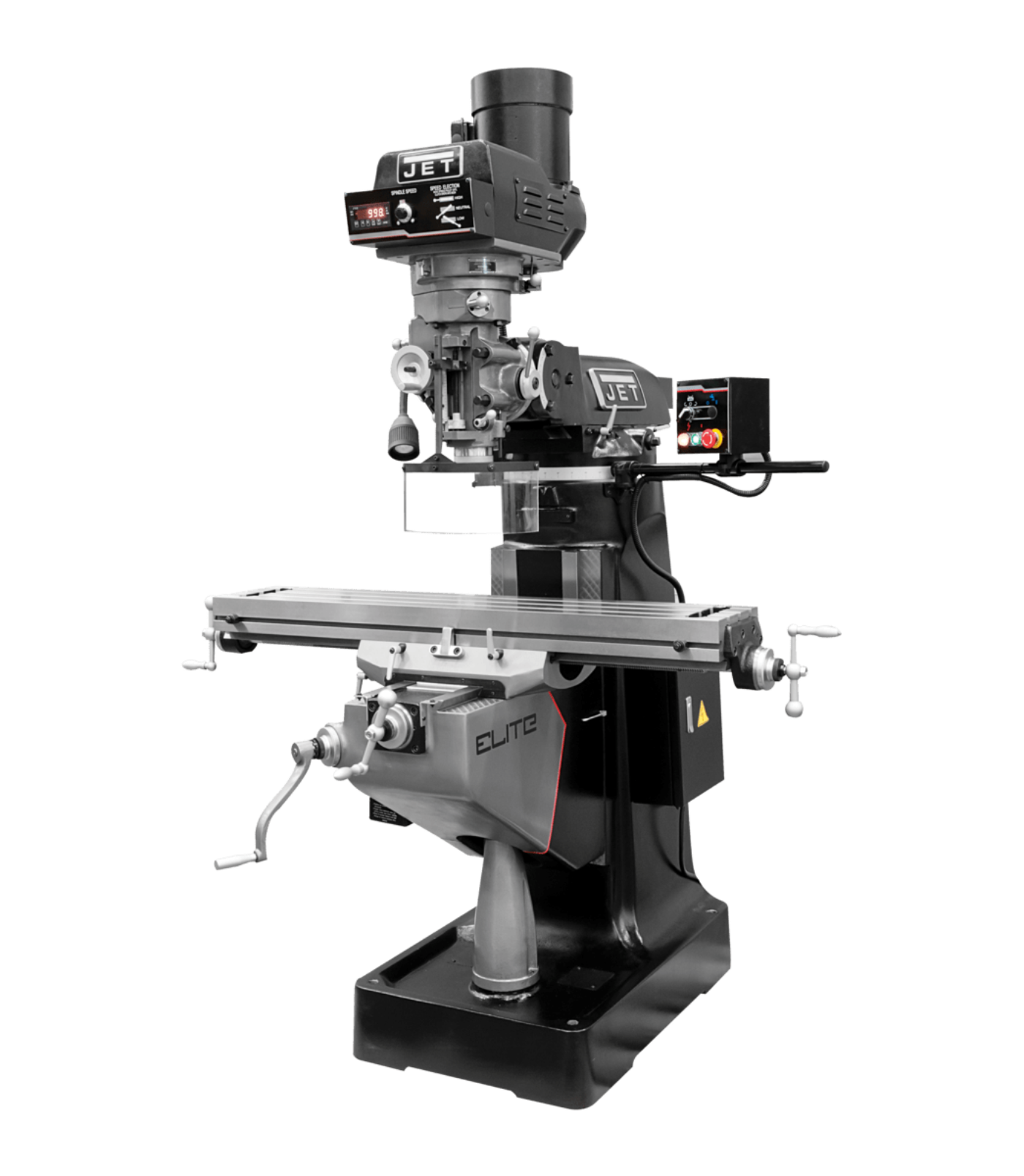

    JET Elite ETM-949 Mill with 2-Axis Newall DP700 DRO and X-Axis JET Powerfeed - JT9-894152

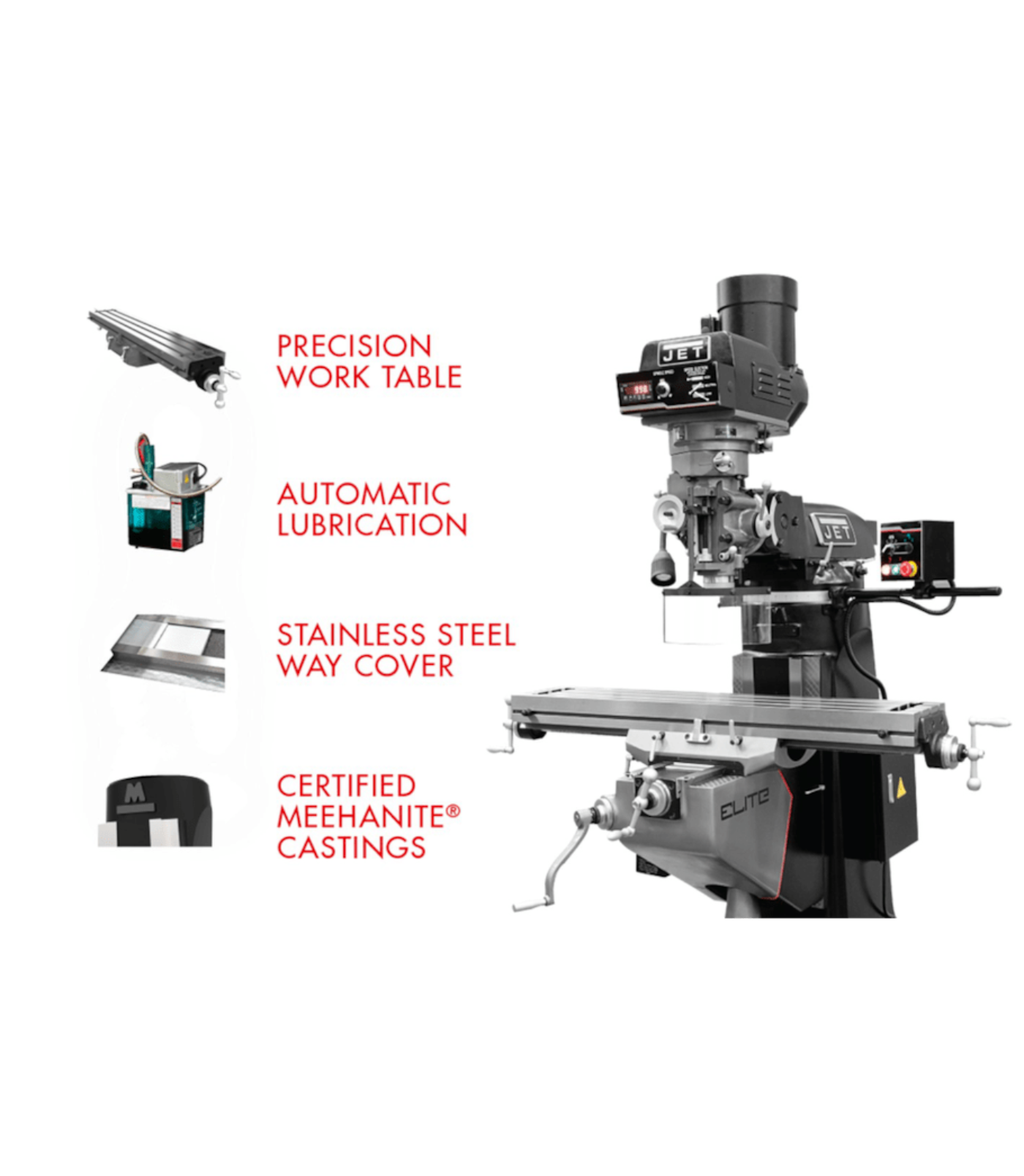

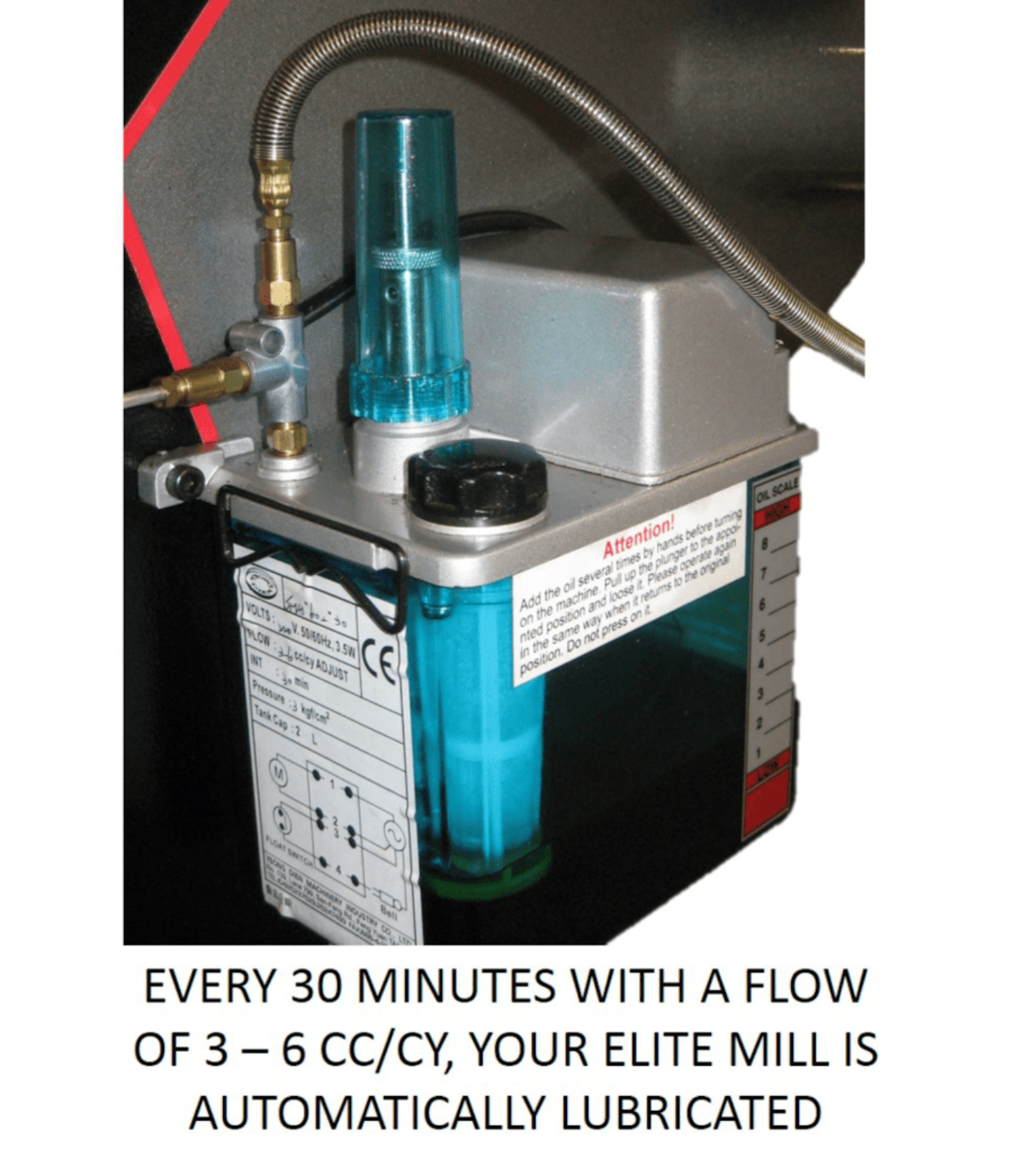

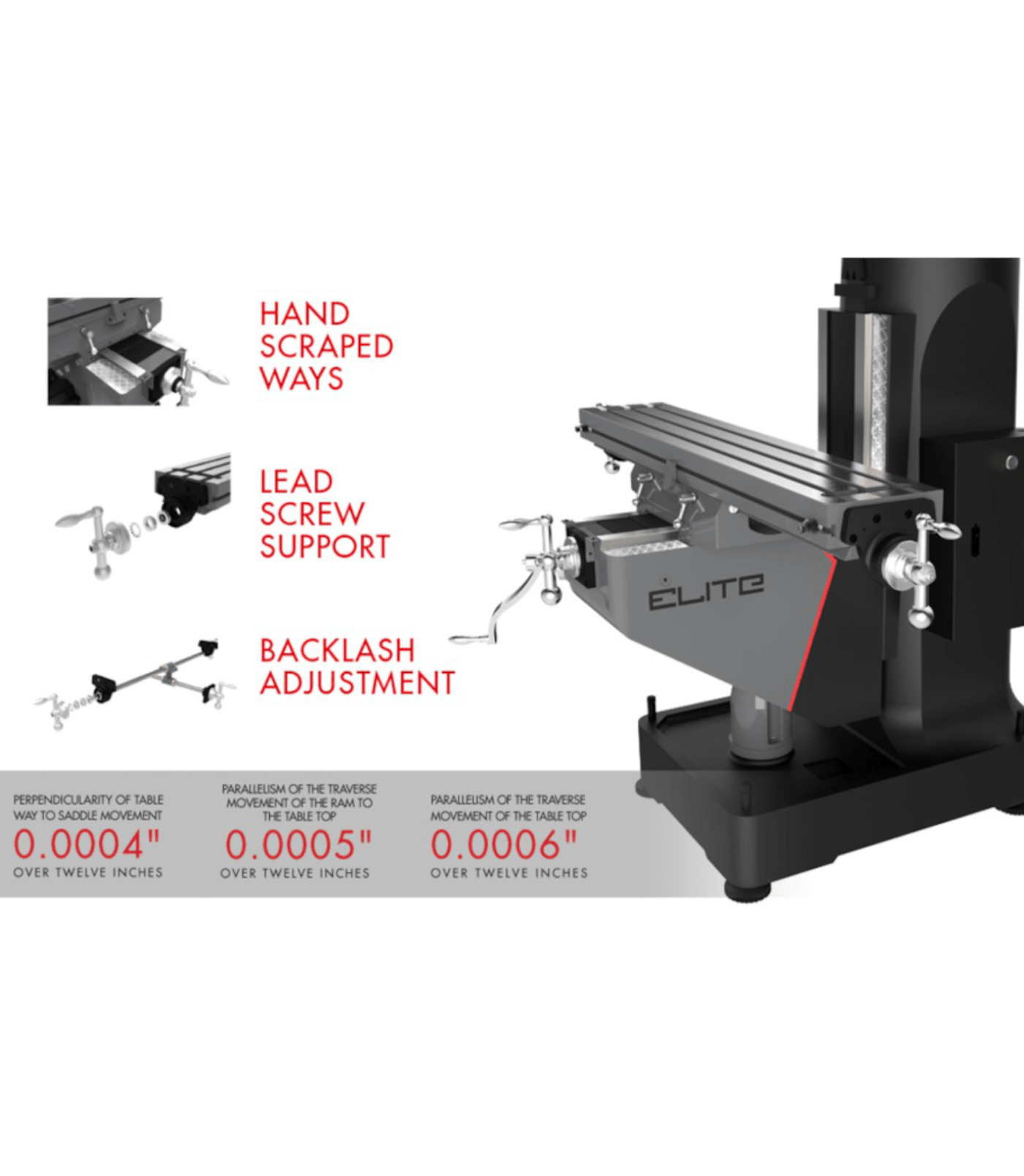

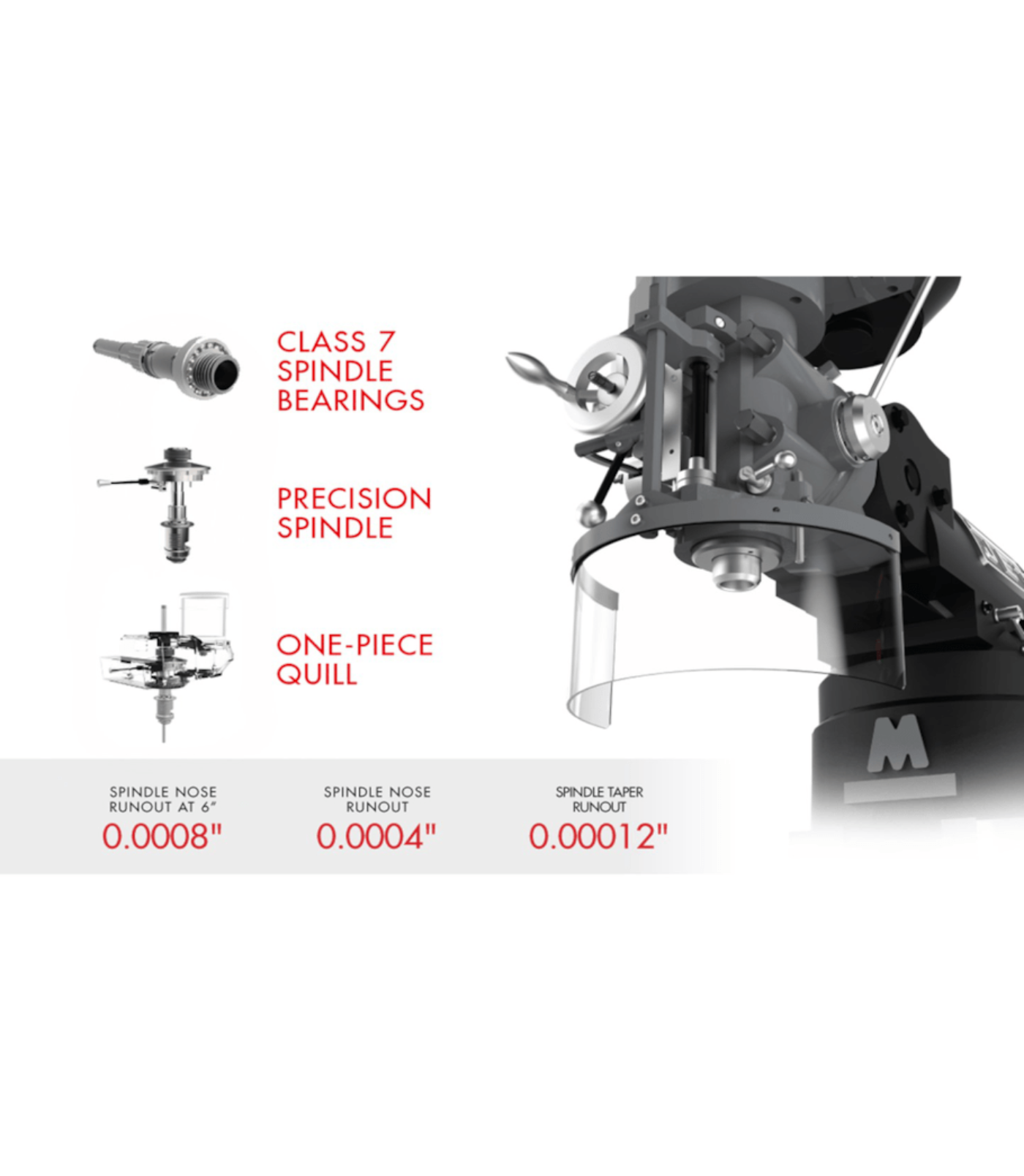

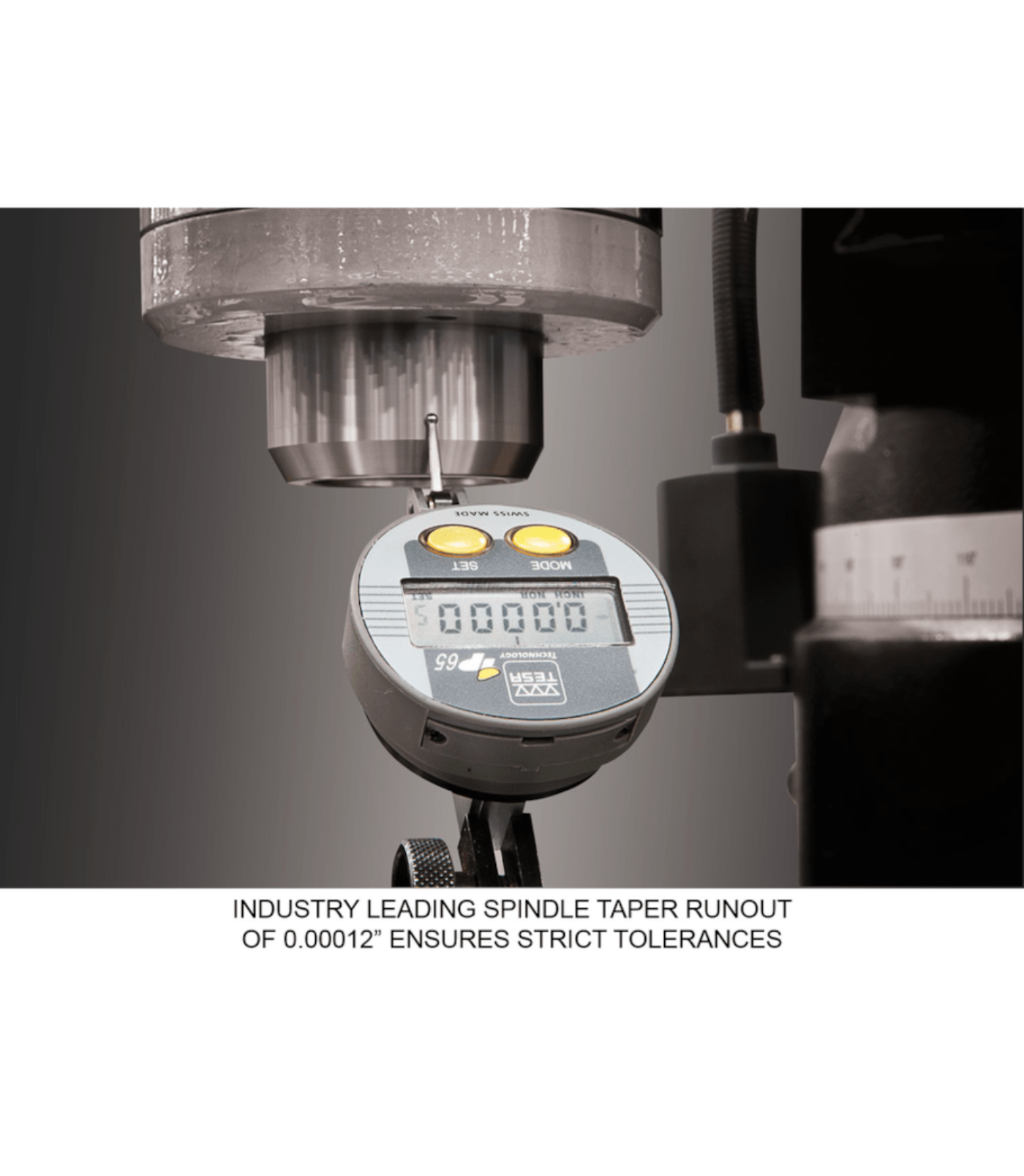

    Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.

    Features
    • Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
    • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
    • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
    • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

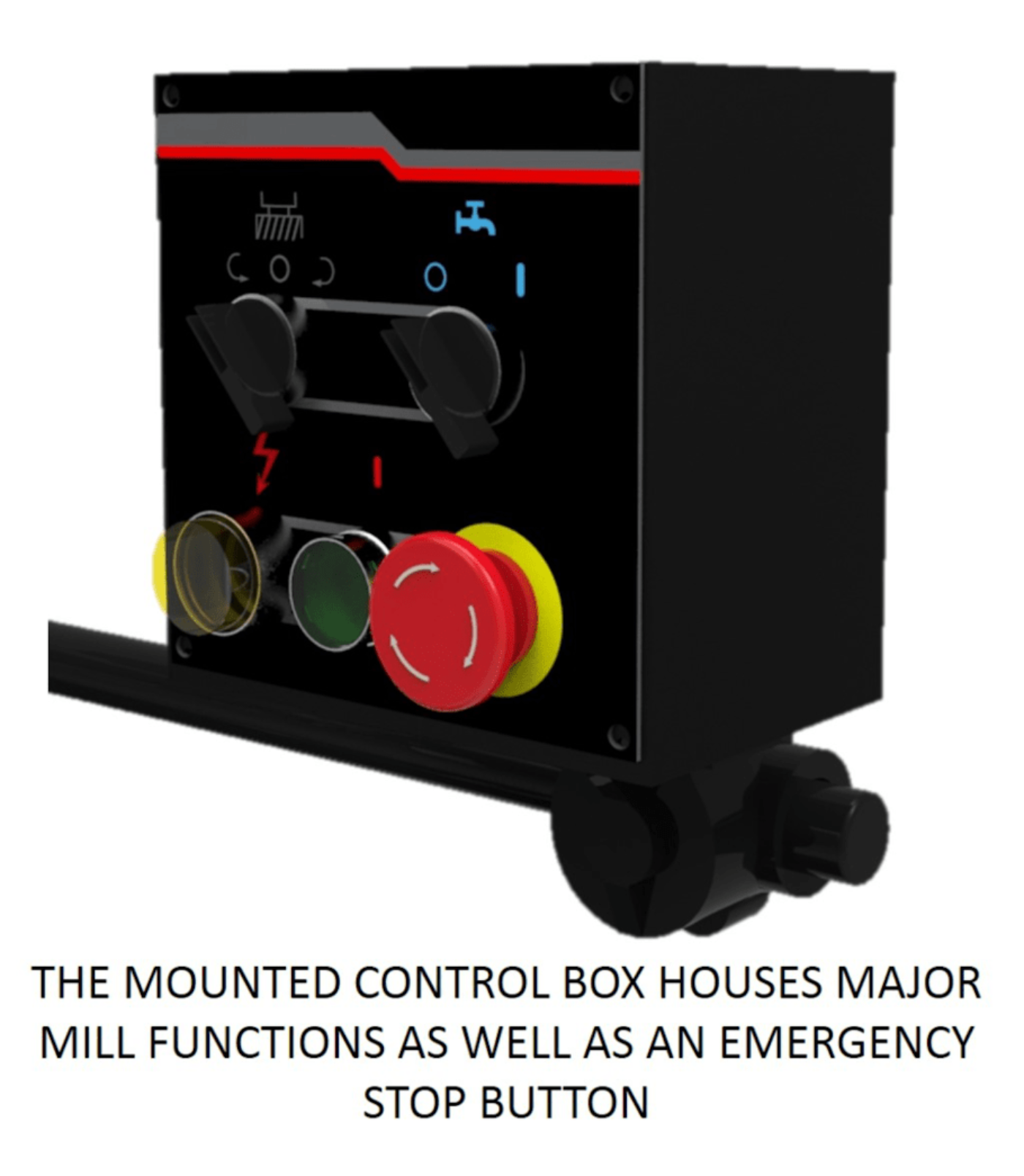

    • The mounted control box houses major mill functions as well as an emergency stop button
    • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
    • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
    Specifications
    Style (Type) Variable Speed
    Table Size (L x W) 9 x 49 in.
    Work Table Weight Capacity 550 lbs.
    Spindle Travel 5 in.
    Spindle Taper R-8
    Collet Capacity 1/8 – 7/8 in.
    Quill Diameter 3-3/8 in.
    Quill Down Feed Rates (IPR) 0.0015 – 0.003 – 0.006
    Max Distance Spindle to Table 18-3/4 in.
    Distance Spindle to Column (Max.) 21-2/5 in.
    Range of Spindle Speeds 60 – 5,000 RPM
    Table Longitudinal Travel 36 in.
    Table Cross Travel 12 in.
    T-Slot Centers 2-1/2 in.
    Travel of Knee 16 in.
    Travel of Ram 14 in.
    Motor 3 HP, 230V, 3Ph
    Amperage Draw @ 230V 3Ph 18 A
    Weight 2,300 lbs.

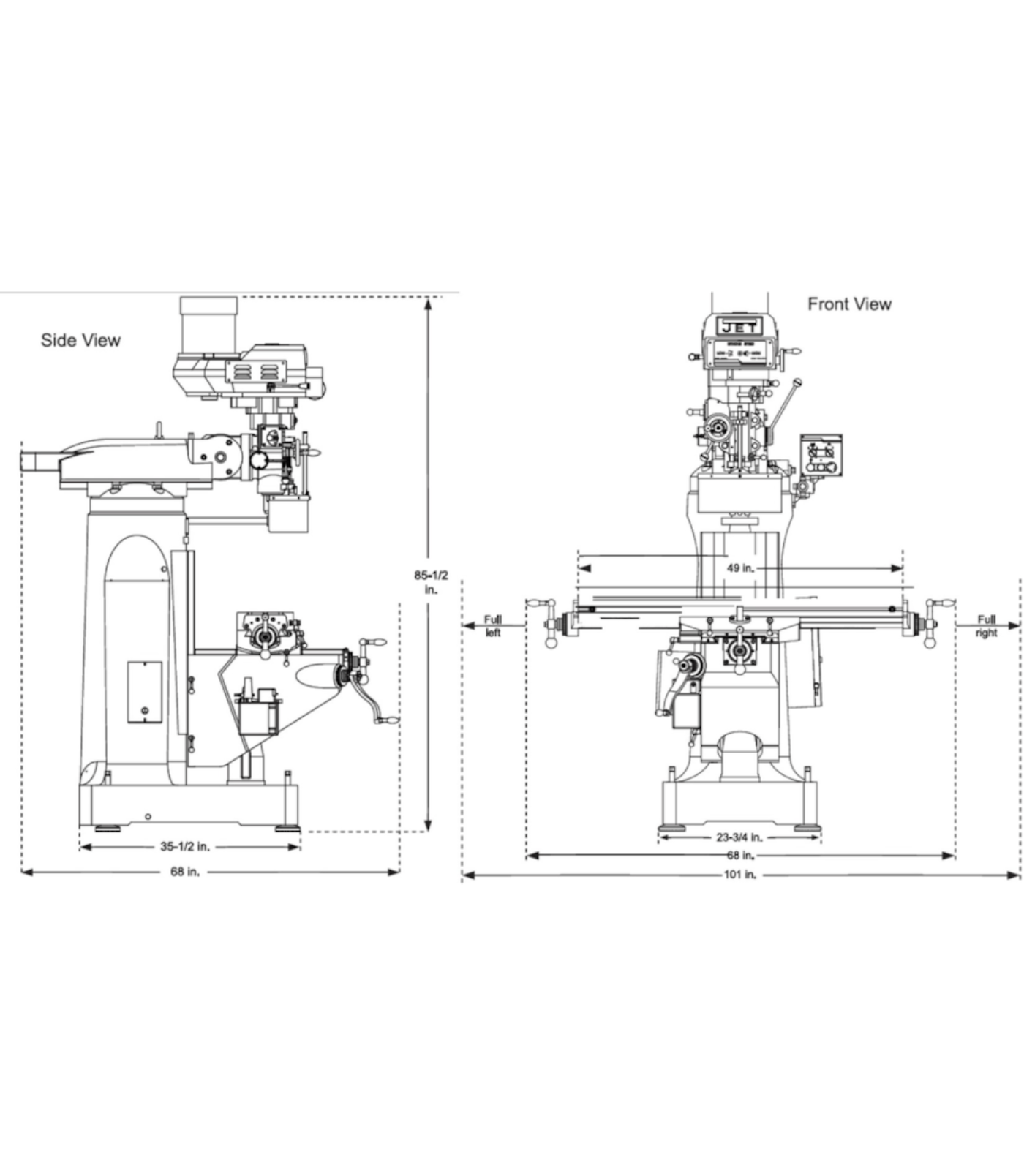

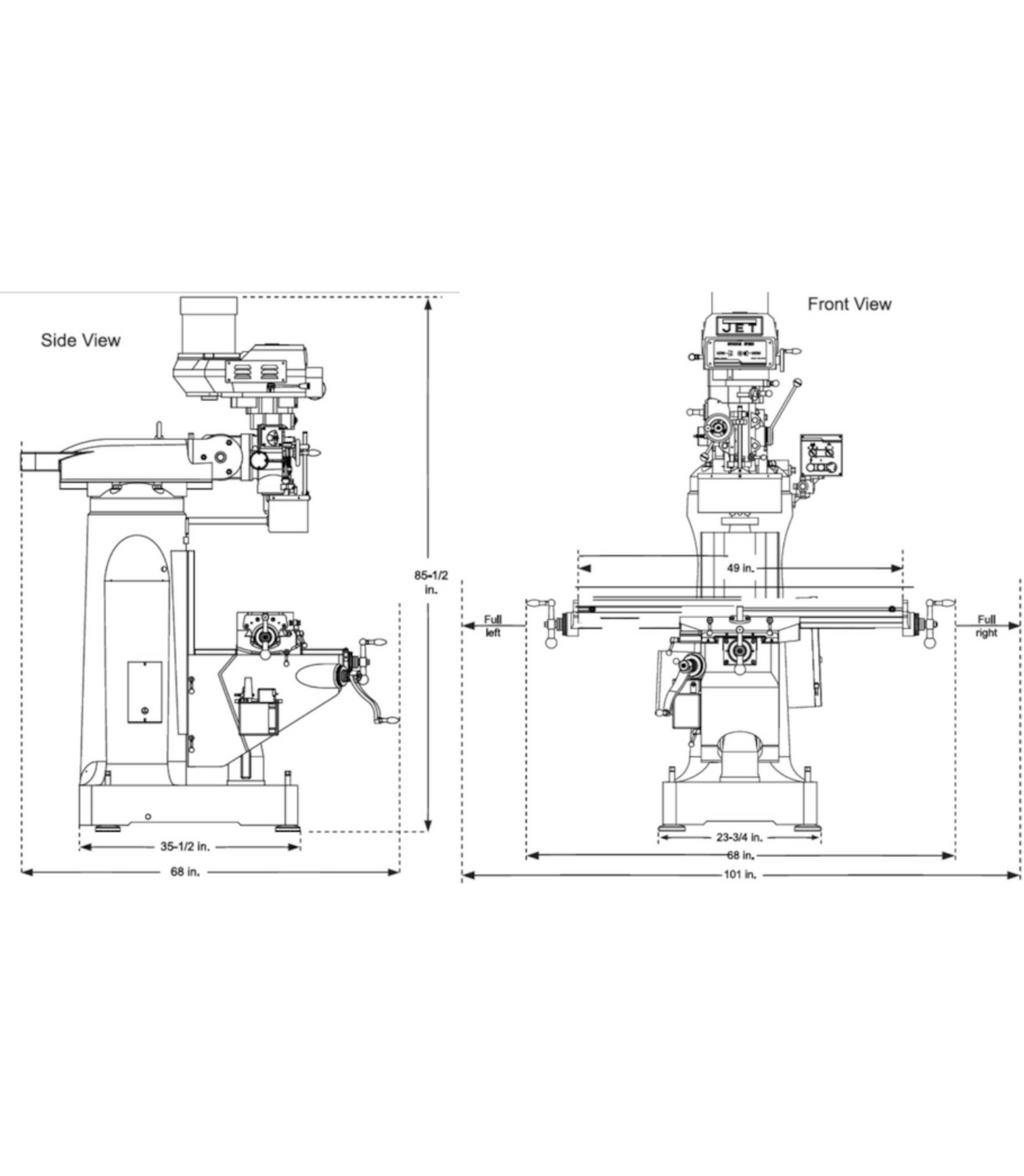

    Overall Dimensions (L x W x H) 68 x 63 x 84 in.
    What our Experts Think
    • 2-Axis Precision: X and Y-axis control ensures accurate, repeatable milling results.

    • Newall DP700 DRO: Digital readout provides precise measurements and improved workflow efficiency.

    • X-Axis JET Powerfeed: Automates table movement for consistent, smooth cutting.

    • Heavy-Duty Construction: Rigid cast-iron frame minimizes vibration and enhances durability.

    • Industrial Reliability: Designed for professional machine shops, toolrooms, and metalworking applications.

    Q&A

    Q: What is the JET Elite ETM-949 Mill?
    A: The ETM-949 is a professional vertical milling machine equipped with a 2-axis Newall DP700 DRO and an X-axis JET Powerfeed, designed for precision machining, prototyping, and production work.

    Q: What does the 2-axis Newall DP700 DRO provide?
    A: The 2-axis DRO delivers high-resolution digital readouts for the X and Y axes, enhancing setup accuracy, repeatability, and efficiency in milling operations.

    Q: How does the X-axis JET Powerfeed help?
    A: The X-axis Powerfeed allows smooth, consistent movement along the X-axis, improving surface finish, machining precision, and reducing operator fatigue during repetitive tasks.

    Q: What milling operations can it perform?
    A: It supports milling, drilling, boring, slotting, and precision surface finishing with high repeatability and efficiency.

    Q: What is the worktable size?
    A: The mill features a durable and spacious worktable suitable for medium to large workpieces and versatile machining setups.

    Q: What spindle features does it offer?
    A: Equipped with a high-torque spindle, the ETM-949 provides precise speed control for a wide range of materials and cutting applications.

    Q: What type of motor powers the mill?
    A: A heavy-duty industrial motor ensures smooth operation, consistent torque, and reliable performance under demanding milling tasks.

    Q: How precise and durable is the mill?
    A: Precision-ground ways and a rigid frame provide long-lasting accuracy, stability, and durability for professional use.

    Q: Who is this mill ideal for?
    A: Perfect for machine shops, tool rooms, prototyping facilities, and educational programs that require precise digital measurement with powerfeed-assisted milling.

    Q: Does it meet safety and quality standards?
    A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for reliability, precision, and operator safety.

    Q: What sets this configuration apart?
    A: The combination of 2-axis Newall DP700 DRO and X-axis Powerfeed delivers precise digital positioning, automated feed control, and improved productivity for repetitive and complex milling operations.

    Maintenance Tips
    • Clean table, spindle, and ways after each use to remove chips, coolant, and debris.

    • Lubricate lead screws, bearings, and sliding surfaces regularly for smooth and precise movement.

    • Inspect X-axis powerfeed, belts, and gears for wear and proper operation.

    • Check Newall DP700 DRO accuracy and recalibrate as needed to maintain precision.

    • Tighten gibs and adjust backlash to maintain rigidity and consistent milling accuracy.

    • Verify spindle alignment and calibration periodically for reliable performance.

    • Schedule professional servicing to extend machine life and optimize functionality.
