| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |

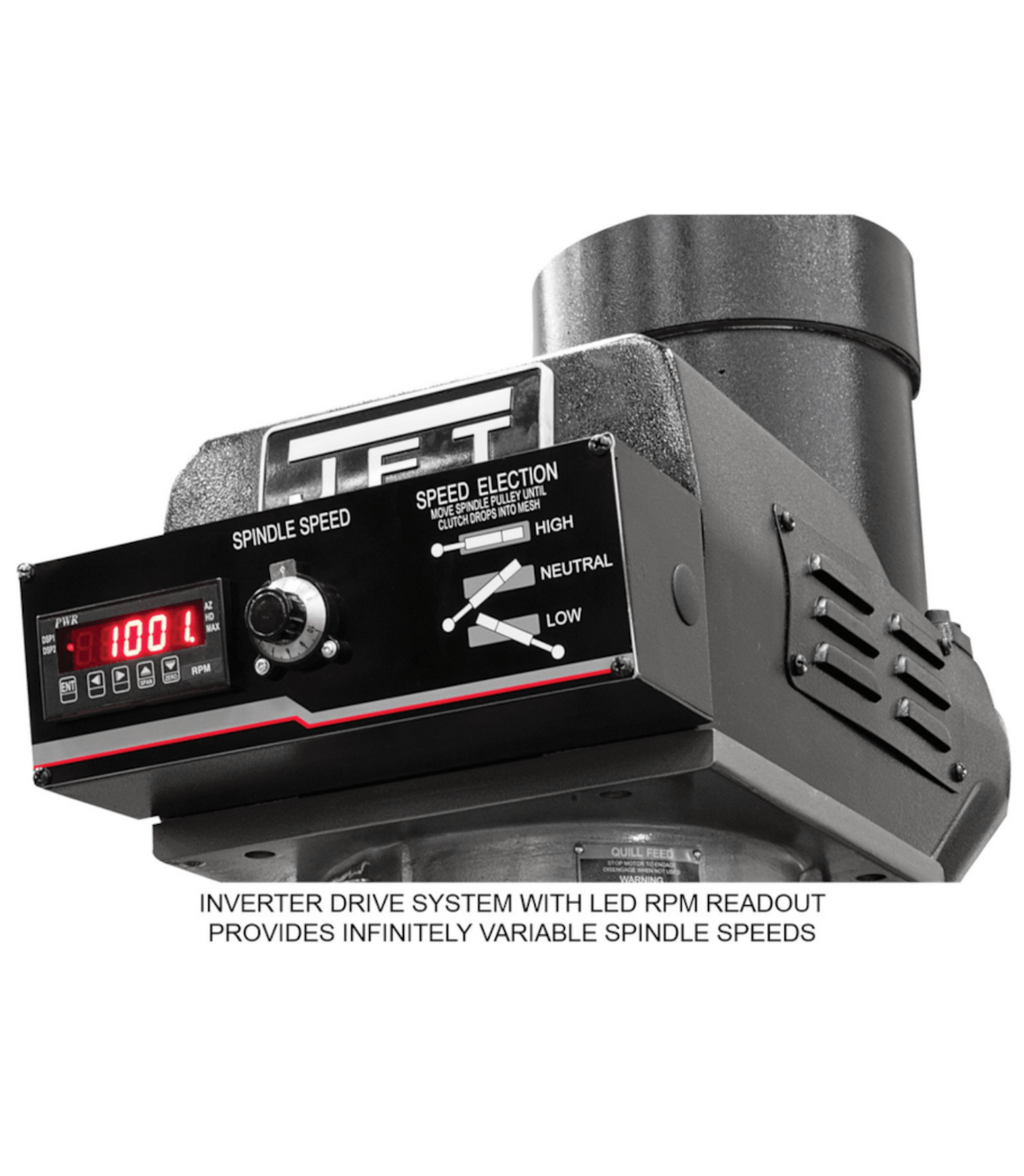

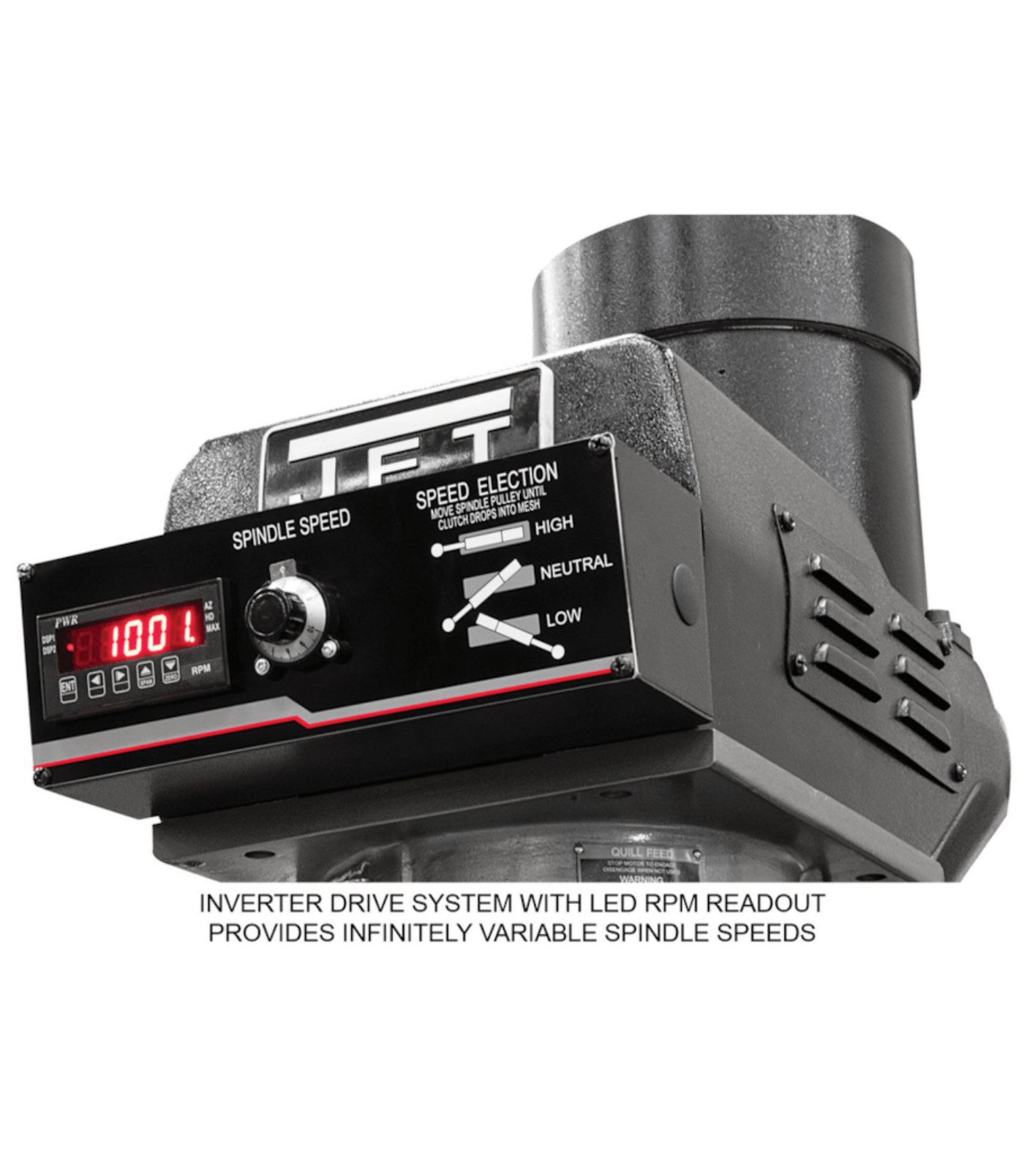

| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

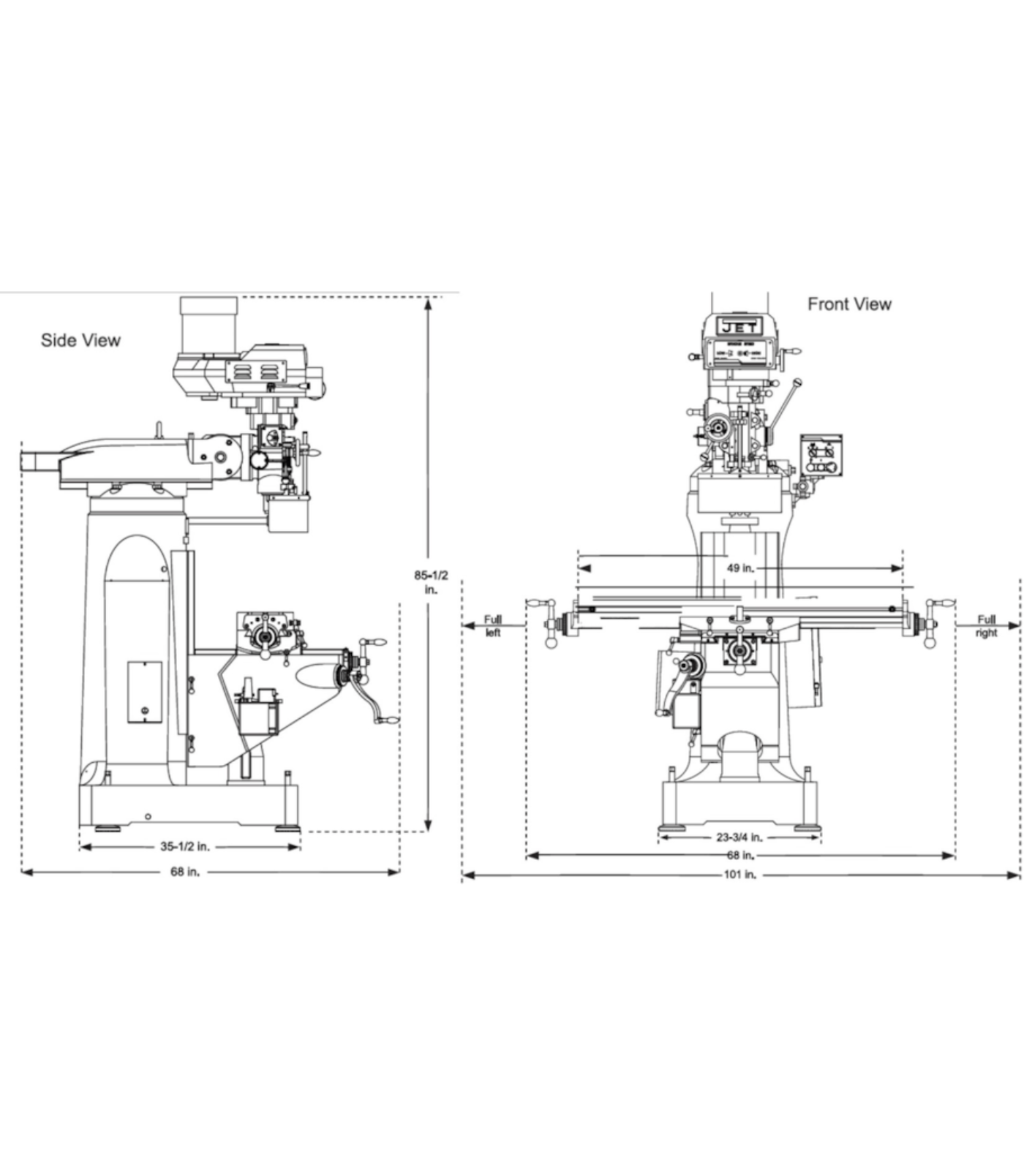

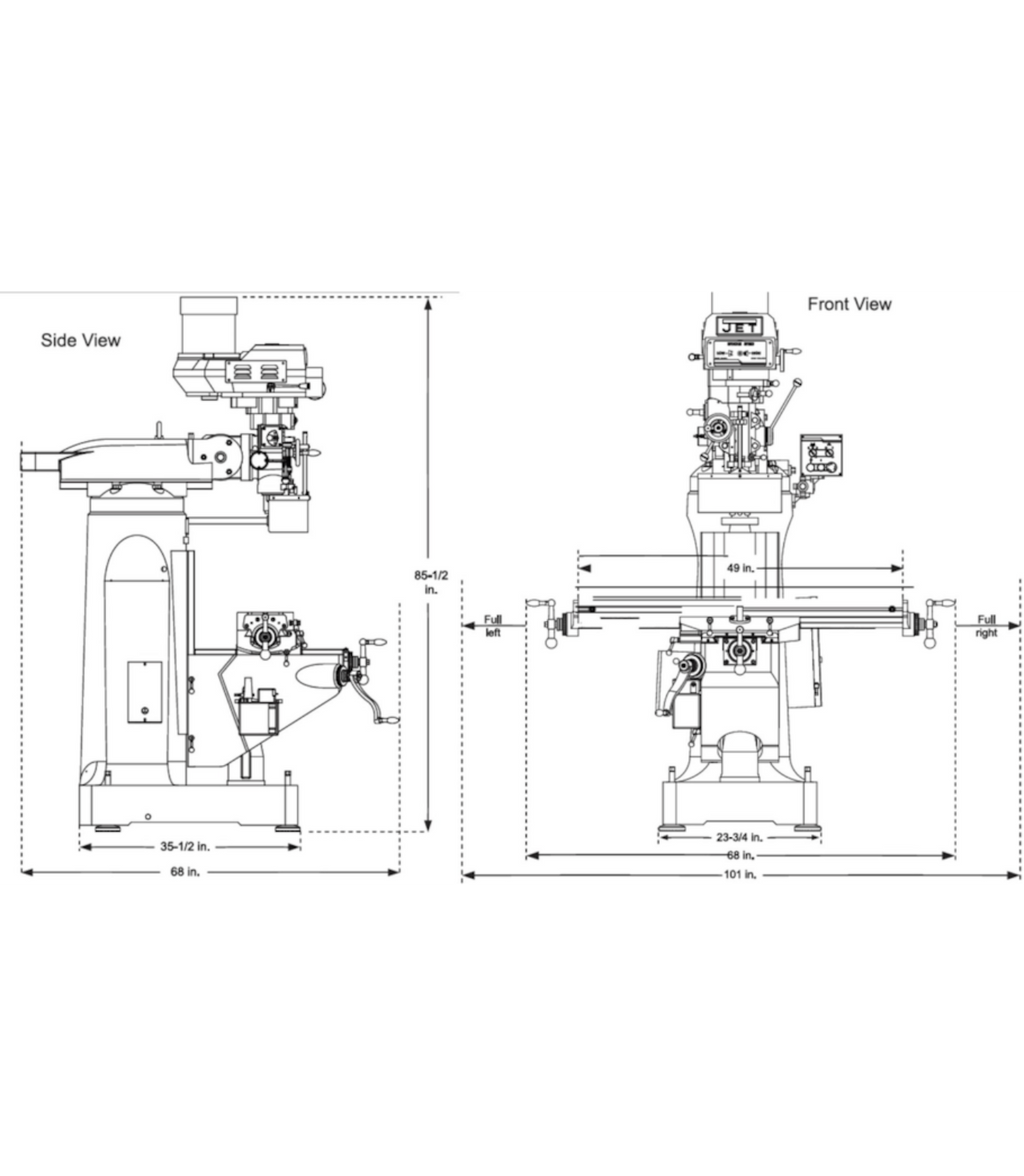

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
3-Axis Precision: X, Y, and Z-axis control ensures highly accurate milling operations.
-
Newall DP700 Knee DRO: Digital readout enhances precision and workflow efficiency.
-
X-Axis JET Powerfeed: Automates table movement for consistent cuts and improved productivity.
-

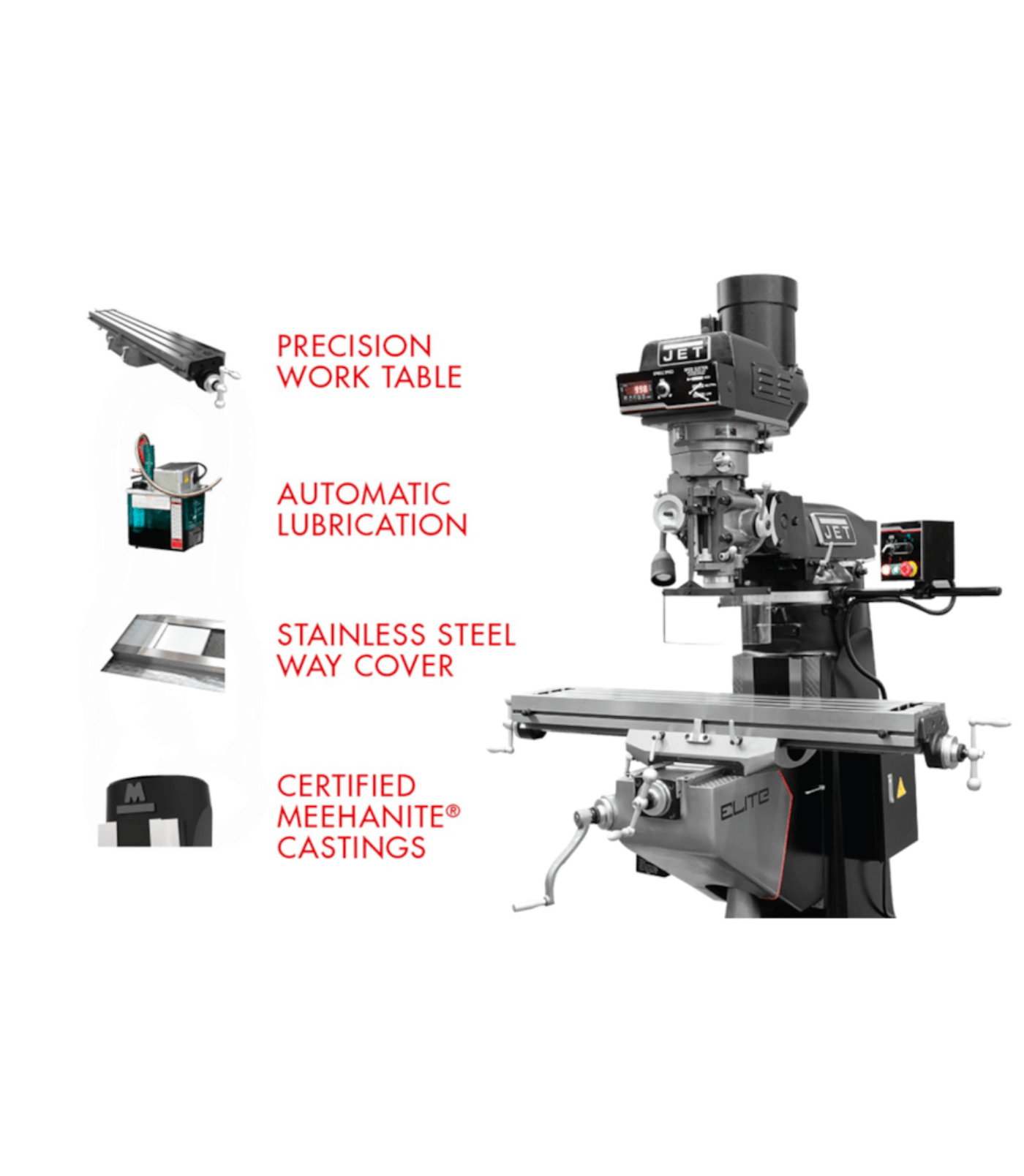

Rigid Construction: Heavy-duty cast-iron frame minimizes vibration and maximizes durability.
-
Professional Reliability: Designed for toolrooms, machine shops, and industrial milling applications.
Q&A

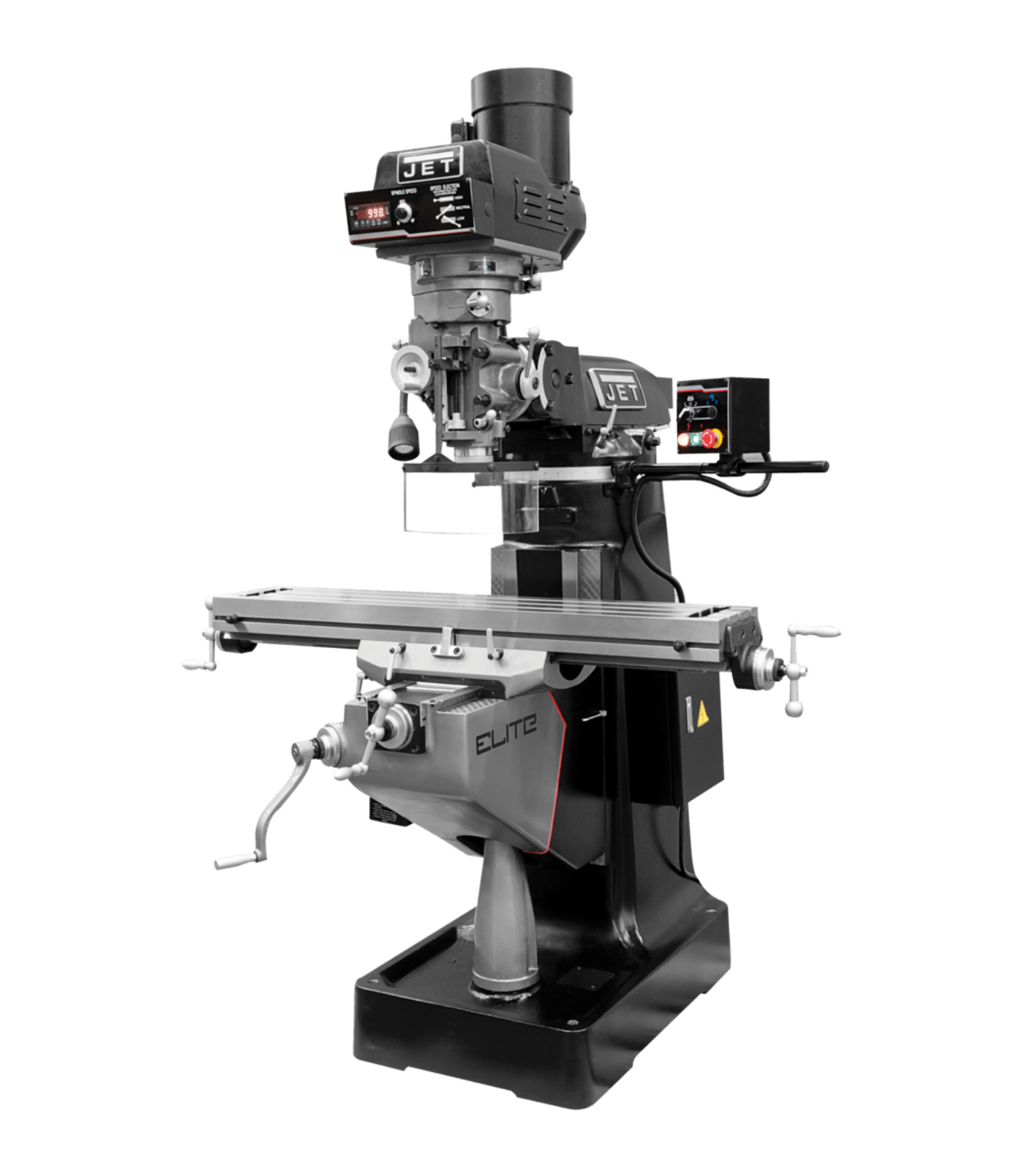

Q: What is the JET Elite ETM-949 Mill?
A: The ETM-949 is a precision vertical milling machine equipped with a 3-axis Newall DP700 knee-mounted DRO and an X-axis JET Powerfeed, designed for professional machining, prototyping, and production work.
Q: What does the 3-axis Newall DP700 DRO provide?
A: The knee-mounted 3-axis DRO delivers high-resolution digital readouts for the X, Y, and Z axes, ensuring exceptional accuracy, repeatability, and reduced setup errors.
Q: How does the X-axis JET Powerfeed help?
A: The X-axis Powerfeed enables smooth, consistent movement along the X-axis, improving surface finish, machining precision, and reducing operator fatigue during repetitive milling tasks.
Q: What are the milling capabilities?
A: This mill supports milling, drilling, boring, slotting, and precision surface finishing with high repeatability and efficiency.
Q: What is the worktable size?
A: It features a robust, spacious worktable suitable for medium to large workpieces and versatile machining operations.
Q: What spindle features does it offer?
A: Equipped with a high-torque spindle, the ETM-949 allows precise speed control for a wide range of materials and cutting tasks.
Q: What type of motor powers the mill?
A: A heavy-duty industrial motor provides consistent torque, smooth operation, and reliable performance for demanding milling jobs.
Q: How precise and durable is the mill?
A: Precision-ground ways and a rigid frame ensure long-lasting accuracy, stability, and durability for professional use.
Q: Who is this mill designed for?
A: Perfect for machine shops, tool rooms, prototyping facilities, and educational programs that require advanced digital measurement with powerfeed-assisted precision.
Q: Does it meet safety and quality standards?
A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for reliability, accuracy, and operator safety.
Q: What sets this configuration apart?
A: The combination of 3-axis Newall DP700 DRO and X-axis Powerfeed provides digital precision, automated feed control, and enhanced productivity for repetitive and complex milling operations.
Maintenance Tips
-
Clean table, spindle, and ways after each use to remove chips, coolant, and debris.
-

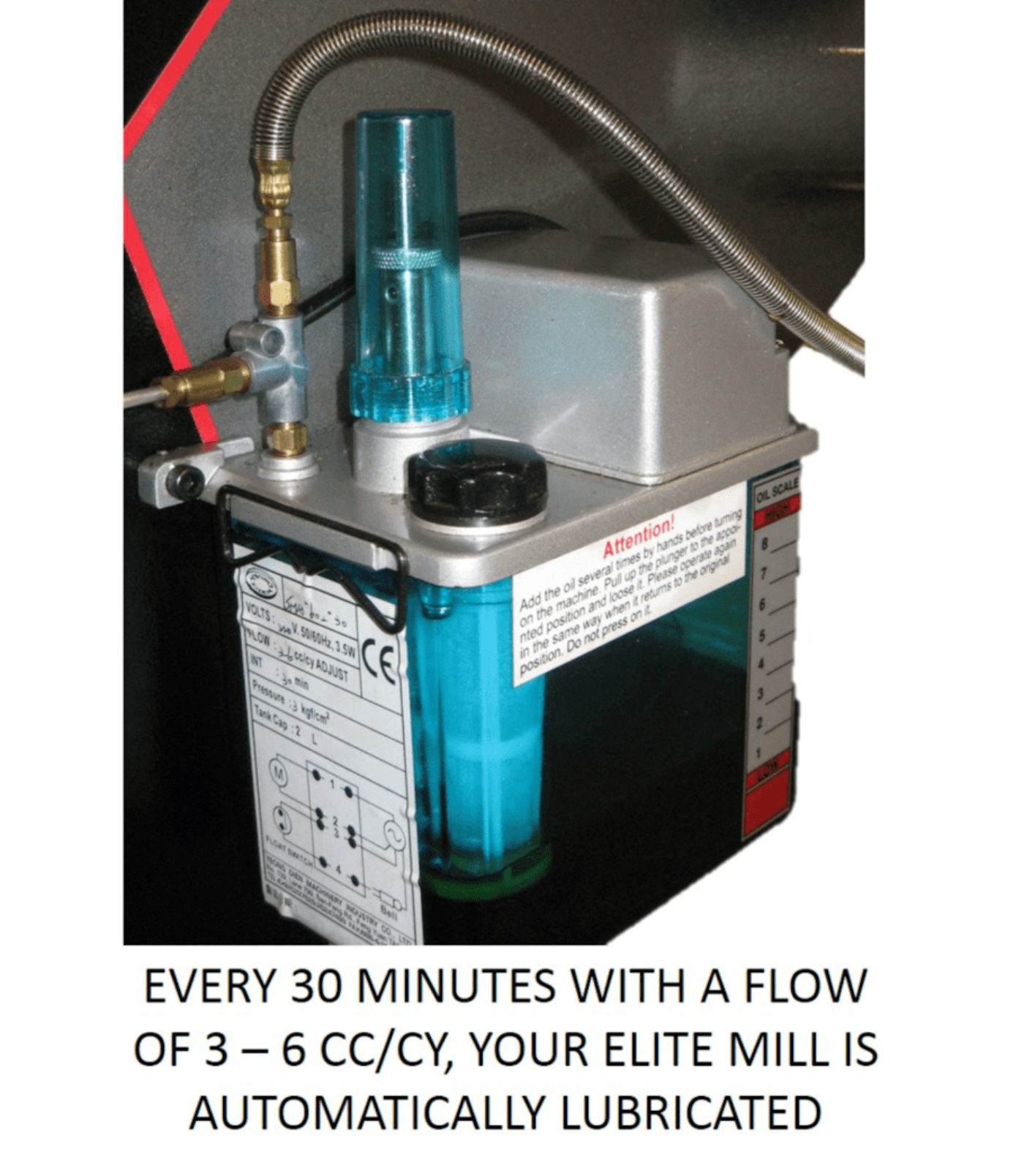

Lubricate lead screws, bearings, and sliding surfaces regularly for smooth and accurate movement.
-
Inspect X-axis powerfeed, belts, and gears for wear and proper function.
-
Check Newall DP700 DRO accuracy and recalibrate when needed to maintain precision.
-

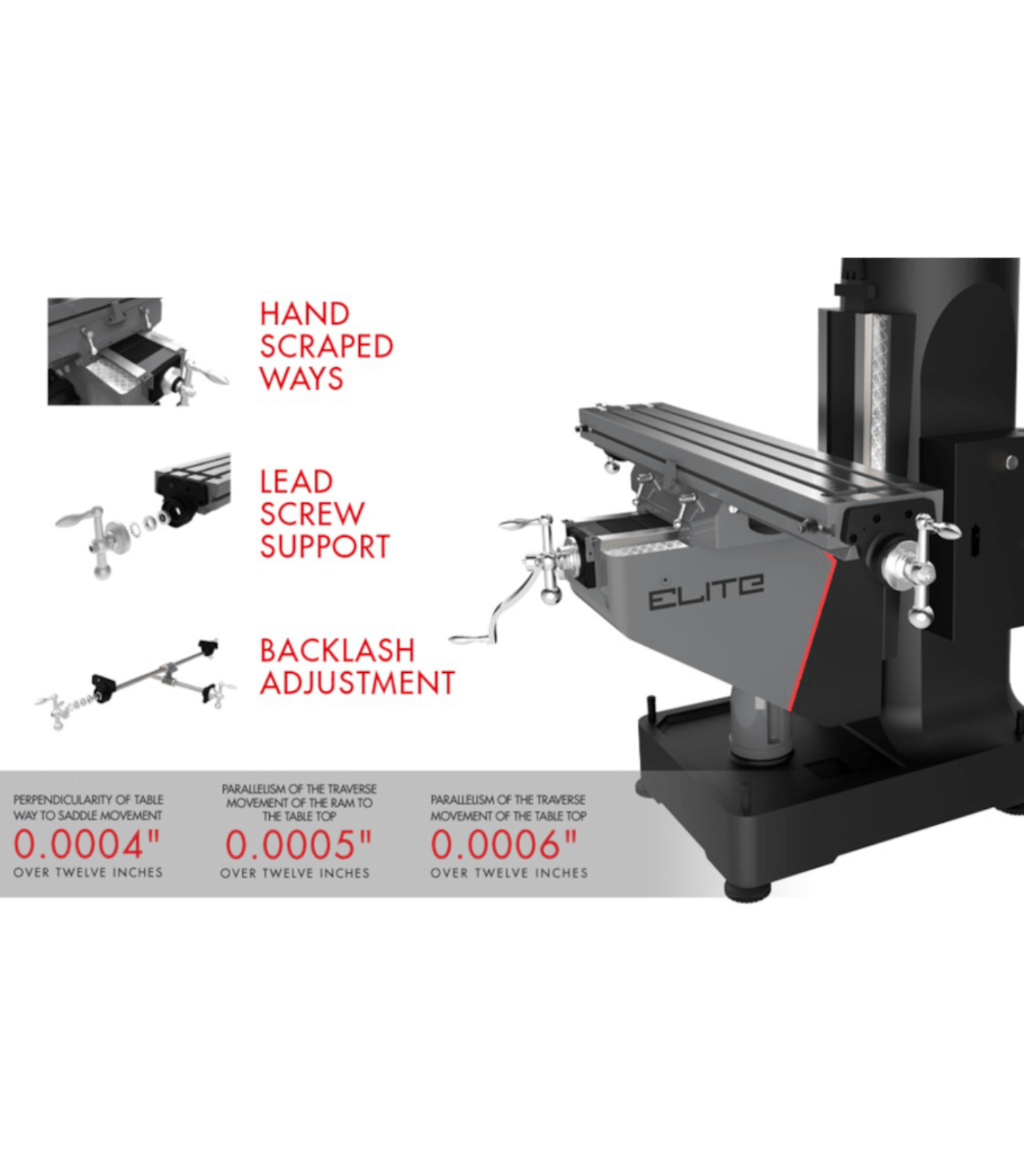

Tighten gibs and adjust backlash to ensure rigidity and consistent milling accuracy.
-
Verify spindle alignment and calibration periodically to maintain precise operation.
-
Schedule professional servicing to extend machine life and optimize performance.
