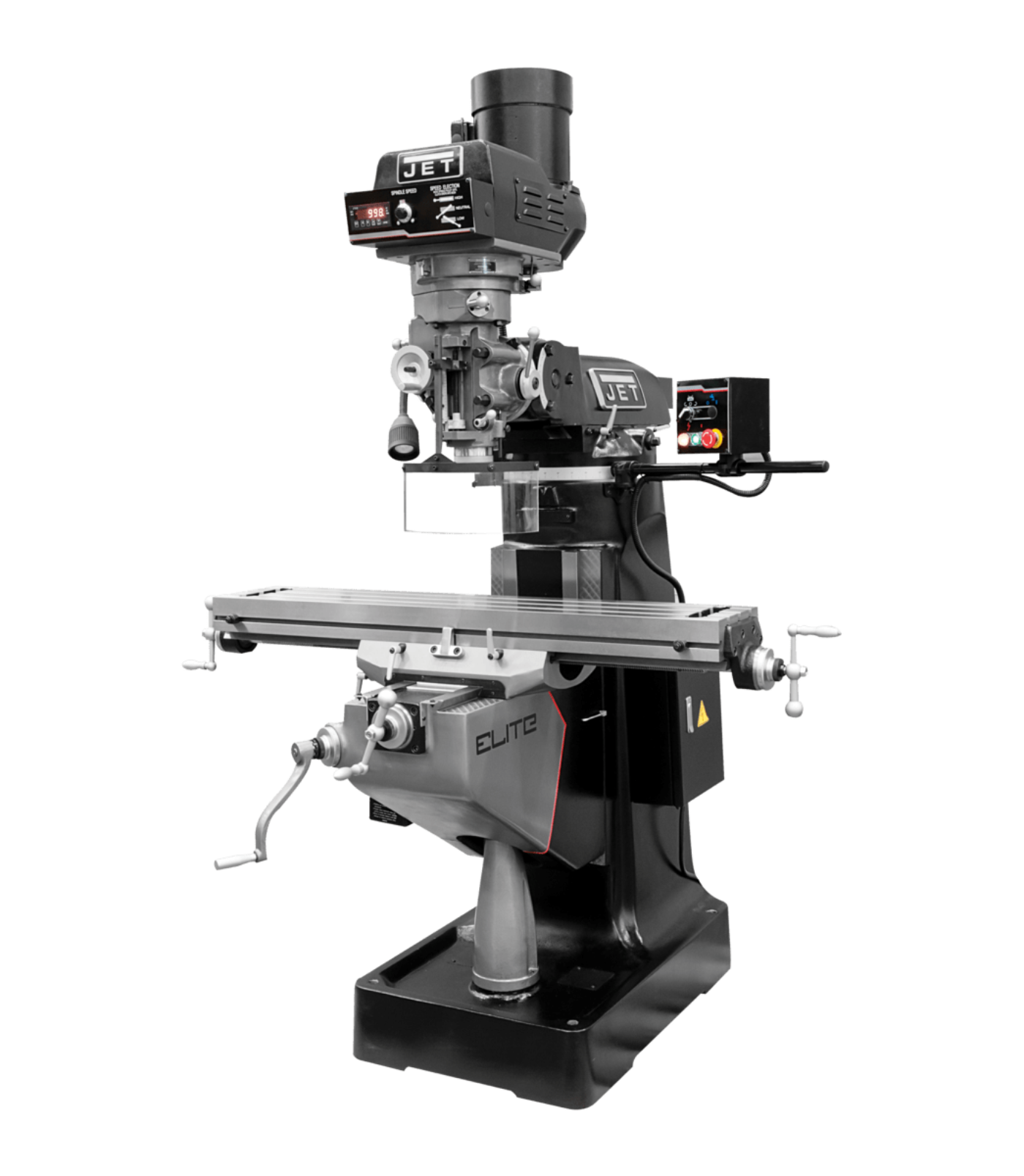

    JET Elite ETM-949 Mill with X, Y, Z-Axis JET Powerfeeds and USA Made Air Draw Bar - JT9-894108

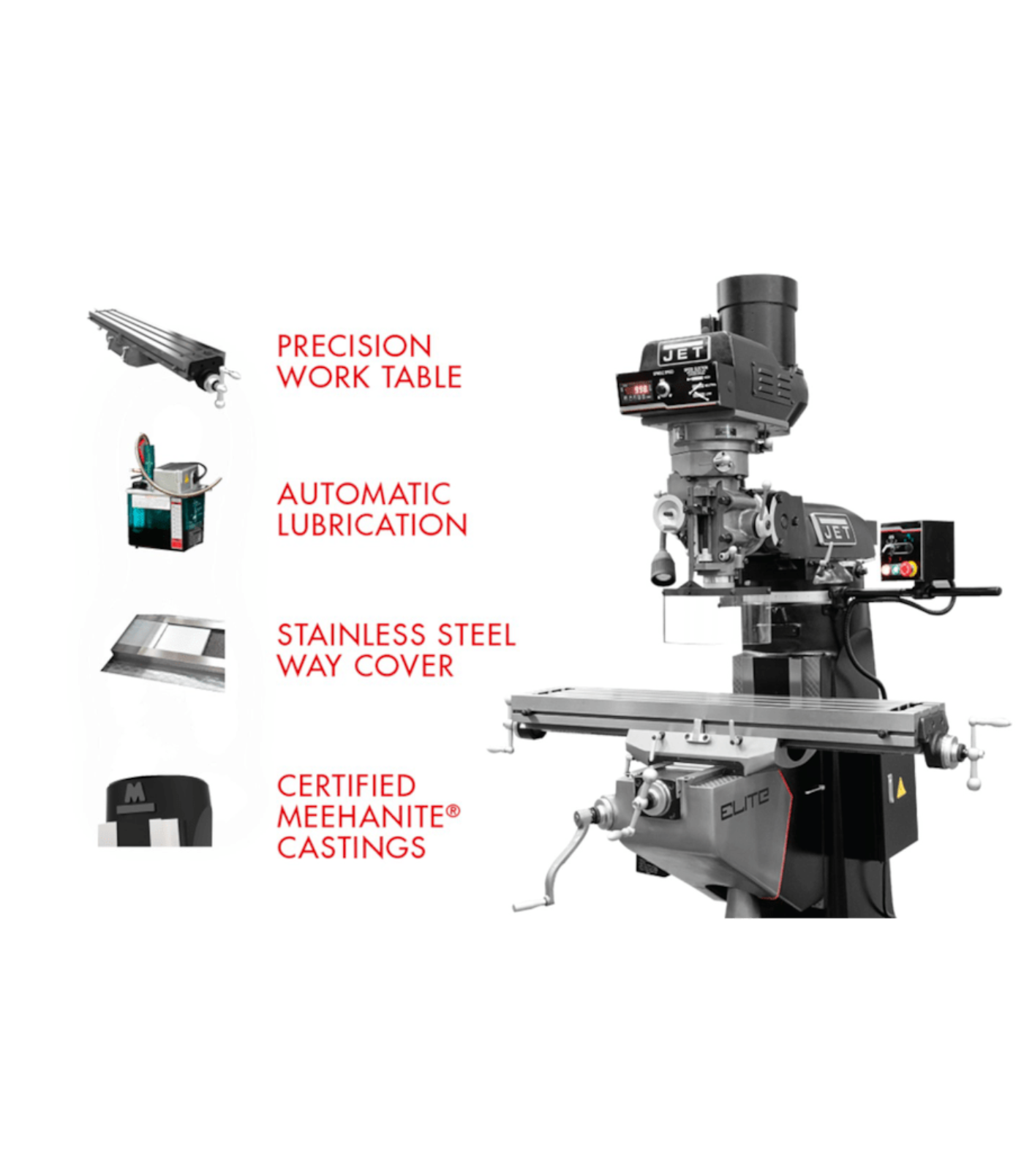

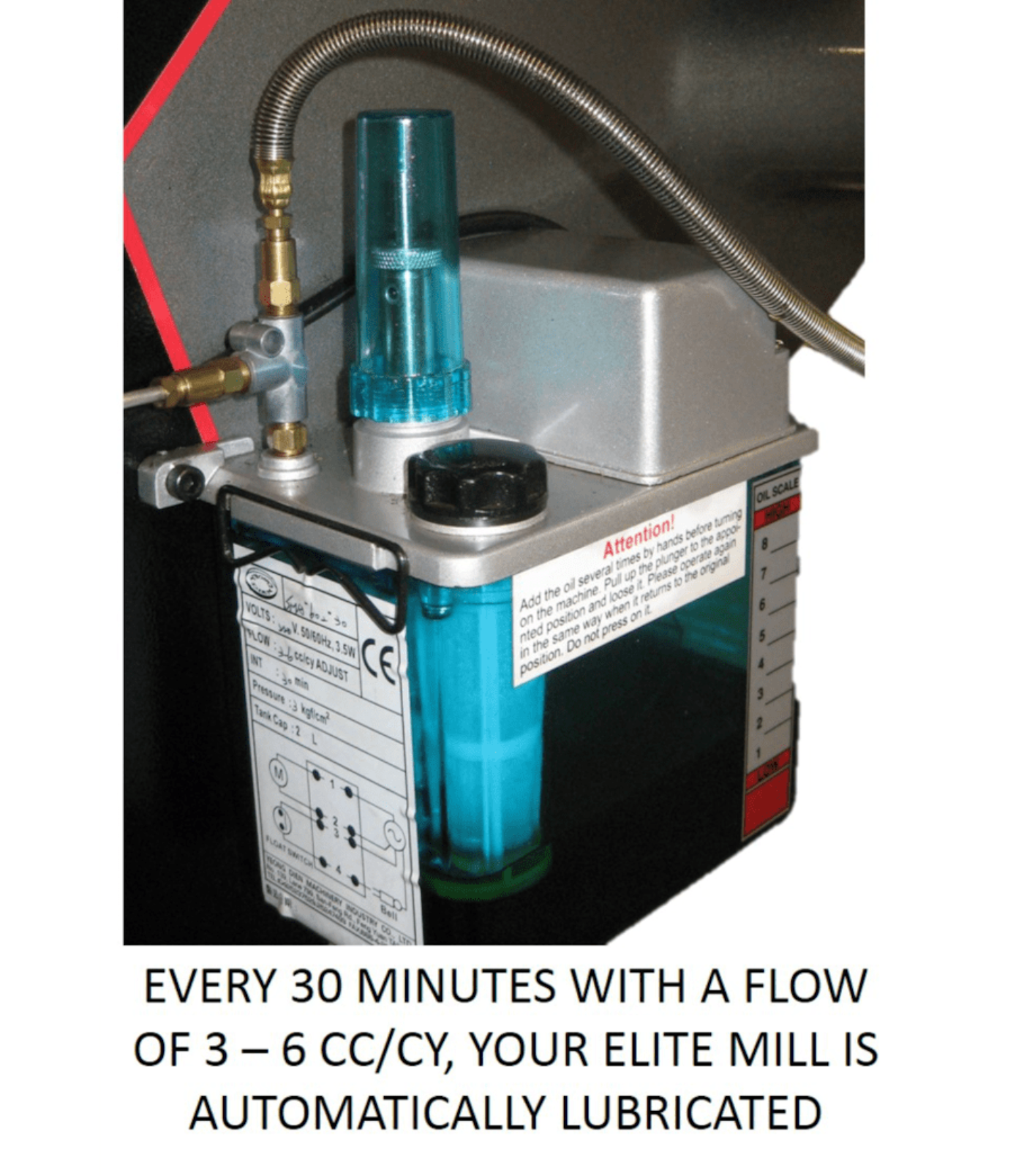

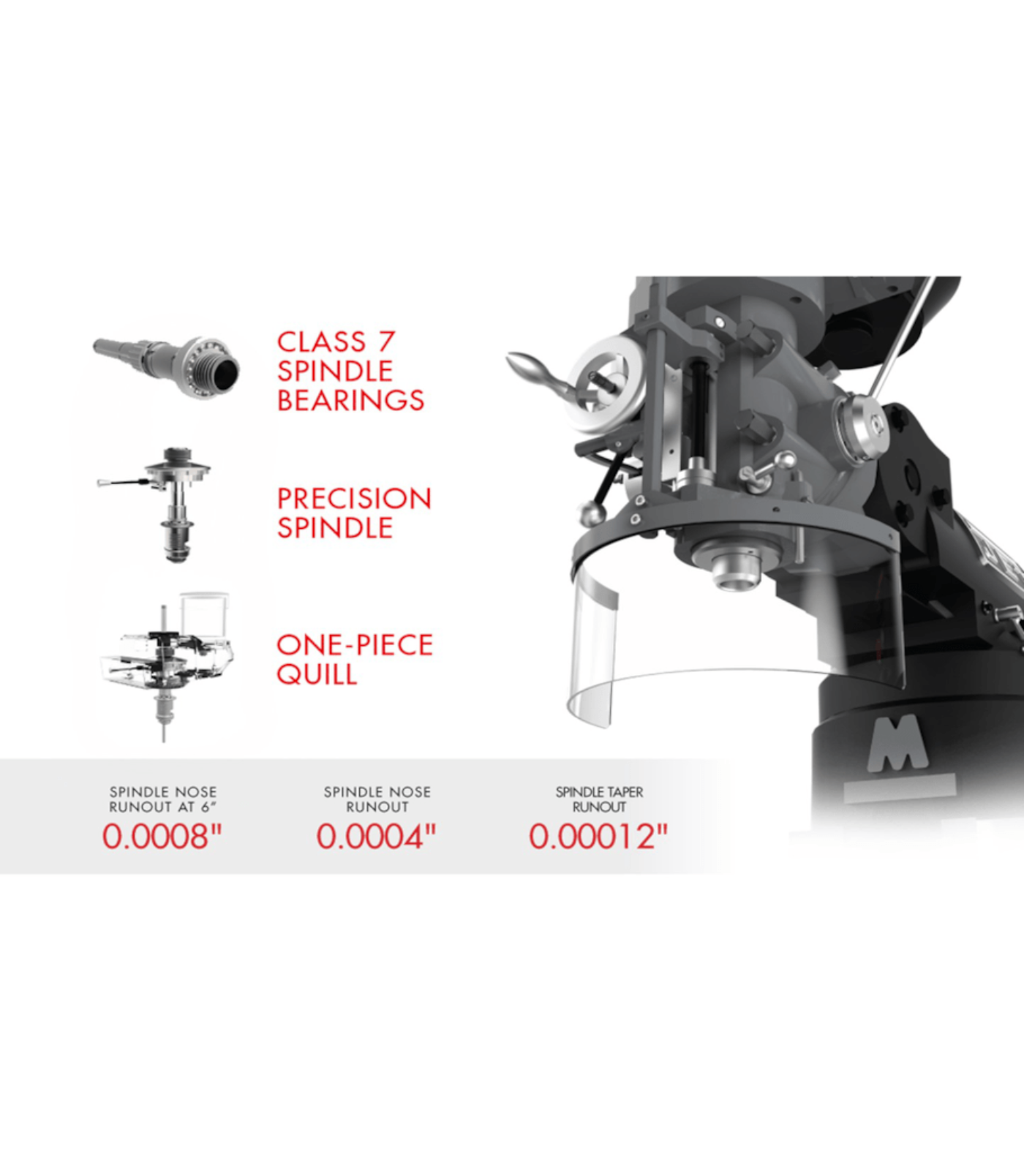

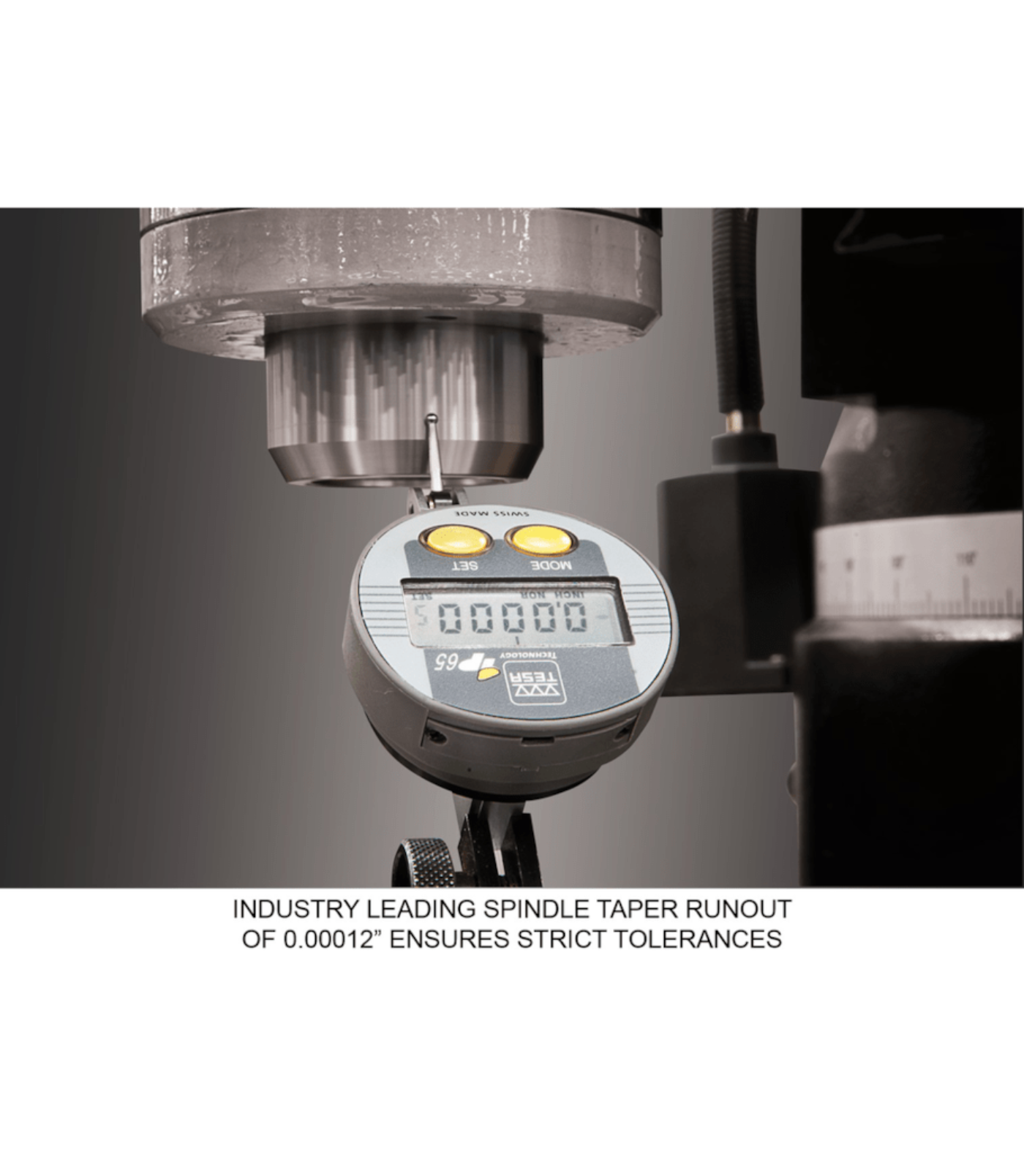

    Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.

    Features
    • Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
    • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
    • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
    • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

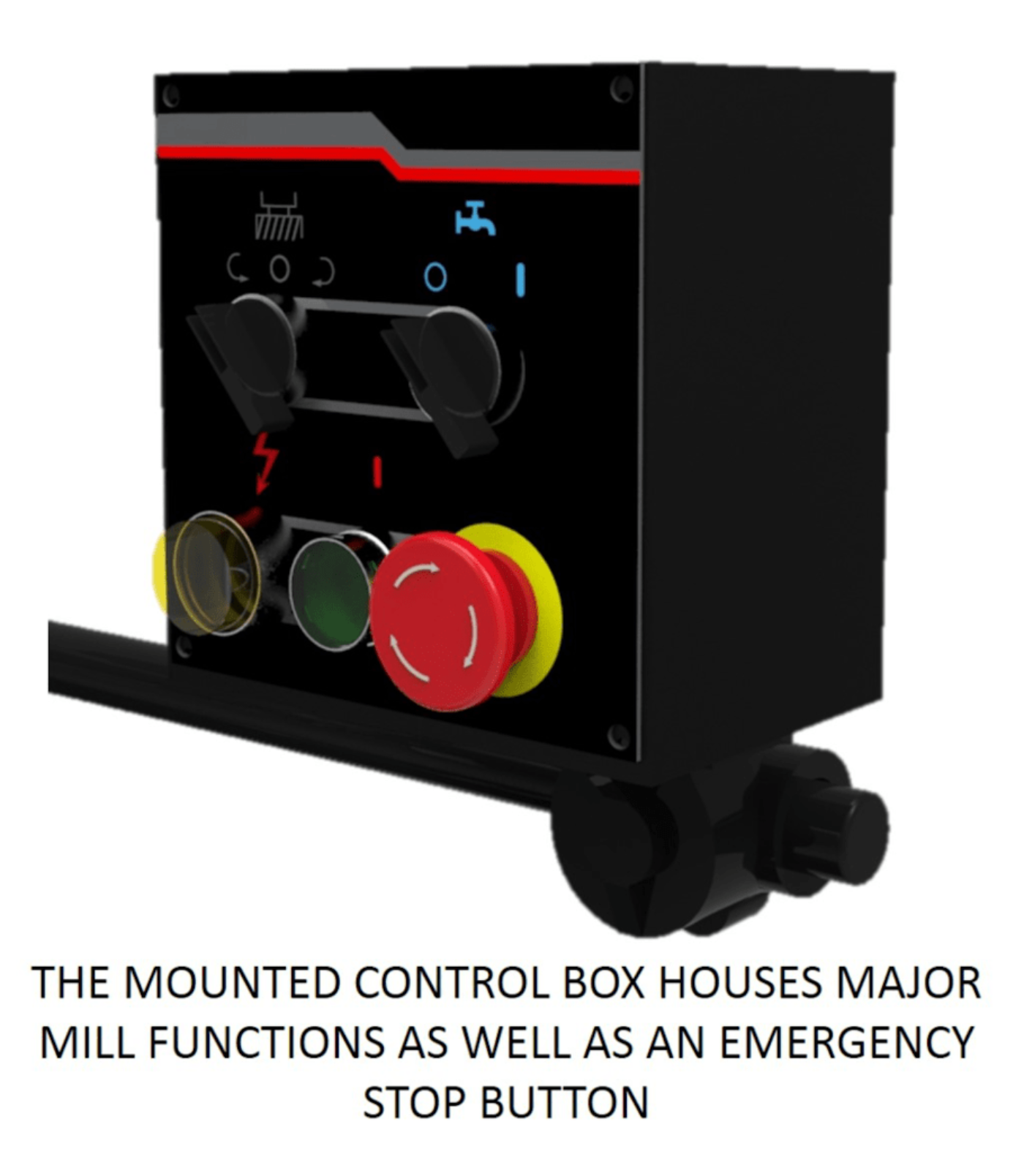

    • The mounted control box houses major mill functions as well as an emergency stop button

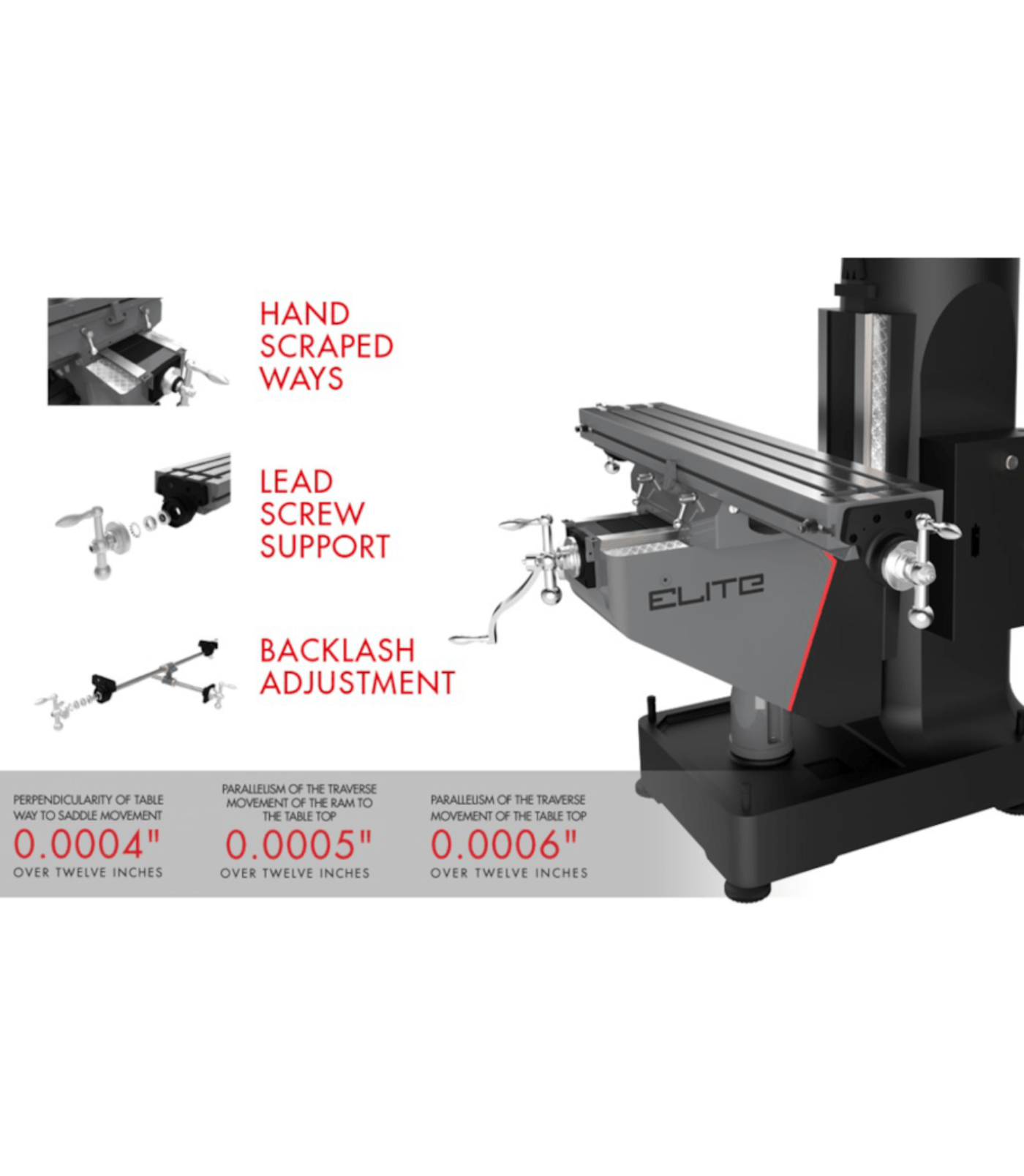

    • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
    • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
    Specifications
    Style (Type) Variable Speed
    Table Size (L x W) 9 x 49 in.
    Work Table Weight Capacity 550 lbs.
    Spindle Travel 5 in.
    Spindle Taper R-8
    Collet Capacity 1/8 – 7/8 in.
    Quill Diameter 3-3/8 in.
    Quill Down Feed Rates (IPR) 0.0015 – 0.003 – 0.006
    Max Distance Spindle to Table 18-3/4 in.
    Distance Spindle to Column (Max.) 21-2/5 in.
    Range of Spindle Speeds 60 – 5,000 RPM
    Table Longitudinal Travel 36 in.
    Table Cross Travel 12 in.
    T-Slot Centers 2-1/2 in.
    Travel of Knee 16 in.
    Travel of Ram 14 in.
    Motor 3 HP, 230V, 3Ph
    Amperage Draw @ 230V 3Ph 18 A
    Weight 2,300 lbs.

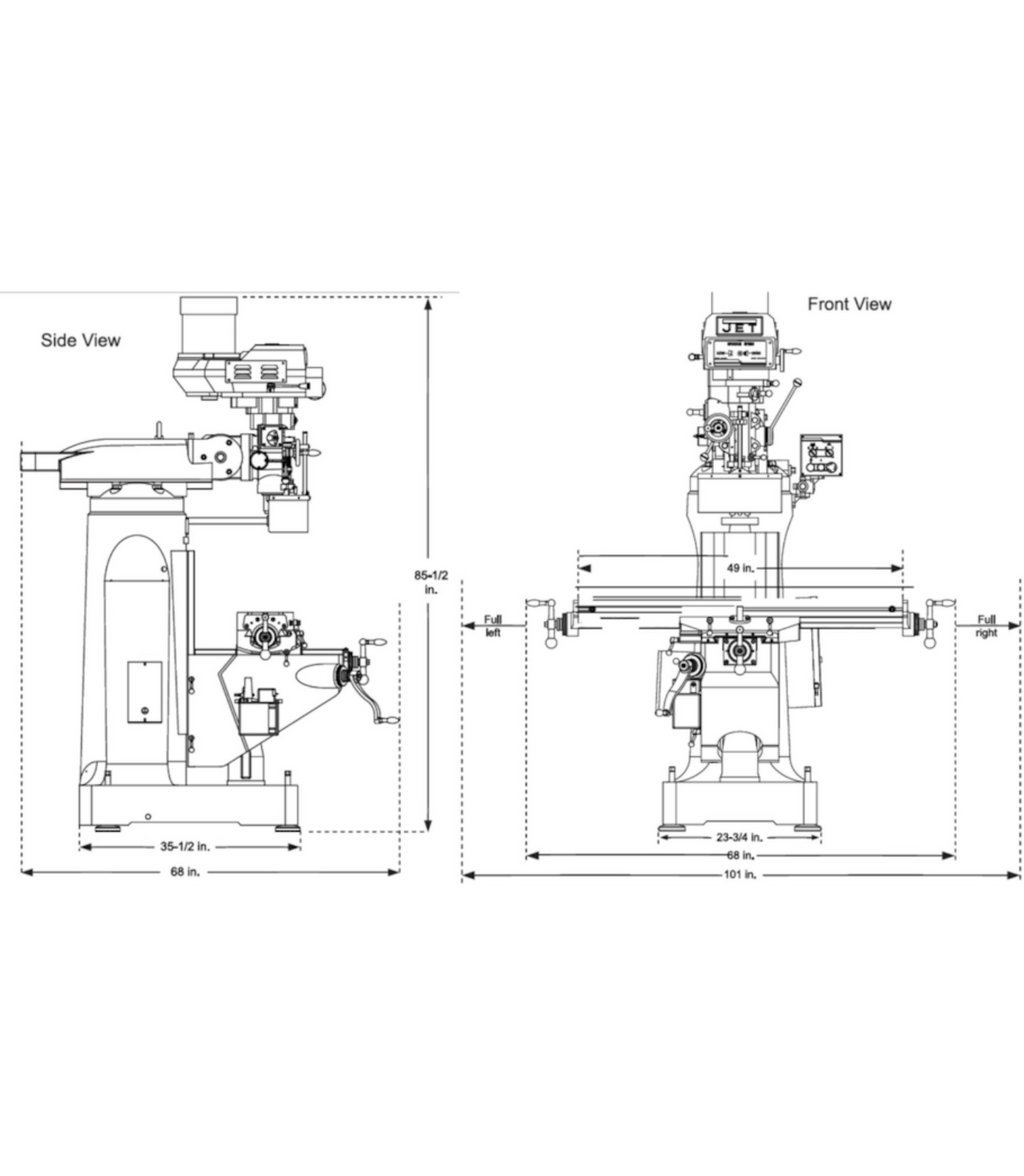

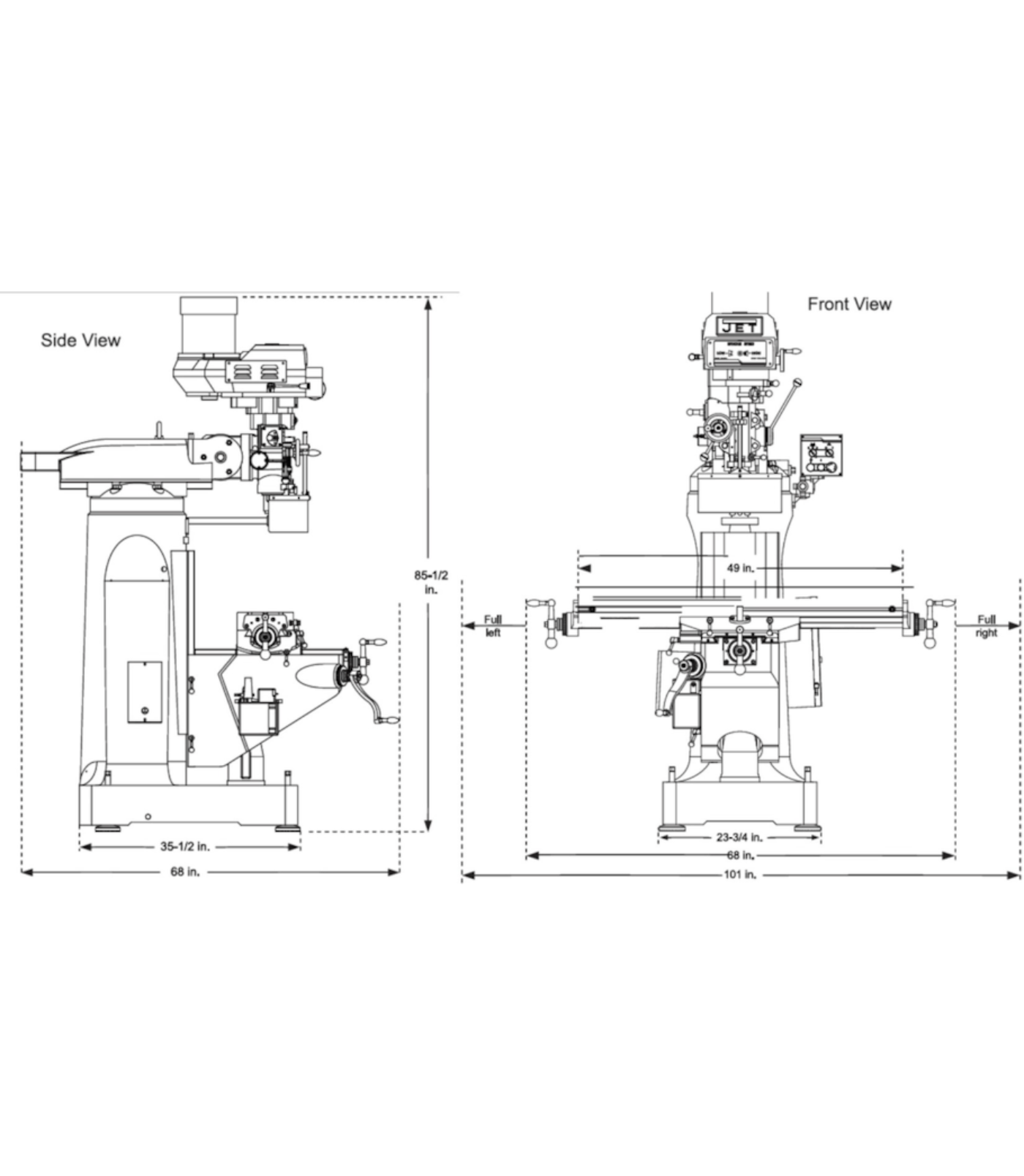

    Overall Dimensions (L x W x H) 68 x 63 x 84 in.
    What our Experts Think
    • Triple Powerfeed Control – X, Y, and Z-axis powerfeeds ensure smooth, precise movement on all axes.

    • Air Draw Bar Efficiency – USA-made air draw bar enables quick, secure tool changes to cut downtime.

    • Heavy-Duty Build – Rigid cast iron frame and hardened ways guarantee stability and long-lasting accuracy.

    • Maximized Productivity – Full-axis automation and rapid tool changes make it ideal for high-volume work.

    • Operator-Friendly – Reduces manual effort, streamlines workflow, and enhances consistency.

    • Best For – Professional machine shops demanding peak efficiency, accuracy, and heavy-duty milling capability.

    Q&A

    Q: What is the JET Elite ETM-949 Mill with X, Y, Z-Axis Powerfeeds and Air Draw Bar?
    A: A precision vertical milling machine equipped with three-axis powerfeeds and a USA-made air draw bar for maximum efficiency.

    Q: How do the X, Y, and Z-Axis Powerfeeds improve productivity?
    A: They deliver smooth, consistent movement across all axes, ensuring better finishes and reducing operator effort.

    Q: What is the advantage of the Air Draw Bar?
    A: It allows quick, easy tool changes, saving time and boosting workflow efficiency.

    Q: What makes this mill durable and accurate?
    A: Built with a rigid Meehanite cast iron body, precision-ground table, and premium spindle for long-lasting precision.

    Q: Who should use this milling machine?
    A: Ideal for professional machine shops, tool rooms, and industrial manufacturing requiring precision and high performance.

    Maintenance Tips
    • Lubricate ways, slides, and leadscrews daily with proper oil.

    • Inspect belts, gears, powerfeeds, and air draw bar for wear.

    • Replace spindle and gearbox oil per maintenance schedule.

    • Adjust gibs to maintain machining accuracy.

    • Clean chips and wipe surfaces after every use.
