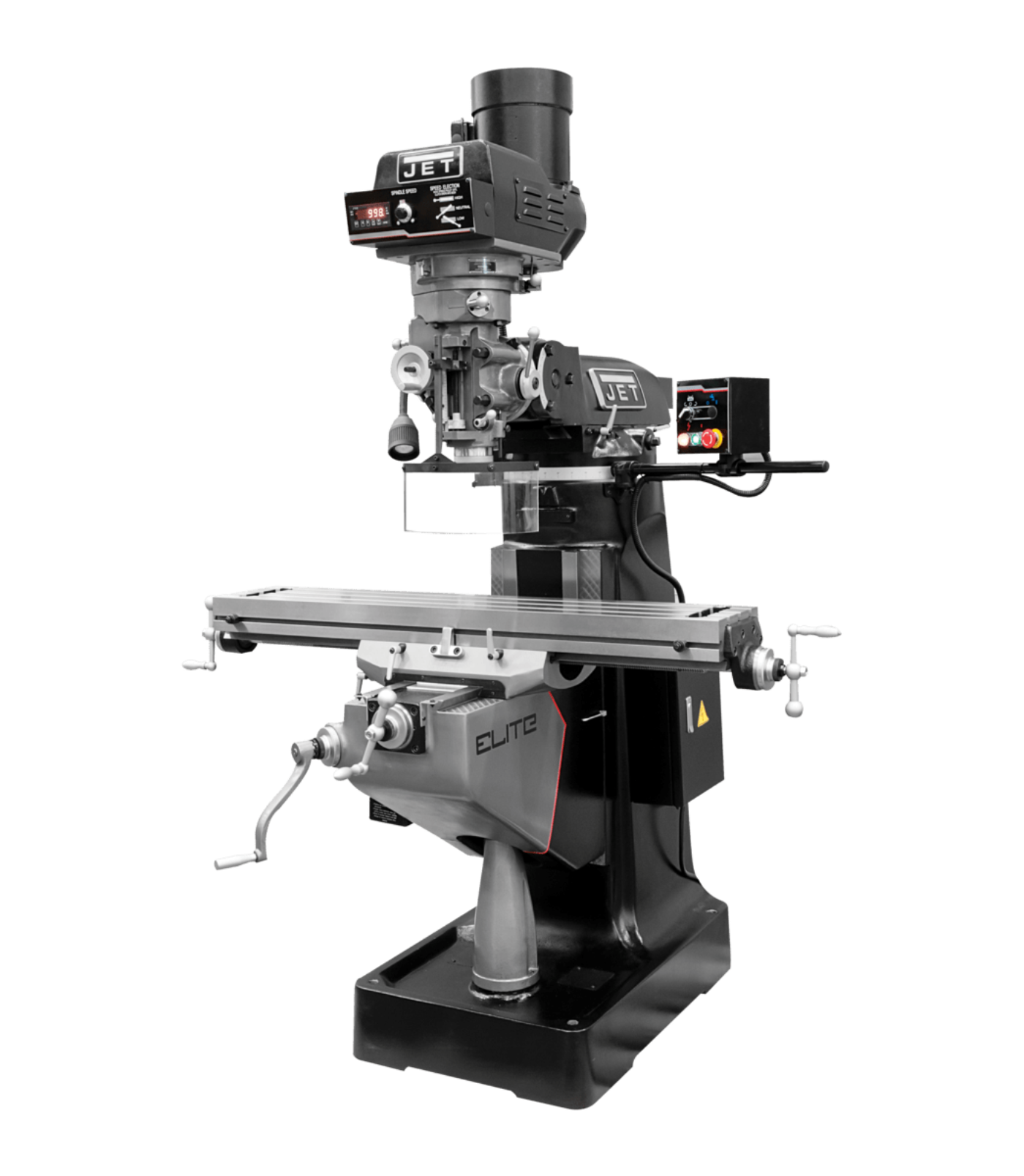

    JET Elite EVS-949 Mill with 3-Axis Newall DP700 (Knee) DRO - JT9-894365

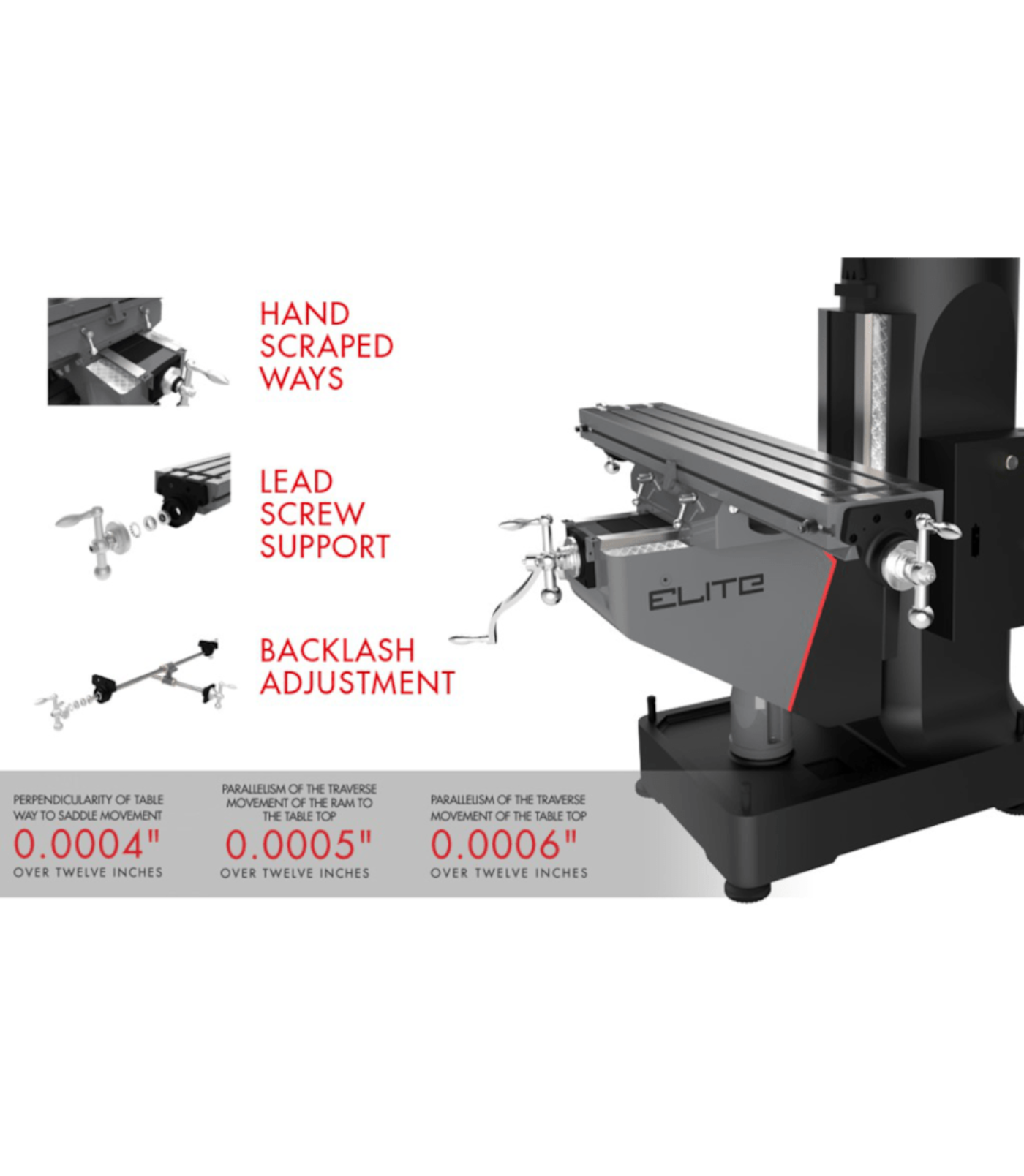

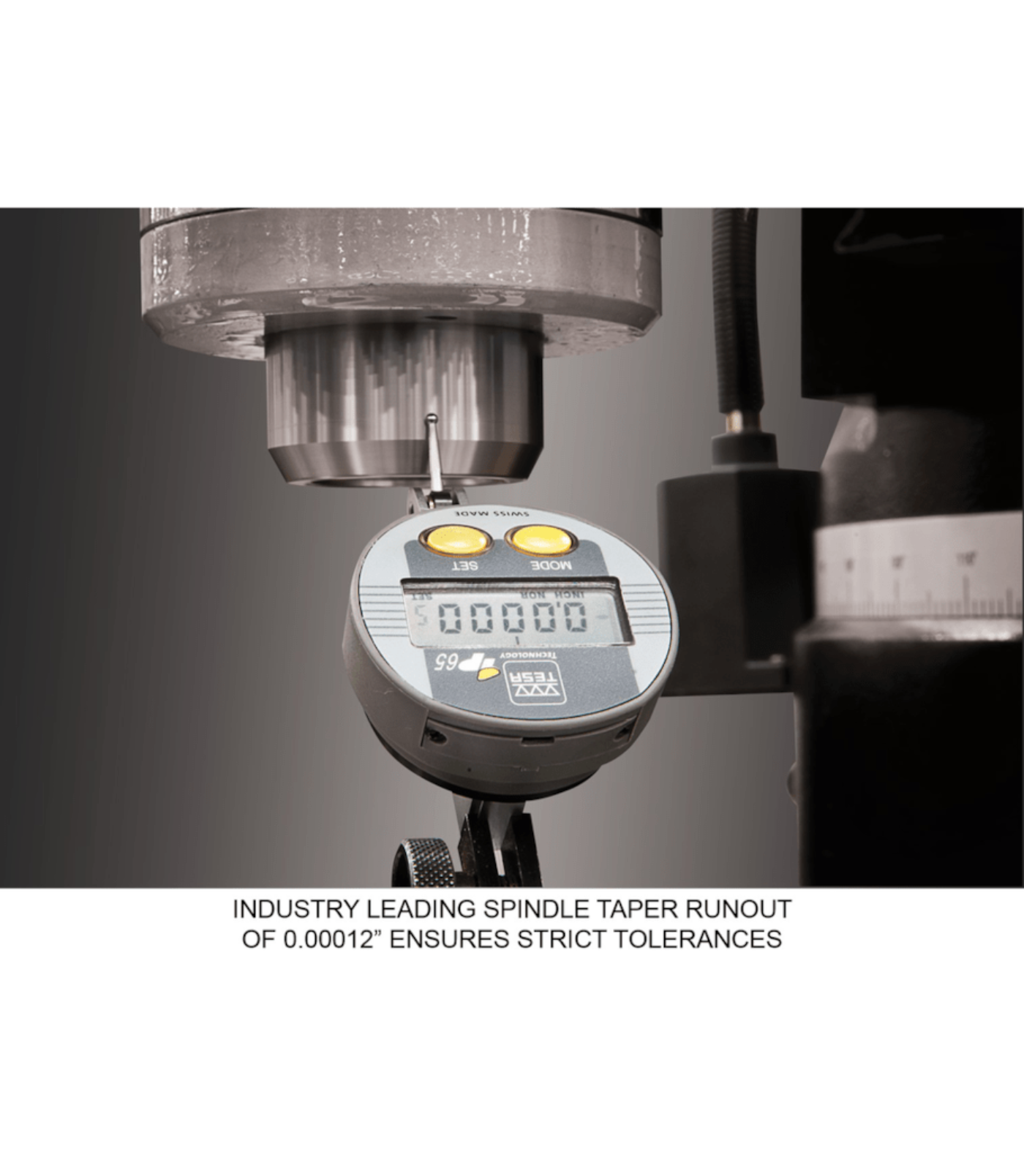

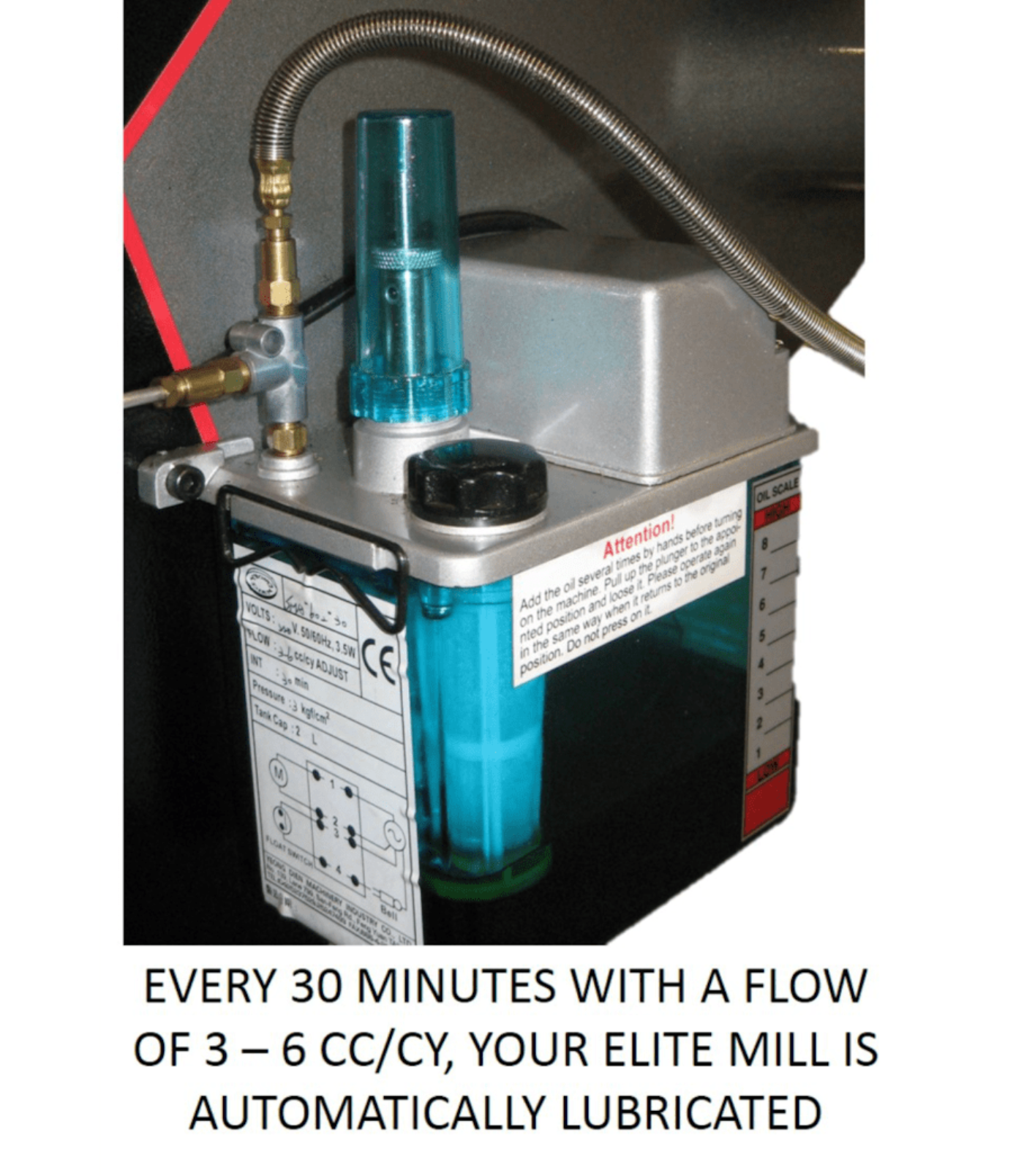

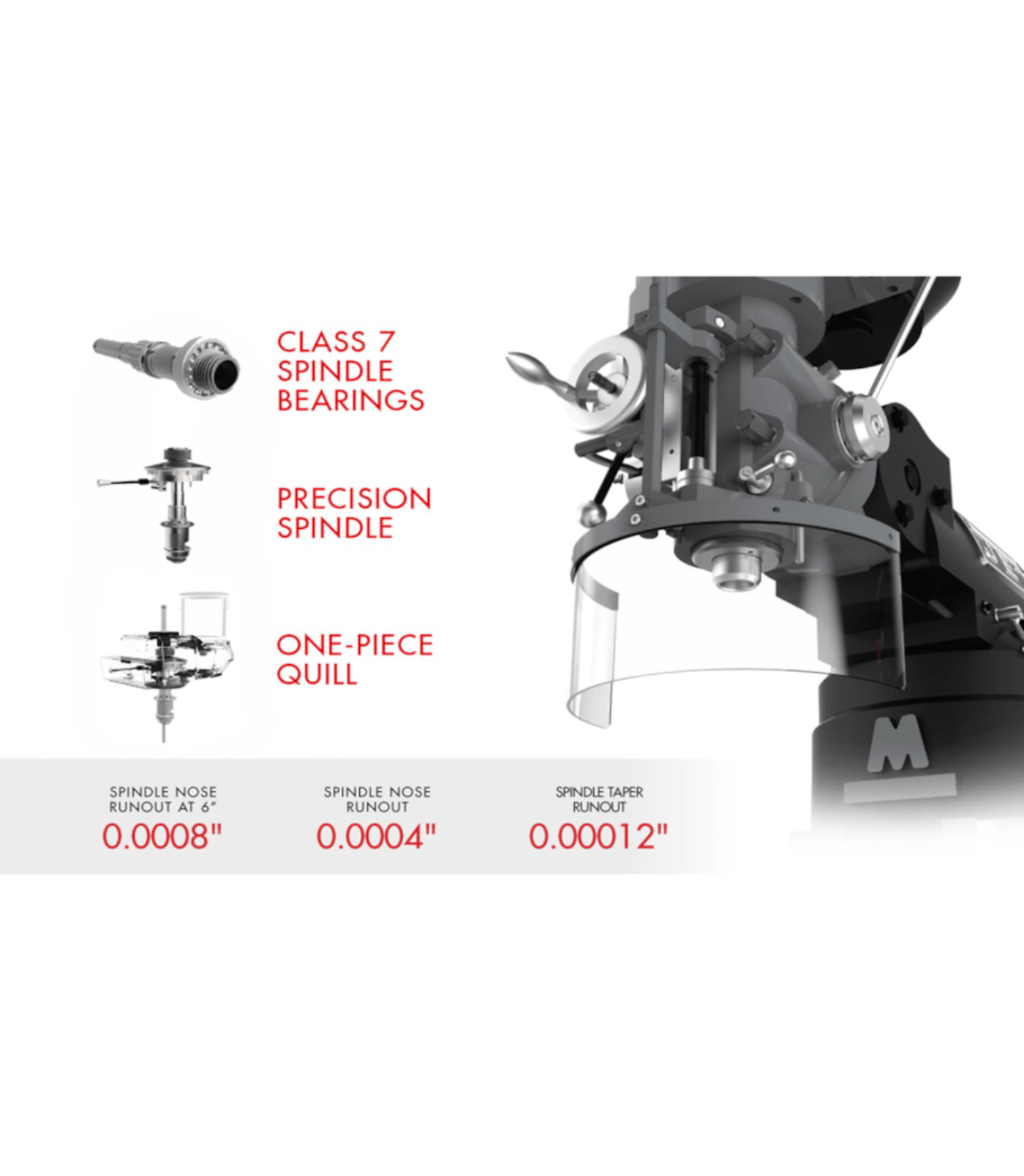

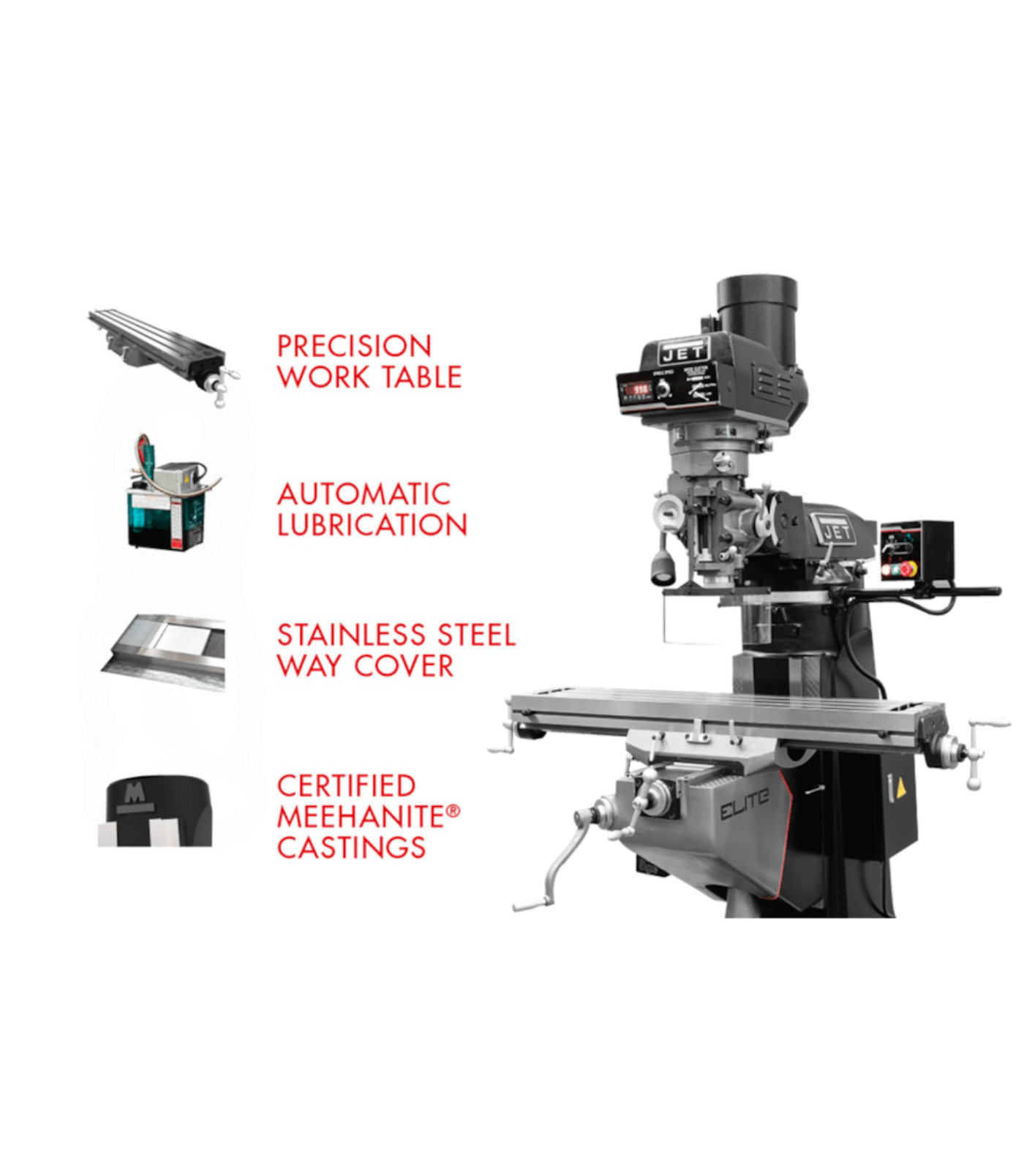

    Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.

    Features
    • Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
    • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
    • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
    • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

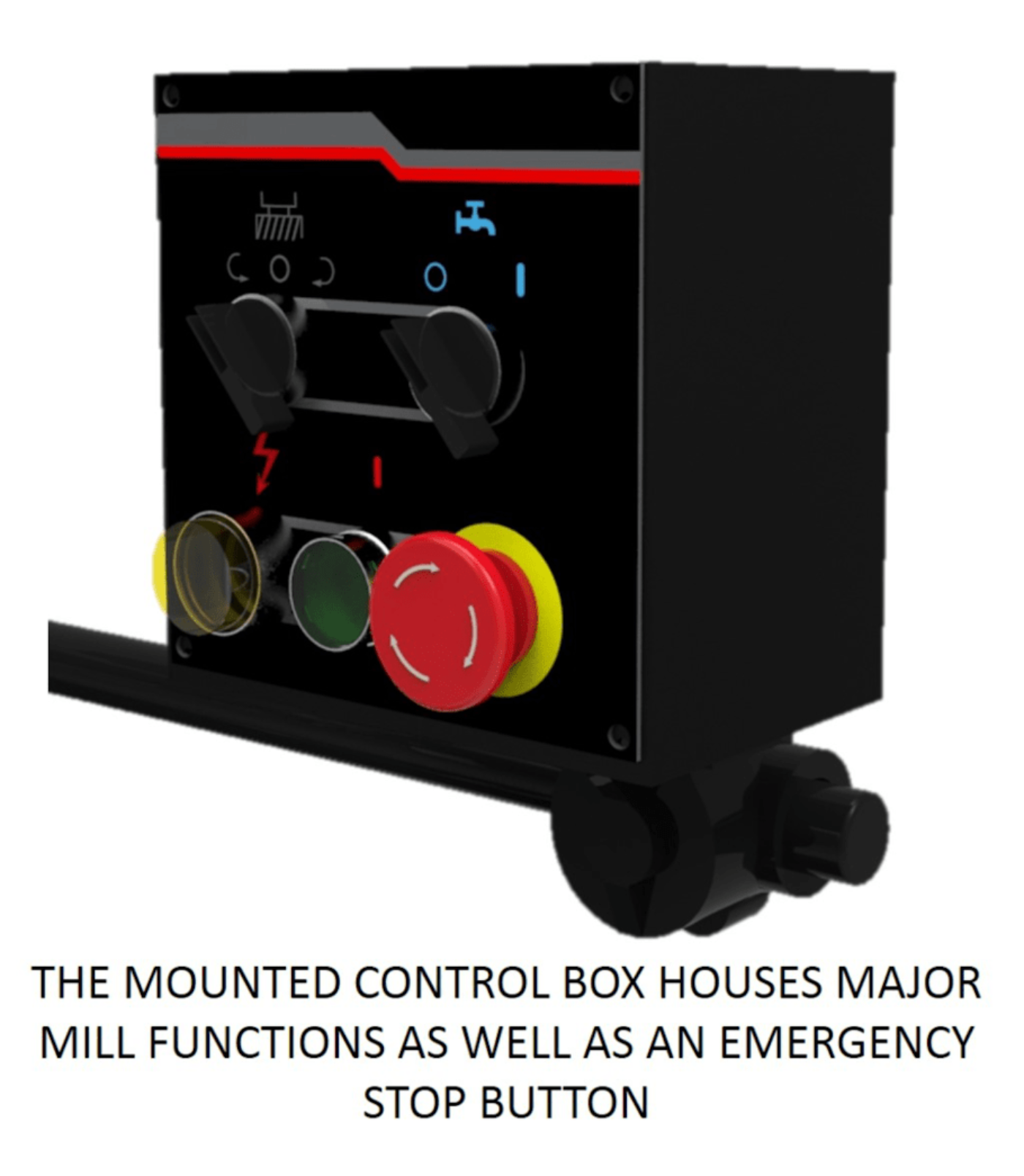

    • The mounted control box houses major mill functions as well as an emergency stop button
    • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
    • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
    Specifications
    Style (Type) Variable Speed
    Table Size (L x W) 9 x 49 in.
    Work Table Weight Capacity 550 lbs.
    Spindle Travel 5 in.
    Spindle Taper R-8
    Collet Capacity 1/8 – 7/8 in.
    Quill Diameter 3-3/8 in.
    Quill Down Feed Rates (IPR) 0.0015 – 0.003 – 0.006
    Max Distance Spindle to Table 18-3/4 in.
    Distance Spindle to Column (Max.) 21-2/5 in.

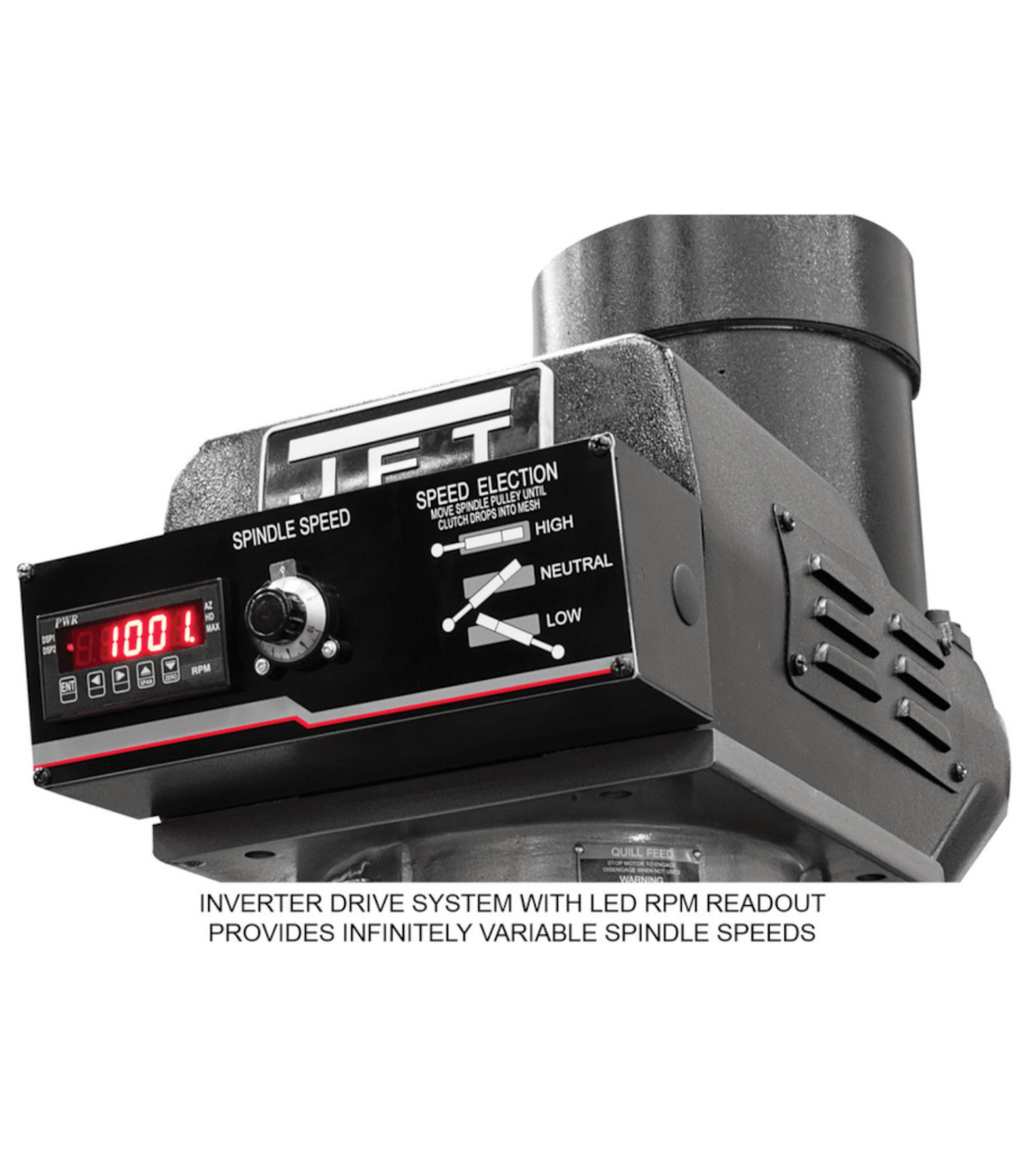

    Range of Spindle Speeds 60 – 5,000 RPM
    Table Longitudinal Travel 36 in.
    Table Cross Travel 12 in.
    T-Slot Centers 2-1/2 in.
    Travel of Knee 16 in.
    Travel of Ram 14 in.
    Motor 3 HP, 230V, 3Ph
    Amperage Draw @ 230V 3Ph 18 A
    Weight 2,300 lbs.

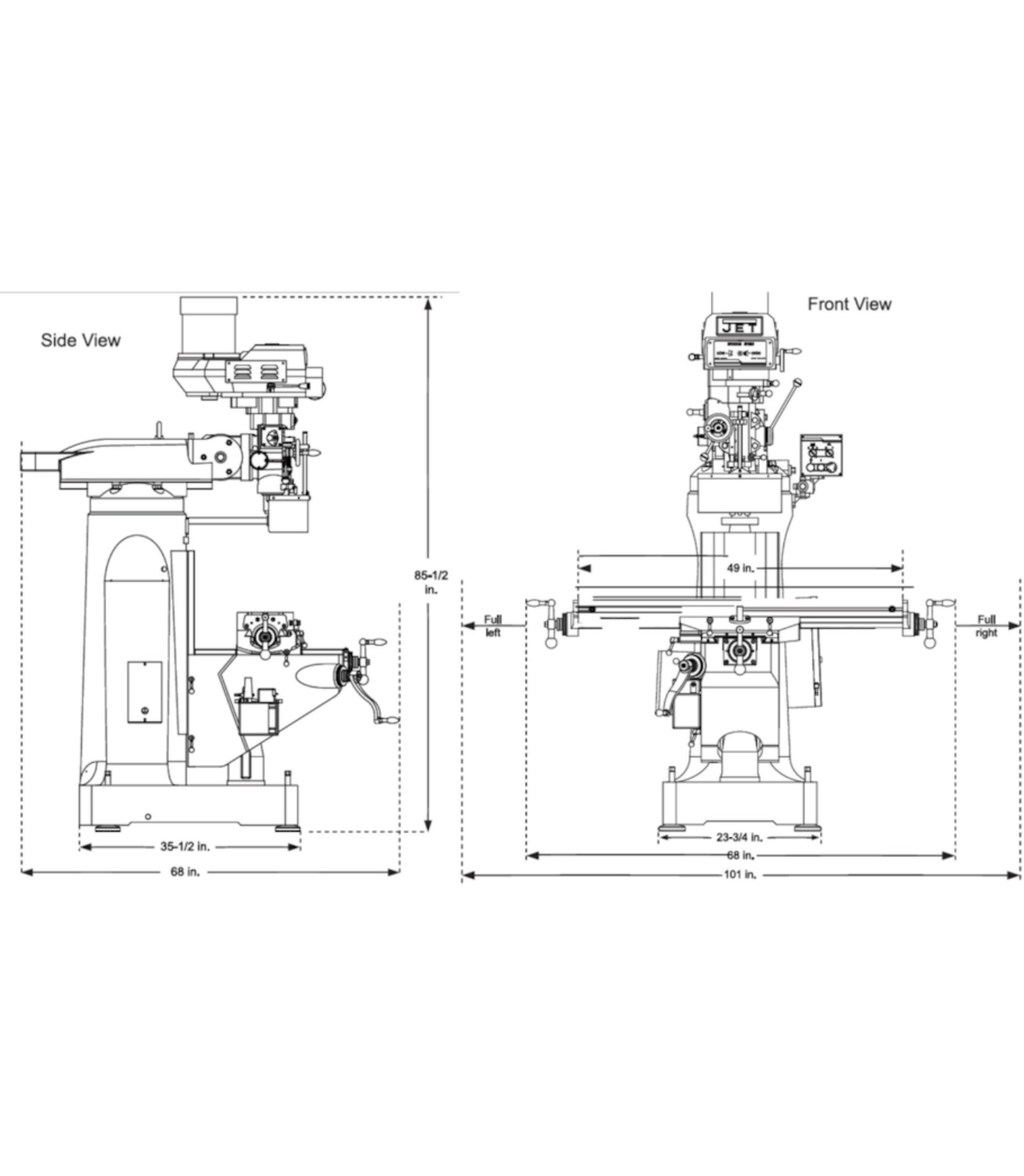

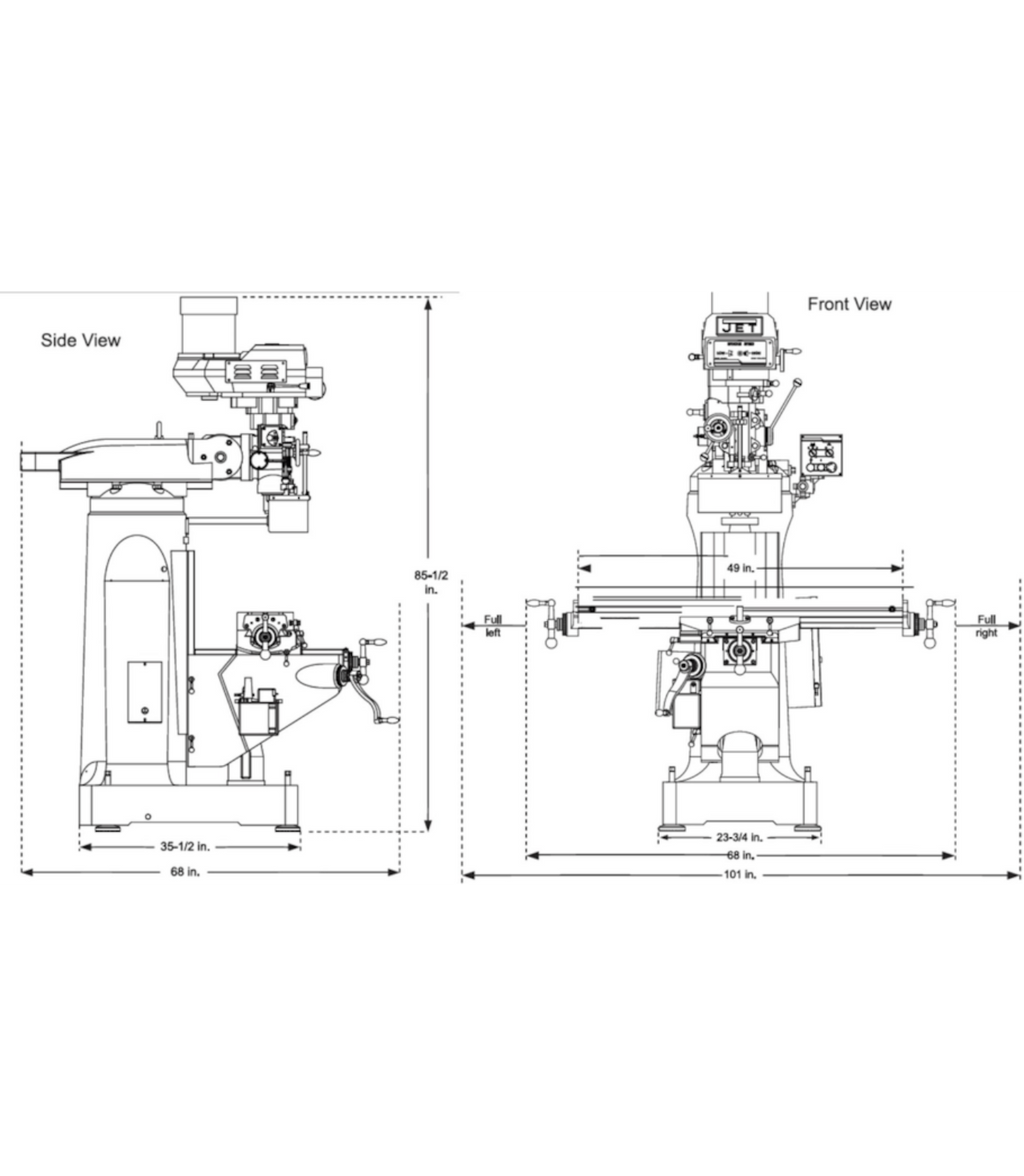

    Overall Dimensions (L x W x H) 68 x 63 x 84 in.
    What our Experts Think
    • 3-Axis Precision: X, Y, and Z-axis control ensures highly accurate milling operations.

    • Newall DP700 Knee DRO: Digital readout provides precise measurements and improves workflow efficiency.

    • Heavy-Duty Construction: Rigid cast-iron frame reduces vibration and enhances durability.

    • Versatile Milling: Suitable for a wide range of metalworking and fabrication tasks.

    • Industrial Reliability: Ideal for professional machine shops, toolrooms, and industrial milling applications.

    Q&A

    Q: What is the JET Elite EVS-949 Mill?
    A: The EVS-949 is a precision vertical milling machine equipped with a 3-axis Newall DP700 knee-mounted DRO, designed for professional machining, prototyping, and precise production work.

    Q: What does the 3-axis Newall DP700 DRO provide?
    A: The knee-mounted 3-axis DRO delivers high-resolution digital readouts for the X, Y, and Z axes, ensuring exceptional accuracy, repeatability, and reduced setup errors.

    Q: What are the milling capabilities of this machine?
    A: It supports milling, drilling, boring, slotting, and precision surface finishing with consistent results.

    Q: What is the worktable size?
    A: The mill features a robust, spacious worktable suitable for medium to large workpieces and versatile machining setups.

    Q: What spindle features does it offer?
    A: Equipped with a high-torque spindle, it provides precise speed control for a wide range of materials and cutting tasks.

    Q: What type of motor powers the EVS-949?
    A: A heavy-duty industrial motor ensures smooth operation, consistent torque, and reliable performance for demanding milling operations.

    Q: How precise and durable is the mill?
    A: Precision-ground ways and a rigid construction provide long-lasting accuracy, stability, and reliable performance.

    Q: Who is this mill ideal for?
    A: Ideal for machine shops, tool rooms, prototyping facilities, and educational programs requiring professional-grade milling with precise digital measurement.

    Q: Does it meet safety and quality standards?
    A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for durability, accuracy, and operator safety.

    Q: What sets this configuration apart?
    A: The 3-axis Newall DP700 knee-mounted DRO enables fast, precise digital measurement for all axes, improving workflow efficiency and machining accuracy for complex and repetitive operations.

    Maintenance Tips
    • Clean table, spindle, and ways after each use to remove chips, coolant, and debris.

    • Lubricate lead screws, bearings, and sliding surfaces regularly for smooth operation and longevity.

    • Inspect all axes, belts, and gears for proper function and wear.

    • Check Newall DP700 DRO for accuracy and recalibrate if needed.

    • Tighten gibs and adjust backlash to maintain precise movement and milling accuracy.

    • Verify spindle alignment and calibration periodically to ensure precision.

    • Schedule routine professional servicing for optimal performance and durability.
