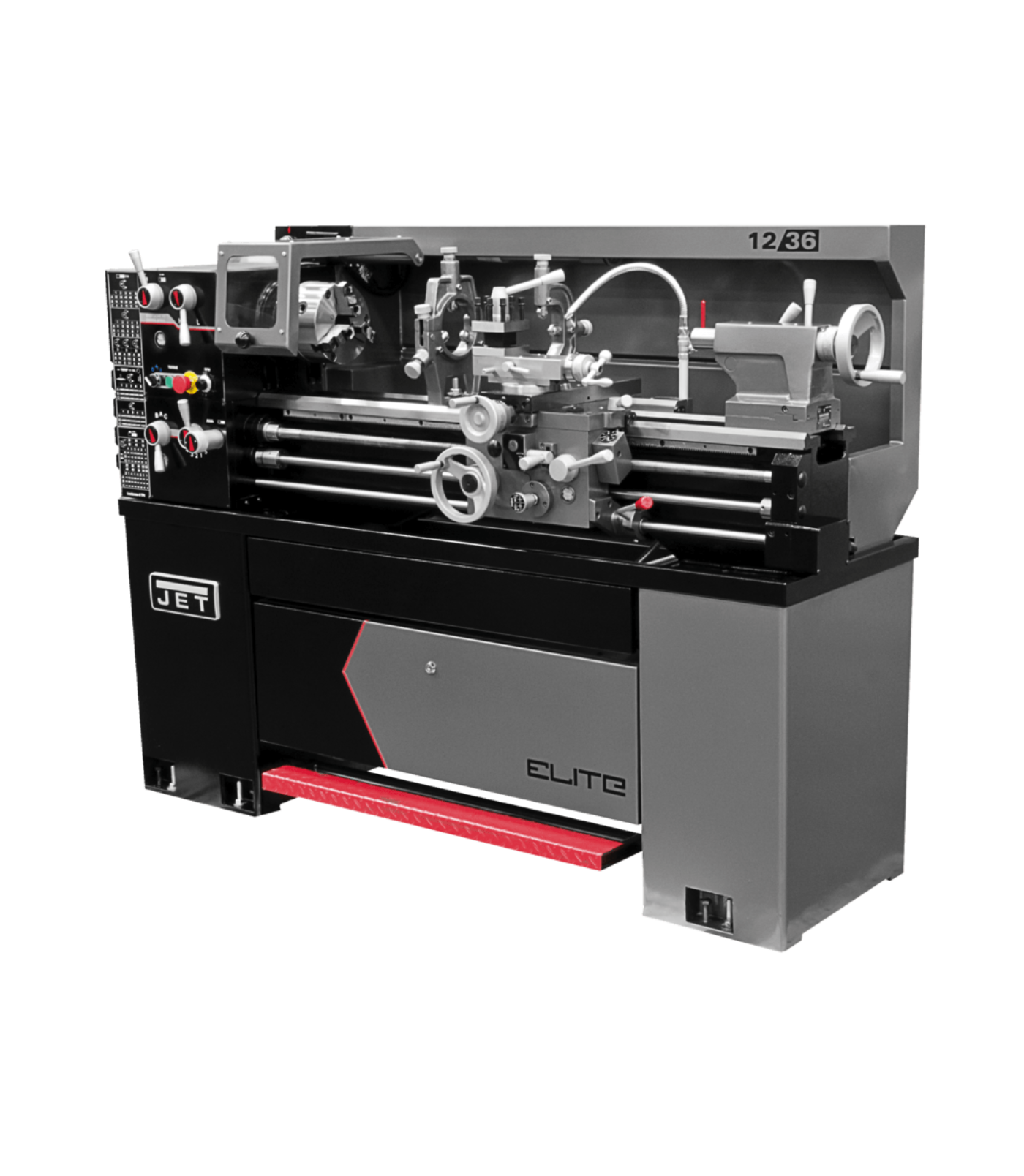

JET Elite Lathe E-1236VS with ACU-RITE 203 DRO with Taper Attachment and Collet Closer - JT9-892306

JET Elite Lathe E-1236VS with ACU-RITE 203 DRO with Taper Attachment and Collet Closer - JT9-892306

$17,912.99
Sale price  $17,912.99 Regular price  $23,882.99
Skip to product information
JET Elite Lathe E-1236VS with ACU-RITE 203 DRO with Taper Attachment and Collet Closer - JT9-892306
👑 Offre exclusive : -15% uniquement cette semaine avec le code PRIVILEGE
(offre valable jusqu'à dimanche 23h59)

JET Elite Lathe E-1236VS with ACU-RITE 203 DRO with Taper Attachment and Collet Closer - JT9-892306

$17,912.99
Sale price  $17,912.99 Regular price  $23,882.99
In stock
lokicam shipping

Expédition sous 72h

loki garantie

Garantie 90 jours

4,7/5 sur 4300+ avis

⚡ Commandez avant 00h 00m 00s .
Payment methods
    Livraison et retours
    • Traitement et expédition : 1 à 3 jours après validation de votre commande
    • Livraison en France métropolitaine : 6 à 9 jours. Lien vers la politique
    • Retours : vous disposez de 30 jours après réception pour nous retourner vos articles. Lien vers la politique

    JET Elite Lathe E-1236VS with ACU-RITE 203 DRO with Taper Attachment and Collet Closer - JT9-892306

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Integrated locking tool cabinet in stand on 12" Lathe
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 12 x 36
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 12
    Swing Over Cross Slide (In.) 7-5/16
    Swing Through Gap (In.) 17-1/2
    Length of Gap (In.) 9-1/2
    Spindle Bore (In.) 1-9/16
    Spindle Mount D1-4
    Weight (Lbs.) 1212
    Amperage Draw @ 230V 1Ph 27
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,000
    Number of Longitudinal and Cross Feed Rates 50
    Range of Longitudinal Feeds (IPR) 0.0016 – 0.046
    Range of Cross Feeds (IPR) 0.0005 – 0.015
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2 – 56
    Number of Metric Threads 33
    Range of Metric Threads 0.5 – 12
    Max Tool Size (In.) 1/2 x 1/2
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 2 HP, 230V, 1 or 3 Ph
    Tailstock Spindle Travel (In.) 4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-1/2
    Width of Bed (In.) 7-1/2
    Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
    Drive EVS
    What our Experts Think
    • 12" swing and 36" center distance make it ideal for compact precision turning projects.

    • ACU-RITE 203 DRO delivers accurate digital readouts for reliable machining.

    • Taper attachment allows precise taper cutting with minimal setup.

    • Collet closer ensures fast, secure workholding for improved workflow.

    • Durable cast-iron construction minimizes vibration, providing stability, accuracy, and long-lasting performance.

    Q&A

    Q: What type of lathe is the JET Elite E-1236VS?
    A: It’s a 12x36 electronic variable speed (EVS) precision lathe designed for accurate and versatile metalworking.

    Q: What does the ACU-RITE 203 DRO provide?
    A: The digital readout ensures precise measurements, improved setup efficiency, and accurate machining results.

    Q: What is the function of the taper attachment?
    A: It allows precise taper cutting without adjusting the compound rest, ideal for advanced turning operations.

    Q: What is the benefit of the collet closer?
    A: It enables fast, secure, and precise workpiece clamping for improved workflow and consistency.

    Q: What is the swing over bed and center distance?
    A: This lathe has a 12-inch swing over bed and a 36-inch distance between centers.

    Q: Where is this lathe best used?
    A: Ideal for machine shops, tool rooms, and industrial facilities requiring precision and efficiency.

    Maintenance Tips
    • Clean bedways, carriage, and tooling areas after each use to remove chips and debris.

    • Lubricate gears, bearings, and sliding components per the manufacturer’s recommended schedule.

    • Keep ACU-RITE 203 DRO scales and sensors free of dust for precise readings.

    • Inspect and maintain the taper attachment regularly to ensure smooth, accurate operation.

    • Check the collet closer for proper clamping and service as needed.

    • Examine belts, feed screws, and gibs for wear; adjust tension and alignment as required.

    • Tighten tool post, tailstock, and all fasteners to maintain rigidity and machining accuracy.

    • Schedule routine professional servicing to extend machine life and maintain performance.
