    JET Elite Lathe E-1236VS with ACU-RITE 303 CSS DRO with Collet Closer - JT9-892317

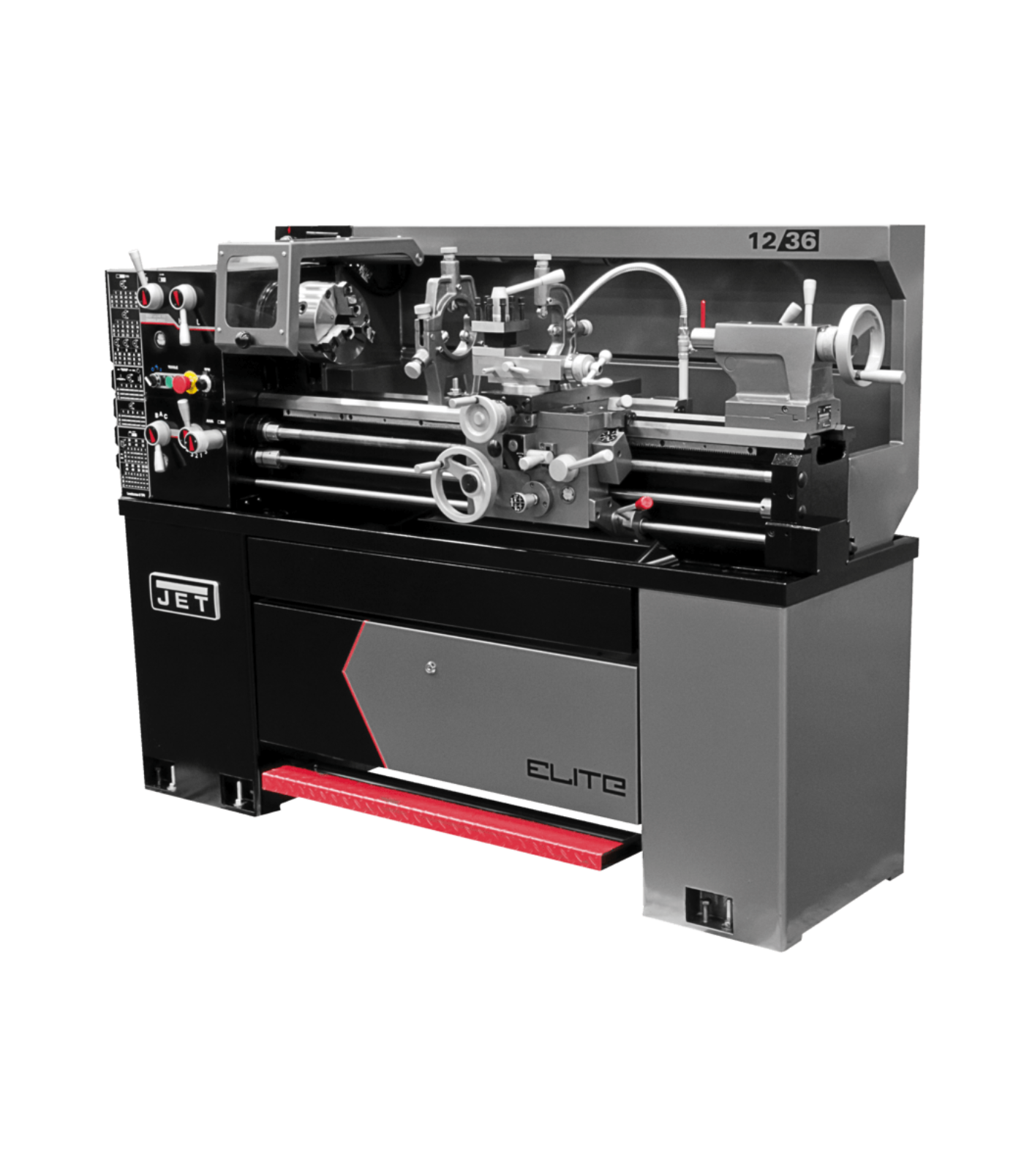

    Compact, powerful, perfection. These lathes have a compact footprint and feature certified Meehanite® castings, an electromagnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard. The two-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Perfect for schools, small shops, and engineering labs, these lathes are CSA/CUS Certified and truly are Elite!

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Integrated locking tool cabinet in stand on 12" Lathe
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Overload clutch at feed shaft prevents the carriage from crashing into the chuck
    • Steady Rest-Ball Bearing
    • Variable spindle speeds
    Specifications
    Size 12 x 36
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 12
    Swing Over Cross Slide (In.) 7-5/16
    Swing Through Gap (In.) 17-1/2
    Length of Gap (In.) 9-1/2
    Spindle Bore (In.) 1-9/16
    Spindle Mount D1-4
    Weight (Lbs.) 1212
    Amperage Draw @ 230V 1Ph 27
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,000
    Number of Longitudinal and Cross Feed Rates 50
    Range of Longitudinal Feeds (IPR) 0.0016 – 0.046
    Range of Cross Feeds (IPR) 0.0005 – 0.015
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2 – 56
    Number of Metric Threads 33
    Range of Metric Threads 0.5 – 12
    Max Tool Size (In.) 1/2 x 1/2
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 2 HP, 230V, 1 or 3 Ph
    Tailstock Spindle Travel (In.) 4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-1/2
    Width of Bed (In.) 7-1/2
    Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
    Drive EVS
    What our Experts Think
    • Variable Speed Precision – Smooth speed adjustments provide accurate, consistent machining results.

    • ACU-RITE 303 CSS DRO – Digital readout with Constant Surface Speed ensures precise measurements and efficient operation.

    • Collet Closer Included – Enhances workholding capability for repetitive and high-precision machining tasks.

    • Heavy-Duty Construction – Cast-iron base and headstock provide stability, minimize vibration, and extend machine life.

    • Versatile Applications – Perfect for threading, turning, and general-purpose metalworking.

    • Industrial Reliability – Built for continuous operation in machine shops, fabrication facilities, and training programs.

    Q&A

    Q: What is the JET Elite E-1236VS Lathe?
    A: A 12" x 36" variable speed precision lathe equipped with an ACU-RITE 303 CSS digital readout and collet closer for accurate, efficient machining.

    Q: What makes this lathe unique?
    A: It combines variable speed control, a CSS DRO for constant surface speed, and a collet closer for fast, secure workholding.

    Q: What materials can it machine?
    A: Suitable for steel, aluminum, brass, and other metals in professional and industrial shops.

    Q: Why is the ACU-RITE 303 CSS DRO important?
    A: It automatically adjusts spindle speed to maintain optimal cutting conditions, improving surface finish and tool life.

    Q: What is the benefit of the collet closer?
    A: Allows quick and secure clamping of smaller workpieces, reducing setup time and enhancing precision.

    Q: What size capacity does it have?
    A: 12" swing over bed and 36" distance between centers.

    Q: Where is it best used?
    A: Ideal for toolrooms, machine shops, prototyping, and maintenance departments.

    Q: How does it improve efficiency?
    A: The CSS DRO, collet closer, and variable speed drive reduce setup time, maintain cutting accuracy, and streamline workflow.

    Maintenance Tips
    • Clean bedways, carriage, and tooling after each use to prevent chip buildup

    • Lubricate gears, bearings, and all moving parts per manufacturer’s schedule

    • Inspect belts, gears, and spindle components regularly for wear or misalignment

    • Keep collet closer mechanism clean, lightly oiled, and properly adjusted

    • Maintain DRO display and electrical connections free of dust and moisture

    • Check alignment and calibration periodically to ensure precision machining

    • Schedule annual professional servicing to ensure long-term reliability and performance
