    JET Elite Lathe E-1236VS with ACU-RITE 303 CSS DRO with Taper Attachment and Collet Closer - JT9-892318

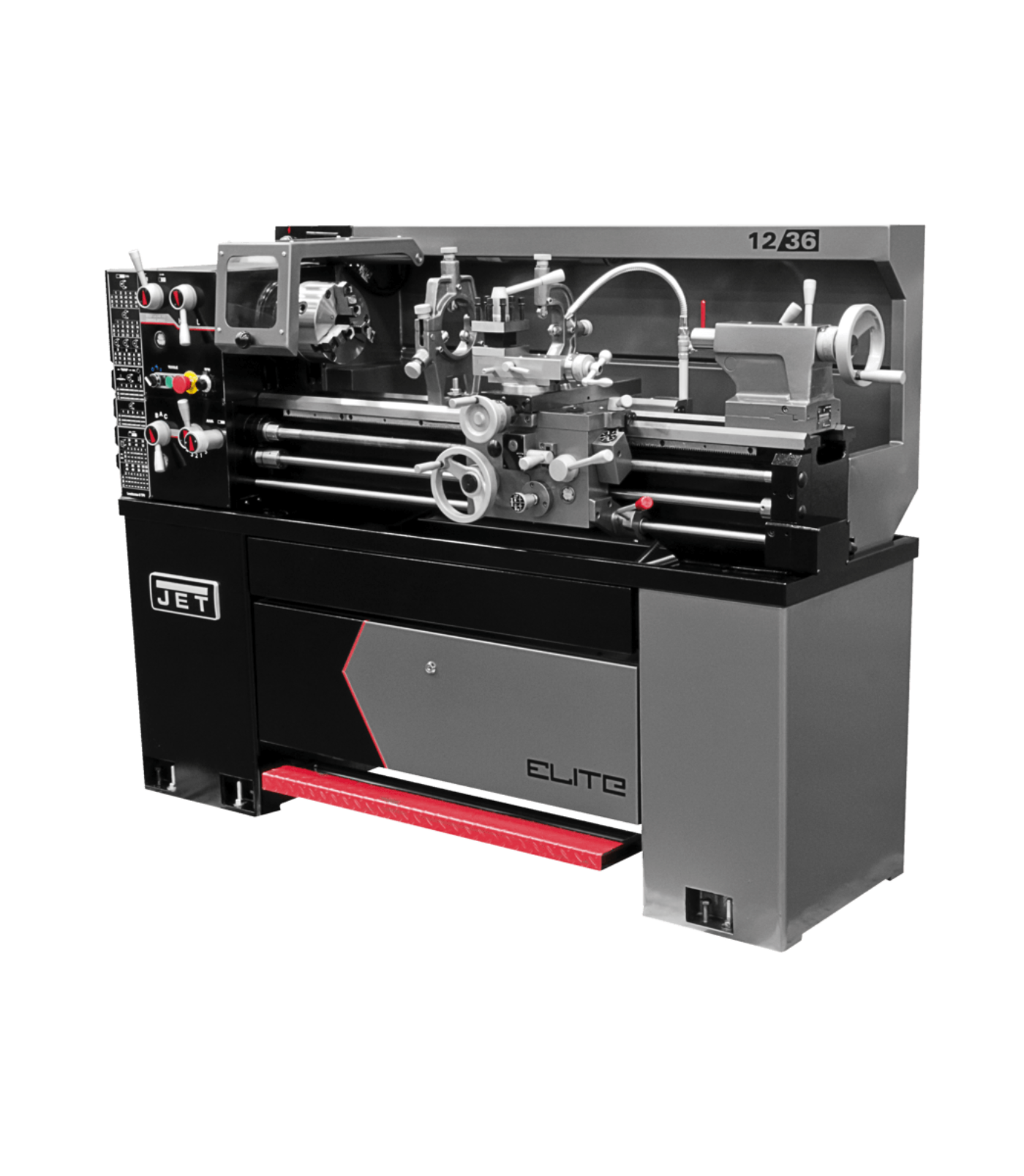

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Integrated locking tool cabinet in stand on 12" Lathe
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 12 x 36
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 12
    Swing Over Cross Slide (In.) 7-5/16
    Swing Through Gap (In.) 17-1/2
    Length of Gap (In.) 9-1/2
    Spindle Bore (In.) 1-9/16
    Spindle Mount D1-4
    Weight (Lbs.) 1212
    Amperage Draw @ 230V 1Ph 27
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,000
    Number of Longitudinal and Cross Feed Rates 50
    Range of Longitudinal Feeds (IPR) 0.0016 – 0.046
    Range of Cross Feeds (IPR) 0.0005 – 0.015
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2 – 56
    Number of Metric Threads 33
    Range of Metric Threads 0.5 – 12
    Max Tool Size (In.) 1/2 x 1/2
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 2 HP, 230V, 1 or 3 Ph
    Tailstock Spindle Travel (In.) 4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-1/2
    Width of Bed (In.) 7-1/2
    Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
    Drive EVS
    What our Experts Think
    • Variable Speed Precision: Smooth RPM control ensures accurate machining across materials.

    • ACU-RITE 303 CSS DRO: Advanced digital readout with constant surface speed provides precise, repeatable results.

    • Taper Attachment: Enables precise internal and external taper cutting.

    • Collet Closer: Securely holds small-diameter workpieces for high-accuracy operations.

    • Heavy-Duty Cast-Iron Bed: Minimizes vibration, improves stability, and ensures long-term durability.

    • Professional Grade: Ideal for toolrooms, machine shops, and industrial metalworking applications.

    Q&A

    Q: What is the JET Elite E-1236VS lathe?
    A: The E-1236VS is a 12" x 36" variable-speed precision lathe designed for professional and industrial machining, including turning, threading, boring, and taper cutting.

    Q: What does the ACU-RITE 303 CSS DRO provide?
    A: The ACU-RITE 303 CSS (Constant Surface Speed) DRO offers advanced digital accuracy and automatically adjusts spindle speed to maintain consistent cutting conditions, improving surface finish and tool life.

    Q: How does the taper attachment benefit machining?
    A: The taper attachment allows precise internal and external taper cutting without complex manual setups, saving time while ensuring repeatable accuracy.

    Q: What is the role of the collet closer?
    A: The collet closer provides quick, secure, and repeatable workholding, ideal for high-precision parts and production runs.

    Q: What is the spindle bore size?
    A: This lathe features a 1.57" spindle bore suitable for medium-diameter stock and tubing.

    Q: How does the variable-speed drive help?
    A: The electronic variable-speed system allows smooth spindle adjustments, optimizing cutting speeds for different materials and operations.

    Q: What type of motor powers the lathe?
    A: A heavy-duty industrial motor ensures consistent torque and reliable performance for demanding machining tasks.

    Q: How durable is the bed construction?
    A: The hardened, precision-ground bedways provide rigidity, stability, and long-lasting machining accuracy.

    Q: What operations can it perform?
    A: Supports turning, facing, threading (inch and metric), boring, taper cutting, and precision part finishing.

    Q: Who is this lathe best suited for?
    A: Ideal for machine shops, tool rooms, fabrication facilities, and educational programs that require versatile, high-precision machining.

    Q: Does it meet safety standards?
    A: Yes, it is CSA/ETL certified and built to JET Elite industrial-quality standards for performance and operator safety.

    Maintenance Tips
    • Clean the lathe bed, carriage, taper attachment, and collet closer daily to remove chips and debris.

    • Lubricate spindle bearings, leadscrews, and sliding ways regularly for smooth operation and long life.

    • Check ACU-RITE 303 CSS DRO accuracy and recalibrate as needed to maintain precision.

    • Inspect taper attachment and collet closer alignment for secure, accurate workholding.

    • Monitor belts, gears, and electrical components for wear and proper tension.

    • Tighten gibs and adjust backlash to ensure rigidity and consistent machining accuracy.

    • Schedule professional servicing periodically to maintain long-term reliability and performance.
