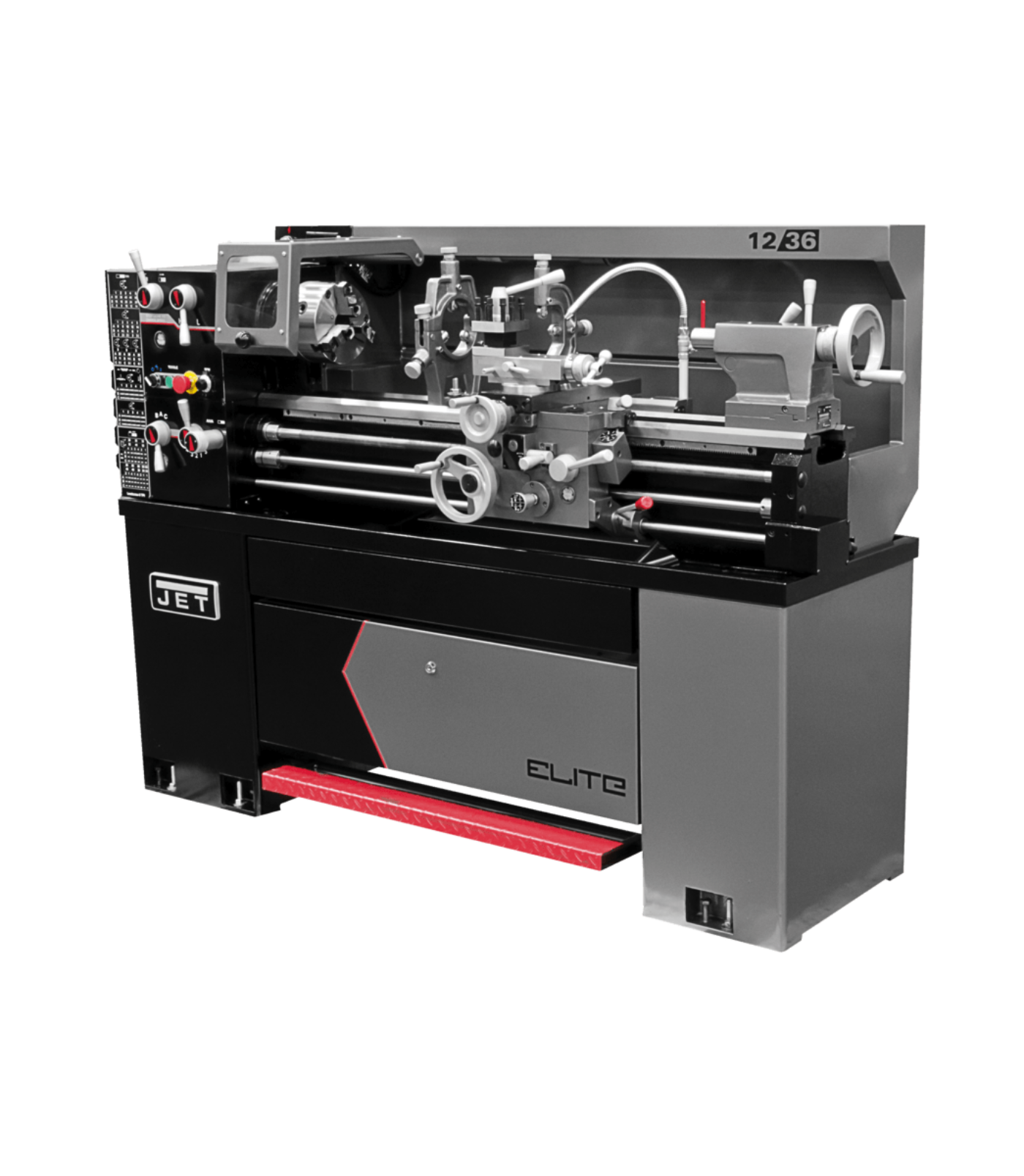

JET Elite Lathe E-1236VS with ACU-RITE 303 DRO with Taper Attachment and Collet Closer - JT9-892314

JET Elite Lathe E-1236VS with ACU-RITE 303 DRO with Taper Attachment and Collet Closer - JT9-892314

$18,215.99
Sale price  $18,215.99 Regular price  $24,287.99
Skip to product information
JET Elite Lathe E-1236VS with ACU-RITE 303 DRO with Taper Attachment and Collet Closer - JT9-892314
👑 Offre exclusive : -15% uniquement cette semaine avec le code PRIVILEGE
(offre valable jusqu'à dimanche 23h59)

JET Elite Lathe E-1236VS with ACU-RITE 303 DRO with Taper Attachment and Collet Closer - JT9-892314

$18,215.99
Sale price  $18,215.99 Regular price  $24,287.99
In stock
lokicam shipping

Expédition sous 72h

loki garantie

Garantie 90 jours

4,7/5 sur 4300+ avis

⚡ Commandez avant 00h 00m 00s .
Payment methods
    Livraison et retours
    • Traitement et expédition : 1 à 3 jours après validation de votre commande
    • Livraison en France métropolitaine : 6 à 9 jours. Lien vers la politique
    • Retours : vous disposez de 30 jours après réception pour nous retourner vos articles. Lien vers la politique

    JET Elite Lathe E-1236VS with ACU-RITE 303 DRO with Taper Attachment and Collet Closer - JT9-892314

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Integrated locking tool cabinet in stand on 12" Lathe
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 12 x 36
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 12
    Swing Over Cross Slide (In.) 7-5/16
    Swing Through Gap (In.) 17-1/2
    Length of Gap (In.) 9-1/2
    Spindle Bore (In.) 1-9/16
    Spindle Mount D1-4
    Weight (Lbs.) 1212
    Amperage Draw @ 230V 1Ph 27
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,000
    Number of Longitudinal and Cross Feed Rates 50
    Range of Longitudinal Feeds (IPR) 0.0016 – 0.046
    Range of Cross Feeds (IPR) 0.0005 – 0.015
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2 – 56
    Number of Metric Threads 33
    Range of Metric Threads 0.5 – 12
    Max Tool Size (In.) 1/2 x 1/2
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 2 HP, 230V, 1 or 3 Ph
    Tailstock Spindle Travel (In.) 4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-1/2
    Width of Bed (In.) 7-1/2
    Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
    Drive EVS
    What our Experts Think
    • Precision Engineering: Variable speed lathe with ACU-RITE 303 DRO ensures highly accurate, repeatable machining.

    • Enhanced Productivity: Taper attachment and collet closer enable complex turning and fast, secure workholding.

    • Heavy-Duty Stability: Rugged cast-iron construction minimizes vibration and maximizes durability.

    • Operator-Friendly Design: Digital readout and ergonomic controls simplify setup and operation.

    • Industrial-Grade Reliability: Ideal for machine shops and professional workshops demanding precision and efficiency.

    Q&A

    Q: What is the JET Elite E-1236VS Lathe?
    A: A precision variable speed metal lathe equipped with the ACU-RITE 303 digital readout, taper attachment, and collet closer for professional machining versatility.

    Q: What makes it unique?
    A: Its electronic variable speed drive, precision-ground bedways, DRO for accurate digital measurement, taper attachment for precise angled cuts, and collet closer for efficient workholding provide maximum accuracy and productivity.

    Q: Where can it be used?
    A: Ideal for machine shops, tool rooms, fabrication facilities, and industrial manufacturing.

    Q: What style of work does it suit?
    A: Precision turning, threading, facing, boring, and taper cutting on metals and alloys.

    Q: What materials is it made from?
    A: Heavy-duty cast iron frame with hardened, ground components for long-term stability and vibration-free operation.

    Maintenance Tips
    • Remove chips and debris from bedways, carriage, and leadscrews after each use.

    • Lubricate gears, bearings, and sliding components per manufacturer’s schedule.

    • Keep ACU-RITE 303 DRO sensors and display clean for accurate readings.

    • Inspect taper attachment and collet closer regularly for smooth, precise operation.

    • Check belts, gibs, and fasteners for wear; cover the lathe when idle to prevent dust accumulation.
