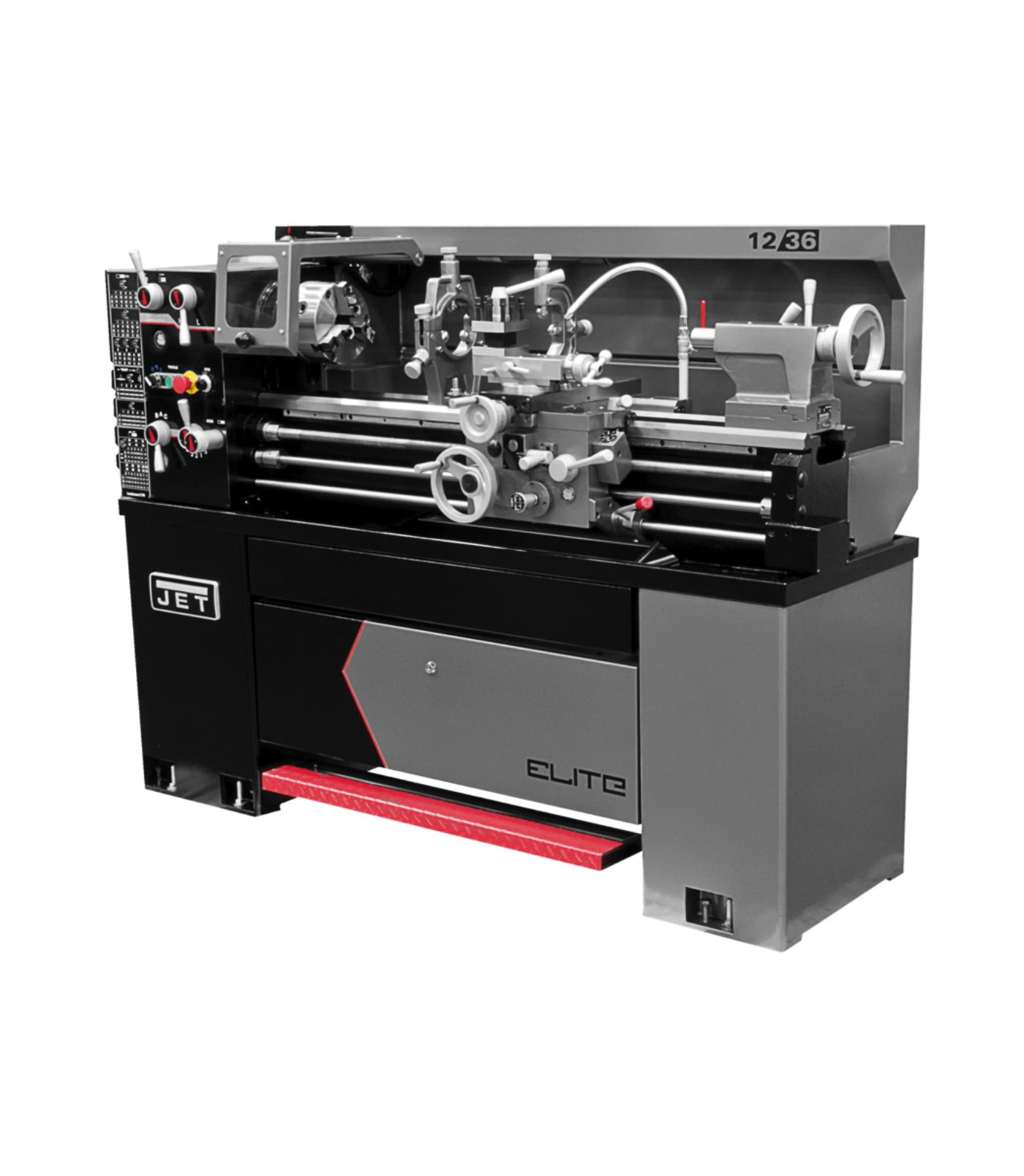

    JET Elite Lathe E-1236VS with Newall DP700 DRO with Collet Closer - JT9-892321

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Integrated locking tool cabinet in stand on 12" Lathe
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 12 x 36
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 12
    Swing Over Cross Slide (In.) 7-5/16
    Swing Through Gap (In.) 17-1/2
    Length of Gap (In.) 9-1/2
    Spindle Bore (In.) 1-9/16
    Spindle Mount D1-4
    Weight (Lbs.) 1212
    Amperage Draw @ 230V 1Ph 27
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,000
    Number of Longitudinal and Cross Feed Rates 50
    Range of Longitudinal Feeds (IPR) 0.0016 – 0.046
    Range of Cross Feeds (IPR) 0.0005 – 0.015
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2 – 56
    Number of Metric Threads 33
    Range of Metric Threads 0.5 – 12
    Max Tool Size (In.) 1/2 x 1/2
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 2 HP, 230V, 1 or 3 Ph
    Tailstock Spindle Travel (In.) 4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-1/2
    Width of Bed (In.) 7-1/2
    Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
    Drive EVS
    What our Experts Think
    • 12" swing and 36" center distance make it well-suited for compact precision work.

    • Newall DP700 DRO delivers clear, reliable digital readouts for accuracy and efficiency.

    • Collet closer enables quick, secure workholding for faster setups.

    • Variable speed range (40–2,000 RPM) provides versatility across materials.

    • Cast-iron construction minimizes vibration, ensuring consistent, high-quality results

    Q&A

    Q: What type of lathe is the JET Elite E-1236VS?
    A: It’s a 12x36 electronic variable speed (EVS) precision lathe designed for accurate metalworking.

    Q: What does the Newall DP700 DRO provide?
    A: The digital readout delivers precise, reliable measurements with a clear, user-friendly display.

    Q: What is the benefit of the collet closer?
    A: It allows fast, secure, and precise clamping of workpieces, improving machining efficiency.

    Q: What is the swing over bed and center distance?
    A: This lathe provides a 12-inch swing over bed and a 36-inch distance between centers.

    Q: Where is this lathe best used?
    A: Perfect for machine shops, tool rooms, and maintenance facilities requiring accuracy and productivity.

    Maintenance Tips
    • Wipe bedways, carriage, and tool areas after each use to prevent chip buildup.

    • Lubricate gears, bearings, and sliding parts according to the service schedule.

    • Keep Newall DP700 DRO scales and sensors clean for accurate measurement.

    • Inspect and maintain the collet closer regularly for smooth, secure clamping.

    • Check belts, feed screws, and alignment for wear and proper tension.

    • Tighten tool post, tailstock, and all fasteners to maintain machining precision.

    • Keep electrical components and cooling fans free of dust and debris.

    • Schedule routine professional servicing to extend accuracy and machine lifespan.
