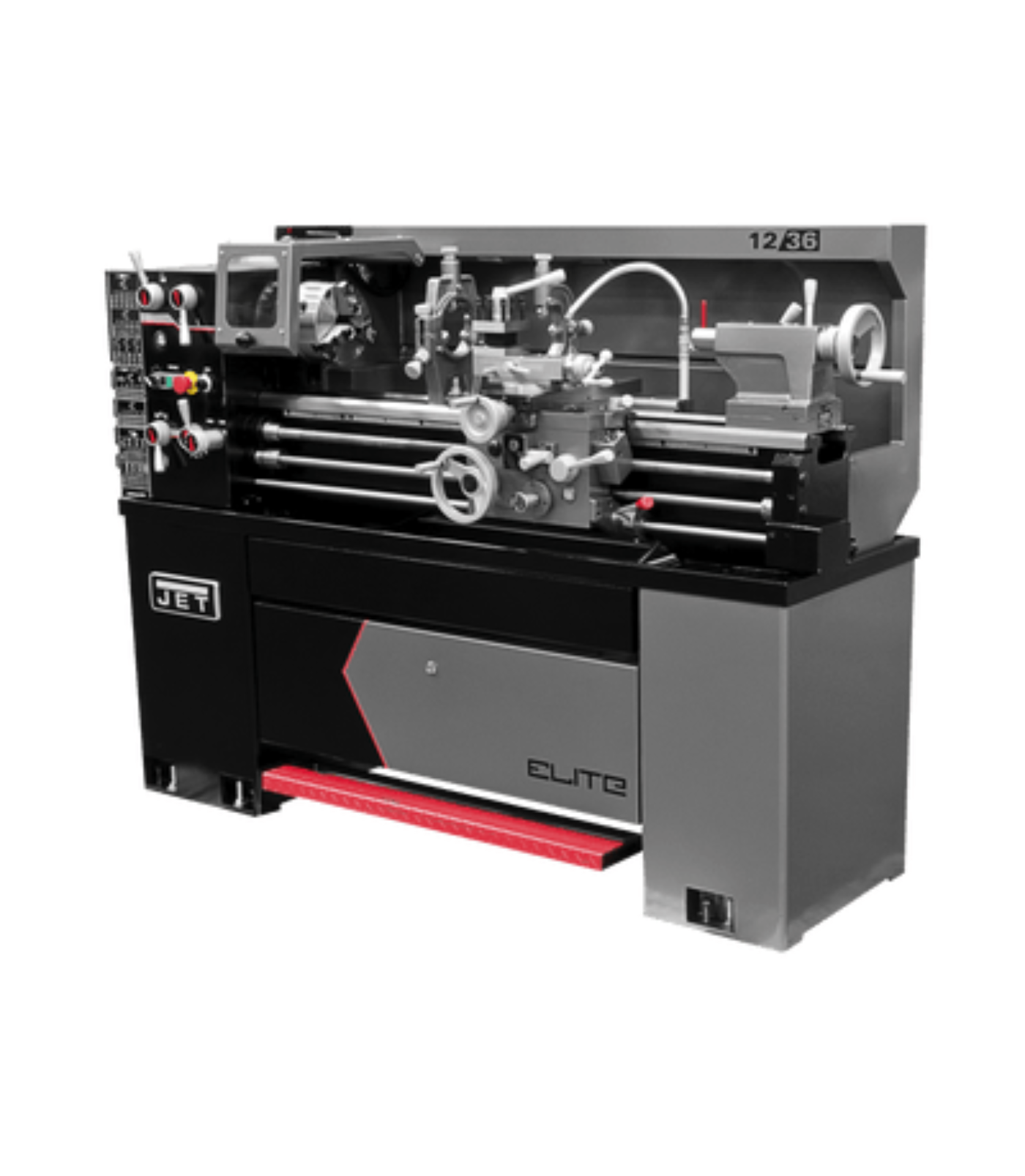

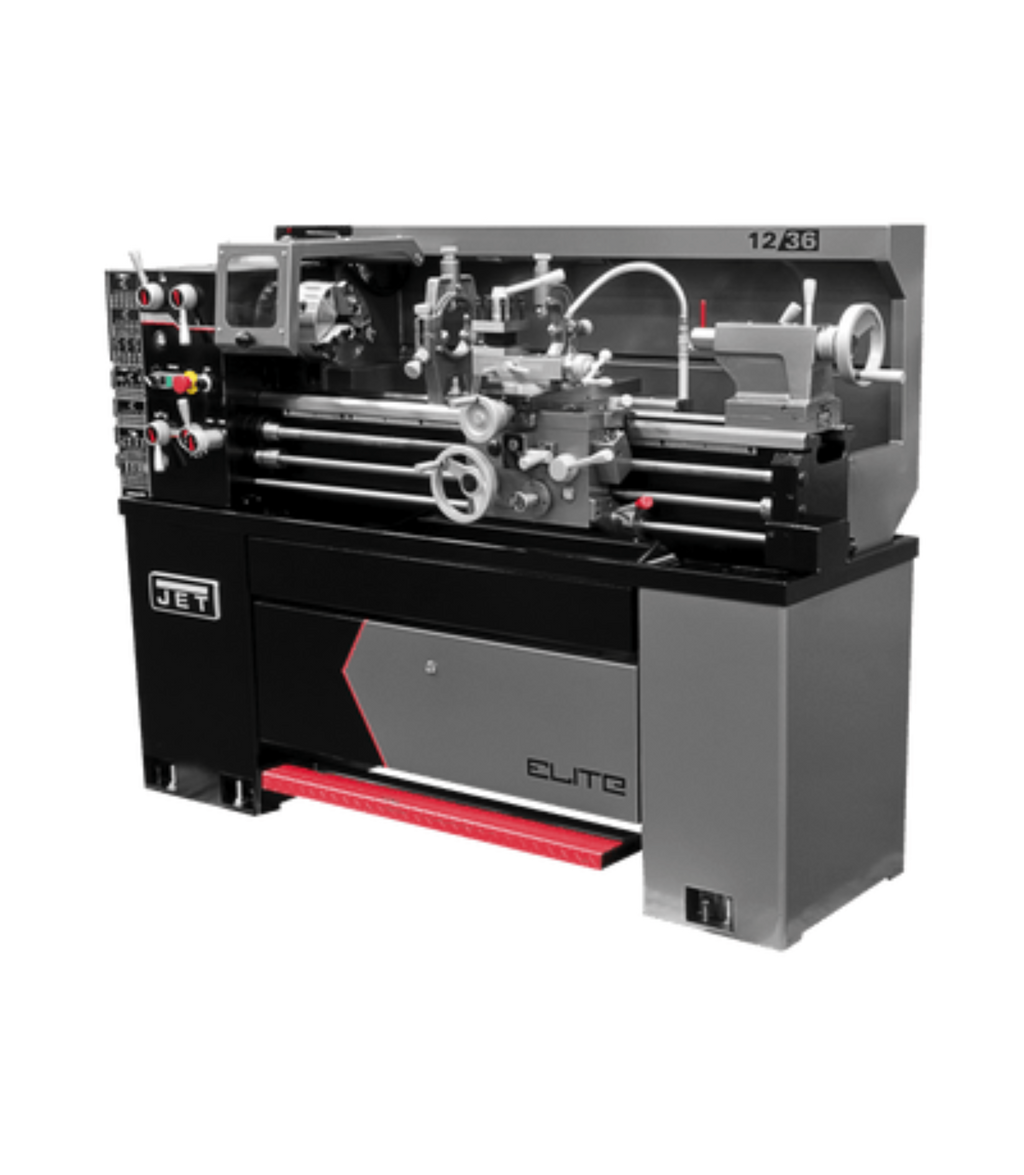

    JET Elite Lathe E-1236VS with Taper Attachment and Collet Closer - JT9-892302

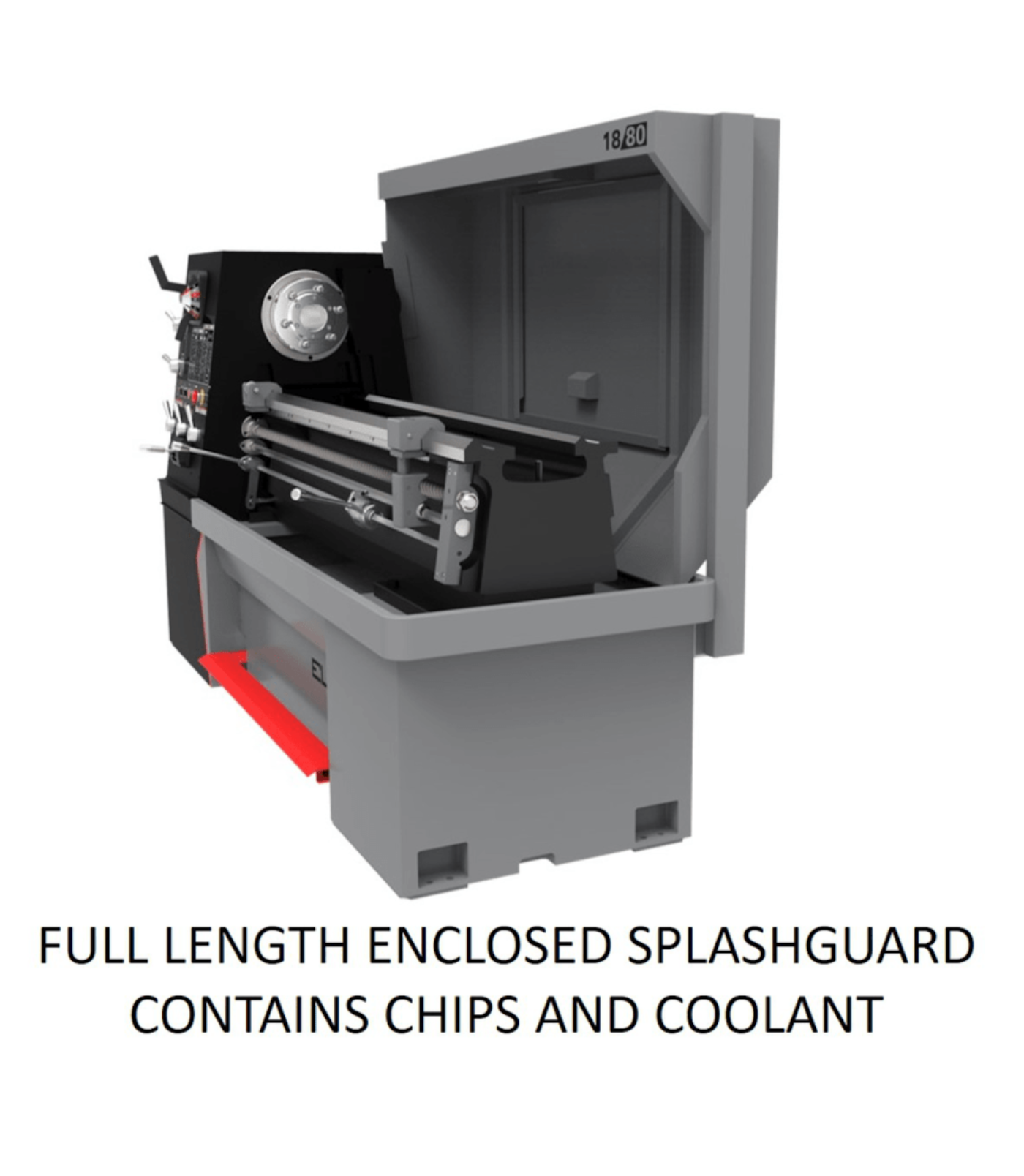

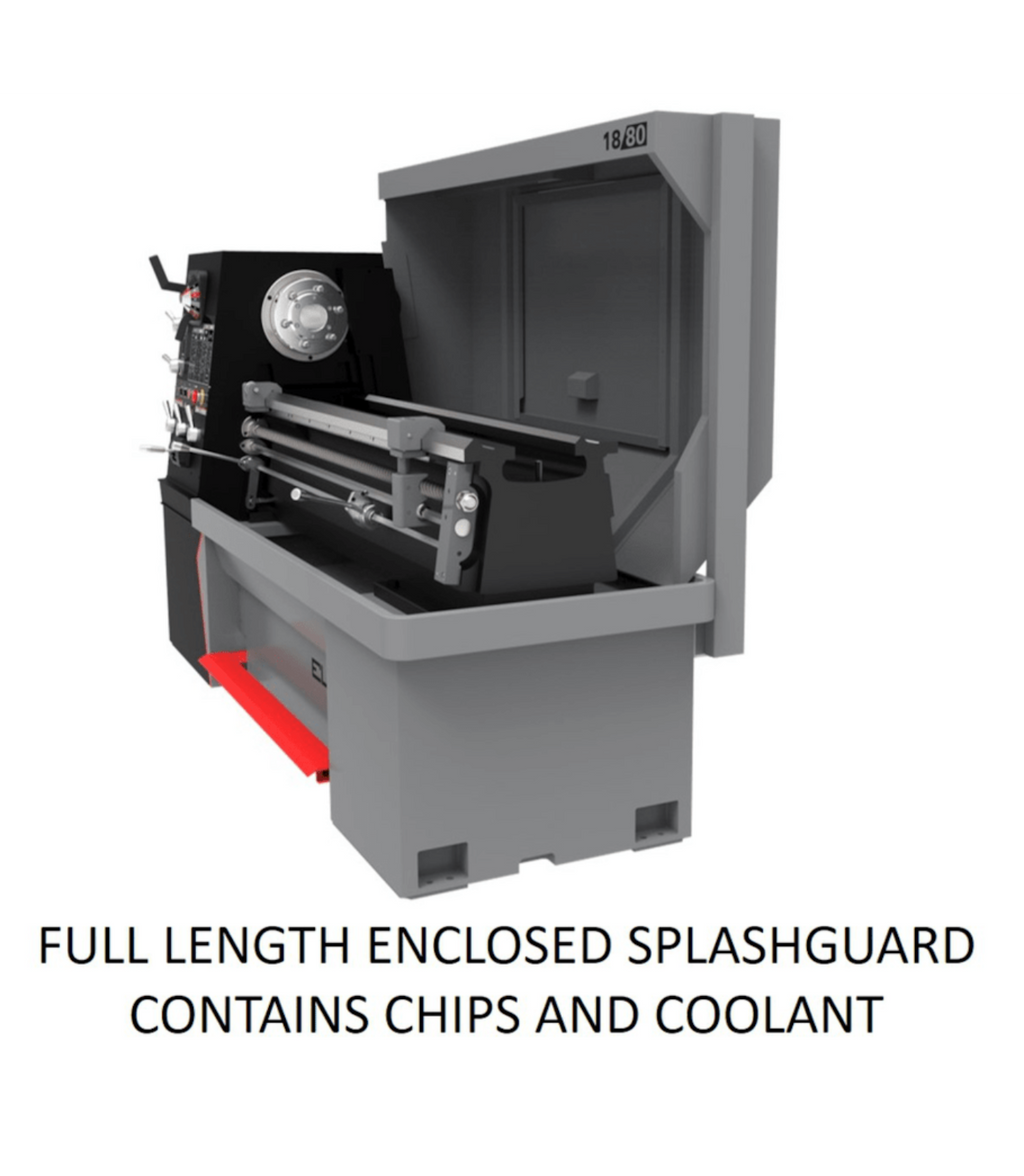

    Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

    Features
    • 4-Position Carriage Stop
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

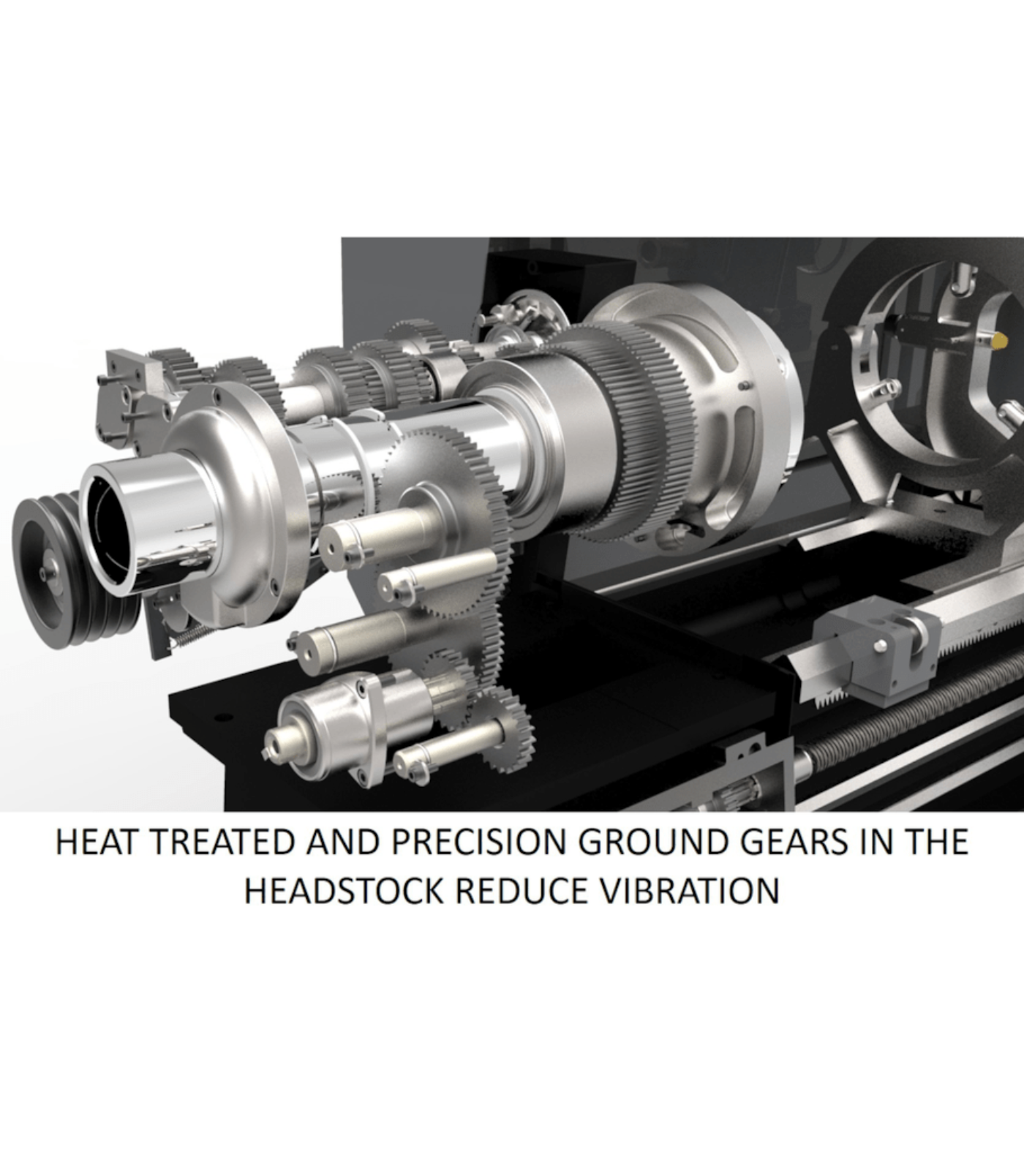

    • Hardened and ground gears in headstock reduce vibration and deflection
    • Integrated locking tool cabinet in stand on 12" Lathe
    • Inverter drive system provides infinitely variable spindle speeds
    • LED RPM readout allows for precise turning speeds
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    Specifications
    Size 12 x 36
    Style (Type) ELITE EVS
    Swing Over Bed (In.) 12
    Swing Over Cross Slide (In.) 7-5/16
    Swing Through Gap (In.) 17-1/2
    Length of Gap (In.) 9-1/2
    Spindle Bore (In.) 1-9/16
    Spindle Mount D1-4
    Weight (Lbs.) 1212
    Amperage Draw @ 230V 1Ph 27
    Amperage Draw @ 230V 3Ph 19
    Spindle Taper with Sleeve MT-5
    Range of Spindle Speeds (RPM) 0 – 2,000
    Number of Longitudinal and Cross Feed Rates 50
    Range of Longitudinal Feeds (IPR) 0.0016 – 0.046
    Range of Cross Feeds (IPR) 0.0005 – 0.015
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2 – 56
    Number of Metric Threads 33
    Range of Metric Threads 0.5 – 12
    Max Tool Size (In.) 1/2 x 1/2
    Compound Slide Travel (In.) 3-1/2
    Motor (HP) 2 HP, 230V, 1 or 3 Ph
    Tailstock Spindle Travel (In.) 4
    Taper in Tailstock Spindle MT-3
    Steady Rest Capacity (In.) 1/4 – 2-1/2
    Width of Bed (In.) 7-1/2
    Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
    Drive EVS
    What our Experts Think
    • Variable Speed Control – Delivers smooth, precise machining for consistent results.

    • Taper Attachment – Enables accurate taper cutting, expanding machining versatility.

    • Collet Closer – Provides secure, efficient workholding for repetitive precision jobs.

    • Durable Construction – Heavy-duty cast-iron base and headstock ensure stability and longevity.

    • Versatile Applications – Perfect for threading, turning, and general metalworking tasks.

    • Professional Reliability – Built for continuous operation in machine shops, fabrication facilities, and training programs.

    Q&A

    Q: What is the JET Elite E-1236VS Lathe?
    A: A 12" x 36" variable speed precision lathe with a taper attachment and collet closer, designed for versatility and accuracy in metalworking.

    Q: What makes this lathe unique?
    A: It offers smooth variable speed control, precision taper cutting, and fast, secure workholding with the included collet closer.

    Q: What materials can it machine?
    A: Suitable for steel, aluminum, brass, and other metals in toolrooms and professional shops.

    Q: Why is the taper attachment important?
    A: It allows operators to cut accurate, repeatable tapers without offsetting the tailstock.

    Q: What is the benefit of the collet closer?
    A: It provides quick clamping of smaller workpieces, reducing setup time and improving accuracy.

    Q: What size capacity does it have?
    A: 12" swing over bed and 36" distance between centers.

    Q: Where is it best used?
    A: Perfect for prototyping, small production runs, toolrooms, and maintenance departments.

    Q: How does it improve efficiency?
    A: The variable speed drive, taper attachment, and collet closer combine to expand machining capability, reduce downtime, and enhance precision.

    Maintenance Tips
    • Clean lathe bed, carriage, and tooling after each use to remove chips and debris

    • Lubricate gears, bearings, and moving parts per the manufacturer’s schedule

    • Inspect belts, gears, and spindle components regularly for wear or misalignment

    • Keep taper attachment and sliding surfaces clean and lightly oiled for smooth movement

    • Maintain collet closer mechanism clean and lubricated to ensure proper function

    • Check DRO/electrical components (if equipped) for dust and secure connections

    • Schedule annual professional servicing to preserve accuracy and long-term performance
