| Size |
17 x 40 |
| Style (Type) |
Engine |
| Swing Over Bed (In.) |
17 |
| Swing Over Cross Slide (In.) |
11 |
| Swing in Gap (In.) |
7-2/3 |
| Spindle Bore (In.) |
3-1/8 |
| Spindle Mount |
D1-6 |
| Spindle Taper with Sleeve |
MT-5 |
| Number of Spindle Speeds |
12 |
| Range of Spindle Speeds (RPM) |
36 – 1,800 |
| Range of Longitudinal Feeds (IPR) |
0.0015 – 0.04 |
| Range of Cross Feeds (IPR) |
0.00075 – 0.02 |
| Number of Inch Threads |
45 |
| Range of Inch Threads (TPI) |
2 – 72 |
| Diametrial Pitch Threads Number |
21 |
| Modular Pitch Threads Number |
18 |
| Number of Metric Threads |
39 |
| Range of Metric Threads |
0.2 – 14 |
| Max Tool Size (In.) |
1 x 1 |
| Compound Slide Travel (In.) |
6-2/7 |
| Tailstock Spindle Travel (In.) |
5 |

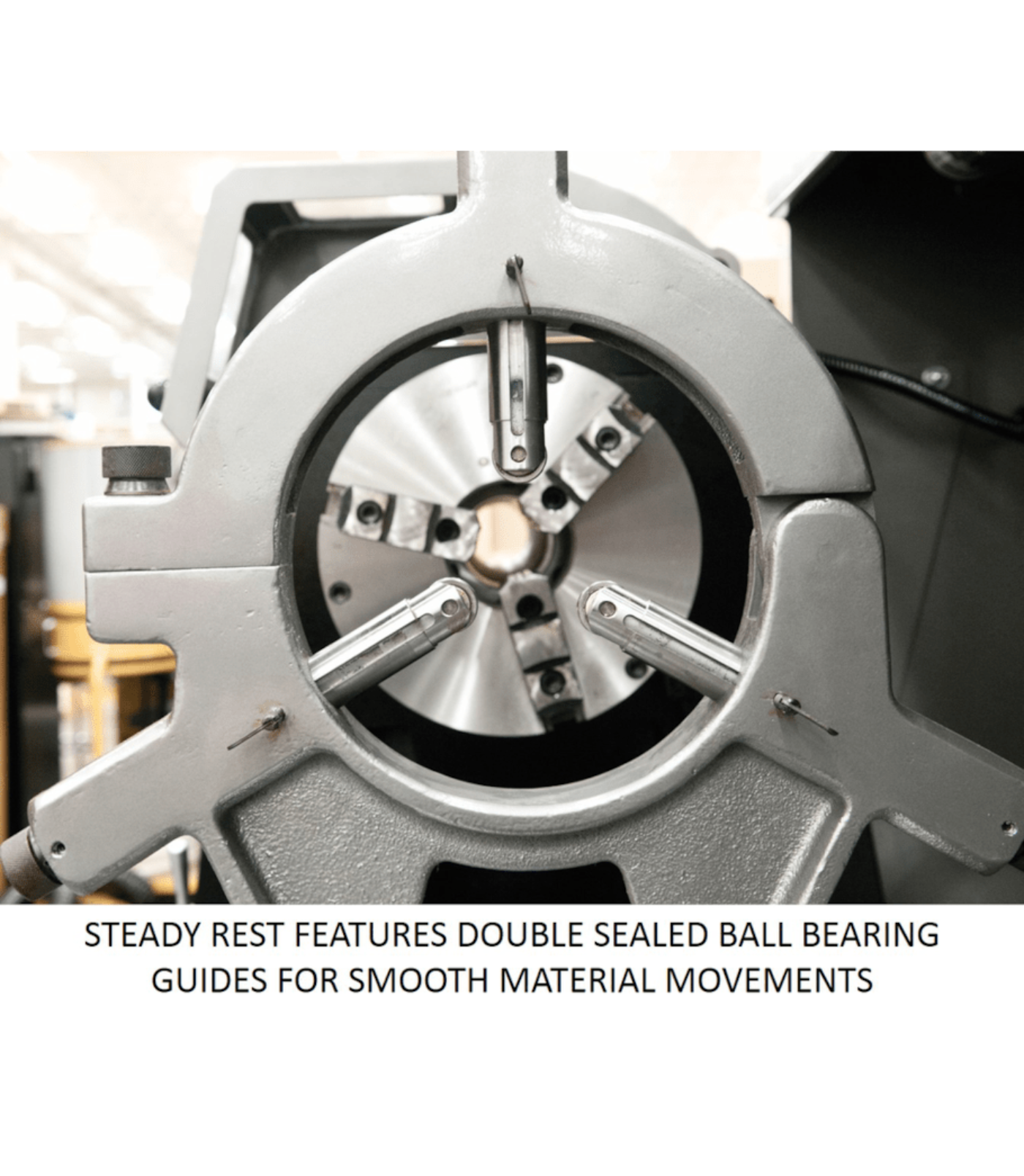

| Steady Rest Capacity (In.) |
3/8 – 6-3/4 |
| Width of Bed (In.) |
12 |
| Weight (Lbs.) |
3,747 |
| Amperage Draw @ 230V 3Ph |
22 |
| Amperage Draw @ 460V 3Ph |
11 |

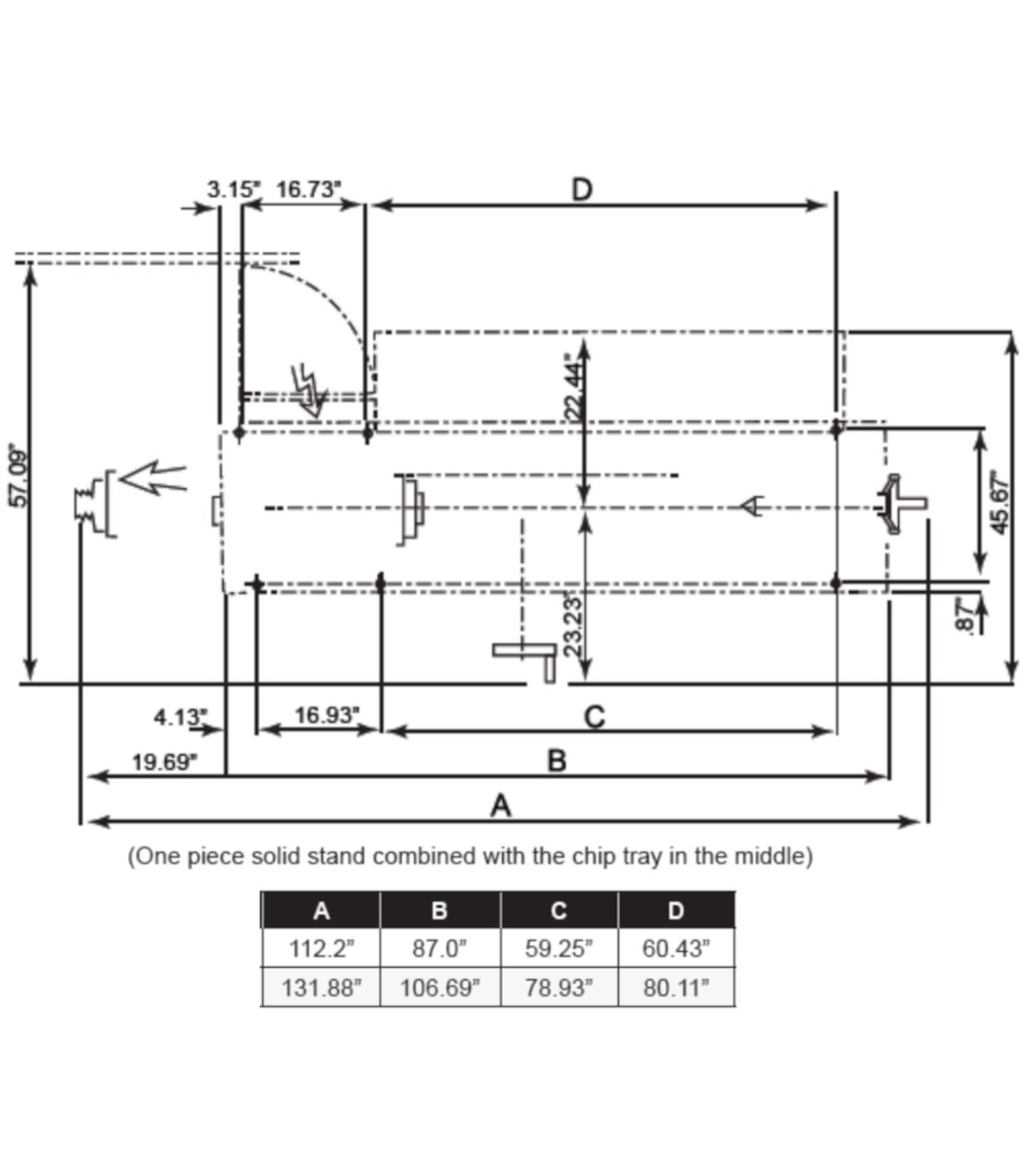

| Overall Dimensions (L x W x H) |
94 x 44 x 68 in. |
| Drive |
Geared Head |
What our Experts Think
-
Gear-Head Power: Provides consistent torque and smooth performance for heavy-duty machining.
-
ACU-RITE 203 DRO: Accurate digital readout improves precision and workflow efficiency.
-
Collet Closer: Enhances workholding for small-diameter parts, ensuring safety and accuracy.
-
Rigid Cast-Iron Bed: Delivers strength, stability, and reduced vibration during operation.
-
Industrial Reliability: Built for demanding machine shops, toolrooms, and professional metalworking.
Q&A

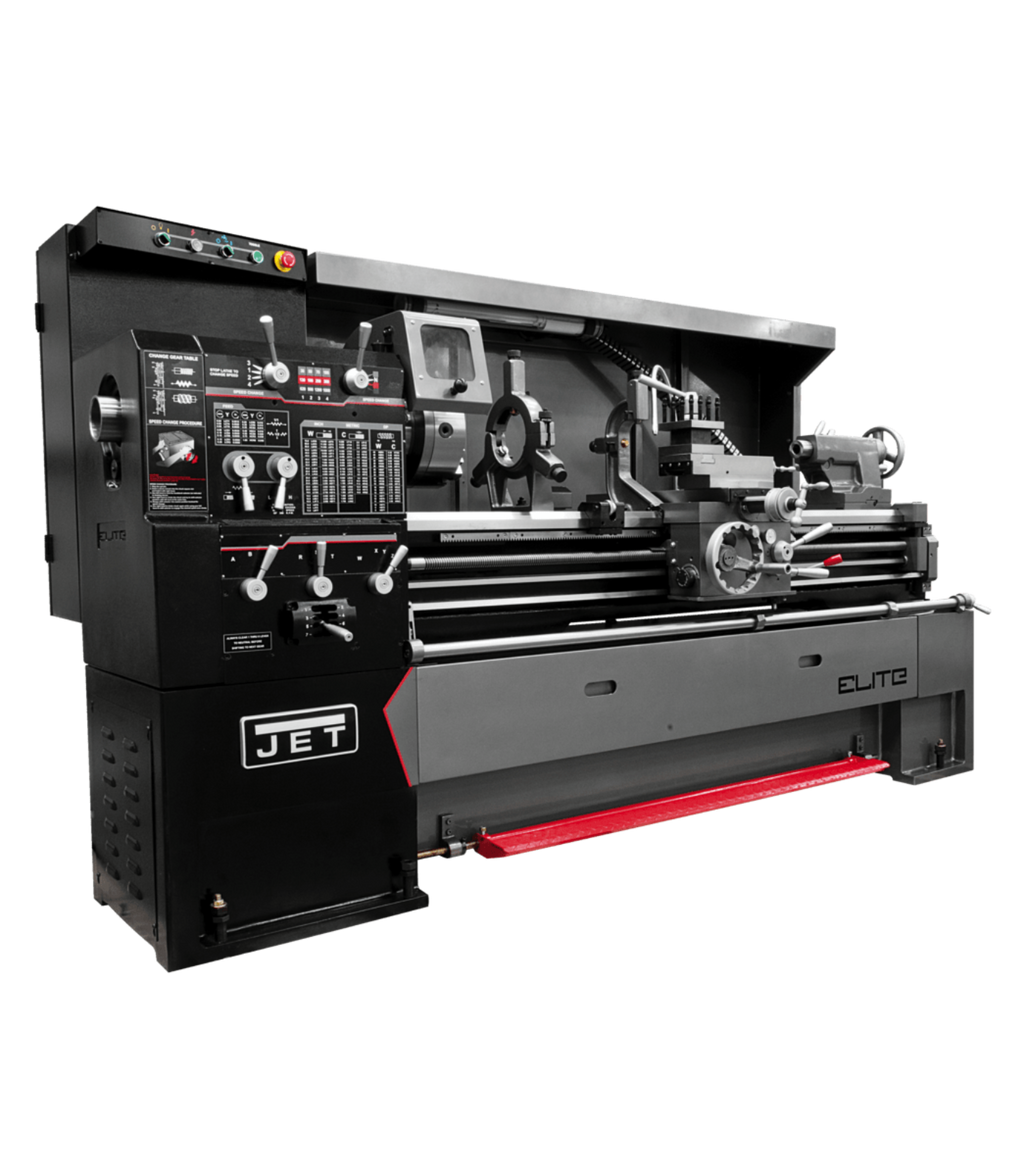

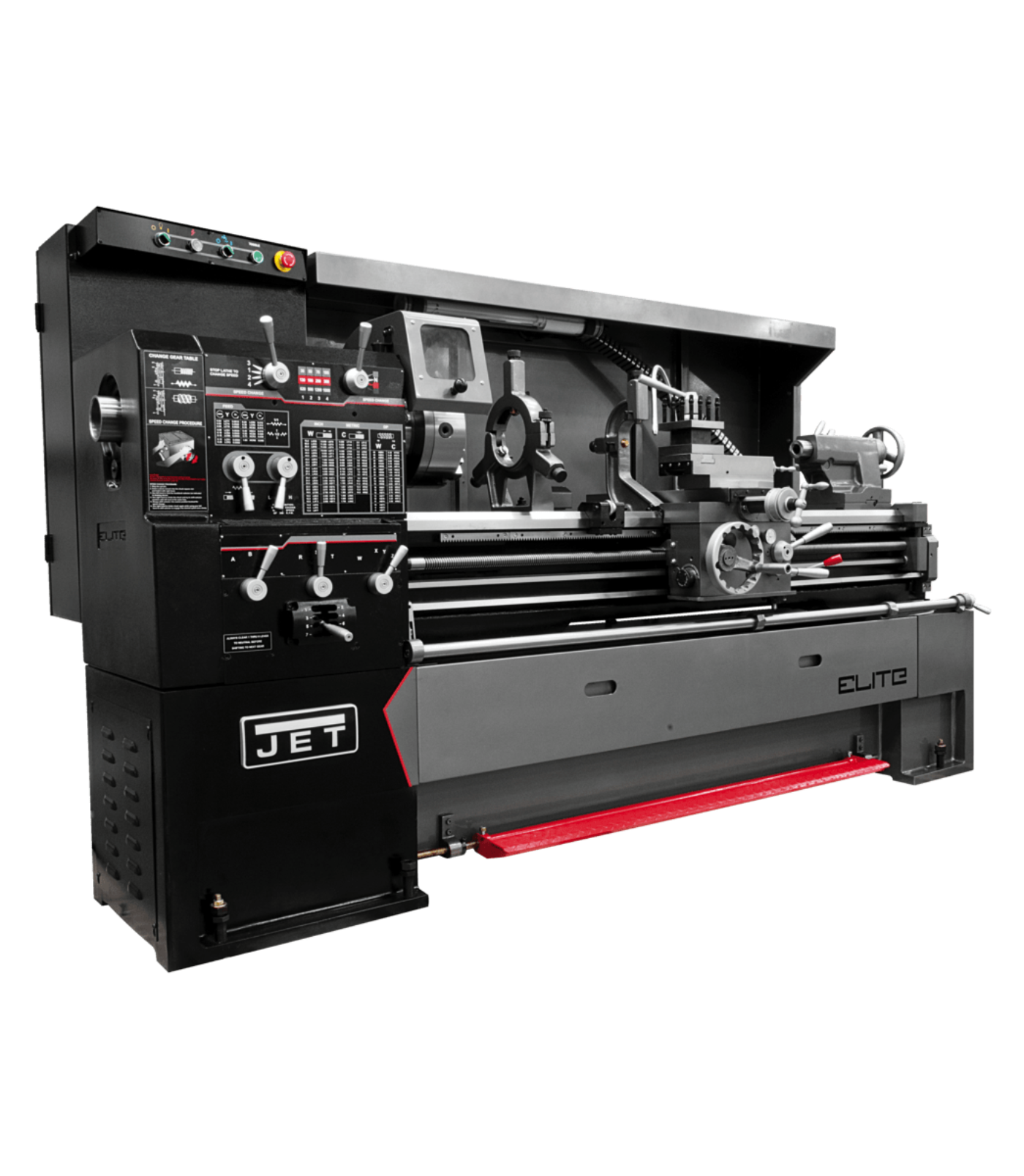

Q: What is the JET Elite EGH-1740 lathe?
A: The JET Elite EGH-1740 is a 17" x 40" geared-head precision engine lathe designed for heavy-duty machining, threading, and turning applications in professional and industrial environments.
Q: What does the ACU-RITE 203 DRO add to this lathe?
A: The ACU-RITE 203 Digital Readout provides accurate, real-time readouts of axis positioning, improving precision, repeatability, and reducing setup errors.
Q: How does the collet closer benefit operators?
A: The included collet closer allows for quick and secure clamping of workpieces, making it ideal for high-precision part production and frequent job changeovers.

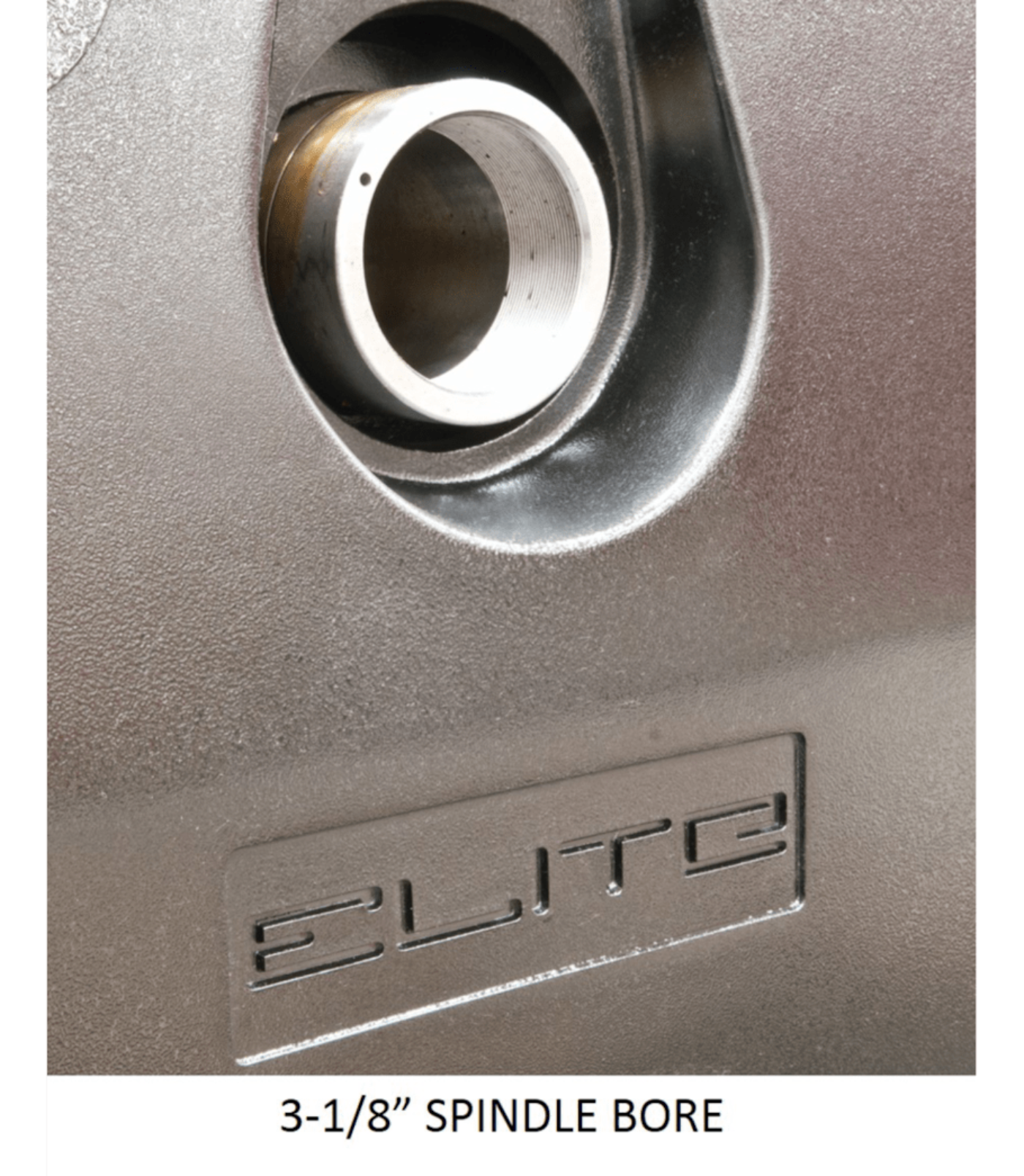

Q: What is the spindle bore size on the EGH-1740?
A: This model features a 3-1/8" spindle bore, enabling it to handle larger-diameter stock and tubing with ease.

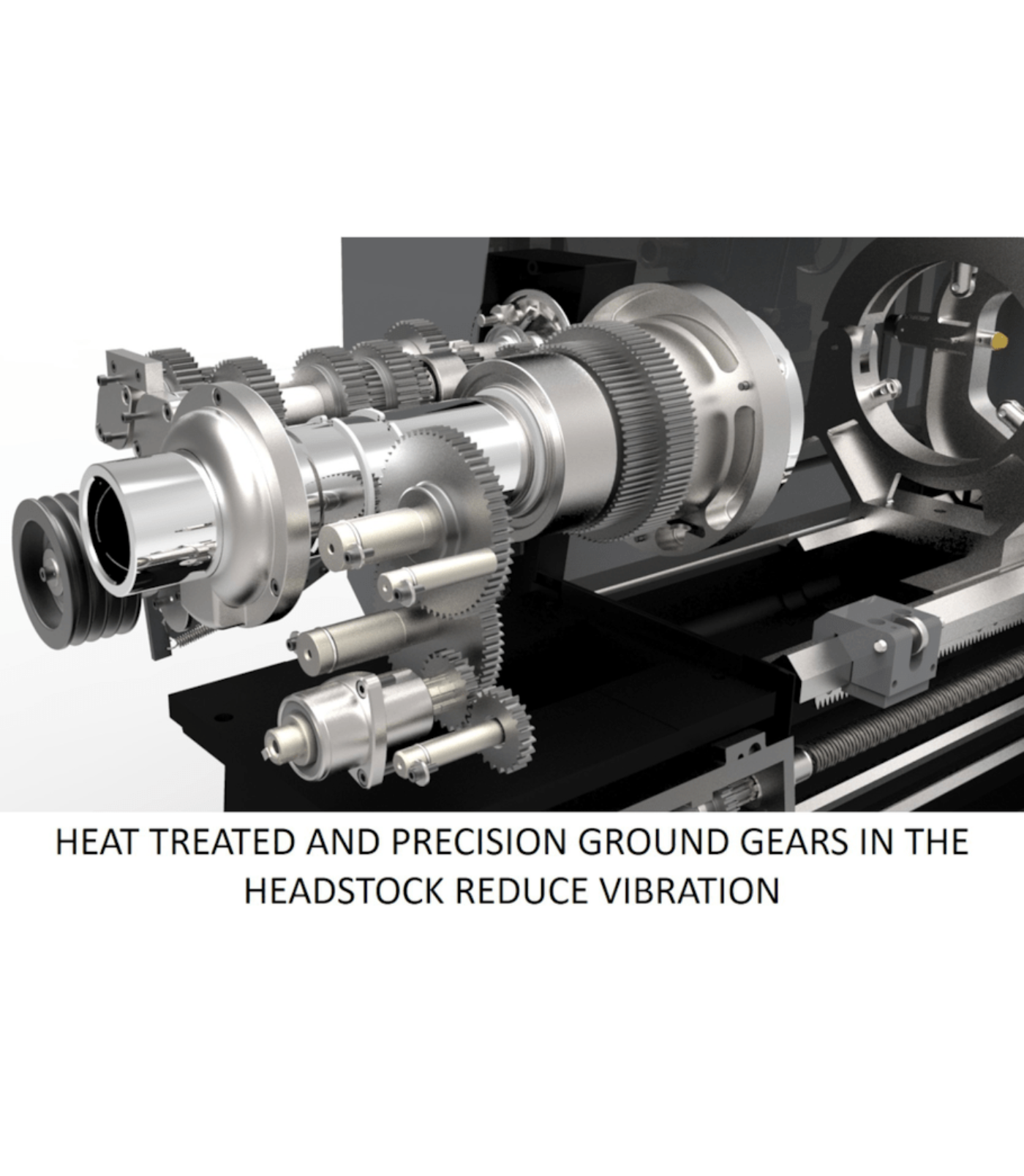

Q: What kind of drive system does it use?
A: The geared-head design provides consistent torque and power delivery, ideal for heavy cutting operations and maintaining accuracy under load.
Q: What bed construction ensures accuracy?

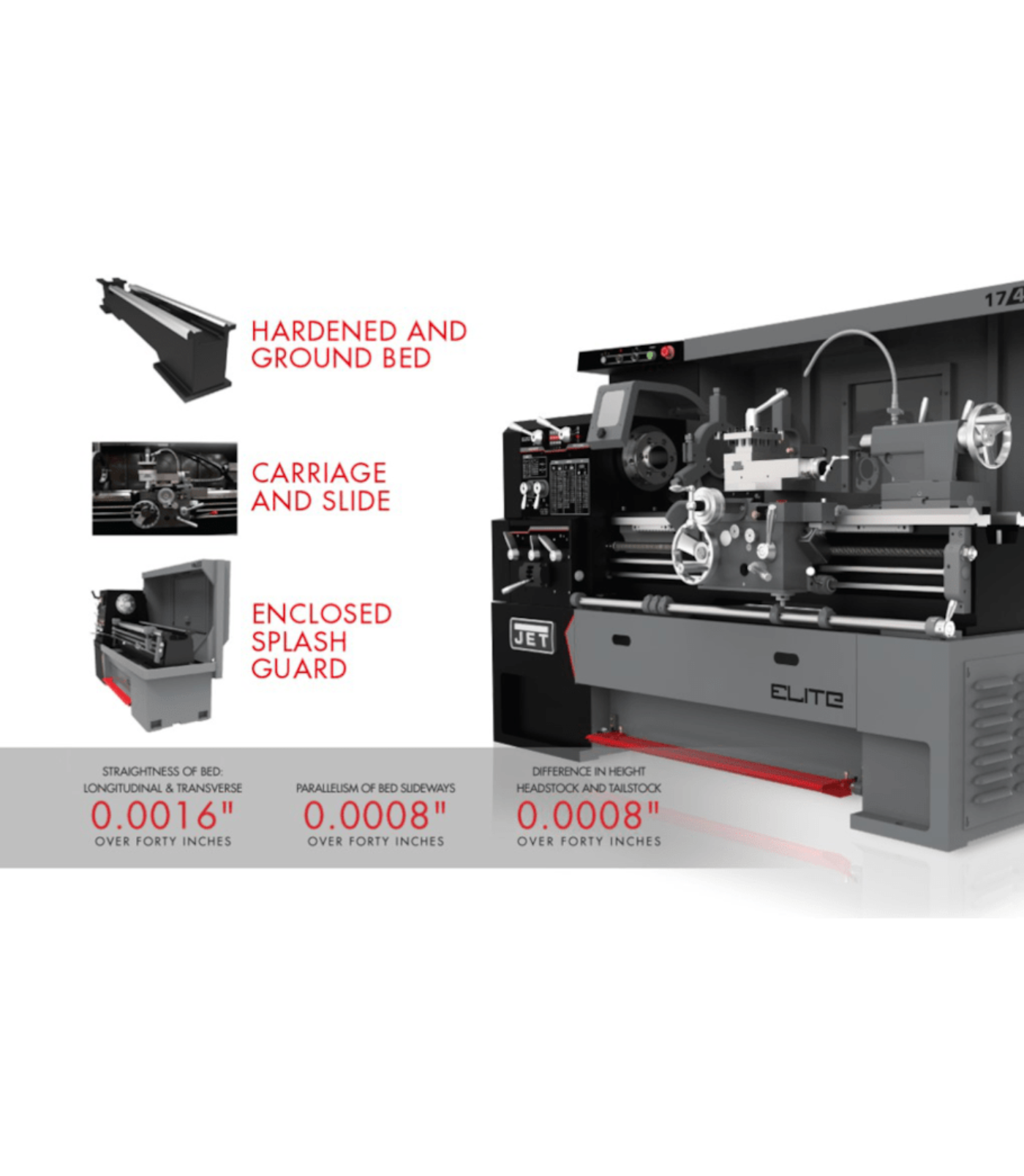

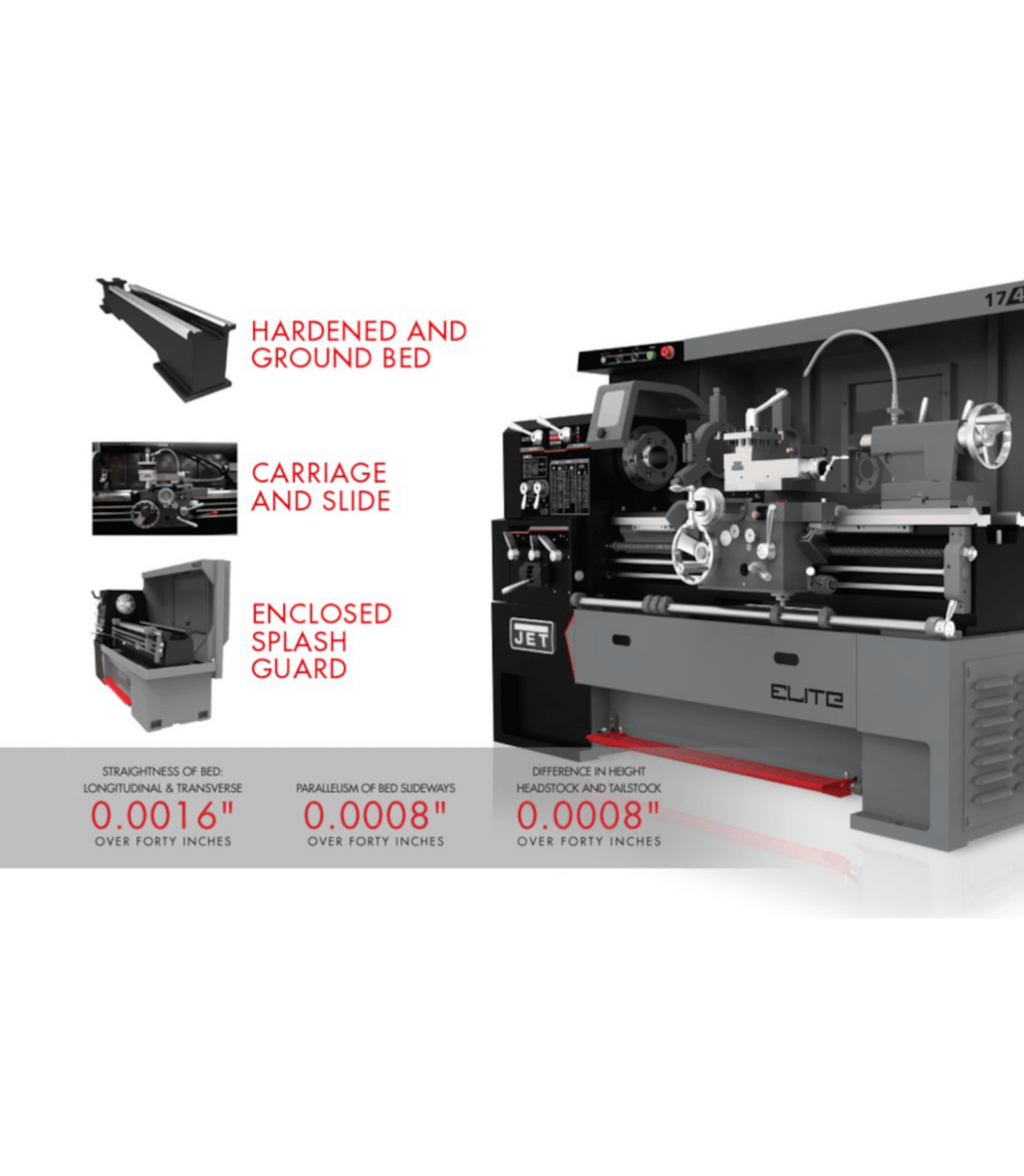

A: The lathe has an induction-hardened and precision-ground bed that resists wear, ensures rigidity, and maintains alignment for long-term precision.
Q: What machining operations can be performed with this lathe?
A: It can perform turning, facing, boring, threading (inch, metric, DP, and module), drilling, taper turning, and precision finishing.
Q: Who benefits most from this lathe setup?
A: Machine shops, manufacturing facilities, and training centers that need a balance of heavy-duty capacity, precision measurement, and efficient workholding.
Q: What makes this configuration stand out?
A: The combination of the ACU-RITE 203 DRO for precise digital accuracy and the collet closer for efficient part handling makes it a powerful solution for productivity and precision.
Q: Does the JET Elite EGH-1740 meet safety and quality standards?
A: Yes, it is CSA/ETL certified and built to JET Elite’s high industrial standards for durability, accuracy, and operator safety.
Maintenance Tips
-
Keep the lathe bed, carriage, and collet closer clean after each use to prevent chip buildup.
-
Lubricate spindle bearings, leadscrews, and sliding ways routinely to extend service life.
-
Check ACU-RITE 203 DRO accuracy and recalibrate to ensure precise measurements.
-
Inspect collet closer alignment and clamping pressure for reliable workholding.
-
Monitor belts, gears, and electrical systems for wear and proper tension.
-
Tighten gibs and adjust backlash to maintain cutting precision and rigidity.
-
Schedule alignment checks and servicing for consistent long-term performance.
