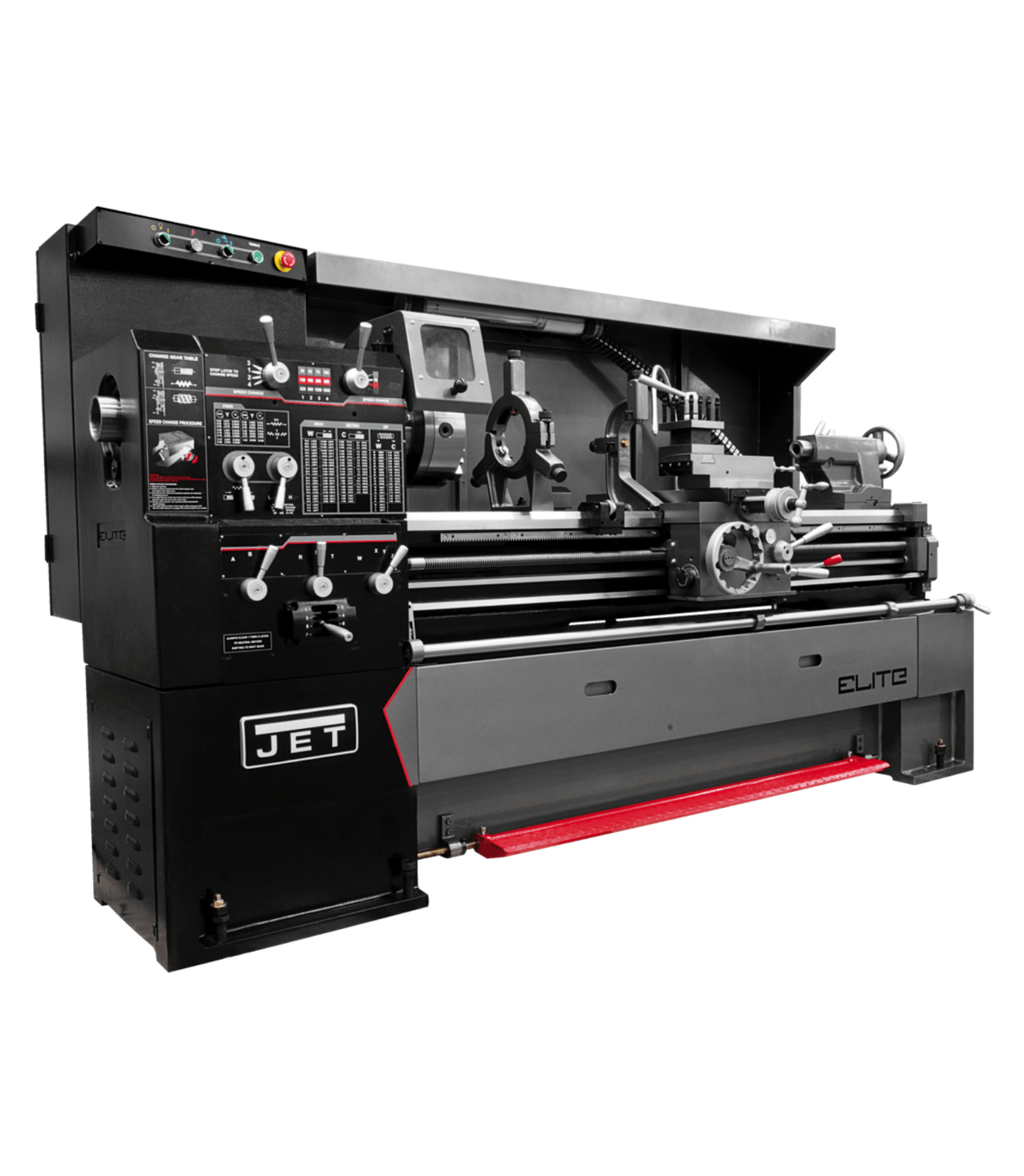

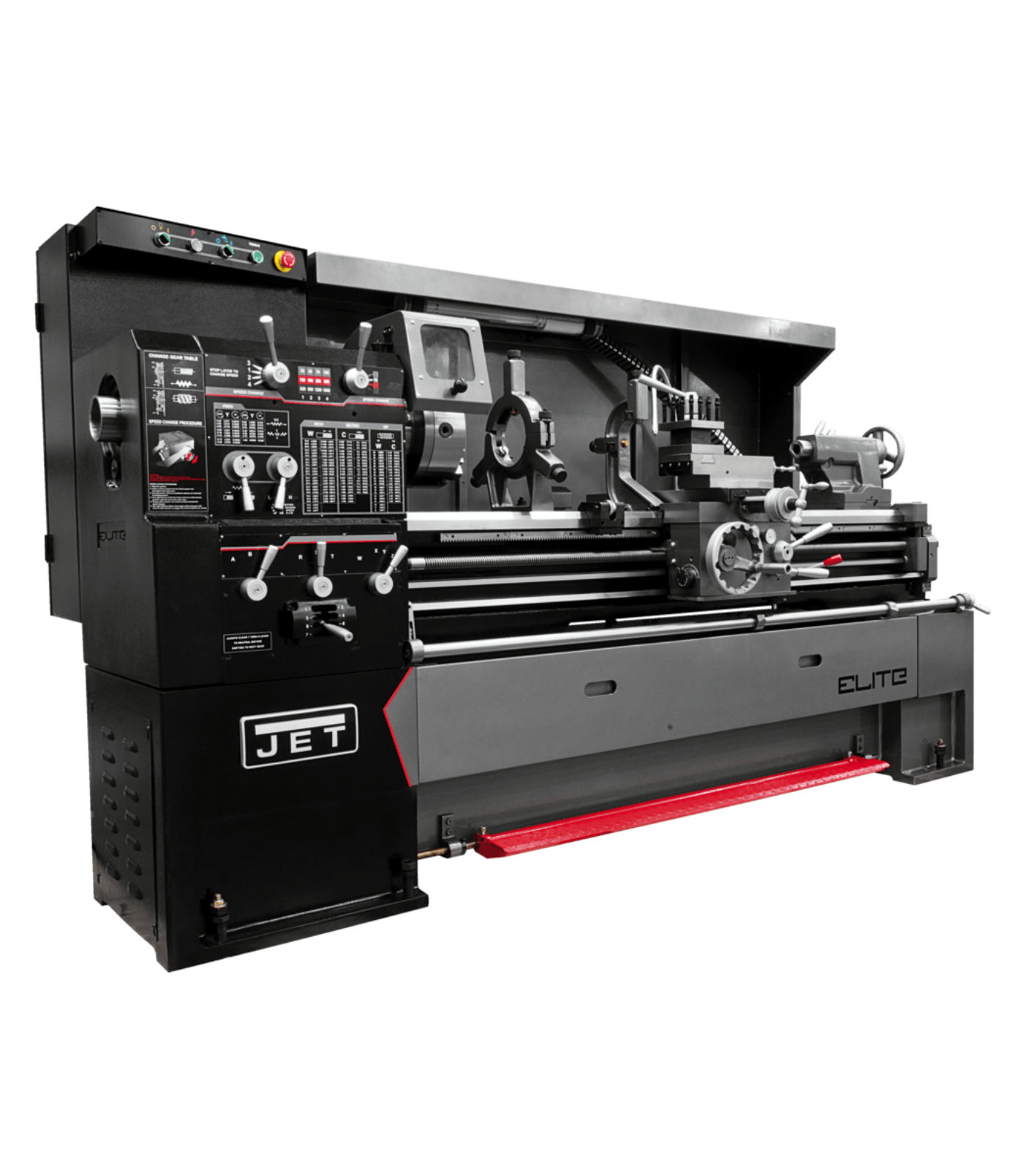

    JET Elite Lathe EGH-1740 with ACU-RITE 203 DRO with Taper Attachment and Collet Closer - JT9-892506

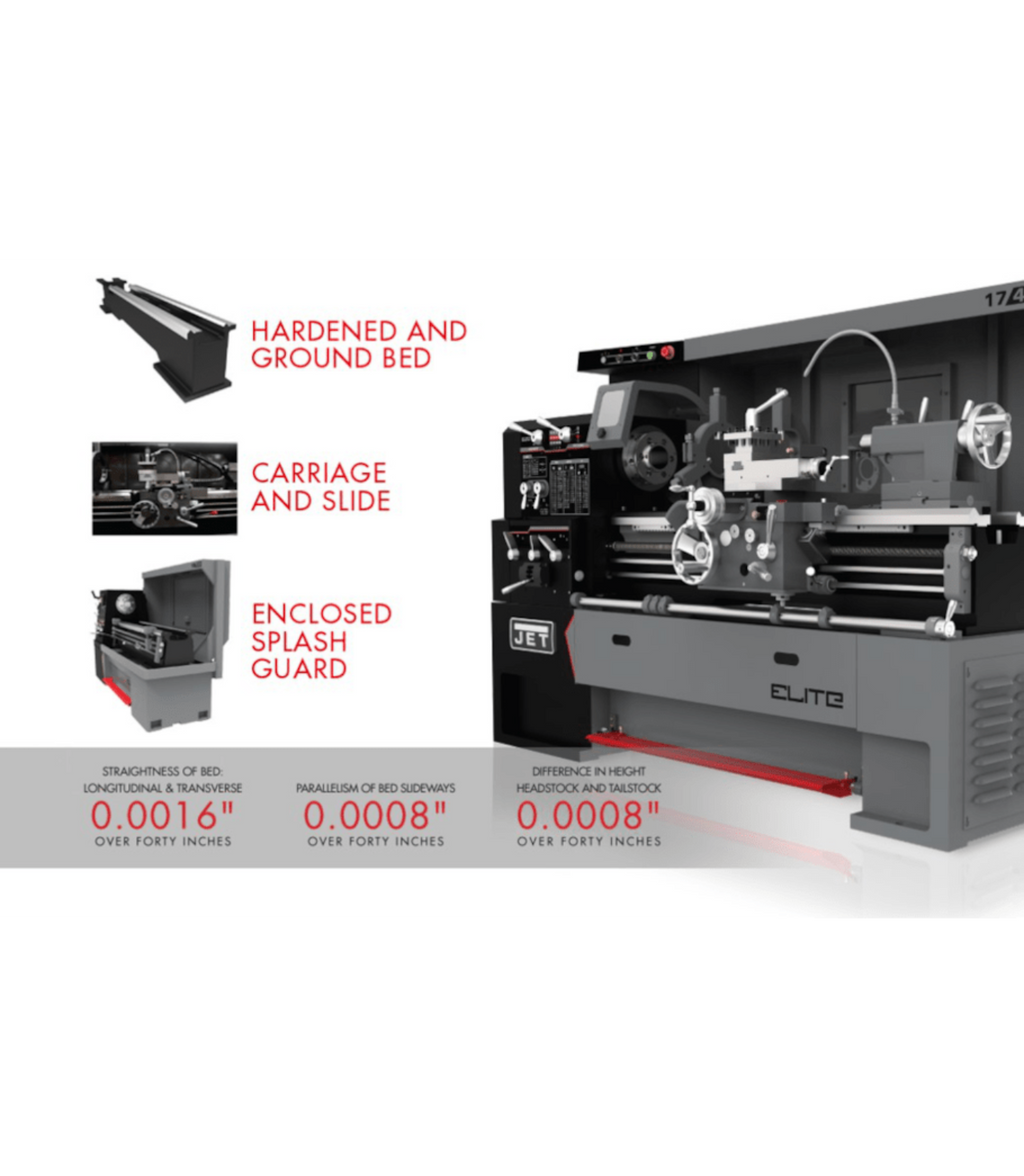

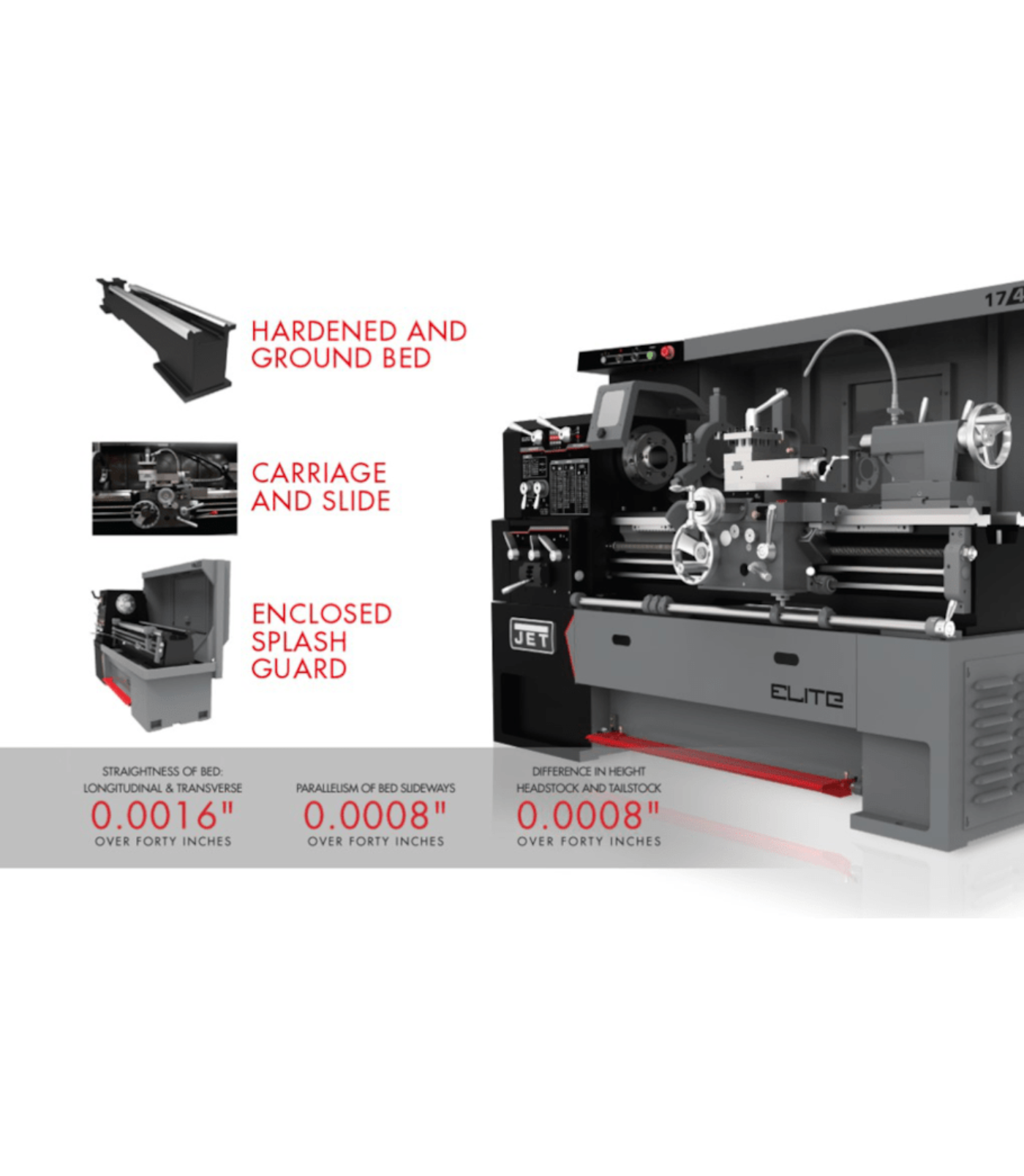

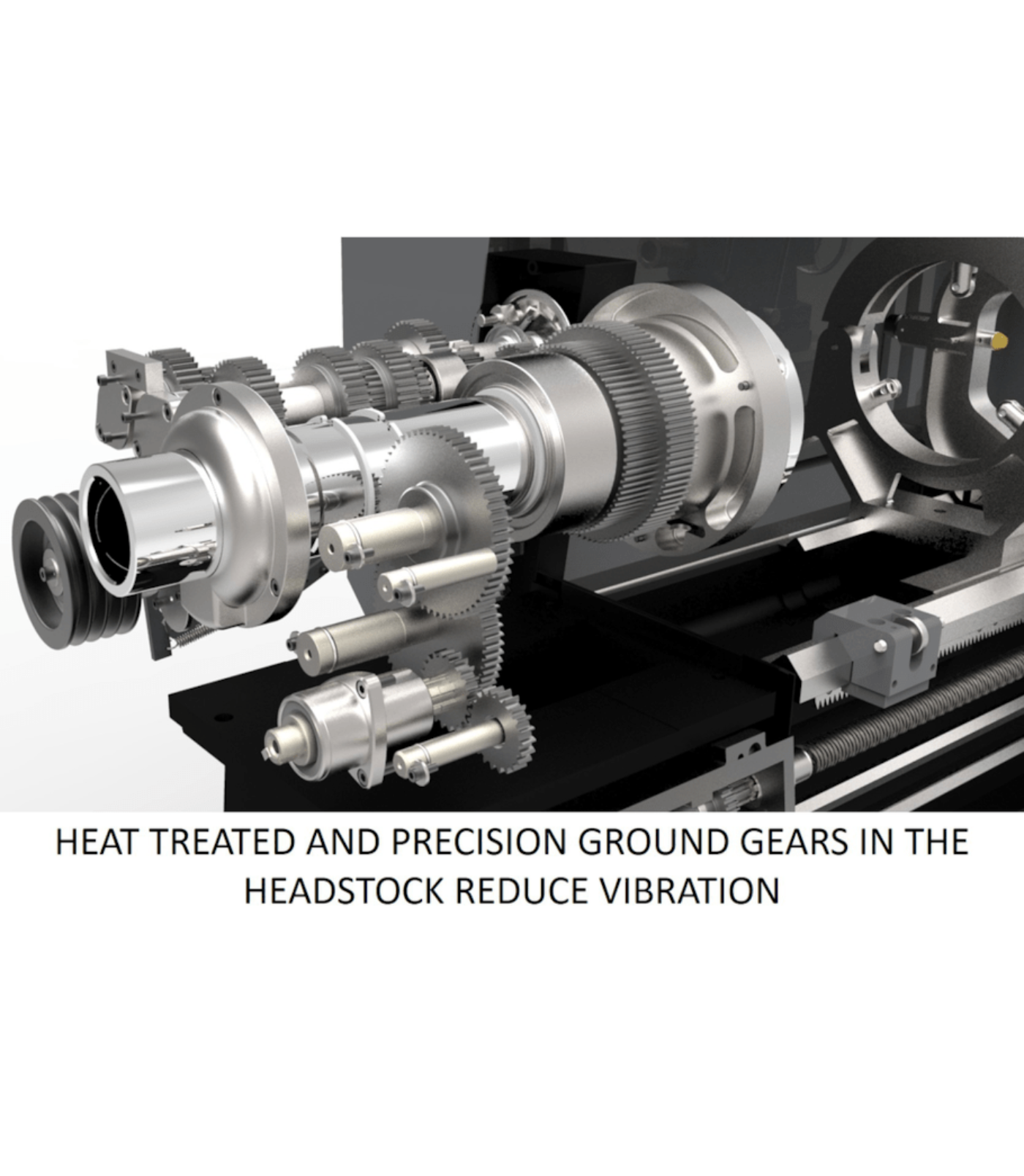

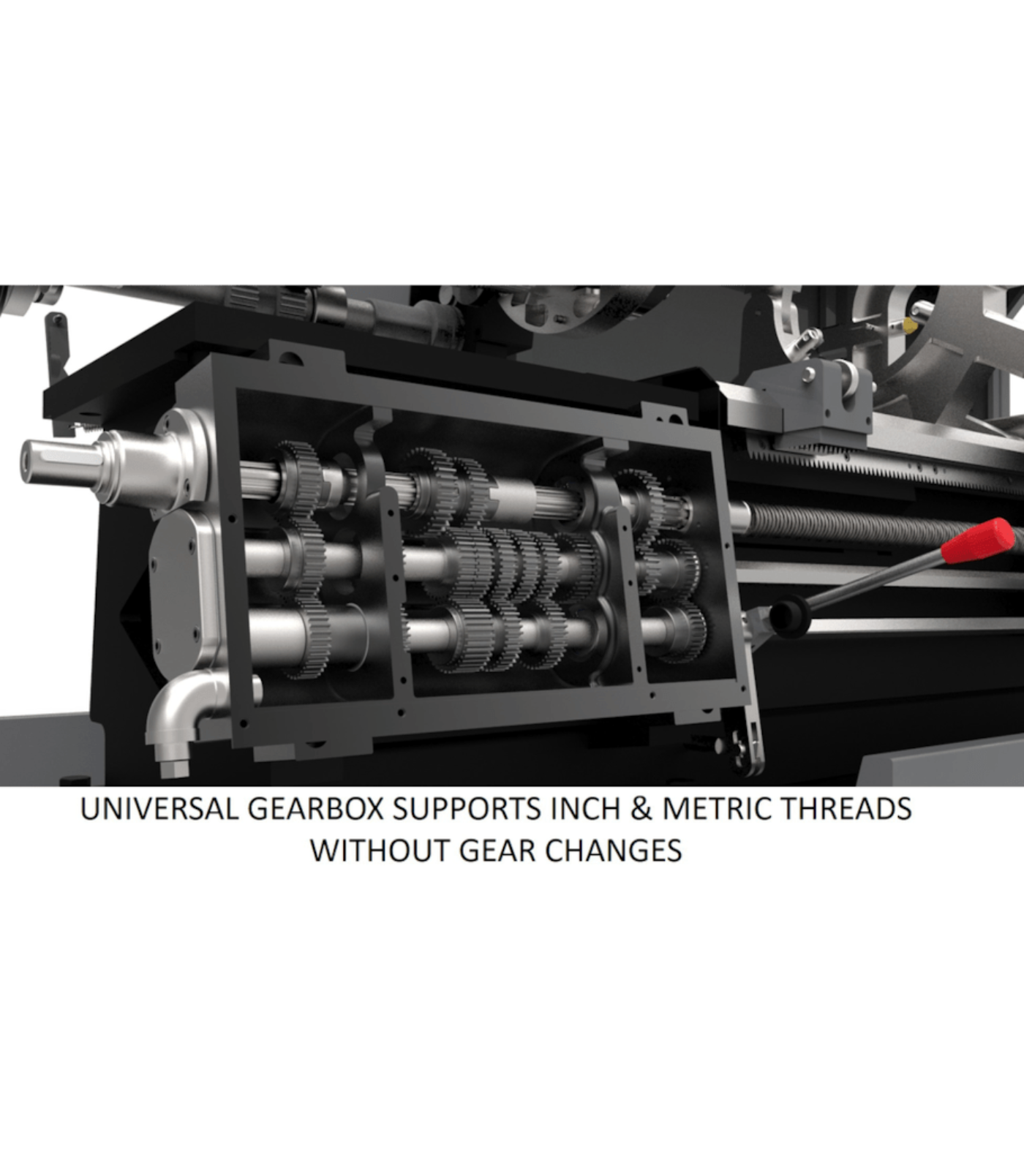

    Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

    Features
    • 4-Position Carriage Stop

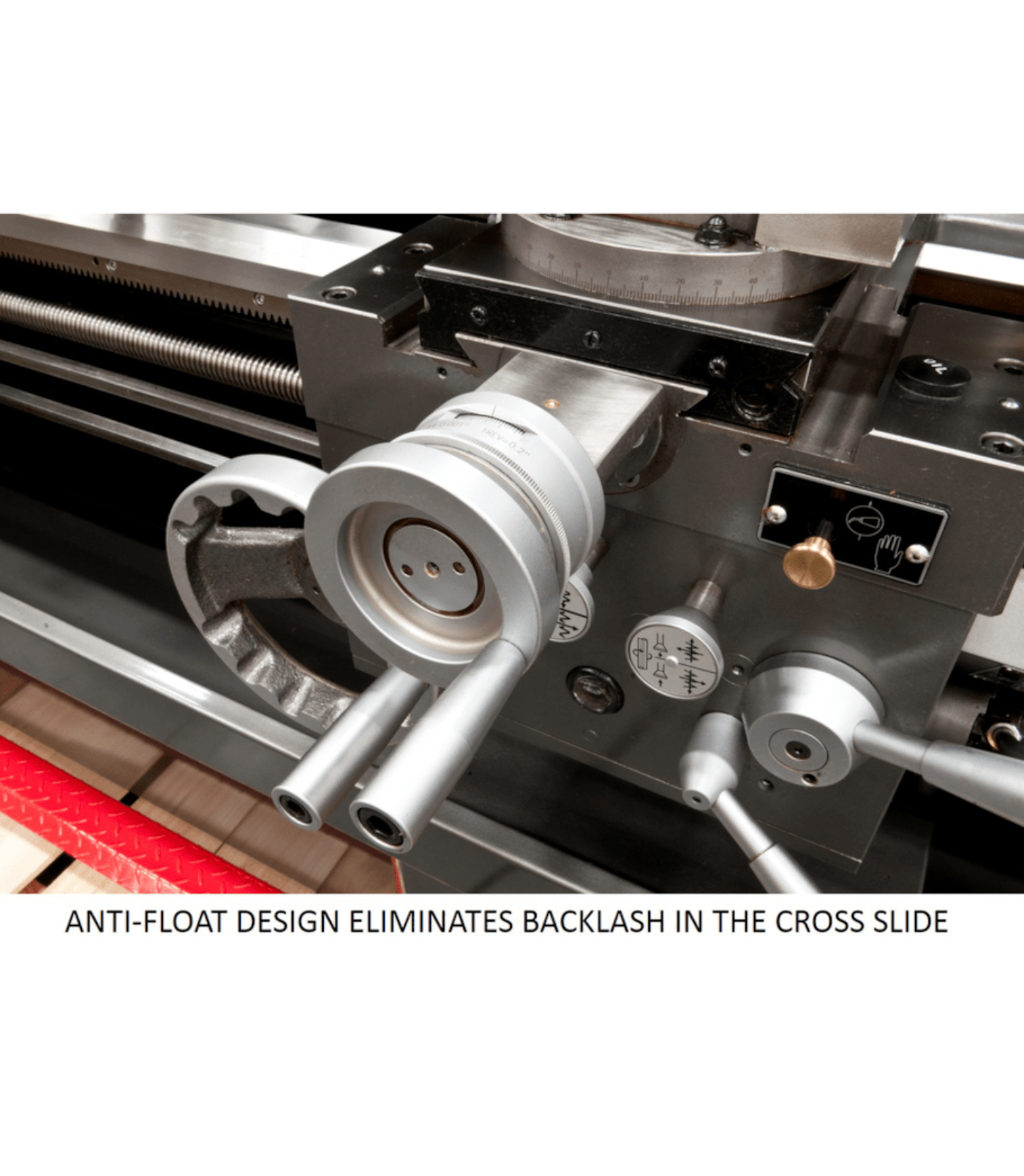

    • Anti-Float design eliminates backlash in the cross slide
    • Enclosed coolant system contains excess coolant for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

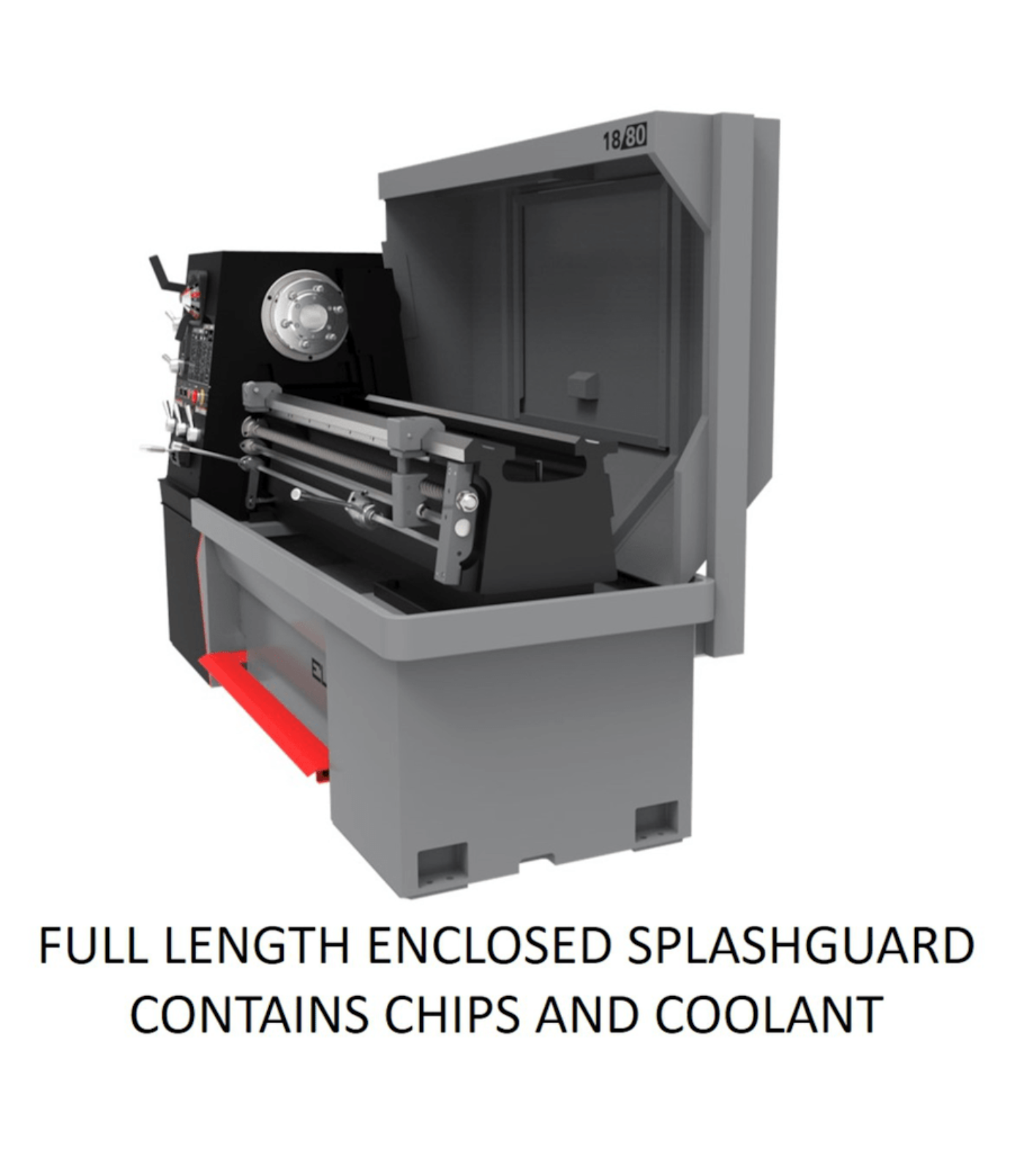

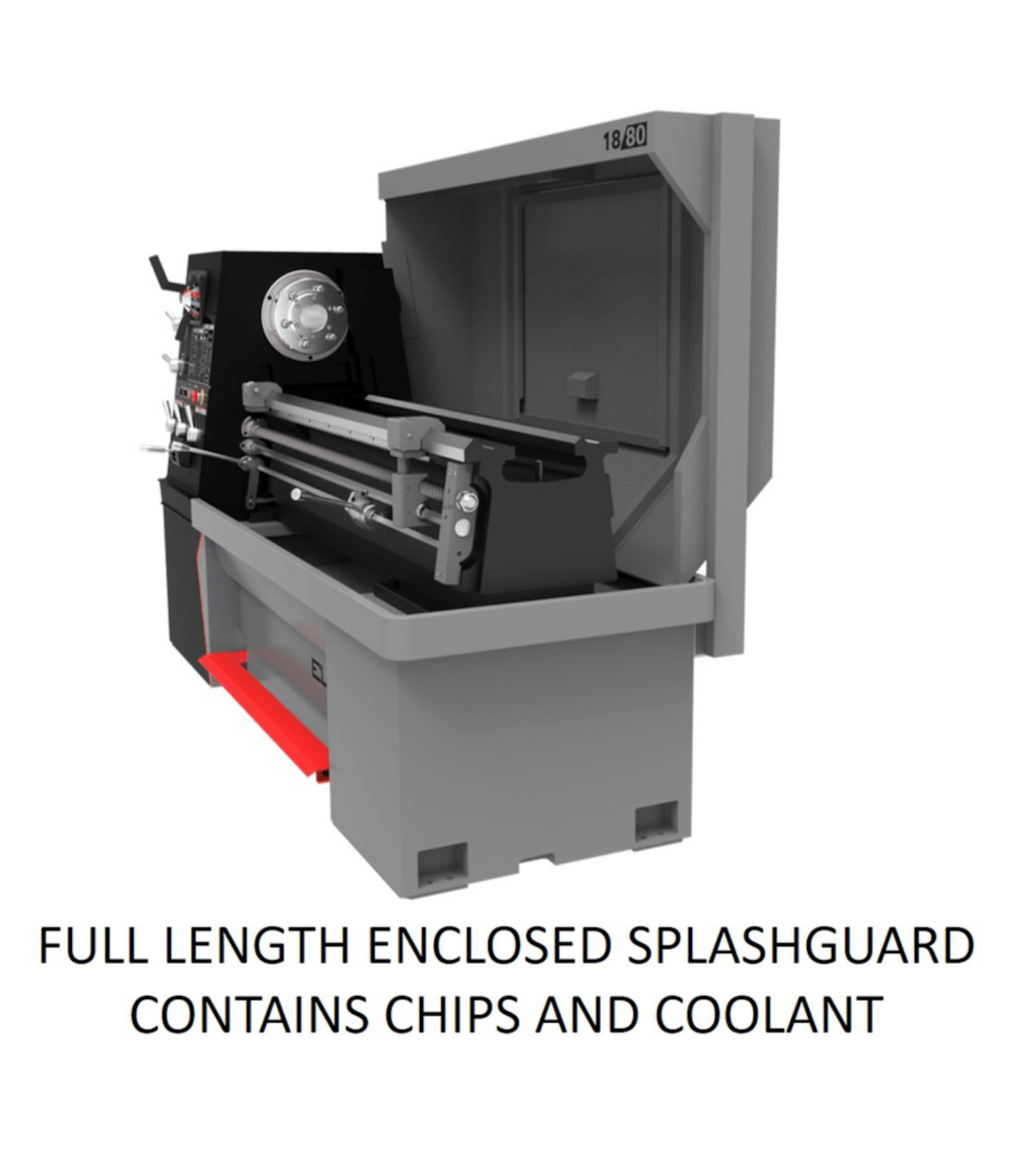

    • Full Length Splash Guard

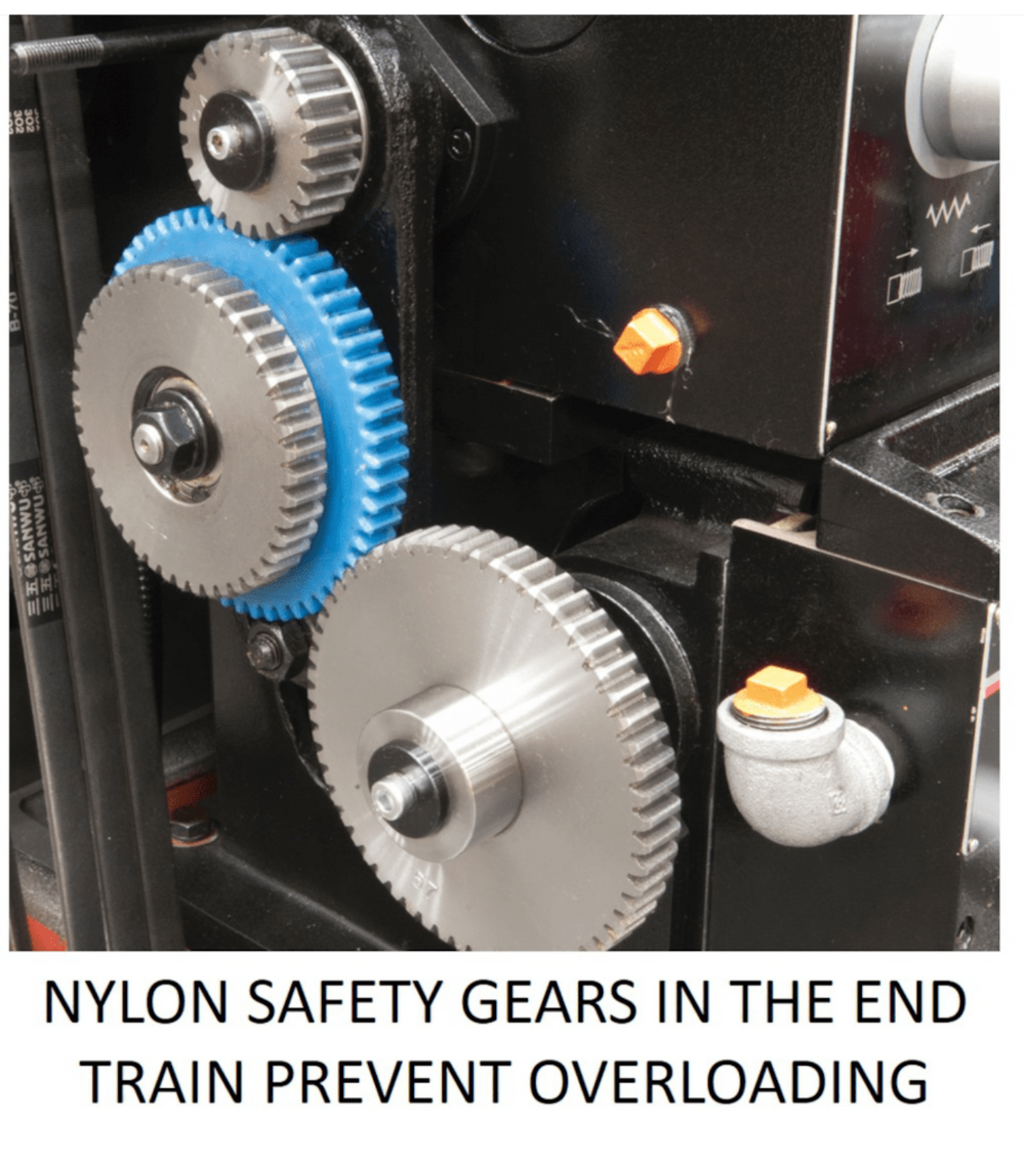

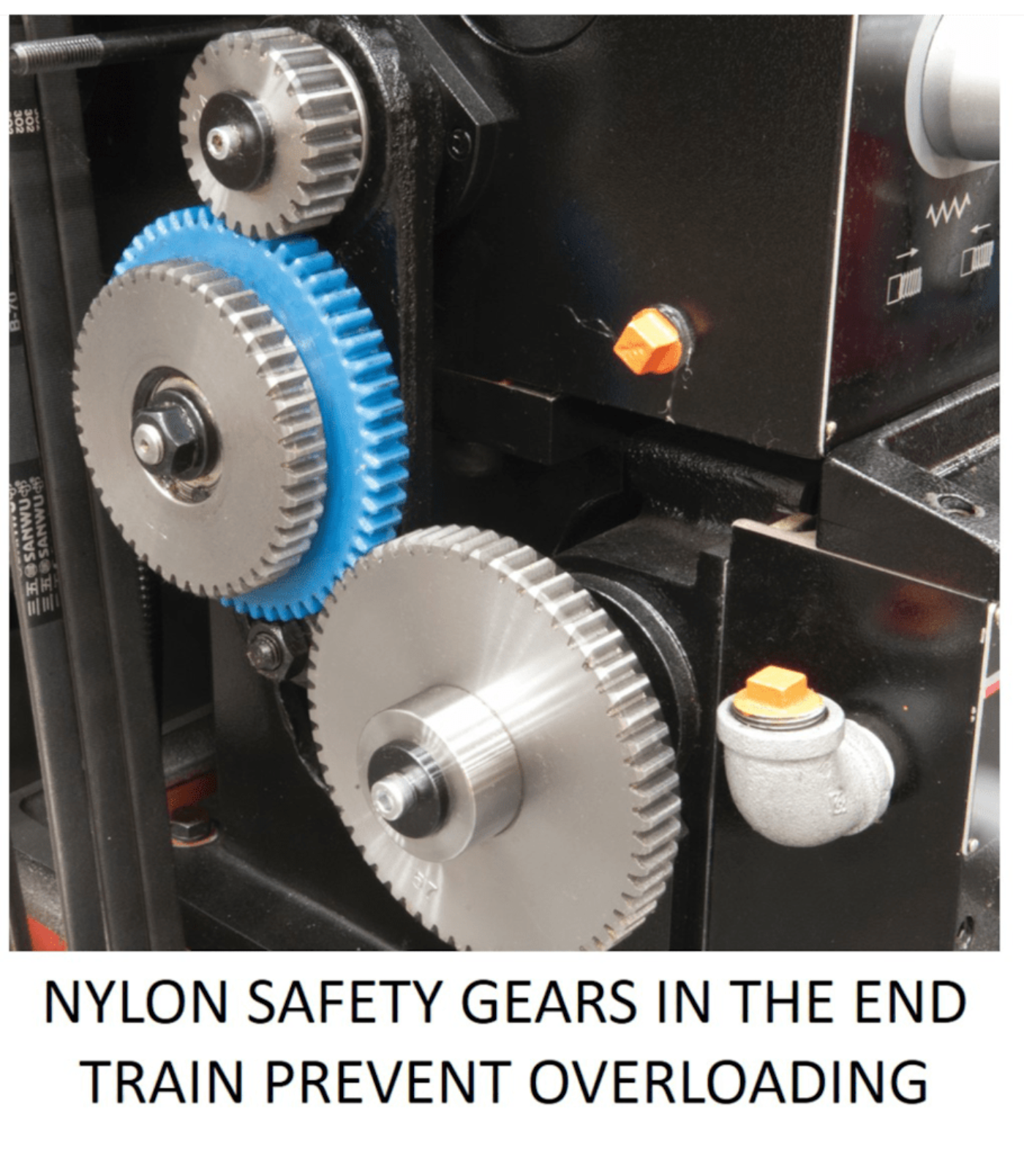

    • Nylon safety gears in the end train prevent overloading, increasing safety
    • One-Shot lubrication in the carriage reduces maintenance
    • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock

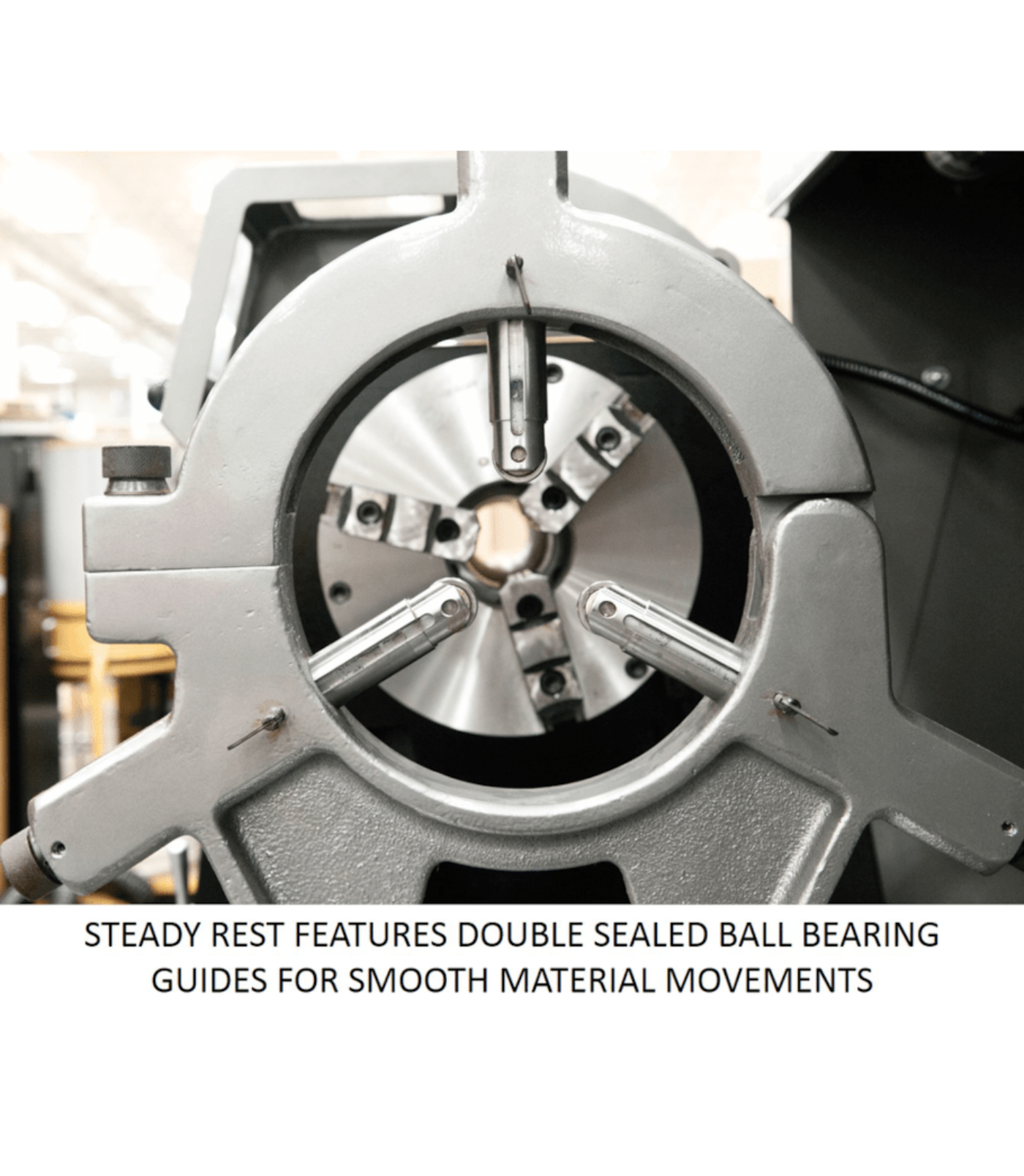

    • Steady rests feature ball bearing guides for smooth material movements
    Specifications
    Size 17 x 40
    Style (Type) Engine
    Swing Over Bed (In.) 17
    Swing Over Cross Slide (In.) 11
    Swing in Gap (In.) 7-2/3

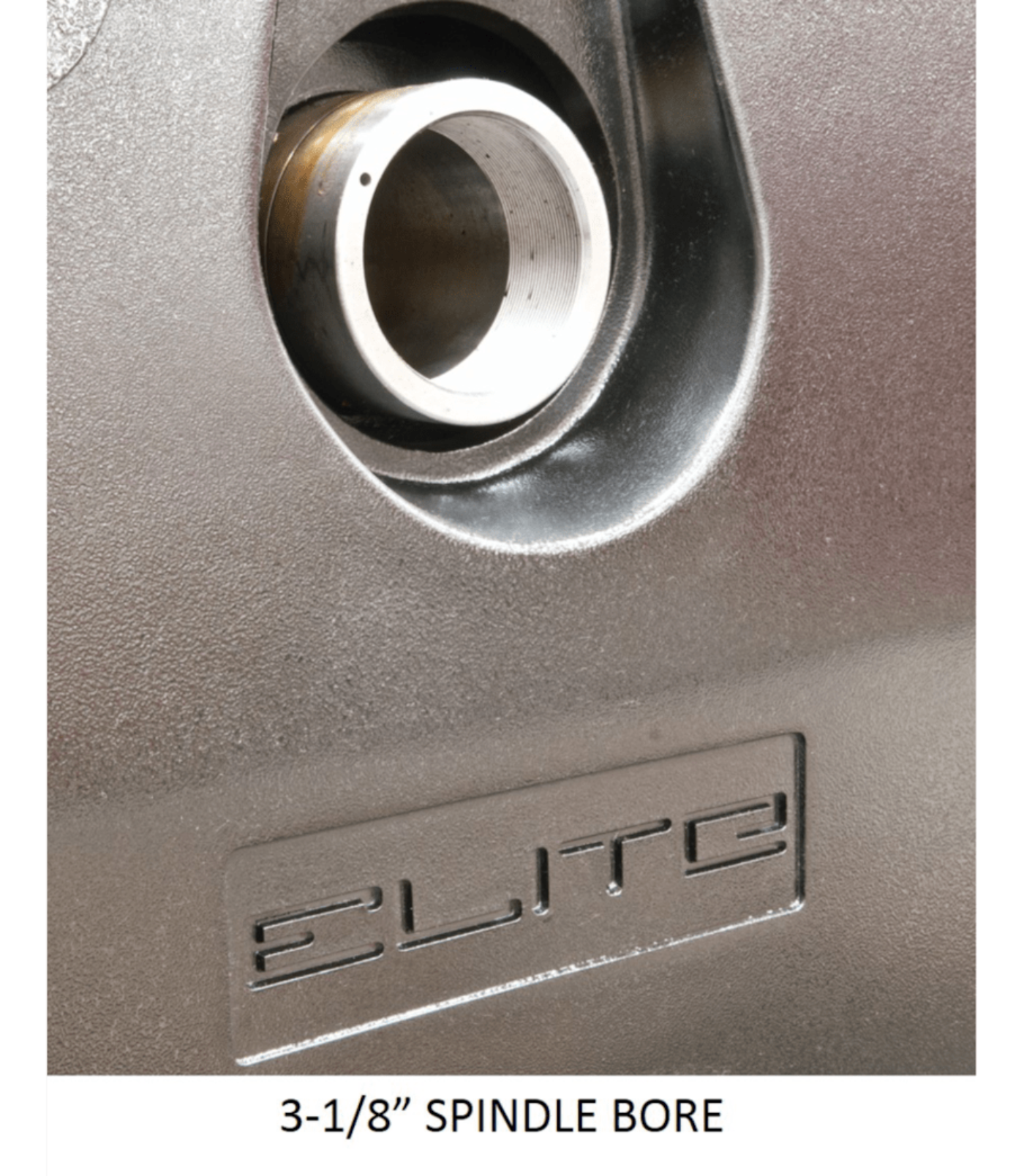

    Spindle Bore (In.) 3-1/8
    Spindle Mount D1-6
    Spindle Taper with Sleeve MT-5
    Number of Spindle Speeds 12
    Range of Spindle Speeds (RPM) 36 – 1,800
    Range of Longitudinal Feeds (IPR) 0.0015 – 0.04
    Range of Cross Feeds (IPR) 0.00075 – 0.02
    Number of Inch Threads 45
    Range of Inch Threads (TPI) 2 – 72
    Diametrial Pitch Threads Number 21
    Modular Pitch Threads Number 18
    Number of Metric Threads 39
    Range of Metric Threads 0.2 – 14
    Max Tool Size (In.) 1 x 1
    Compound Slide Travel (In.) 6-2/7
    Tailstock Spindle Travel (In.) 5
    Steady Rest Capacity (In.) 3/8 – 6-3/4
    Width of Bed (In.) 12
    Weight (Lbs.) 3,747
    Amperage Draw @ 230V 3Ph 22
    Amperage Draw @ 460V 3Ph 11

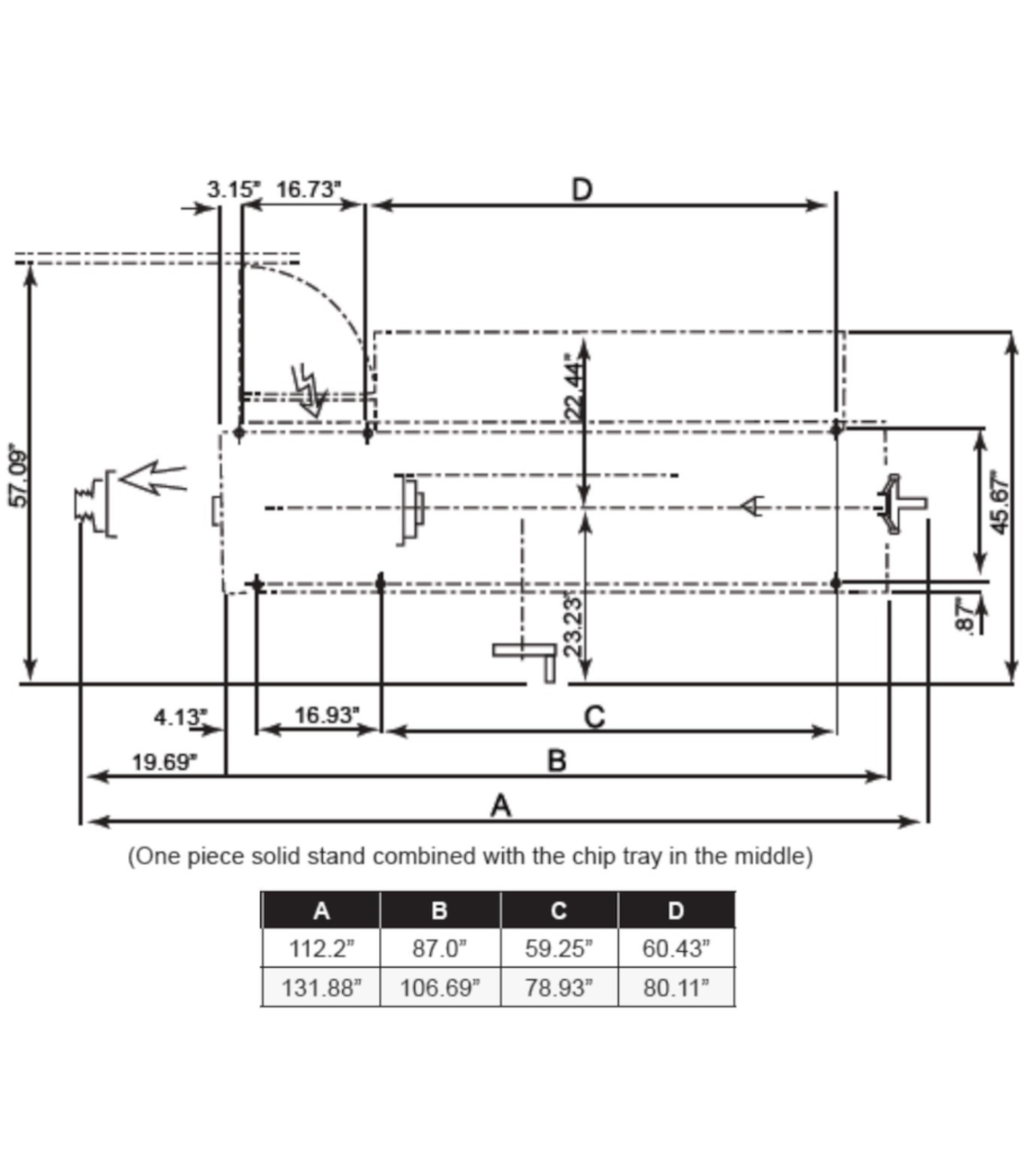

    Overall Dimensions (L x W x H) 94 x 44 x 68 in.
    Drive Geared Head
    What our Experts Think
    • 17" swing and 40" center distance handle large, heavy-duty turning projects with ease.

    • ACU-RITE 203 DRO provides precise digital readouts for accurate machining.

    • Taper attachment allows efficient, precise taper cutting.

    • Collet closer enables fast, secure workholding to enhance productivity.

    • Rigid cast-iron construction with hardened gears ensures stability, reduced vibration, and long-term durability.

    Q&A

    Q: What type of lathe is the JET Elite EGH-1740?
    A: It’s a 17x40 gear head engine lathe built for heavy-duty, high-precision metalworking.

    Q: What does the ACU-RITE 203 DRO provide?
    A: The digital readout delivers precise measurements, improved repeatability, and easy-to-read data for accuracy.

    Q: What is the function of the taper attachment?
    A: It allows accurate cutting of tapers without adjusting the compound rest, ideal for complex turning tasks.

    Q: What is the benefit of the collet closer?
    A: It ensures quick, secure, and precise clamping of workpieces for consistent machining results.

    Q: What are the swing and center specifications?
    A: This lathe has a 17-inch swing over bed and a 40-inch distance between centers.

    Q: Where is this lathe best used?
    A: Perfect for machine shops, tool rooms, and industrial facilities needing high-precision, versatile turning.

    Maintenance Tips
    • Clean bedways, carriage, and tooling surfaces after each use to remove chips and debris.

    • Lubricate gears, bearings, and sliding components according to the manufacturer’s schedule.

    • Keep ACU-RITE 203 DRO scales and sensors dust-free for accurate readings.

    • Inspect and maintain the taper attachment regularly to ensure smooth, precise operation.

    • Check the collet closer for proper function and maintain as needed.

    • Examine belts, feed screws, and gibs for wear; adjust tension and alignment as required.

    • Tighten tool post, tailstock, and fasteners to maintain rigidity and machining precision.

    • Schedule periodic professional servicing to extend machine life and ensure consistent performance.
