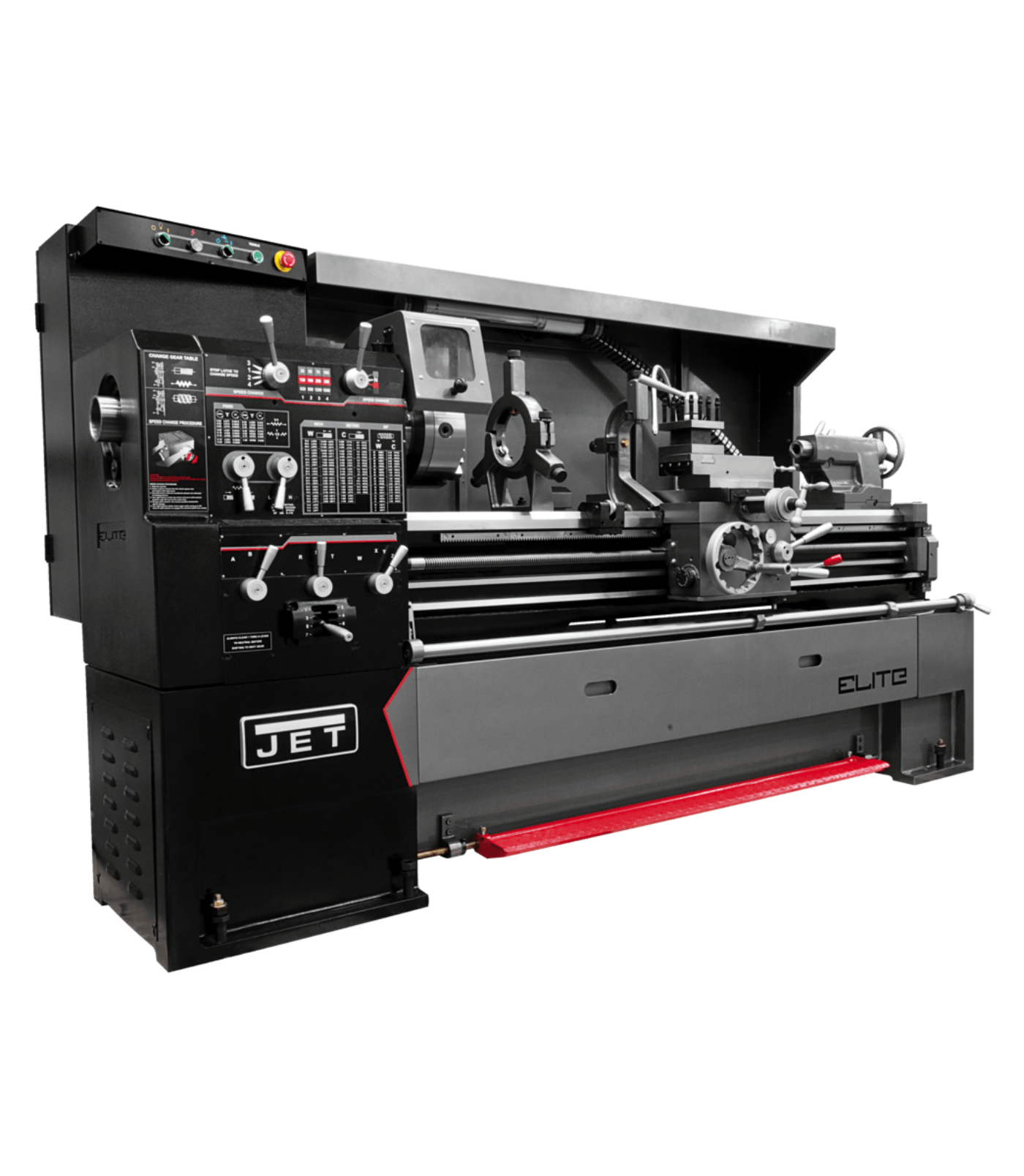

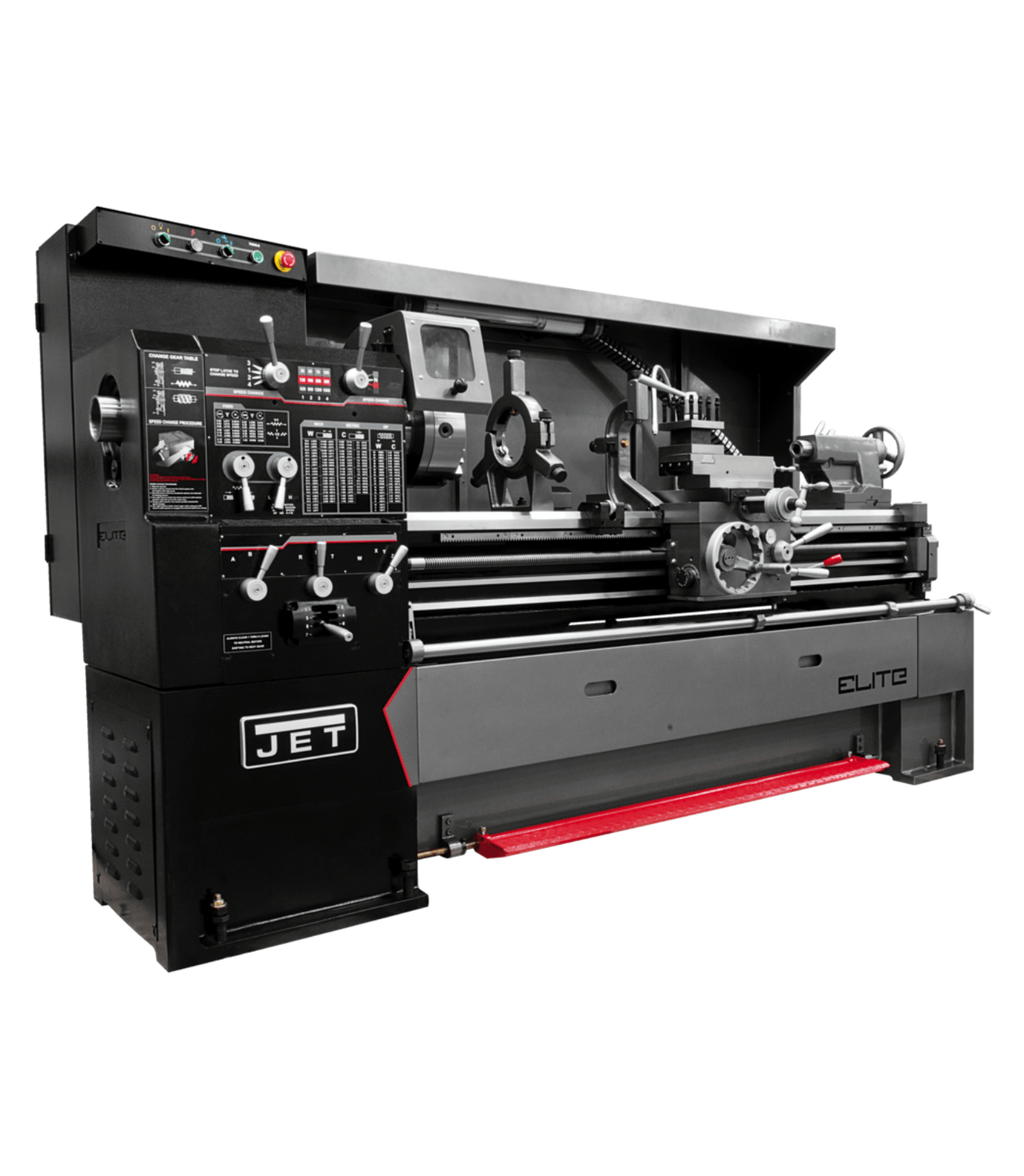

    JET Elite Lathe EGH-1740 with ACU-RITE 303 DRO - JT9-892507

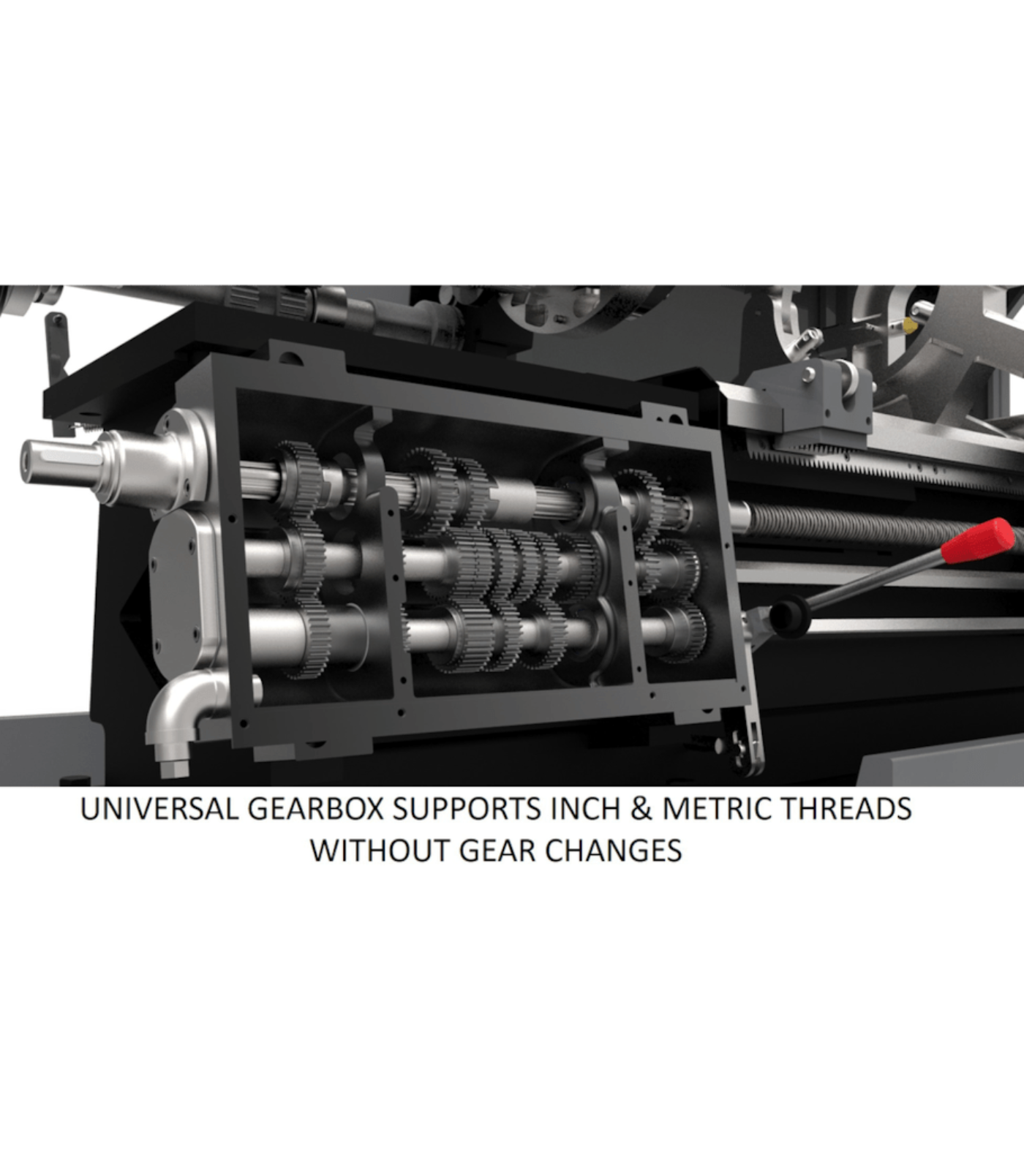

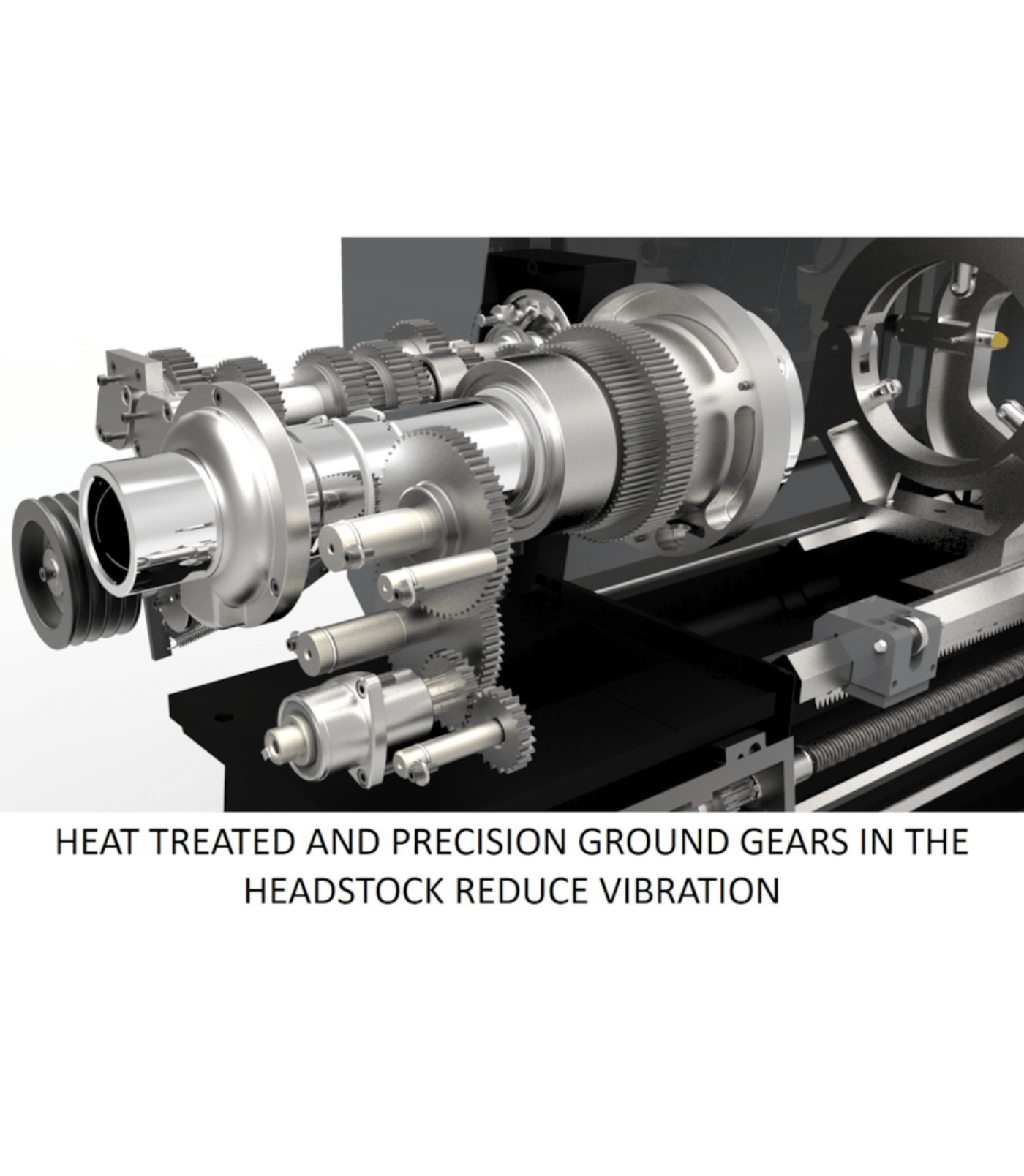

    Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

    Features
    • 4-Position Carriage Stop
    • Anti-Float design eliminates backlash in the cross slide
    • Enclosed coolant system contains excess coolant for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine

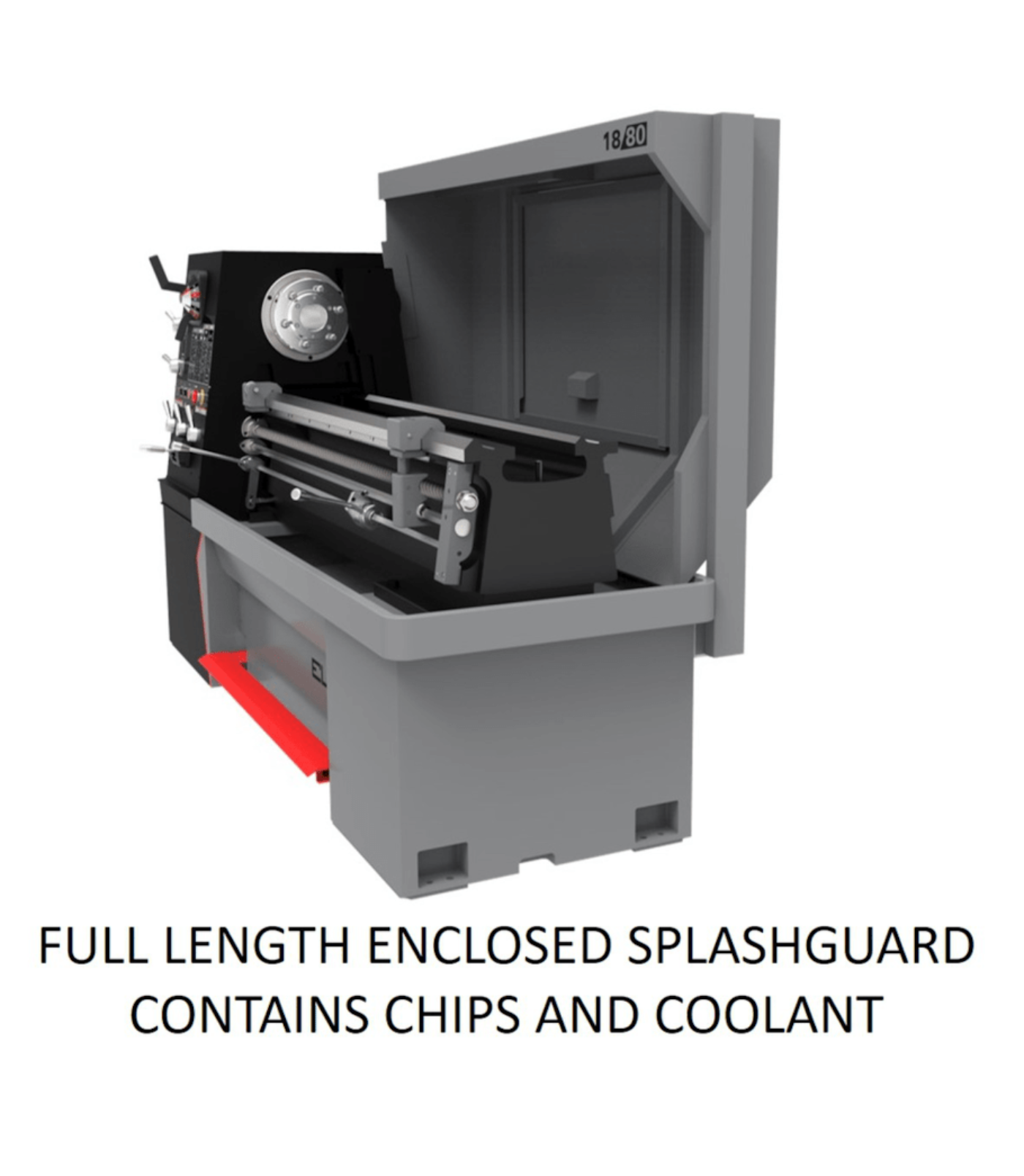

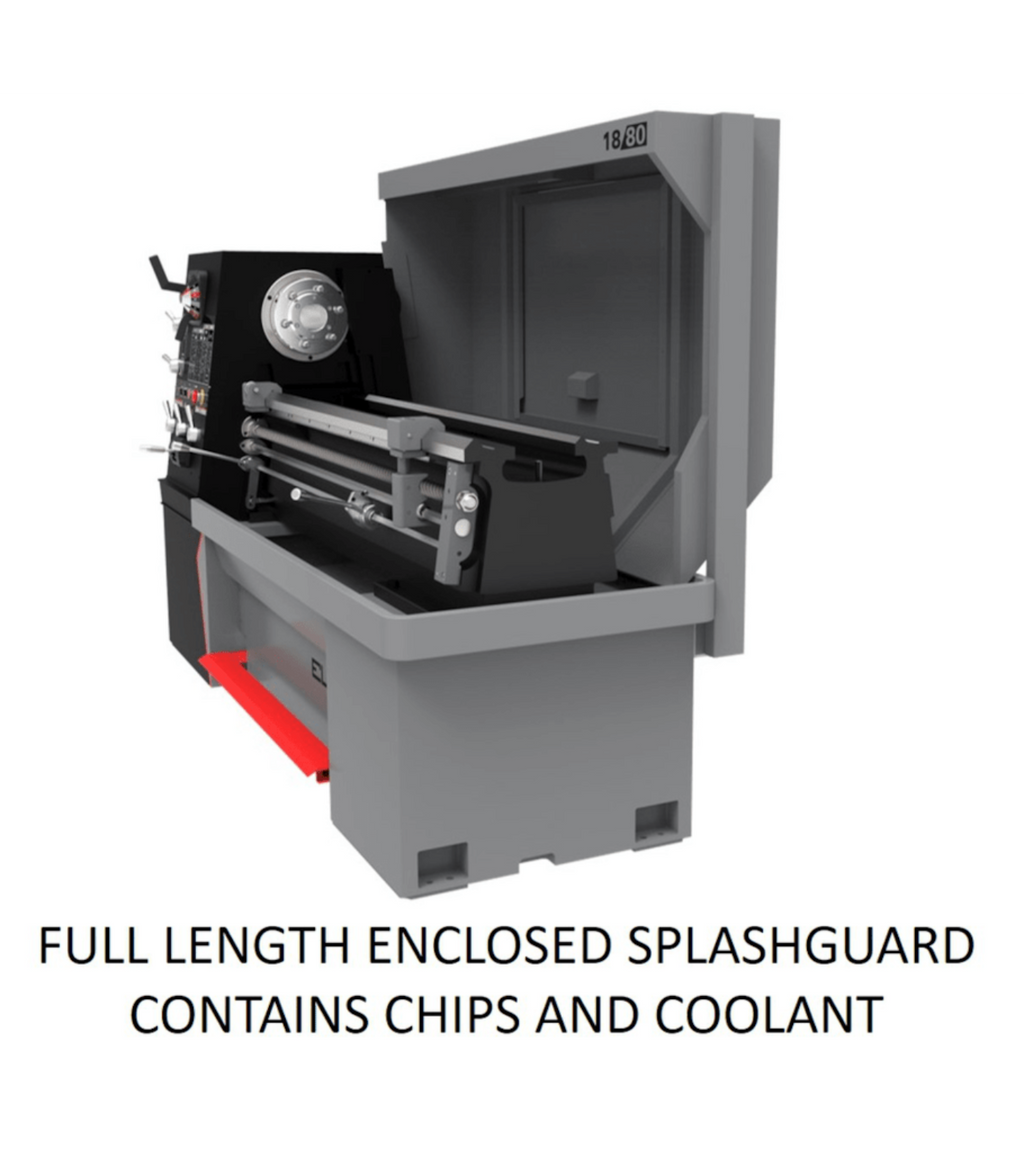

    • Full Length Splash Guard

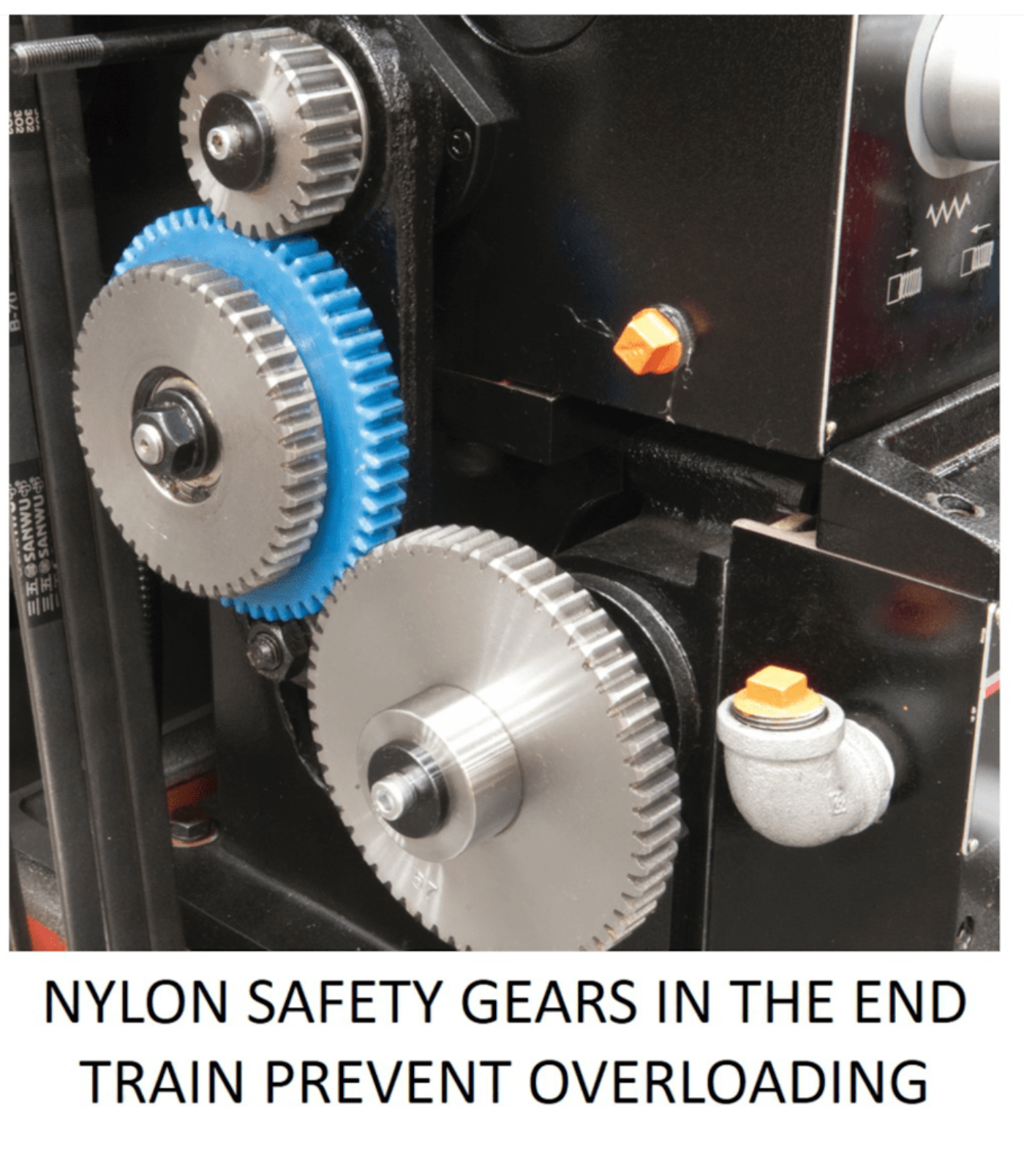

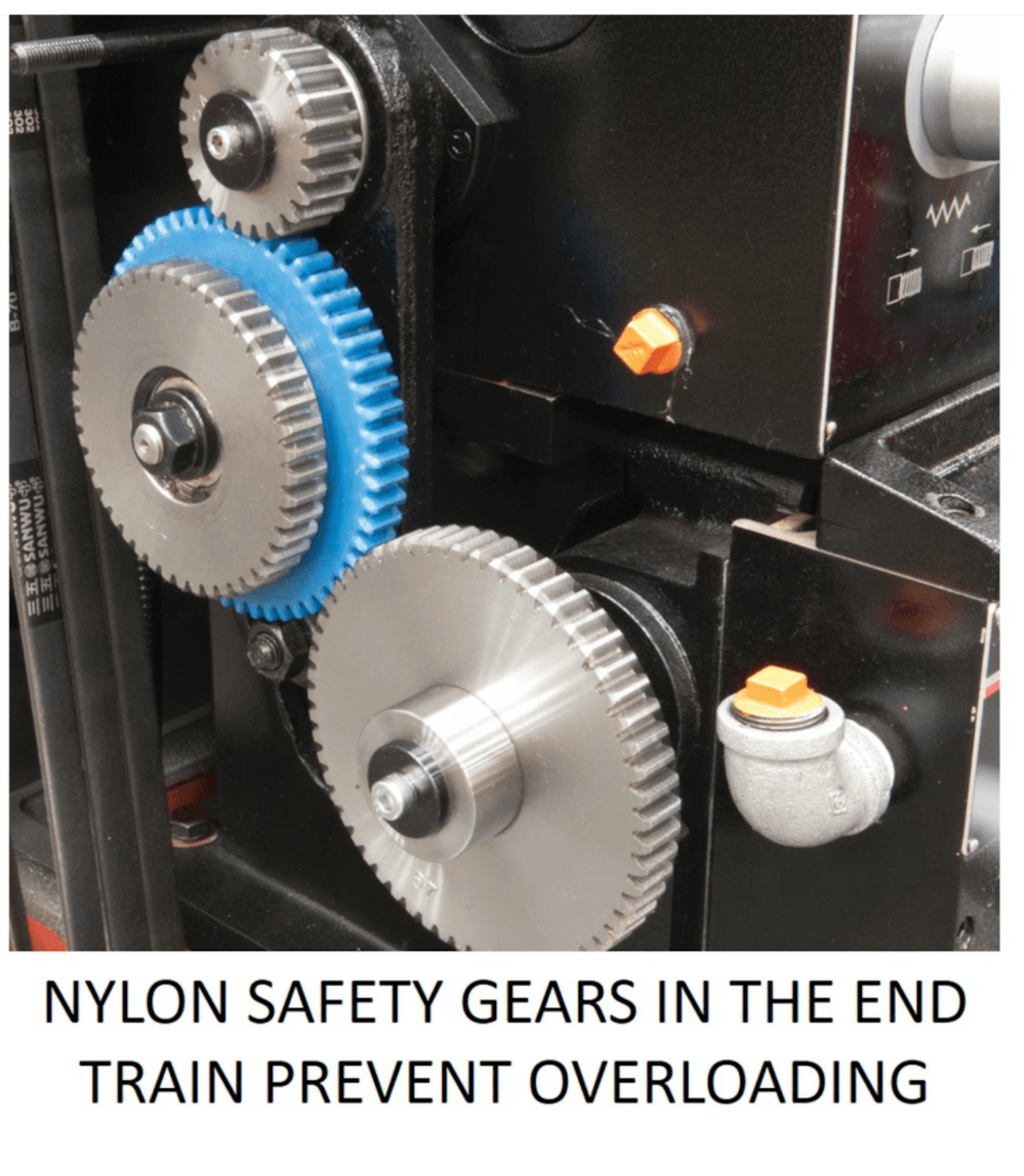

    • Nylon safety gears in the end train prevent overloading, increasing safety
    • One-Shot lubrication in the carriage reduces maintenance
    • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
    • Steady rests feature ball bearing guides for smooth material movements
    Specifications
    Size 17 x 40
    Style (Type) Engine
    Swing Over Bed (In.) 17
    Swing Over Cross Slide (In.) 11
    Swing in Gap (In.) 7-2/3

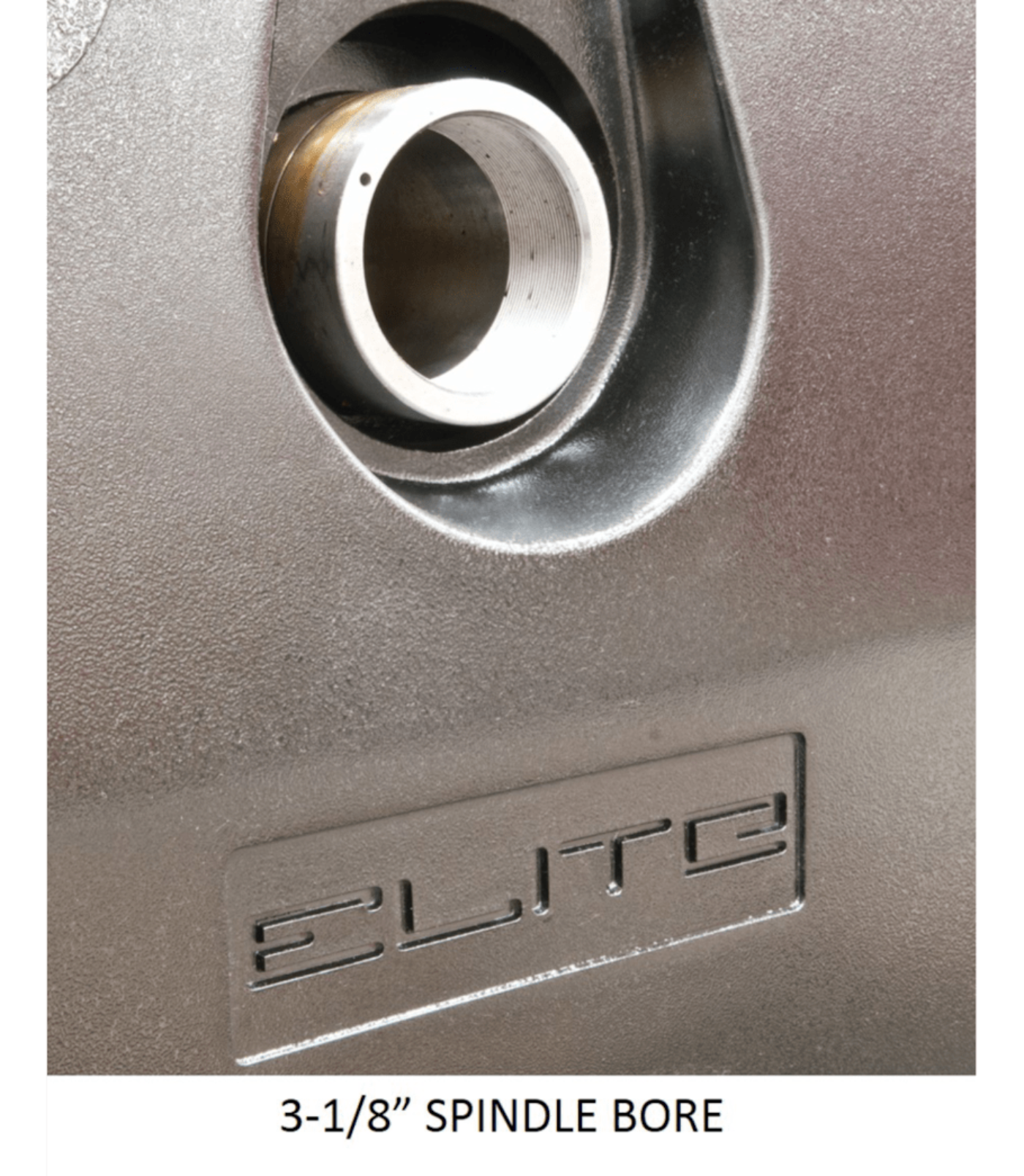

    Spindle Bore (In.) 3-1/8
    Spindle Mount D1-6
    Spindle Taper with Sleeve MT-5
    Number of Spindle Speeds 12
    Range of Spindle Speeds (RPM) 36 – 1,800
    Range of Longitudinal Feeds (IPR) 0.0015 – 0.04
    Range of Cross Feeds (IPR) 0.00075 – 0.02
    Number of Inch Threads 45
    Range of Inch Threads (TPI) 2 – 72
    Diametrial Pitch Threads Number 21
    Modular Pitch Threads Number 18
    Number of Metric Threads 39
    Range of Metric Threads 0.2 – 14
    Max Tool Size (In.) 1 x 1
    Compound Slide Travel (In.) 6-2/7
    Tailstock Spindle Travel (In.) 5
    Steady Rest Capacity (In.) 3/8 – 6-3/4
    Width of Bed (In.) 12
    Weight (Lbs.) 3,747
    Amperage Draw @ 230V 3Ph 22
    Amperage Draw @ 460V 3Ph 11

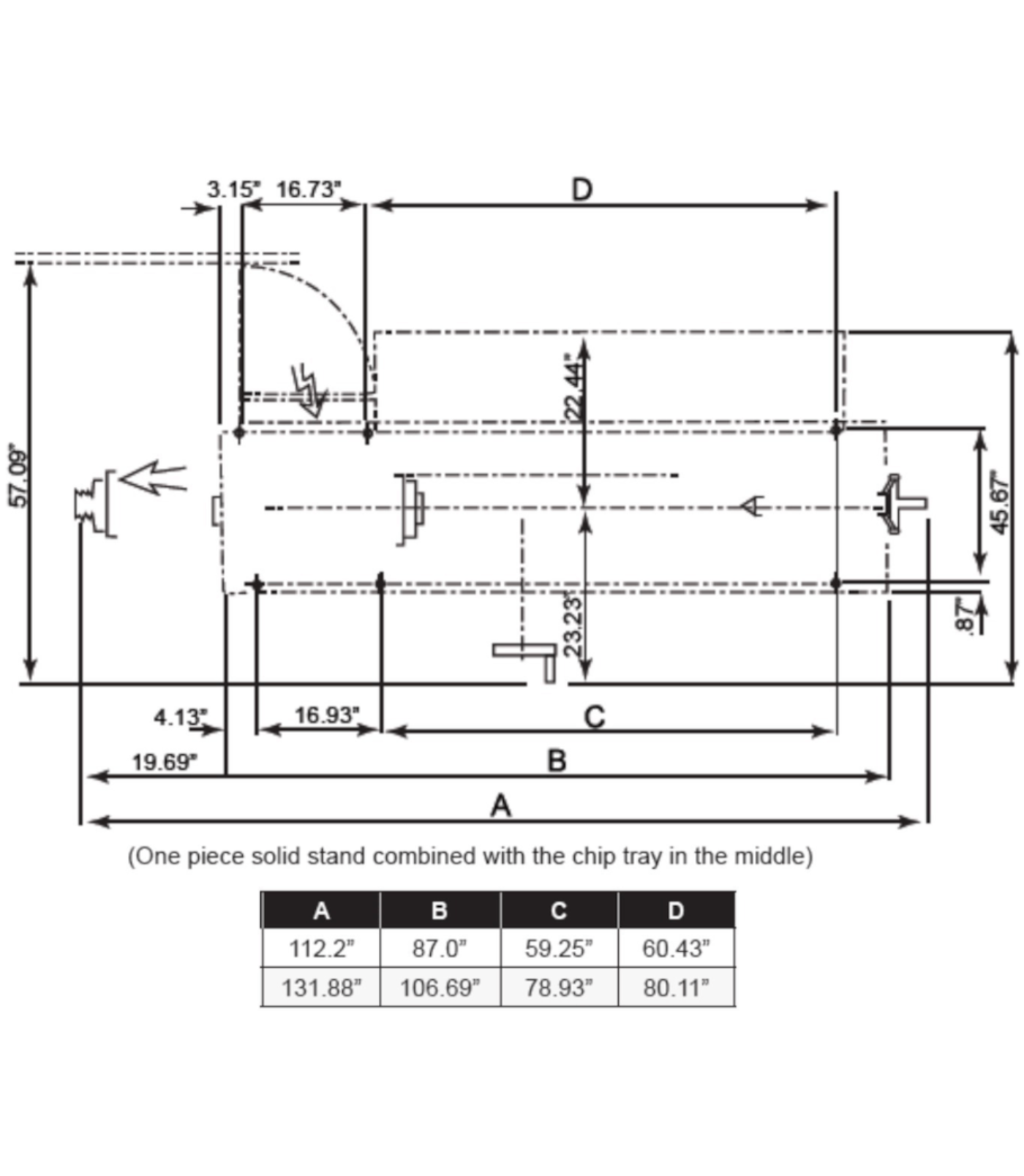

    Overall Dimensions (L x W x H) 94 x 44 x 68 in.
    Drive Geared Head
    What our Experts Think
    • High-Precision Machining – Designed for accuracy with hardened and ground bed ways for long-lasting performance.

    • ACU-RITE 303 DRO – Digital readout system delivers precise measurements, improving productivity and reducing errors.

    • Heavy-Duty Construction – Robust cast-iron base and headstock provide stability during demanding operations.

    • Versatile Capabilities – Handles threading, turning, and general machining for professional shops.

    • User-Friendly Operation – Simplified controls make setup and adjustments efficient.

    • Reliable for Industrial Use – Built to withstand continuous use in machine shops, fabrication facilities, and training environments.

    Q&A

    Q: What is the JET Elite EGH-1740 Lathe?
    A: A 17" x 40" precision gear head lathe equipped with an ACU-RITE 303 digital readout, built for power, accuracy, and durability.

    Q: What makes this lathe unique?
    A: It combines a heavy-duty gear head design with the ACU-RITE DRO for precise, reliable metalworking performance.

    Q: What materials can it handle?
    A: Designed for machining steel, aluminum, brass, and other metals in demanding shop environments.

    Q: Why is the ACU-RITE 303 DRO important?
    A: It provides high-accuracy digital measurement, reduces operator error, and increases productivity.

    Q: What size capacity does it have?
    A: 17" swing over bed and 40" distance between centers.

    Q: Where is it best used?
    A: Perfect for machine shops, maintenance departments, prototyping, and industrial production work.

    Q: How does it improve efficiency?
    A: The gear head transmission, combined with the DRO system, ensures consistent speeds, reduced setup time, and precise results.

    Maintenance Tips
    • Clean lathe bed, carriage, and tooling after each use to prevent chip buildup

    • Lubricate moving parts as recommended in the manufacturer’s schedule

    • Inspect belts, gears, and spindle components regularly for wear or tension issues

    • Keep DRO display and electrical connections clean and dust-free

    • Verify alignment and calibration periodically for precision machining

    • Schedule annual professional servicing to ensure reliable long-term performance
