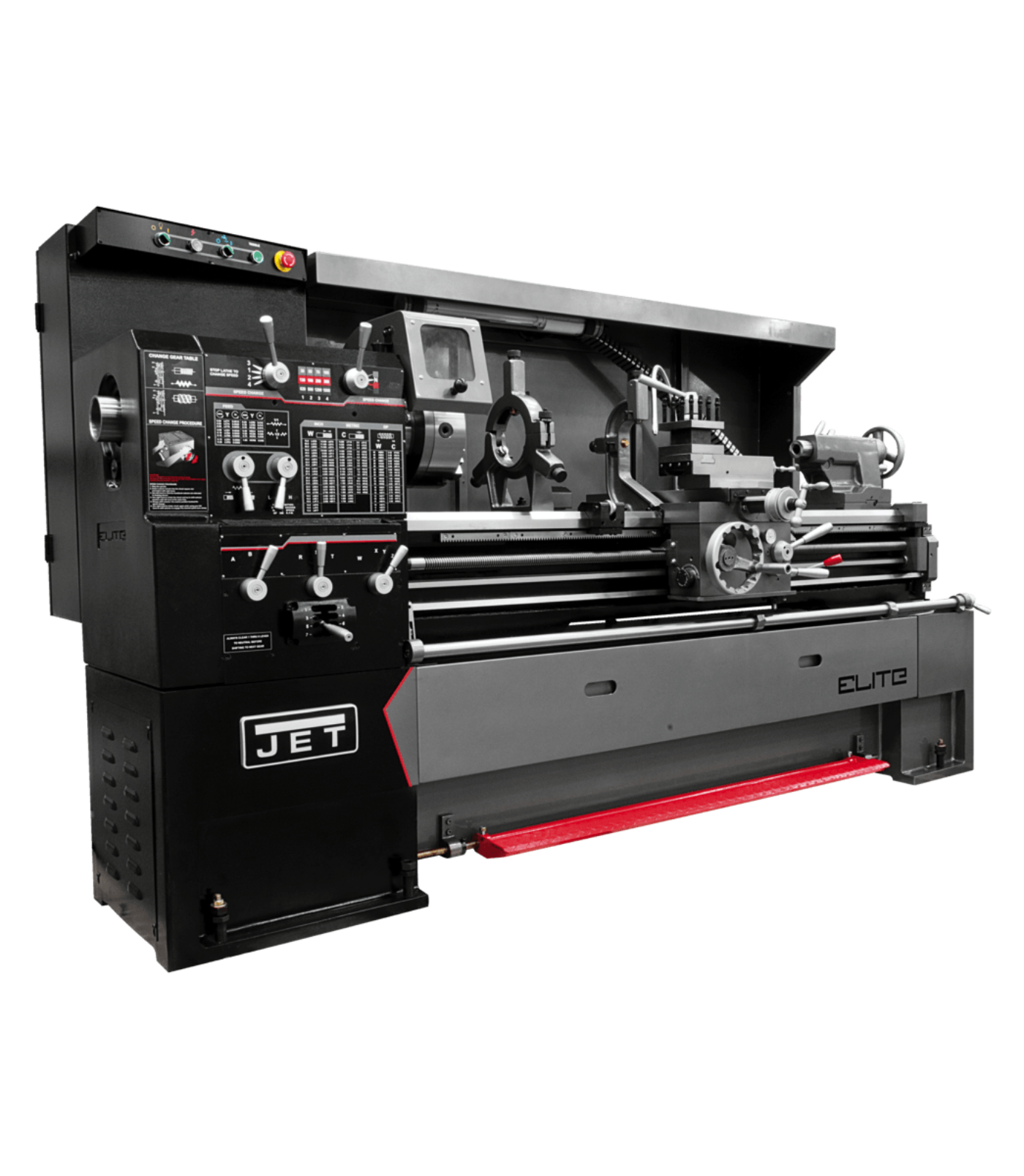

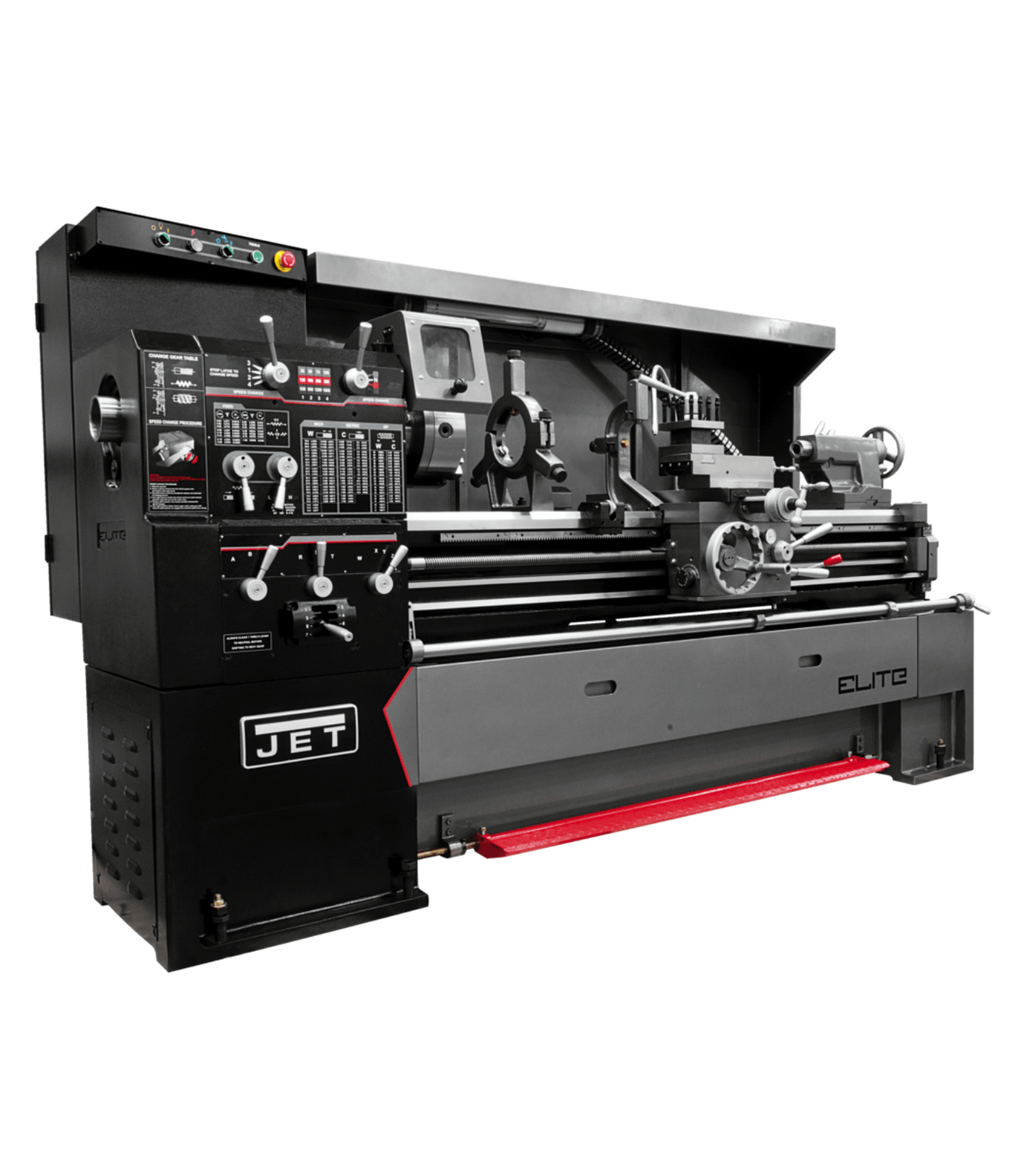

| Size |
17 x 40 |
| Style (Type) |
Engine |
| Swing Over Bed (In.) |
17 |
| Swing Over Cross Slide (In.) |
11 |
| Swing in Gap (In.) |
7-2/3 |

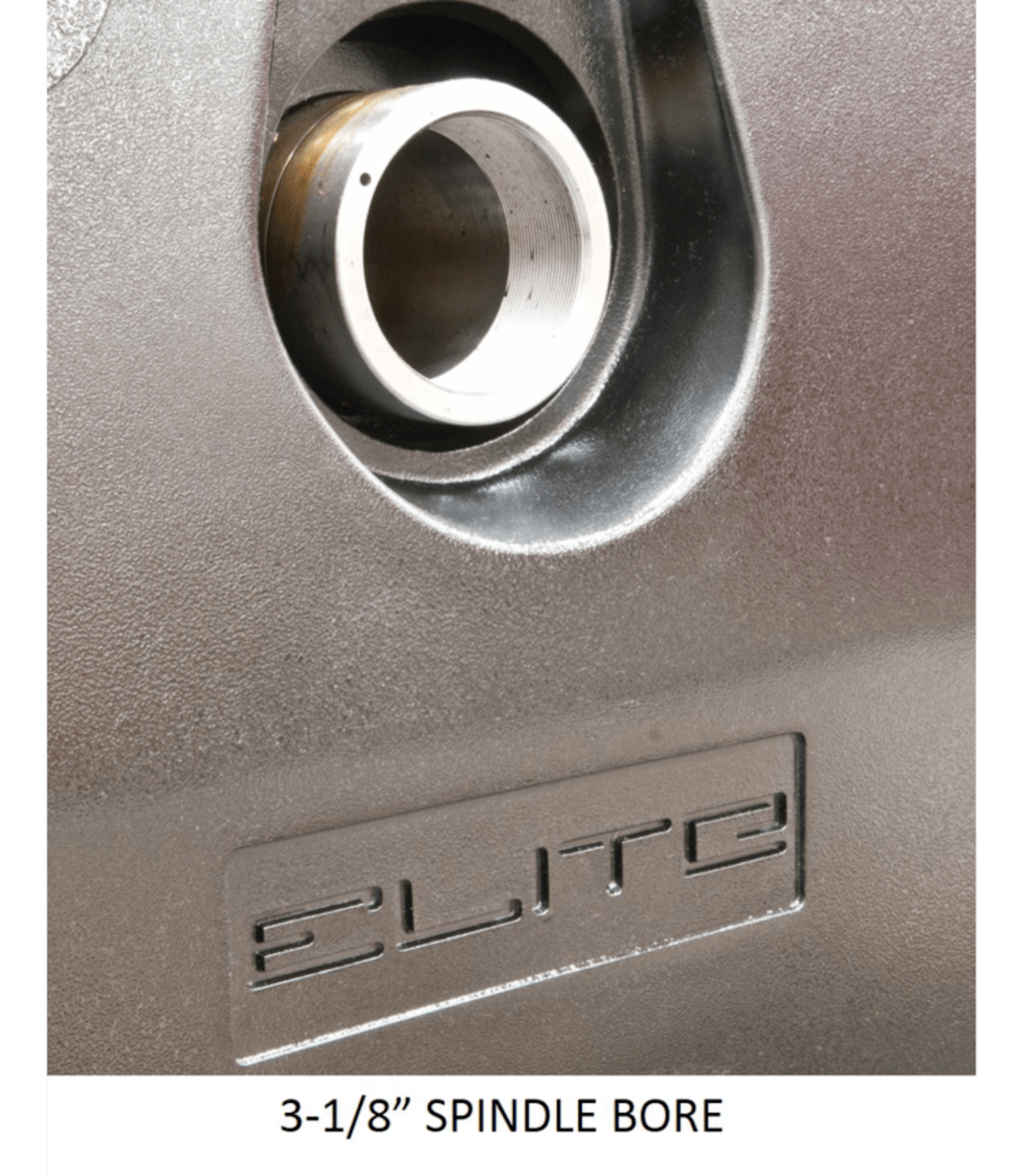

| Spindle Bore (In.) |
3-1/8 |
| Spindle Mount |
D1-6 |
| Spindle Taper with Sleeve |
MT-5 |
| Number of Spindle Speeds |
12 |
| Range of Spindle Speeds (RPM) |
36 – 1,800 |
| Range of Longitudinal Feeds (IPR) |
0.0015 – 0.04 |
| Range of Cross Feeds (IPR) |
0.00075 – 0.02 |
| Number of Inch Threads |
45 |
| Range of Inch Threads (TPI) |
2 – 72 |

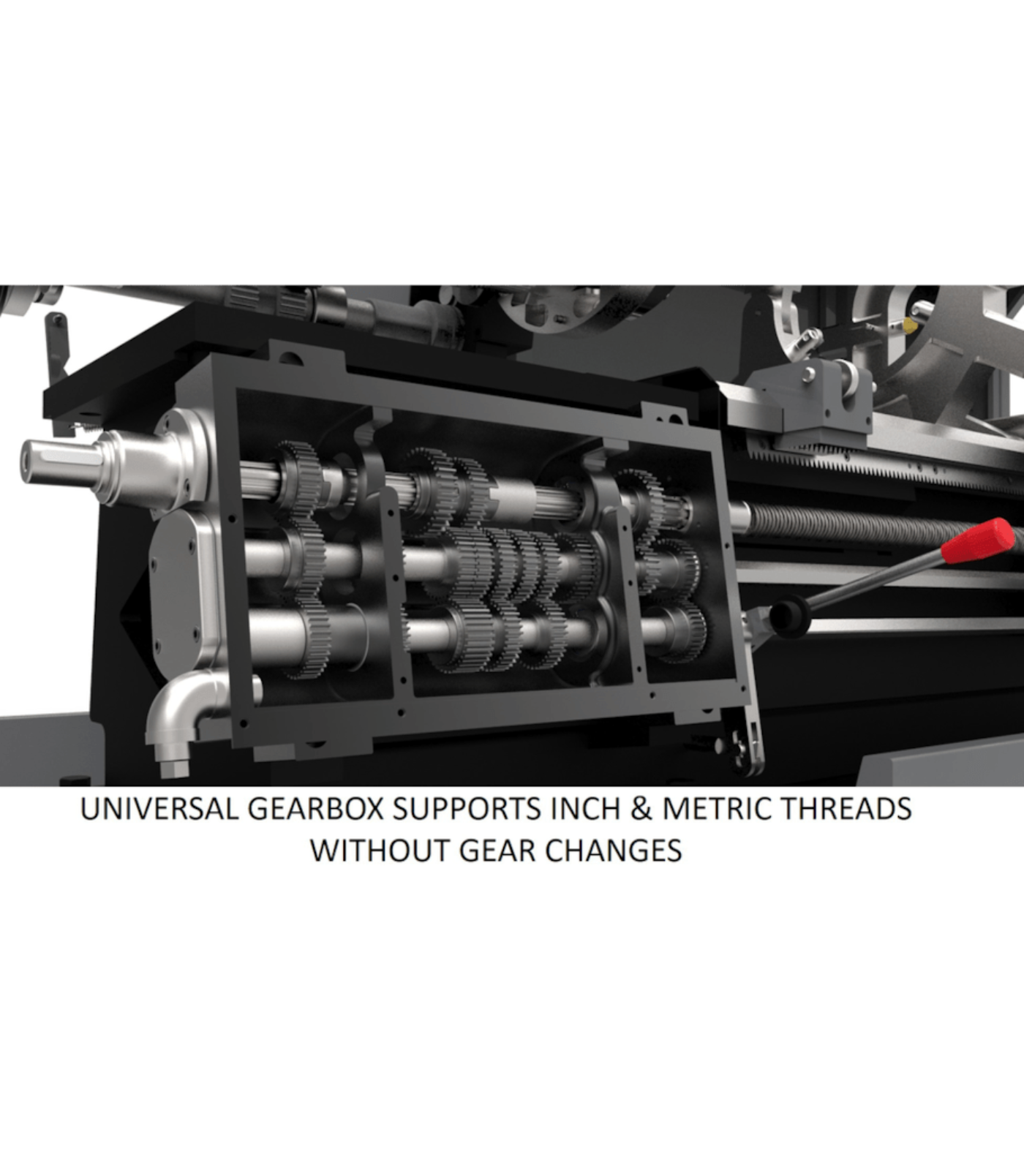

| Diametrial Pitch Threads Number |
21 |
| Modular Pitch Threads Number |
18 |
| Number of Metric Threads |
39 |
| Range of Metric Threads |
0.2 – 14 |
| Max Tool Size (In.) |
1 x 1 |
| Compound Slide Travel (In.) |
6-2/7 |
| Tailstock Spindle Travel (In.) |
5 |

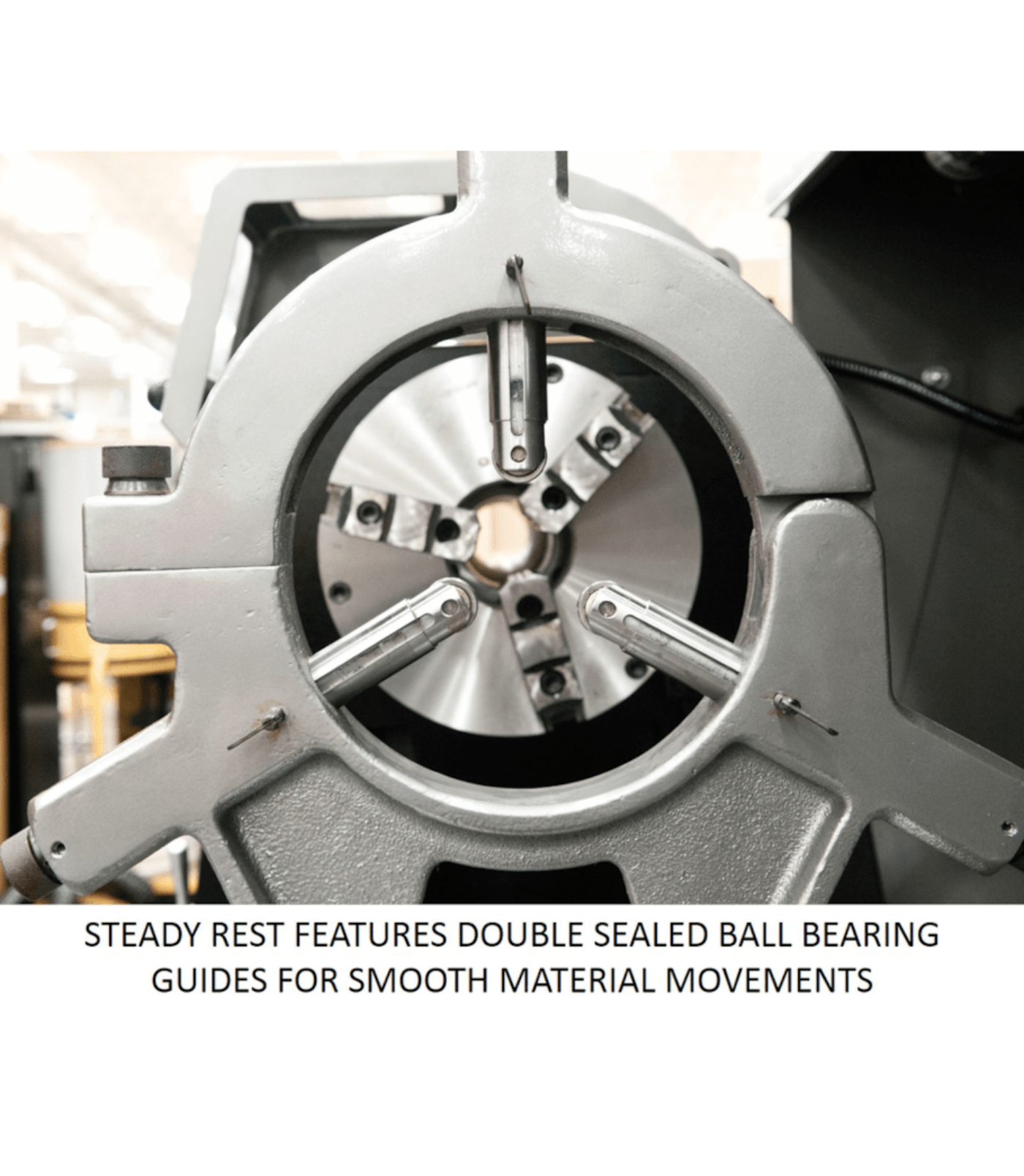

| Steady Rest Capacity (In.) |
3/8 – 6-3/4 |
| Width of Bed (In.) |
12 |
| Weight (Lbs.) |
3,747 |
| Amperage Draw @ 230V 3Ph |
22 |
| Amperage Draw @ 460V 3Ph |
11 |

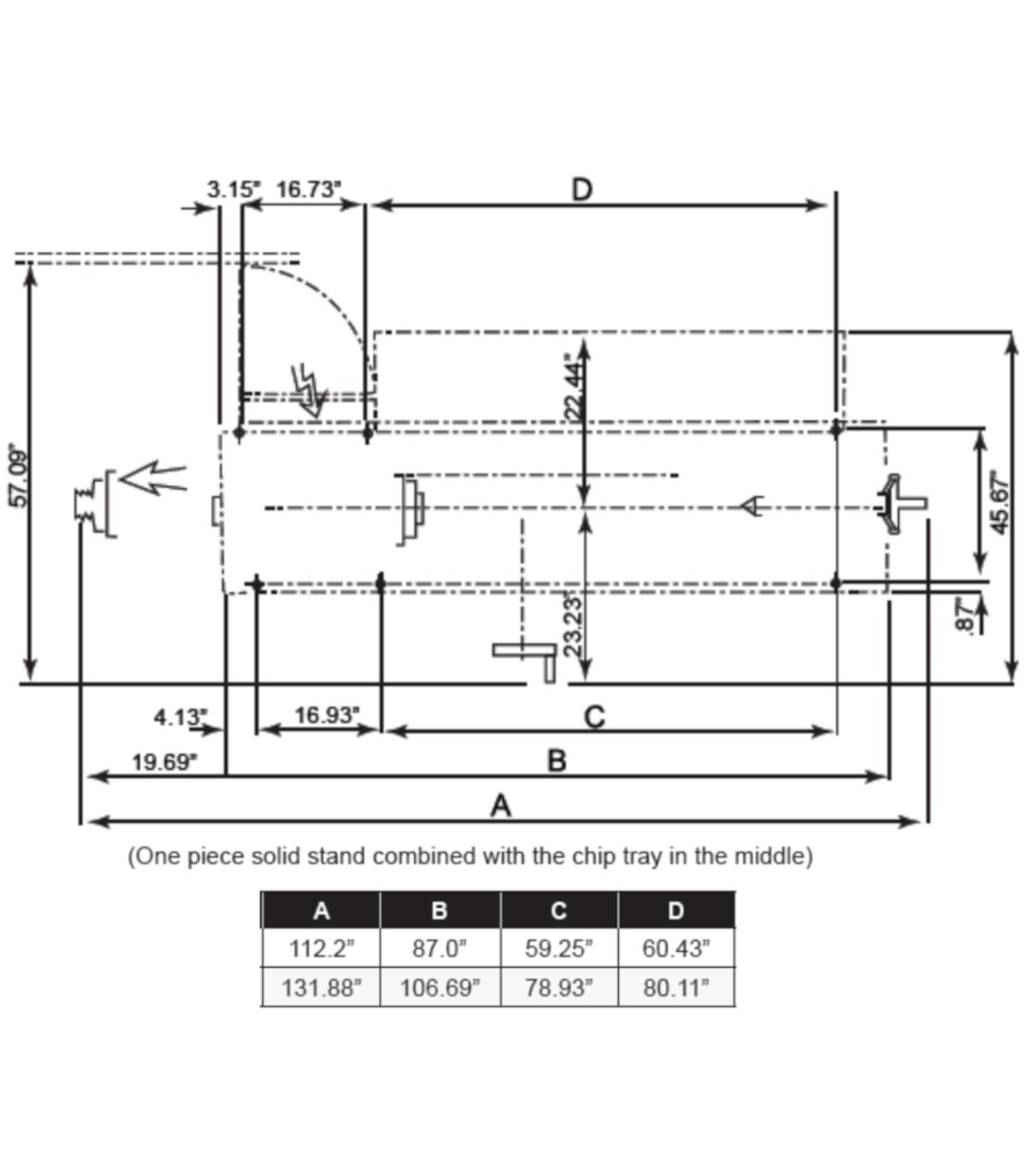

| Overall Dimensions (L x W x H) |
94 x 44 x 68 in. |
| Drive |
Geared Head |
What our Experts Think
-

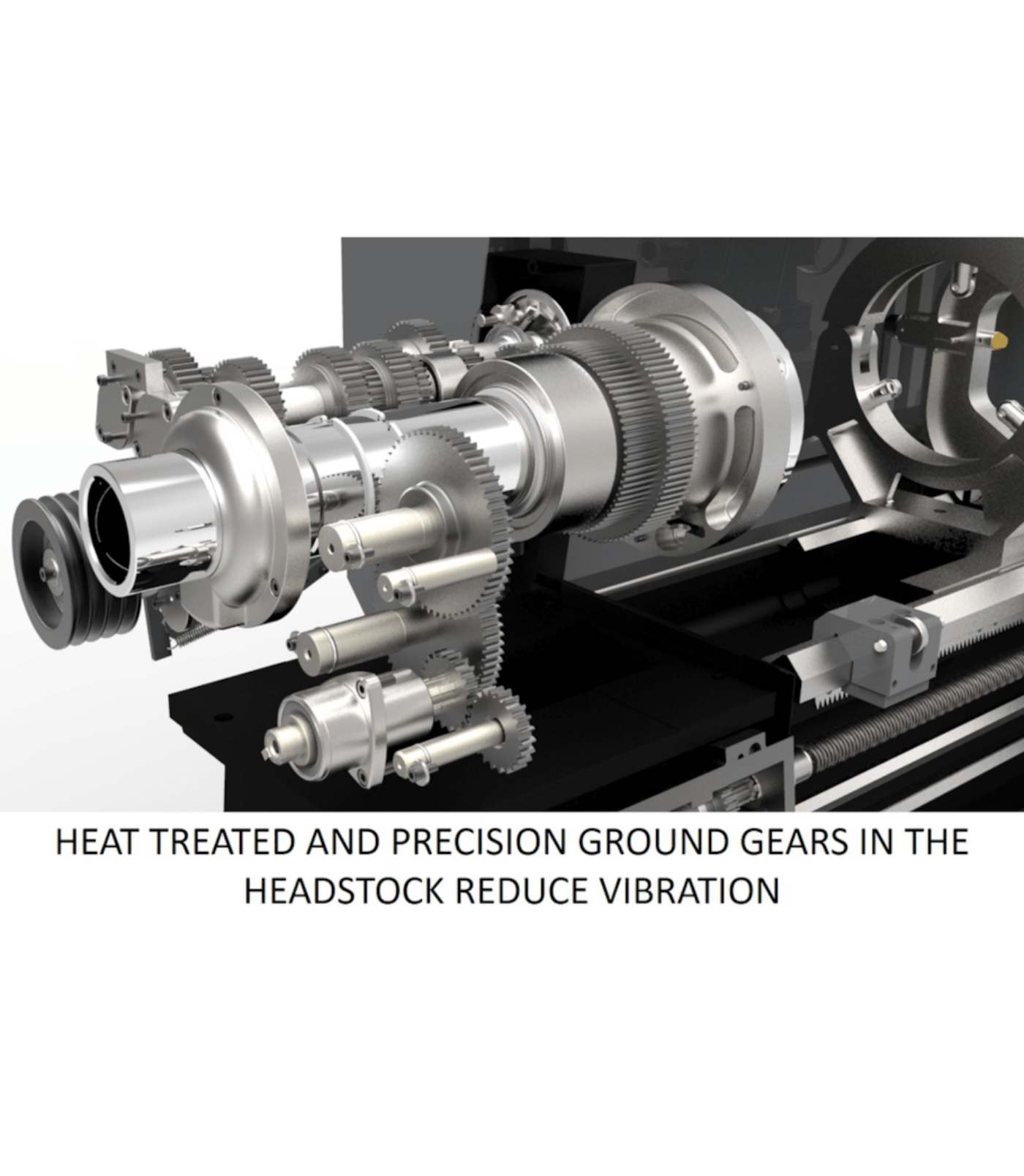

Gear-Head Power: Delivers consistent torque and smooth operation for heavy-duty turning.
-
Newall DP700 DRO: High-precision digital readout ensures accurate measurements and workflow efficiency.
-
Taper Attachment: Enables precise internal and external taper cutting.
-
Collet Closer: Securely holds small-diameter workpieces for precision and repeatability.
-
Rigid Cast-Iron Construction: Minimizes vibration, enhances stability, and improves machining accuracy.
-
Professional Grade: Ideal for machine shops, toolrooms, and industrial metalworking applications.
Q&A
Q: What is the JET Elite E-1440VS lathe?
A: The JET Elite E-1440VS is a 14" x 40" variable-speed precision engine lathe designed for versatility, accuracy, and heavy-duty machining applications in industrial and professional shops.
Q: What advantage does the ACU-RITE 303 DRO provide?
A: The ACU-RITE 303 Digital Readout offers multi-axis position tracking, advanced measuring functions, and superior accuracy, reducing operator errors and improving repeatability in machining.
Q: Why is the taper attachment important?
A: The included taper attachment allows operators to cut accurate internal and external tapers without offsetting the tailstock, saving time and ensuring precise results.
Q: How does the collet closer improve productivity?
A: The collet closer enables quick and secure clamping of workpieces, making it ideal for repetitive jobs, small-part production, and high-precision operations.
Q: What spindle bore size does the E-1440VS feature?
A: This lathe comes with a 2" spindle bore, providing ample capacity for bar stock and tubing.
Q: What type of drive system does this lathe use?
A: It has a variable-speed belt drive system, which delivers smooth operation, excellent torque control, and adjustable speeds for different machining tasks.
Q: What makes the bed construction durable?

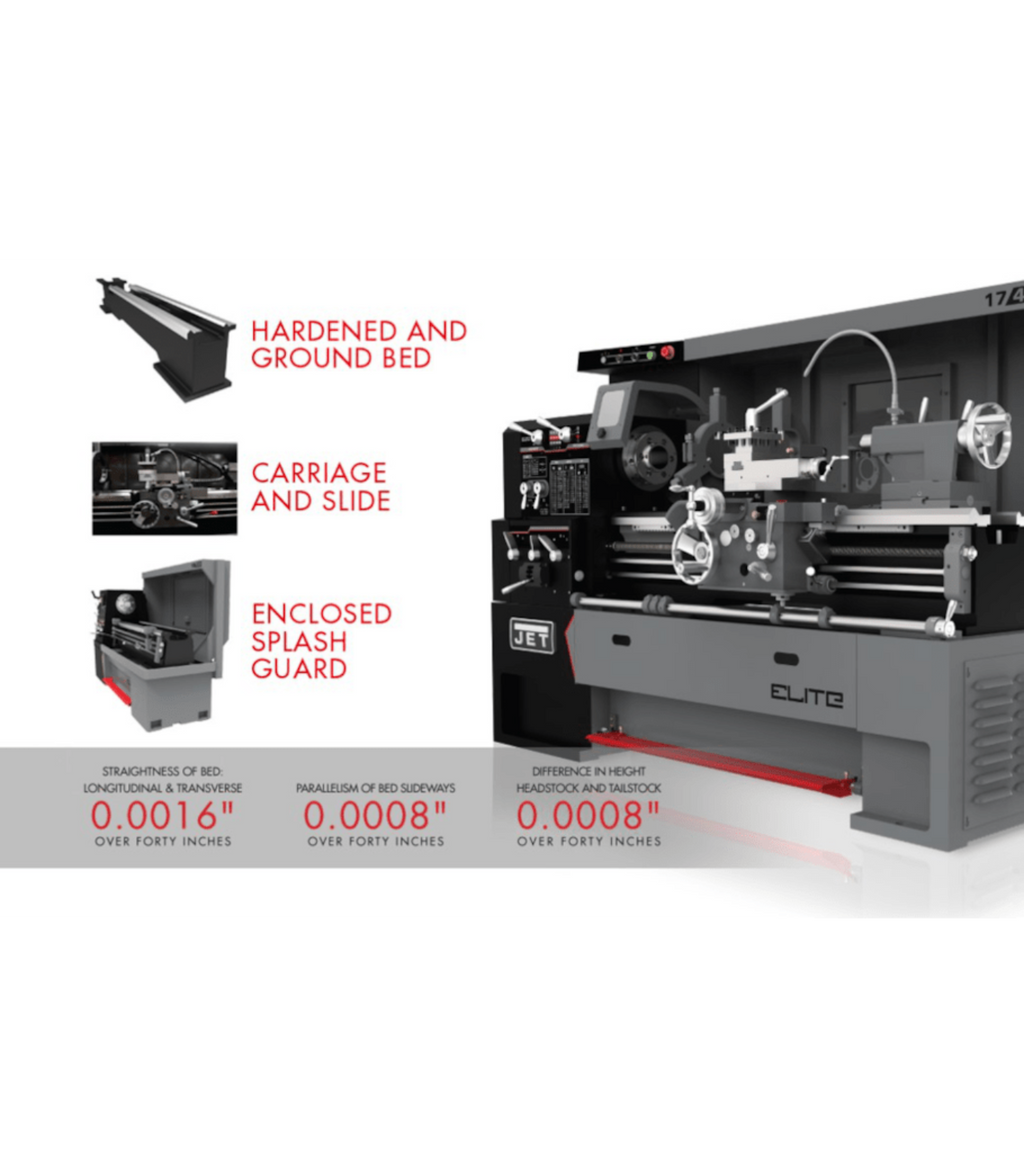

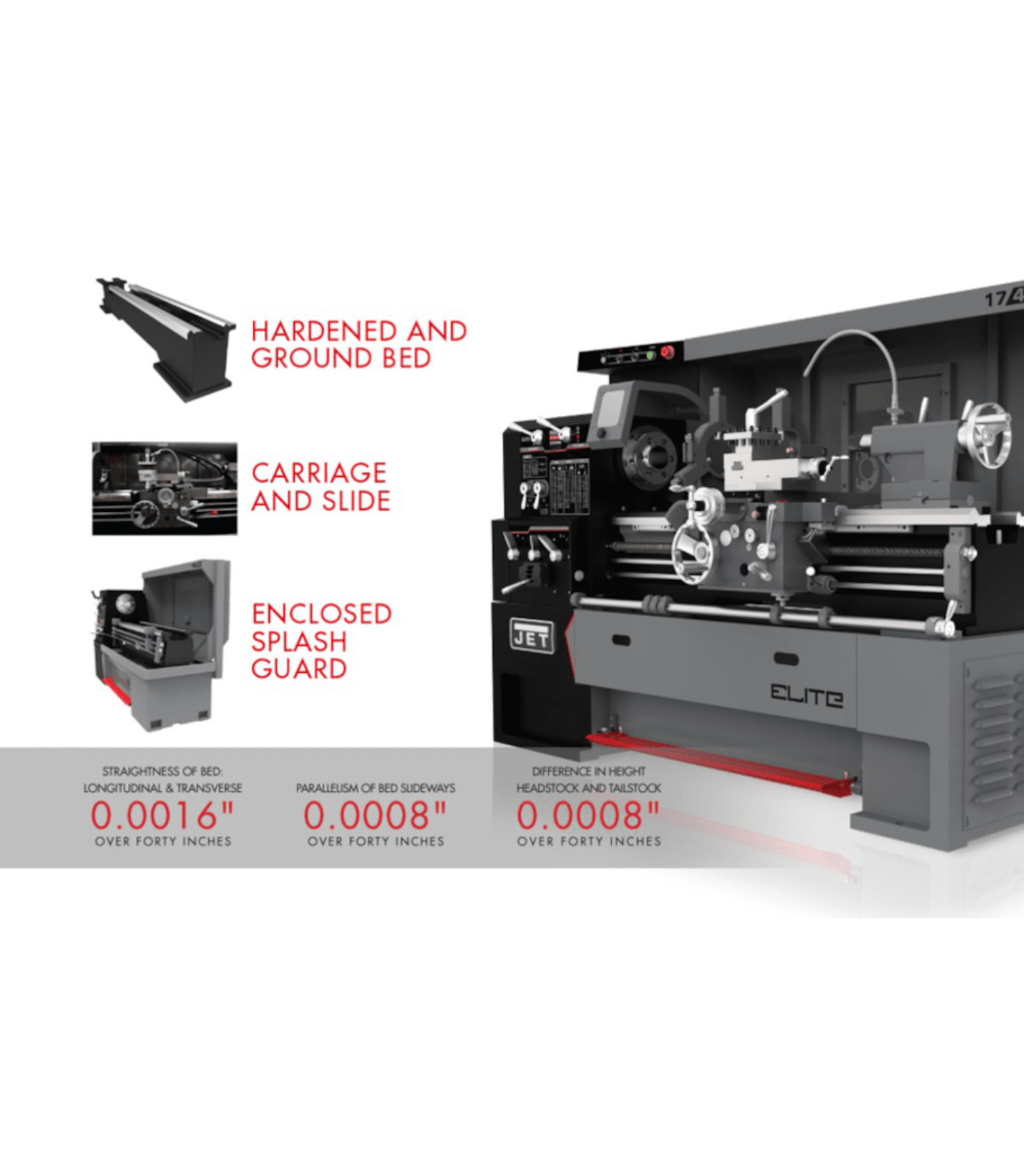

A: The bed is induction-hardened and precision-ground, ensuring long-term accuracy, rigidity, and resistance to wear even under demanding machining conditions.
Q: What machining operations can be performed?
A: The E-1440VS supports turning, facing, boring, threading (inch and metric), taper cutting (with attachment), drilling, and precision finishing.
Q: Who is this lathe designed for?
A: It’s ideal for professional machine shops, tool rooms, and industrial facilities that require precision machining, advanced digital measurement, and versatile part handling.
Q: What sets this configuration apart?
A: The combination of the ACU-RITE 303 DRO, taper attachment, and collet closer makes this one of the most versatile setups in the JET Elite line—perfect for shops that demand precision, speed, and flexibility.
Q: Does the JET Elite E-1440VS meet safety and quality standards?
A: Yes, it is CSA/ETL certified and engineered to JET Elite’s industrial-grade standards for performance, reliability, and operator safety.
Maintenance Tips
-
Clean bed, taper attachment, and collet closer after each use to prevent chip buildup.
-
Lubricate spindle bearings, leadscrews, and sliding ways regularly for smooth operation.
-
Check ACU-RITE 303 DRO accuracy and recalibrate when needed for precision machining.
-
Inspect taper attachment alignment to ensure accurate turning and threading.
-
Monitor collet closer clamping force for consistent workholding.
-
Examine belts, gears, and electrical parts for wear and replace as required.
-
Tighten gibs and adjust backlash to maintain rigidity and cutting accuracy.
-
Perform periodic alignment checks to extend machine life and reliability.
