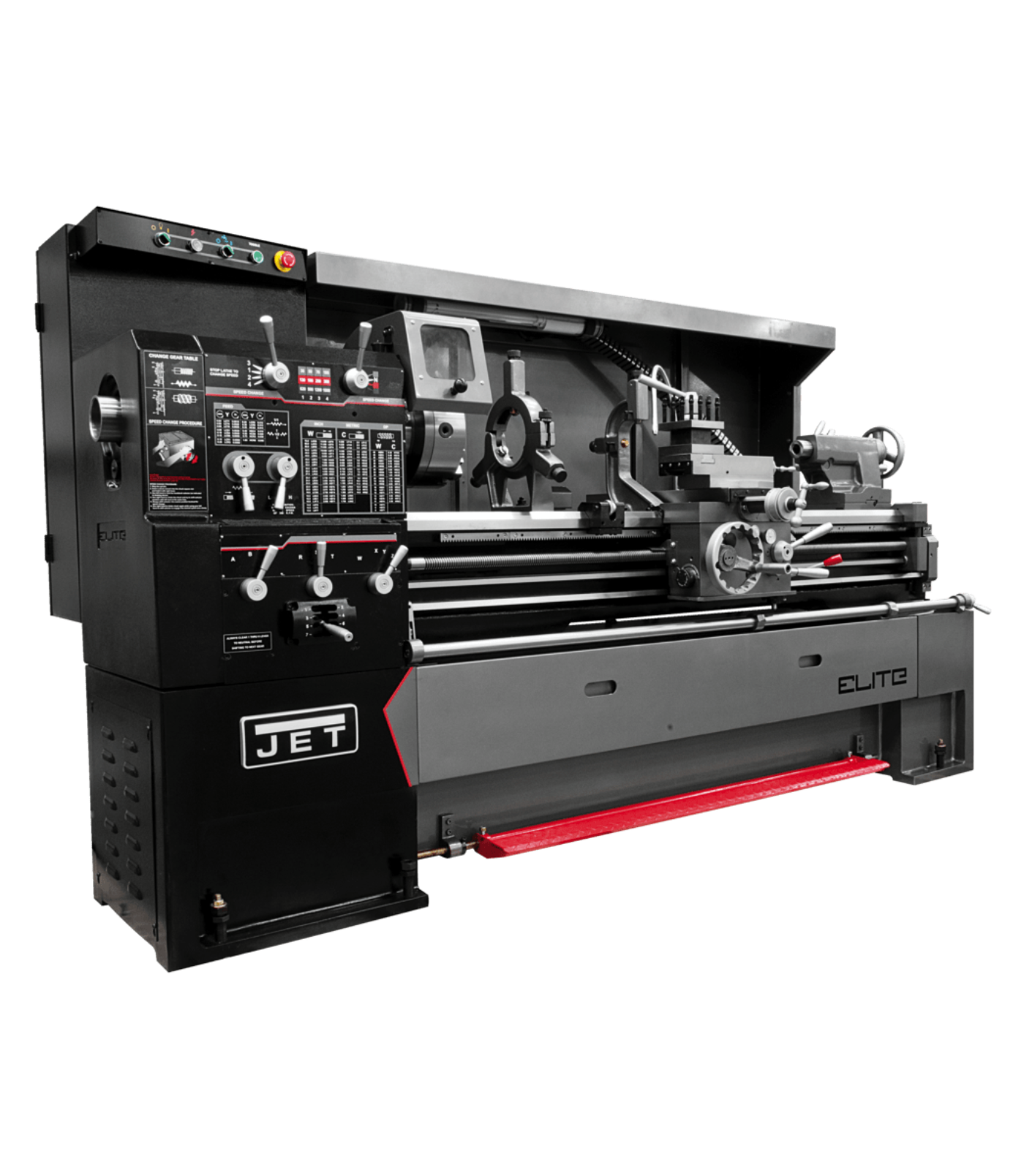

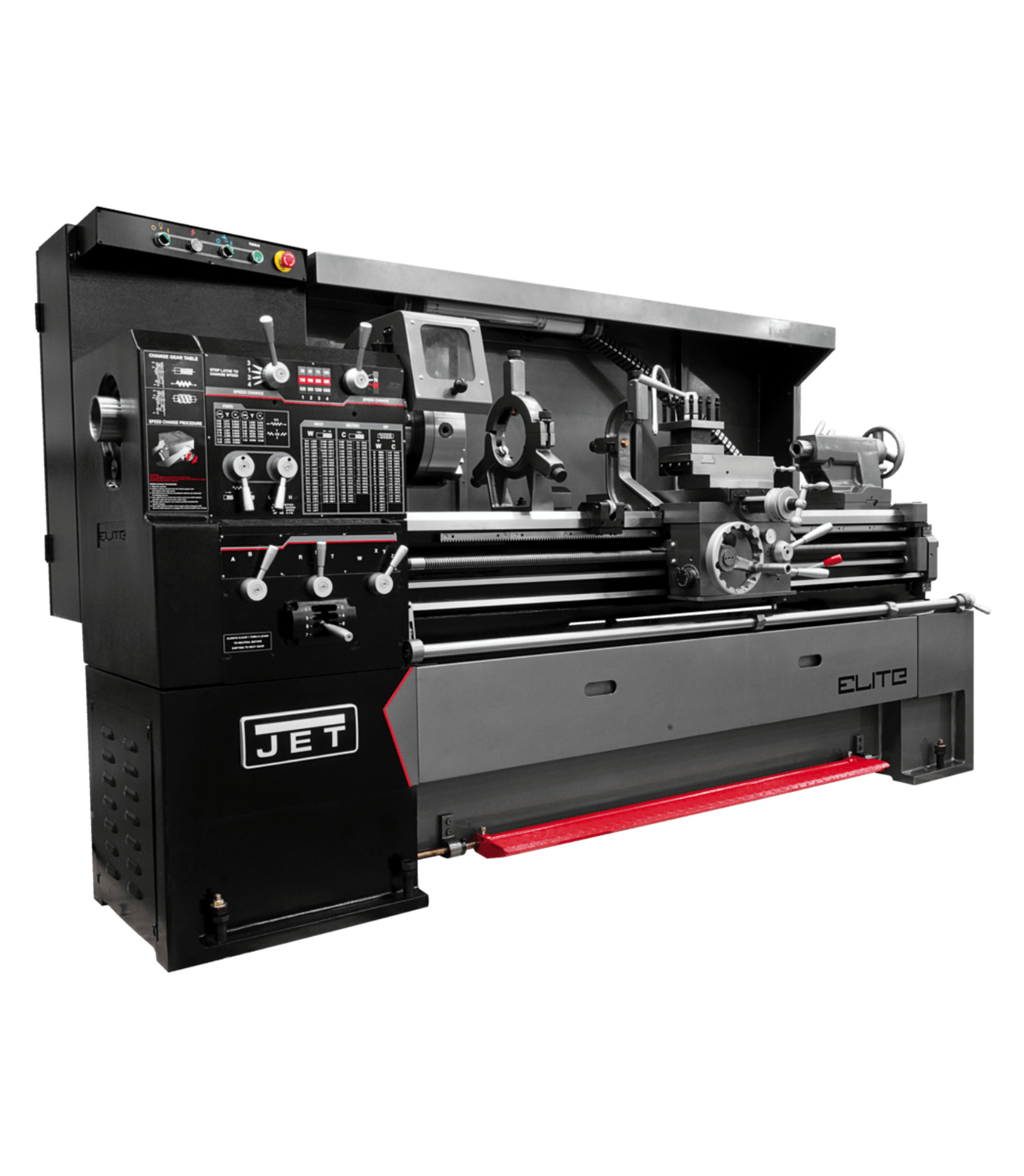

    JET Elite Lathe EGH-1740 with Taper Attachment and Collet Closer - JT9-892502

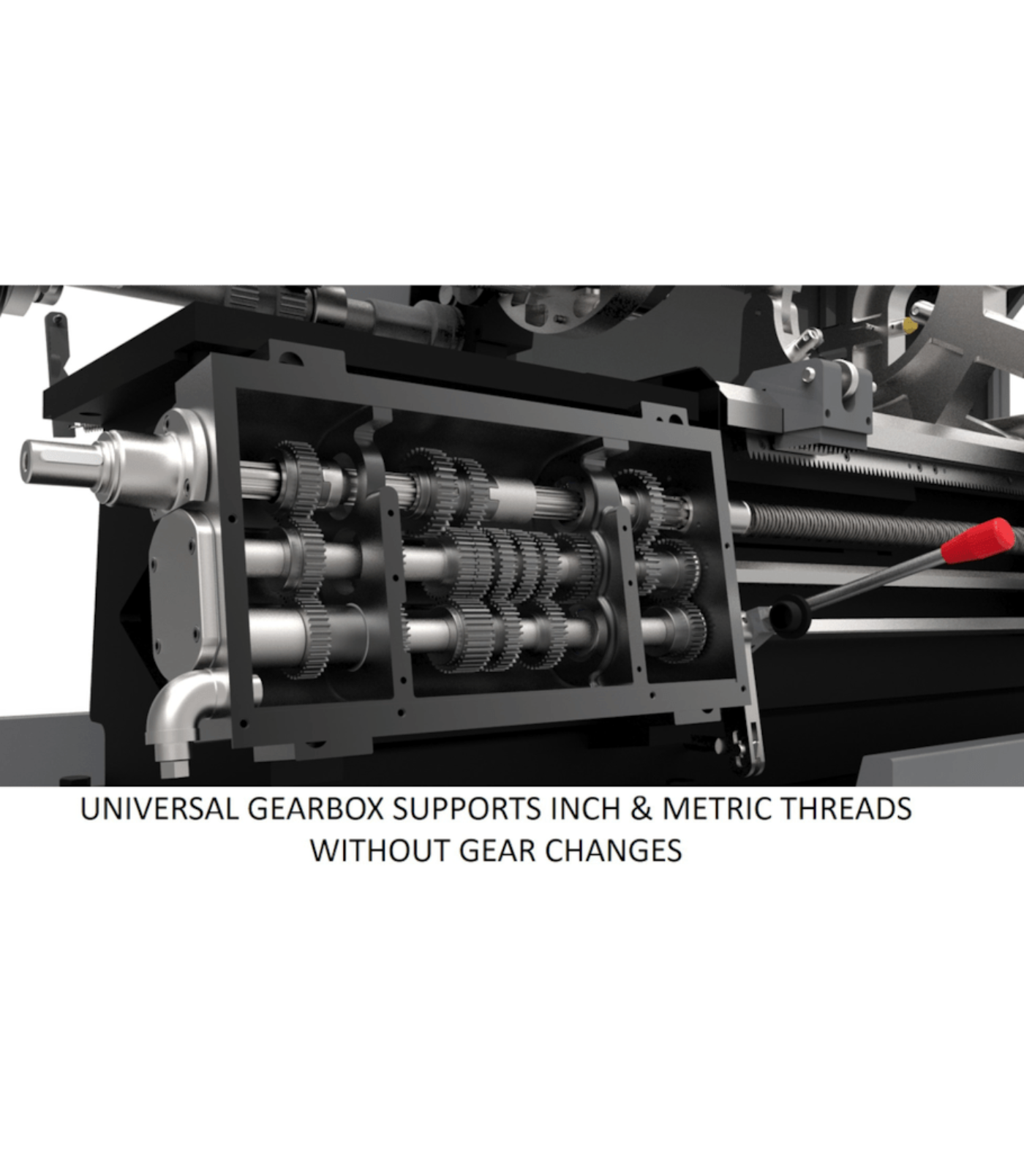

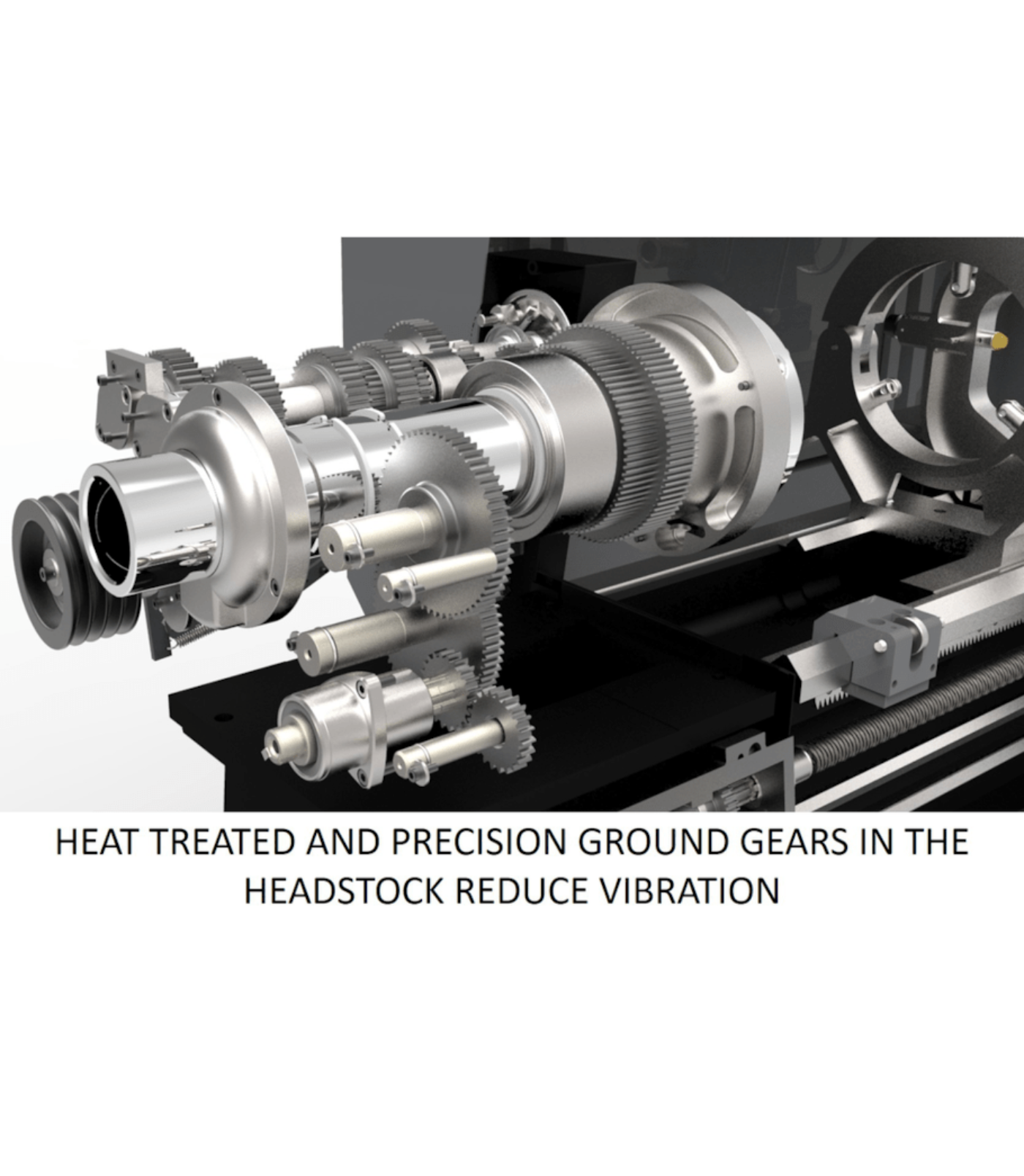

    Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

    Features
    • 4-Position Carriage Stop
    • Anti-Float design eliminates backlash in the cross slide
    • Enclosed coolant system contains excess coolant for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • Full Length Splash Guard

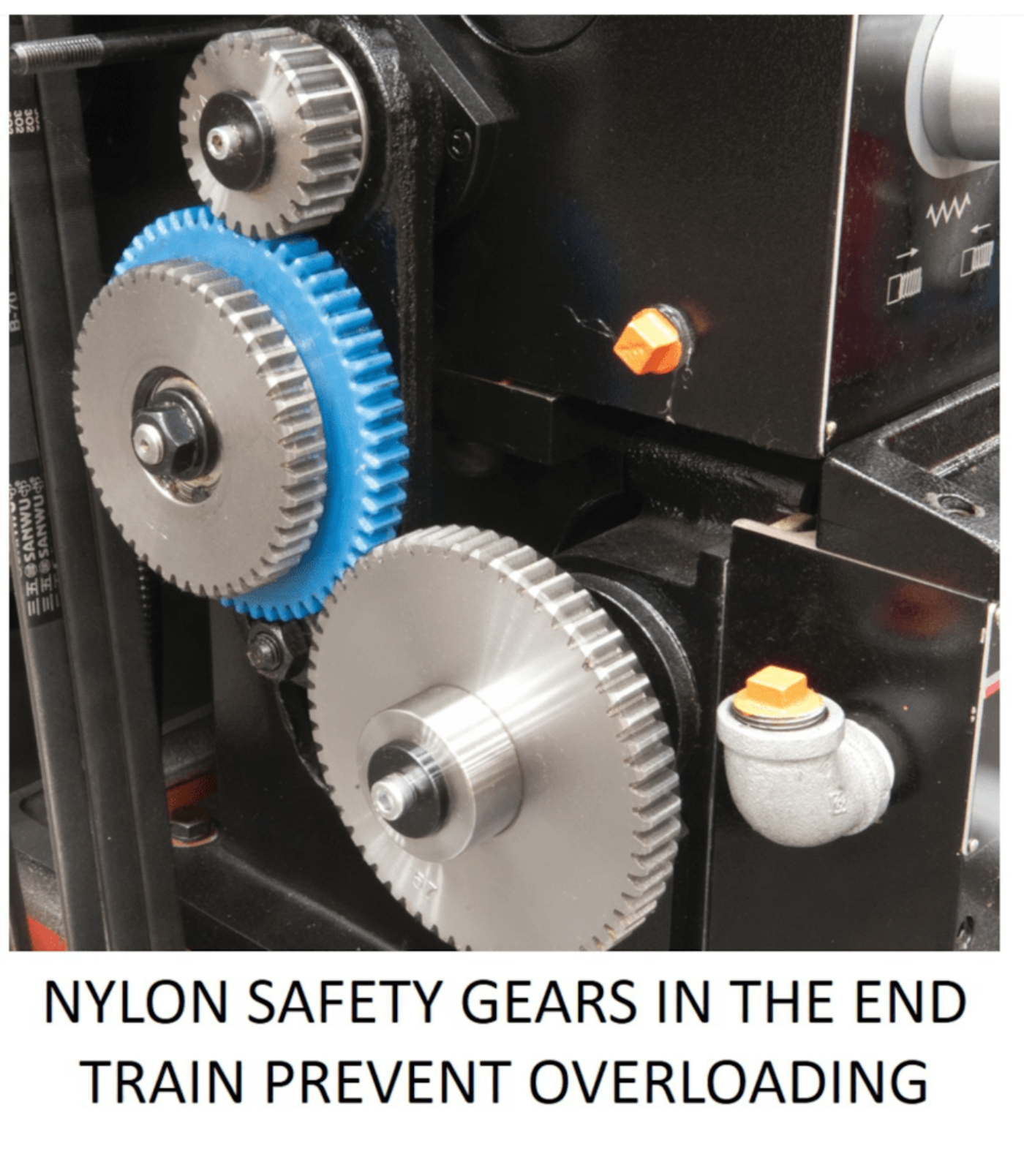

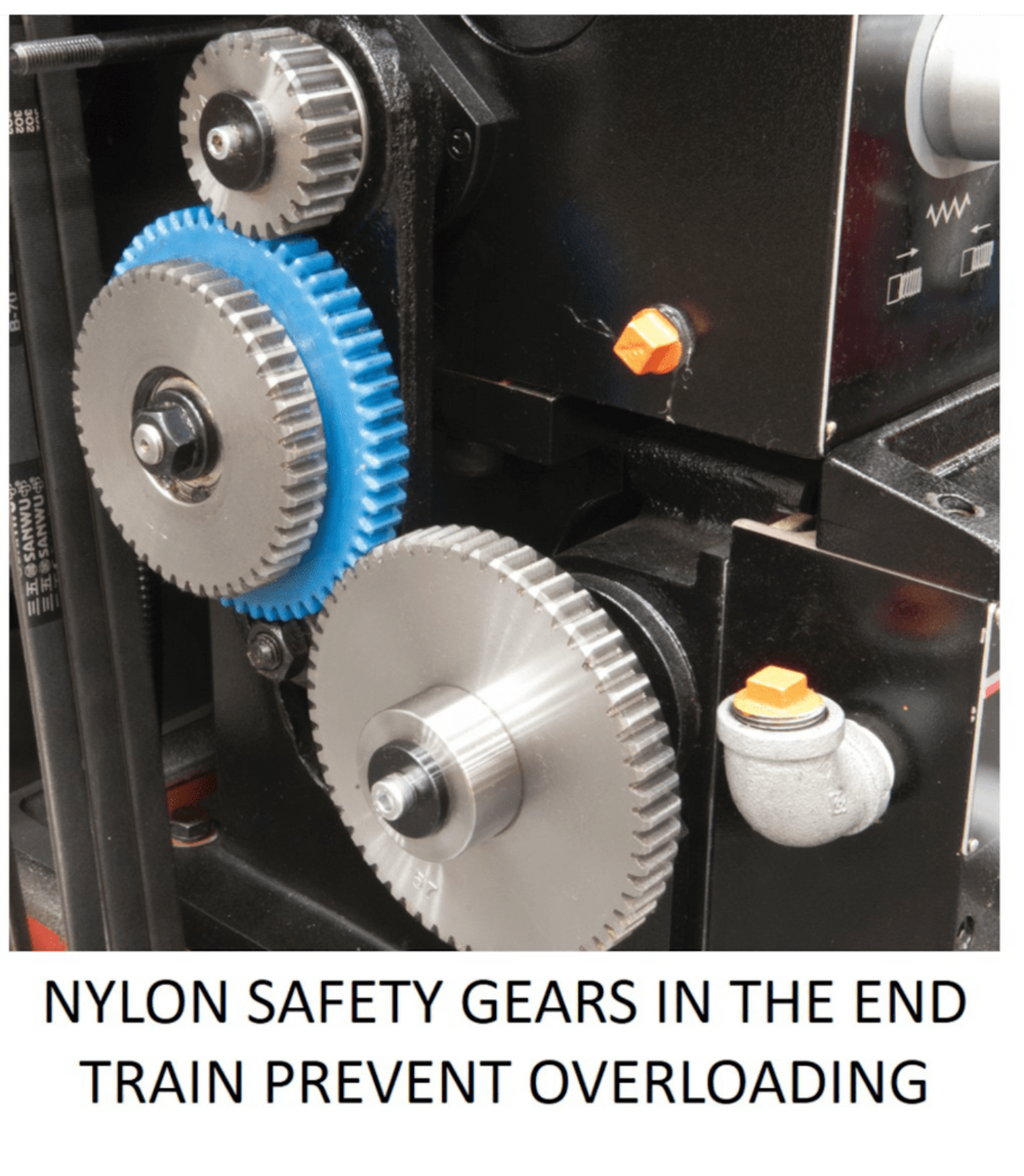

    • Nylon safety gears in the end train prevent overloading, increasing safety
    • One-Shot lubrication in the carriage reduces maintenance
    • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
    • Steady rests feature ball bearing guides for smooth material movements
    Specifications
    Size 17 x 40
    Style (Type) Engine
    Swing Over Bed (In.) 17
    Swing Over Cross Slide (In.) 11
    Swing in Gap (In.) 7-2/3

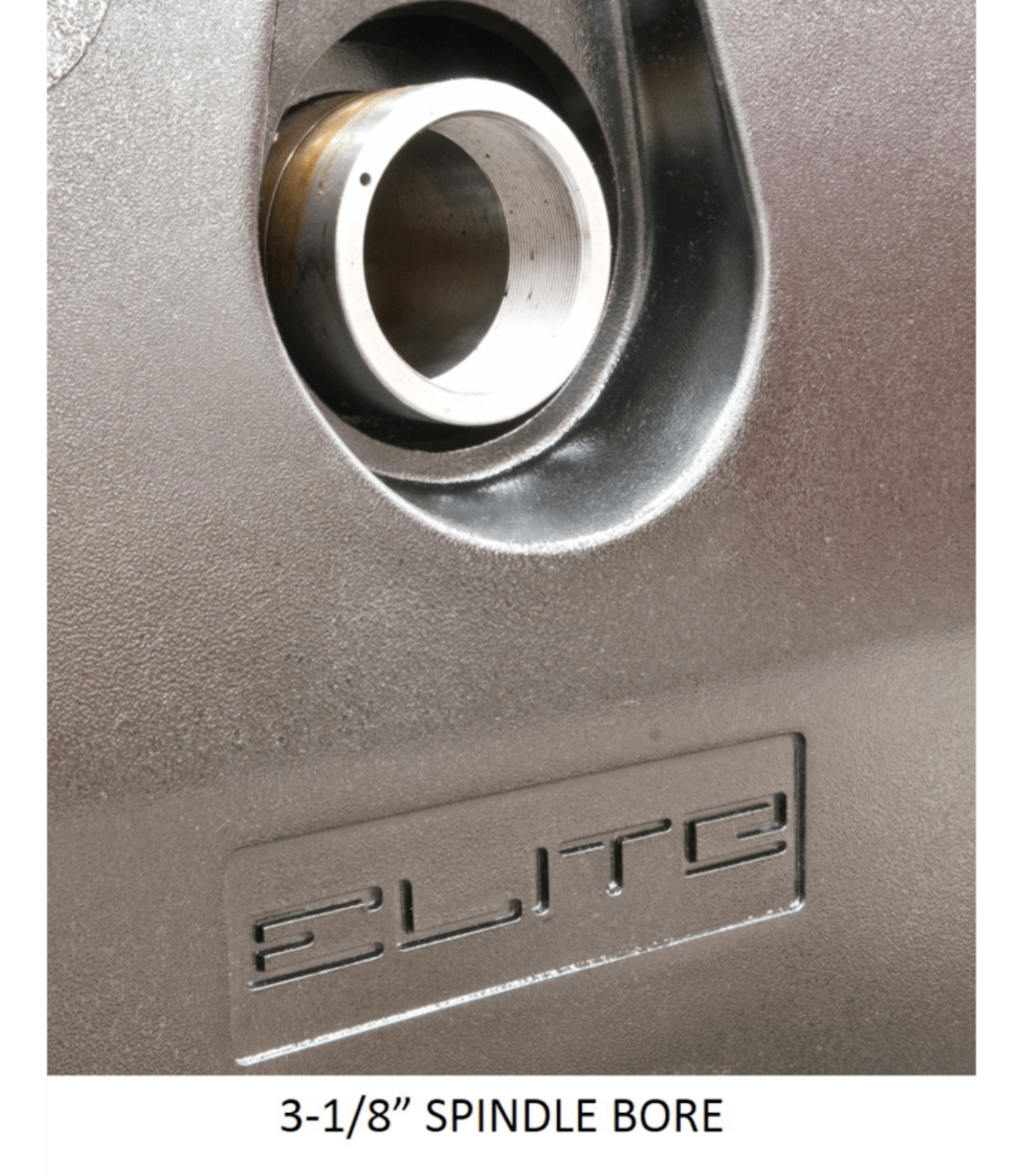

    Spindle Bore (In.) 3-1/8
    Spindle Mount D1-6
    Spindle Taper with Sleeve MT-5
    Number of Spindle Speeds 12
    Range of Spindle Speeds (RPM) 36 – 1,800
    Range of Longitudinal Feeds (IPR) 0.0015 – 0.04
    Range of Cross Feeds (IPR) 0.00075 – 0.02
    Number of Inch Threads 45
    Range of Inch Threads (TPI) 2 – 72
    Diametrial Pitch Threads Number 21
    Modular Pitch Threads Number 18
    Number of Metric Threads 39
    Range of Metric Threads 0.2 – 14
    Max Tool Size (In.) 1 x 1
    Compound Slide Travel (In.) 6-2/7
    Tailstock Spindle Travel (In.) 5
    Steady Rest Capacity (In.) 3/8 – 6-3/4
    Width of Bed (In.) 12
    Weight (Lbs.) 3,747
    Amperage Draw @ 230V 3Ph 22
    Amperage Draw @ 460V 3Ph 11

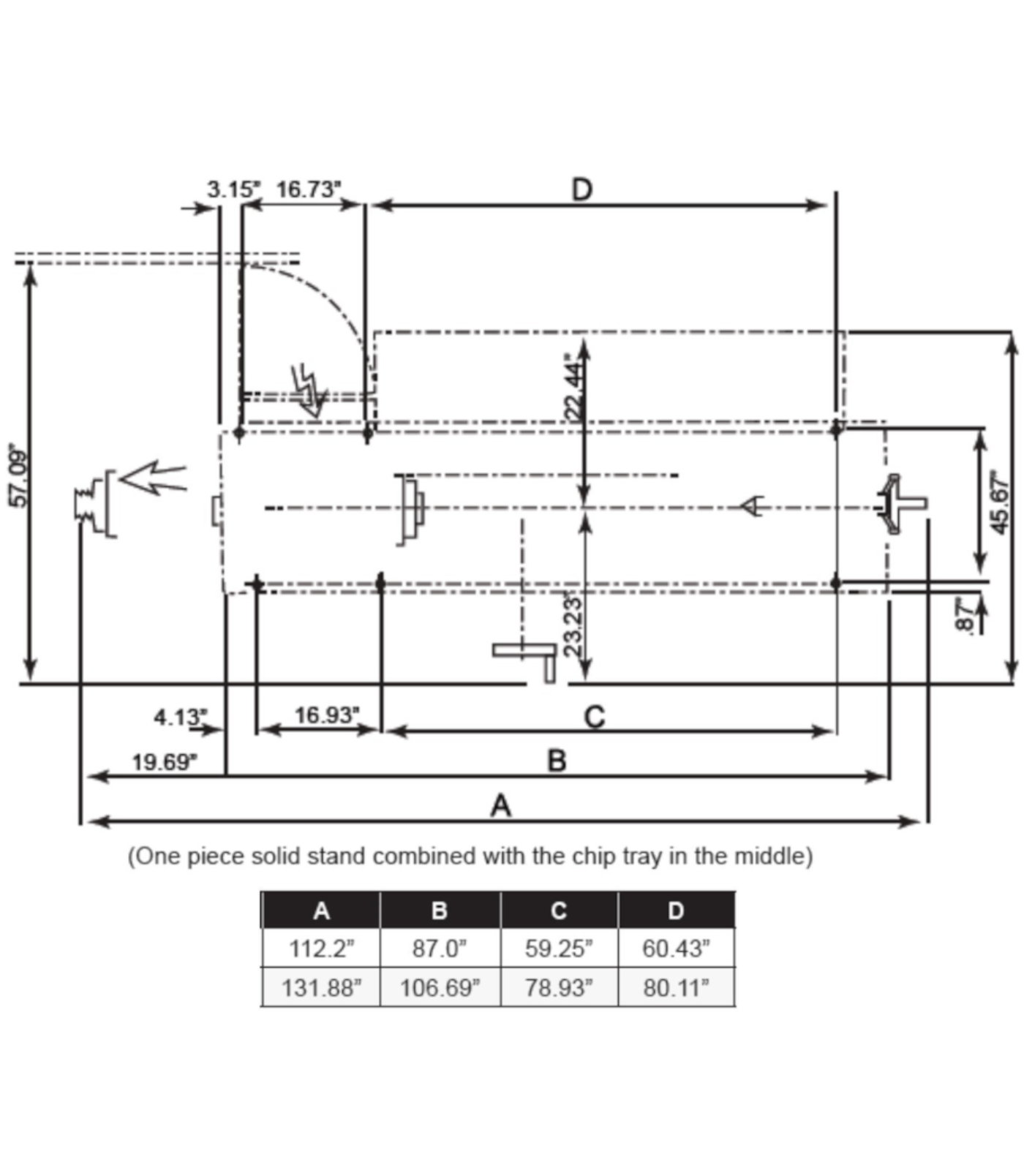

    Overall Dimensions (L x W x H) 94 x 44 x 68 in.
    Drive Geared Head
    What our Experts Think
    • Precision Gear-Head Lathe: Delivers consistent accuracy for demanding machining tasks.

    • Expanded Capability: Taper attachment and collet closer add flexibility and speed to operations.

    • Heavy-Duty Build: Cast-iron construction provides stability, reducing vibration and wear.

    • Operator-Friendly: Smooth controls, ergonomic design, and reliable performance boost productivity.

    • Industrial Reliability: A professional-grade lathe built for machine shops and industrial environments.

    Q&A

    Q: What is the JET Elite EGH-1740 Lathe?
    A: A heavy-duty gear head lathe designed for precision machining, equipped with a taper attachment and collet closer for versatile operation.

    Q: What makes it unique?
    A: Its rigid gear head drive, precision-ground bedways, taper attachment for accurate angles, and collet closer for fast part holding provide superior accuracy and efficiency.

    Q: Where can it be used?
    A: Ideal for machine shops, fabrication facilities, tool rooms, and industrial production environments.

    Q: What style of work does it suit?
    A: Precision turning, threading, facing, boring, and taper cutting on a variety of metals and alloys.

    Q: What materials is it made from?
    A: Durable cast iron frame with hardened and ground components for long-lasting stability.

    Q: What are its key features?
    A: 17" swing, 40" center distance, gear head drive, D1-6 spindle, taper attachment, and collet closer for efficient, accurate machining.

    Maintenance Tips
    • Clean bedways, carriage, and leadscrews after each use to prevent wear.

    • Lubricate gears, bearings, and sliding components according to manufacturer’s schedule.

    • Inspect taper attachment and collet closer regularly for alignment and smooth operation.

    • Check belts, gibs, and fasteners for proper adjustment and safety.

    • Keep electrical components dry and cover the lathe when idle to protect from dust.
