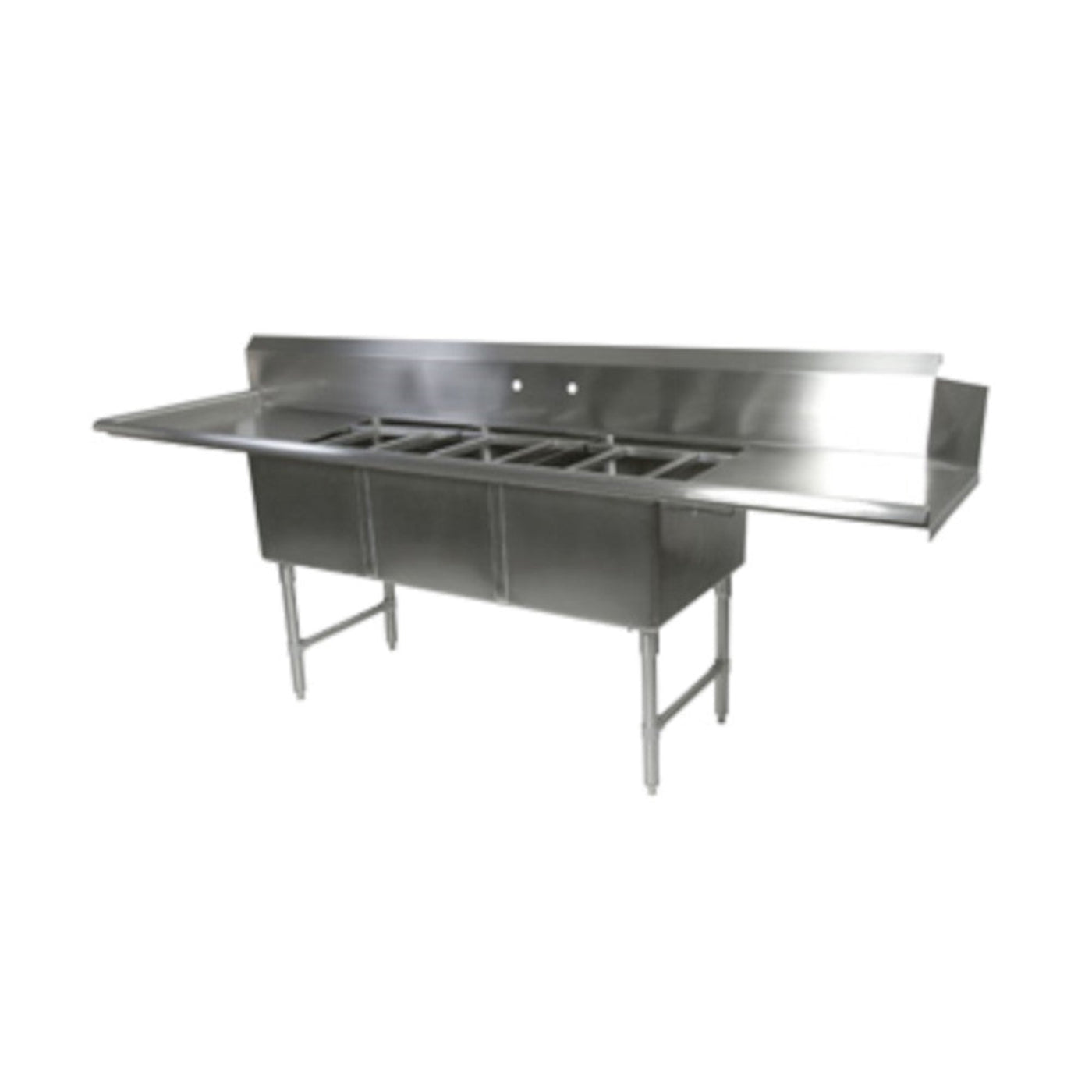

John Boos DT3B18244-2D24L 103.5" W x 30" D Dishtable/Pot Sink Two 24" Drainboard - JBDT3B182442D24L
This John Boos DT3B18244-2D24L Dishtable / Pot Sink is durable, easy to use, and perfect for commercial or industrial applications. With a 16 gauge stainless steel construction, it's top and bowls have been finished with a #4 satin polish. It has stainless steel legs, gussets, feet, and bracing. Its corners have been coved at a 3/4" radius. The sink tops are TIG welded and the bases are MIG welded. The exposed welds have been polished to match the adjacent surfaces. This DT3B18244-2D24L has a 3-1/2" diameter die stamped opening in the bottom of the bowls to aid drainage. While the backsplash does have 8" on-center with 1-1/8" faucet holes, this Dishtable / Pot Sink does not come with a faucet. (Faucet must be purchased separately).
Features
- (3) sink compartments
- (2) 24" drainboards
- Dish machine attachment on right side
- 16 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- 14" deep bowls
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45 degree
- 1" turned down rear lip
- 8" on-center with 1-1/8" faucet holes in backsplash
- All outside corners of assembly are bull-nosed
- Bull-nosed corners provide safe, clean, and polished edge
- Standard stainless steel legs are 1-5/8" in diameter
- Legs located directly under sink bowls, providing increased stability and max weight support
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surface
- Stainless steel bases are MIG welded
- Material
- 16 gauge type 300 stainless steel bowls and top with #4 polish, satin finish
- 1-5/8" Round O.D. stainless steel legs
- 1-1/4" Round O.D. stainless steel bracing
- Stainless steel gussets
- 1" adjustable stainless steel bullet feet
Specifications
| Model |
DT3B18244-2D24L |
| Compartment Dimensions |
18" W × 24" (front-to-back) × 14" D |
| Overall Dimensions |
36" H × 103.5" W × 30" D |
| Approximate Weight |
420 lbs. |
What our Experts Think
-
Heavy-Duty Stainless Steel: Built to resist corrosion and handle heavy commercial use.
-
Extra-Large Work Surface: 103.5" W x 30" D tabletop accommodates high-volume dishwashing and prep.
-
Integrated Pot Sink & Drainboards: Two 24" drainboards simplify rinsing, draining, and workflow efficiency.
-
Optimized Kitchen Workflow: Multi-functional design supports fast, organized dishwashing operations.
-
Expert-Recommended: Perfect for large commercial kitchens requiring durable, high-capacity, and hygienic dishwashing stations.
Q&A
Q: What is the John Boos DT3B18244-2D24L?
A: It’s a 103.5" W x 30" D dishtable/pot sink with two 24" drainboards, designed for heavy-duty commercial kitchens.
Q: What material is it made from?
A: Durable stainless steel ensures long-lasting performance and easy cleaning.
Q: How many compartments does it have?
A: One large pot sink compartment with two adjacent 24" drainboards for efficient drying.
Q: Is it suitable for commercial use?
A: Yes, ideal for restaurants, cafeterias, and high-volume food service operations.
Q: How easy is maintenance?
A: Smooth stainless steel surfaces allow quick, hygienic cleaning.
Q: What are its dimensions?
A: 103.5" W x 30" D, providing ample workspace and washing capacity.
Maintenance Tips
-
Clean daily with mild soap and warm water; avoid abrasive cleaners.
-
Wipe dry to maintain stainless steel finish and prevent water spots.
-
Inspect faucets, drains, and plumbing connections regularly for leaks.
-
Sanitize sink and drainboards with a food-safe disinfectant.
-
Check table hardware periodically and tighten as needed.
