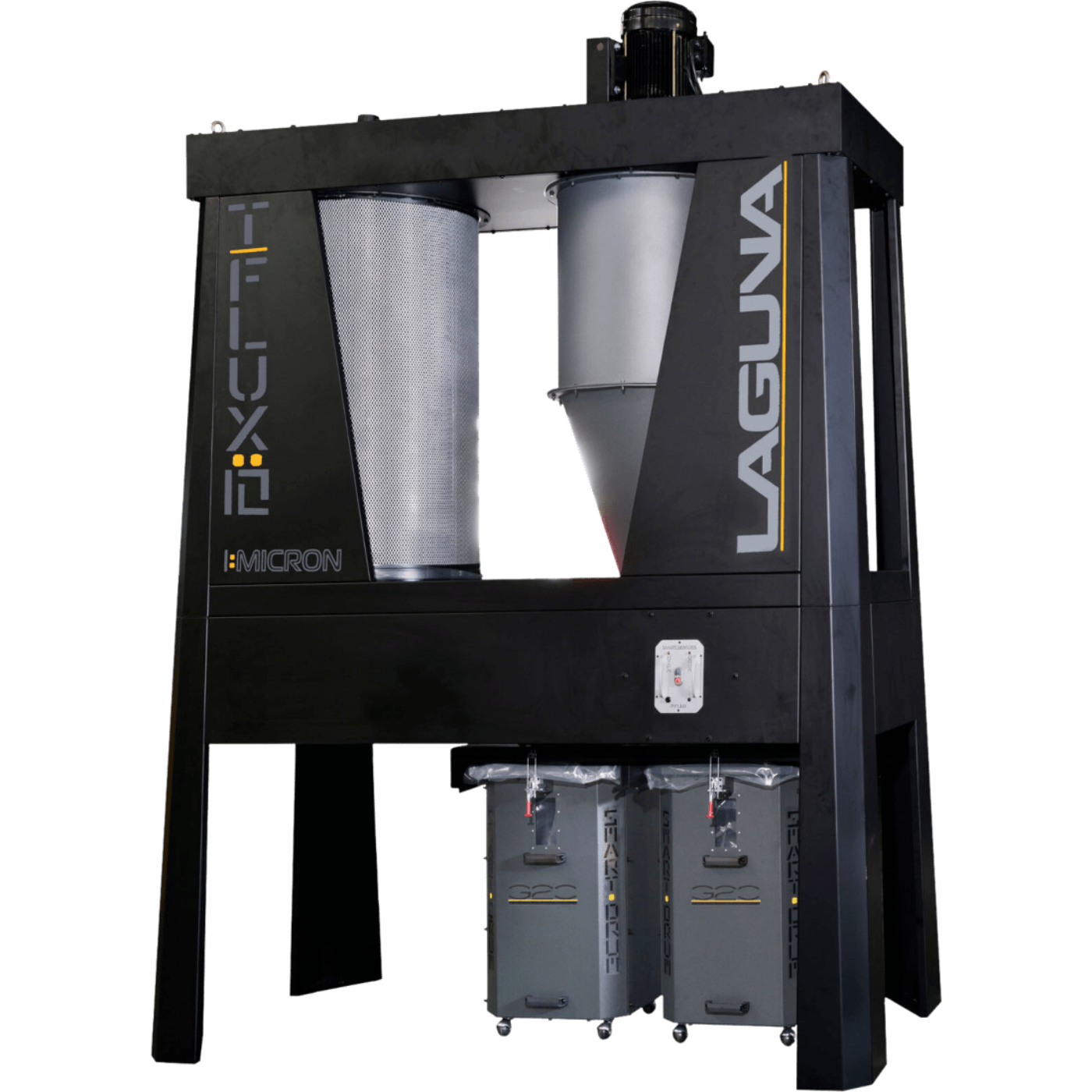

    Laguna Tools Industrial Dust Collector - T|Flux: 10 Cyclone - MDCTF102203

    The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop The T|Flux cyclones are equipped with a 12″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.

    Features
    • Motor HP: 10 HP
    • 220V, 30 Amps, 3 Phase
    • Recommended Breaker: 50 Amp
    • 60 Hertz
    • 3450 RPM
    • Switch Type: Sunken Radio Frequency Remote switch with LED full drum & LED Filter dirt detection
    • Hand Held Remote Control: High Frequency

    Additional Details

    All models are outfitted with smart drums which alert the user when the drums reach capacity. Automatic canister cleaning is controlled by a timer that turns on every work hour & runs 10 seconds clockwise & counter clockwise. The 1 micron canister has a huge surface area and filtrates 99.97% of particles ranging from 0.2 to 2 microns. Smart Drums comes standard with high quality casters and feature our unique quick disconnect design.

    Specifications
    • Shop Setting CFM*: 4030
    • Inlet CFM: 6957
    • Max Static Pressure (Inches of Water): 16.8″
    • Impeller/Fan Size: 18½″
    • Impeller Material: Steel
    • Impeller Type: Radial Fin
    • How is the fan balanced? To what specs?: ISO 1940
    • Inlet Diameters: 12″
    • Drum Capacity: 54 ga x 2 Sets
    • Octagon Drum: Low Pressure
    • Drum Collection Bag (Dia x L): Plastic Bag (740 x 1300mmL)
    • Canister Filter Type: Black 1 Micron
    • Filtration Efficiency: 0.2-2 Micron
    • MERV Rating: 12
    • Canister Diameter: 750mm (29.53″)
    • Canister Length: 1200mm (47.24″)
    • Filter Surface Area: 19.2 m²/207 ft²
    • Canister Cleaning: Auto Clean (gear motor)/Cleans every hour 10 sec clockwise, 10 sec counter-clockwise
    • Canister Filter Lower Dust Collection: Plastic Bag(740 x 600mmL)
    • Canister Filter Lower Dust Collection: Plastic Bag (740 x 600mmL)
    • Wheels: None
    • US/CSA Approved: Yes
    • Decibel Reading: 81 dB(A)(@9.8ft)
    • Machine Weight: 590 kgs/1301 lbs
    • Shipping Weight: 735 kgs/ 1621 lbs
    • Shipping Dimensions (L x W x H): 100″ x 49″ x 86″
    • Assembled Dimensions (L x W x H): 99.6″ x 48.3″ x 131.4″ (2530 x 1225 x 3337mm)

    Performance

    Dimensions

    Manual
    What Our Experts Think
    • The Laguna Tools Industrial Dust Collector T|Flux: 10 Cyclone – MDCTF102203 provides high-capacity dust collection for industrial workshops.

    • Powered by a 10 HP motor for strong suction and consistent airflow.

    • Cyclone design separates fine dust for improved filter life and efficiency.

    • Large dual 54-gallon drums reduce downtime and increase collection capacity.

    • Built for multi-machine central dust collection in heavy-duty shops.

    Q&A

    Q: What is the motor power?
    A: 10 HP, 220V, 3-phase.
    Q: What is the airflow capacity?
    A: Up to 4,030 CFM at the shop setting.
    Q: How many drums does it have?
    A: Two 54-gallon drums.
    Q: What type of filtration is used?
    A: 1-micron canister filter capturing 0.2–2 micron particles.
    Q: Can it serve multiple machines?
    A: Yes, designed for central shop systems.

    Maintenance Tips
    • Empty drums regularly to maintain suction and airflow.

    • Inspect and clean the canister filter periodically.

    • Check ductwork connections for leaks to maintain efficiency.

    • Ensure motor and impeller are balanced for long-term performance.

    • Keep the area around the unit clear for safe operation and maintenance.
