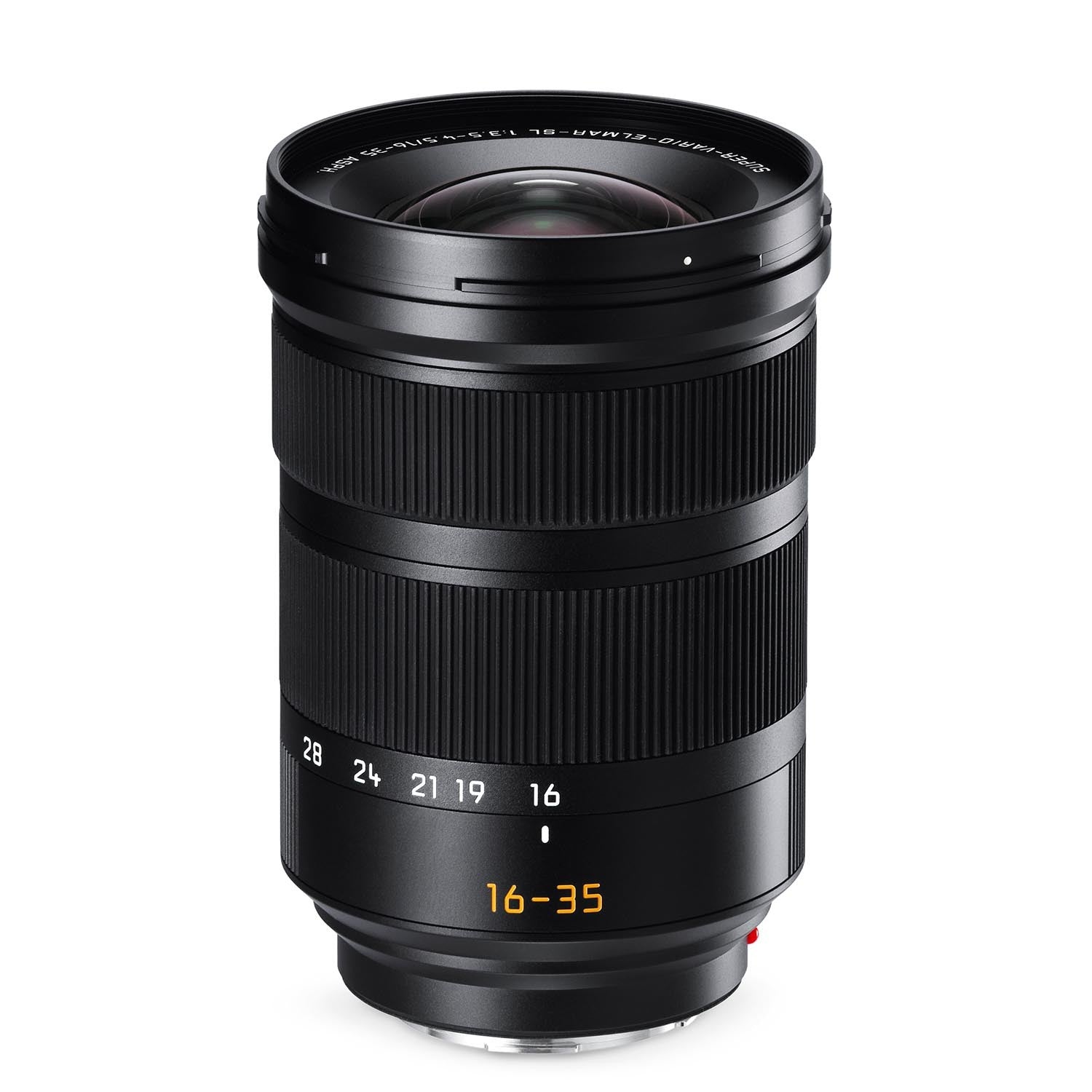

Leica SL 16-35mm f3.5-4.5 Super-Vario-Elmar-SL
Group portraits, landscapes, and architecture: Whenever the scene demands a wider view, the Leica Super-Vario-Elmar-SL 16–35 f/3.5–4.5 ASPH. is the perfect wide-angle lens for capturing it all. With a range of focal lengths from 16 to 35 mm, this high-performance lens expands the spectrum of the existing portfolio of SL zoom lenses into the super wide-angle range.
Endless opportunities from 16-280 mm
With the Super-Vario-Elmar-SL 16–35 f/3.5–4.5 ASPH, the Vario-Elmarit-SL 24–90 f/2.8–4 ASPH., and the APO-Vario-Elmarit-SL 90–280 f/2.8–4 ASPH., the SL portfolio of zoom lenses covers a range of focal lengths from 16 to 280 mm. Thus the three zoom lenses offer a spectrum of focal lengths that fulfill the needs of all styles of photography.
Fast and sharp when it matters
Together with exceptional imaging performance expected from a Leica at all focus distances and apertures, the high-performance lens offers simultaneously fast and nearly silent autofocus. To achieve this, only one very lightweight lens element is moved for focusing. A specially developed focus drive comprising a stepping motor and linear positioning enables very fast, almost-silent, and precise focusing without changing the overall length of the lens barrel.
Reliable under all conditions
As is the case with all other components of the Leica SL-System, the Super-Vario-Elmar-SL 16–35 f/3.5–4.5 ASPH. is designed and constructed to meet the special demands of professional photography. Made in Germany, the rugged construction of this lens and its AquaDura® lens coating make it ideal for use in even the most difficult conditions. Improved high-quality coatings ensure optimum suppression of reflections and stray light within the optical system, for shooting in even the harshest lighting.
Specifications:
Order number 11 177
Field angle (diagonal, horizontal, vertical) Focal length 16mm: 105,6°/95,3°/72°
Focal length 24mm: 84,7°/74,4°/53,7°
Focal length 35mm: 64,6°/55,5°/38,7°
Optical design
Number of lenses/groups
18/12
Number of aspherical lenses 2
Entrance pupil position Focal length 16mm: 105.9mm
Focal length 24mm: 101.5mm
Focal length 35mm: 105.0mm
Distance setting
Working range 250mm to infinity
Smallest object field Focal length 35mm: 90 x 135 mm
Largest reproduction ratio Focal length 16mm: 1:7.7
Focal length 35mm: 1:3.7
Aperture
Setting/function
Electronically controlled aperture, set using turn/push wheel on camera, including half and third values
Aperture setting range
Focal length 16mm: 3.5-22
Focal length 35mm: 4.5-22
Lowest value 22
Lens mount/sensor format L-Mount, full-frame 35mm format
Filter mount E82
Dimensions and weight
Length to bayonet mount
123 mm (without lens hood)
Largest diameter
88 mm
Weight 990 g
What Our Experts Think
-
Wide-angle zoom (16–35mm) ideal for landscapes, architecture, and interiors.
-
Smooth f3.5–4.5 aperture adapts to varying light conditions.
-
APO optics and Super-Vario design deliver sharpness and minimal distortion.
-
Lightweight and compact for comfortable handheld shooting.
-
Durable construction built for professional Leica SL cameras.
Q&A
-
Q: Which cameras is it compatible with?
A: Leica SL system cameras.
-
Q: Can it perform well in low light?
A: Yes, f3.5–4.5 aperture ensures good performance with moderate ISO adjustments.
-
Q: Is it weather-sealed?
A: Yes, designed to resist dust and light moisture.
-
Q: Is it suitable for travel?
A: Yes, compact design makes it portable and versatile.
Maintenance Tips
-
Keep front and rear caps on when not in use.
-
Clean lens surfaces with a microfiber cloth and lens-safe solution.
-
Avoid touching glass elements with fingers.
-
Store in a dry, padded case to prevent damage.
-
Check lens mount and focus mechanism periodically for smooth operation
