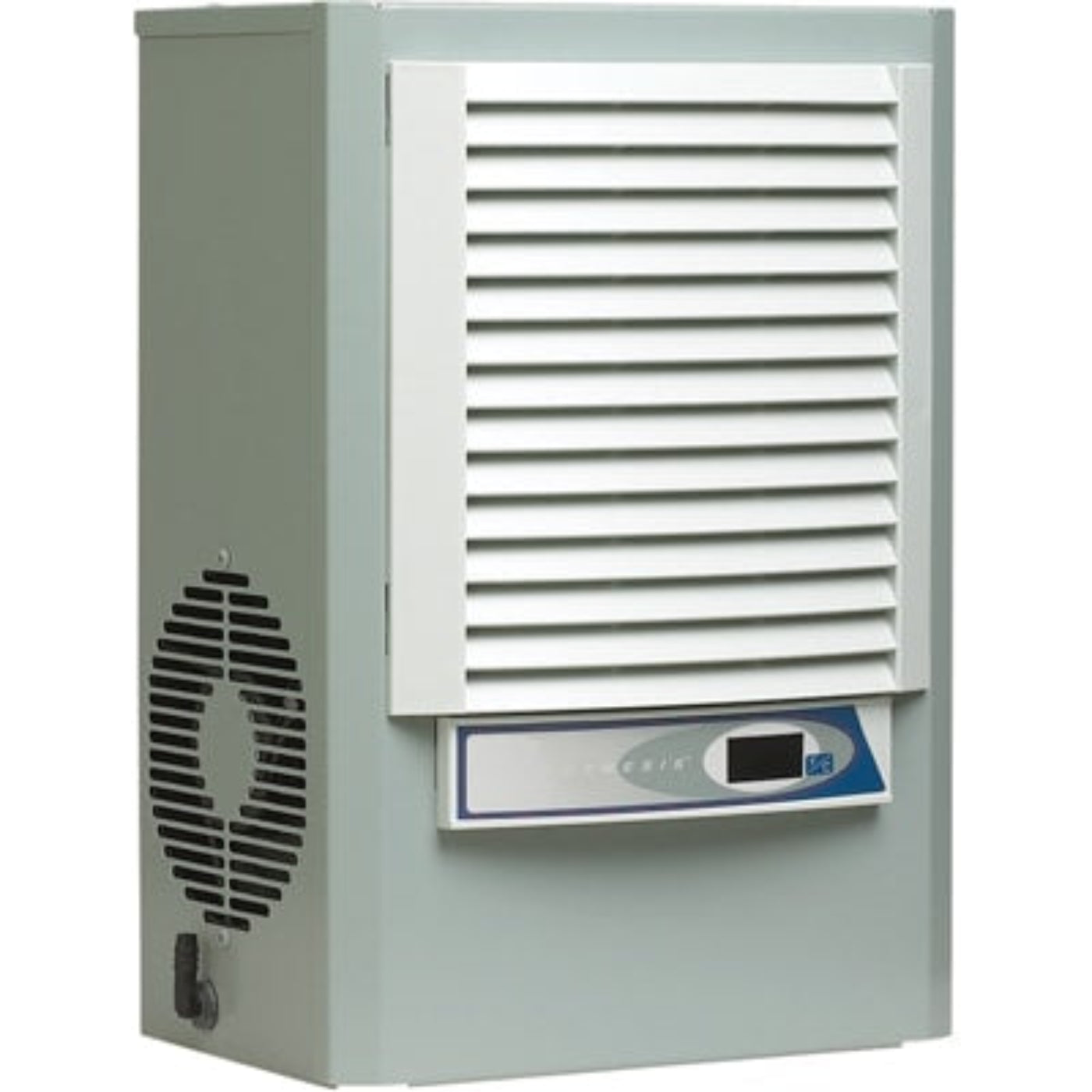

Nvent Hoffman Air Conditioning Unit - M170216G009
The nVent HOFFMAN Genesis™ M170216G009 is a compact indoor air conditioner designed for sealed enclosures.
The nVent HOFFMAN Genesis™ M170216G009 is a compact indoor air conditioner designed for sealed enclosures, offering efficient thermal management for sensitive equipment.
Features
-
Cooling Capacity: Provides 1500 BTU/hr at 50 Hz and 1800 BTU/hr at 60 Hz, suitable for enclosures ranging from 25 to 40 cubic feet.
-
Voltage and Frequency: Operates on 110/115V AC at 50/60 Hz, accommodating various power systems.
-
Current Draw: Consumes 6.6 A at 50 Hz and 6.7 A at 60 Hz, ensuring energy-efficient operation.
-
Thermostat Control: Equipped with a digital display for enclosure temperature and a high-temperature alarm set at 125°F (52°C), enhancing monitoring capabilities.
-
Design: Features a narrow width of 12 inches, making it ideal for enclosures with limited sidewall space.
-
Installation: EZ Mount flanges facilitate a straightforward, two-step, one-person installation process.
-
Environmental Compliance: Utilizes CFC-free, environmentally safe refrigerants, aligning with eco-friendly standards.
Specifications
|
New/Never Used Surplus |
| Brand |
Nvent Hoffman |
| Category |
Heating and Cooling |
| Part Number |
M170216G009 |
| Subcategory |
Air Conditioners |
| Weight |
56 lbs |
| Amperage |
6.6/6.7 Amp |
| BTU Hour |
1800 BTU |
| Max Current |
6.9 A |
| Min Temperature |
50°F |
| Number of Phases |
1 |
| Wattage |
527 Watt |
| Frequency |
50/60 Hz |
| Max Temperature |
125°F |
| Mounting Type |
Side |
| Standard |
CE,EAC,Maintains U/cUL Type 12 Rating When Properly Installed On A UL/cUL Type 12 Enclosure.,UL/cUL Listed; Type 12; File No. SA6453,UR/cUR Recognized,UR/cUR Recognized On Select Models, Reference Performance Data Tables |
| Voltage |
120 Volt
|
What our Experts Think
-
Proven Enclosure Cooling: Designed to efficiently cool sealed electrical cabinets (~25–40 cu ft), protecting sensitive equipment from heat stress.
-
Solid Cooling Capacity: Provides up to 1800 BTU/hr using a robust reciprocating compressor, ideal for indoor enclosure thermal management.
-
Reliable Temperature Control: Mechanical thermostat with digital display helps maintain setpoints and prevent overheating.
-
Durable Industrial Design: RAL 7042 powder‑coated steel housing with reusable aluminum filter for long service life.
-
Easy Installation: Side‑mount flanges simplify mounting on cabinet walls with minimal effort.
-
Safety & Compliance: UL/cUL and CE recognized, maintaining a Type 12 enclosure rating when properly installed.
Q&A
Q: What is the M170216G009 Air Conditioning Unit?
A: A compact Genesis™ series indoor air conditioner designed to cool sealed electrical and control enclosures, maintaining optimal operating temperatures.
Q: Where is it typically used?
A: Ideal for industrial automation, security systems, package handling equipment, and other applications where enclosure heat control is critical.
Q: What cooling performance does it offer?
A: Provides ~1500 to 1800 BTU/h cooling capacity on 115 V, 50/60 Hz power to help manage enclosure heat buildup.
Q: What are key features?
A: Includes a robust reciprocating compressor, reusable filter, mechanical thermostat with digital display, easy‑mount flanges, and eco‑friendly refrigerant.
Q: What environments is it meant for?
A: Designed for indoor use on sealed enclosures and helps maintain NEMA Type 12 rating when installed correctly.
Q: What size and specs should buyers know?
A: Approx 17.65″ H × 12″ W × 8.68″ D, ~56 lb, operates at 120 V with 6.6–6.7 A draw, and cools enclosures roughly 25–40 cu ft.
Q: What are the benefits?
A: Efficiently reduces enclosure interior temperature, protects sensitive electrical components from overheating, and extends equipment life.
Maintenance Tips
-
Regular Inspection: Check the unit for physical damage, corrosion, or loose components.
-
Filter Maintenance: Clean or replace air filters regularly to maintain airflow and efficiency.
-
Condenser & Coils: Keep condenser and evaporator coils clean and free of debris.
-
Electrical Check: Inspect wiring and connections for wear, corrosion, or looseness.
-
Coolant Levels: Verify refrigerant levels periodically; refill or service as needed.
-
Operation Check: Ensure the unit cycles correctly and maintains set temperatures without unusual noise.
-
Replacement/Repair: Replace damaged parts immediately to prevent further issues and ensure optimal performance.
