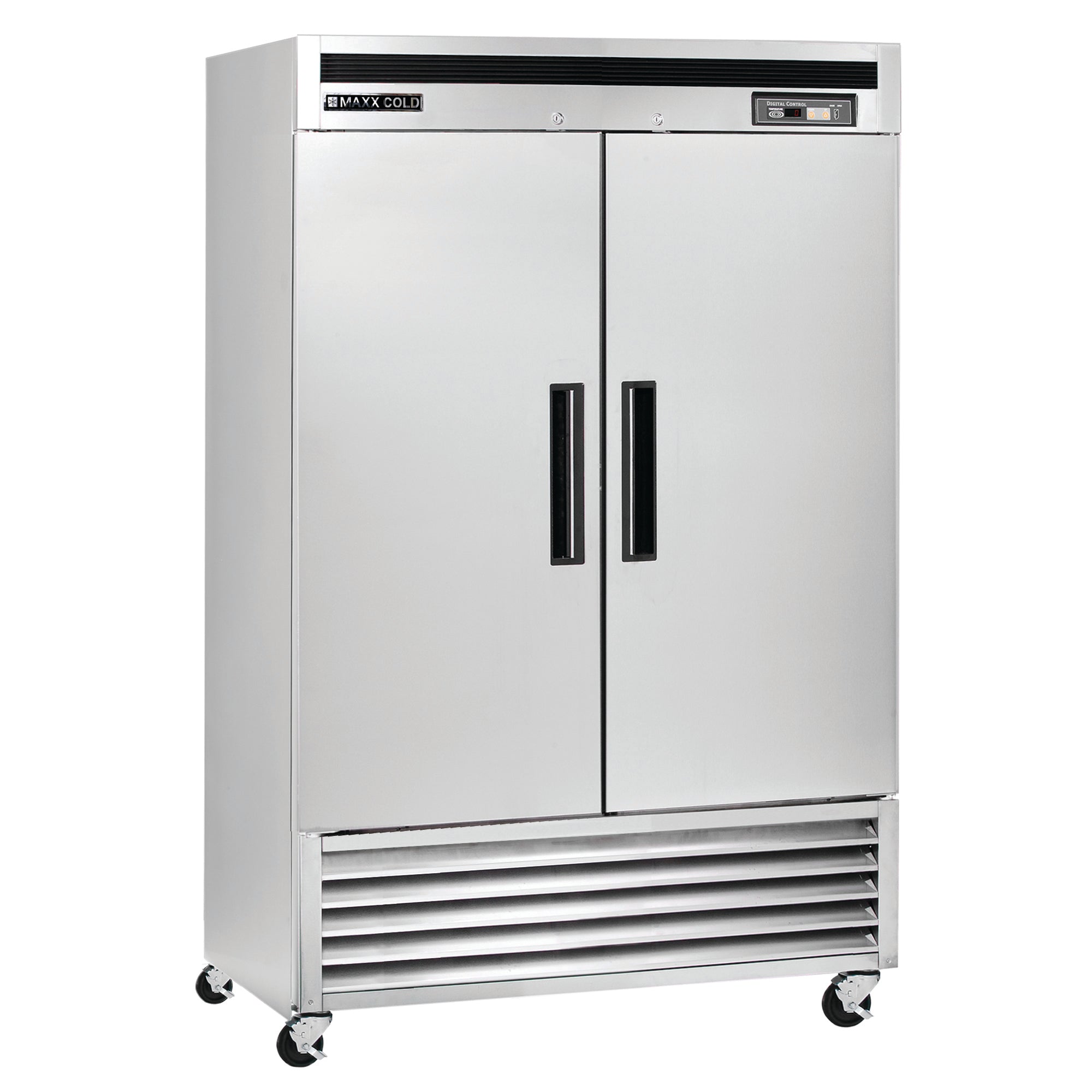

Maxx Cold Double Door Reach-In Freezer, Bottom Mount, 54"W, 49 cu. ft. Storage Capacity, in Stainless Steel - MCF-49FDHC
Maxx Cold MCF-49DHC 54-Inch-Wide Reach-In Freezer, Double Door, Bottom Mount, Stainless Steel with 42.8 Cu. Ft. Storage, Energy Star Rated
Features
- Durable stainless steel exterior and interior
- Environment friendly CFC-free polyurethane foam insulation
- Six (6) heavy-duty, adjustable, PE coated wire shelves per section hold full size sheet pans
- Recessed handles with door locks
- 4" diameter swivel casters with front brakes
- Automatic defrost system and interior lighting
- Digitally controlled temperature system maintains optimum temperature and LED display is easily viewed from exterior
- Equipped with integrated condensate evaporator therefore no drain line connection is needed
- Holding temperature -10°F to 10°F (-23°C to 12°C)
- Open door alert beeps when door has been open for 5 minutes
- Self-closing doors stays open past 90 degrees
- Available in 120V/60Hz /1pH and international voltage available
- Net storage capacity of 42.8 Cubic Ft. (1,212 L)
- Gross storage capacity of 49 Cubic Ft. (1,387 L)
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
4.6A |
| Assembled Dimensions (LxWxH) |
31" x 54" x 82.75" |
| Assembled Weight (lb) |
403.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
49 cu. ft. |
| Caster Size |
5" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
55.75" |
| Depth - Excluding Door |
31" |
| Depth - Excluding Handles |
31" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
French-Door |
| Electric |
Yes |
| First Zone Maximum Temperature |
10° |
| First Zone Minimum Temperature |
-10° |
| Freezer Capacity |
42.8 cu. ft. |
| Freezer Type |
Full Freezer |
| Height - Excluding Top Hinge |
82.75" |
| Ice Maker Included |
No |
| Included Components |
Freezer, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Stainless Steel |
| Number of Doors |
2.0 |
| Number of Items |
1.0 |
| Number of Shelves |
6.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
54" |
| Temperature Range |
-10° - 10° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
930W |
| Case Pack Dimensions |
56" x 40" x 90" |
| Case Pack Weight |
470.0 |
| Case Quantity |
1.0 |
| Country of Origin |
Korea |
| Freight Class |
150.0 |
Manual
Spec Sheet
What Our Experts Think
-
49 cu. ft. Capacity – Provides generous storage for frozen goods, ideal for medium to large-scale commercial kitchens and foodservice operations.
-
Bottom-Mount Compressor – Improves energy efficiency and simplifies maintenance, extending the life of the unit.
-
Energy Star Rated – Meets energy efficiency standards, helping reduce operational costs and minimize environmental impact.
-
Durable Stainless Steel – Built to last, easy to clean, and designed to handle high-demand environments.
-
Reliable Freezing Performance – Maintains consistent freezing temperatures to preserve food quality and safety.
Q&A
Q: What are the main features of the Maxx Cold Double Door Reach-In Freezer?
A: The Maxx Cold MCF-49FDHC features a bottom-mounted compressor, 54" width, 49 cu. ft. storage capacity, and Energy Star rating. It is constructed from durable stainless steel for efficient and reliable freezing.
Q: How much storage space does the Maxx Cold Reach-In Freezer offer?
A: It provides 49 cu. ft. of storage, ideal for storing large quantities of frozen goods in commercial kitchens or foodservice establishments.
Q: Is the Maxx Cold Freezer energy-efficient?
A: Yes, it is Energy Star rated, helping to reduce energy consumption and lower operational costs.
Q: Can the Maxx Cold Freezer handle heavy-duty use?
A: Yes, its stainless steel construction and bottom-mount compressor make it durable enough for continuous, high-demand use in commercial environments.
Q: Is the Maxx Cold Freezer easy to clean?
A: Yes, the stainless steel exterior and design make it easy to clean and maintain for a hygienic environment.
Maintenance Tips
-
Clean the condenser coils regularly to prevent dust buildup and maintain efficient cooling.
-
Check door seals for wear or damage and replace them as needed to ensure cold air retention.
-
Defrost the freezer as needed to avoid ice buildup and ensure consistent temperatures.
-
Wipe down the interior and exterior with a mild cleaner to maintain cleanliness and appearance.
-
Ensure proper airflow around the unit to maintain cooling efficiency.
-
Monitor temperature settings regularly to ensure the freezer maintains optimal storage conditions.
