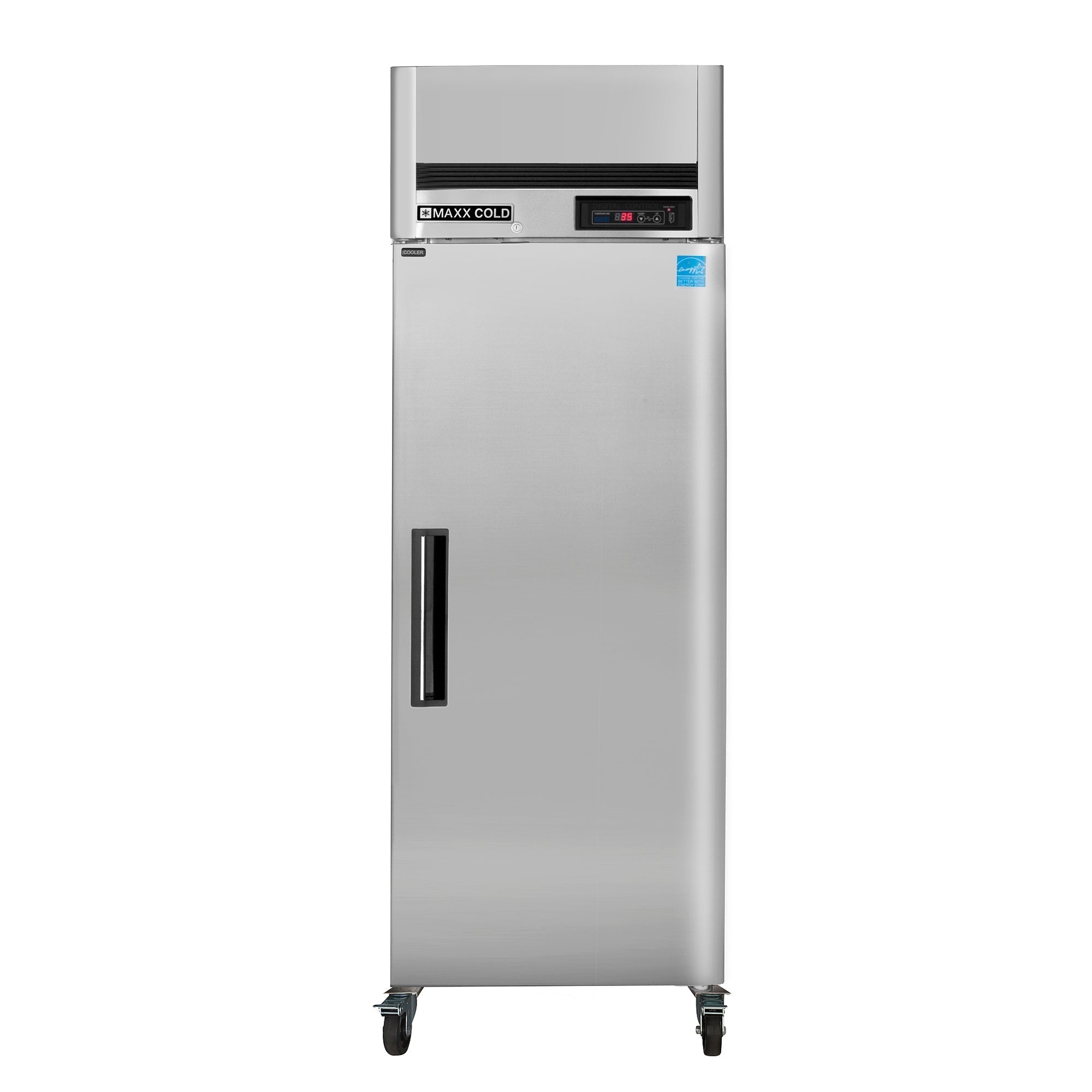

Maxx Cold Single Door Reach-In Refrigerator Top Mount, 27", 23 cu. ft. Storage Capacity, Energy Star Rated, in Stainless Steel - MCRT-23FDHC
The Maxx Cold Single Door Reach-In Top Mount Refrigerator is designed to assist you in meeting all foodservice industry requirements while making its content easy to access. The cabinet is equipped with three heavy-duty fully adjustable and easy-to-clean PE-coated wire shelves which can hold full-size sheet pans. The unit provides up to 23 cubic feet of storage capacity, while its slender and solid build makes it a great choice for limited or compact spaces. This commercial refrigerator is engineered with an open-door alert that beeps if the refrigerator is left open for five minutes and the single door model is field reversible. This reach-in commercial refrigerator is constructed of a durable stainless steel exterior and interior, and is mounted on 4-inch diameter swivel caster wheels that can easily be maneuvered. Standard features on this premium indoor refrigerator include integrated energy saving interior LED lighting, automatic defrost function, lock and key set for security and digital temperature control which maintains optimum temperature. Digital temperature display can be viewed from outside the cabinet, which is engineered with an integrated condensate evaporator; meaning no drain line connection is needed. The environmentally friendly polyurethane foam insulation on this one-door commercial refrigerator provides outstanding thermal regulation and is very energy efficient. This unit meets Energy Star guidelines.
Features
- One self-closing door with easy to grip recessed handle
- Constructed of a durable, easy to clean stainless steel interior and exterior
- Three adjustable heavy-duty wire shelves
- Storage capacity of 23 cu ft
- Open door alert beeps if door has been open for 5 minutes
- Equipped with 4" swivel casters
- Electronic control panel with digital display
- Automatic defrost system
- Digital control system maintains optimum temperature
- Holding temperature 33°F to 41°F (1°C to 5°C)
- Equipped with integrated condensate evaporator therefore no drain line connection is needed
- Environmentally friendly CFC-free polyurethane foam insulation provides outstanding thermal
- Large evaporator and condenser for quick cooling and greater efficiency
- Meets Energy Star Guidelines
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
3A |
| Assembled Dimensions (LxWxH) |
31" x 27" x 82" |
| Assembled Weight (lb) |
264.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
23 cu. ft. |
| Caster Size |
4" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
58" |
| Depth - Excluding Door |
31" |
| Depth - Excluding Handles |
31" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
Right |
| Electric |
Yes |
| First Zone Maximum Temperature |
41° |
| First Zone Minimum Temperature |
33° |
| Freezer Type |
No Freezer |
| Fresh Food Capacity |
18.9 cu. ft. |
| Height - Excluding Top Hinge |
82" |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Stainless Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Number of Shelves |
3.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
27" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
360W |
| Case Pack Dimensions |
40" x 40" x 81" |
| Case Pack Weight |
365.0 |
| Case Quantity |
1.0 |
| Country of Origin |
Korea |
Manual
Spec Sheet
What Our Experts Think
-
Compact Yet Spacious – 23 cu. ft. of storage in a slim 27” width design.
-
Energy Efficient – ENERGY STAR® rated for lower operating costs.
-
Top-Mount Compressor – Enhances cooling efficiency and maximizes interior space.
-
Durable Stainless Steel Build – Sleek, professional, and easy to clean.
-
Consistent Cooling – Maintains optimal temperatures for food safety.
-
Perfect for Commercial Use – Ideal for restaurants, cafes, and food service operations.
Q&A
Q: What is the storage capacity of this refrigerator?
A: It offers 23 cu. ft. of storage space, ideal for commercial kitchens.
Q: What are the dimensions?
A: The unit measures 27”W, making it a space-saving yet high-capacity solution.
Q: What type of compressor does it use?
A: It features a top-mount compressor, providing efficient cooling and easy maintenance.
Q: Is it energy efficient?
A: Yes, it's Energy Star rated, ensuring low energy consumption and cost savings.
Q: What material is it made of?
A: Stainless steel construction ensures durability, easy cleaning, and a professional look.
Q: Does it have adjustable shelves?
A: Yes, it includes adjustable heavy-duty shelves for flexible storage options.
Q: Where is it best suited for?
A: Ideal for restaurants, cafes, grocery stores, and commercial kitchens.
Maintenance Tips
-
Set & Monitor Temperature – Maintain 34-40°F for optimal food storage; use an external thermometer for accuracy.
-
Clean Interior & Exterior – Wipe stainless steel surfaces with mild detergent; avoid abrasive cleaners.
-
Inspect & Replace Door Seals – Check gaskets regularly to ensure a tight seal and prevent energy loss.
-
Clean Condenser Coils Every 3-6 Months – Improves cooling efficiency and extends the unit’s lifespan.
-
Ensure Proper Air Circulation – Avoid overloading shelves to allow consistent cooling.
-
Check & Clear Drain Lines – Prevents water buildup and ensures efficient operation.
-
Inspect Fans & Vents – Keep them unobstructed for optimal airflow and performance.
