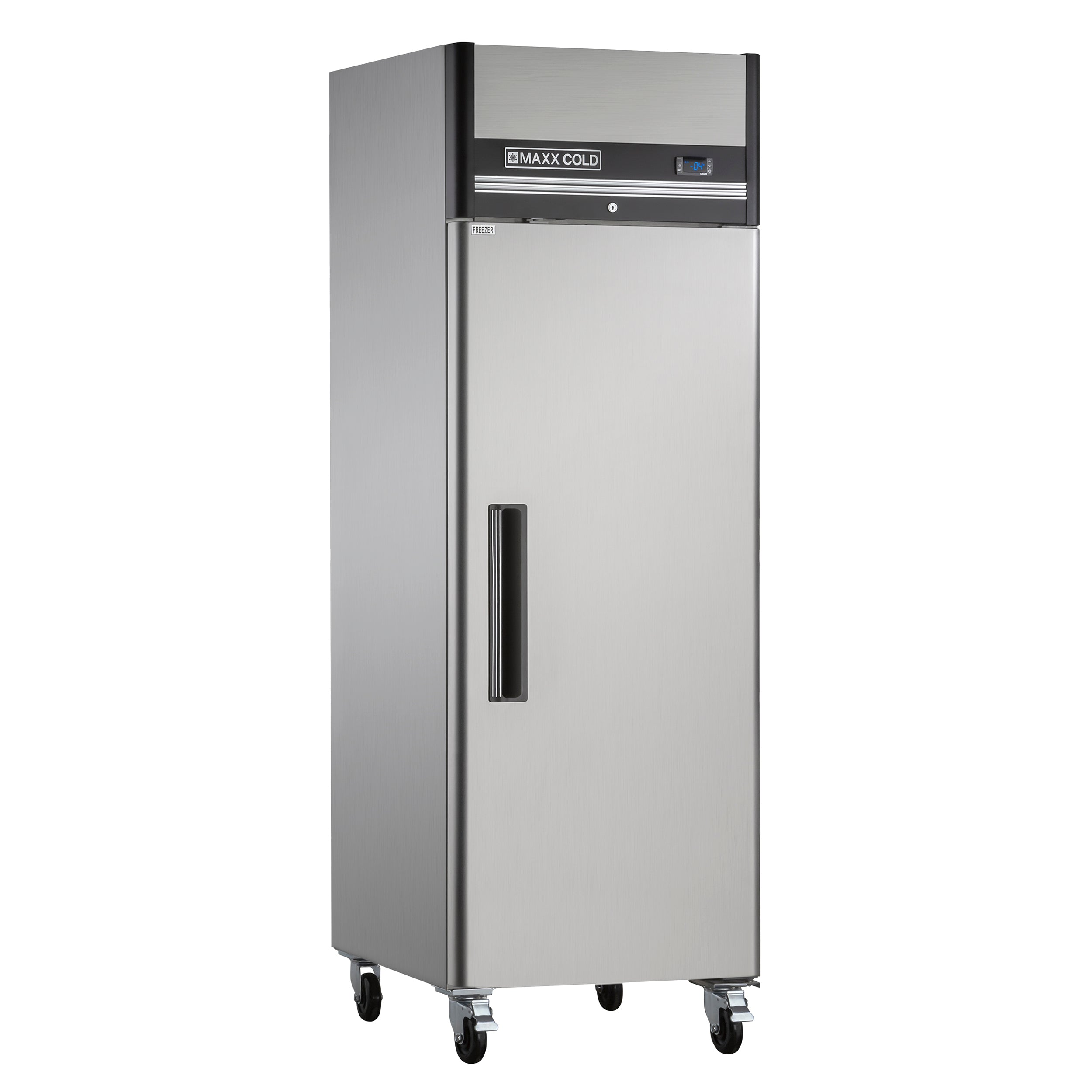

Maxx Cold Single Door Reach-in Freezer, Top Mount, 25.2"W, 19 cu. ft. Storage Capacity, in Stainless Steel - MXCF-19FDHC
Maxx Cold 25.2-inch-wide single door reach-in freezer is designed to assist you in meeting all food service industry requirements while making its content easy to access. The cabinet is equipped with 3 heavy duty fully adjustable and easy to clean PE coated wire shelves which can hold full size sheet pans and provides up to 19 Cubic Ft. (538 L) of storage capacity, while it’s slender and solid configuration makes it a great choice for limited spaces. In addition, the single door commercial freezer model is engineered with an open-door alert that beeps if the freezer is left open for three minutes. This top mount commercial grade freezer is constructed of stainless steel (interior) and sanitary painted aluminum (interior) and is mounted on 4” diameter swivel caster wheels that can easily be maneuvered. Standard features on this premium indoor freezer include integrated energy saving interior LED lighting, automatic defrost function, recessed door handles with locks and digital temperature control which maintains optimum temperature. Digital temperature display can be viewed from outside the cabinet, which is engineered with an integrated condensate evaporator; meaning no drain line connection is needed. The urethane foam insulation on this one-door commercial freezer provides outstanding thermal regulation and is energy efficient.
Features
- Durable stainless steel exterior with sanitary painted aluminum interior
- Urethane foam insulation
- (3) heavy-duty, adjustable, PE coated wire shelves per section hold full size sheet pans
- Recessed handles with door locks
- 4" diameter swivel casters with front brakes
- Automatic defrost system and interior lighting
- Equipped with integrated condensate evaporator therefore no drain line connection is needed
- Holding temperature -10°F to 10°F (-23⁰C to -12⁰C)
- Open door alert beeps when door has been open for 3 minutes
- Hinged, self-closing doors
- Available in 120V/60Hz/1pH and International voltage available
- Nominal storage capacity of 19 Cubic Ft. (538 L)
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
8A |
| Assembled Dimensions (LxWxH) |
31.50" x 25.20" x 77.60" |
| Assembled Weight (lb) |
296.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
19 cu. ft. |
| Caster Size |
4" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
53.60" |
| Depth - Excluding Door |
31.50" |
| Depth - Excluding Handles |
31.50" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
Right |
| Electric |
Yes |
| First Zone Maximum Temperature |
10° |
| First Zone Minimum Temperature |
-10° |
| Freezer Capacity |
19 cu. ft. |
| Freezer Type |
Full Freezer |
| Height - Excluding Top Hinge |
77.60" |
| Ice Maker Included |
No |
| Included Components |
Freezer, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Stainless Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Number of Shelves |
3.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
25.2" |
| Temperature Range |
-10° - 10° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
950W |
| Case Pack Dimensions |
34" x 30" x 81" |
| Case Pack Weight |
351.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
Manual
Spec Sheet
What Our Experts Think
-
19 cu. ft. Capacity – Provides reliable storage for frozen goods, perfect for smaller to medium-sized kitchens and foodservice operations.
-
Top-Mount Compressor – Efficient cooling with easy access for maintenance, ensuring long-term reliability.
-
Durable Stainless Steel – Built for heavy-duty use with an easy-to-clean surface that stands up to the demands of a busy commercial kitchen.
-
Consistent Freezing Performance – Maintains optimal freezing temperatures to preserve the freshness and quality of frozen items.
-
Energy-Efficient – Designed to reduce energy consumption while providing reliable performance.
Q&A
Q: What are the main features of the Maxx Cold Single Door Reach-In Freezer?
A: The Maxx Cold MXCF-19FDHC features a top-mounted compressor, 25.2" width, 19 cu. ft. storage capacity, and durable stainless steel construction, designed for efficient freezing in commercial settings.
Q: How much storage space does the Maxx Cold Reach-In Freezer provide?
A: It offers 19 cu. ft. of storage, making it ideal for smaller to medium-sized commercial kitchens or foodservice environments.
Q: Is the Maxx Cold Freezer energy-efficient?
A: Yes, it is designed to be energy-efficient, helping reduce energy costs while maintaining consistent freezing temperatures.
Q: Can the Maxx Cold Freezer handle heavy-duty use?
A: Yes, its stainless steel build and top-mount compressor are built to withstand continuous, high-demand use in commercial environments.
Q: Is the Maxx Cold Freezer easy to clean?
A: Yes, the stainless steel design ensures easy cleaning and maintenance for a hygienic environment.
Maintenance Tips
-
Clean the condenser coils regularly to prevent dust buildup and ensure efficient cooling.
-
Check door seals for wear and replace them if damaged to maintain proper cold air retention.
-
Defrost the freezer as needed to prevent ice buildup and ensure consistent temperatures.
-
Wipe down both interior and exterior surfaces with a mild cleaner to maintain cleanliness and appearance.
-
Ensure proper ventilation around the unit for optimal airflow and cooling efficiency.
-
Monitor temperature settings to ensure the freezer maintains ideal storage conditions.
