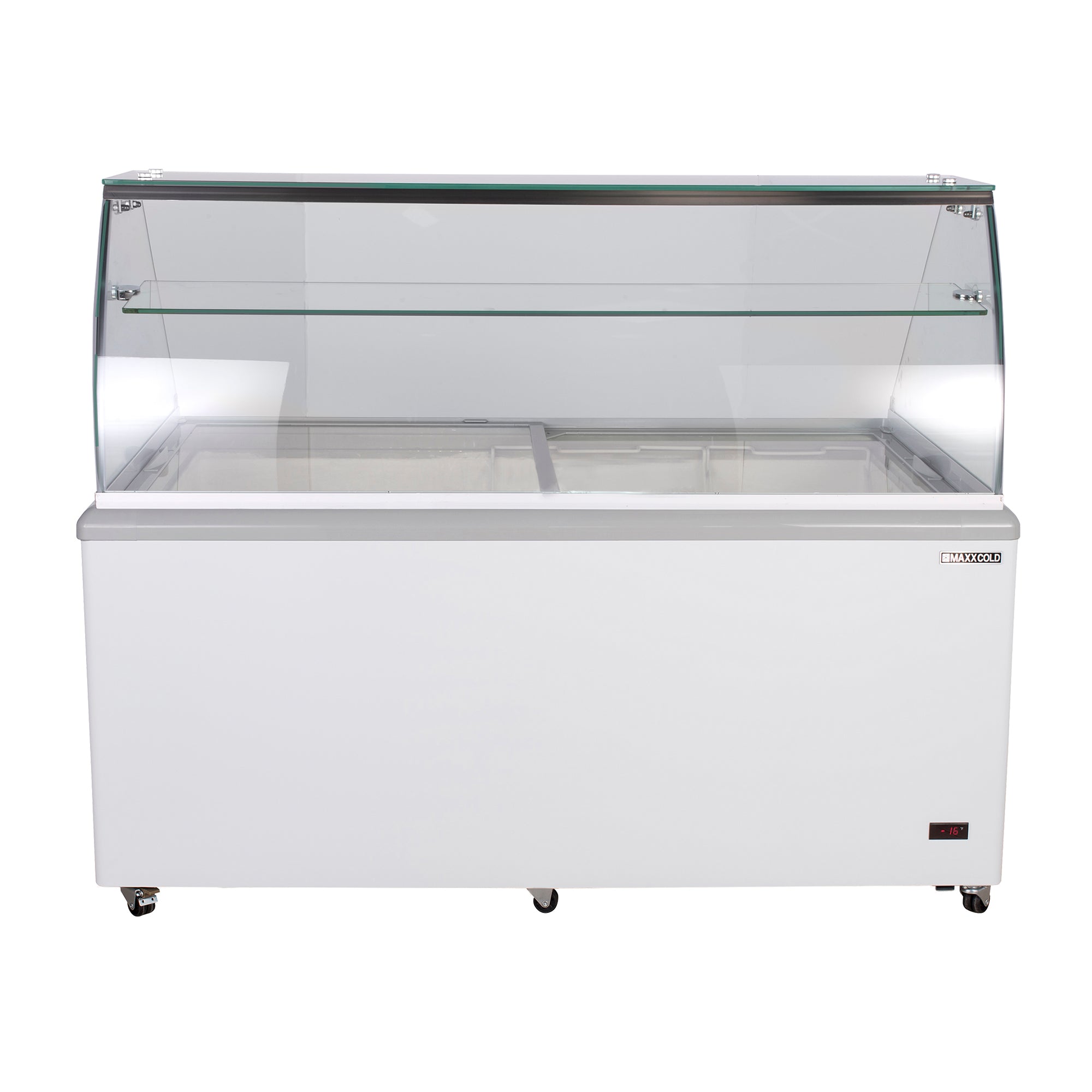

Maxx Cold Curved Glass Ice Cream Dipping Cabinet Freezer, 70"W, 20 cu. ft. Storage Capacity, Holds up to (22) Flavor Tubs, in White - MXDC-12
Features:
- Flat, tempered clear glass sliding lids
- Lid lock and keys with removable pin to keep lid unlocked #XDCDOORLOCK
- Interior LED lights makes it easier to see selection and enhance product’s appearance
- Curved tempered glass sneeze guard (assembly required)
- Molded plastic lid frame heated to prevent frost or ice build-up
- Internal condensate evaporator pan therefore a floor drain is not required
- Bottom defrost drain with plug
- Heavy-duty casters, two locking
- Removable rubber bumper guards and side grill
- Adjustable temperature range -18°F to +10°F (-28°C to -12°C)
- 2.5” thick foamed in-place, environmentally friendly polyurethane insulation
- Easy to read external digital thermometer display
- Exterior construction is white coated steel and interior is pre-coated white steel
- Tubholders are constructed of powder coated wire
Specifications
| Adjustable Shelves |
No |
| Adjustable Temperature Control |
Yes |
| Amperage |
4.1A |
| Assembled Dimensions (LxWxH) |
27.20" x 70" x 50.40" |
| Assembled Weight (lb) |
287.0 |
| Assembly Required |
Yes |
| Batteries Required |
No |
| Capacity |
16 cu. ft. |
| Caster Size |
3" |
| Casters |
Yes |
| Color |
White |
| Control Type |
Electric |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Manual |
| Depth - Door Open 90° |
27.20" |
| Depth - Excluding Door |
27.20" |
| Depth - Excluding Handles |
27.20" |
| Height w/ Lid Open 90° |
47.20" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Glass |
| Door Material |
Glass |
| Door Swing Orientation |
Sliding |
| Electric |
Yes |
| First Zone Max Temperature |
10° |
| First Zone Min Temperature |
-18° |
| Freezer Type |
No Freezer |
| Fresh Food Capacity |
16 cu. ft. |
| Height - Excluding Top Hinge |
47.20" |
| Ice Maker Included |
No |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Interior Depth |
21.50" |
| Interior Width |
52" |
| Interior Height |
26.50" |
| Interior Lighting |
No |
| Material |
Powder Coated Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Size |
70" |
| Temperature Range |
-18° - 10° |
| Temperature Zones |
1.0 |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
475W |
| Case Pack Dimensions |
86" x 42" x 51" |
| Case Pack Weight |
320.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
Manual
Spec Sheet
What Our Experts Think
-
Spacious 20 cu. ft. Capacity – Holds up to 22 flavor tubs, perfect for high-volume ice cream shops and dessert businesses.
-
Curved Glass Display – Enhances product visibility while providing an attractive showcase for customers.
-
Efficient Cooling System – Maintains consistent freezing temperatures to keep ice cream at the ideal serving texture.
-
Sliding Glass Lids – Smooth, easy access for quick scooping and service.
-
Durable White Exterior – Clean, modern design that complements any commercial space.
-
Adjustable Storage Racks – Customizable organization for efficient flavor rotation.
-
Energy-Efficient Operation – Designed for low power consumption without compromising performance.
-
Lockable Casters – Easy mobility and secure placement for flexible store layout.
Q&A
Q: What is the Maxx Cold Curved Glass Ice Cream Dipping Cabinet Freezer?
A: The Maxx Cold MXDC-12 is a commercial ice cream dipping cabinet with a curved glass display, 20 cu. ft. storage capacity, and the ability to hold up to 22 flavor tubs.
Q: How many ice cream tubs can it hold?
A: It accommodates (12) tubs for serving and (10) tubs for storage, making it ideal for high-volume operations.
Q: What are the temperature settings?
A: It maintains a temperature range of -18°F to 10°F, ensuring optimal ice cream texture and preservation.
Q: Is the glass display durable?
A: Yes, the curved tempered glass enhances product visibility while being sturdy and easy to clean.
Q: Does it include storage space?
A: Yes, it features a built-in storage area for extra ice cream tubs, allowing seamless flavor rotation.
Q: What type of defrost system does it use?
A: It has a manual defrost system, ensuring consistent cooling performance.
Q: Is it energy efficient?
A: Yes, it is designed for efficient cooling with eco-friendly refrigerant, reducing energy consumption.
Q: Does it come with casters?
A: Yes, it includes heavy-duty casters for easy mobility and positioning.
Maintenance Tips
-
Regular Cleaning – Wipe down the interior and exterior surfaces weekly using a soft cloth and mild detergent. Avoid harsh chemicals that can damage the finish.
-
Proper Ventilation – Ensure at least 6 inches of clearance around the unit for optimal airflow and efficient cooling.
-
Temperature Monitoring – Keep the freezer set between -10°F to -20°F for ideal ice cream storage. Use an external thermometer for accuracy.
-
Defrosting & Ice Removal – Regularly check for ice buildup and manually defrost if necessary to maintain proper airflow and efficiency.
-
Condenser Coil Maintenance – Clean the condenser coils every 3-6 months using a vacuum or soft brush to remove dust and improve performance.
-
Gasket & Door Seal Inspection – Regularly clean and check the door seals to ensure a tight fit, preventing temperature fluctuations.
-
Sliding Glass Lid Care – Clean the curved glass panels with a microfiber cloth and a non-abrasive cleaner for visibility and hygiene.
-
Proper Tub Placement – Arrange flavor tubs efficiently, allowing proper spacing for airflow and even cooling distribution.
-
Stable Power Supply – Plug into a dedicated outlet, avoid using extension cords, and do not frequently unplug to protect the compressor.
