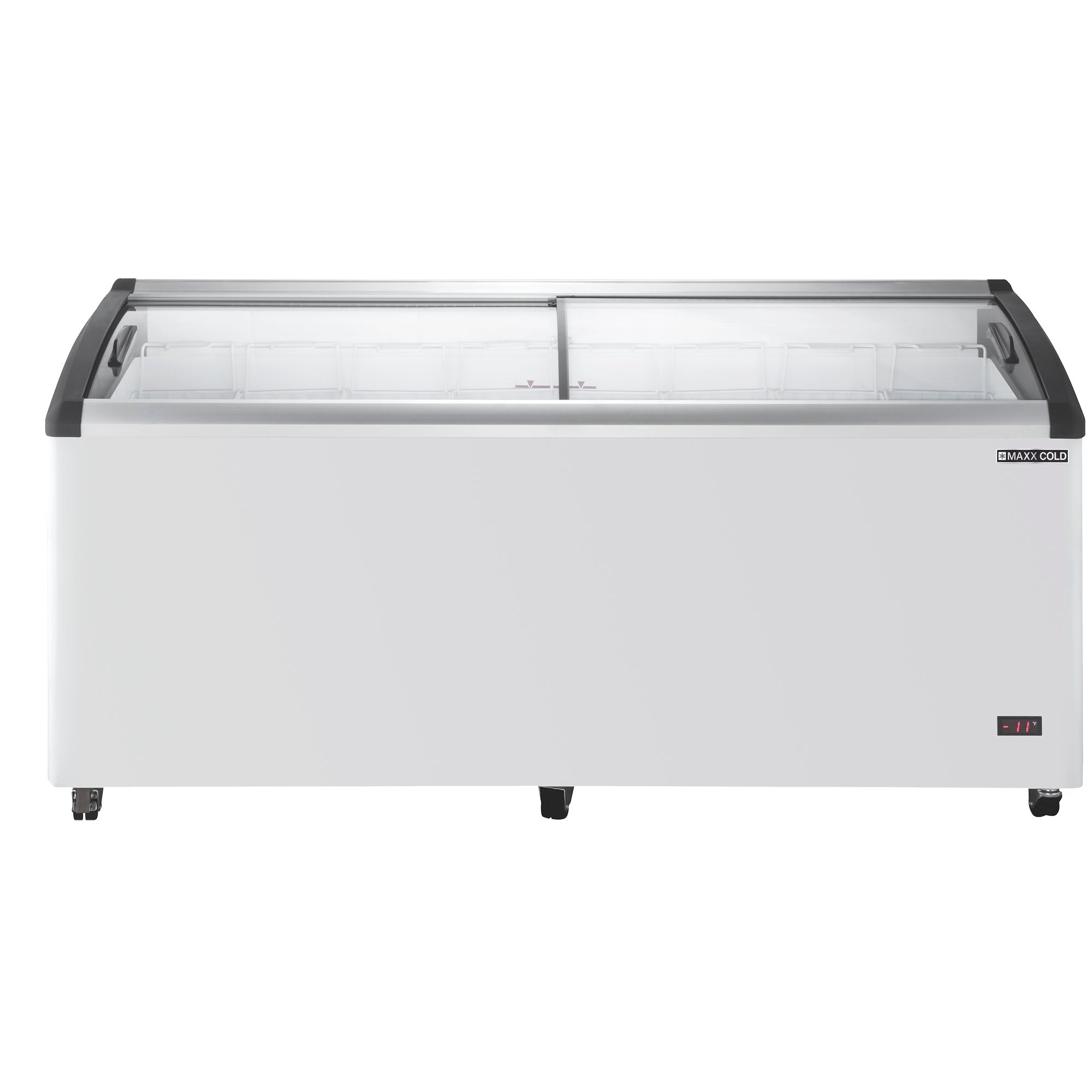

Maxx Cold Curved Glass Top Chest Freezer Display, 71.7"W, 14.30 cu. ft. Storage Capacity, Equipped with (8) Wire Baskets, in White - MXF72CHC-8
This Glass Display Freezer Merchandisers offers a spacious interior that provides up to 14.30 Cubic Ft. (405 L) of freezer storage space to store ice cream and other frozen items in an elegant and convenient presentation. The clear, curved glass sliding lids are equipped with easy grip handles, and the unit contains 2 flat wire baskets with compartments. This commercial chest freezer display is engineered with thick 2.5” foamed in-place and environmentally friendly wall insulation (polyurethane), interior LED lighting making it easier to see selection and enhance product’s appearance, and a molded plastic lid frame that is heated to prevent frost and ice build-up. Furthermore, this curved glass top freezer display is equipped with an internal condensate evaporator pan, so no floor drain is needed. This Maxx Cold freezer is constructed of durable, white powder coated, baked on enamel steel and a white powder coated finish for easy cleaning.
Features
- Constructed of white zinc coated, baked, enamel steel exterior
- Interior is constructed of pained white powder coated steel
- Clear, curved sliding glass lids and easy grip handle with lock/key
- Interior LED lights makes it easier to see selection and enhance product’s appearance
- Molded plastic lid frame heated to prevent frost or ice build-up
- Internal condensate evaporator pan therefore a floor drain is not required
- Four (4) heavy-duty casters and removable rubber bumper guards, side grill
- Available in 120V/60Hz/1pH and International voltage available
- Storage capacity of 14.30 Cubic Ft. (405 L)
- 2.5" thick foamed in-place, environmentally friendly polyurethane insulation
- Adjustable temperature range -18°F to +10°F (-28°C to -12°C)
- Supplied with eight (8) flat wired baskets
Specifications
| Adjustable Shelves |
No |
| Adjustable Temperature Control |
Yes |
| Amperage |
2.8A |
| Assembled Dimensions (LxWxH) |
27.50" x 71.70" x 33.50" |
| Assembled Weight (lb) |
232.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
14.30 cu. ft. |
| Casters |
No |
| Color |
White |
| Control Type |
Electric |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Manual |
| Depth - Door Open 90° |
27.60" |
| Depth - Excluding Door |
27.50" |
| Depth - Excluding Handles |
27.50" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Glass |
| Door Material |
Glass |
| Door Swing Orientation |
Sliding |
| Electric |
Yes |
| First Zone Maximum Temperature |
10° |
| First Zone Minimum Temperature |
-18° |
| Freezer Capacity |
14.3 cu. ft. |
| Freezer Type |
Full Freezer |
| Height - Excluding Top Hinge |
33.50" |
| Ice Maker Included |
No |
| Included Components |
Freezer, wire baskets, manual, lock kit |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Powder Coated Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Temperature Range |
-18° - 10° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Use and Care Instructions |
Wash inside with a damp warm cloth containing a water and baking soda solution |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
336W |
| Case Pack Dimensions |
86" x 42" x 40" |
| Case Pack Weight |
255.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
| Freight Class |
150.0 |
What Our Experts Think
-
Extra-Large Capacity – 14.3 cu. ft. provides ample space for frozen goods.
-
Curved Glass Top – Maximizes product visibility for an attractive display.
-
Includes 8 Wire Baskets – Keeps items organized and easy to access.
-
Sleek & Durable Design – White exterior blends seamlessly into retail and commercial spaces.
-
Efficient Cooling System – Ensures consistent freezing temperatures.
Q&A
Q: What is the storage capacity of this freezer?
A: It offers 14.30 cu. ft. of storage space, ideal for frozen food and ice cream display.
Q: What are the dimensions?
A: The unit measures 71.7”W, providing ample storage while maintaining a sleek footprint.
Q: What type of lid does it have?
A: It features a curved glass top for enhanced product visibility and easy access.
Q: How many baskets are included?
A: It comes with eight wire baskets for organized product storage.
Q: Is it energy efficient?
A: Yes, it's designed for efficient cooling with low energy consumption.
Q: What material is it made of?
A: It has a durable white exterior with a corrosion-resistant interior.
Q: Where is it best suited for?
A: Ideal for supermarkets, convenience stores, ice cream parlors, and cafés.
Maintenance Tips
-
Set & Monitor Temperature – Keep at -10°F to 0°F for ideal food preservation; use an external thermometer.
-
Defrost When Frost Exceeds ¼ Inch – Prevents ice buildup and maintains efficiency.
-
Clean Interior & Exterior – Wipe surfaces with mild detergent; avoid abrasive cleaners on glass and metal.
-
Inspect & Replace Door Seals – Ensure gaskets are intact for optimal insulation and energy efficiency.
-
Clean Condenser Coils Every 3-6 Months – Enhances cooling performance and prevents overheating.
-
Organize Storage with Wire Baskets – Keep airflow unobstructed and make items easily accessible.
-
Avoid Overloading – Maintain proper air circulation by evenly spacing stored items.
