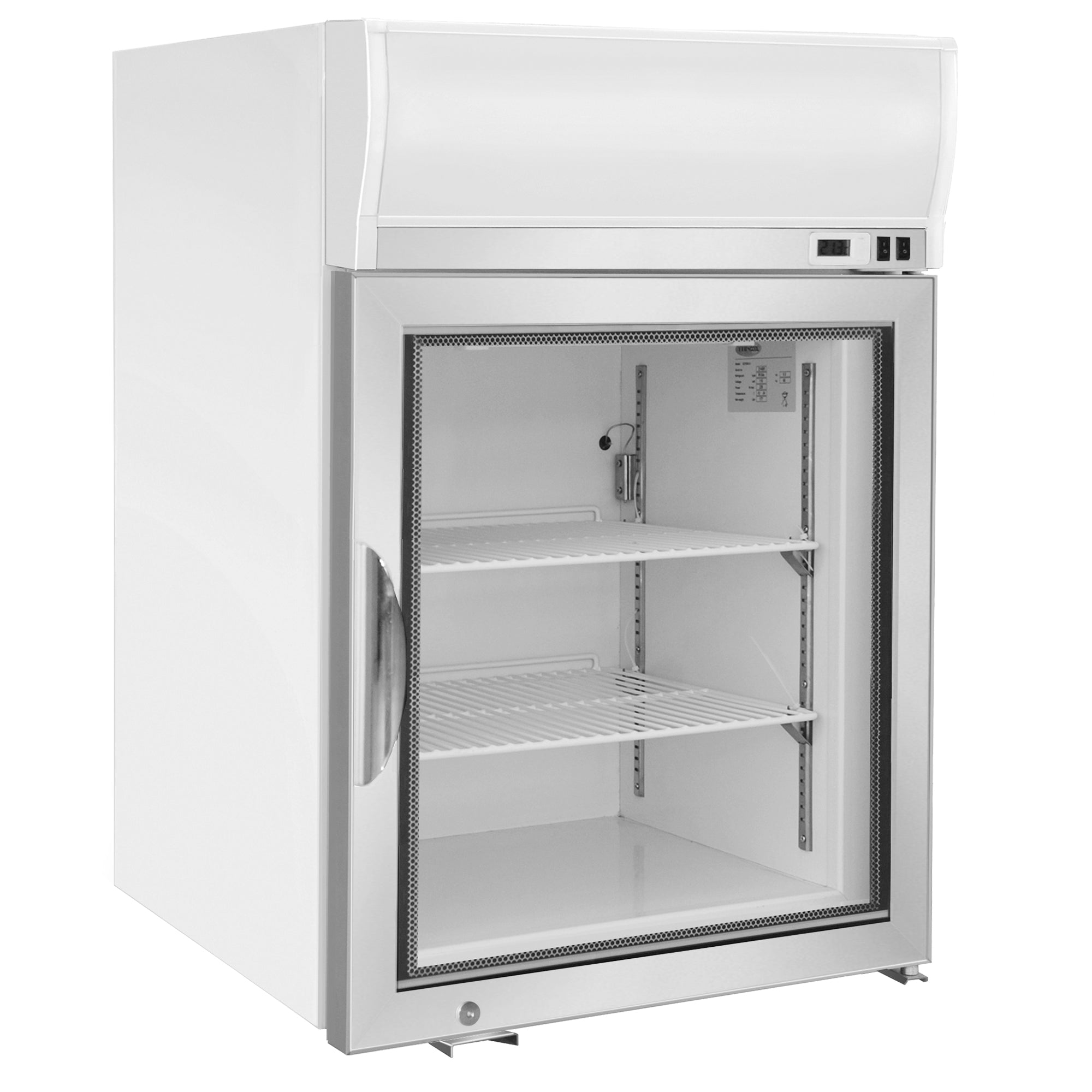

Maxx Cold Merchandiser Freezer, Countertop, 24.4"W, 4.2 cu. ft. Storage Capacity, in White - MXM1-4FHC
Maxx Cold Countertop Merchandiser Freezers are designed with a glass door to enhance product display. These energy efficient units include simple to use, programmable solid state digital controls that deliver accurate temperature regulation to preserve freshness and prolong product shelf life. This unit provides up to 4.2 Cubic Ft. (119 L) of storage space.
Features
- Constructed of white painted steel exterior and ABS interior
- Interior LED lighting
- Self-closing hinged multi-pane glass door with lock
- Adjustable feet
- Manual defrost
- Easy to read digital temperature display
- Internal condensate evaporator pan, therefore no drain connection required
- Holding temperature of 0⁰F to 10⁰F (-18⁰C to -12⁰C)
- Storage capacity of 4.2 Cubic Ft. (102 L)
- Three (3) PE coated wire shelves
- Available in 120V/60Hz/1pH and International voltage options
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
2.5A |
| Assembled Dimensions (LxWxH) |
22" x 24.30" x 35" |
| Assembled Weight (lb) |
143.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
4.2 cu. ft. |
| Casters |
No |
| Color |
White |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
42" |
| Depth - Excluding Door |
21.70" |
| Depth - Excluding Handles |
21" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Glass |
| Door Material |
Glass |
| Door Swing Orientation |
Right |
| Electric |
Yes |
| First Zone Maximum Temperature |
10° |
| First Zone Minimum Temperature |
0° |
| Freezer Type |
Full Freezer |
| Height - Excluding Top Hinge |
35" |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Powder Coated Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Number of Shelves |
2.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
24.30" |
| Temperature Range |
0° - 10° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
300W |
| Case Pack Dimensions |
30" x 20" x 44" |
| Case Pack Weight |
152.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
| Freight Class |
150.0 |
Manual
Spec Sheet
What Our Experts Think
-
4.2 cu. ft. Capacity – Perfect for countertop placement, offering compact frozen storage for small spaces.
-
White Finish – Clean and professional appearance that fits into any retail or foodservice environment.
-
Energy-Efficient – Keeps frozen items at optimal temperatures while minimizing energy use.
-
Clear Glass Display – Provides easy visibility of products, ideal for quick customer access.
-
Durable Construction – Designed for long-lasting reliability in high-traffic areas.
Q&A
Q&A for Maxx Cold Merchandiser Freezer, Countertop, 24.4"W, 4.2 cu. ft. Storage Capacity, in White - MXM1-4FHC
Q: What is the Maxx Cold MXM1-4FHC?
A: A countertop freezer with a 24.4-inch width and 4.2 cu. ft. of storage capacity, designed for showcasing frozen products in a compact and visible space.
Q: What is its storage capacity?
A: It offers 4.2 cu. ft. of storage, perfect for displaying frozen food items, ice cream, or other frozen goods.
Q: What is the temperature range?
A: The freezer operates at temperatures of -10°F to -20°F, ensuring optimal preservation of frozen products.
Q: Is it energy-efficient?
A: Yes, it is designed to operate efficiently while maintaining the required temperature for frozen goods.
Q: Where is it best used?
A: Ideal for retail stores, convenience stores, or any commercial setting where frozen items need to be displayed and easily accessible.
Q: Does it come with a warranty?
A: Yes, it comes with a manufacturer’s warranty for reliable performance and peace of mind.
Maintenance Tips
-
Clean the Condenser Coils – Clean the condenser coils every 1-2 months using a soft brush or vacuum to remove dust and debris, which helps maintain cooling efficiency and prevent overheating.
-
Inspect and Clean Door Seals – Regularly check the door gaskets for wear or dirt, and clean them with warm, soapy water. Ensure the door closes tightly to maintain temperature.
-
Monitor Temperature Settings – Keep the freezer at 0°F for proper freezing performance. Use a thermometer to ensure accurate temperature readings.
-
Wipe Down the Interior – Clean the interior of the freezer regularly with a mild detergent and warm water to prevent ice buildup and ensure hygiene. Dry thoroughly to avoid moisture accumulation.
-
Defrost Regularly – If you notice ice buildup inside the freezer, defrost it to maintain efficient cooling and prevent overworking the compressor.
-
Clear Drain Lines – Ensure the drain lines are clear and free of debris to prevent water buildup. Flush with warm water if necessary.
-
Check for Ice Build-Up – Inspect the unit regularly for ice buildup on the evaporator or walls. Promptly defrost when necessary to maintain performance.
-
Ensure Proper Airflow – Avoid blocking vents and ensure items inside the freezer are arranged for proper airflow, which helps keep the temperature consistent.
-
Check for Unusual Noises – Listen for any unusual sounds from the compressor or fan. If you hear any, address them promptly to prevent mechanical failure.
-
Polish the Exterior – Use a soft cloth and a non-abrasive cleaner to maintain the white exterior and keep it looking clean and professional.
-
Annual Professional Inspection – Schedule a professional technician to inspect refrigerant levels, electrical components, and other systems annually to ensure long-term reliability.
