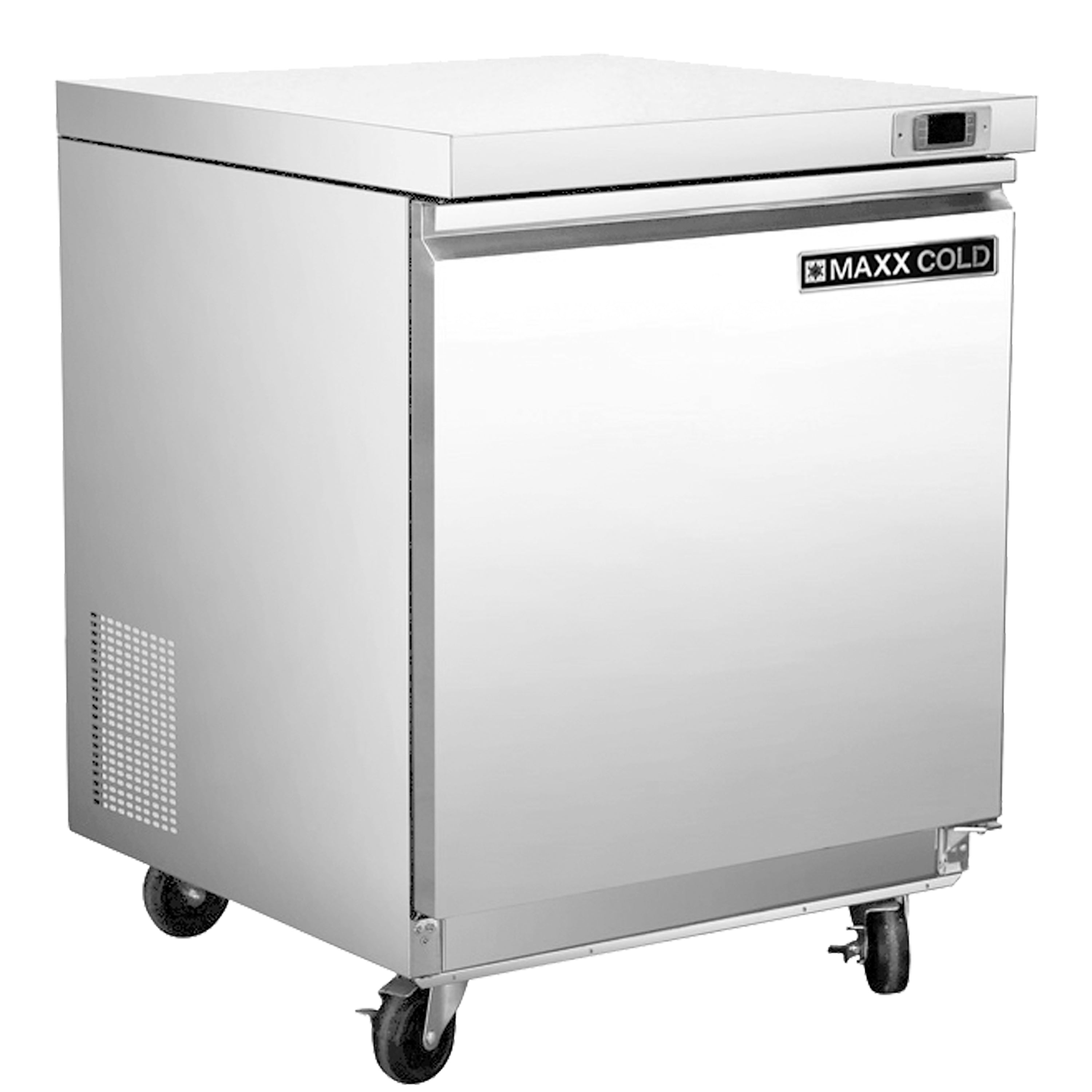

Maxx Cold Single Door Undercounter Freezer, 27.5"W, 6.7 cu. ft. Storage Capacity, in Stainless Steel - MXSF29UHC
The Maxx Cold Undercounter 1 Door Freezer lets you make the most of your limited space. This undercounter freezer is ideal for any operation that requires frozen food storage but is tight on space. The freezer is easy to clean with a durable stainless steel exterior and painted aluminum interior. Environmentally-friendly, CFC-free urethane foam insulated walls and doors maximize your energy cost savings. Keep your food organized with 6.7 cubic feet of storage and a heavy duty epoxy coated shelf. The utility compartment is rear accessed, providing space efficiency as well as easier servicing while conserving energy consumption. The self-closing, easy-to-grip door has an integrated handle and closes automatically to help conserve energy. The freezer maintains a temperature of 0°F to 10°F (-18°C to -23°C). The forced-air refrigeration system delivers even temperature regulation throughout the storage compartment for peace of mind. Four casters (two locking) allow for easy mobility—simply roll it out to clean or roll it beneath a counter for storage. This stainless steel freezer is easy to operate with an easily adjustable solid state control scheme with digital temperature display. The Maxx Cold Undercounter 1 Door Freezer is an excellent choice for fast-paced commercial kitchens tight on space.
Features
- Stainless steel exterior is durable and easy to clean
- Environmentally-friendly, CFC-free urethane foam insulated walls and doors maximize energy cost savings
- Painted aluminum interior makes cleaning a breeze
- One heavy duty epoxy coated shelf provides easy access and minimal maintenance without disrupting air flow
- Rear-accessed utility compartment provides space efficiency as well as easier servicing while conserving energy consumption
- Offers 6.7 cubic feet of storage
- Easy-to-grip, self-closing door has an integrated handle and closes automatically to help conserve energy
- Forced-air refrigeration system delivers even temperature regulation throughout the storage compartment
- Integrated condensate pan eliminates the need for floor drain connection
- Maintains a temperature of 0°F to 10°F (-18°C to -23°C)
- Oversized refrigeration and efficient foam insulation provides rapid recovery and excellent temperature regulation
- Easily adjustable solid state control scheme with digital temperature display
- Includes four 5.5" casters (two locking) for mobility
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
3.6A |
| Assembled Dimensions (LxWxH) |
30.30" x 29" x 38.30" |
| Assembled Weight (lb) |
145.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
6.7 cu. ft. |
| Caster Size |
5.50" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
58" |
| Depth - Excluding Door |
30.30" |
| Depth - Excluding Handles |
30.30" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
Right |
| Electric |
Yes |
| First Zone Maximum Temperature |
-10° |
| First Zone Minimum Temperature |
10° |
| Freezer Capacity |
6.7 cu. ft. |
| Freezer Type |
Full Freezer |
| Height - Excluding Top Hinge |
38.30" |
| Ice Maker Included |
No |
| Included Components |
Freezer, Instruction Manual, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
No |
| Interior Depth |
23.40" |
| Interior Width |
29" |
| Interior Height |
38.30" |
| Material |
Stainless Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Number of Shelves |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
29" |
| Temperature Range |
0° - 10° |
| Temperature Zones |
1.0 |
| Undercounter |
Yes |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
414W |
| Case Pack Dimensions |
48" x 40" x 53" |
| Case Pack Weight |
238.0 |
| Case Quantity |
1.0 |
Manual
Spec Sheet
What Our Experts Think
-
6.7 cu. ft. Capacity – Compact design for undercounter use, providing efficient storage without taking up valuable space.
-
27.5" Width – Perfect for tight spaces in kitchens, bars, and foodservice environments.
-
Stainless Steel Finish – Durable, sleek, and easy to clean, ensuring long-lasting performance in high-traffic areas.
-
Efficient Freezing – Keeps frozen goods at the optimal temperature to maintain freshness and quality.
-
Space-Saving Design – Ideal for kitchens with limited space while still providing reliable freezing capacity.
Q&A
Q: What are the main features of the Maxx Cold Single Door Undercounter Freezer?
A: The Maxx Cold MXSF29UHC features a 27.5" width, 6.7 cu. ft. storage capacity, and durable stainless steel construction. Its undercounter design makes it perfect for space-saving in commercial kitchens.
Q: How much storage space does the Maxx Cold Undercounter Freezer provide?
A: It offers 6.7 cu. ft. of storage, ideal for storing frozen goods in smaller commercial kitchens or workspaces.
Q: Is the Maxx Cold Undercounter Freezer energy-efficient?
A: Yes, it is designed for energy-efficient performance, helping reduce operational costs while maintaining consistent freezing temperatures.
Q: Can the Maxx Cold Freezer be used in busy commercial kitchens?
A: Yes, its compact and durable design is perfect for high-demand environments, providing easy access to frozen items.
Q: Is the Maxx Cold Undercounter Freezer easy to clean?
A: Yes, the stainless steel construction makes cleaning simple and efficient, ensuring a hygienic environment for food storage.
Maintenance Tips
-
Clean the condenser coils regularly to avoid dust buildup and ensure efficient cooling.
-
Inspect door seals for any wear and replace them if damaged to maintain cold air retention.
-
Defrost the freezer as needed to prevent ice buildup and ensure optimal performance.
-
Wipe down the interior and exterior with a mild cleaner to keep it hygienic and in good condition.
-
Ensure proper airflow around the unit to optimize cooling efficiency.
-
Monitor temperature settings regularly to ensure the freezer maintains the ideal storage conditions.
