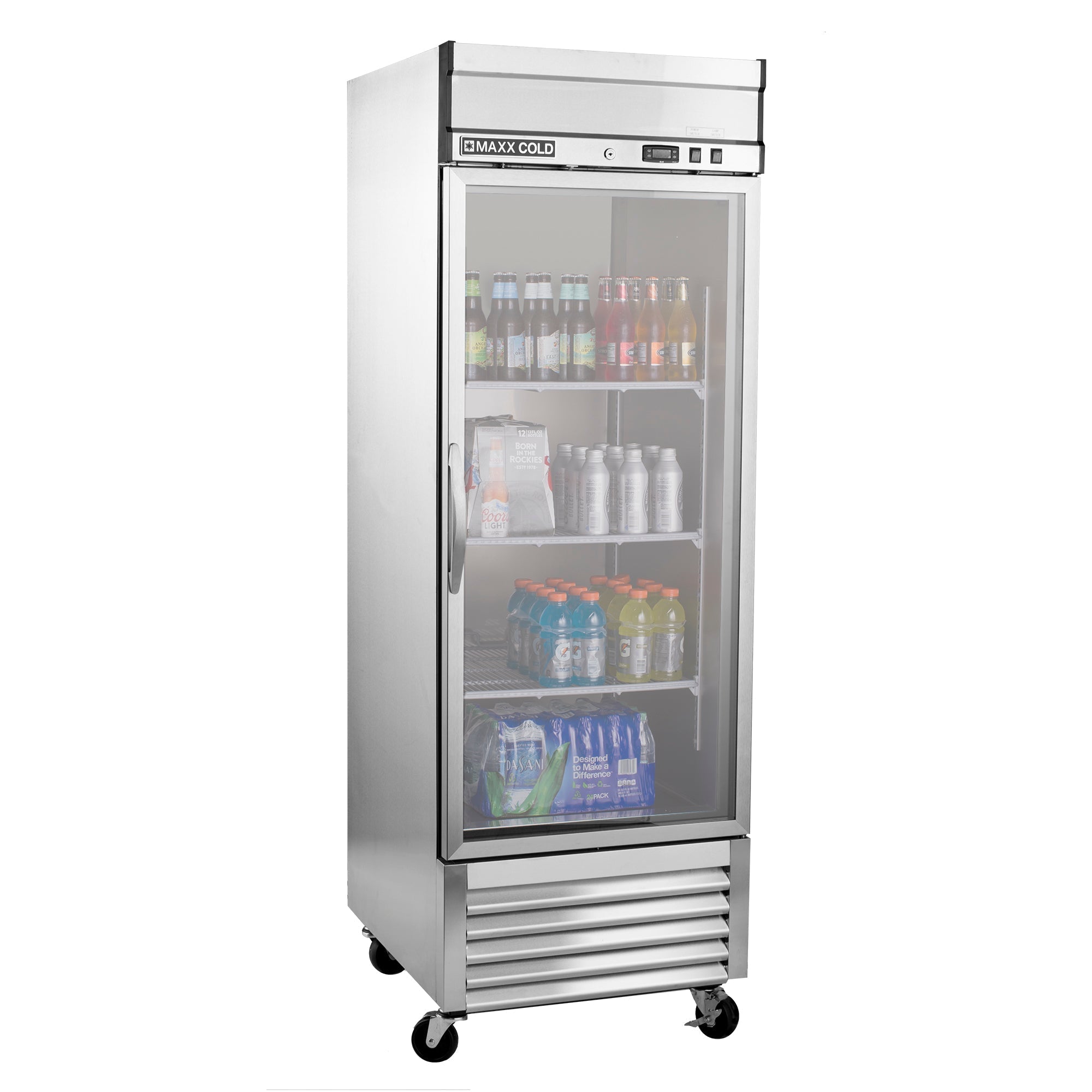

Maxx Cold Single Glass Door Reach-In Refrigerator, Bottom Mount, 27"W, 23 cu. ft. Storage Capacity, in Stainless Steel - MXSR-23GDHC
Maxx Cold reach-in refrigerators are constructed from stainless steel, engineered with digital controls and polyurethane insulation for optimal temperature control and easy maintenance. Available in 1 and 2 door configurations, each model features curved handles, door locks and PE coated wire shelving with storage space for full size sheet pans.
Features
- Stainless steel exterior and painted aluminum interior
- CFC-free polyurethane foam insulation
- 3 heavy-duty, adjustable, PE coated wire shelves per section
- Self-closing glass doors with locks
- 4” diameter swivel casters with (2) front brakes
- Utilizes environmentally friendly CFC-free R404A & R-134A refrigerant
- Automatic defrost system keeps the unit at peak operating condition
- Bottom mount compressor
- Automatic defrost system
- Digitally controlled temperature system maintains optimum temperature and LED display is easily viewed from exterior
- Net storage capacity of 19.3 Cubic Ft. (547 L)
- Gross storage capacity of 23 Cubic Ft. (651 L)
- Holding temperature 34°F to 40°F (2⁰C to 5⁰C)
- Available in 120/60Hz/1pH and International voltage options
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
2.6A |
| Assembled Dimensions (LxWxH) |
33.30" x 27" x 83.50" |
| Assembled Weight (lb) |
291.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
23 cu. ft. |
| Caster Size |
2.75" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
60.30" |
| Depth - Excluding Door |
27" |
| Depth - Excluding Handles |
33" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Glass |
| Door Material |
Glass |
| Door Swing Orientation |
Right |
| Electric |
Yes |
| First Zone Maximum Temperature |
41° |
| First Zone Minimum Temperature |
33° |
| Freezer Type |
No Freezer |
| Fresh Food Capacity |
23 cu. ft. |
| Height - Excluding Top Hinge |
79.70" |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Interior Depth |
26.80" |
| Interior Width |
22.30" |
| Interior Height |
55" |
| Material |
Stainless Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Number of Shelves |
3.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
27" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
299W |
| Case Pack Dimensions |
40" x 40" x 88" |
| Case Pack Weight |
368.0 |
Manual
Spec Sheet
What Our Experts Think
-
23 cu. ft. Capacity – Provides ample refrigerated storage space, perfect for medium-sized kitchens or foodservice operations.
-
Bottom-Mount Compressor – Enhances energy efficiency and simplifies maintenance by positioning the compressor at the bottom.
-
Stainless Steel Construction – Durable and easy to clean, built for high-use commercial environments.
-
Glass Door Design – Offers clear visibility of stored items, improving efficiency and accessibility.
-
Reliable Cooling – Maintains optimal temperatures to preserve the freshness and safety of food.
Q&A
Q: What are the main features of the Maxx Cold Single Glass Door Reach-In Refrigerator?
A: The Maxx Cold MXSR-23GDHC features a bottom-mounted compressor, 27" width, 23 cu. ft. storage capacity, and a glass door for easy visibility, all in durable stainless steel.
Q: How much storage space does the Maxx Cold Refrigerator offer?
A: It provides 23 cu. ft. of storage, ideal for storing refrigerated items in commercial kitchens or foodservice environments.
Q: Is the Maxx Cold Refrigerator energy-efficient?
A: Yes, it is designed for energy-efficient operation, helping lower energy consumption while maintaining optimal refrigeration.
Q: Can the Maxx Cold Refrigerator withstand heavy-duty use?
A: Yes, its stainless steel construction and bottom-mount compressor make it durable for heavy-duty use in high-demand commercial settings.
Q: Is the Maxx Cold Refrigerator easy to clean?
A: Yes, the stainless steel finish and glass door make it simple to clean and maintain, ensuring a hygienic environment.
Maintenance Tips
-
Clean condenser coils regularly to prevent dust buildup and ensure efficient cooling.
-
Inspect and clean door seals to ensure a tight seal and prevent cold air leakage.
-
Defrost the refrigerator as needed to prevent ice buildup and maintain optimal temperature.
-
Wipe down both interior and exterior surfaces with a mild, non-abrasive cleaner to maintain hygiene and appearance.
-
Ensure proper ventilation around the unit to enhance cooling efficiency and prevent overheating.
-
Monitor temperature settings to ensure the refrigerator maintains the correct storage temperature.
