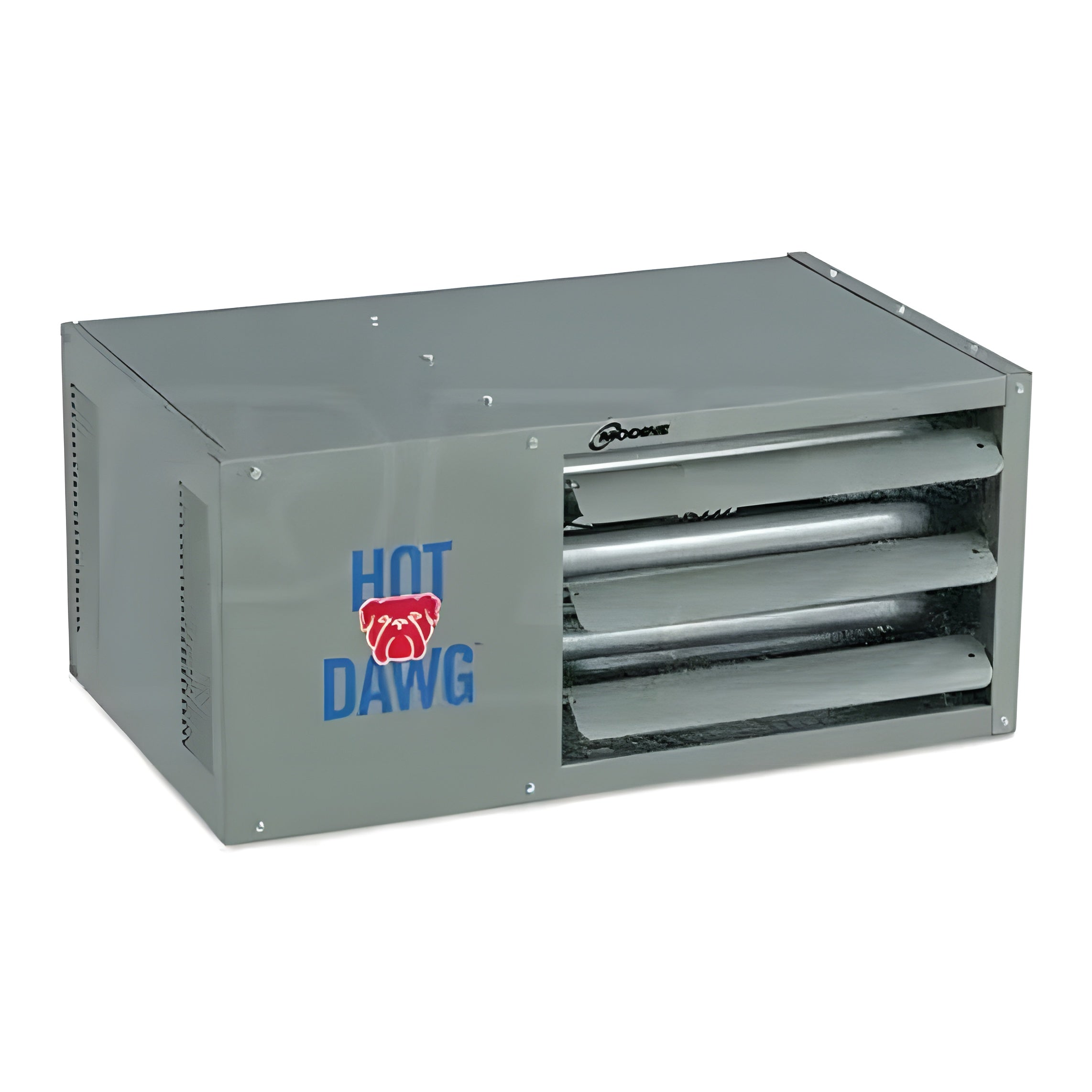

Modine Hot Dawg Garage Heater - 45K BTU
Transform your chilly garage into a comfortable haven with the Modine Hot Dawg Garage Heater. This American-made unit delivers a powerful 45,000 BTU output, ensuring your workspace stays warm and inviting all winter long.
Features
-
Made in the USA
-
Low profile, lightweight design easily installs 1” from ceiling with only two angle brackets (included)
-
Field fuel conversion kits available
-
Finger-proof fan guards on all units
-
Reduce the need for maintenance with the permanently lubricated motor
-
100% shut-off with continuous retry to allow for safe ignition in the event the unit doesn’t light on the first try
-
Right or left hand controls available on 30-75 units by rotating unit 180 degrees
-
Power vented model simplifies side-wall or roof venting with small-diameter vent pipe
-
Draws combustion air from inside the workspace
-
4 vent connection
-
Liquid Propane
-
45,000 BTU
-
Direct spark ignition
-
Single stage - on/off operation
-
Aluminized steel heat exchanger
Specifications
| Fuel Type |
Propane |
| Control Type |
Electronic/IPI |
| Color/Finish |
Gray |
| Size |
26.8"W x 13.2"T x 22"D |
What Our Experts Think
-
Perfect for Small to Medium Spaces: 45,000 BTU provides reliable heat for garages, workshops, or residential areas, effectively warming up spaces without wasting energy.
-
Energy-Efficient: Designed to maximize heat output while minimizing energy consumption, keeping operating costs low.
-
Compact and Quiet: The compact size and quiet operation make it ideal for smaller indoor environments where space and noise control are key.
-
Easy Installation and Operation: User-friendly and straightforward setup ensures quick installation and consistent performance.
-
Durable and Long-Lasting: Built for durability, offering years of reliable service with minimal maintenance.
Q&A
Q: What is the heating capacity of this unit?
A: The Modine Hot Dawg 45K BTU provides 45,000 BTU, which is ideal for heating smaller spaces up to 750 sq. ft.
Q: What fuel type does this heater use?
A: This model operates on either Natural Gas (NG) or Liquid Propane (LP), depending on your preference.
Q: Is it suitable for residential use?
A: Yes, the Modine Hot Dawg 45K BTU is perfect for residential garages, workshops, or other small to medium-sized spaces that require reliable heating.
Q: What is the material of the heat exchanger?
A: The heat exchanger is made from aluminized steel, which provides durability, corrosion resistance, and efficient heat transfer.
Q: Does the heater require professional installation?
A: Yes, professional installation is recommended to ensure proper venting, safe operation, and compliance with local codes.
Q: What safety features are included with this model?
A: The unit includes flame failure shutoff and overheat protection to ensure safe and reliable operation.
Q: Is this heater quiet when operating?
A: Yes, the Modine Hot Dawg operates quietly and efficiently, making it suitable for both home and work environments.
Q: How does the single-stage system work?
A: The heater operates at a fixed, consistent heat output level, providing straightforward and continuous warmth without cycling.
Maintenance Tips
-
Regular Cleaning: Clean both the exterior and interior of the unit to remove dirt, dust, and debris that can affect performance.
-
Inspect Gas Connections: Check LP gas lines for leaks using a soapy water solution. Repair any leaks immediately to ensure safe operation.
-
Test the Ignition System: Test the direct spark ignition system monthly to ensure reliable startup and performance.
-
Monitor Flame Quality: Ensure the flame is steady and blue. Yellow or flickering flames may indicate the need for burner cleaning or other maintenance.
-
Ensure Proper Ventilation: Ensure intake and exhaust vents are clear of blockages to promote efficient combustion and airflow.
-
Check the Burner: Clean the burner regularly to remove soot or debris that can reduce heating efficiency.
-
Inspect for Wear and Damage: Periodically check for signs of wear, corrosion, or damage, especially to the heat exchanger and gas connections.
-
Annual Professional Service: Schedule a professional service once a year to inspect all components, including the burner, ignition system, and heat exchanger.
